USER’S
MANUAL
PMB-501LF
Pentium®M
Flex-ATXMotherboard
WithVGA/Sound/2LAN
PMB-501LF M1

Copyright Notice
PMB-501LF Pentium® M
Flex-ATX Motherboard
With VGA/ Sound/ 2LAN
OPERATION MANUAL
COPYRIGHT NOTICE
This operation manual is meant to assist both Embedded Computer
manufacturers and end users in installing and setting up the system. The
information contained in this document is subject to change without any
notice.
This manual is copyrighted in July, 2006. You may not reproduce or
transmit in any form or by any means, electronic, or mechanical, including
photocopying and recording.
ACKNOWLEDGEMENTS
All trademarks and registered trademarks mentioned herein are the
property of their respective owners.
CE NOTICE
This is a class A product. In a domestic environment this product may
cause radio interference in which case the user may be required to take
adequate measures.

Copyright Notice
FCC NOTICE
This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
You are cautioned that any change or modifications to the equipment not
expressly approve by the party responsible for compliance could void
your authority to operate such equipment.

Contents
TABLE OF CONTENTS
CHAPTER 1 INTRODUCTION
1-1 About This Manual ........................................................ 1-2
1-2 System Specification ...................................................... 1-3
1-3 Safety Precautions ......................................................... 1-6
CHAPTER 2 HARDWARE CONFIGURATION
2-1 Jumper & Connector Quick Reference Table ................ 2-2
2-2 Component Locations .................................................... 2-3
2-3 How to Set the Jumpers ................................................. 2-4
2-4 COM Port Connector ……..…………………………... 2-6
2-5 COM3 RI& Voltage Selection ……………………….. 2-8
2-6 COM4 RI& Voltage Selection ………………………… 2-9
2-7 RS232/422/485(COM2) Selection ............................... 2-10
2-8 Keyboard or PS/2 Mouse Connector .....................….... 2-11
2-9 Reset Connector ............................................................ 2-11
2-10 Hard Disk Drive LED Connector .................................. 2-11
2-11 ATX Power Button ….................................................... 2-12
2-12 External Speaker Connector .......................................... 2-12
2-13 Power Led Connector ……............................................ 2-12
2-14 KeyLock Connector ..………………………………… 2-13
2-15 External SMI Connector ……………………………… 2-13
2-16 Inverter Connector ……………………………………. 2-13
2-17 Clear CMOS Data Selection ………………………… 2-14
2-18 CPU Fan Connector ………………………………….. 2-14
2-19 System Fan Connector ………………………………… 2-15
2-20 VGA Connector …………………..…………………… 2-15
2-21 Hard Disk Drive Connector ........................................... 2-16
2-22 Floppy Disk Drive Connector ....................................... 2-18
2-23 Printer Connector .......................................................... 2-19
2-24 Universal Serial Bus Connector ……………………… 2-20
2-25 IrDA Connector ………………………………………. 2-20
2-26 USB & LAN Connector ……………………………… 2-21
2-27 GigaLAN (LAN2) Enable/Disable Selection ………… 2-23
2-28 Memory Installation ………………………………….. 2-24
2-29 LVDS Connector ……………………………………… 2-24

Contents
2-30 ATX Power Connector ……………………………….. 2-25
2-31 Sound Connector ……………………………….…….. 2-26
2-32 CD Audio-in Connector ………………………………. 2-27
2-33 LVDS Panel Voltage Selection ………………………. 2-27
2-34 LVDS Brightness & Backlight Control Connector …… 2-27
CHAPTER 3 SOFTWARE UTILITIES
3-1 Introduction …………..........................................…....... 3-2
3-2 VGA Driver Utility ……………………………….…… 3-3
3-3 Flash BIOS Update ..............................................…....... 3-4
3-4 LAN Driver Utility …...........................................…...... 3-6
3-5 Sound Driver Utility …………………………………… 3-7
3-6 Intel Chipset Software Installation Utility …..……..….. 3-8
3-7 USB2.0 Software Installation Utility ………………….. 3-9
CHAPTER 4 AWARD BIOS SETUP
4-1 Introduction ................................................................... 4-2
4-2 Entering Setup ............................................................... 4-3
4-3 The Standard CMOS Features ………............................ 4-4
4-4 The Advanced BIOS Features ....................................... 4-8
4-5 Advanced Chipset Features ........................................... 4-11
4-6 Integrated Peripherals …............................................... 4-13
4-7 Power Management Setup ............................................. 4-18
4-8 PNP/PCI Configuration …............................................. 4-21
4-9 PC Health Status …….................................................... 4-23
4-10 Frequency Control ....................................…………...... 4-24
4-11 Load Fail-Safe Defaults ................................................. 4-25
4-12 Load Optimized Defaults .........................................…. 4-25
4-13 Password Setting ……………………………………… 4-26
4-14 Save & Exit Setup ......................................................... 4-27
4-15 Exit Without Saving ………………………………… 4-28

Contents
APPENDIX A EXPANSION BUS
PCI Bus Pin Assignment ..............................................…......... A-2
AGP Bus Pin Assignment ..........................………................... A-3
APPENDIX B TECHNICAL SUMMARY
Block Diagram ........................................................................... B-2
Interrupt Map ............................................................................ B-3
RTC & CMOS RAM Map ........................................................ B-4
Timer & DMA Channels Map .................................................. B-5
I/O & Memory Map ...............................................…................ B-6

Page:1-1
INTRODUCTION
This chapter gives you the information for PMB-501LF. It also
outlines the System specifications.
Section includes:
zAbout This Manual
zSystem Specifications
zSafety Precautions
Experienced users can skip to chapter 2 on page 2-1
for a Quick Start.
CHAPTER
1

Chapter 1 Introduction
Page: 1-2 PMB-501LF USER
′ S MANUAL
1-1. ABOUT THIS MANUAL
Thank you for purchasing our PMB-501LF Socket 478 Mainboard
enhanced with VGA/Sound/2LAN, which is fully PC / AT compatible.
The PMB-501LF provides faster processing speed, greater expandability
and can handle more tasks than before. This manual is designed to assist
you how to install and set up the system. It contains four chapters. The
user can apply this manual for configuration according to the following
chapters:
Chapter 1 Introduction
This chapter introduces you to the background of this manual, and the
specifications for this system. The final page of this chapter will indicate
how to avoid damaging this board.
Chapter 2 Hardware Configuration
This chapter outlines the component locations and their functions. In the
end of this chapter, you will learn how to set jumper and how to configure
this card to meet your own needs.
Chapter 3 Software Utilities
This chapter contains helpful information for proper installations of the
VGA utility, LAN utility, Sound utility, and Flash BIOS Update. It also
describes the Watchdog-timer configuration.
Chapter 4 Award BIOS Setup
This chapter indicates you how to set up the BIOS configurations.
Appendix A Expansion Bus
This Appendix introduces you the expansion bus for AGP BUS and PCI
BUS.
Appendix B Technical Summary
This section gives you the information about the Technical maps.

Chapter 1 Introduction
PMB-501LF USER ′ S MANUAL Page: 1-3
1-2. SYSTEM SPECIFICATIONS
zCPU (mPGA478):
Intel® Pentium® M / Celeron M Type processor in mPGA478 Socket.
1.3~1.8 GHz clock generator.
Front Side Bus 400 MHZ.
Auto detect voltage regulator.
zMEMORY :
Supports up to 2GB DDR SDRAM.
Two 184-pin DDR DIMM sockets on board.
zCACHE :
Built-in CPU.
zREAL-TIME CLOCK :
256-byte battery backed CMOS RAM.
Hardware implementation to indicate century rollover.
zBIOS :
Phoenix-AwardBIOS™for plug & play function.
4/8MB with VGA BIOS.
Easy update 512KB flash EEPROM.
Support S/IO Setup.
zKEYBOARD CONNECTOR :
Mini DIN connector.
Supports for AT/PS2 keyboard.
zMOUSE CONNECTOR :
Mini DIN connector.
Supports for PS/2 Mouse.
zBUS SUPPORT :
External 2 PCI, 1 AGP Bus

Chapter 1 Introduction
Page: 1-4 PMB-501LF USER
′ S MANUAL
zDISPLAY :
Built-in Intel 855GME/GM, support for CRT, DVO and LVDS.
Onboard 15-pin VGA D-SUB connector, support for resolution on SVGA
Monitor.
zIDE INTERFACE :
Two IDE ports support up to four IED devices.
Supports Ultra DMA 33/66/100.
zFLOPPY DISK DRIVER INTERFACE :
Support up to two Floppy Disk Drives, 3.5" and 5.25" (360K / 720K / 1.2M /
1.44M / 2.88M).
zUSB CONNECTOR :
Support up to six USB 2.0 ports.
zLAN ADAPTER :
Dual ports, Intel® 82562ET & Intel 82541PI (10/100/1000)
LAN1: 10BaseT/100 BaseTx Ethernet
LAN2: 10/100/1000 BaseT
Support wake-on-LAN function.
zSERIAL PORT :
Four high speed 16550 Compatible UARTs with Send / Receive 16 Byte
FIFOs; COM1/3/4:RS-232; COM2: RS-232/422/485
MIDI Compatible
Programmable Baud Rate Generator
zSOUND :
Realtek ALC202A (AC’97 Codec).
Fully Compliant AC’97 Analog I/O Component
16-Bit Stereo Full-Duplex Codec
Four Analog Line-level Stereo Inputs for Connection.
High Quality CD Input with Ground Sense
Stereo Line-Level Output
Interface: Line-In, Line-Out, Microphone, and CD Audio-In.

Chapter 1 Introduction
PMB-501LF USER ′ S MANUAL Page: 1-5
zHARDWARE MONITORING FUNCTION :
Monitor Voltage, CPU temperature, & Cooling fan.
If CPU Temperature is over setting, the buzzer will send out a warming (only
under DOS system).
zIRDA PORT :
5-pin Infrared port, support IrDA v1.0 SIR protocol
zPARALLEL PORT :
SPP / ECP / EPP Function.
1 port, bi-directional parallel port.
zGREEN FUNCTION :
Controlled by hardware and software.
zLED INDICATOR :
System power
Hard Disk access
LAN LED indicator
zDMA CONTROLLER :
82C37 x 2
zDMA CHANNELS :
7
zINTERRUPT CONTROLLERS :
82C59 x 2
zINTERRUPT LEVELS :
15
zOPERATING TEMPERATURE :
0 to 60°C.
zBOARD DIMENSIONS :
228.6mm x 190.5mm, 9” x7.5”
zBOARD NET WEIGHT :
490 gram.

Chapter 1 Introduction
Page: 1-6 PMB-501LF USER
′ S MANUAL
1-3. SAFETY PRECAUTIONS
Follow the messages below to avoid your systems from damage:
1. Keep your system away from static electricity on all occasions.
2. Prevent electric shock. Don‘t touch any components of this card when the
card is power-on. Always disconnect power when the system is not in use.
3. Disconnect power when you change any hardware devices. For instance,
when you connect a jumper or install any cards, a surge of power may
damage the electronic components or the whole system.

Page 2-1
HARDWARE
CONFIGURATION
** QUICK START **
CHAPTER
2
Helpful information describes the jumper & connector settings, and
component locations.
Section includes:
zJumper & Connector Quick Reference Table
zComponent Locations
zConfiguration and Jumper settings
zConnector’s Pin Assignments

Chapter 2 Hardware Configuration
Page: 2-2 PMB-501LF USER
′ S MANUAL
2-1. JUMPER & CONNECTOR QUICK REFERENCE TABLE
COM Port Connector ....................…..................………
………………………………….. COM1, COM2
COM3, COM4
COM3 Port RI/Voltage Selection ……………………. JP1
COM4 Port RI/Voltage Selection …………………….. JP3
RS232/422/485 (COM2) Selection .....................……… JP5
Keyboard/Mouse Connector ..........….....……………… JKBMS1
Reset Connector .........................…....................………. JPANEL (13,15)
Hard Disk Drive LED Connector .......................………. JPANEL (9,11)
ATX Power Button …………………………………….. JPANEL (14,16)
External Speaker Connector ....…........................……… JPANEL (1,3,5,7)
Power LED Connector …………….…...............……… JPANEL (8,10,12)
KeyLock Connector ……………………………………. JPANEL (17,18)
External SMI Connector ……………………………….. JPANEL (2, 4)
Inverter Connector …………………………………….. J3
Clear CMOS Data Selection …………………………… JP12
CPU Fan Connector …………………………………… JCFAN1
System Fan Connector …………………………………. JSFAN1
VGA Connector …................……..…………………… VGA
Hard Disk Drive Connector …..............…….........……. IDE1, IDE2
Floppy Disk Drive Connector ….............…….......……. FDD1
Printer Connector …........................…...…….........…… LPT1
Universal Serial Bus Connector …........................…..… JUSB1
IrDA Connector ……………………………………….. IRDA1, JPANEL (21-24)
USB&LAN Connector …....................................…… J1, J2
GigaLAN (LAN2) Enable/Disable Selection ………….. JP2
ATX Power Connector ………………………………… PW1
Memory Installation ..................................…......……… DIMM1, DIMM2
LVDS Connector ……………………………………… J4
Sound Connector ………………………….…………… JAUDIO1
CD Audio-In Connector ……………………………….. JCDIN1
LVDS Voltage Selection ……………………………… JP9
Reserved Pin …………………………………………… J7, JP8,

Chapter 2 Hardware Configuration
PMB-501LF USER ′ S MANUAL Page: 2-3

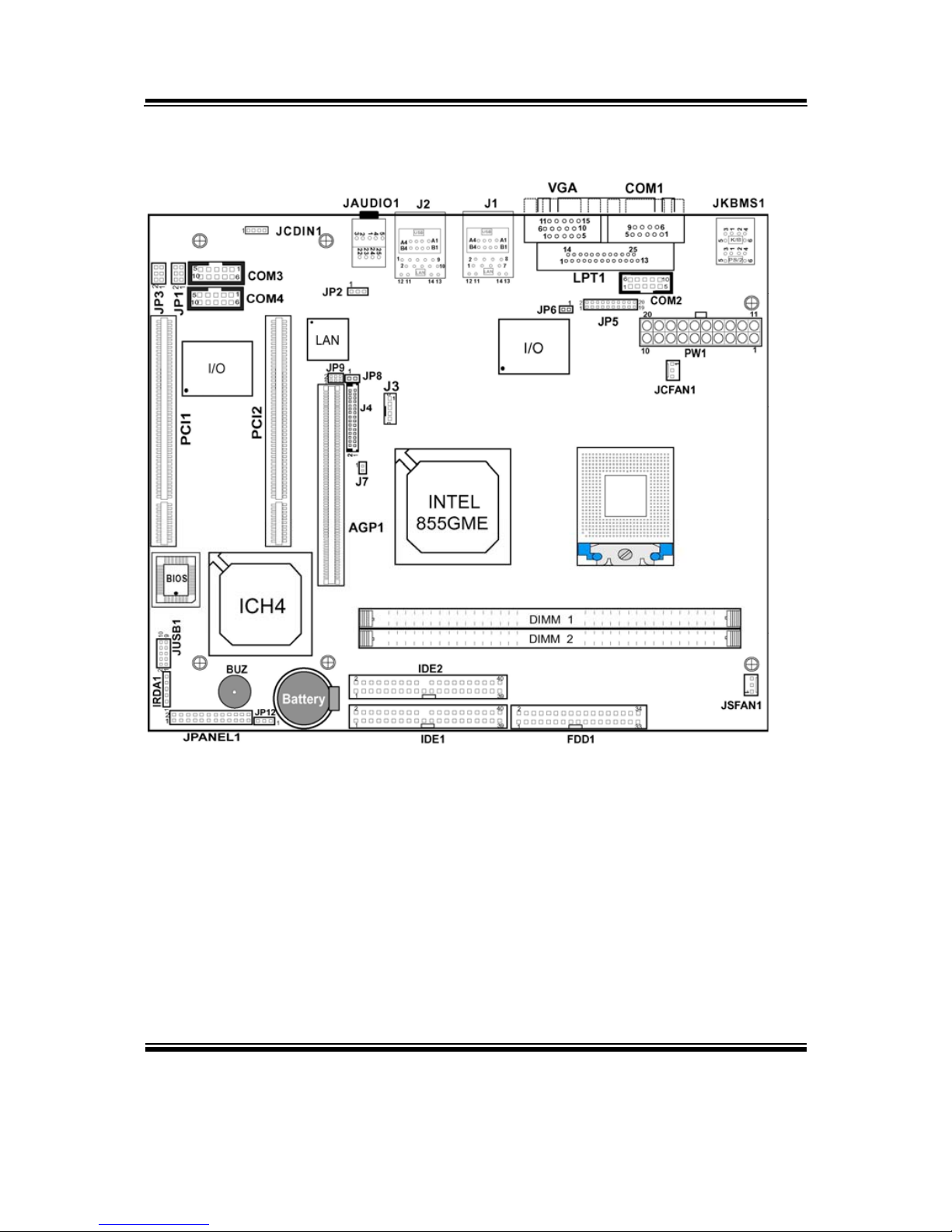

2-2. COMPONENT LOCATIONS
PMB-501LF Connector, Jumper and Component locations

Chapter 2 Hardware Configuration
Page: 2-4 PMB-501LF USER
′ S MANUAL
2-3. HOW TO SET THE JUMPERS
You can configure your board by setting jumpers. Jumper is consists of
two or three metal pins with a plastic base mounted on the card, and by
using a small plastic "cap", Also known as the jumper cap (with a metal
contact inside), you are able to connect the pins. So you can set-up your
hardware configuration by "open"or "close"pins.
The jumper can be combined into sets that called jumper blocks. When
the jumpers are all in the block, you have to put them together to set up
the hardware configuration. The figure below shows how this looks like.
JUMPERS AND CAPS
If a jumper has three pins (for examples, labelled PIN1, PIN2, and PIN3),
You can connect PIN1 & PIN2 to create one setting and shorting. You
can either connect PIN2 & PIN3 to create another setting. The same
jumper diagrams are applied all through this manual. The figure below
shows what the manual diagrams look and what they represent.

Chapter 2 Hardware Configuration
PMB-501LF USER ′ S MANUAL Page: 2-5
JUMPER DIAGRAMS
2 pin Jumper
looks like this
Jumper Cap
looks like this
3 pin Jumper
looks like this
Jumper Block
looks like this
JUMPER SETTINGS
Looks like this
3 pin Jumper
2-3 pin close(enabled)
Looks like this
Jumper Block
1-2 pin close(enabled)
2 pin Jumper close(enabled)
1
1
1212
1
1
Looks like this

Chapter 2 Hardware Configuration
Page: 2-6 PMB-501LF USER
′ S MANUAL

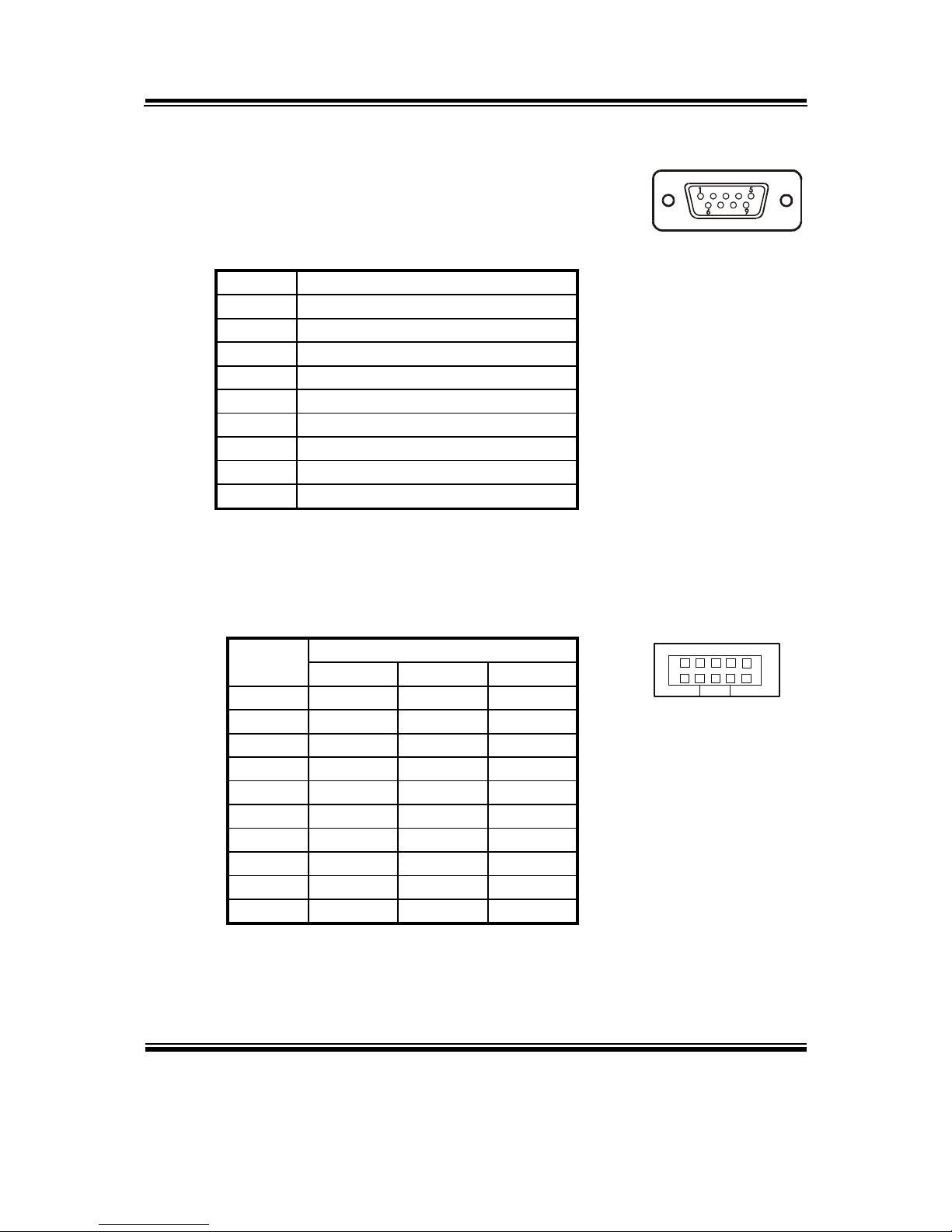

2-4. COM PORT CONNECTOR
COM1 : COM1 Connector
COM1 is fixed as RS-232.
The pin assignment is as follows :
PIN ASSIGNMENT
1 DCD1
2 RX1
3 TX1
4 DTR1
5 GND
6 DSR1
7 RTS1
8 CTS1
9 RI1
COM2 : COM2 Connector
The COM2 is selectable as RS-232/422/485.
The pin assignment is as follows :
ASSIGNMENT
PIN RS-232 RS-422 RS-485
1 DCD2 TX- TX-
2 RX2 TX+ TX+
3 TX2 RX+ RX+
4 DTR2 RX- RX-
5 GND GND GND
6 DSR2 RTS- NC
7 RTS2 RTS+ NC
8 CTS2 CTS+ NC
9 RI2 CTS- NC
10 NC NC NC
1
65 10
COM2
COM1

Chapter 2 Hardware Configuration
PMB-501LF USER ′ S MANUAL Page: 2-7
COM3 : COM3 Connector
COM3 is fixed as RS-232.
The pin assignment is as follows :
PIN ASSIGNMENT
1 DCD3
2 RX3
3 TX3
4 DTR3
5 GND
6 DSR3
7 RTS3
8 CTS3
9 RI3
10 NC
COM4 : COM4 Connector
COM4 is fixed as RS-232.
The pin assignment is as follows :
PIN ASSIGNMENT
1 DCD4
2 RX4
3 TX4
4 DTR4
5 GND
6 DSR4
7 RTS4
8 CTS4
9 RI4
10 NC
1
6
5
10
COM3
1
6
5
10
COM4

Chapter 2 Hardware Configuration
Page: 2-8 PMB-501LF USER
′ S MANUAL

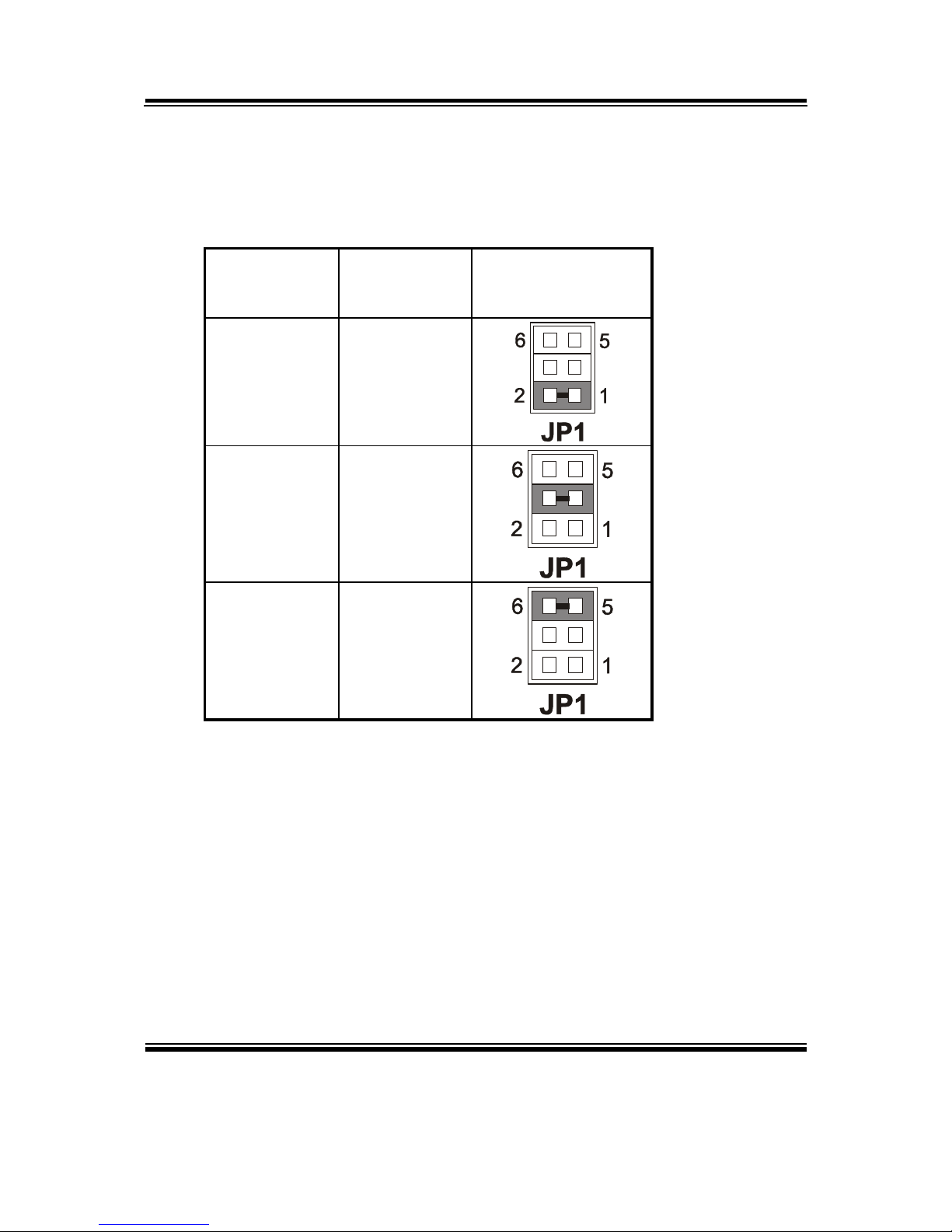

2-5. COM3 RI & VOLTAGE SELECTION
JP1 : COM3 RI & Voltage Selection
The selections are as follows:
SELECTION JUMPER
SETTINGS JUMPER
ILLUSTRATION
RI 1-2
+12V 3-4
+5V 5-6
***Manufacturing Default – RI.
