DFI P2BLX User manual

P2BLX
Rev. A+
System Board
Carte Mère Manuel
System-Platine
Users Manual
Pour Utilisateur
Benutzerhandbuch
37000833

Copyright
This publication contains information that is protected by copyright. No part of it may
be reproduced in any form or by any means or used to make any transformation/
adaptation without the prior written permission from the copyright holders.
This publication is provided for informational purposes only. The manufacturer makes
no representations or warranties with respect to the contents or use of this manual and
specifically disclaims any express or implied warranties of merchantability or fitness
for any particular purpose.The user will assume the entire risk of the use or the results
of the use of this document. Fur ther, the manufacturer reserves the right to revise this
publication and make changes to its contents at any time, without obligation to notify
any person or entity of such revisions or changes.
© 1998. All Rights Reserved.
Trademarks
Microsoft®MS-DOS®, WindowsTM
and Windows®95 are registered trademarks of
Microsoft Corporation. Intel®, Pentium®II and CeleronTM are registered trademarks of
Intel Corporation. Award is a registered trademark of Award Software, Inc. Other
trademarks and registered trademarks of products appearing in this manual are the
properties of their respective holders.
Caution:
Danger of explosion if battery incorrectly replaced.
Replace only with the same or equivalent type recommended by the
manufacturer.
Dispose of used batteries according to the battery manufacturers instructions.
FCC and DOC Statement on Class B
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference when the
equipment is operated in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
 Reorient or relocate the receiving antenna.
 Increase the separation between the equipment and the receiver.
 Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
 Consult the dealer or an experienced radio TV technician for help.
Notice:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables must be used in order to comply with the emission
limits.

Table of Contents / Sommaire / Inhaltsverzeichnis
Chapter 1 - Introduction
1.1 Features and Specifications..................................................................................
1.2 Package Checklist.........................................................................................................
Chapter 2 - Hardware Installation
2.1 System Board Layout .............................................................................................
2.2 DIP Switch Settings of the Processors....................................................
2.3 Jumper Settings for Clearing CMOS Data..........................................
2.4 Jumper Settings for Wake-On-Keyboard/Mouse....................................
2.5 Connectors.........................................................................................................................
Chapter 3 - Award BIOS Setup Utility
3.1 Entering the Award BIOS Setup Utility....................................................
3.2 Setting the Date and Time..................................................................................
3.3 Selecting the Hard Drive and Floppy Drive Type..........................
3.4 Selecting the Drive to be Searched First for an Operating
System.....................................................................................................................................
3.5 Setting the External System Bus Clock of the Processor.......
3.6 Selecting an IRQ for the External Modem...........................................
3.7 Selecting the Method of Powering-off the System........................
3.8 Loading Fail-Safe Settings/Optimal Settings.........................................
3.9 Setting the Wake-On-Keyboard/Mouse Function...........................
3.10 Selecting the Power Lost Resume State.................................................
3.11 Setting the Supervisor/User Password....................................................
Chapter 4 - Supported Softwares
4.1 Utility.........................................................................................................................................
Appendix A - System Error Messages
A.1 POST Beep.......................................................................................................................
A.2 Error Messages..............................................................................................................
4
7
19
20
21
22
23
24
25
27
27
30
31
8
9
10
10
11
33
34
34
Note:
The users manual in the provided CD contains detailed information
about the system board. To view the users manual, insert the CD
into a CD-ROM drive. The autorun screen (Main Board Utility CD) will
appear. Click Users Manual.

Introduction
1
4
1.1 Features and Specifications
Caractéristiques et Spécifications
Leistungsmerkmale und Technische Daten
1.1.1 Features / Caractéristiques / Leistungsmerkmale
Chipset
 Intel

440LX AGPset
Processor
The system board is equipped with a switching voltage regulator
that automatically detects 1.8V to 3.5V.
 233/266/300/333MHz Pentium

II processors
 266/300/300A/333MHz CeleronTM processor
System Memory
The system board supports 8MB to 384MB using unbuffered
SDRAM or EDO memory. It is equipped with three 168-pin DIMM
sockets using x64/x72 EDO (50/60ns) or SDRAM (10/12/13ns),
3.3V. It also supports ECC (uses x72 DRAM).
Expansion Slots
The system board is equipped with 1 dedicated AGP slot, 3
dedicated PCI slots, 1 dedicated 16-bit ISA slot and 1 shared PCI/
ISA slot. All PCI and ISA slots are bus masters.
Desktop Management Interface (DMI)
The system board comes with a DMI 2.0 built into the BIOS. The
DMI utility in the BIOS automatically records various information
about your system configuration and stores these information in the
DMI pool, which is a part of the system board's Plug and Play
BIOS. DMI, along with the appropriately networked software, is
designed to make inventor y, maintenance and troubleshooting of
computer systems easier.
Connectors
 2 connectors for external USB ports
 1 connector for IrDA interface
 2 serial ports
Chapter 1 - Introduction / Introduction / Einleitung
DIMMs
1MBx64/x72
2MBx64/x72
4MBx64/x72
Memory Size
8MB
16MB
32MB
DIMMs
8MBx64/x72
16MBx64/x72
Memory Size
64MB
128MB

1
Introduction
5
 1 parallel por t
 2 IDE connectors
 1 floppy connector
 1 PS/2 mouse port
 1 PS/2 or AT keyboard por t
 1 20-pin ATX power supply connector
 1 12-pin standard AT power supply connector
 1 Wake-On-LAN connector
 1 SB-LINK connector
PCI Bus Master IDE Controller
 Two PCI IDE interfaces support up to four IDE devices
 Ultra DMA/33 supported (Synchronous Ultra DMA mode -
data transfer rate up to a maximum of 33MB/sec.)
 PIO Mode 3 and Mode 4 Enhanced IDE (data transfer rate up
to 16.6MB/sec.)
 Bus mastering reduces CPU utilization during disk transfer
 ATAPI CD-ROM, LS-120 and ZIP supported
IrDA Interface
The system board is equipped with an IrDA connector for wireless
connectivity between your computer and peripheral devices. It
supports peripheral devices that meet the IrDA or ASK IR standard.
USB Ports
The system board is equipped with a header for external USB ports.
USB allows data exchange between your computer and a wide
range of simultaneously accessible external Plug and Play peripherals.
BIOS
 Award BIOS, Windows

95 Plug and Play compatible
 Flash EPROM for easy BIOS upgrades
1.1.2 Intelligence / Intelligence / Intelligente Ausstattungsteile
Automatic CPU Fan Off
The CPU fan will automatically turn off once the system enters the
Suspend mode. This prevents system overheat and prolongs fan life.
Dual Function Power Button (ATX power supply only)
Depending on the setting in the BIOS setup, this switch will allow
your system to enter the Soft-Off or Suspend mode.
External Modem Ring-on (ATX power supply only)
The Modem Ring-on feature allows the system that is in the
Suspend mode or Soft Power Off mode to wake-up/power-on to
respond to incoming calls. This feature supports external modem
only.

Introduction
1
6
RTC Timer to Power-On the System (ATX power supply only)
The RTC installed on the system board allows your system to
automatically power-on on the set date and time.
Wake-On-LAN Ready (ATX power supply only)
The Wake-On-LAN function allows the network to remotely wake
up a Soft Power Down (Soft-Off) PC. Your LAN card must support
the remote wakeup function.
Important:
The 5VSB power source of your power supply must support
720mA (minimum).
Wake-On-Keyboard/Wake-On-Mouse (ATX power supply only)
This function allows you to use the keyboard or mouse to power-on
the system. Refer to sections 2.4 (chapter 2) and 3.9 (chapter 3) for
more information.
Important:
The power button will not function once a keyboard password
has been set in the KB Power On Password field of the
Integrated Peripherals setup. To power-on the system, you must
type the password then press <Enter>.
ACPI (ATX power supply only)
The system board is designed to meet the ACPI (Advanced
Configuration and Power Interface) specification. ACPI has energy
saving features that enables PCs to implement Power Management
and Plug-and-Play with operating systems that support OS Direct
Power Management.
Virus Protection
Most viruses today destroy data stored in hard drives. The system
board is designed to protect the boot sector and partition table of
your hard disk drive.

1
Introduction
7
1.2 Package Checklist
Liste de Vérification de lEmballage
Verpackungsliste
The system board package contains the following items:
þThe system board
þA users manual
þSerial, mouse and printer port cables
Option 1:
- One card-edge bracket with a 9-pin and 25-pin serial por t
cables
- One card-edge bracket with a 25-pin printer por t cable and
a PS/2 mouse port cable
Option 2:
- One card-edge bracket with two 9-pin serial port cables
and a PS/2 mouse port cable
- One 25-pin printer port cable for chassis mounting
þOne 40-pin IDE hard disk cable
þOne 34-pin floppy disk drive cable
þOne CD
¨One card-edge bracket with two USB ports (optional)
If any of these items are missing or damaged, please contact your
dealer or sales representative for assistance.

2
8
Hardware Installation
2.1 System Board Layout
Position de la Carte Système
Aufbau der Hauptplatine
Chapter 2 - Hardware Installation
Installation du Matériel
Installation der Hardware

2
Hardware Installation
9
2.2 DIP Switch Settings of the Processors
Positionnement des Cavaliers des Processeurs
DIP Schaltereinstellungen für den Prozessor

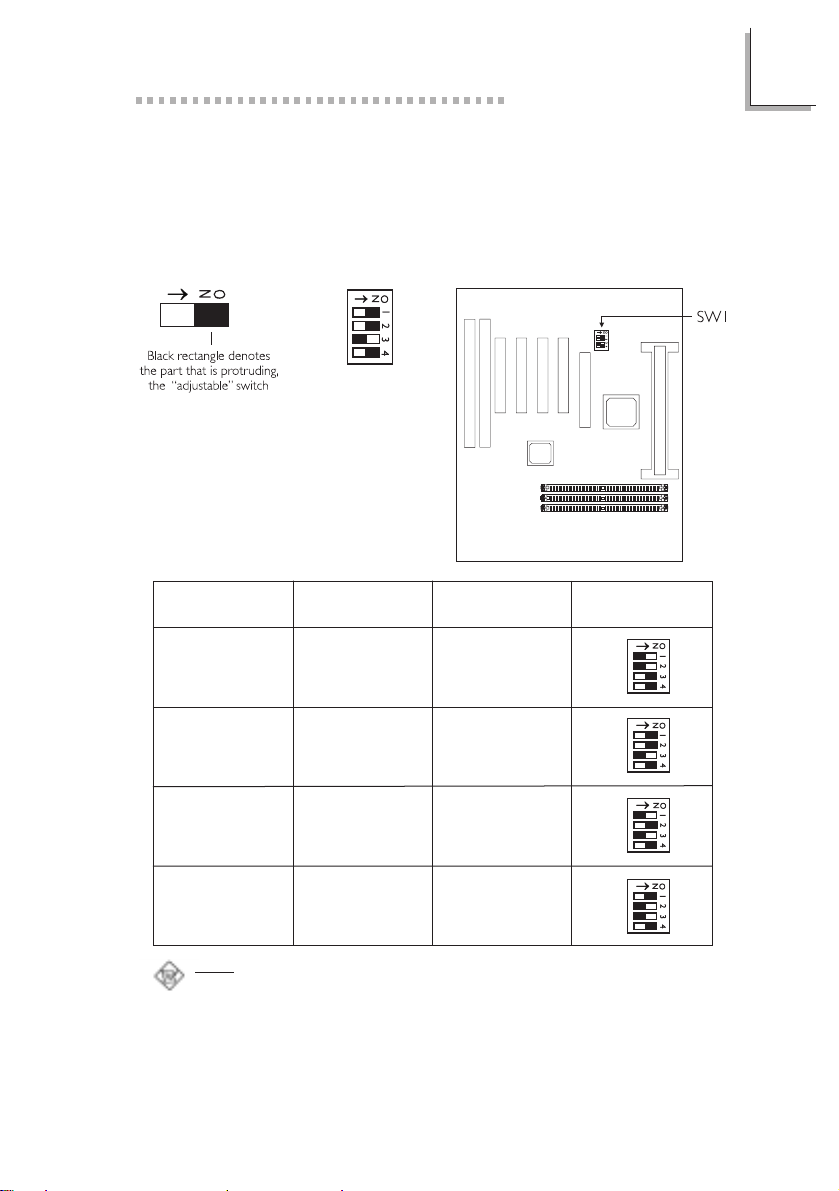

The table below shows the supported processors and their
corresponding DIP switch settings (SW1).
In the example above:
Switch 1: On
Switch 2: On
Switch 3: Off
Switch 4: On
Note:
Intel Pentium

II processors or Intel CeleronTM processors support VID (Voltage
Identification). The switching voltage regulator on the system board will
automatically set the voltage regulator according to the voltage of the processor.
Processor
Frequency Ratio SW1
3.5x
4x
4.5x
5x
External System
Bus Clock
66MHz
66MHz
66MHz
66MHz
233MHz
266MHz
300MHz
333MHz
CPU Frequency

2
10
Hardware Installation

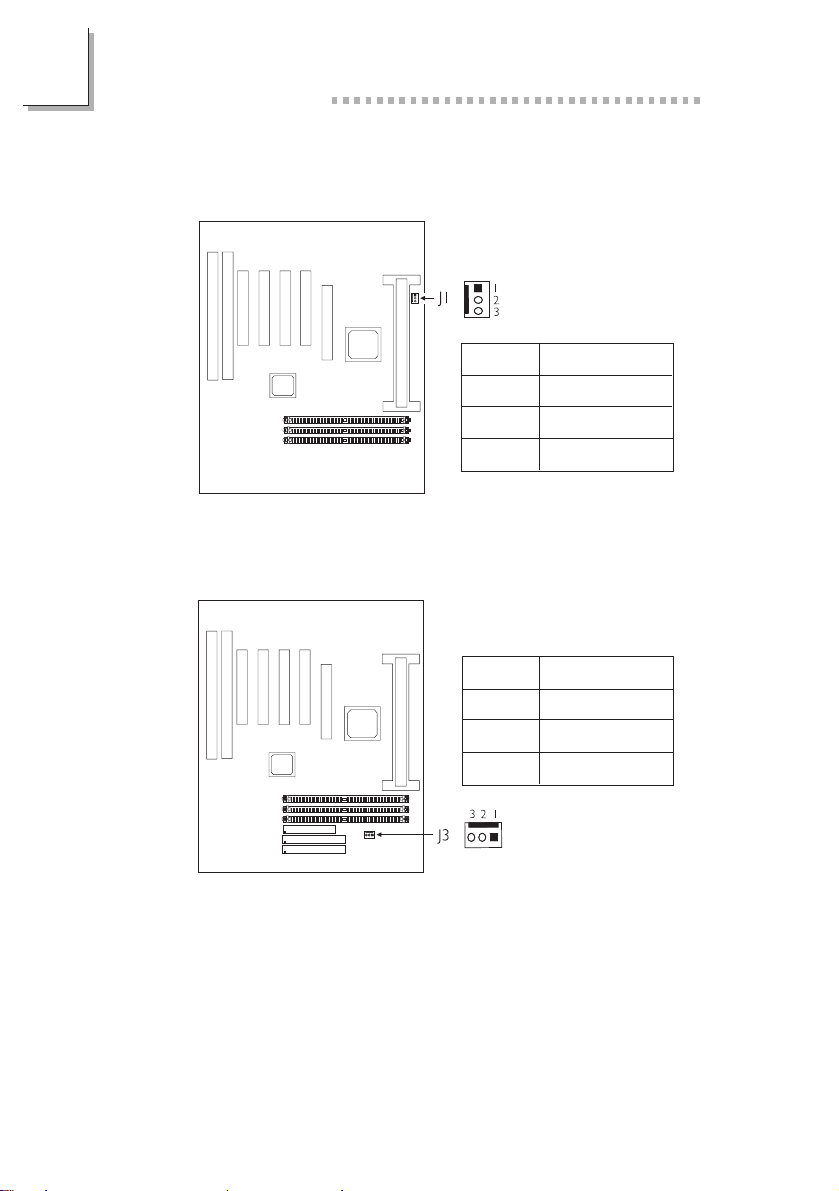

2.4 Jumper Settings for Wake-On-Keyboard/Mouse
Positionnement des Cavaliers pour Réveil-Sur-Clavier/
Souris
Jumpereinstellungen für die Wake-On Tastatur/Maus
Note:
ATX power supply only.
Jumper JP1 - Wake-on-Keyboard/Wake-On-Mouse
To use the keyboard or mouse to power-on the system, please
follow the steps on the next page.
2.3 Jumper Settings for Clearing CMOS Data
Positionnement des Cavaliers pour Effacer les Données
CMOS
Jumpereinstellungen zum Löschen der CMOS Daten
Jumper JP12 - Clear CMOS Data
To load the default values
stored in the ROM BIOS,
please follow the steps below.
1. Power-off the system and
unplug the power cord. If
you are using an AT power
supply, you do not need to
unplug the power cord.
2. Set JP12 pins 2 and 3 to
On. Wait for a few seconds
and set JP12 back to its
default setting, pins 1 and 2
On.
3. Plug the power cord and power-on the system.
2-3 On:
Clear CMOS Data
1-2 On: Normal
(default)
1
2
3
1
2
3

2
Hardware Installation
11
1. Set JP1 to 2-3 On - enable.
2 Keyboard/Mouse Power On
in the Integrated Peripherals
setup of the Award BIOS
must be set accordingly. Refer
to section 3.9 (chapter 3) for
more information.
Warning:
1. The power button will
not function once a
keyboard password has
been set in the KB
Power On Password
field of the Integrated
Peripherals setup. To
power-on the system, you must type the password then
press <Enter>.
2. The 5VSB power source of your power supply must support
720mA (minimum).
2-3 On: Enable1-2 On: Disable
(default)
321 321
2.5 Connectors / Connecteurs / Anschlüsse

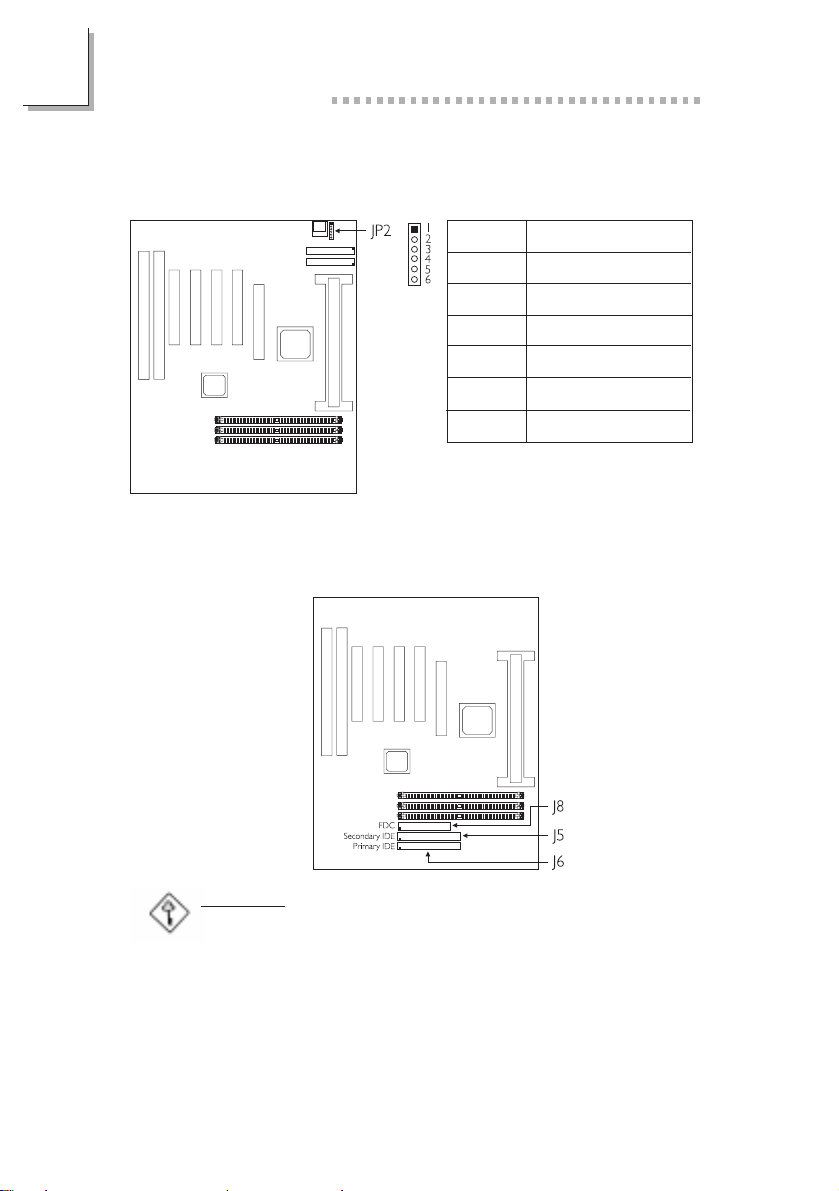

2.5.1 Serial Ports / Parallel Port
Ports Série / Port Parallèle
Serielle Anschlüsse / Paralleler Anschluß

2
12
Hardware Installation
2.5.3 Floppy Disk Drive Controller and IDE Interface
Contrôleur de Lecteur de Disquette et Interface IDE
Diskettenlaufwerkcontroller und IDE Interface
Important:
If you encountered problems while using an ATAPI CD-ROM drive
that is set in Master mode, please set the CD-ROM drive to
Slave mode. Some ATAPI CD-ROMs may not be recognized and
cannot be used if incorrectly set in Master mode.
2.5.2 PS/2 Mouse Port
Ports Souris PS/2
PS/2-Maus-Anschluß
Pin
1
2
3
4
5
6
Function
Mouse Data
Reserved
Ground
+5V
Mouse Clock
Reserved

2
Hardware Installation
13

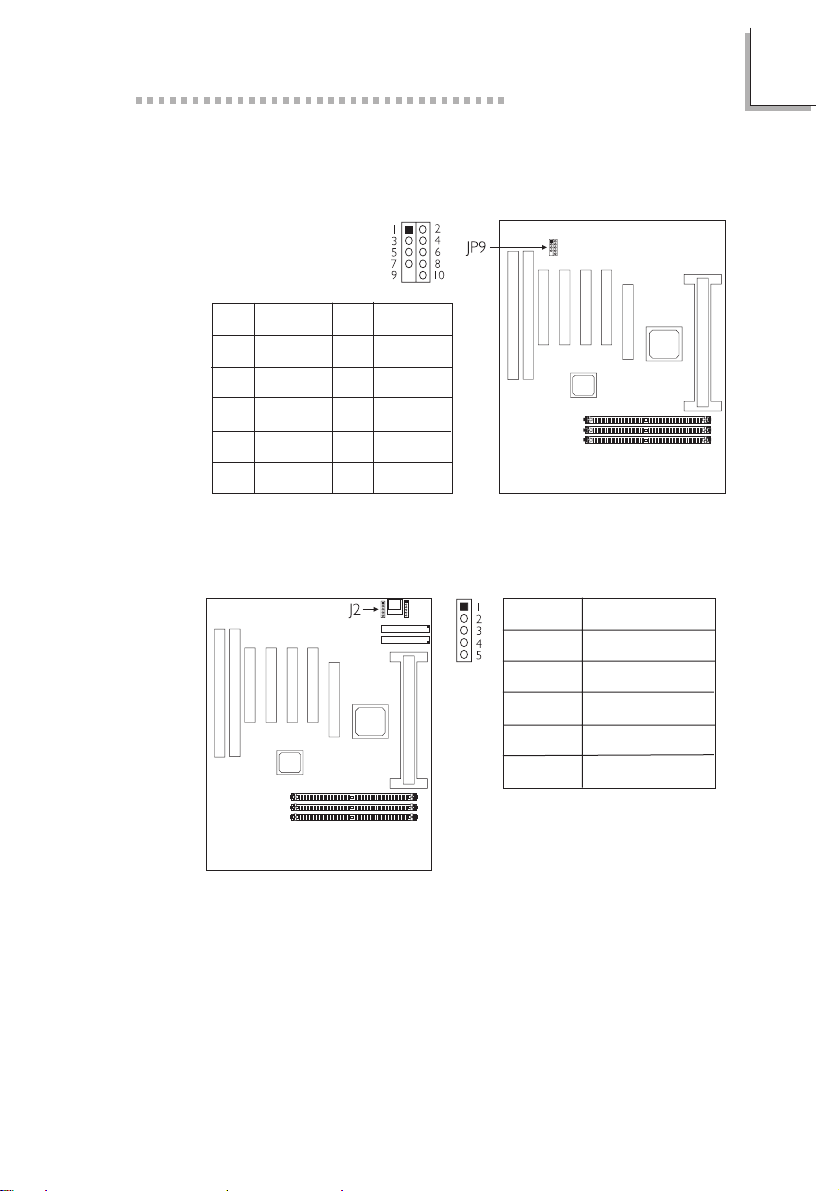

2.5.4 Universal Serial Bus Ports
Ports de Bus Série Universels
Universelle Serielle Bus-Anschlüsse
Pin
1
3
5
7
9
+5V
-Data
+Data
Ground
Key
+5V
-Data
+Data
Ground
Ground
Pin
2
4
6
8
10
2.5.5 IrDA Connector
Connecteur IrDA
IrDA Anschlüsse
Pin
1
2
3
4
5
Function
IRTX
Ground
IRRX
N. C.
VCC

2
14
Hardware Installation
2.5.7 Chassis Fan Connector
Connecteur de Châssis de Ventilateur
Anschluß Kühlungsgehäuse
2.5.6 CPU Fan Connector
Connecteur du Ventilateur de CPU
CPU Kühlung Anschluß
Pin
1
2
3
Function
Control
+12V
N. C.
Pin
1
2
3
Function
Control
+12V
N. C.

2
Hardware Installation
15
2.5.8 AGP Fan Connector
Connecteur de Ventilateur AGP
Anschluß AGP Kühlung
Pin
1
2
3
Function
Control
+12V
N. C.
2.5.9 SB-LINK Connector
Connecteur de SB-LINK
Anschluß SB-LINK
Pin
1
2
3
4
5
6
Function
PC-PCI-GNTx
DGND
Key
PC-PCI-REQx
DGND
SERIRQ

2
16
Hardware Installation
Important:
The 5VSB power source of your power supply must support
720mA (minimum).
2.5.10 Wake-On-LAN (WOL) Connector
Connecteur Réveil-Sur-LAN (WOL)
Wake-On-LAN (WOL) Anschluß
Note:
ATX power supply only.
Pin
1
2
3
Function
+5VSB (720mA)
Ground
WOL

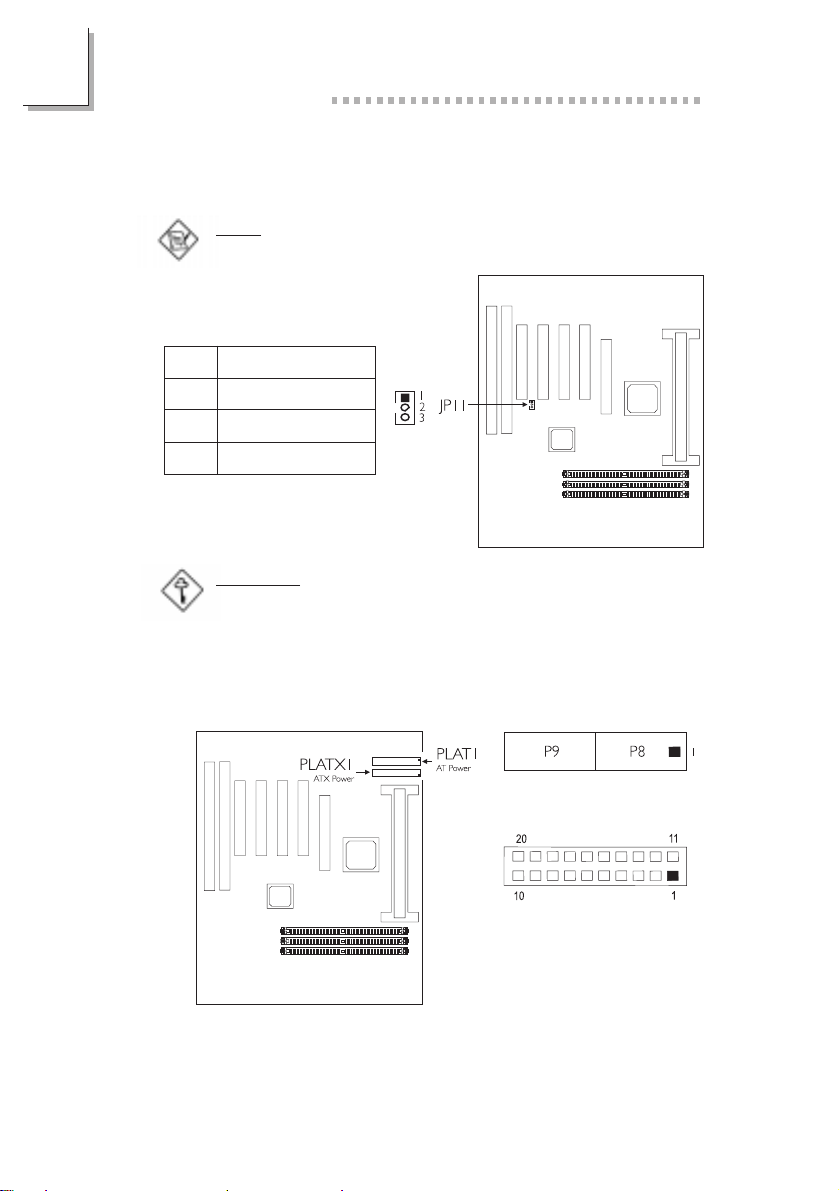

2.5.11 Power Connector
Connecteur dAlimentation
Netzanschluß
PLATX1
PLAT1

2
Hardware Installation
17
Pin
1
2
3
4
5
6
7
8
9
10
Function
N. C.
N. C.
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+12V
Pin
11
12
13
14
15
16
17
18
19
20
Function
N. C.
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
+5V
The pin assignment of the ATX power connector is shown below.

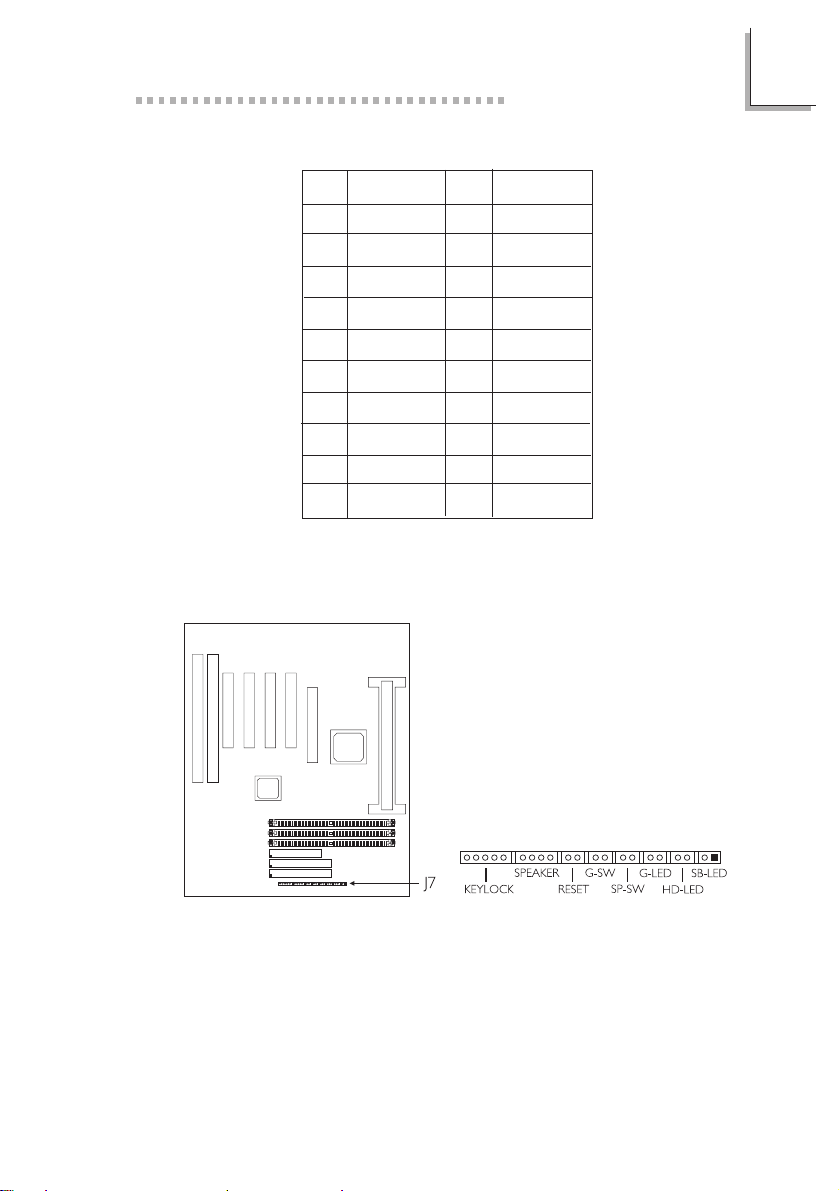

2.5.12 LEDs and Switches
Commutateurs et LED
LEDs und Schalter

2
18
Hardware Installation
Important:
SP-SW (ATX Power Switch) - Depending on the setting in the BIOS
setup, this switch is a dual function power button that will allow
your system to enter the Soft-Off or Suspend mode. Refer to section
3.7 (chapter 3) for more information.
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
Pin Assignment
SB-LED
(ATX 5VSB Standby LED)
HD-LED
(Primary/Secondary IDE LED)
G-LED
(Green LED)
SP-SW
(ATX power switch)
G-SW
(Green switch)
RESET
(Reset switch)
SPEAKER
(Speaker connector)
KEYLOCK
(Keylock and Power LED
connector)
LED Power
Ground
N. C.
LED Power
Signal
N. C.
LED Power
Signal
N. C.
Signal
Ground
N. C.
Signal
Ground
N. C.
Signal
Ground
N. C.
Signal
N. C.
Ground
+5V
N. C.
LED Power
N.C.
Ground
Keylock Signal
Ground
Use pins 24 to 26
for the Power LED.

3
Award BIOS Setup Utility
19
3.1 Entering the Award BIOS Setup Utility
Entrer Dans lUtilitaire de Configuration du Award BIOS
Aufruf des AWARD BIOS Konfigurationsprogramms
Power-on the system and press <Del> to enter the utility. The main
program screen will appear.
Allumez le Système et appuyez sur <Del> pour entrer dans
lutilitaire. Lécran du programme principal apparaîtra.
Zum Aufrufen des Konfigurationsprogramms drücken Sie während
des Startvorgangs die Taste <Del>. Ein Bildschirm ähnlich dem
folgenden erscheint. ROM PCI/ISA BIOS
CMOS SETUP UTILITY
AWARD SOFTWARE, INC.
STANDARD CMOS SETUP
BIOS FEATURES SETUP
CHIPSET FEATURES SETUP
POWER MANAGEMENT SETUP
PNP/PCI CONFIGURATION
LOAD FAIL-SAFE SETTINGS
LOAD OPTIMAL SETTINGS
INTEGRATED PERIPHERALS
SUPERVISORPASSWORD
USERPASSWORD
IDE HDD AUTO DETECTION
SAVE & EXIT SETUP
EXIT WITHOUT SAVING
Esc
F10 : Quit : Save & Exit Setup ↑↓→←
(Shift) F2 : Select Item
: Change Color
Chapter 3 - Award BIOS Setup Utility
Utilitaire de Configuration du Award BIOS
AWARD BIOS Konfigurationsprogramm

3
20
Award BIOS Setup Utility
3.2 Setting the Date and Time
Paramétrage de la Date et de lHeure
Einstellen des Datums und der Zeit
ROM PCI/ISA BIOS
STANDARD CMOS SETUP
AWARD SOFTWARE, INC.
Date (mm:dd:yy) : Wed, Jul 1 1998
Time (hh:mm:ss) : 13: 27: 50
HARD DISKS
Primary Master
Primary Slave
Secondary Master
Secondary Slave
TYPE
Auto
Auto
Auto
Auto
SIZE
0
0
0
0
CYLS
0
0
0
0
HEAD
0
0
0
0
PRECOMP
0
0
0
0
LANDZ
0
0
0
0
SECTOR
0
0
0
0
MODE
Auto
Auto
Auto
Auto
Drive A : 1.44M, 3.5 in.
Drive B : None
Video : EGA/VGA
Halt on : All Errors
Base Memory : 640K
Extended Memory : 64512K
Other Memory : 384K
Total Memory : 65536K
PU/PD/+/- : Modify
↑↓→← : Select Item
: Change(Shift)F2
:
:
:
:
Esc
F10 : Quit : Save & Exit Setup
1. Select Standard CMOS Setup in the main program screen and
press <Enter>.
Sélectionnez Standard CMOS Setup dans lécran du programme
principal et appuyez sur <Entrée>.
Standard CMOS Setup in dem Hauptbildschirm auswählen, und
die Eingabetaste (Enter) drücken.
2. Set the correct date and time in the Date and Time fields
respectively.
Sélectionnez la date et lheure correcte dans les champs Date
et Time respectivement.
Jeweils korrekte Werte in die Eingabefelder Date (Datum) und
Time (Zeit) eingeben.
