Linhai M210 Owner's manual

OWNER’S/OPERATOR’S
MANUAL
22.0b
M210
US
WARNING：Read
this Manual , and
any Supplements
Carefully
Before Operating
Vehicle.
Assembly
Operation
Maintenance
THIS VEHICLE IS
NOT DESIGENED
FOR USE ON
RENTAL TRACKS
OR RACING
BEFORE OPERATING THIS VEHICLE, THE OWNER AND EACH
OPERATOR MUST HAVE READ AND HAVE AN UNDERSTANDING OF
ALL THE INSTRUCTIONS FOR PROPER ASSEMBLY AND SAFE
OPERATION, AS WELL AS THE INSTRUCTIONS CONCERNING THE
ENGINE AND ALL OTHER PORTIONS OF CEHICLE.

CONTENTS
1. INTRODUCTION
2. UNDERSTANDING WARNING
3. SAFETY WARNING
4. DAILY PRE-RIDE INSPECTION
5. OPERATION WARNING
6. V.I.N
7. CONTROLAND FUCTIONS
8. STARTING THE ENGINE
9. VEHICLE BREAK-IN PERIOD
10. RIDING GEAR
11. RIDING
12. CVT SYSTEM
13. BATTERY
14. EXHAUST SYSTEM
15. MAINTENANCE
16. TROUBLE SHOOTING
17. TOOLS
18. SPECIFICATION
19. WIRING DIAGRAM

1
1. Introduction
Congratulations on the purchase of your ALL Terrain Vehicle
(ATV). We take pride in offering you this product engineered and
manufactured to the highest performance and quality standards.
We are sure that you will enjoy superior levels of performance,
reliability, riding comfort, and safety.
This manual is provided to help the owner and operators of this
ATV become familiar with the operating characteristic, and the
many features offered on the ATV. The manual also covers
information on the care and maintenance of your ATV.
Please read this manual carefully. The information contained in
this Owner’s Manual, the Warning Labels supplied with this
product will help your ATV. Make sure that you understand and
follow all Warnings and Instructions in this material.
If you did not receive any of the material listed above, please call
your dealer and request to have them sent to you.
Important Safety Notice
Never make any modifications to the engine, drive system,
mechanical or electrical systems of your ATV. Never install after
market parts or accessories intended to increase the speed or
power of your ATV.
Failure to follow these warnings increases the possibility of
accidents leading to DEATH or SERIOUS INJURY!
Additionally, failure to follow these requirements will void the
Warranty on your ATV.
Practice Responsible ATV Riding
Make sure that you understand and follow all local, state/province,
and federal/national riding laws and requirements.
Remember……Respect your vehicle, respect the environment
and respect the property of others. You are responsible for your
safety and the safety of others around you when you ride!

2
AN ATV CAN BE HAZARDOUS TO OPERATE. An ATV
handles differently from other vehicles including motorcycles and
cars. A collision rollover can occur quickly, even during routine
maneuvers such as turning and driving on hills or over obstacles,
if you fail to take proper precautions.
SERIOUS INJURY OR DEATH can result if
you do not follow these instruction.
Read this manual and all labels carefully and follow the
operating procedures described.
Never operate an ATV without proper instruction. Take a
training course. Beginners should receive training from a
certified instructor. Contact an authorized ATV dealer to find
out about the training courses nearest you.
Never permit a child whose age is under 16 to operate this
ATV. Read this manual and all product labels, and completed
a certified training course, before operation.
Always avoid operating an ATV on any paved surfaces,
including sidewalks, driveways, parking lots and streets.
Never operating an ATV without wearing an approved helmet
that fits properly. You should also wear eye protection
(goggles or face shield), gloves, boots, long-sleeved shirt or
jacket, and long pants.
Never consume alcohol or drugs before or while operating
this ATV.
Never operate at excessive speeds. Always travel at a speed
which is proper for the terrain, visibility and operating
conditions, and your experience.
Never attempt wheelies, jumps or other stunts.
Always inspect your ATV each time you use it to make sure it
is in safe operating condition, always follow the inspection
and maintenance procedures and schedules described in this
manual.
Always keep both hands on the handlebars and both feet on
the footrests of theATV during operation.
Always go slowly and be extra careful when operating on

3
unfamiliar terrain. Always be alert to changing terrain
conditions when operating the ATV.
Never operate on excessively rough, slippery or loose terrain.
Always follow proper procedures for turning as described in
this manual. Practice turning at low speeds before attempting
to turn at faster speeds. Do not turn at excessive speed.
Always have the ATV checked by an authorized dealer if it
has been involved in an accident.
Never operate ATV on hills too steep for the ATV or for your
abilities. Practice on smaller hills before attempting larger
hills.
Always follow proper procedures for climbing hills as
described in this manual. Check the terrain carefully before
you start up any hill. Never climb hills with excessively
slippery or loose surface. Shift your weight forward. Never
open throttle suddenly. Never go over the top of any hill at
high speed.
Always follow proper procedures for going down hills and for
braking on hills as described in this manual. Check the terrain
carefully before you start down any hill. Shift your weight
backward. Never go down a hill at high speed. Avoid going
down a hill at an angle which would cause the vehicle to lean
sharply to one side. Go straight down the hill where possible.
Always follow proper for crossing the side of a hill as
described in this manual. Avoid hills with excessively slippery
or loose surfaces. Shift your weight to the up side of the ATV.
Never attempt to turn the ATV around on any hill until you
have mastered the turning technique described in this
manual on level ground. Avoid crossing the side of a steep hill
if possible.
Always use proper procedures if you stall or roll backwards
when climbing a hill. To avoid stalling, maintain a steady
speed when climbing a hill. If you stall or roll backwards,
follow the special procedure for braking described in this
manual. Dismount on the uphill side or to either side if pointed
straight uphill. Turn the ATV around and remount, following
the procedure described in this manual.
Always check for obstacles before operating in a new area.

4
Never attempt to operate over large obstacles, such as large
rocks or fallen trees. Always follow proper procedures when
operating over obstacles as described in this manual.
Always be careful of skidding of sliding. On slippery surfaces,
such as ice, go slowly and be very cautious in order to reduce
the chance of skidding or sliding out of control.
Avoid operating the ATV through deep or fast flowing water.
Avoid water which exceeds the recommended maximum
depth, go slowly, balance your weight carefully avoiding
sudden movements, maintain a slow and steady forward
motion, do not make sudden turns or stops, and do not make
sudden throttle changes.
Wet brakes may have reduced stopping ability. Test your
brakes after leaving water. If necessary apply them lightly
several times to let friction dry out the pads and the linings.
Always use the size and type tires specified in this manual.
Always maintain proper tire pressure as described in this
manual.
Never modify an ATV through improper installation or use of
accessories
Never exceed the stated load capacity for an ATV.

5
2. UNDERSTANDING WARNINGS
ATTENTION:
This VEHICLE is not a toy. This VEHICLE is ONLY for the rider
who is 16 years old or more. BERORE OPERATION, PARENT
AND CHILD MUST READ AND UNDERSTAND WARNINGS
AND OWNER’S MANUAL.
KNOW YOUR VEHCLE BEFORE YOU
BEGINNING RIDING!
Read this manual thoroughly referring to the various areas which
are being discussed on your machine. Operating this vehicle
carries with it responsibilities for your personal safety, the safety
of others, and the protection of our environment.
NOTE: Illustrations used in this manual are for general
representation only. Your model may differ.

6
2. UNDERSTANDING WARNINGS
SAFETY ALERT
WARNINGS identify special instructions or procedures
which, if not correctly followed, could result in personal
injury, or loss of life. Read all WARNINGS in this manual
carefully. Follow their instructions to remain safe.
The following precautionary signal words are used throughout
this manual to convey the following messages:
This is the safety alert symbol. When you see this
symbol on your machine or in this manual, be alert
to the porential for personal injury. Your safety is
involved!
WARNING
Indicates a potential hazard which could result in
severe injury or death.
CAUTION
Indicates a potential hazard which may result in
minor personal injury or damage to the ATV.
CAUTION
Indicates a situation that can result in damage to the
machine.
NOTE The word “NOTE”in this manual will alert you to
key information or instructions.

7
3.SAFETY WARNING
NOTE：
Warning decals have been placed on the vehicle for your
protection. Read and follow the instructions on each decal
carefully. In the event any decal becomes illegible or comes off,
contact your dealer for a replacement.

8

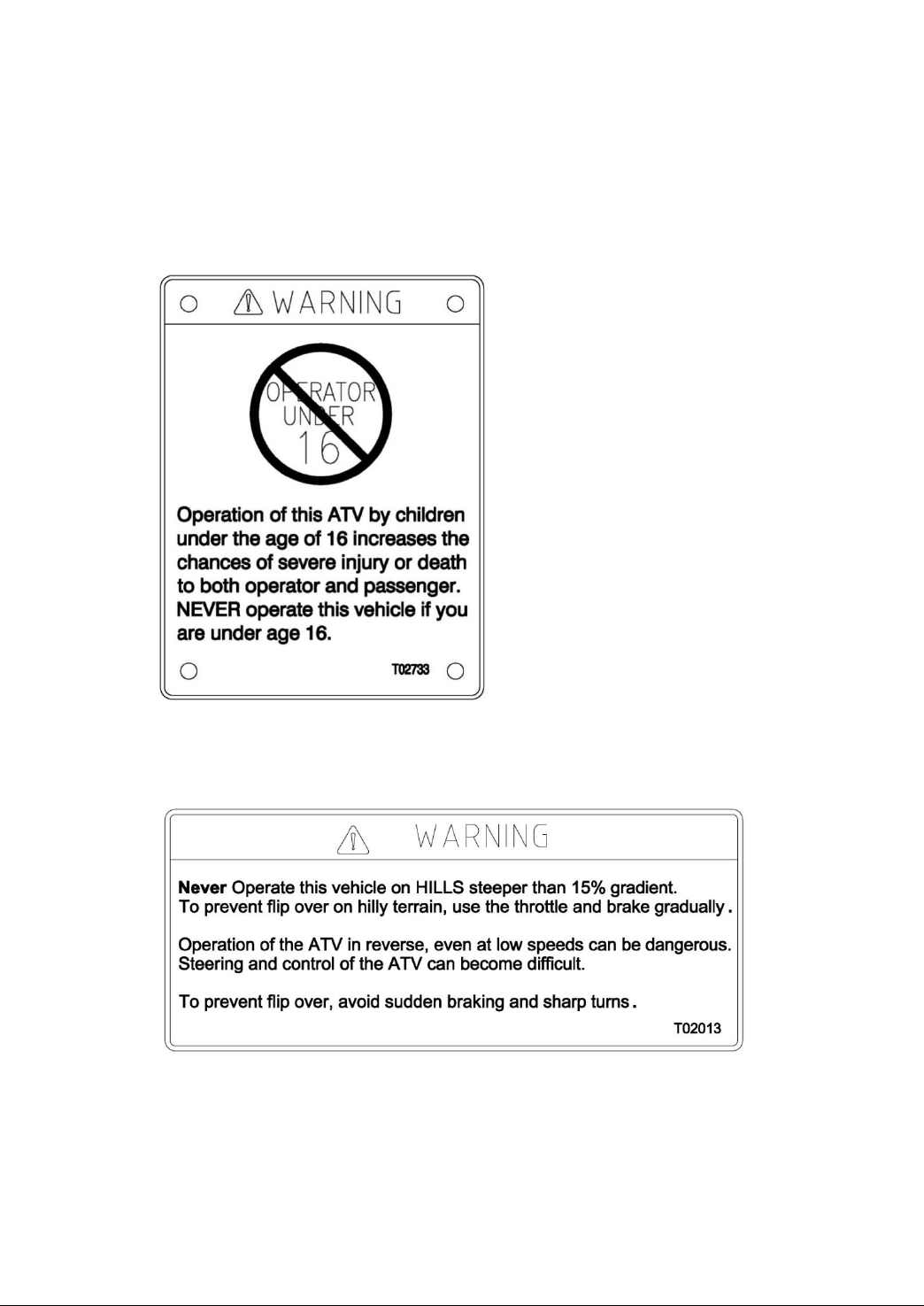

3.SAFETY WARNING
1. 5.

9

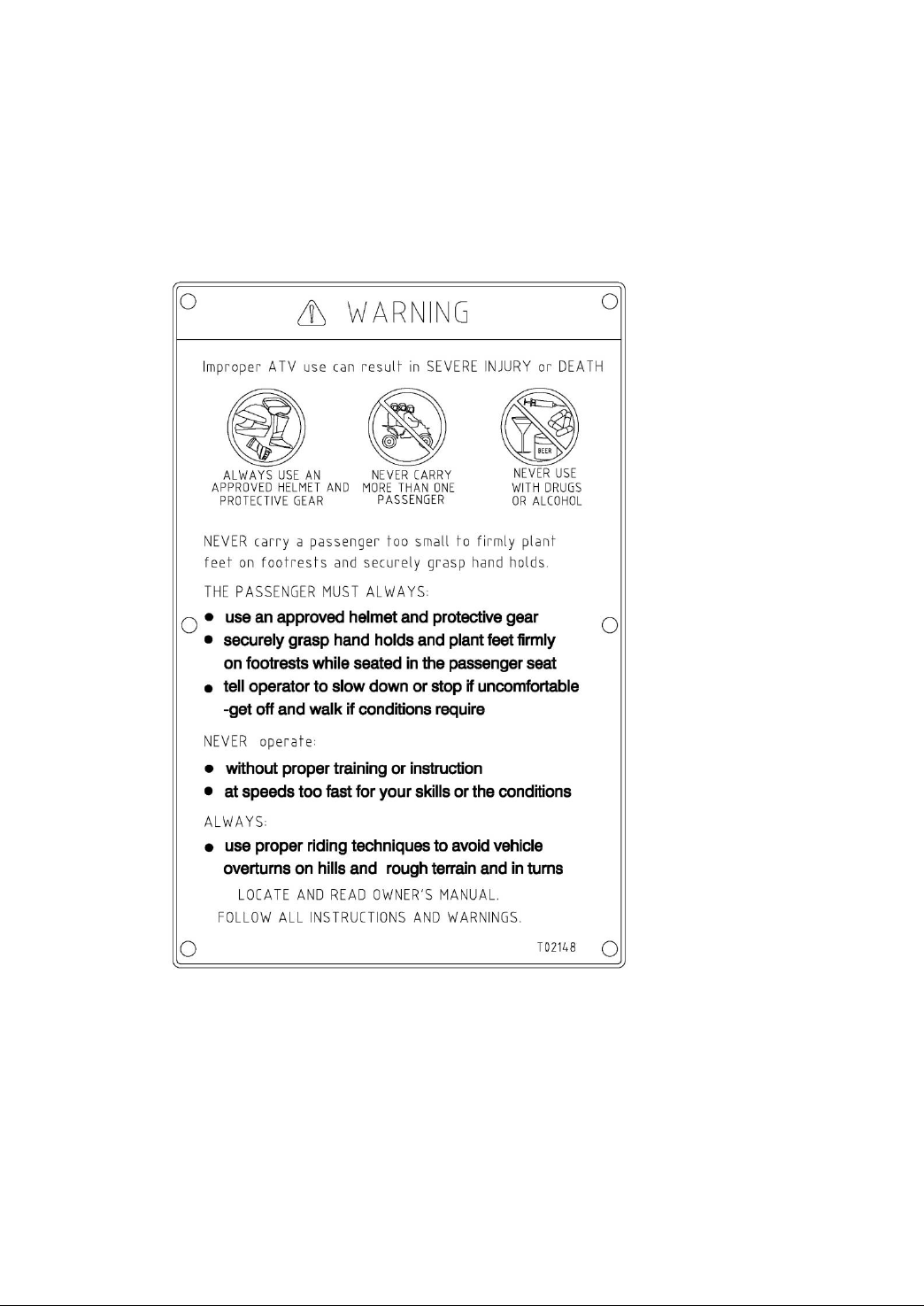

3.SAFETY WARNING
2.
3.

10

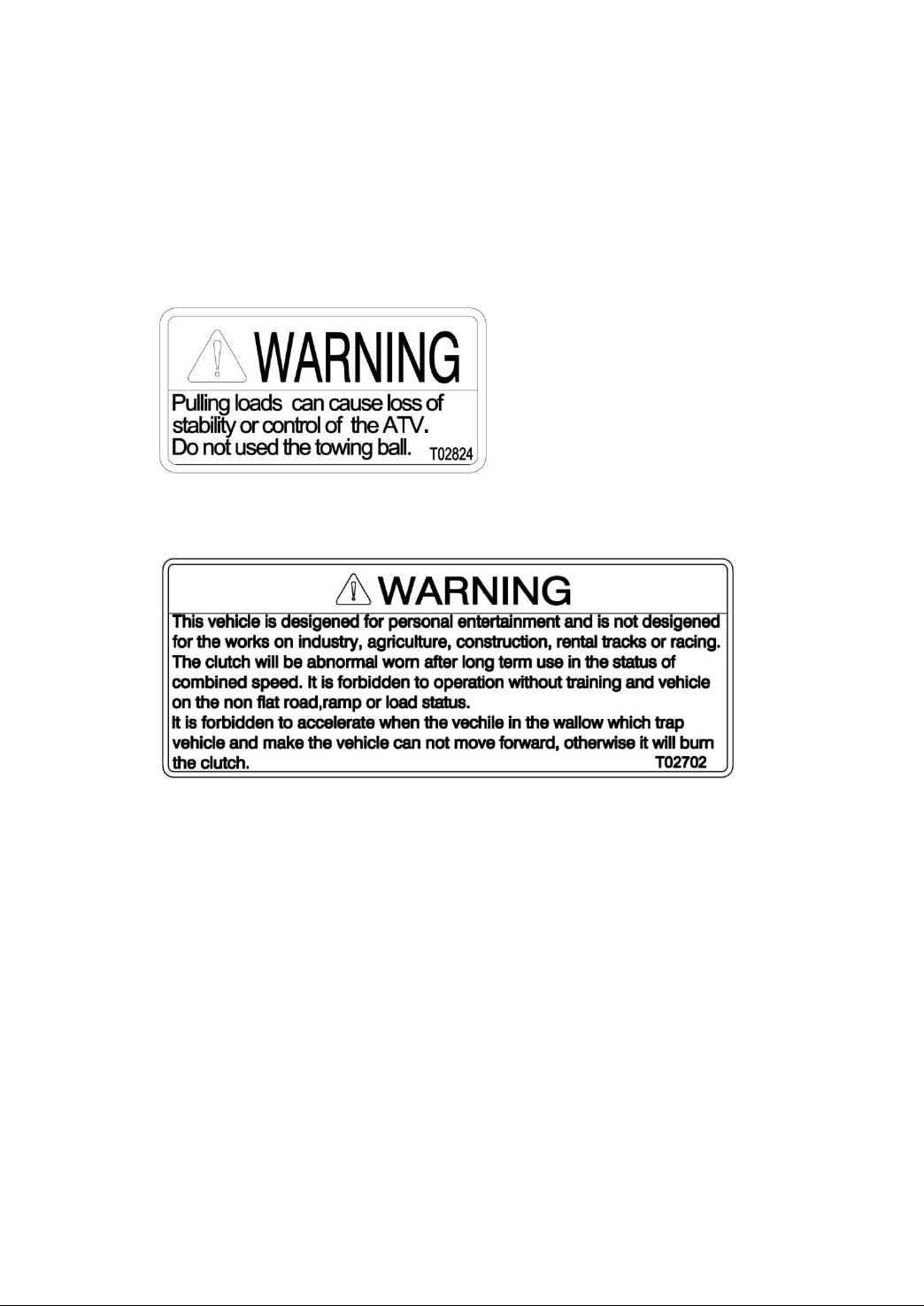

3.SAFETY WARNING
4.

11
3.SAFETY WARNING
6.
7.
8.

12

13
4. DAILY PRE-RIDE INSPECTION
WARNING
You must inspect your ATV each time before riding to ensure it is
in proper working order. If proper inspection is not done, severe
injury or death could result.
Use the following checklist to verify your machine is improper
working order each time you ride.
Item/Inspection procedure
1. Tire- check condition and pressures.
2. Fuel tank- fill the fuel tank to its proper lever.
3. All brakes- check operation, adjustment and fluid level.
4. Throttle- check for free operation and closing.
5. (Headlight) / Taillight / Brakelight- check operation of all
indicator lights and switches.
6. Engine stop switch / Tether switch - check for proper function.
7. Wheels- check for tightness of wheel nuts and axle nuts;
check that axle nuts are secured by cotter pins.
8. Air cleaner element- check for dirt; clean or replace.
9. Steering- check for free operation noting any unusual
looseness in any area.
10.Lubricate the chain and check the tension adjustment.
11.Loose parts- visually inspect vehicle for any damaged
components or loose nuts/ bolts or fasteners.
12.Operator’s helmets, goggles and clothing.

14
5. OPERATION WARNINGS
Get on and leaver ATV
Get on
Get on the ATV through left or right by steps.
Leave
Check that the surroundings are in safe condition and then slowly
park the ATV.
Stop the engine. (Key off)
Push the parking lever to the ON position to lock the rear wheels.
Leave the ATV through left or right steps.
WARNING
POTENTIAL HAZARD
Operating this ATV without proper instruction.
WHAT CAN HAPPERN
The risk of an accident is greatly increased if operator does not
know how to operate the ATV properly in different situations and
on different types of terrain.
HOW TO AVOID THE HAZARD
Beginning and inexperienced operators should complete the
certified training course. They should then regularly practice the
skills learned in the course and the operating techniques
described in the Owner’s Manual.
For more information about the training course, contact an
authorized ATV dealer.
WARNING
POTENTIAL HAZARD
Operating this ATV without wearing an approved helmet, eye
protection and protective clothing.
WHAT CAN HAPPERN

15
5. OPERATION WARNINGS
Operating without an approved helmet increases your chances of
a severe head injury or death in the event of an accident.
Operating without eye protection can result in an accident and
increases your chances of a severe injury in the event of an
accident.
HOW TO AVOID THE HAZARD
Always wear an approved helmet which fits properly.
You should also wear: eye protection (goggles or face shield);
gloves; boots; long-sleeved shirt or jacket; and long pants.
WARNING
POTENTIAL HAZARD
Operating this ATV after consuming alcohol or drugs.
WHAT CAN HAPPERN
Could seriously affect your judgment.
Could cause you to react more slowly.
Could affect your balance and perception.
Could result in an accident.
HOW TO AVOID THE HAZARD
Never consume alcohol or drugs before or while driving thisATV.
WARNING
POTENTIAL HAZARD
Operating this ATV at excessive speeds.
WHAT CAN HAPPERN
Increases your chances of losing control of the ATV, which can
result in an accident.

16
5. OPERATION WARNINGS
HOW TO AVOID THE HAZARD
Always travel at a speed which is proper for the terrain, visibility
and operating conditions; and your experience.
WARNING
POTENTIAL HAZARD
Attempting wheelies, jumps and other stunts.
WHAT CAN HAPPERN
Increases the chance of an accident, including an overturn.
HOW TO AVOID THE HAZARD
Never attempt stunts, such as wheelies or jumps.

17
5. OPERATION WARNINGS
WARNING
POTENTIAL HAZARD
Failure to inspect the ATV before operating.
WHAT CAN HAPPERN
Increases the possibility of an accident or equipment damage.
HOW TO AVOID THE HAZARD
Always inspect your ATV each time you use it to make sure the
ATV is in safe operating condition.
Always follow the inspection and maintenance procedures and
schedules described in the Owner’s Manual.
WARNING
POTENTIAL HAZARD
Removing hand from handlebars or feet from footrests during
operation.
WHAT CAN HAPPERN
Removing even one hand or foot can reduce your ability to
control the ATV or could cause you to lose your balance and fall
off theATV. If you remove a foot from the footrest, your foot or leg
may come into contact with the rear wheels. Which could injure
you or cause an accident.
HOW TO AVOID THE HAZARD
Always keep both hands on the handlebars and both feet on the
footrests of your ATV during operation.

18
5. OPERATION WARNINGS
WARNING
POTENTIAL HAZARD
Failure to use extra care when operating this ATV on unfamiliar
terrain.
WHAT CAN HAPPERN
You can come upon hidden rocks, bumps, or holes, without
enough time to react.
Could result in the ATV overturning or going out of control.
HOW TO AVOID THE HAZARD
Go slowly and be extra careful when operating on unfamiliar
terrain.
Always be alert to changing terrain conditions when operating the
ATV.
