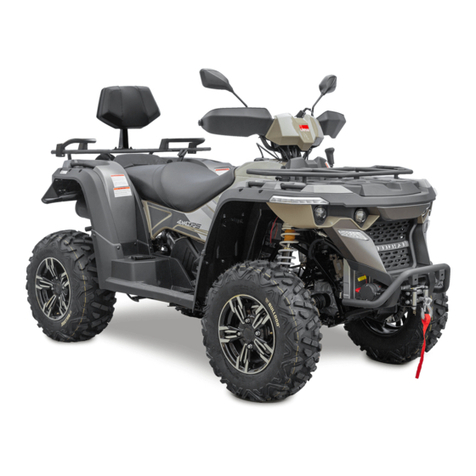

Linhai M750L T3 Owner's manual

OWNER’S/OPERATOR’S
MANUAL
Europe 17.0
M750L T3 4X4
This manual for the English version
WARNING：Read
this Manual , and
any Supplements
Carefully
Before Operating
Vehicle.
Assembly
Operation
Maintenance
THIS VEHICLE IS
NOT DESIGENED
FOR USE ON
RENTAL TRACKS
OR RACING
BEFORE OPERATING THIS VEHICLE, THE OWNER AND EACH OPERATOR MUST
HAVE READ AND HAVE AN UNDERSTANDING OF ALL THE INSTRUCTIONS FOR
PROPER ASSEMBLY AND SAFE OPERATION, AS WELL AS THE INSTRUCTIONS
CONCERNING THE ENGINE AND ALL OTHER PORTIONS OF THE VEHICLE.

CONTENTS
1. INTRODUCTION ····························· 1-1—1-3
2. UNDERSTANDING WARNING ················· 2-1—2-2
3. SAFETY WARNING
·
···························3-1—3-7
4. DAILY PRE-RIDE INSPECTION
·
················ 4-1
5. OPERATION WARNING
·
······················· 5-1—5-15
6. V.I.N
·
········································6-1
7. CONTROLAND FUNCTIONS··················· 7-1—7-13
8. STARTING THE ENGINE
·
······················ 8-1
9. VEHICLE BREAK-IN PERIOD
·
·················· 9-1
10. RIDING GEAR
·
······························10-1
11. CARRYING LOADS··························· 11-1—11-3
12. RIDING····································· 12-1—11-12
13. CVT SYSTEM······························13-1—13-2
14. BATTERY
·
································· 14-1—14-3
15. EXHAUST SYSTEM
·
························· 15-1
16. MAINTENANCE···························· 16-1—16-27
17. TROUBLE SHOOTING
·
·····················17-1—17-7
18. TOOLS·····································18-1
19. SPECIFICATION··························· 19-1—19-2
20. WIRING DIAGRAM
·
························ 20-1

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
1. Introduction
1-1
Congratulations on the purchase of your ALL Terrain Vehicle (ATV). We take
pride in offering you this product engineered and manufactured to the highest
performance and quality standards. We are sure that you will enjoy superior
levels of performance, reliability, riding comfort, and safety.
This manual is provided to help the owner and operators of this ATV become
familiar with the operating characteristic, and the many features offered on the
ATV. The manual also covers information on the care and maintenance of your
ATV.
Please read this manual carefully. The information contained in this Owner’s
Manual, the Warning Labels supplied with this product will help you to
understand the safe use and maintenance of your ATV. Make sure that you
understand and follow all Warnings and Instructions in this material.
If you did not receive any of the material listed above, please call your dealer
and request to have them sent to you.
Important Safety Notice
Never make any modifications to the engine, drive system, mechanical or
electrical systems of your ATV. Never install aftermarket parts or accessories
intended to increase the speed or power of your ATV.
Failure to follow these warnings increases the possibility of accidents leading
to DEATH or SERIOUS INJURY!
Additionally, failure to follow these requirements will void the Warranty on your
ATV. NOTE
The addition and use of certain accessories including, (but not limited to)
mowers, blades, sprayers, winches and windshields will change the handling
characteristics and the performance of your ATV.
Practice Responsible ATV Riding
Make sure that you understand and follow all local, state/province, and
federal/national riding laws and requirements.
Remember……Respect your vehicle, respect the environment and respect the
property of others. You are responsible for your safety and the safety of others
around you when you ride!

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
1. Introduction
1-2
AN ATV CAN BE HAZARDOUS TO OPERATE. An ATV handles
differently from other vehicles including motorcycles and cars. A collision
rollover can occur quickly, even during routine maneuvers such as turning and
driving on hills or over obstacles, if you fail to take proper precautions.
SERIOUS INJURY OR DEATH can result if you do not
follow these instructions.
Read this manual and all labels carefully and follow the operating
procedures described.
Never operate an ATV without proper instruction. Take a training course.
Beginners should receive training from a certified instructor. Contact an
authorized ATV dealer to find out about the training courses nearest you.
Never allow anyone who is not an adult to operate thisATV.
Never permit a guest to operate this ATV unless the guest has read this
manual and all product labels, and has completed a certified training
course.
Never operate an ATV without wearing an approved helmet that fits
properly. You should also wear eye protection (goggles or face shield),
gloves, boots, long-sleeved shirt or jacket, and long pants.
Never consume alcohol or drugs before or while operating thisATV.
Never operate at excessive speeds. Always travel at a speed which is
proper for the terrain, visibility and operating conditions, and your
experience.
Never attempt wheelies, jumps or other stunts.
Always inspect your ATV each time you use it to make sure it is in safe
operating condition. Always follow the inspection and maintenance
procedures and schedules described in this manual.
Always keep both hands on the handlebars and both feet on the footrests
of the ATV during operation.
Always go slowly and be extra careful when operating on unfamiliar terrain.
Always be alert to changing terrain conditions when operating theATV.
Never operate on excessively rough, slippery or loose terrain.
Always follow proper procedures for turning as described in this manual.
Practice turning at low speeds before attempting to turn at faster speeds.
Do not turn at excessive speed.
Always have the ATV checked by an authorized dealer if it has been
involved in an accident.
Never operate ATV on hills too steep for the ATV or for your abilities.
Practice on smaller hills before attempting larger hills.
Always follow proper procedures for climbing hills as described in this
manual. Check the terrain carefully before you start up any hill. Never
climb hills with excessively slippery or loose surfaces. Shift your weight
forward. Never open throttle suddenly or make sudden gear changes.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
1. Introduction
1-3
Never go over the top of any hill at high speed.
Always follow proper procedures for going down hills and for braking on
hills as described in this manual. Check the terrain carefully before you
start down any hill. Shift your weight backward. Never go down a hill at
high speed. Avoid going down a hill at an angle which would cause the
vehicle to lean sharply to one side. Go straight down the hill where
possible.
Always follow proper procedures for crossing the side of a hill as described
in this manual. Avoid hills with excessively slippery or loose surfaces. Shift
your weight to the uphill side of the ATV. Never attempt to turn the ATV
around on any hill until you have mastered the turning technique described
in this manual on level ground. Avoid crossing the side of a steep hill if
possible.
Always use proper procedures if you stall or roll backwards when climbing
a hill. To avoid stalling, maintain a steady speed when climbing a hill. If you
stall or roll backwards, follow the special procedure for braking described
in this manual. Dismount on the uphill side or to either side if pointed
straight uphill. Turn the ATV around and remount, following the procedure
described in this manual.
Always check for obstacles before operating in a new area. Never attempt
to operate over large obstacles, such as large rocks or fallen trees.Always
follow proper procedures when operating over obstacles as described in
this manual.
Always be careful of skidding of sliding. On slippery surfaces, such as ice,
go slowly and be very cautious in order to reduce the chance of skidding or
sliding out of control.
Avoid operating the ATV through deep or fast flowing water. Avoid water
which exceeds the recommended maximum depth. Go slowly, balance
your weight carefully avoiding sudden movements, maintain a slow and
steady forward motion, do not make sudden turns or stops, and do not
make sudden throttle changes.
Wet brakes may have reduced stopping ability. Test your brakes after
leaving water. If necessary apply them lightly several times to let friction
dry out the pads.
Always be sure there are no obstacles or people behind you when you
operate in reverse. When it is safe to proceed in reverse, go slowly. Avoid
turning at sharp angles in reverse.
Always use the size and type tires specified in this manual. Always
maintain proper tire pressure as described in this manual.
Never modify an ATV through improper installation or use of accessories
Never exceed the stated load capacity for an ATV. Cargo should be
properly distributed and securely attached. Reduce speed and follow
instructions in this manual for carrying cargo or pulling a trailer. Allow
greater distance for braking.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
2. UNDERSTANDING WARNINGS
2-1
ATTENTION:
This is an ADULT VEHICLE ONLY: not a toy. READ AND UNDERSTAND
WARNINGSAND OWNER’S MANUAL BERORE OPERATION.
KNOW YOUR VEHICLE BEFORE YOU BEGING
RIDING!
Read this manual thoroughly referring to the various areas which are being
discussed on your machine. Operating this vehicle carries with it
responsibilities for your personal safety, the safety of others, and the protection
of our environment.
NOTE: Illustrations used in this manual are for general representation only.
Your model may differ.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
2. UNDERSTANDING WARNINGS
2-2
SAFETY ALERT
WARNINGS identify special instructions or procedures which, if not
correctly followed, could result in personal injury, or loss of life. Read all
WARNINGS in this manual care fully. Follow their instructions to remain
safe.
The following precautionary signal words are used throughout
this manual to convey the following messages:
This is the safety alert symbol. When you see this symbol on
your machine or in this manual, be alert
to the potential for personal injury. Your safety is
involved!
WARNING
Indicates a potential hazard which could result in severe injury
or death.
CAUTION
Indicates a potential hazard which may result in minor personal
injury or damage to the ATV.
CAUTION
Indicates a situation that can result in damage to the machine.
NOTE The word “NOTE” in this manual will alert you to key
information or instructions.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
3. SFETY WARNING
3-1
Attention: There is a risk of fire from driving the vehicle on the ground where
grass has dried up or parking the vehicle on such surface while the engine is
hot.
NOTE
：

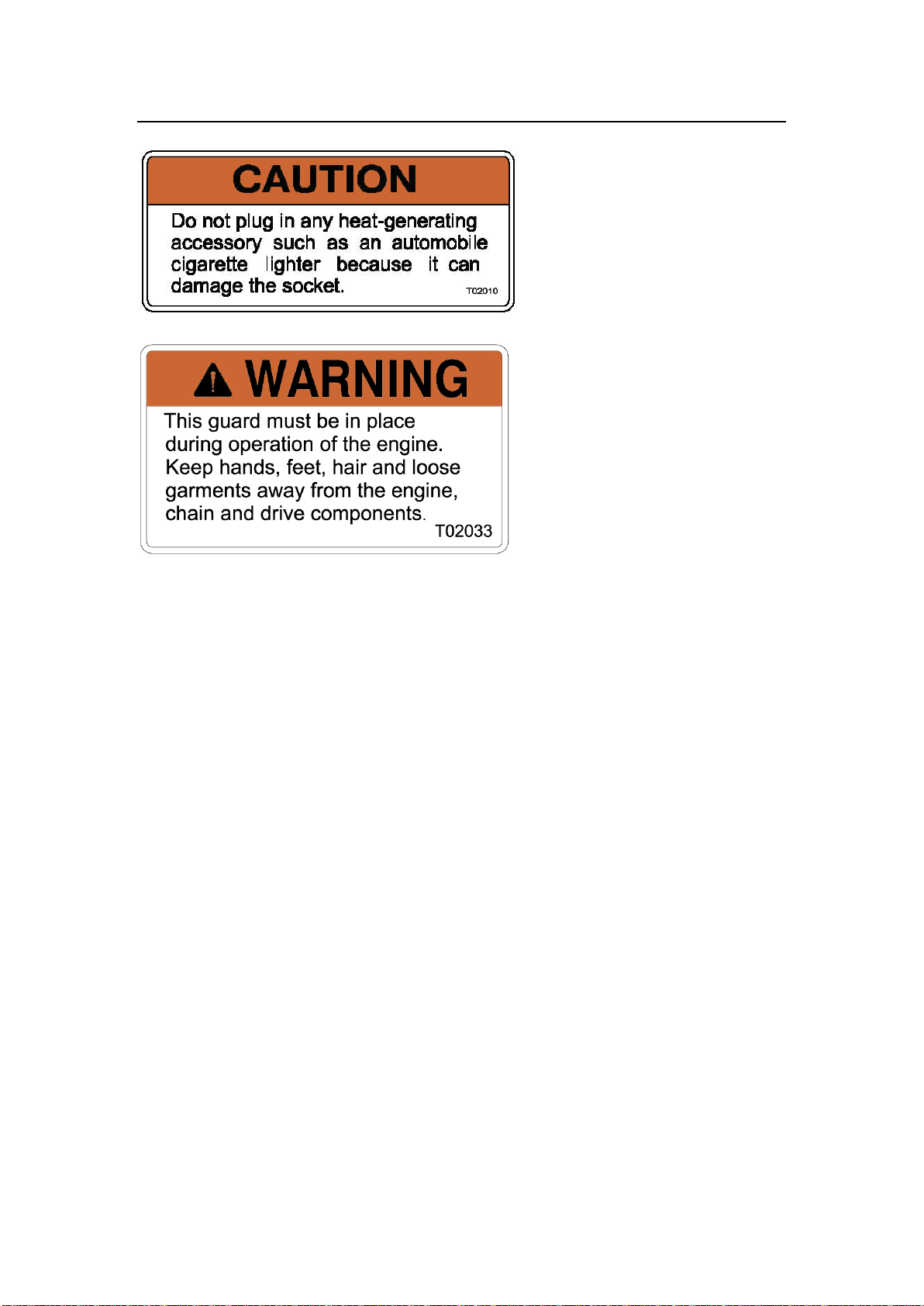

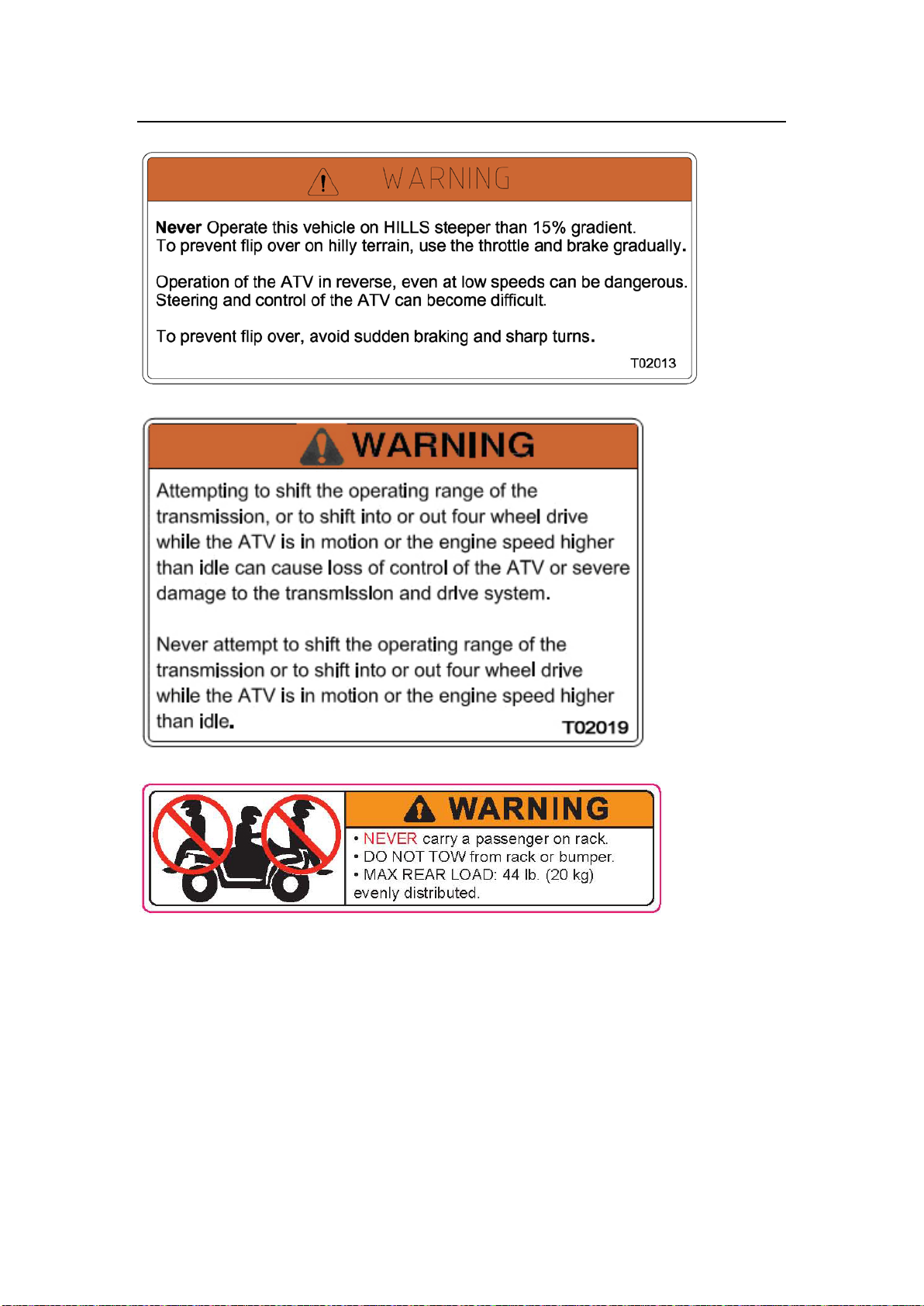

Warning decals have been placed on the vehicle for your protection. Read and
follow the instructions on each decal carefully. In the event any decal becomes
illegible or comes off, contact your dealer for a replacement.
Attention: There is a risk of fire from driving the vehicle on the ground where
grass has drived up or parking the vehicle on such surface while the engine is
hot.
1.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
3. SFETY WARNING
3-2
2.
3.
4.
5.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
3. SFETY WARNING
3-3
6.
7.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
3. SFETY WARNING
3-4
8.
9.
10.
11.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
3. SFETY WARNING
3-5
12.
13.
14.
15.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
3. SFETY WARNING
3-6
16.
17.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
3. SFETY WARNING
3-7
18.
19.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
4. DAILY PRE-RIDE INSPECTION
4-1
WARNING
You must inspect your ATV each time before riding to ensure it is in proper
working order. If proper inspection is not done, severe injury or death could
result.
Use the following checklist to verify your machine is in proper working order
each time you ride.
Item/Inspection procedure
1. Tire-check condition and pressures.
2. Fuel tank-fill the fuel tank to its proper lever.
3. All brakes-check operation, adjustment and fluid level (includes auxiliary
brake).
4. Throttle-check for free operation and closing.
5. Headlight / Taillight / Brakelight-check operation of all indicator lights and
switches.
6. Engine stop switch-check for proper function.
7. Wheels-check for tightness of wheel nuts and axle nuts; check that axle
nuts are secured by cotter pins.
8. Air cleaner element-check for dirt; clean or replace.
9. Steering-check for free operation noting any unusual looseness in any
area.
10.Loose parts-visually inspect vehicle for any damaged components or loose
nuts/bolts or fasteners.
11.Operators helmets, goggles and clothing.
12.Engine coolant check for proper level at the recovery bottle.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
5. OPERATION WARNINGS
5-1
Get on and leaver ATV
Get on
Get on the ATV through left or right by steps.
Leave
Check that the surroundings are in safe condition and then slowly park the
ATV.
Stop the engine. (Key off)
Push the parking lever to the ON position to lock the rear wheels.
Leave the ATV through left or right steps.
WARNING
POTENTIAL HAZARD
Operating this ATV without proper instruction.
WHAT CAN HAPPEN
The risk of an accident is greatly increased if operator does not know how to
operate the ATV properly in different situations and on different types of terrain.
HOW TO AVOID THE HAZARD
Beginning and inexperienced operators should complete the certified training
course. They should then regularly techniques described in the Owner’s
Manual.
For more information about the training course, contact an authorized ATV
dealer.
WARNING
POTENTIAL HAZARD
Operating this ATV without wearing an approved helmet, eye protection and
protective clothing.
WHAT CAN HAPPEN
Operating without an approved helmet increases your chances of a severe
head injury or death in the event of an accident.
Operating without eye protection can result in an accident and increases your
chances of a severe injury in the event of an accident.
HOW TO AVOID THE HAZARD
Always wear an approved helmet which fits properly.
You should also wear: eye protection (goggles or face shield); gloves; boots;
long-sleeved shirt or jacket; and long pants.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
5. OPERATION WARNINGS
5-2
WARNING
POTENTIAL HAZARD
Operating this ATV after consuming alcohol or drugs.
WHAT CAN HAPPEN
Could seriously affect your judgment.
Could cause you to react more slowly.
Could affect your balance and perception.
Could result in an accident.
HOW TO AVOID THE HAZARD
Never consume alcohol or drugs before or while driving thisATV.
WARNING
POTENTIAL HAZARD
Operating this ATV at excessive speeds.
WHAT CAN HAPPEN
Increases your chances of losing control of the ATV, which can result in an
accident.
HOW TO AVOID THE HAZARD
Always travel at a speed which is proper for the terrain, visibility and operating
conditions; and your experience.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
5. OPERATION WARNINGS
5-3
WARNING
POTENTIAL HAZARD
Attempting wheelies, jumps and other stunts.
WHAT CAN HAPPEN
Increases the chance of an accident, including an overturn.
HOW TO AVOID THE HAZARD
Never attempt stunts, such as wheelies or jumps.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
5. OPERATION WARNINGS
5-4
WARNING
POTENTIAL HAZARD
Failure to inspect theATV before operating.
Failure to properly maintain the ATV.
WHAT CAN HAPPEN
Increases the possibility of an accident or equipment damage.
HOW TO AVOID THE HAZARD
Always inspect your ATV each time you use it to make sure the ATV is in safe
operating condition.
Always follow the inspection and maintenance procedures and schedules
described in the Owner’s Manual.
WARNING
POTENTIAL HAZARD
Removing hands from handlebars or feet from footrests during operation.
WHAT CAN HAPPEN
Removing even one hand or foot can reduce your ability to control the ATV or
could cause you to lose your balance and fall off the ATV. If you remove a foot
from the footrest, your foot or leg may come into contact with the rear wheels.
Which could injure you or cause an accident.
HOW TO AVOID THE HAZARD
Always keep both hands on the handlebars and both feet on the footrests of
your ATV during operation.

M750L T3 OWNER’S/OPERATOR’S MANUAL 17.0
5. OPERATION WARNINGS
5-5
WARNING
POTENTIAL HAZARD
Failure to use extra care when operating this ATV on unfamiliar terrain.
WHAT CAN HAPPEN
You can come upon hidden rocks, bumps, or holes, without enough time to
react.
Could result in the ATV overturning or going out of control.
HOW TO AVOID THE HAZARD
Go slowly and be extra careful when operating on unfamiliar terrain.
Always be alert to changing terrain conditions when operating theATV.
