Linsar X24DVDMK3 User manual

24”Widescreen LED TV with
Built-in DVD Player
MODEL NO.: X24DVDMK3
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.

1
Safety information
CAUTION:
DVD/VIDEO CD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER THIS
DVD/VIDEO CD/CD PLAYER USES A VISIBLE LASER BEAM WHICH COULD
CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO
OPERATE THE DVD/VIDEO CD/CD PLAYER CORRECTLY AS INSTRUCTED.
WHEN THIS DVD/VIDEO CD/CD PLAYER IS PLUGGED TO THE WALL OUTLET, DO
NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND
OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS PLAYER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND REPAIR YOURSELF. REFER SERVICING TO
QUALIFIED PERSONNEL.
WARNING:
- TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS POWER CORD WITH
AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
- TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION - LASER RADIATION WHEN OPEN, DO NOT STARE INTO BEAM.
VENTILATION WARNING - THE NORMAL VENTILATION OF THE PRODUCT SHALL
NOT BE IMPEDED FOR INTENDED USE.
The lightning flash and
arrow head within the
triangle is a warning
sign alerting you of
“dangerous voltage”
inside the product.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation
point within the
triangle is a warning
sign alerting you of
important
instructions
accompanying the
product.
Always follow basic safety precautions when using electrical products, especially
when children are present.
WARNING: To avoid the risk of electrical shock, make sure the product is unplugged
from the electrical outlet before relocating, servicing, or cleaning it.
IMPORTANT INSTRUCTIONS

2
Safety precautions
Read these safety instructions before using your device and store them for possible future
reference.
●If the cord is damaged, have it repaired by the manufacturer, its service or a similarly
qualified person in order to avoid any hazard.
●The cord should always be readily accessible.
●The apparatus shall not be exposed to dripping or splashing of water or liquids and that
no objects filled with liquids such as flowers vases shall be placed on the product.
●The normal ventilation of the product shall not be impended for intended use.
●Always leave a minimum distance of 10 cm around the unit to ensure sufficient
ventilation.
●Open flame sources, such as candles, should not be placed on top of the device.
●The device is intended for use only in a temperate climate.
●CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the
same type or equivalent.
●The battery should not be exposed to excessive heat such as sunshine, fire or similar.
●Different types of batteries, new and used batteries should not be mixed.
●The battery must be installed according to the polarity.
●If the battery is worn, it must be removed from the product.
●The battery must be disposed of safely. Always use the collection bins provided (check
with your dealer) to protect the environment.
LASER SAFETY
This set employs an optical laser beam system in the CD mechanism
designed with built-in safeguards. Do not attempt to disassemble.
Exposure to this invisible laser light beam may be harmful to the human
eye. This is a Class-1 laser product. Use of controls, adjustments or
procedures other than those specified herein may result in hazardous
laser light beam exposure. This compact disc player should not be
adjusted or repaired by anyone except qualified service personnel. The
laser mechanism in the set corresponds to the stylus (needle) of a record
player. Although this product uses a laser pick-up lens, it is completely
safe when operated according to directions.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications. Such modifications could void the user's authority to operate
the equipment.
1) Operate turning controls and switches as instructed in the manual.
2) Before turning on the power for the first time, make sure that the power plug is properly
installed.
3) Store your discs in a cool area to avoid damage from heat.

3
Battery Handling and Usage
●Keep batteries away from children and pets. Only adults should handle batteries.
●Never throw batteries into a fire or expose them to fire or other heat sources.
●Follow the battery safety and usage instructions.
DISC Handling and Maintenance
Handling precautions
Hold the disc by the edges so the surface will not be soiled with fingerprints. Fingerprints,
dirt and scratches can cause skipping and distortion.
Do not write on the label side with a ball-point pen or other writing utensils.
Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids.
Be careful not to drop or bend the disc.
Do not install more than 1 disc on the disc compartment.
Do not try to close the disc cover when the disc is not installed properly.
Be sure to store the disc in its exclusive case when not in use.
If the surface is soiled
Wipe gently with a soft, damp (water only) cloth.
When wiping discs, always move the cloth from the center hole toward the outside,
which will not cause distortion. (If you wipe the discs using a circular motion, circular
scratches are likely to occur, which will cause distortion.)
If the disc is brought from a cold to a warm environment, moisture may
form on the disc.
Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.
Improper disc storage
You can damage discs if you store them in the following places:
Areas exposed to direct sunlight
Humid or dusty areas
Areas directly exposed to a heat outlet or heating appliance

4
User Manual……………………………………………………………………………………x 1
Remote Control……………………………….………………………………………….……x 1
All the pictures in this manual are just for your reference, appearance and display
should subject to the final product.
TABLE OF CONTENTS
GETTING STARTED
IMPORTANT INSTRUCTIONS...................................................................................1-3
ACCESSORIES……….......................................................................................................4
FEATURES....................................................................................................................5
GENERAL PARTS..............................................................................................................6-7
REMOTE CONTROL.....................................................................................................8-9
REMOTE CONTROL PREPARATION.................................................................................10
BASIC CONNECTION....................................................................................................11-15
OPERATIONS
MAIN MENU...................................................................................................................16-25
BASIC OPERATIONS....................................................................................................26-39
DVD……………………………………………………………………………..………. 26-33
TV………………………………………………………………………………………....34-39
FOR REFERENCE
MAINTENANCE..................................................................................................................40
WALL MOUNTING…………………………………………………………………………..........40
SPECIFICATIONS...............................................................................................................41
TROUBLESHOOTING....................................................................................................42-43
ACCESSORIES

5
24" LED Display
This unit has a built-in LED display window to provide clear vision and low
radiation.
Hotel Lock
Auto TV Scanning
Digital Broadcasting Reception
TV Guide Function
TELETEXT (Europe) Function
USB Multimedia Playback
Multi-languages On Screen Display
Full Function Remote Control
LAN, HDMI, SCART, YPBPR, AV, VGA, PC AUDIO and CI Input
EARPHONE and OPTICAL Output
PVR Function
TIME SHIFT Function
BLUETOOTH Function
External Antenna Jack
Built-in Speakers
FEATURES

6
MAIN UNIT
1. LED display screen
2. Remote control sensor / Power indicator - In standby mode the indicator light is red; when
switching on the unit the indicator light is blue color.
3. Disc slot- To insert a disc according to the silk screen on the side of this slot.
4. VOL +/- button- To increase/decrease the volume level or move left/right.
5. CH +/- button- To select next/previous channel or move up/down.
6. MENU button- To enter menu setting page.
7. SOURCE button- To select the input source.
8. - To play or pause playing (DVD).
9. - To open or close the disc compartment.
10. POWER (or STANDBY) button- To turn the TV ON/OFF.
GENERAL PARTS
Front View
Side View

7
1. Power Input (AC power cord)
2. LAN input terminal (Note: LAN port is for network signal return only!)
3. SCART input terminal
4. OPTICAL output terminal
5. RF input terminal- To connect the external antenna.
6. HDMI 1/2/3 input terminals
7. EARPHONE output terminal
8. CI+ input terminal
9. Mini YPbPr input terminal
10. Mini AV input terminal
11. USB 1/2 input terminal
GENERAL PARTS
Back View

8
REMOTE CONTROL
1 STANDBY: Set the unit in standby mode; press it
again to switch it on.
2 GOTO: Jump to a different chapter of DVD.*
3 ANGLE: View DVD playback from different angles, if
the DVD has this feature.*
4 REPEAT: Repeat different chapter/title or entire
DVD.*
5 FAV: Press to display your favourite program in DTV
mode.
6 TEXT: Switch between TV and Teletext mode.**
7 SUBTITLE: Enable/disable subtitles.
8 SIZE / ZOOM: Change the Teletext & DVD size.
9 MEDIA: Select USB mode.
10 : PLAY/PAUSE in TIMESHIFT and USB mode.
11 RECORDER/D-SETUP: Record / Display the DVD
setup menu.
12 : Stop playing.
13 MENU: Display the main TV menu.
14 ◄/►/▲/▼: Press the LEFT/RIGHT/UP/DOWN
button to navigate the on-screen menus and
adjust the system settings to your preference.
Press OK to confirm your selection.
15 SOURCE: Switch the input source.
16 VOL +/-: Turn the volume up/down.
17 NUMBER BUTTONS (0-9): Press to select a TV
channel directly when watching TV. The channel
changes after 2 seconds.
18 -/--:Switch the digits. (DVD).*
19 AUDIO / LANG: Switch the available soundtrack
language (DTV/DVD).*
20 P-MODE: Cycle through the different picture mode.
21 S-MODE: Cycle though the different sound modes.
22 : Return to the previous channel.
23 DISPLAY: Display information of the current program.

9
REMOTE CONTROL
24 CH +/-: Press to play the next or previous channel;
press repeatedly to scan through the channels.
25 MUTE: Mute the sound. Press again or press VOL+
to restore the sound.
26 GUIDE / D. MENU: Display electronic program guide;
Display the main disc menu.*
27 OK: Confirm selection.
28 EXIT / TITLE: Exit from the main TV menu displayed
on the screen; Display the DVD title menu. (DVD)*
29 : Play the previous file.
30 / INDEX: Play next file; Display the record
program list (DTV).
31 : Move fast backward.
32 : Move fast forward.
33 ASPECT: Press repeatedly to select the desired
screen aspect ratio.
34 SUBPAGE: Manually jump to previous or next
subpages of Teletext.
35 FREEZE: Hold the picture.
36 SLEEP: Set the TV sleep timer.
37 A-B: Repeat DVD scenes of your preference.
38 TV/RADIO: Switch the unit between TV and radio;
EJECT: Open or close the disc compartment. (DVD)*
NOTE: The functions of those buttons, which marked
with “DVD”, are available only when your TV has fitted a
DVD player.

10
REMOTE CONTROL PREPARATION
BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and –terminals are positioned
as indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
- The batteries normally last for one year although this depends on how often the
remote control is used.
- If the remote control fails to work even when it is operated near the player, replace the
batteries.
- Use two size AAA dry batteries.
NOTE:
●Do not drop, step on or otherwise impact the remote control. This may damage the
parts or lead to malfunction.
●If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL
OPERATION
Point the remote control from no more
than about 6m from the remote control
sensor and within about 60°of the
front of the player (Fig2).
NOTES:
- The operating distance may vary
according to the brightness of the
room.
- Do not point bright light at remote
control sensor.
- Do not place objects between the
remote control and the remote control
sensor.
- Do not use this remote control while
simultaneously operating the remote
control of any other equipments.
Fig1 Fig2
Remote Control
Sensor
Push
Press
Open

11
●Ensure all the cables are disconnected from the main unit before connecting to AC
power source.
●Read through the instructions before connecting other equipments.
CONNECTING TO AC POWER SOURCE
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
BASIC CONNECTION
Antenna
Outdoor
antenna
amplifier
Indoor
antenna
amplifier
Power plug
of antenna
amplifier
75 OHM
antenna
plug
To power outlet

12
HDMI CONNECTION
LAN CONNECTION
HDMI cable
(Not included)
Use HDMI cable to connect the unit
with other devices to receive
high-definition multimedia signal.
Use a LAN cable (not included) to connect
this TV with available network.

13
AV (COMPOSITE VIDEO) CONNECTION
YPbPr CONNECTION
For basic connection, use the
compositeAudio L/R (white/red) and
CVBS (yellow) cable to connect the
unit with other devices.
AV cable
(Not included)
Audio L/R of AV Cable
(Not Included)
YPbPr cable
(Not included)
Adaptor cable for Mini AV
(Not included)
Adaptor cable
for Mini AV
(Not included)
Adaptor cable
for Mini YPbPr
(Not included)

14
SCART CONNECTION
INSERT A CI CARD
SCART cable
(Not included)
CI slot
(CI card is not included)

15
OPTICAL CONNECTION
USB CONNECTION
EARPHONE CONNECTION
Earphone cable
(Not included)
USB Memory Device
(Not included)
Use Optical cable to connect the unit with amplifier or other audio
decoding devices for audio signal output.
(Optical cable is not included.)

16
● The unit contains different setting menus. Once the initial programming is entered, it will
be remained in the memory until change, and the unit can always be operated under the
same conditions.
● The settings will be remained in the memory until the settings are changed ever after
setting the player to standby mode.
First Time Installation
- Connect to power source and turn on this TV, welcome page will display on the screen.
- Press OK button on remote control to start setting.
- Press LEFT/RIGHT/UP/DOWN navigation buttons on remote control to select an option.
- Press OK button on remote control to confirm selection.
Step 1
- Select desired on-screen display language.
Step 2
- Choose the country you are living in.
Step 3
- Choose Home or Shop mode.
Step 4
- Choose an input source to visit.
MAIN MENU
MAIN MENU

17
DTV Settings
- Press SOURCE button on the remote control to select DTV input source.
- Press the MENU button on remote control to open main menu.
Notes:
- If Setting is not highlighted on menu title, press UP navigation button to move the cursor to
title. Select Setting and press DOWN navigation button to enter it.
- Some options under “Settings” only appear when TV received available signals.
Common procedure for initial settings
- Press the MENU button on remote control to display the main menu.
- Press the UP/DOWN/LEFT/RIGHT navigation buttons to move the cursor.
- Press the OK or RIGHT navigation button to enter the submenu.
- Press the MENU button to save current setting and return to the previous menu page.
- Press the EXIT button to exit the menu page.
1. Quick Settings
1.1 Audio Language
- Select available audio language.
1.2 Subtitle Language
- Select available subtitle language.
1.3 Record List
- Show recorded list if you have recorded a program before.
- You can watch all recorded programs here.

18
1.4 Schedule List
- Show schedule list if you have scheduled a program through EPG menu.
2. Picture
2.1 Picture Mode
- Press the LEFT/RIGHT navigation buttons to select an option.
Picture Mode: available options: Standard, Personal, Dynamic, Movie, Economy
Note: When Picture Mode is “Personal”, you can see and adjust Brightness, Contrast,
Colour, Tint, Sharpness and Backlight.(Tint is only for NTSC system.)
2.2 Aspect Ratio
This item is used to adjust the video size.
Available options:Auto, 4:3, 16:9, Zoom1, Zoom2.
Note: The available video size may be different for different input source.
2.3 Advanced Settings
OverScan: turn on/off OverScan.
Colour Temperature:adjust the optimum color temperature for suitable viewing (Standard,
Cold, Warm).
Dynamic Contrast: select dynamic contrast level (Off, Low, High).
Noise Reduction: select noise reduction level (Off, Low, Medium, High).

19

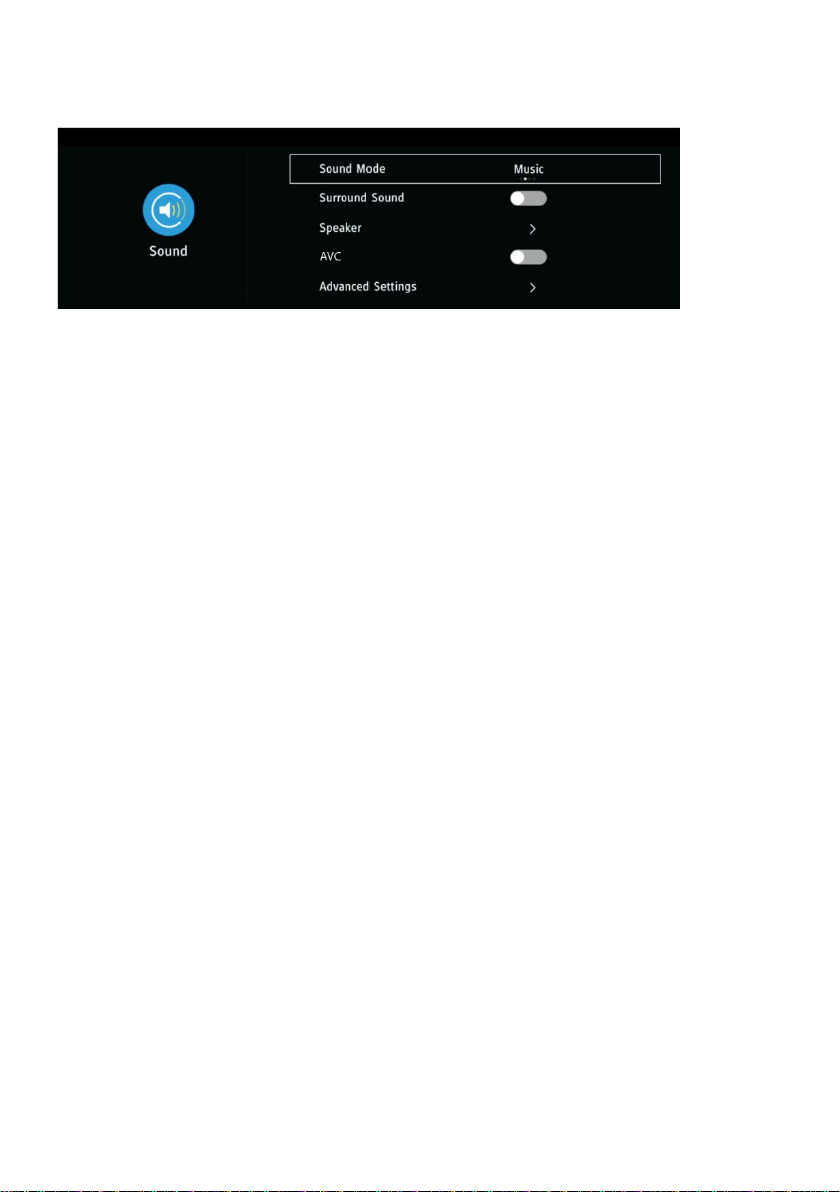

3. Sound
3.1 Sound Mode
- Press the LEFT/RIGHT navigation buttons to select an option.
Sound Mode: available options: Standard, Music, Sports, Movie, Personal.
3.2 Surround Sound
- Turn on/off surround sound.
3.3 Speaker
Audio Output: PCM, RAW, Off.
Digital Audio Delay: adjust this item if Digital Output and TV picture are not simultaneous.
3.4 AVC (Auto Volume Level)
- Turn on/off Auto Volume Level.
3.5 Advanced Settings
Note: Only when Sound Mode is “User”, you can see and adjust Balance and Equalizer.
Balance: adjust the balance of audio left and right.
Treble: adjust the treble.
Bass: adjust the bass.
Audio Description: For Visually Impaired users, this function enables a user to know a
certain scene or action through the narration, instead of seeing it. (AD Switch function works
only when you are viewing programs that contain related narration information.)
