Linsar 65UHD8000FP User manual

65”LED TV
MODEL NO.: 65UHD8000FP
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.

1
SAFETY INSTRUCTIONS
The lightning flash and
arrow head within the
triangle is a warning
sign alerting you of
“dangerous voltage”
inside the product.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation
point within the
triangle is a warning
sign alerting you of
important
instructions
accompanying the
product.
WARNING –TO REDUCE THE RISK OF FIRE,ELECTRIC SHOCK, OR
SERIOUS PERSONAL INJURY:
●If the cord is damaged, have it repaired by the manufacturer, its service or a similarly
qualified person in order to avoid any hazard.
●The cord should always be readily accessible.
●The apparatus shall not be exposed to dripping or splashing of water or liquids and that
no objects filled with liquids such as flowers vases shall be placed on the product.
●The normal ventilation of the product shall not be impended for intended use.
●Always leave a minimum distance of 10 cm around the unit to ensure sufficient
ventilation.
●Naked flame sources, such as candles, should not be placed on top of the device.
●The device is intended for use only in a temperate climate.
●Situate this product away from heat sources such as radiators, heat registers, stoves, or
other appliances (including amplifiers) that produce heat.
●Clean the product only as recommended by the manufacturer (see “Maintenance”
section for details). Unplug the power plug from the wall outlet before cleaning,
●Unplug the power plug from the wall outlet when left unused for an extended period.
●Prevent objects/liquids from falling or spilled on the product.
●Operate the product only with the supplied power cord. Route power cords so they are
not likely to be walked on or pinched by items placed upon or against them, paying
particular attention to plugs, convenience receptacles, and the point where they exit from
the product.
●Where the MAINS plug or an appliance coupler is used as the disconnect device, the
disconnect device shall remain readily operable.
IMPORTANT INSTRUCTIONS

2
●Do not operate this product under the following conditions.
- When the power-supply cord or plug is damaged.
- If liquid has been spilled into or objects have fallen into the product.
- If the product has been exposed to rain or water.
- If the product does not operate when used according to the operating instructions.
- If the product has been dropped or damaged in any way.
●Do not attempt to service the product; take it to the electronics repair shop of your choice
for any servicing or repair.
●Do not overload wall outlets, extension cords, or integral convenience receptacles.
●Connect this product to the power outlet which has protective earth connection.
CAUTION- TO REDUCE THE RISK OR PERSONAL INJURY OR
PRODUCT/PROPERTY DAMAGE:
●This product is intended solely for non-commercial, non-industrial, personal use as a
television. Do not use this product for any other purpose.
●Do not subject the product to violent shocks, extreme temperatures, or lengthy periods of
direct sunlight.
●Keep the product away from magnetic objects, motors, and transformers.
●Do not use outdoors in inclement weather.
●Do not use the TV while driving; this is dangerous and is illegal in some areas.
BATTERY HANDLING AND USAGE:
●CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the
same type or equivalent.
●The battery should not be exposed to excessive heat such as sunshine, fire or similar.
●Different types of batteries, new and used batteries should not be mixed.
●The battery must be installed according to the polarity.
●If the battery is worn, it must be removed from the product.
●The battery must be disposed of safely. Always use the collection bins provided (check
with your dealer) to protect the environment.
●Keep batteries away from children and pets. Only adults should handle batteries.
●Never throw batteries into a fire or expose them to fire or other heat sources.
●Follow the battery safety and usage instructions.

3
DISPOSAL OF OLD ELECTRICAL APPLIANCES
The European directive 2002/96/EC on Waste Electrical and Electronic Equipment (WEEE),
requires that old household electrical appliances must not be disposed of in the normal
unsorted municipal waste stream. Old appliances must be collected separately in order to
optimize the recovery and recycling of the materials they contain, and reduce the impact on
human health and the environment.
The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that
when you dispose of the appliance, it must be separately collected.
Consumers should contact their local authority or retailer for information concerning the
correct disposal of their old appliance.
User Manual……………………………………………………………………………………1
Remote Control……………..…………………………………………………………………1
YPbPr Adaptor Cable……………………..…..……………………………………………………1
AV Adaptor Cable……………………..…..……..…………………………………………………1
All the pictures in this manual are just for your reference, appearance and display should
subject to the final product.
ACCESSORIES
To avoid possible hearing damage, do not listen at
high audio volume for long periods of time.

4
TABLE OF CONTENTS
GETTING STARTED
IMPORTANT INSTRUCTIONS...................................................................................1-3
ACCESSORIES……….......................................................................................................3
FEATURES....................................................................................................................5
GENERAL PARTS..............................................................................................................6-7
REMOTE CONTROL.............................................................................................................8
REMOTE CONTROL PREPARATION...................................................................................9
BASIC CONNECTION....................................................................................................10-14
OPERATIONS
BASIC OPERATIONS.............................................................................................15-21
MAIN MENU...........................................................................................................22-32
FIRST TIME INSTALLATION………………………………………………….…………22-23
DTV SETTINGS.........................................................................................................24-32
OTHER MODES.............................................................................................................32
FOR REFERENCE
MAINTENANCE..................................................................................................................33
WALL MOUNTING………………………………………………………………………………...33
STAND INSTALLATION…………………………………………………………………………..34
SPECIFICATIONS...............................................................................................................35
TROUBLESHOOTING.........................................................................................................36

5
65" LED Display
This unit has a built-in LED display window to provide clear vision and low
radiation.
With Hotel Lock
Support Auto TV Scanning
Support Digital Broadcasting Reception
Support TV Guide Function
Support TELETEXT (Europe) Function
Support USB Multimedia Playback
Support Multi-languages On Screen Display
Support Full Function Remote Control
Support LAN, HDMI, SCART, YPBPR, AV and CI Input
Support EARPHONE, OPTICAL and COAXIAL Output
Support PVR Function
Support TIME SHIFT Function
With Detachable Stand Holder
With External Antenna Jack
With Built-in Speakers
FEATURES

6
MAIN UNIT
1. LED display screen
2. Remote control sensor / Power indicator- In standby mode the indicator light is red; when
switching on the unit the indicator light is blue color.
3. VOL +/- button- To increase/decrease the volume level or move left/right.
4. CH +/- button- To select next/previous channel or move up/down.
5. MENU button- To enter menu setting page.
6. SOURCE button- To select the input source.
7. POWER button- To turn the TV ON/OFF.
GENERAL PARTS
Front View
Side View

7

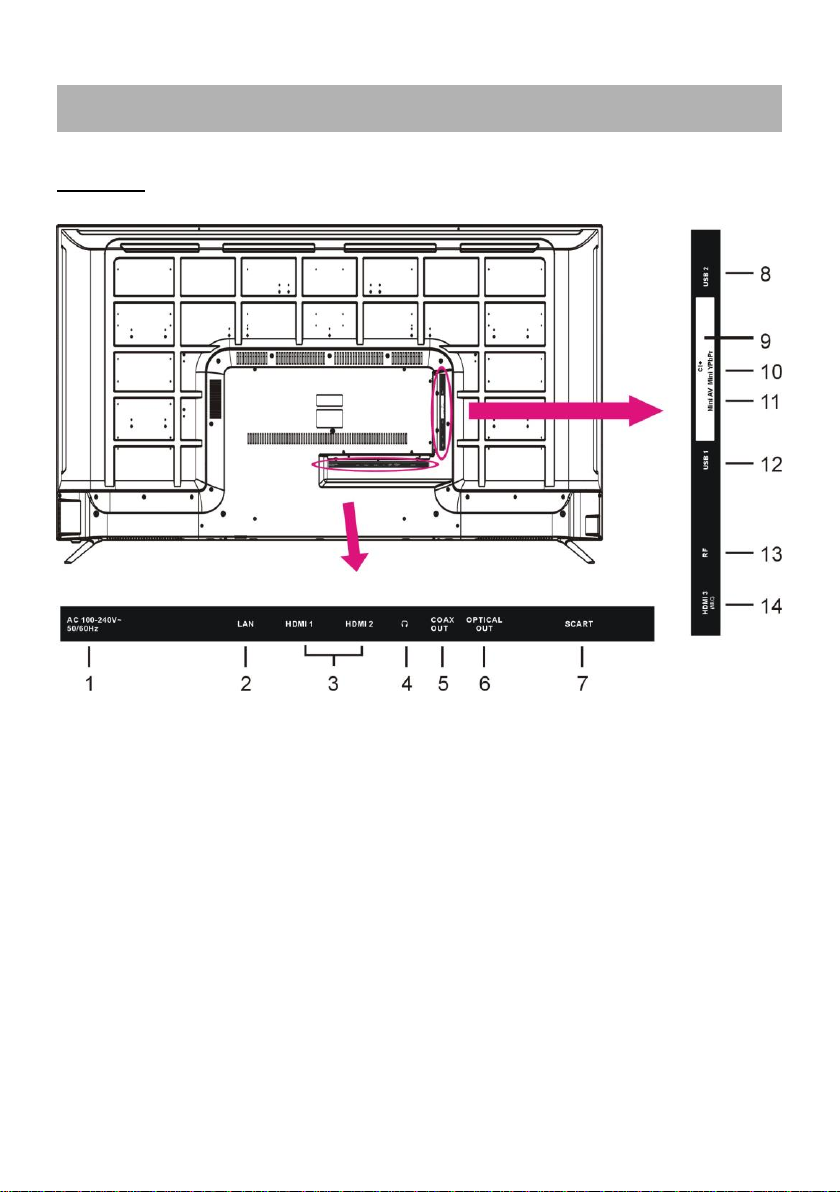

1. Power input
2. LAN (Local Area Network) input terminal
3. HDMI1/2 input terminals
4. EARPHONE output terminal
5.COAXIAL output terminal
6.OPTICAL output terminal
7. SCART input terminal
8. USB 2 input terminal
9. CI+ input terminal
10. Mini YPbPr input terminal
11. Mini AV input terminal
12. USB 1 input terminal
13. ANT (RF) input terminal- To connect the external antenna.
14. HDMI3 input terminal
Back View
GENERAL PARTS

8
REMOTE CONTROL
1 POWER: Set the unit in standby mode; press it
again to switch it on.
2 SOURCE: Switch the input source.
3 NUMBER BUTTONS (0-9): Press to select a TV
channel directly when watching TV. The channel
changes after a few seconds.
4 INFO: Display information of the current program.
5 SUBTITLE: Enable/disable subtitles.
6 Red / Green / Yellow / Blue buttons
7 MENU: Display the main TV menu.
8 BACK: Back to the previous step.
9 ◄/►/▲/▼: Press the LEFT/RIGHT/UP/DOWN
button to navigate the on-screen menus and
adjust the system settings to your preference.
Press OK to confirm your selection.
10 OK: Confirm selection.
11 MUTE: Mute the sound. Press again or press VOL+
to restore the sound.
12 EXIT: Exit from the main TV menu displayed on the
screen.
13 AUDIO: Switch the available soundtrack language.
14 FAV: Press to display your favourite program in
DTV mode.
15 (Home): Press to enter Smart TV home page.
16 +/-: Turn the volume up/down.
17 P +/-: Press to play the next or previous channel.
18 GUIDE: Display electronic program guide.
19 FreeviewPlay: Enter FreeviewPlay.
20 YouTube: Enter YouTube.
21 TEXT: Switch between TV and Teletext mode.**
22 : PLAY/PAUSE in TIMESHIFT and USB mode.
23 REC: Record a digital program through USB device
(DTV).
24 : Stop playback when playing multimedia files
through USB device.
25 : Move fast backward when playing multimedia files through USB device.
26 : Play the previous file when playing multimedia files through USB device.
27 : Move fast forward when playing multimedia files through USB device.
28 : Play next file when playing multimedia files through USB device.

9
REMOTE CONTROL PREPARATION
BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and –terminals are positioned
as indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
- The batteries normally last for one year although this depends on how often the
remote control is used.
- If the remote control fails to work even when it is operated near the player, replace the
batteries.
- Use two size AAA dry batteries.
NOTE:
●Do not drop, step on or otherwise impact the remote control. This may damage the
parts or lead to malfunction.
●If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL
OPERATION
Point the remote control from no more
than about 6m from the remote control
sensor and within about 60°of the
front of the player (Fig2).
NOTES:
- The operating distance may vary
according to the brightness of the
room.
- Do not point bright light at remote
control sensor.
- Do not place objects between the
remote control and the remote control
sensor.
- Do not use this remote control while
simultaneously operating the remote
control of any other equipments.
Fig1 Fig2
Remote Control
Sensor
Push
Press
Open

10
●Ensure all the cables are disconnected from the main unit before connecting to AC
power source.
●Read through the instructions before connecting other equipments.
CONNECTING TO AC POWER SOURCE
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
BASIC CONNECTION
Antenna
Outdoor
antenna
amplifier
Indoor
antenna
amplifier
Power plug
of antenna
amplifier
75 OHM
antenna
plug
To power
outlet

11
HDMI CONNECTION
LAN CONNECTION
USB CONNECTION
HDMI cable
(Not included)
Use HDMI cable to connect the unit
with other devices to receive
high-definition multimedia signal.
Use a LAN cable (not included) to connect
this TV with available network.
USB Memory Device
(Not included)

12
AV (COMPOSITE VIDEO) CONNECTION
YPbPr CONNECTION
For basic connection, use the
compositeAudio L/R (white/red) and
CVBS (yellow) cable to connect the
unit with other devices.
AV cable
(Not included)
Audio L/R of AV Cable
(Not Included)
YPbPr cable
(Not included)
Adaptor cable for
Mini AV
(Included)
Adaptor cable
for Mini AV
(Included)
Adaptor cable
for Mini YPbPr
(Included)

13
SCART CONNECTION
INSERT A CI CARD
SCART cable
(Not included)
CI slot
(CI card is not included)

14
OPTICAL CONNECTION
COAXIAL CONNECTION
EARPHONE CONNECTION
Earphone cable
(Not included)
Use a Optical cable (not included) to connect the unit
with amplifier or other audio decoding devices for
audio signal output.
Use a Coaxial cable (not included)to connect the unit
with amplifier or other audio decoding devices for
audio signal output.

15
MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE
CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE
BEFORE KINDS OF OPERATIONS.
- Press POWER button on the unit or remote control to power ON the unit (indicator
will glow blue); press it again to power OFF (standby mode) the unit (indicator will
glow red).
- Press SOURCE button on the remote control to switch the unit to ATV or DTV mode.
SELECT DESIRED PROGRAM
1. Press P + button to play next channel.
2. Press P- button to play previous channel.
3. Press number buttons on remote control directly to select desired program.
NOTE: Press -/-- button repeatedly to switch the digit.
VOLUME CONTROL
- Press (VOL) +/- to adjust the level of current volume.
Available range: 0-100.
MUTE CONTROL
- Press MUTE button to mute the sound, press it again to turn on the sound.
SOURCE SETTING
- Press SOURCE button on the remote control to display the sources list.
- Press UP or DOWN navigation button to select desired input source, and then press OK
button to confirm selection.
Available options: Digital TV (DTV), Analogue (ATV),Component (YPbPr), SCART, HDMI
1/2/3,
PICTURE MODE
- Press P-MODE button on remote control repeatedly to select desired PICTURE mode
directly.
Available options: Standard, Personal, Dynamic, Movie, Economy.
SOUND MODE
- Press S-MODE button on remote control repeatedly to select SOUND mode directly.
Available options: Standard, Music, Movie, Sports, Personal.
BASIC OPERATIONS

16
VIDEO SIZE SETTING
- Press the ASPECT button on the remote control repeatedly to select the VIDEO SIZE
directly.
Available options:Auto, 4:3, 16:9, Zoom1, Zoom2.
NOTE: The available video size may be different for different input sources.
MULTIAUDIO SETTING
- Press the AUDIO button on the remote control repeatedly to select the desired audio
language.
NOTE: To enable this function, make sure that the channel you are viewing supports
multi-audio languages.
INFORMATION DISPLAY
- Press the INFO button on the remote control to display information of current programs.
TV GUIDE (FOR DTV MODE ONLY)
- Press the GUIDE button on the remote control to display the programme guide.
- Press the UP/DOWN navigation button to select a preferred program
- Press the LEFT/RIGHT navigation button to switch between the left column and right
column.
When a program is highlighted on the right column, press OK button to open a menu:
- Press the UP/DOWN button to select an option.
- Press REC button to schedule a recording for the selected program.
- Press RED button to schedule a reminder for the selected program.

17
QUICK SELECT
To quickly find an available channel, press the OK button on
the remote control to enter the Channel List menu page.
- Press the UP or DOWN navigation button to select a
preferred channel.
- Press MENU button to enter Edit mode and then you can add
FAV, move, delete or skip a channel.
- Press the OK button to confirm the selection.
FAVORITE LIST
When viewing an available channel, press the FAV button on
the remote control to enter the Favorite List menu page.
- Press the UP or DOWN navigation button to select a
preferred channel.
- Press the OK button to confirm the selection.
Note: To add a favorite channel, please refer to the operations
of “QUICK SELECT”.
TELETEXT
- Press the TEXT button on the remote control to display the
available teletext information and press it repeatedly to stop
playing the teletext.
TV/RADIO (FOR DTV MODE ONLY)
- Press the TV/RADIO button on the remote control to switch the
unit between TV and radio mode.
SUBTITLE
- Press the SUBTITLE button on the remote control repeatedly to select a desired subtitle.
NOTE: To enable this function, make sure that the channel you are viewing supports
multi-subtitles.

18
RECORDER (FOR DTV MODE ONLY)
- Insert your USB memory device into the USB slot first.
- When watching digital programs, press the REC button on the remote control start
recording.
- Press the LEFT or RIGHT navigation button to select the desired option. Press the OK
button to confirm the selection.
- To stop recording, press the button to call out a reminder message. Use the
LEFT/RIGHT navigation button to choose Yes or No and press OK button to confirm
selection.
To watch recorded programs:
- Press INDEX button on remote control to call out the Record List menu.
- Press navigation buttons to select recorded files and press OK button to start playback.
TIMESHIFT (FOR DTV MODE ONLY)
- Insert your USB memory device into the USB slot first.
- When watching digital programs, press button to enable the TIMESHIFT function.
- Press button again to watch program in TIMESHIFT mode.
- Press the LEFT or RIGHT navigation button to select a desired option. Press the OK
button to confirm selection.
- To stop TIMESHIFT, press the button to call out a reminder message. Use the
LEFT/RIGHT navigation button to choose Yes or No and press OK button to confirm
selection.

19
MEDIA PLAYBACK
- Insert a USB memory device into the USB slot before the following operations.
- Press the MENU button on remote control to open main menu. Then press UP navigation
button to move the cursor to title. Select Media and press DOWN navigation button to
highlight USB.
- Press OK button to enter it.
- Press the UP/DOWN/LEFT/RIGHT navigation button to move the cursor.
- Press the EXIT button to return to the previous page.
a. MOVIE
- Use the navigation buttons to select a desired folder or file.
- Press the OK button to start playback.
- Press LEFT/RIGHT navigation button to select a desired option in the tool bar and press
OK to confirm the selection.
- Press the EXIT button to return.
