Linsar 24LED325DVD User manual

24”HD LED TV/DVD COMBI
MODEL NO.: 24LED325DVD
USER MANUAL
Please read this manual carefully before using,
and keep it for future reference.

1
Safety information
CAUTION:
DVD/VIDEO CD/CD PLAYER IS A CLASS 1 LASER PRODUCT. HOWEVER THIS
DVD/VIDEO CD/CD PLAYER USES A VISIBLE LASER BEAM WHICH COULD
CAUSE HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO
OPERATE THE DVD/VIDEO CD/CD PLAYER CORRECTLY AS INSTRUCTED.
WHEN THIS DVD/VIDEO CD/CD PLAYER IS PLUGGED TO THE WALL OUTLET, DO
NOT PLACE YOUR EYES CLOSE TO THE OPENING OF THE DISC TRAY AND
OTHER OPENINGS TO LOOK INTO THE INSIDE OF THIS PLAYER.
USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES
OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS
RADIATION EXPOSURE.
DO NOT OPEN COVERS AND REPAIR YOURSELF. REFER SERVICING TO
QUALIFIED PERSONNEL.
WARNING:
- TO PREVENT FIRE OR SHOCK HAZARD. DO NOT USE THIS POWER CORD WITH
AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES
CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
- TO PREVENT FIRE OR SHOCK HAZARD. DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE.
CAUTION - LASER RADIATION WHEN OPEN, DO NOT STARE INTO BEAM.
VENTILATION WARNING - THE NORMAL VENTILATION OF THE PRODUCT SHALL
NOT BE IMPEDED FOR INTENDED USE.
The lightning flash and
arrow head within the
triangle is a warning
sign alerting you of
“ dangerous
voltage”inside the
product.
CAUTION: TO REDUCE THE RISK
OF ELECTRIC SHOCK. DO NOT
REMOVE COVER (OR BACK).
NO USER SERVICEABLE PARTS
INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL.
The exclamation
point within the
triangle is a warning
sign alerting you of
important
instructions
accompanying the
product.
Always follow basic safety precautions when using electrical products, especially
when children are present.
WARNING: To avoid the risk of electrical shock, make sure the product is unplugged
from the electrical outlet before relocating, servicing, or cleaning it.
IMPORTANT INSTRUCTIONS

2
Safety precautions
Read these safety instructions before using your device and store them for possible future
reference.
●If the cord is damaged, have it repaired by the manufacturer, its service or a similarly
qualified person in order to avoid any hazard.
●The cord should always be readily accessible.
●The apparatus shall not be exposed to dripping or splashing of water or liquids and that
no objects filled with liquids such as flowers vases shall be placed on the product.
●The normal ventilation of the product shall not be impended for intended use.
●Always leave a minimum distance of 10 cm around the unit to ensure sufficient
ventilation.
●Open flame sources, such as candles, should not be placed on top of the device.
●The device is intended for use only in a temperate climate.
●CAUTION: Danger of explosion if battery is incorrectly replaced or not replaced by the
same type or equivalent.
●The battery should not be exposed to excessive heat such as sunshine, fire or similar.
●Different types of batteries, new and used batteries should not be mixed.
●The battery must be installed according to the polarity.
●If the battery is worn, it must be removed from the product.
●The battery must be disposed of safely. Always use the collection bins provided (check
with your dealer) to protect the environment.
LASER SAFETY
This set employs an optical laser beam system in the CD mechanism
designed with built-in safeguards. Do not attempt to disassemble.
Exposure to this invisible laser light beam may be harmful to the human
eye. This is a Class-1 laser product. Use of controls, adjustments or
procedures other than those specified herein may result in hazardous
laser light beam exposure. This compact disc player should not be
adjusted or repaired by anyone except qualified service personnel. The
laser mechanism in the set corresponds to the stylus (needle) of a record
player. Although this product uses a laser pick-up lens, it is completely
safe when operated according to directions.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications. Such modifications could void the user's authority to operate
the equipment.
1) Operate turning controls and switches as instructed in the manual.
2) Before turning on the power for the first time, make sure that the power plug is properly
installed.
3) Store your discs in a cool area to avoid damage from heat.

3
Battery Handling and Usage
●Keep batteries away from children and pets. Only adults should handle batteries.
●Never throw batteries into a fire or expose them to fire or other heat sources.
●Follow the battery safety and usage instructions.
DISC Handling and Maintenance
Handling precautions
Hold the disc by the edges so the surface will not be soiled with fingerprints. Fingerprints,
dirt and scratches can cause skipping and distortion.
Do not write on the label side with a ball-point pen or other writing utensils.
Do not use record cleaning sprays, benzine, thinner, static electricity prevention liquids.
Be careful not to drop or bend the disc.
Do not install more than 1 disc on the disc compartment.
Do not try to close the disc cover when the disc is not installed properly.
Be sure to store the disc in its exclusive case when not in use.
If the surface is soiled
Wipe gently with a soft, damp (water only) cloth.
When wiping discs, always move the cloth from the center hole toward the outside,
which will not cause distortion. (If you wipe the discs using a circular motion, circular
scratches are likely to occur, which will cause distortion.)
If the disc is brought from a cold to a warm environment, moisture may
form on the disc.
Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.
Improper disc storage
You can damage discs if you store them in the following places:
Areas exposed to direct sunlight
Humid or dusty areas
Areas directly exposed to a heat outlet or heating appliance

4
User Manual x 1 Remote Control x 1
Power Cord x 1 Adaptor Cable for Mini AV x 1
Adaptor Cable for Mini YPbPr x 1
All the pictures in this manual are just for your reference, appearance and display
should subject to the final product.
TABLE OF CONTENTS
GETTING STARTED
IMPORTANT INSTRUCTIONS...................................................................................1-3
ACCESSORIES……….......................................................................................................4
FEATURES....................................................................................................................5
GENERAL PARTS..............................................................................................................6-7
REMOTE CONTROL.....................................................................................................8-9
REMOTE CONTROL PREPARATION.................................................................................10
BASIC CONNECTION....................................................................................................11-15
OPERATIONS
BASIC OPERATIONS.............................................................................................16-28
DVD……………………………………………………………………………………..……16-22
TV………………………………………………………………...…………………………..23-28
MAIN MENU...........................................................................................................29-40
FIRST TIME INSTALLATION……..………………….………………………………..………29
DTV MODE.................................................................................................................30-39
ATV AND OTHER MODES..............................................................................................40
PC MODE........................................................................................................................40
FOR REFERENCE
MAINTENANCE..................................................................................................................41
WALL MOUNTING…………………………………………………………………………..........41
STAND INSTALLATION…………………………………………………………………………..42
SPECIFICATIONS...............................................................................................................43
TROUBLESHOOTING....................................................................................................44-45
ACCESSORIES

5
24" LED Display
This unit has a built-in LED display window to provide clear vision and low
radiation.
With Hotel Lock
Support Auto TV Scanning
Support Digital Broadcasting Reception
Support TV Guide Function
Support TELETEXT (Europe) Function
Support USB Multimedia Playback
Support Multi-languages On Screen Display
Support Full Function Remote Control
Support HDMI, SCART, YPBPR, AV, VGA, PC AUDIO and CI Input
Support EARPHONE and OPTICAL Output
Support PVR Function
Support TIME SHIFT Function
With Detachable Stand Holder
With External Antenna Jack
With Built-in Speakers
FEATURES

6
MAIN UNIT
1. LED display screen
2. Remote control sensor / Power indicator - In standby mode the indicator light is red; when
switching on the unit the indicator light is blue color.
3. Stand holder
4. Disc slot- To insert a disc according to the silk screen on the side of this slot.
5. VOL +/- button- To increase/decrease the volume level or move left/right.
6. CH +/- button- To select next/previous channel or move up/down.
7. MENU button- To enter menu setting page.
8. SOURCE button- To select the input source.
9. - To play or pause playing (DVD).
10. - To open or close the disc compartment.
11. POWER button- To turn the TV ON/OFF.
GENERAL PARTS
Front View Side View

7
1. Power input (AC cord)
2. OPTICAL output terminal
3. LAN input terminal (Note: LAN port is for network signal return only).
4. HDMI input terminal
5. VGA input terminal
6. PC AUDIO input terminal
7. SCART input terminal
8. Power input (DC)
9. EARPHONE output terminal
10. CI input terminal
11. Mini AV input terminal
12. Mini YPbPr input terminal
13. RF input terminal- To connect the external antenna.
14. USB input terminal
GENERAL PARTS
Back View

8
REMOTE CONTROL
1 POWER: Set the unit in standby mode; press it
again to switch it on.
2 GOTO: Jump to a different chapter of DVD.*
3 ANGLE: View DVD playback from different angles,
if the DVD has this feature.*
4 REPEAT: Repeat different chapter/title or entire
DVD.*
5 FAV: Press to display your favourite program in
DTV mode.
6 TEXT: Switch between TV and Teletext mode.**
7 SUBTITLE: Enable/disable subtitles.
8 SIZE / ZOOM: Change the Teletext & DVD size.
9 MEDIA: Select USB mode.
10 : PLAY/PAUSE in TIMESHIFT and USB mode.
11 RECORDER/D-SETUP: Record / Display the DVD
setup menu.
12 : Stop playing.
13 MENU: Display the main TV menu.
14 ◄/►/▲/▼: Press the LEFT/RIGHT/UP/DOWN
button to navigate the on-screen menus and
adjust the system settings to your preference.
Press OK to confirm your selection.
15 SOURCE: Switch the input source.
16 VOL +/-: Turn the volume up/down.
17 NUMBER BUTTONS (0-9): Press to select a TV
channel directly when watching TV. The channel
changes after 2 seconds.
18 -/--: Switch the digits.
19 AUDIO / LANG: Switch the available soundtrack
language (DTV/DVD).*
20 P-MODE: Cycle through the different picture mode.
21 S-MODE: Cycle though the different sound modes.
22 : Return to the previous channel.
23 DISPLAY: Display information of the current
program.

9
REMOTE CONTROL
24 CH +/-: Press to play the next or previous channel;
press repeatedly to scan through the channels.
25 MUTE: Mute the sound. Press again or press VOL+
to restore the sound.
26 GUIDE / D. MENU: Display electronic program guide;
Display the main disc menu.*
27 OK: Confirm selection.
28 EXIT / TITLE: Exit from the main TV menu displayed
on the screen; Display the DVD title menu. (DVD)*
29 : Play the previous file.
30 / INDEX: Play next file; Display the record
program list (DTV).
31 : Move fast backward.
32 : Move fast forward.
33 ASPECT: Press repeatedly to select the desired
screen aspect ratio.
34 SUBPAGE: Manually jump to previous or next
subpages of Teletext.
35 FREEZE: Hold the picture.
36 SLEEP: Set the TV sleep timer.
37 A-B: Repeat DVD scenes of your preference.
38 TV/RADIO: Switch the unit between TV and radio;
EJECT: Open or close the disc compartment. (DVD)*
NOTE: The functions of those buttons, which marked
with “DVD”, are available only when your TV has fitted a
DVD player.

10

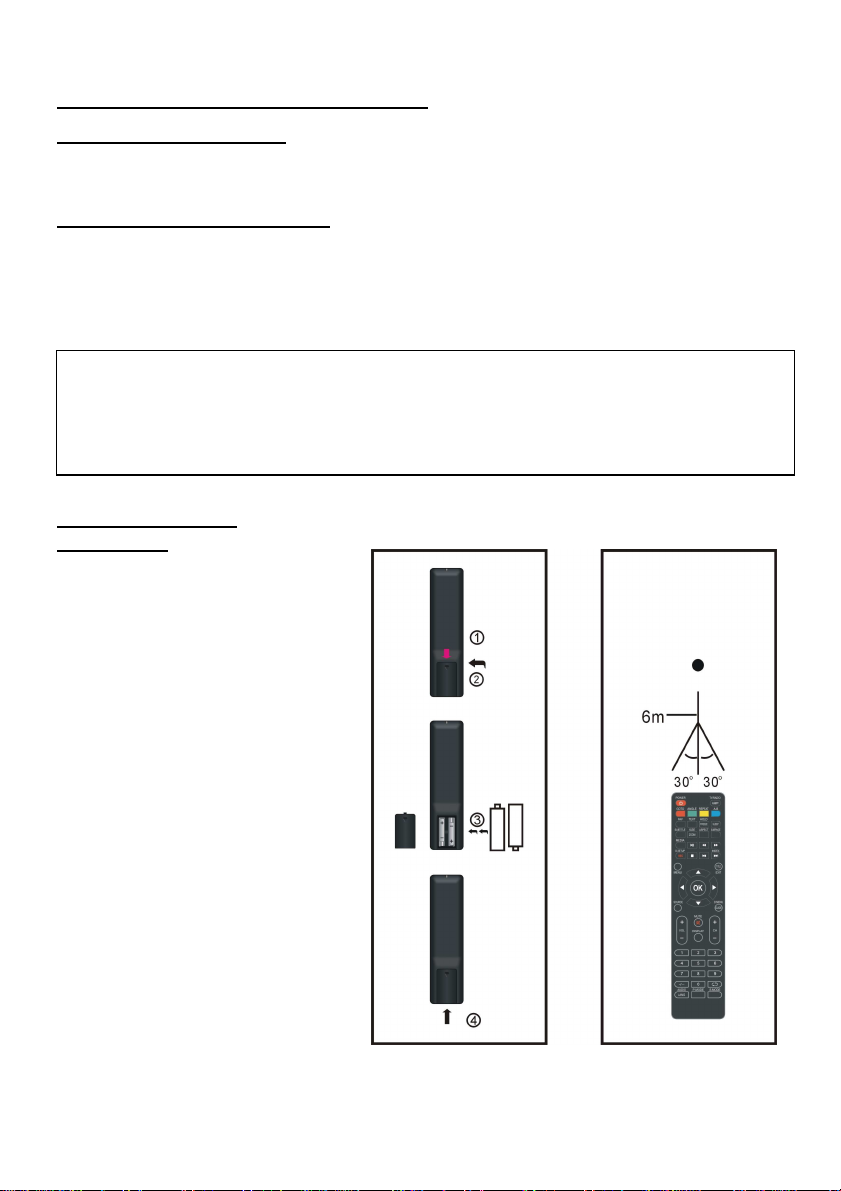

REMOTE CONTROL PREPARATION
BATTERY INSTALLATION
Install the batteries as the following pictures. Be sure + and – terminals are positioned
as indicated in the battery compartment (Fig1).
SERVICE LIFE OF BATTERIES
- The batteries normally last for one year although this depends on how often the
remote control is used.
- If the remote control fails to work even when it is operated near the player, replace the
batteries.
- Use two size AAA dry batteries.
NOTE:
●Do not drop, step on or otherwise impact the remote control. This may damage the
parts or lead to malfunction.
●If the remote control is not going to be used for a long time, remove the batteries.
REMOTE CONTROL
OPERATION
Point the remote control from no more
than about 6m from the remote control
sensor and within about 60°of the
front of the player (Fig2).
NOTES:
- The operating distance may vary
according to the brightness of the
room.
- Do not point bright light at remote
control sensor.
- Do not place objects between the
remote control and the remote control
sensor.
- Do not use this remote control while
simultaneously operating the remote
control of any other equipments.
Fig1 Fig2
Remote Control
Sensor
Push
Press
Open

11
●Ensure all the cables are disconnected from the main unit before connecting to power
source.
●Read through the instructions before connecting other equipments.

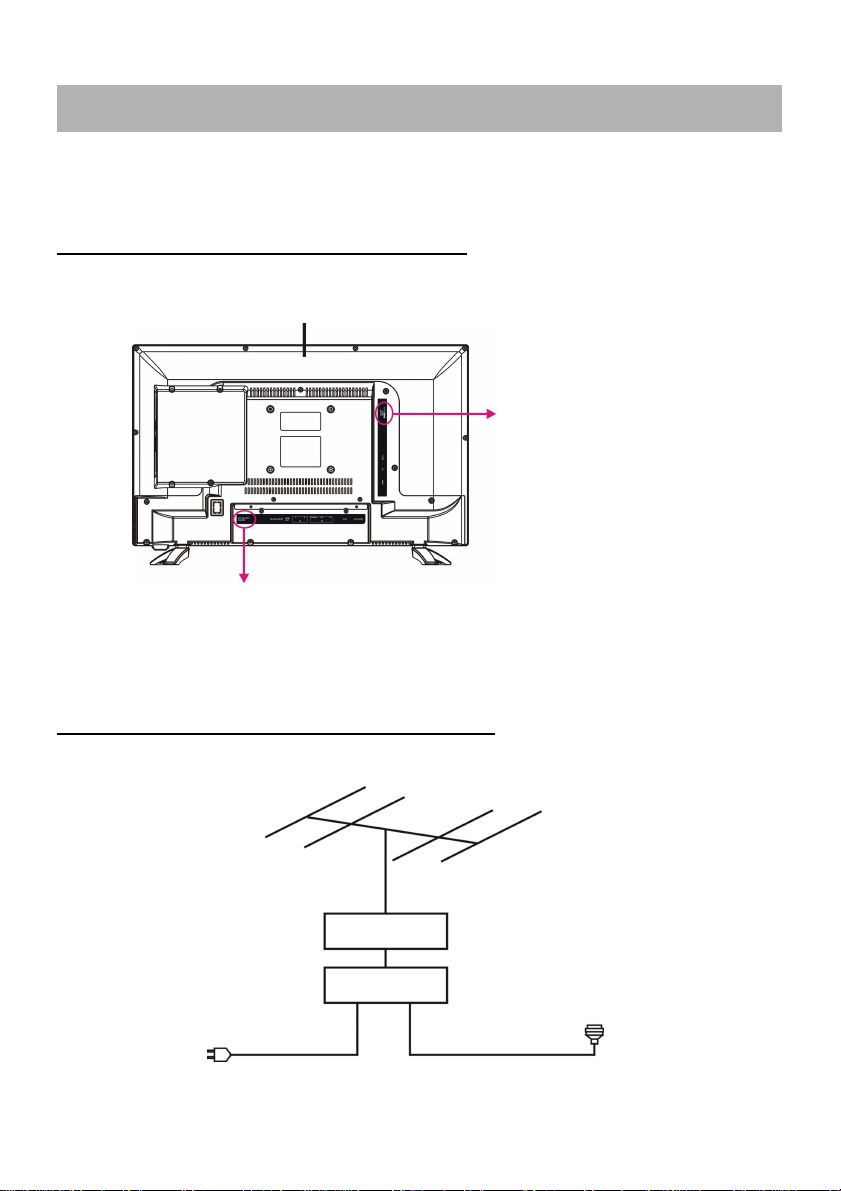

CONNECTING TO AC POWER SOURCE
CONNECT EXTERNAL ANTENNA TO UNIT
Install external antenna into antenna jack for best picture.
BASIC CONNECTION
Antenna
Outdoor
antenna
amplifier
Indoor
antenna
amplifier
Power plug
of antenna
amplifier
75 OHM
antenna
plug
Use an external power
adaptor (not supplied)
or similar to connect
this product and power
outlet.
Use the supplied power cord to connect this
product and power outlet.
Main unit

12
HDMI CONNECTION
PC/VGA CONNECTION
HDMI cable
(Not included)
Use HDMI cable to connect the unit with
other devices to receive high-definition
multimedia signal.
Back of DVD/VCR
Back of PC
Use VGA cable andAudio cable to
connect the unit with TV or PC, and
use this product as a monitor.
VGA cable
(Not included)
Audio cable
(Not included)

13

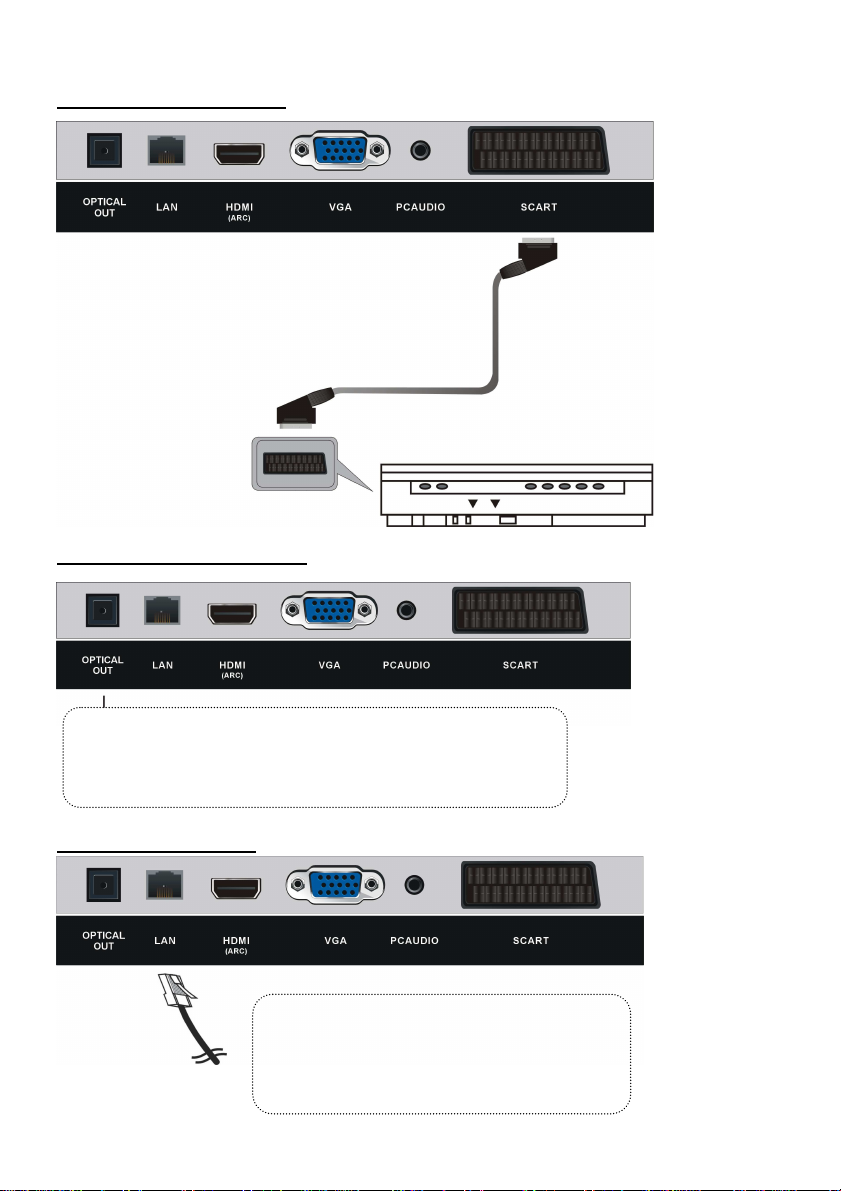

SCART CONNECTION
OPTICAL CONNECTION
LAN CONNECTION
Back of DVD/VCR
SCART cable
(Not included)
Use Optical cable to connect the unit with amplifier or other audio
decoding devices for audio signal output.
(Optical cable is not included.)
Use a LAN cable (not included) to connect
this TV with available network.
NOTE: Please connect to network for
software updates.

14
AV (COMPOSITE VIDEO) CONNECTION
YPBPR CONNECTION
Back of DVD/VCR
For basic connection, use the
compositeAudio L/R (white/red) and
CVBS (yellow) cable to connect the
unit with other devices.
Adaptor Cable for
Mini AV (included)
Back of DVD/VCR
YPbPr cable
(Not included)
Audio L/R of AV
cable (Not included)
YPbPr & AV adaptor
cables (Included)
AV cable
(Not included)

15

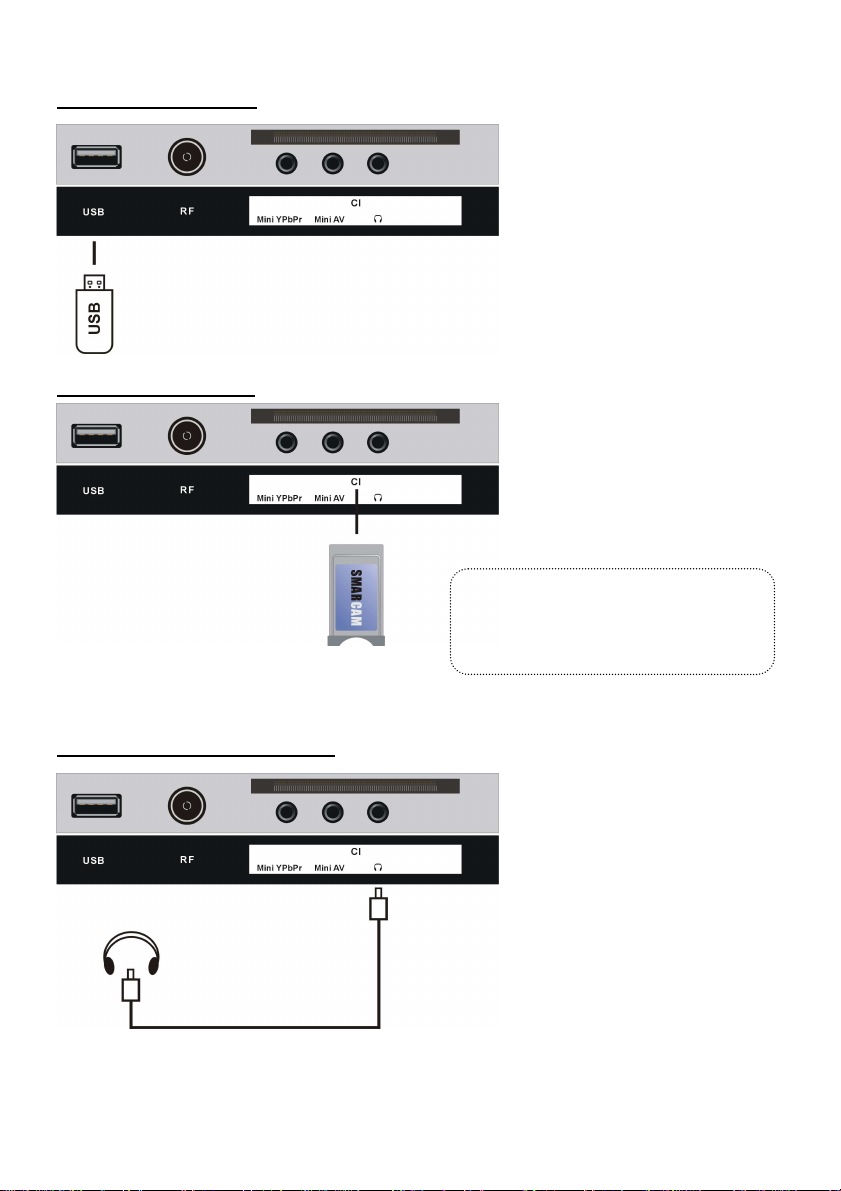

USB CONNECTION
INSERT A CI CARD
EARPHONE CONNECTION
Insert your CI card (Conditional
Access Module) to watch special
digital channels in your area.
EARPHONE cable
(Not included)
(Not included)
USB Memory Device
(Not included)

16
MAKE SURE ALL THE EQUIPMENTS AND POWER PLUG ARE
CONNECTED PROPERLY AND THE UNIT IS SET IN CORRECT MODE
BEFORE KINDS OF OPERATIONS.
- Press POWER button on the unit or remote control to power ON the unit (indicator
will glow blue); press it again to power OFF (standby mode) the unit (indicator will
glow red).
- Press SOURCE button on the unit or remote control to switch the unit to DVD
mode.
1. Basic play
a) Make sure the disc compartment has no disc. Place a disc into the disc compartment. Hold
the disc without touching either of its surfaces, position it with the readable (mirror) side facing
towards you, then the disc will automaticallyenter into the disc compartment; or you can press
EJECTbutton remote control to enterthe disc into the disc compartment.
b) Once the disc is in the disc compartment, the player starts to read the disc immediately.
c)When a menu screen appears on the unit, press the navigation buttons orpress the number
buttons to select preferred track number, then press OK buttontoconfirm.
d)To stop playing and return to the menu screen, press TITLE or D.MENU button.
2. Stopping play
Press █ (STOP) buttonto stop playing.
NOTE: When player is stopped, the player records the point where STOP was pressed
(RESUME function). Press button again, playback will resume from this point. When the
tray is taken out or █ (STOP) is pressed again, the RESUME function will be cleared.
3. Skipping ahead or backward
Skipping ahead
During playback, press button to skip the next chapter (DVD) or a track (Video CD/CD).
Skipping backward
During playing, press button to skip the previous
chapter (DVD) or track (Video CD/CD).
BASIC OPERATIONS
DVD

17
4. Fast forward/Fast backward
During playback, press button or button to fast
forward/backward.
Press button to resume normal play.
5. Pause/play
During playback, press button to pause playing, press it
again to resume normal playback.
6. Music playback
a) Insert the disc which contains music files and after a
few seconds, the screen will show all the folders on the
disc.
b) Select the folder you want to play by navigation
buttons and press the OK button to confirm.
c)The files in this folder are displayed and select the
desired song by navigation buttons, then press the
or OK button to start playback.
d) In file selecting page, press or button to
turn to next or previous page.
e) Press REPEAT button on remote control to change play mode.
- SINGLE: play one file only.
- REPEAT ONE: repeat one file.
- REPEAT FOLDER: all the files in the folder will be played repeatedly.
- FOLDER:all the files inthe folder willbe played.
NOTE: The available repeat modes may vary for different disc.
7. Movie playback
a) Insert the disc which contains movie files and after a
few seconds, the screen will show all the folders on the
disc.
b) Select the folder you want to play by navigation
buttons and press the OK button to confirm.
c)The files in this folder are displayed and select the
desired file by navigation buttons, then press the
or OK button to start playback.

18
d) During normal playing, press or button, the player will play the next or previous file.
e) Press REPEAT button to change play mode.
- SINGLE: play one file only.
- REPEAT ONE: repeat one file.
- REPEAT FOLDER: all the files in the folder will be played repeatedly.
- FOLDER:all the files inthe folder willbe played.
NOTE: The available repeat modes may vary for different disc.
f)Press D.MENU button to return to play listpage.
8. JPEG playback
For JPEG picture CD, select the folder you want to play
bythe navigation buttons and press OK button to
confirm. The files in this folder are displayed and select
your pictures by using the up/down navigation buttons
and press OK button to start playback. Thumbnail of
picture will be displayed while you scrolling across the
file name. Then press the or OKbutton to start
playback.
NOTE: The time ofloading and displaying a picture
depends on its size.
During playback, press D.MENUbutton to return to file selecting page.
Press REPEAT button to change play mode.
- SINGLE: play one file only.
- REPEAT ONE: repeat one file.
- REPEAT FOLDER: all the files in the folder will be played repeatedly.
- FOLDER:all the files inthe folder willbe played.
NOTE: The available repeat modes may vary for different disc.
Skip to next/previous picture
Press button to skip to the next picture or button to skip to the previous picture. If no key
is pressed for 3 seconds, it will skip to next picture automatically.
Rotating pictures
- Press RIGHTnavigation button to rotate the picture clockwise.
- Press LEFT navigation button to rotate the picture counter-clockwise.
Flipping pictures
- Press UPnavigation button to flip the picture vertically.
- Press DOWN navigation button to flip the picture horizontally.

19
Picture Shrink/Zoom
Press ZOOM button repeatedly to enlarge or shrink picture to 50%, 75%, 100%, 125%, 150%
and 200%.
NOTE: If the picture is enlarged, you may press navigation buttons to pan across other portions
of the picture.
9. Enjoying Video CD with playback control
a) When playing VCD 2.0 with PBC, the player will show the VCD version.
b) Press D.MENU button on remote control repeatedly to set PBC ON or OFF.
c) Press number buttons to select corresponding track.
Example: Track 9, press 0 and 9, several seconds later, it will automatically switch to track 9.
Track 15, press -/-- and 5, several seconds later, it will automatically switch to track 15.
d) Press or button, the player will play the next or previous track.
10. Viewing from different angle (DVD only)
Some DVDs may contain scenes which have been shot simultaneously from a numberof
different angles. For these discs, the same scene can be viewed from each of these different
angles using theANGLE button.
11. Repeat play
Press REPEAT button during playback, it will repeat play one chapter or one title (for DVD disc),
orrepeat play track (for VCD/CD).
REPEAT CHAPTER
REPEAT TITLE
REPEAT ALL
REPEAT TRACK
REPEAT DISC
DVD DISC
VCD/CD DISC (In the PBC OFF mode)
