Lionel 72-4117-250 User manual

Covered Bridge
72-4117-250
8/03
Congratulations on your purchase of the Lionel Covered Bridge! Lighted by three lamps, the Covered Bridge is easy to assemble. This accessory is capable of accommodating O-27
gauge, O gauge, and FasTrack track sections.
Use a small Phillips-head screwdriver to assemble the structure.
The following Lionel marks may be used throughout this instruction manual and are protected under law.
All rights reserved.
Lionel®, TrainMaster®, Odyssey®, RailSounds®, CrewTalk™, TowerCom™, DynaChuff™,
StationSounds™, Pullmor®, ElectroCoupler™, Magne-Traction®, CAB-1 Remote Controller®,
PowerMaster®, Lionel ZW®, ZW®, PowerHouse®, TMCC®, Lionelville™, Lockon®
The name FasTrack®is used with permission from Pitsco, Inc.
Covered Bridge Inventory
Metal base
Roof
Roof vent section
Ends (2)
Side panels (2)
Lamps (3)
Washer screws (28)

Assembling the Covered Bridge
Your Covered Bridge is easy to assemble using a small Phillips-head screwdriver. Feed the wires through the structure as described in the following steps. Refer to Figure 1.
1. Secure the ends to the roof using four washer screws (two at each end).
2. Feed the wires between the posts on the roof section and the edge of the roof. Run the wires
toward the left side of an end opening.
3. Install the sides using ten washer screws. Be sure that the sides “trap” the wires at the roof
and in the slots next to the opening.
4. Attach the metal base to the ends and the sides using 14 washer screws.
TRAP WIRES
IN NOTCH
Figure 1. Bridge assembly
Side
End
Roof

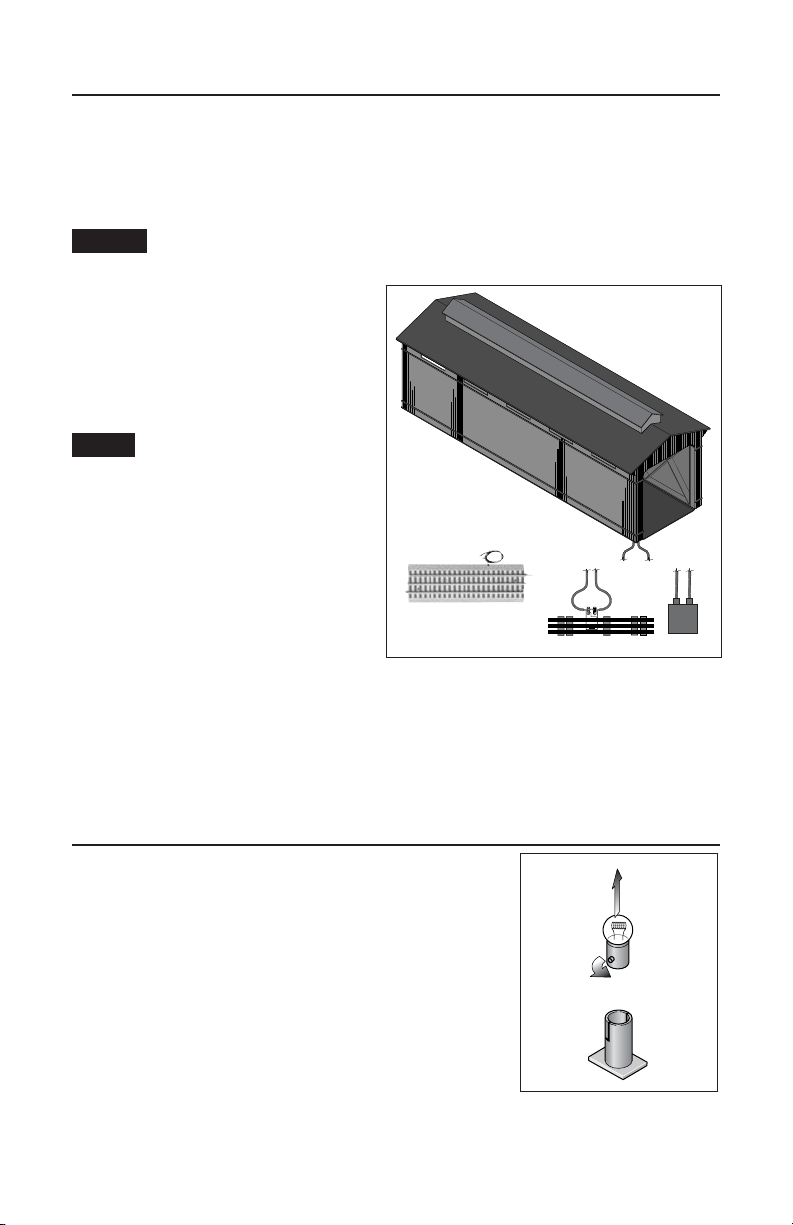

Powering the lamps
Your lamps require 12-18 volts (AC). You may connect the lamps to a separate accessory transformer or to the track using a Lionel Lockon (available separately, 6-62900) or a
FasTrack Accessory Power Wire (available separately, 6-12053). To make the proper connections,
the wires must be stripped back 1/8” to 1/4”.
Only an adult should perform this task using a pair of wire strippers. Always use
care when stripping wires.
1. As illustrated in Figure 2, connect one
wire from each lamp to the Power/A
terminal on the transformer, the #1
terminal on the Lockon, or to one of the
FasTrack Accessory Power Wires.
On FasTrack layouts, we
recommend that you use wire nuts
(available at electronics supply
stores) to make the Accessory
Power Wire connections. Twist the
bare ends of the wires together,
then screw the wire nut over the
connection.
2. Attach the remaining lamps wires to the
Common/Ground/U terminal on the
transformer, the #2 Lockon terminal, or
the remaining Accessory Power Wire.
Replacing the lamps
Your Covered Bridge is illuminated by three lamps. During the course of normal operations, the lamps may require
replacement. Replacement lamps (Lionel part no. 610-4102-301)
are available at your authorized Lionel Service Center or from
Lionel Service.
To remove a lamp, gently press the lamp into the socket,
rotate it counter-clockwise, and then lift it away. Install the
replacement, sliding the lamp all the way into the socket and
rotating it clockwise. Refer to Figure 3.
A
U
POWER
SUPPLY
UA
UA
Figure 2. Power connections
Figure 3. Lamp replacement
Note!
Caution!
Lockon
FasTrack Accessory
Power Wire

Limited Warranty/Lionel Service
This Lionel product, including all mechanical and electrical components, moving parts, motors and
structural components, except for light bulbs, is warranted to the original consumer-purchaser, for one
year against original defects in materials or workmanship when purchased through an authorized Lionel
merchant.
This warranty does NOT cover normal wear and tear, light bulbs, defects appearing in the course of
commercial use, or damage resulting from abuse or misuse of the product by the purchaser. Transfer of this
product by the original consumer-purchaser to another person voids this warranty. Modification of this product
voids this warranty.
Any warranted product which is defective in original materials or workmanship and is delivered by the
original consumer-purchaser to Lionel L.L.C. or an authorized Lionel L.L.C. Service Center, together with proof of
original purchase will, at the option of Lionel L.L.C., be repaired or replaced, without charge for parts or labor. In
the event the defective product cannot be repaired, and a replacement is not available, a refund of the original
purchase price will be granted. Any products on which warranty service is sought must be sent freight or postage
prepaid, as transportation and shipping charges are not covered by the warranty.
In no event shall Lionel L.L.C. be liable for incidental or consequential damages.
Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above
exclusion may not apply to you.
This limited warranty gives you specific legal rights, and you may have other rights which vary from state
to state.
Instructions for Obtaining Service
If service for this Lionel L.L.C. product is required, bring the item, along with your dated sales receipt and
completed warranty information to the nearest Authorized Lionel Service Center. Your nearest Lionel Service
Center can be found by calling 1-800-4-Lionel, or by accessing our Website at www.lionel.com.
If you prefer to send your product back to Lionel L.L.C. for repair in Michigan, you must first call 586-949-
4100 or FAX [phone], or write to Customer Service, P.O. Box 748, New Baltimore, MI 48047-0748, stating
what the item is, when it was purchased and what seems to be the problem. You will be sent a return
authorization letter and label to ensure your merchandise will be properly handled upon receipt.
Once you have received your return authorization and label, make sure that the item is packed to prevent
damage during shipping and handling. We suggest that you use the product’s original packaging. This
shipment must be prepaid and we recommend that it be insured.
Please make sure you have followed all of the above instructions carefully before returning any
merchandise for service. You may choose to have your product repaired by one of our Authorized Lionel Service
Centers after its warranty has expired. A reasonable service fee will be charged.
Warranty Information
Please complete the information below and keep it, along with your dated sales receipt. You must present
this and your dated sales receipt when requesting warranty service.
Name ________________________________________________________________________
Address ______________________________________________________________________
Place of Purchase ________________________________________________________________
Date of Purchase ________________________________________________________________
Product Number ________________________________________________________________
Product Description ______________________________________________________________
