Lipika Technologies

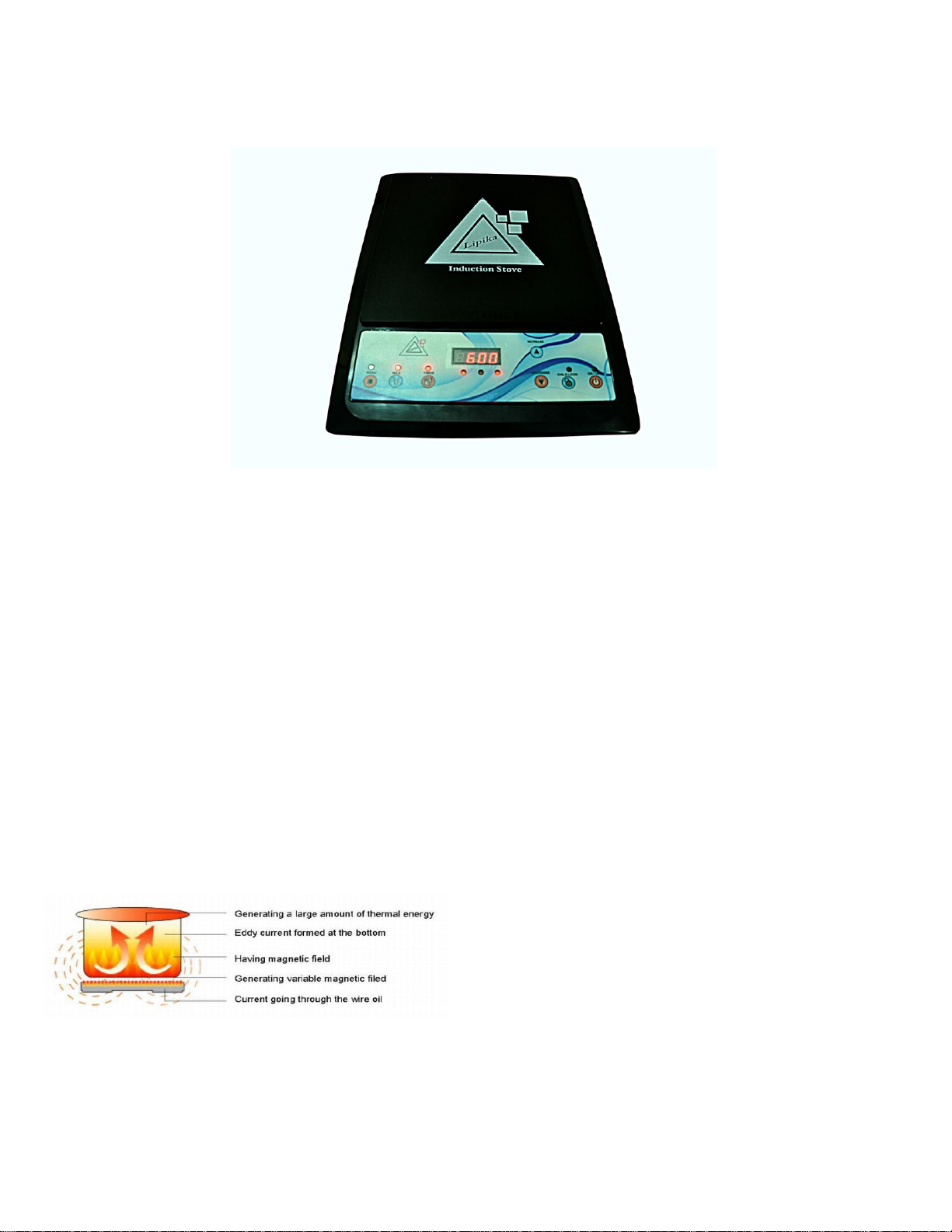

Intelligent Computerized Induction Cooker
INSTRUCTION MANUAL
Model: LPI7C-001
READ AND SAVE THESE INSTRUCTION MANUAL, USE AND CARE FOR YOUR INDUCTION
COOKERS PLEASE READ IT CAREFULLY BEFORE USE.
Thank you for purchasing our Induction cooker, please read this instruction manual carefully before using
and keep it safe for your future reference.
PRODUCT INTRODUCTION
This PSOC induction cooker transfers the power into high frequency wave. Magnetic waves generated by loops will
through bottom of steel pans making high efficient electrical basket. This way will reduce quantity of heat in
translating and make high heating efficiency, as heating will be uniform at surface.
Our induction cooker will be more safe & healthy for your family and more cleanliness to your kitchen.
INDUCTION COOKER WORKING PRINCIPLE
The induction cooker is mainly based on the principle of electromagnetic induction technology. Current generates
variable magnetic field after running through the wire coil. Eddy current is generated at the bottom when the
magnetic field induces the steel pot on the cooker plate. A large amount of thermal energy produced can heat the
bottom quickly, thus heating up the food very fast, with thermal efficiency up to 93%.

1
SPECIFICATION
Model No.
LPI7C-001
Power Supply
220-240V –50Hz
Power Range
2000W
Predefined cooking options
Cook, milk and fry
Temperature Adjustment
80` C -270`C
Timer / Preset Timer
23 hour 59 minutes
OPERATION AND USAGE
Operation Step
1. Place suitable cooking utensils in the centre of the top plate
2. Insert the plug into 230V –15 Special Jack, power pilot lam flashes, induction cooker enters standby state.
3. Press “ ” button to start the induction stove.
4. Press any of these buttons to select different modes of cooking (cook), (milk), (fry).
5. Press (increase) or (decrease) buttons to select different range of heat levels or to vary the time.
6. To stop cooking, press “ ” button then power light will flash Plug out to shut off power supply.
USAGE
Cooking function button:
1. Press the switch, the power indicator and the heating indicators are on, and now the Induction Cook -
Top is in the heating mode. Display shows „----„on the screen, this means the device in the standby mode.
2. In this device there are 3 predefined cooking modes (cook, milk, and fry). Each one has its own predefined
wattage level and functionalities. Details are given below.
Cook:
After standby mode press (cook) option then display will show you “800” (wattage)
800 Watt (default for minimum temperature)
1000 Watt (for medium temperature)
1200 Watt (for High temperature) You can select any levels by pressing „ ‟ or ‟ „keys
(Milk):
After standby mode press (milk) option and display will show you “600” (wattage). In this mode the
wattage level is constant and you can‟t vary the values like in cook and fry mode.
This mode is programmed in such a way that the temperature increases and decrease frequently to heat the
milk.
(Fry):
After standby mode press (fry) option and display will show you “800” (wattage).
800 Watt (default for minimum temperature)
1000 Watt (for medium temperature)
1200 Watt (for High temperature)
1400 Watt (for Very high temperature)You can select any levels by pressing „ ‟ or ‟ „ keys

2
3. Once you select a cooking mode you can run the stove continuously or you can set the cook time using
(timer) option. Cooking time can be set from 1minute to 24hours using. (Increase) and (decrease)
keys.
To cancel timer setting press “ ” button once again.
To turn off the stove press button.
Notice
Only use special electrical outlet, do not use together with other appliances to avoid overheating.
1. Please do not heat tinfoil paper directly or indirectly and do not put cloth, paper, cushion, etc on the board for
heating.
2. While using induction cooker do not put metal stick or other things in aspiration and exhaust channel.
3. If crack on the cover of induction cooker, please cut the power first.
4. Do not use near water to avoid water flowing into the machine.
5. While using induction cooker, please do not put metal matters and magnetic force matters on it to prevent
from damage.
6. This appliance is liable to get hot during use. Do not touch the surface
Choosing right pans:-
1. Suitable pans are 304 and 403 steel pans, porcelain enamel cast iron, especially flat pan.
2. Unsuitable pans are heat tolerance glasses, potter, copper, aluminum.
USABLE and NON-USABLE COOKING UTENSILS
Usable Pans
Steel or cast iron, enameled iron, stainless steel, flat-bottom pans / pots with diameter from 12 to 26cm.
Non Usable Pans
Heat-resistant glass, ceramic container copper, aluminum pans/pots Rounded-bottom pans/pots with bottom
measuring less than 12cm
CAUTIONS
1. Do not plug with wet hands.
2. Do not plug into a socket where several other appliances are plugged in.
3. Do not Plug into a socket which Ampere load is less than 10A
4. Do not use if the plug cord is damaged or the power plug does not fit the socket safely.
5. Do not modify the parts or repair the unit by yourself.
6. Do not use the unit near flame or wet places and Do not place the unit on unstable surfaces..
7. Do not use where children can easily touch the unit, do not allow children to use the unit by themselves.
8. Do not move the unit when the pot or the pan is on it.
9. Do not heat the pot empty or overheat the pot
10. Do not place metallic objects such as knives, forks, spoons, lids, cans, and aluminum foils on the top plate.
11. Use the unit with sufficient space around it. When unit working, it must be placed at least 10cm from the wall.
Keep the front side and either right or left side of the unit clear.
12. Do not use the unit on carpet or tablecloth (vinyl) or any other low-heat-resistant article.
13. Do not place a sheet of paper /silver paper between the pot/pan and the unit. The paper may get burnt.
14. Do not break the surface. If the surface is cracked, switch off immediately and take it to the qualified service
centre.
15. Do not place the unit near to the objects which are affected by magnet, such as: watches, radios, televisions,
automatic-banking cards and cassette tapes.

3
CLEANLINESS & MAINTENANCE
1. Please shut off the power and pull out the plug before cleaning
2. Clean the unit after it cools down completely.
3. To remove dirt, please select litmus less detergent.
4. After remove dirt, please use neat wet cloth to clean the unit.
5. Do not clean by water directly, water get inside may cause malfunction.
6. Make the ceramic plate and pan clean before cooking otherwise , dirt after charring is very difficult to clean
and the plate may get discoloration.
7. You may clean air vent / air entry„s dirt by vacuum cleaner to suck up or by cotton. If there is dirt with oil,
add a little litmus less detergent with toothbrush to clean.
8. Do not use benzene, thinner, scrubbing brush or polishing power to clean the induction cooker.
TROUBLE SHOOTING
Trouble Code
Possible Reasons
Solutions
E1
Abnormal supply voltage:
Voltage too high
Check power supply, power on after power
supply back to normal.
E2
Abnormal supply voltage:
Voltage too low
Please Check power supply, power on after
power supply back to normal.
E3
Coil panel is not connected well:
Electro circuit malfunction
Please Contact the supplier or go to a qualified
service centre
E4
No pot/ pan on the plate: Non-
usable Pans on the plate
Put suitable cooking utensils on the plate.
E5
IGBT Over heat protection
* Please allow the induction cook top to cool
down and then restart the operation.
* Please remove paper / cloth of any kept
beneath the cook top as this will block the air
vents thereby producing more heat.
* If the problem still persists, please bring it to
the service centre.
E6
Coil Over heat
Please contact the supplier or go to a qualified
service centre. Clean the vent after the unit
cools down, then can restart.
WARRANTY CARD
This page has to be treated as a fully fledged warranty card and is required to maintain by you. You will
require producing this card claiming the service within the warranty period. In the unlikely event that a
defect should develop in the induction cook top during the period of this warranty, the product should be
delivered at your cost to the authorized service center along with this warranty card.
Model : LP17C-001
Date of purchase:
Serial no.:
Dealer‟s stamp & address
