Solera® Outdoor Awning
Heater for 3000 Series
63" and 69" Arms
OEM INSTALLATION MANUAL

Rev: 11.29.23 Page 2 CCD-0008076
TABLE OF CONTENTS
Introduction 2
Safety 3
Resources Required 4
Unpacking Instructions 4
Preparation 4
Installation 5
Operation 8
Attaching the Heater to the Awning Arm Bracket 8
Rain and Wet Weather Guidelines 8
Using the Heater 9
Retracting the Awning With Heater Installed 13
Removing and Stowing the Heater for Travel 15
Maintenance 15
Introduction
The 1500 Watt Solera® Outdoor Awning Heater provides heat to the space below the awning. The heater has
a full range of motion to allow it to remain installed on the awning arm while the awning is closed. Heater
can be removed with ease from the awning arm mounting bracket , and comes with a specially-lined box for
storage and protection when not in use or while traveling.
For information on the assembly or individual components of this product, please visit:
https://support.lci1.com/solera-and-reg-awning-accessories
NOTE: Images used in this document are for reference only when assembling, installing and/or operating
this product. Actual appearance of provided and/or purchased parts and assemblies may differ.

Rev: 11.29.23 Page 3 CCD-0008076
The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause
death or serious personal injury if not performed safely and within the parameters set forth in this
manual.
Failure to follow instructions provided in this manual may result in death, serious personal injury
and/or severe product and property damage, including voiding of the component warranty.
Safety
Read and understand all instructions before installing or operating this product. Adhere to all safety labels.
This manual provides general instructions. Many variables can change the circumstances of the instructions,
i.e., the degree of difficulty, operation and ability of the individual performing the instructions. This
manual cannot begin to plot out instructions for every possibility, but provides the general instructions,
as necessary, for effectively interfacing with the device, product or system. Failure to correctly follow the
provided instructions may result in death, serious personal injury, severe product and/or property damage,
including voiding of the Lippert limited warranty.
Heater is hot when in use. To avoid burns, do not let bare skin touch hot surfaces. Keep combustible
materials such as furniture, pillows, bedding, papers, clothes, etc. and curtains at least 3 feet from
the front of the heater and keep them away from the sides and rear.
Use this heater only as described in this manual. Any other use not recommended by the
manufacturer may cause re, electric shock, or injury to persons.
Do not operate any heater if it malfunctions or becomes broken in any way. Disconnect power at
service panel and have heater inspected by an electrician before reusing.
Do not insert or allow foreign objects to enter any ventilation or exhaust opening as this may cause
an electric shock, re, or damage the heater.
Do not plug in or operate heater in conjunction with any products or devices that produce or spray
water in any fashion including misters, sprinklers, etc. Electrical shock, re, personal injury and/or
death may occur.
ALWAYS REMOVE HEATER FROM AWNING ARM BEFORE MOVING THE RV IN ANY WAY.
Prior to any kind of travel, transport, or moving of the RV, the heater MUST be removed from the
awning arm and stored in the included box. Failure to remove the awning heater prior to travel
could cause serious personal injury and/or property damage.

Rev: 11.29.23 Page 4 CCD-0008076
Resources Required
• Electric or cordless drill or screw gun
• Size F drill bit
• Phillips head screwdriver
• Open end wrench
• Non-permanent method of marking
Always wear eye protection when performing service, maintenance or installation procedures.
Other safety equipment to consider would be hearing protection, gloves and possibly a full face
shield, depending on the nature of the task.
The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury
and/or product or property damage if not safely adhered to and within the parameters set forth
in this manual.
Extreme caution is necessary when any heater is used by or near children or disabled persons and
whenever the heater is left operating and unattended.
Unpacking Instructions
When unpacking the heater from the shipping container and box, take care not to damage the box the
heater comes in. The box comes equipped with a handle and specially lined Styrofoam interior. It is intended
by the manufacturer to be the ONLY way to store the heater while stowed or when it is not installed
on the awning.
Only open the box where it is sealed with adhesive packing tape or stickers by carefully cutting
the tape/stickers.
The box features Styrofoam inserts that provide protection for the heater’s ceramic tube which would
otherwise be susceptible to cracking from road mileage vibration during transit. Take care not to damage
box, and always store a safe, dry place.
DO NOT DISCARD BOX, AND ALWAYS STORE/STOW HEATER IN BOX. Stow empty box for customer use
or place heater back in box once installation is complete and stow.
Discarding or damaging the original box voids all warranty.
Preparation
NOTE: Intended power supply outlet should be a minimum 20A circuit.
1. Determine installation location of the heater by checking the length of the power cord and the
location of the intended power supply outlet. If an extension cord is needed, it must meet the
following specifications:
A. Minimum size of 16 AWG
B. Rated at 1500 watts or greater
C. Three-prong grounded
D. Waterproof
2. Heater may be installed on drive or idle arm of the awning.
ALWAYS REMOVE HEATER FROM AWNING ARM BEFORE MOVING THE RV IN ANY WAY.
Prior to any kind of travel, transport, or moving of the RV, the heater MUST be removed from the
awning arm and stored in the included box. Failure to remove the awning heater prior to travel
could cause serious personal injury and/or property damage.

Rev: 11.29.23 Page 5 CCD-0008076
Installation
1. Fully extend the awning.
2. On the inside edge of the arm chosen for installation, measure 24" from the back end of the outer arm
(Fig. 1) and make a mark using a non-permanent method of marking.
3. Locate the mounting bracket assembly (Fig. 2) and separate the awning arm bracket
portion (Fig. 2A) and (Fig. 3A) by turning the pivot knob (Fig. 2B) counter-clockwise until the awning
arm bracket (Fig. 3A) is free.
24”
Fig. 1
Mark
Fig. 2 Fig. 3
B
A
B
A

Rev: 11.29.23 Page 6 CCD-0008076

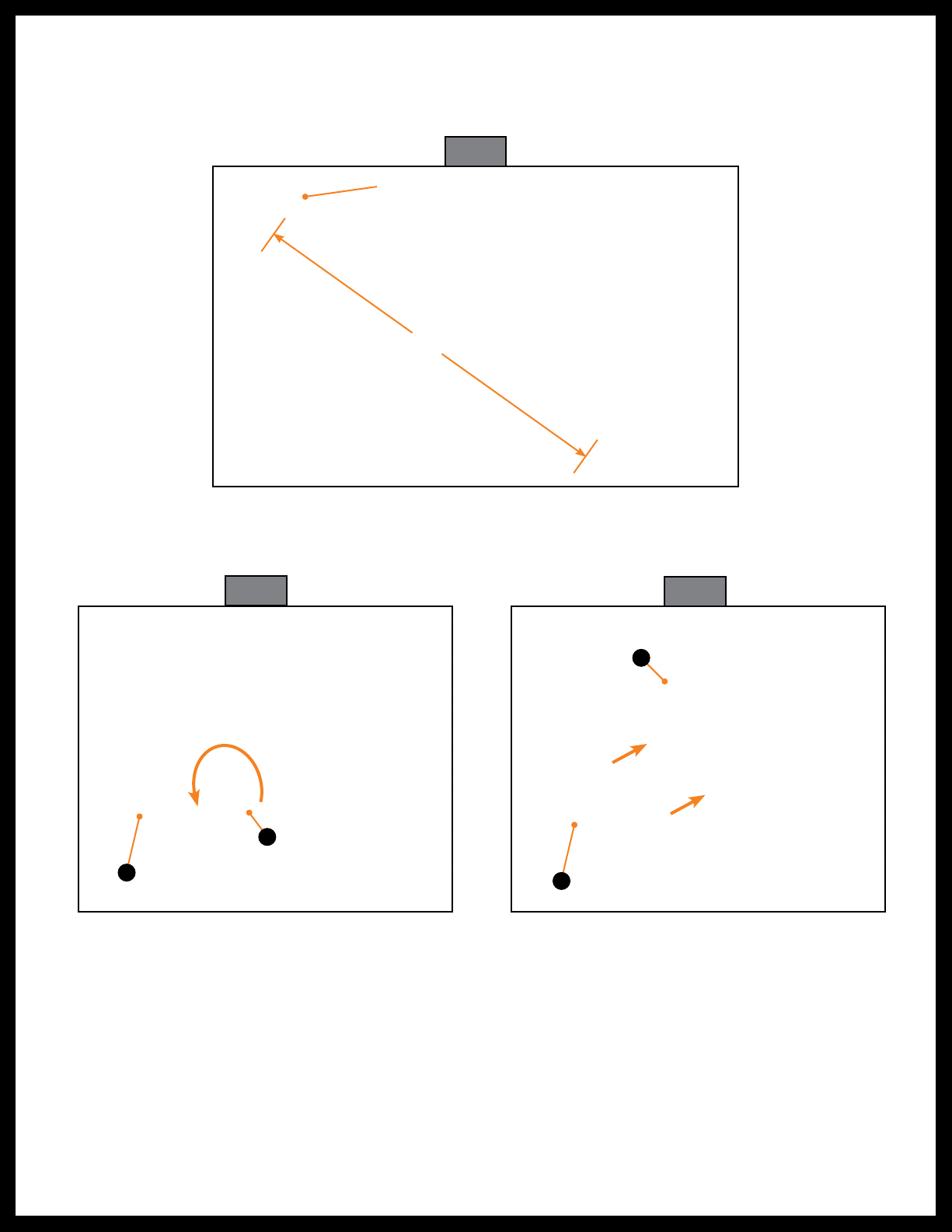

4. Place the edge of the awning arm bracket at the mark made in step 2. The tabs (Fig. 4A) on the back
bottom side of the bracket should slide into the outer arm channel (Fig. 4B). Mark the location of each
screw hole (Fig. 5).
5. Set the awning arm bracket aside. With a size F bit, drill two holes; one at each mark made through the
screw holes of the awning arm bracket.
6. Insert two M6X14 Phillips head screws (Fig. 6A) through the backside of the outer arm and through the
awning arm bracket, and secure with two M6X5 self-locking nuts (Fig. 6B). Do not over-tighten.
7. Affix the heater mounting bracket assembly (Fig. 7A) to the back of the heater (Fig. 7B) using four
M4X10 Phillips head screws (Fig. 8A) and (Fig. 9A).
Fig. 4 Fig. 5
Fig. 6 Fig. 7
Fig. 8 Fig. 9
Previously made mark
A
A
B
Previously made mark
Mark
Mark
A
A
A
B
B
B
A
A

Rev: 11.29.23 Page 7 CCD-0008076
Power cord must not touch the reector of the heater or hang into the heated area.
All electrical wiring harnesses shall be loomed and secured to prevent possible damage and
installed in accordance with RVIA electrical standards.

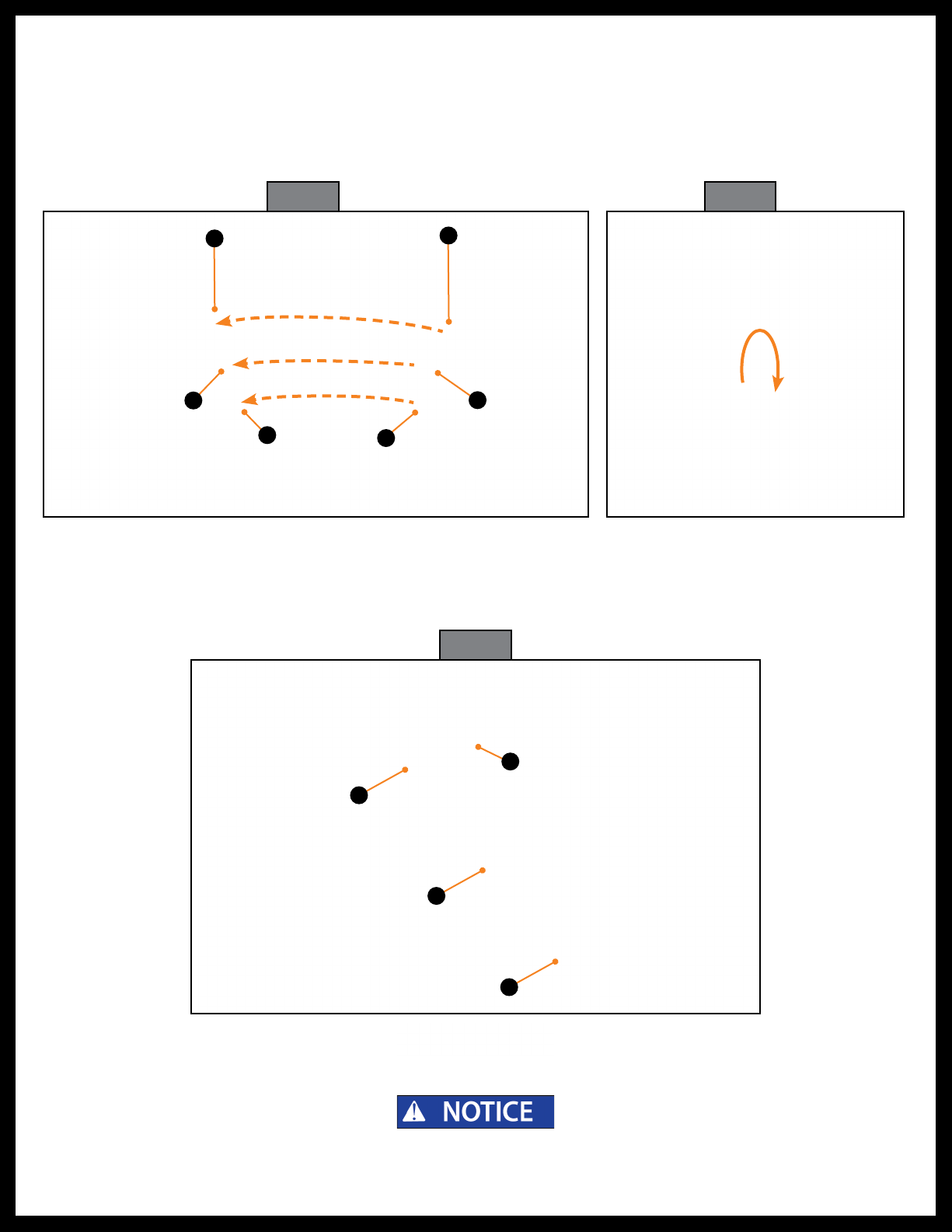

8. Align the heater and mounting assembly to the awning arm bracket by sliding the mounting assembly
pivot knob screw (Fig. 10A) into the center hole of the awning arm bracket (Fig. 10B). The two
alignment and pivot pegs (Fig. 10C) must also align and insert into their respective slots (Fig. 10D) so
that the awning arm bracket and heater mounting assembly are flush.
9. Tighten the pivot knob by turning it clockwise so that the heater may pivot, but does not
lose its angle (Fig. 11).
10. Peel the backing off of the provided cord keepers (Fig. 12A) and insert them inside the outer arm
channel (Fig. 12B). Keep in mind the cord will need enough slack to allow the heater to
pivot and rotate.
11. Secure the cord (Fig. 12C) in place by pressing it into the cord keepers.
Fig. 10 Fig. 11
A
B
C
D
C
D
Fig. 12
A
A
B
C

Rev: 11.29.23 Page 8 CCD-0008076
Operation
Attaching the Heater to the Awning Arm Bracket
1. Remove the heater and mounting assembly from the box.
2. Extend the awning to allow working space, or to the desired position if immediately using the heater.
3. Align the heater and mounting assembly to the awning bracket by sliding the mounting assembly
pivot knob screw (Fig. 13A) into the center hole of the awning arm bracket (Fig. 13B). The two
alignment and pivot pegs (Fig. 13C) must also align and insert into their respective slots (Fig. 13D) so
that the awning arm bracket and heater mounting assembly are flush.
4. Tighten the pivot knob as needed (Fig. 14) based on immediate use of the heater (see "Using the
Heater"), or if retracting the awning for later use (see "Retracting the Awning with Heater Installed").
Never plug the heater into a power supply with wet hands
Rain and Wet Weather Guidelines
The Solera Awning Heater features rain protection and is intended for outdoor use. However, no electronic
device is truly waterproof. Adhere to the following guidelines when operating the heater in any kind of wet
weather.
1. During any sort of precipitous weather including but not limited to drizzle, mist, rain, hail, snow, etc,
immediately turn off and unplug heater.
2. Heater should not be operated or plugged in until the entire device is completely dry.
3. Using the side of the awning with the heater installed to dump water from the awning fabric may cause
water to splash up into and on the heater. Whenever possible, use the non-heater side of the awning to
dump water and always check the heater thoroughly for any water after dumping before use.
4. Never operate heater in the presence of standing water.
Fig. 13 Fig. 14
A
B
C
D
C
D

Rev: 11.29.23 Page 9 CCD-0008076
Using the Heater
NOTE: The heater should only be operated while it is in a level position.
1. Fully extend the awning.

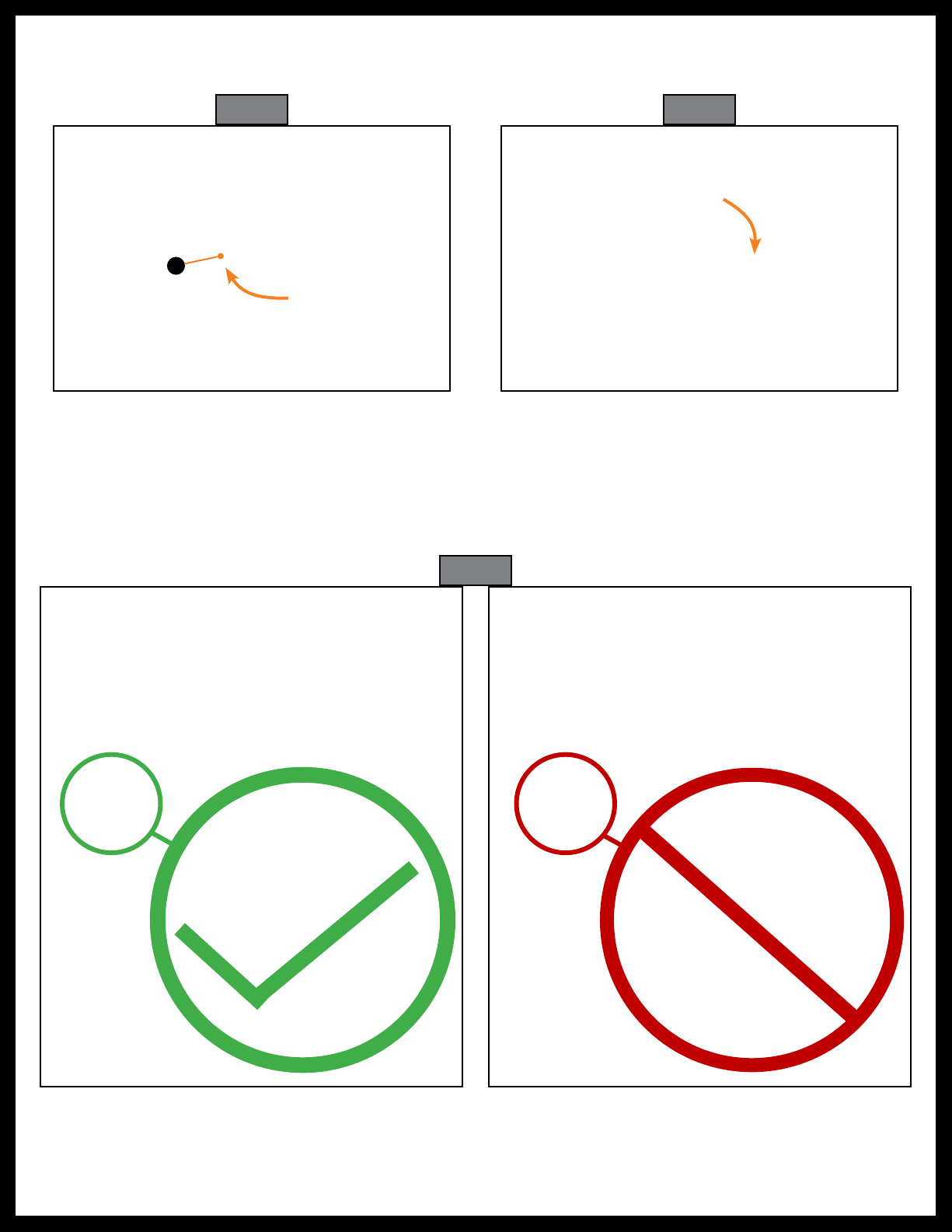

2. Loosen the pivot knob by turning it counter clockwise (Fig. 15) enough so that the heater may freely
pivot. Using the built-in bubble level (Fig. 16A) on the bracket assembly, position the heater so that it
is level (Fig. 16).
NOTE: When operating the heater, make sure there is at least 20" between the top of the level heater and
the awning fabric (Fig. 17). Extend or retract the awning or pivot the heater as needed to allow for
this clearance.
3. Tighten the pivot knob by turning it clockwise (Fig. 18) so that the heater is secure and will not droop
or fall.
Fig. 15 Fig. 16
A
Heater
in level
position
Fig. 17 Fig. 18
≥20”
≥20”

Rev: 11.29.23 Page 10 CCD-0008076

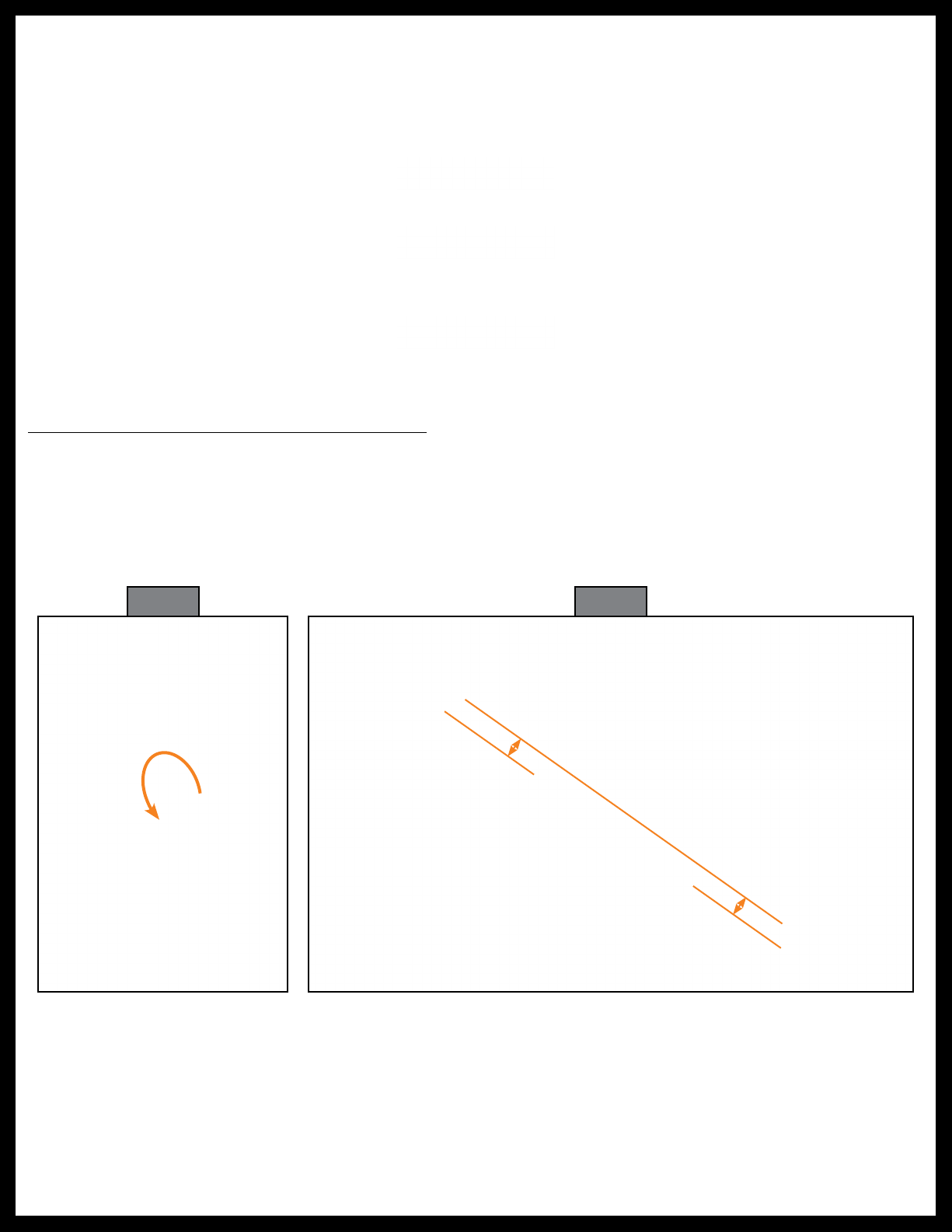

4. The heater face may be tilted downwards as needed by disengaging the locking lever (Fig. 19A) on
right-hand side of the mounting assembly. Once the heater is tilted in the desired position, lock it in
place by engaging the locking lever.
Never point the heater towards dry or ammable surfaces.
NEVER tilt the heater upwards so that the heating face/element is facing the awning fabric (Fig. 21).
Fig. 19 Fig. 20
Fig. 21
A

Rev: 11.29.23 Page 11 CCD-0008076
5. Plug in the heater to a grounded power source.
6. Turn the heater on by pressing the power button on the remote (Fig. 22A). The display on the heater
will flash "0" (Fig. 23).
7. From this point, the heater will not operate unless a specific amount of time is entered via the timer
button on the remote (Fig. 24A). Within one minute of pressing the power button to turn the heater
on, press the timer button. The display on the heater will switch to a flashing number "1" (Fig. 25). This
is the amount of time in hours the heater will remain powered on before automatically shutting off.
8. Press the timer button up to eight more times as needed to set the desired amount of time the heater
will remain on from 1-9 hours. Once the desired amount of time is displayed on the heater, wait 5
seconds. The display will stop flashing and the heater will begin heating.
Fig. 22
A
Fig. 23
A
Fig. 24 Fig. 25

Rev: 11.29.23 Page 12 CCD-0008076
NOTE: For example, if the heater needs to be on for three hours (Fig. 26):
A. Press the power button to turn on the heater.
B. Within one minute, press the timer button three times consecutively. The display will show a
flashing number "3".
C. Wait 5 seconds for the timer display to stop flashing. The heater will begin heating.
D. Store the remote in a safe place.
NOTE: If timer button is not pressed within one minute of pressing the power button to power on the
heater, the heater will auto shut off.
Wait 5 Seconds
Press
Press 3
times
1
2
3
Fig. 26

Rev: 11.29.23 Page 13 CCD-0008076

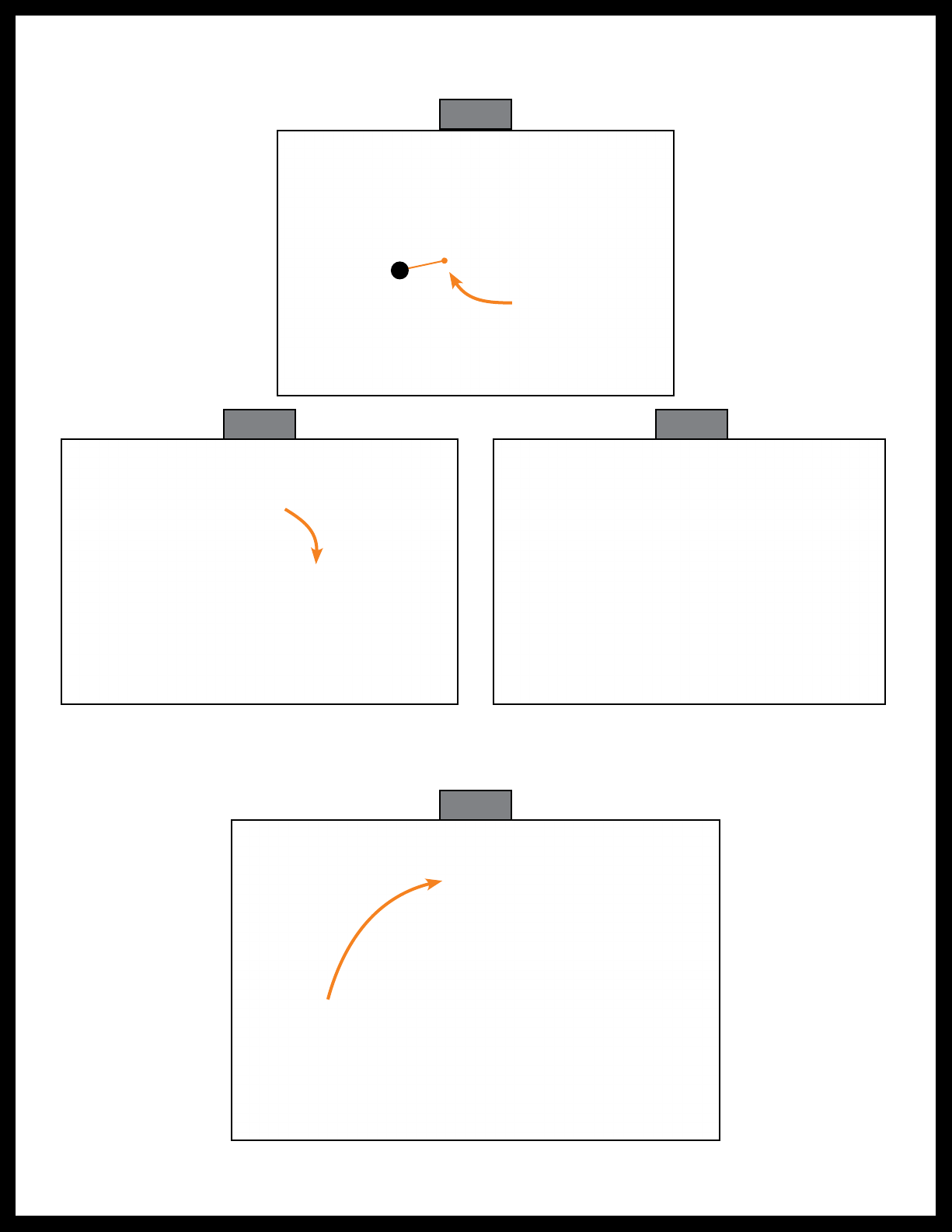

9. If desired, heater may be turned off at any time by pressing the power button while the heater is
running, regardless of how much time is left on the timer.
10. Store the remote in a safe, dry place when not in use.
11. Once the timer completes its cycle or after powering down the heater manually, unplug the heater.
NOTE: Always unplug the heater when not in use.
Do not place any objects such as furniture, papers, clothes, and curtains closer than 3 feet to the
front of the heater and keep them away from the sides and rear when the heater is plugged in.
To prevent re, do not block air intakes or exhaust in any manner.
The heater has hot and arcing or sparking parts inside. Do not store or use gasoline or other
ammable vapors and liquids in the vicinity of the heater.
Retracting the Awning With Heater Installed
The heater may be pivoted to allow the awning to retract when not in use.
1. Turn off and unplug the heater.
2. Heater will be hot if used recently. Wait 10 minutes to allow the heater to completely cool before
touching it or retracting the awning.
3. Loosen the pivot knob (Fig. 27) enough so that the heater may freely pivot. Pivot the heater so that it is
parallel with the outer arm of the awning arm (Fig. 28).
Fig. 27 Fig. 28

Rev: 11.29.23 Page 14 CCD-0008076
4. If not tilted downwards already, unlock the locking lever (Fig. 29A) and tilt the face of the heater
downwards (Fig. 30) and (Fig. 31).
5. Secure the angle of the heater in place by re-engaging the locking lever.
6. Check the position of the heater's power cord, and make sure it will not become tangled, snagged or
caught in any moving parts of the awning. Adjust the cord in the attached cord keepers as needed.
7. Retract the awning (Fig. 32).
Fig. 29
A
Fig. 30 Fig. 31
Fig. 32

Rev: 11.29.23 Page 15 CCD-0008076
Removing and Stowing the Heater for Travel
1. Turn off and unplug the heater if it isn't already.
2. Heater will be hot if used recently. Wait 10 minutes to allow the heater to completely cool before
touching it.
3. Loosen the pivot knob (Fig. 33) enough by turning it counterclockwise so that the knob and attached
heater/mounting assembly can be freely removed.
4. Remove the heater and mounting assembly from the awning arm bracket (Fig. 34).
Fig. 33 Fig. 34
5. Release the power cord from the cord keepers.
6. Place the heater and bracket assembly into the original storage container as directed.
7. Stow the container.
8. Retract the awning.
Maintenance
NOTE: Heater contains no moving parts and needs little to no maintenance other than occasional cleaning.
1. Turn off and unplug the heater.
2. Heater will be hot if used recently. Wait 10 minutes to allow the heater to completely cool before
touching it.
3. Use a soft cloth to wipe any dirt or dust buildup off of the heater.
ALWAYS REMOVE HEATER FROM AWNING ARM BEFORE MOVING THE RV IN ANY WAY.
Prior to any kind of travel, transport, or moving of the RV, the heater MUST be removed from the
awning arm and stored in the included box. Failure to remove the awning heater prior to travel
could cause serious personal injury and/or property damage.

The contents of this manual are proprietary and copyright protected by Lippert. Lippert prohibits the copying or
dissemination of portions of this manual unless prior written consent from an authorized Lippert representative
has been provided. Any unauthorized use shall void any applicable warranty. The information contained in this
manual is subject to change without notice and at the sole discretion of Lippert. Revised editions are available
for free download from lippert.com.
Please recycle all obsolete materials.
For all concerns or questions, please contact Lippert
Ph: 432-LIPPERT (432-547-7378) | Web: lippert.com | Email: [email protected]
