Operating Manual
Conveyor Belt
LIBELT 600
LIBELT 600 T
This operating manual is a critical component to the conveyor belt. It must be
available to the operator at all times.
Maschinenbau GmbH
Lanzstraße 4 - D-88410 Bad Wurzach
Telefon [phone] - Fax + 49 (0) 75 64/3 07-5 00
[e-mail] -www.lissmac.com
Revised: 2021/06
Translation of the original operating manual
EN

2
Preface to the Operating Manual
This operating manual should make it easier to acquaint yourself with the machine
and its features.
The operating manual contains important precautions on operating the machine
safely, correctly and efficiently. Following the instructions helps prevent accidents,
unnecessary repair costs and down time, which extends the machine’s reliability and
durability.
The operating manual shall be used in compliance with any national laws concerning
accident prevention and environmental protection.
The operating manual must constantly be in the vicinity of the machine.
•Operation, including setting-up, troubleshooting, disposal of waste products,
product care, application of lubrication and auxiliary products.
•Servicing (maintenance, inspection, repair) and/or
•Transport
In addition to the operating manual and to comply with all national and local
regulations concerning accident prevention, the technical instructions below must
also be recognized to ensure safe and correct operation.
Table of Contents
1. General Safety Requitements
2. Description of machine
3. Commissioning
4. Transport
5. Operation
6. Maintenance
7. Malfunctions
8. Periodic control check
9. Accessories
10. Guarantee

3
1. General Safety Precautions

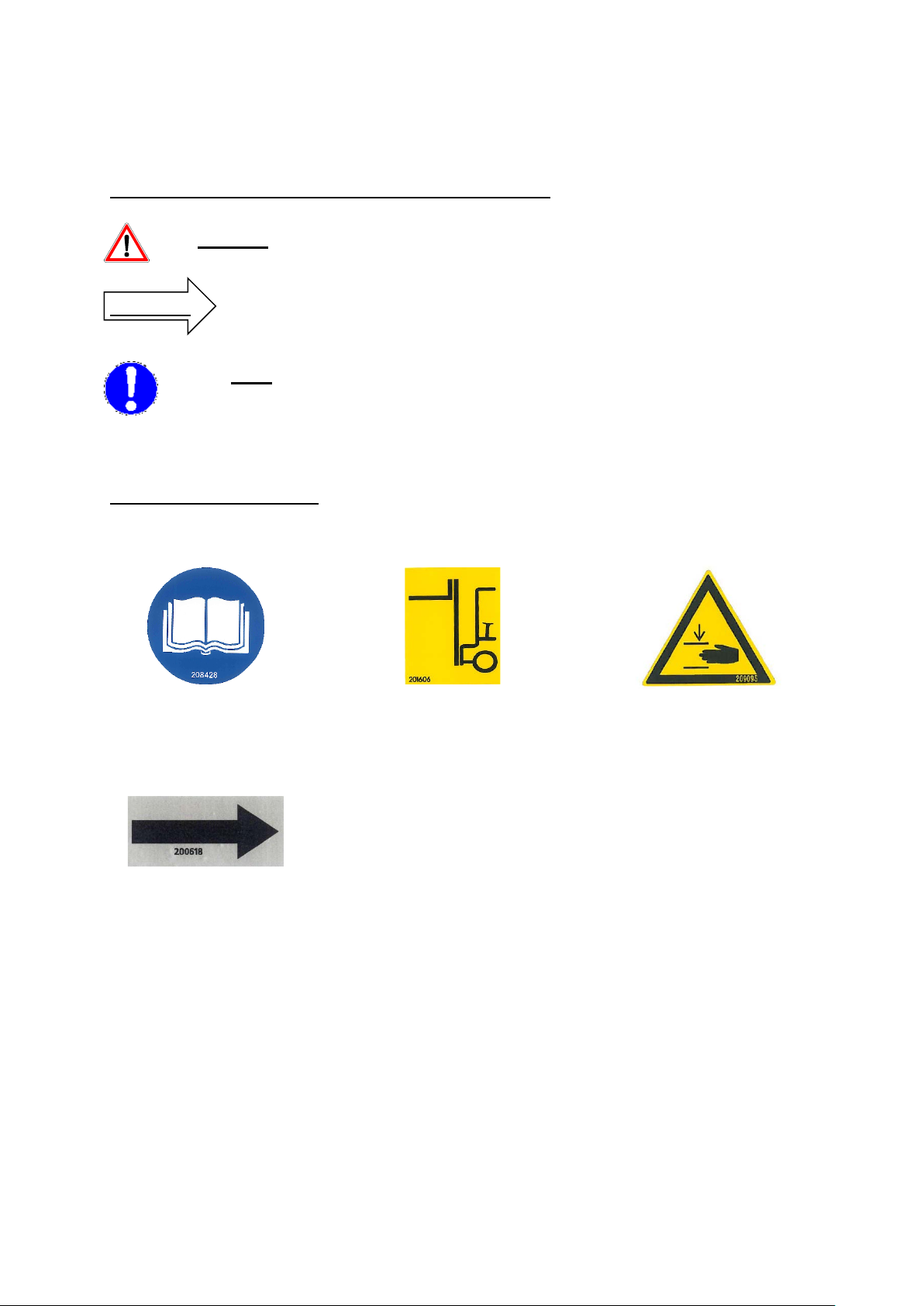

1.1 Warning Labels and Symbols used in this Manual
Danger!Not following the instructions may result in serious injuries
or even death.
Caution ! Not following the instructions may, under certain
conditions, result in injuries.
Note Not following the instructions may result in damage to the
machine or other equipment.
Symbols on the machine:
Observe the operating
manual
Forklift transport Danger of crushing
Running direction
of the belt

4
1.2 General Safe Operating Procedures
1.2.1 This conveyor belt is built according to the latest in technology and recognized
safety standards. Nevertheless, bodily injury and death to the operator or third
persons or damage to surrounding objects - like the machine and other
equipment - is possible.
1.2.2 Use the conveyor belt only in good working condition and follow all procedures
concerning correct and safe operation, as outlined in the manual! This
especially includes malfunctions that can jeopardize safety! Any troubles must
be eliminated immediately!
1.2.3 The conveyor belt is designed to carry bulk products up to a maximum size of
120 mm in diameter.
Materials such as sand, gravel, building debris, soil and other natural or
agricultural products, like beets, potatoes, corn, etc. can be transported (belt is
not suited for food stuffs).
Transporting people, materials over 40 °C, pointy or sharp objects and acidic
substances is not allowed.
Any other type of use other than those listed above, is not recommended.
The manufacturer/distributor is not liable for damages caused by improper use
of the machine.
Correct operation also requires due observance of the operating manual as well
as inspection and maintenance procedures.

5
1.3 Organizational Measures
1.3.1 Always keep the operating manual in the vicinity of the machine!
1.3.2 Please also observe any supplements to this manual regarding legal or
generally valid regulations for prevention of accidents or referring to
environmental control.
Such obligations may also include instructions regarding work with hazardous
material, wearing adequate protective clothing or the observance of road traffic
regulations.
1.3.3 Any personnel who work on the conveyor belt must have already read the
operating manual. - especially this chapter on safety precautions - prior to
beginning. Learning on the job is too late! This especially applies to personnel
who occasionally work on the machine (e.g. setup and maintenance crews).
1.3.4 Carry out regular spot checks to ensure that personnel are performing their
jobs in a safe and conscientious manner and that they are adhering to the
instructions in the operating manual!
1.3.5 Use personal protective equipment, whenever necessary or required by
regulation.
1.3.6 Pay attention to all safety warning labels located on the machine!
1.3.7 Keep all safety and danger warning labels in/on the machine completely
legible.
1.3.8 Stop the machine and notify the parties in charge whenever safety-related
changes to the machine or the way in which it operates are going to be made!
1.3.9 Make no alterations and do not add componentry or rebuild the machine
without permission from the manufacturer!
1.3.10Use only original spare parts from the manufacturer
1.3.11Perform all scheduled inspections as needed, or use the scheduled intervals
outlined in the operating manual!
1.3.12 In order to carry through with maintenance procedures, the machine must be
set up according to the type of work it will be doing.
1.3.13Operating temperatures for the conveyor belt must be between –10 and
+40 °C.

6
1.4 Qualifications for Selecting Personnel; Fundamental Responsibilities
1.4.1 Only personnel of proven reliability is allowed to operate the conveyor belt.
Observe legal minimum age requirements.
1.4.2 All personnel must have received full training on operating the conveyor belt.
Clearly define responsibilities regarding operation, setup, maintenance, and
repair.
1.4.3 Ensure that the conveyor belt is handled only by persons instructed to do so.
1.4.4 Define machine operator's responsibility - also in respect to road traffic
regulations - and his ability to object to instructions not in compliance with the
safety regulations!
1.4.5 Apprentices, new employees, or personnel being trained must be
accompanied at all times by an experienced operator while working
on the conveyor belt.
1.4.6 Any work at the electrical equipment of the machine must be carried out by a
qualified electrician only or a trained person under the supervision of a
qualified electrician, in accordance with the rules and standards for electronics.
1.5 Safety Precautions for Specific Operational Phases
1.5.1 Normal Operation
1.5.1.1 Refrain from all working methods that pose a safety risk.
1.5.1.2 Take steps to ensure the conveyor belt is in a safe, operable manner!
1.5.1.3 The conveyor belt must be examined for external damage at least once per
shift! Report any changes (including operational behavior) to the appropriate
personnel at once! If necessary, immediately stop and secure the machine.
1.5.1.4 Immediately stop and secure the conveyor belt when malfunctioning!
Promptly fix the problem!
1.5.1.5 Before turning on and running the conveyor belt, ensure that no one is in a
position to be injured!

7
1.5.2 Special Work Incurring during Utilization of the Conveyor Belt, Maintenance
Procedures, Trouble-Shooting; Waste Disposal
1.5.2.1 Follow the instructions in the operating manual when adjusting, maintaining
and inspecting componentry and performing scheduled work. This includes
the replacement of parts! Only qualified personnel are allowed to perform
these activities.
1.5.2.2 Notify operations personnel of any maintenance or additional work prior to
performing it! Appoint a supervisor!
1.5.2.3 When the conveyor belt is completely turned off for maintenance or repair
work, it must be safeguarded against an unexpected restart.
1.5.2.4 Cover up/close all openings in the machine before cleaning it with water or
other cleaning agents. Keeping water/vapor/cleaning agents from
penetrating the machine avoids safety hazards and equipment damage.
Electric motors, switches and outlets are especially vulnerable.
1.5.2.5 Completely remove all covers/tape after cleaning!
1.5.2.6 Tighten down any loose screws after performing maintenance or repair work!
1.5.2.7 If the conveyor belt needs to be dismantled for setting up, maintenance or
repairs, it must be reassembled afterwards and immediately tested for its
safety features in order to ensure safe operation!
1.5.2.8 Ensure safe and environmentally friendly practices when disposing of
lubricants and auxiliary supplies (e.g. parts replacement)!

8
1.6 Precautions for Special Types of Danger
1.6.1 Electric Energy
1.6.1.1 Use only original fuses with the electrical current for which they were
designed! Immediately turn off the conveyor belt when encountering electrical
problems!
1.6.1.2 Work on the conveyor’s electrical components may only be performed by an
electronics specialist, or trained personnel, who must be accompanied by
such a specialist. Work must be in accordance with the regulations pertaining
to electrical maintenance.
1.6.1.3 Proceed with maintenance or repair work only after all electrical current to the
machine has been turned off. The voltage can damage the capacitors.
1.6.1.4 Regularly inspect/check all electrical equipment. Any defects like loose
connections (eg. damages cables) must be repaired without delay.
1.6.1.5 Only run the conveyor belt on circuits protected by an FI safety switch
1.6.2 Dust
1.6.2.1 Observe all national regulations and standards when working in small
spaces!
1.6.3 Noise Level
1.6.3.1 Permanent sound level is found below 70 dB(A)!
1.7 Transport
1.7.1 When transporting the conveyor belt, follow proper loading procedures and
use only power lifting equipment with adequate carrying capacity!
1.7.2 Have an experienced coordinator direct the loading process!
1.7.3 Lift the conveyor only according to the instructions in this manual (striking
points for loading procedures)!
1.7.4 Use appropriate transport vehicle with adequate carrying capacity.
1.7.5 Secure load in a dependable manner. Use the striking points!
1.7.6 Turn off the power even when moving the conveyor belt only a small
distance! Before restarting, ensure the machine is duly reconnected.
1.7.7 Follow the instructions when restarting!

9
2. Description of Machine Componentry

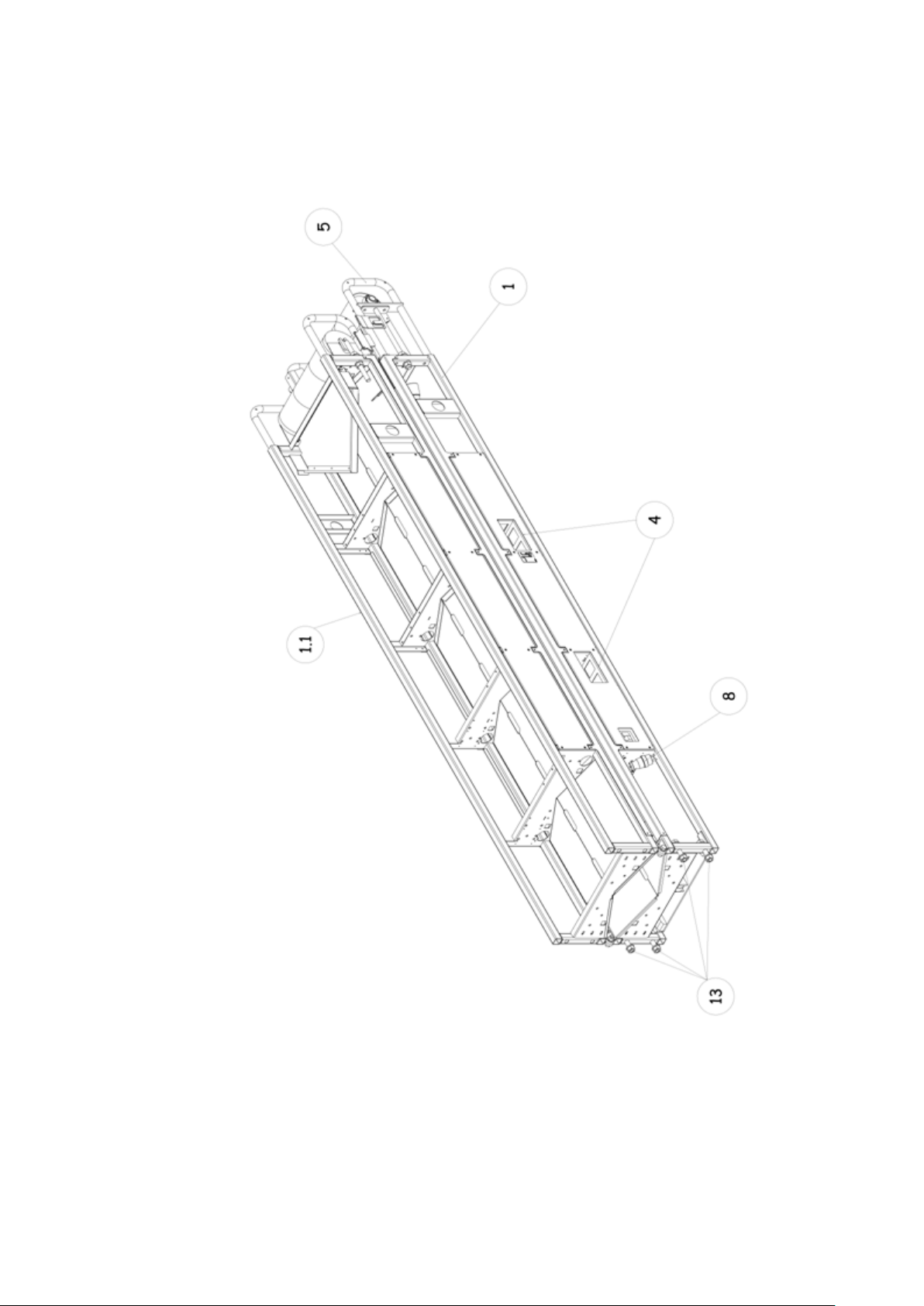

2.1 Overview of Components
Key 1 – Steel frame – motor
Key 1.1 – Steel frame – deflexion roller
Key 2 – Holder for support legs or wheels
Key 3 – Conveyor belt
Key 4 – Recess for fork lifter
Key 5 – Transport grips
Key 6 – Fastening elements for conveyor belt
Key 7 - Motor
Key 8 – Connector
Key 9 – Socket coupler for current transmission (pull-out type)
Key 10 - Switch
Key 11 – Emergency-stop switch
Key 12 – Steel wire rope: safety device for belt
Key 13 – binding screws
Key 13.1 – return roller
2.2 Accessories
Key 14 – Feed hopper
Key 15 – Support legs
Key 16 – Set of wheels
2.3 Protective gear
Key 10 - Switch
Key 11 – Emergency-stop switch

10

11
2.4 Technical Data
with gear motor LIBELT 600
Length Work position
5640 mm Transport position (folded) 2950 mm
Width 555 mm
Height 260 mm 490 mm
Weight 166 kg
Material Galvanized steel
Belt material PVC textile belt / standard (rubber belt / special version)
with studs 20 mm
Belt width/height 400/3-PVC
2 motors 230V, 50 Hz,
1,3 kW, 8,7 A
Conveying speed 25 m/min.
Max. loading capacity 50 kg/m
Max. 300 kg total
Max. inclination 40°

12
with drum motor LIBELT 600 T
Length
Operating position
5640 mm Transport position (folded) 2950 mm
Width
535 mm
Height
260 mm 490 mm
Weight
168 kg
Material
Galvanized steel
Belt material
PVC textile belt / standard (rubber belt / special version)
with studs 20 mm
Belt width/height
400/3-PVC
2 motors
230V, 50 Hz,
1,1kW, 4,33 A
Conveying speed
25 m/min.
Max. loading capacity
Max 50 kg/m
300 kg total
Length
40°
Width
+ 40 °C -0 °C
Start/stop operations/min
Max 3
Max operating height
1000 m ASL

13
3. Commissioning
3.1 Fundamentals
Danger ! - Do not allow persons to be transported
Note - The conveyor belt is designed to carry bulk products only up to a
maximum size of 120 mm. Sand, gravel, building debris, soil,
agricultural products like beets, potatoes, corn etc. can be carried. The
conveyor belt is not suited for food stuffs and should not be used for
transporting material over 40°C, especially liquids. Do not transport
product with sharp edges (eg. broken glass)!
- Always start the conveyor belts without load, especially in cold
temperatures. If possible, let the belts run empty before turning off.
Caution ! - There may not be connected 2 conveyor belts LIBELT 600.
You may connect the LIBELT 600 with one LIBELT 300 or one
LIBELT 400 in a chain.
Note - Each chain of conveyor belts (max. 2 conveyor belts!) must have its
own power supply, secured by a 16 A fuse. There must
not be any additional power consumer connected to this source of
energy.
Danger! -Always turn off the conveyor belt and disconnect the cable when
placing another conveyor unit behind.
Danger ! -After setting up, ensure that every belt is secure and will not
skid or tip over under a load.
Danger !- Take steps to ensure that no people or surrounding objects
can be harmed by products falling off the belt. This is especially
the case when the belts are in raised position.
Danger ! -The conveyor belts must not lie in water or be used in the
water.
Note The conveyor belts should not be used in heavy rainstorms.
Protect the belts from moisture.

14
3.2 Setting up the Conveyor Belts
Danger ! - Ensure secure footing of each conveyor belt, fasten with ties, if
necessary. You need to be aware of the fact that the load can
transfer unevenly, or wedge in between the belts.
Danger ! -.Because product will fall off from time to time, it is necessary to
protect people and surrounding objects from potential collisions. This
is especially the case when the conveyor belt is in a raised position.
Contact your safety supervisor if an accident happens
3.2.1 Set up of the Conveyor Belts
- 2 persons hold the transport handles (key 5) of the steel frame (key 1.1)
- Open steel frame (key 1.1)
- Connect keys 1.1 and 1 of the frame with the binding screws (key 13)
- Open steel wire rope safety device (key 12) – pull through the steel frame -
and close again
3.2.2 Appropriate Prop Up
-To set up a proper substructure to the conveyor belt,two tubes (key 2)
have been inserted into the steel rails (key 1 + 1.1) at their ends.
Connecting rods may be inserted into these tubes. This allows quick and
safe positioning of the prop-up fixture.
3.2.3 Overlapping in a straight line
- If the overlapping belts are running in a straight line, the overlapping
length can be short. If the conveyors do not have good footing, provide a
substructure and secure them so they do not slide.
Caution! The transport bands can be damaged when back-rolling load comes
between two belts. In this case please use a feed hopper.
(Accessory key 14)
3.2.4 Overlapping in an angle
- In this case the feed hopper should be used (Accessory, key 14). The
feed hopper allows a clean transfer from belt to belt and prevents product
from falling off the side.
3.2.5 Loading the Conveyor Belts
- Gently place the product on the belt. Do not throw heavy objects on the belt
or let them fall from a great height!

15
3.3 Electrical Installation
Danger !All electrical parts must be inspected prior to each operation.If any
alterations are detected, the parts have to be exchanged and marked
accordingly. The damaged parts must be repaired or destroyed
immediately by an authorized person.
3.3.1 Connecting the Conveyor Belts
-Insert the supply cable into the left side of the first belt (key 8).
-If multiple belts are being connected, then use the connecting cable
-(key 9) to transmit the current.
3.3.2 Safety Precautions
- Make sure that the outlets and plugs are clean and fully connected.
- Use only cable which is compatible with 16 A.
- Do not connect any further consumers to this power source.
3.4 Starting
Danger !- Before powering up the chain of conveyor belts, make sure that
nobody is within the danger zone.
- There should be no bulk material on the conveyor belts.
3.4.1 Each conveyor belt must be started individually by the switch (key 10).
3.4.2 Emergency Stop Switch (Key 11)
-Activating the „Emergency Stop“ button stops the chain of conveyor belts.
After the trouble-shooting, the belts need to be restarted.
3.4.2 Turning off (Key 10)
When possible, you should let the chain of conveyor belts run completely
empty before shutting off, so it can be restarted without load.

16

17
4. Transport
4.1 Transport position
- The feed hoper (key 14), support legs (key 15) and pair of wheels (key 16)
must be disassembled for transporting.
Both steel frames (key 1 + 1.1) are folded (see 5.1)
4.2 Transport by Truck
Danger ! -The conveyor belt must be fastened down with bungee
cords.
Danger ! -No more than 2 conveyor belts should be stacked on top
of each other during transport.
4.3 Transport with Fork Lifter
-Only possible if both steel frames (key 1 + 1.1) are folded.
-For displacement by fork lifter, insert the forks into the recesses provided
(key 4).
4.4 Transport with Wheels
-Slightly lift the conveyor belt at the side of the motor (key 7) with two
persons.
-Insert the wheels (key 16) into the holders (key 2) provided.
-Place the conveyor belt back onto the ground.
U-shaped piece must fit neatly into the square tube of the frame structure.
-Lift the conveyor belt with two persons by the transport grips (key 5) on
the other side.
-Position the conveyor belt as desired.
5. Operation
Caution! Longer operation in one place often leads to a buildup of gravel under the
conveyor belt (especially at the lower support point).
This leads to severe wear on the ribs on the transport belt. Be sure that
the ribs on the transport belt are not subject to unnecessary
obstacles during their return path.
- see 3.2 - 3.4.2

18
5.1 Dismounting
-Unplug connexion cable
-Remove all accessories (feed hopper, support legs, …)
-Unscrew the binding screws
-Pull the wire rope safety device (key 12) through the steel frame and fit it
-Lift the steel frame (key 1.1) with two persons and fold it to the steel frame
(key 1)
Caution! Risk of crushing to hands and fingers

19

20
6. Maintenance
6.1 Cleaning
- Thoroughly clean the conveyor belt once a week.
Note - Do not use a steam jet for cleaning.
6.2 Care
- There is no care required for motor and belt.
6.3 Retightening of the belt
- This will be necessary if the driving roller is idling
° the belt touches the ground.
- Loosen the fastening screw (key 6) and counter nut (key 6).
Turn the left and right straining screws equally until the belt assumes its proper
tension. This occurs when there is approx. 15 mm space between the
tip of the stud and the bottom rail.
- Now re-tighten the fastening screw (key 6) and counter nut (key 6).
- Switch the conveyor belt on (key 10).
- Watch if the conveyor belt (key 3) runs concentrically. If this does not happen,
turn the conveyor belt off.
- If, for instance, the belt runs left, there is too much clearance between the
driving roller and the deflection roller on this side.
- Open the fastening screw (key 6) and its counter nut (key 6) and make the
necessary corrections at the straining screw.
- Then re-tighten the fastening screw (key 6) and its counter nut (key 6).
- Switch the conveyor belt on and observe again during approx. 2 minutes.
- Repeat until the belt runs concentrically.
Note - Observe the tension of the belt. It should never be any tighter than
described above.
