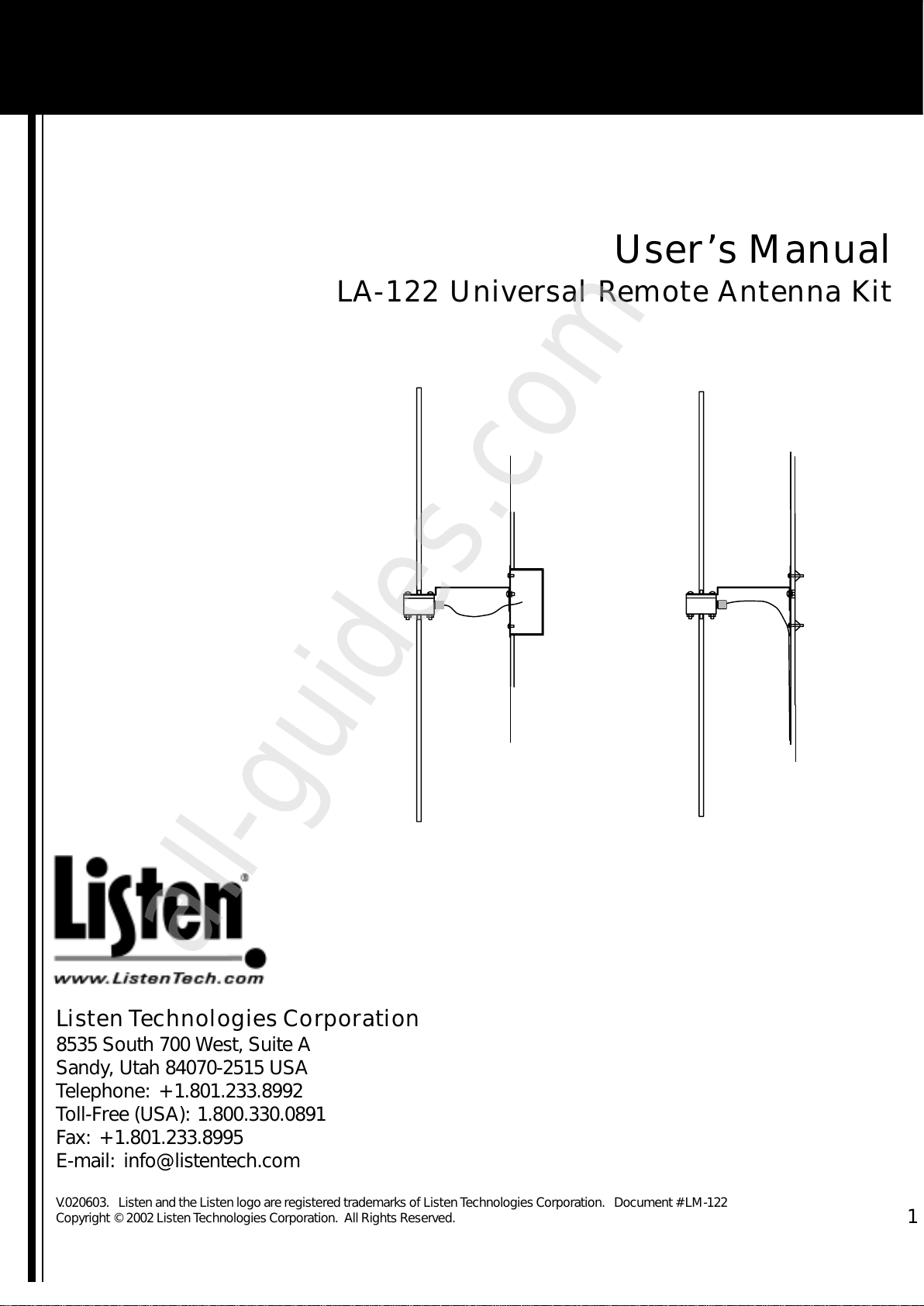

Listen LA-122 User manual

User’s Manual
LA-122 Universal Remote Antenna Kit
Listen Technologies Corporation
8535 South 700 West, Suite A
Sandy, Utah 84070-2515 USA
Telephone: [phone]
Toll-Free (USA): 1.800.330.0891
Fax: [phone]
E-mail: [email protected]
V.020603. Listen and the Listen logo are registered trademarks of Listen Technologies Corporation. Document #LM-122
Copyright © 2002 Listen Technologies Corporation. All Rights Reserved. 1
All manuals and user guides at all-guides.com
all-guides.com

LA-122 Universal Antenna Kit
Thank you for purchasing this Listen product! If you have any questions or would like
to offer suggestions on future Listen products, please contact us at the address shown
below.
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
Mounting Options:
Wall Mount (to your electrical box)
Direct Wall Mount
Ceiling Mount
In-Wall or In-Ceiling Mount
Mast Mount
Kit Includes:
A. Wall / Electrical Box Mounting Plate
B. Mounting Bracket
C. Antenna Module and 25 feet (7.6 m RG58 coaxial cable
with BNC connectors
D. Telescoping antennas (2 for both 72 and 216 MHz
E. Flexible antennas (2 for both 72 and 216 MHz
F. Ground Plane and Shorting Plate
G. Mounting Hardware (not shown :
(4 #6-32 Machine Screws - used to mount to a single or
dual gang duplex box
(4 #8-32 Machine Screws - used to mount to a square or
hex junction or light box
(4 #8 Sheet Metal Screws - used to mount to metal or
wood, or for use with dry anchors
(4 Dry Anchors - used to mount to drywall, concrete,
plaster, brick, or masonry
(2 Hex Kep Nuts (#10-32 and (1 Fiber Washer - used for
mounting flexible antennas to the Antenna Module, and
for grounding purposes
Use With:
LT-800-072 Stationary Transmitter
LT-800-216 Stationary Transmitter
LR-100-072 Stationary Receiver /
Power Amplifier
LR-100-216 Stationary Receiver /
Power Amplifier
Optional Accessories
LA-315 Wireless Speaker / Portable
Antenna Stand
LA-127 RG58 BNC Cable Connector
LA-128 RG8 BNC Cable Connector
LA-112 RG58 Coaxial Cable
LA-113 RG8 Low Loss Coaxial Cable
LA-114 Coaxial Connector Installation
(2 connectors
LA-121 BNC Adapter (LT-800-072 only
www.ListenTech.com
R
E
D
B
C
A
F
2
All manuals and user guides at all-guides.com

Contents of Kit page 2
Specifications page 3
Architectural Specifications page 3
Important Things to Note Before Starting page 4
Selecting an Antenna Location page 6
Choosing Which Antenna to Use page 6
Dipole Antenna Mounting Options page 7
Monopole Antenna Mounting Options page 11
Troubleshooting page 14
Warranty page 16
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
Specifications
Center Frequencies: 73.50 MHz and 216.50 MHz
Antenna Types: Monopo e and Dipo e
Antenna Gain: Unity
Antenna Segment Lengths: (same for both rigid and f exib e antennas)
72 MHz: 39.25 in (1.0 m); 216 MHz: 12.25 in (31.1 cm)
Dipo e Vertica C earance: 72 MHz: 79.75 in (2.03 m); 216 MHz: 25.75 in (65.4 cm)
Connector: Standard BNC
Coax Provided: 25 ft (7.6 m) RG58 with BNC connectors
Mounting Options: Wa mount, dua and sing e e ectrica box, cei ing e ectrica box,
horizonta surface mount (such as on top of a rack), cei ing /
inverse mounting, f exib e mounting in-wa or in-cei ing and
mast or conduit mount
Mounting Hardware: Provided. Inc udes se f-tapping sheet meta screws, drywa
anchors, and a hardware required to mount to e ectrica boxes.
Does not inc ude hardware required to mount to a mast (avai -
ab e at most hardware stores)
Mounting Bracket Dimensions:4.5 in (11 cm) wide x 7.0 in (18 cm) deep x 2.5 in(6.4 cm) high
Mounting P ate Dimensions: 4.48 in (11.4 cm) x 4.55 in (11.6 cm)
Shipping Box Dimensions: 2.76 in x 16.3 in x 17.1 in
(70 mm x 415 mm x 435 mm)
Weight: 4.4 Lbs. (2 kg)
Architectural Specifications
The Universal Antenna Kit shall be capable of operating from 72.0 to 76.0 MHz with a
center frequency of 73.5 MHz and from 216.0 to 217.0 MHz with a center frequency of
216.5 MHz. The kit shall include the necessary mounting hardware to mount the
antenna on a single or dual electrical box, directly on a wall, on a ceiling electrical box
or on a flat surface. The antenna shall have a BNC connector and the kit shall come
with 25 ft (7.6 m of RG58 coax with BNC connectors. The kit shall include rigid and
flexible antenna radials. The Listen LA-122 Universal Antenna Kit is specified.
Table of Contents
www.ListenTech.com
R
3
All manuals and user guides at all-guides.com

If you plan to use your own coaxial cable instead of the provided cable, you must use
cable and connectors rated at 50 ohms. Although cable used for cable TV installations
loo s similar to this cable, it won’t wor with your Listen system.
If you need to run cable over a greater length than 50 feet for 216 MHz applications or
greater than 100 feet for 72 MHz applications, we recommend that you use RG-8 cable
rather than RG-58. It is a lower loss cable, meaning that more of your signal will reach
the antenna.
Long cable runs can result in signal degradation due to “loss” characteristics of the
cable. At 72 MHz, there is a loss of 2dB per 100 feet of cable and at 216 MHz, there is a
loss of 5 dB per 100 feet of cable. (A 3dB loss means half of your power has been lost.)
However, it is better to suffer coaxial power loss than to try to shoot your signal throughit is better to suffer coaxial power loss than to try to shoot your signal through
it is better to suffer coaxial power loss than to try to shoot your signal throughit is better to suffer coaxial power loss than to try to shoot your signal through
it is better to suffer coaxial power loss than to try to shoot your signal through
obstacles! obstacles!
obstacles! obstacles!
obstacles! Obstacles, especially metal, can create drop-outs or reflections of your sig-
nal that will result in poor listening conditions.
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
Coaxial Cable
Please carefully compare the contents of your kit with the list found on page 2 of
this manual. If any items are missing or damaged, please contact Listen
Technologies. If items were damaged in shipment, contact your carrier immedi-
ately and retain all packaging for inspection by your carrier. Listen is not respon-
sible for shipping damage.
Listen TListen T
Listen TListen T
Listen Technologies Corporationechnologies Corporation
echnologies Corporationechnologies Corporation
echnologies Corporation
535 South 700 West, Suite A
Sandy, Utah 4070-2515 USA
Telephone: [phone]
USA Toll Free: 1. 00.330.0 91
Fax: [phone]
e-mail: [email protected]
Before Starting Asse bly of Your Antenna
I portant Things to Note Before Starting Your Installation
www.ListenTech.com
R
4
All manuals and user guides at all-guides.com

LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
The antenna’s pattern is hemispherical, meaning that it has an “active” side and a
ground side. The active side directs the signal toward the receivers, so it is
essential that the active side be oriented toward the area where the receivers will
be used. The Antenna Module’s ground side has the word “GROUND” molded
into the plastic.
See Diagram A. If it is necessary to locate an antenna low on a wall, the ground
side should face down. If you are mounting a monopole antenna in a ceiling or
high on a wall, the ground side should face UP. It may be necessary to move the
ground side of the antenna mount around in order to accomplish this.
To move the ground side of the module, simply remove the four nuts, reverse the
module so that the ground side is facing the bracket, then re-attach the nuts. Be
careful to not detach any wires if the module opens while it is not secured to the
bracket.
Antenna Orientation

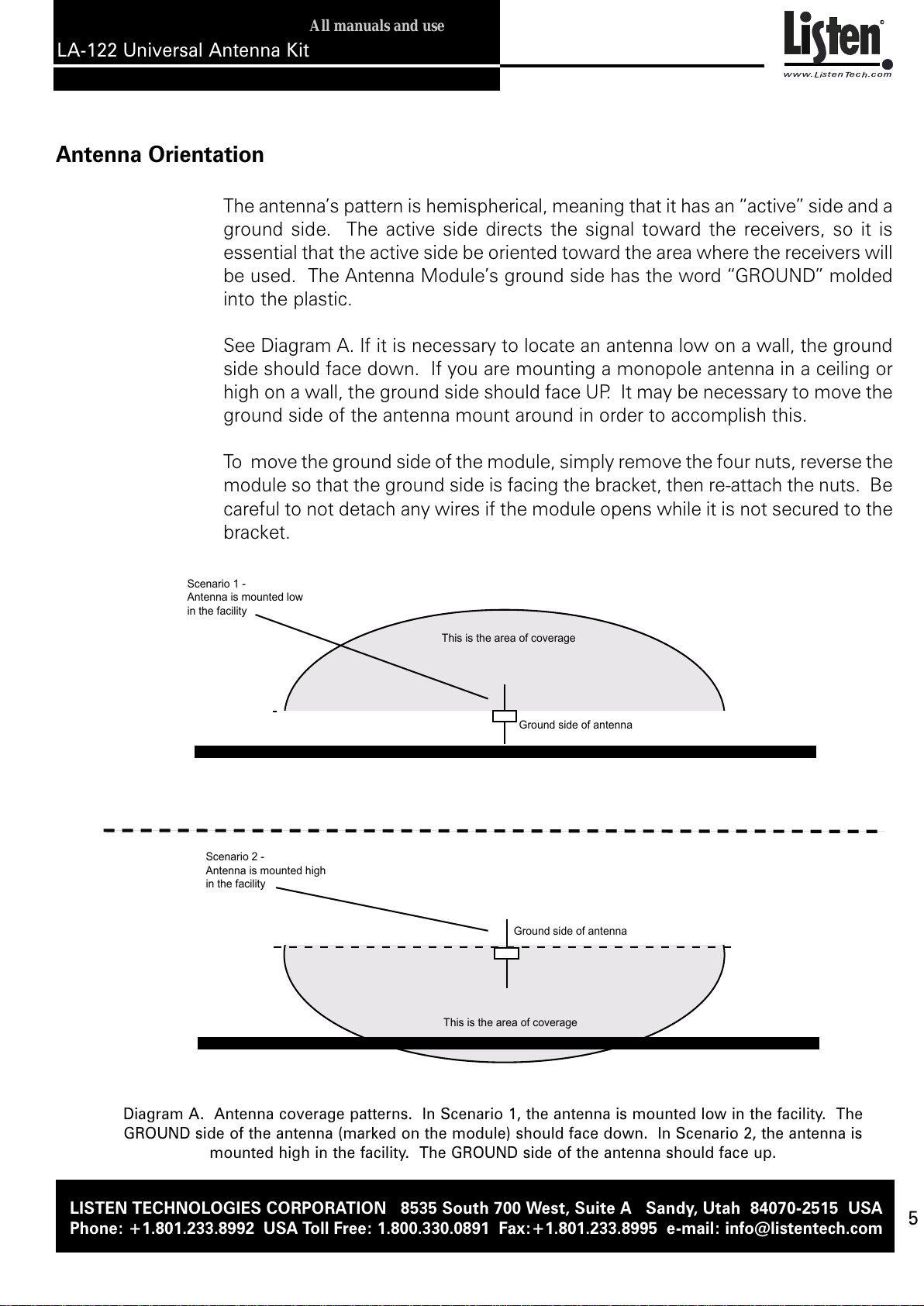

Diagram A. Antenna coverage patterns. In Scenario 1, the antenna is mounted ow in the faci ity. The
GROUND side of the antenna (marked on the modu e) shou d face down. In Scenario 2, the antenna is
mounted high in the faci ity. The GROUND side of the antenna shou d face up.
Ground side of antenna
This is the area of coverage
Ground side of antenna
This is the area of coverage
Scenario 1 -
Antenna is mounted low
in the facility
Scenario 2 -
Antenna is mounted high
in the facility
www.ListenTech.com
R
5
All manuals and user guides at all-guides.com

Selecting an Antenna LSelecting an Antenna L
Selecting an Antenna LSelecting an Antenna L
Selecting an Antenna Locationocation
ocationocation
ocation

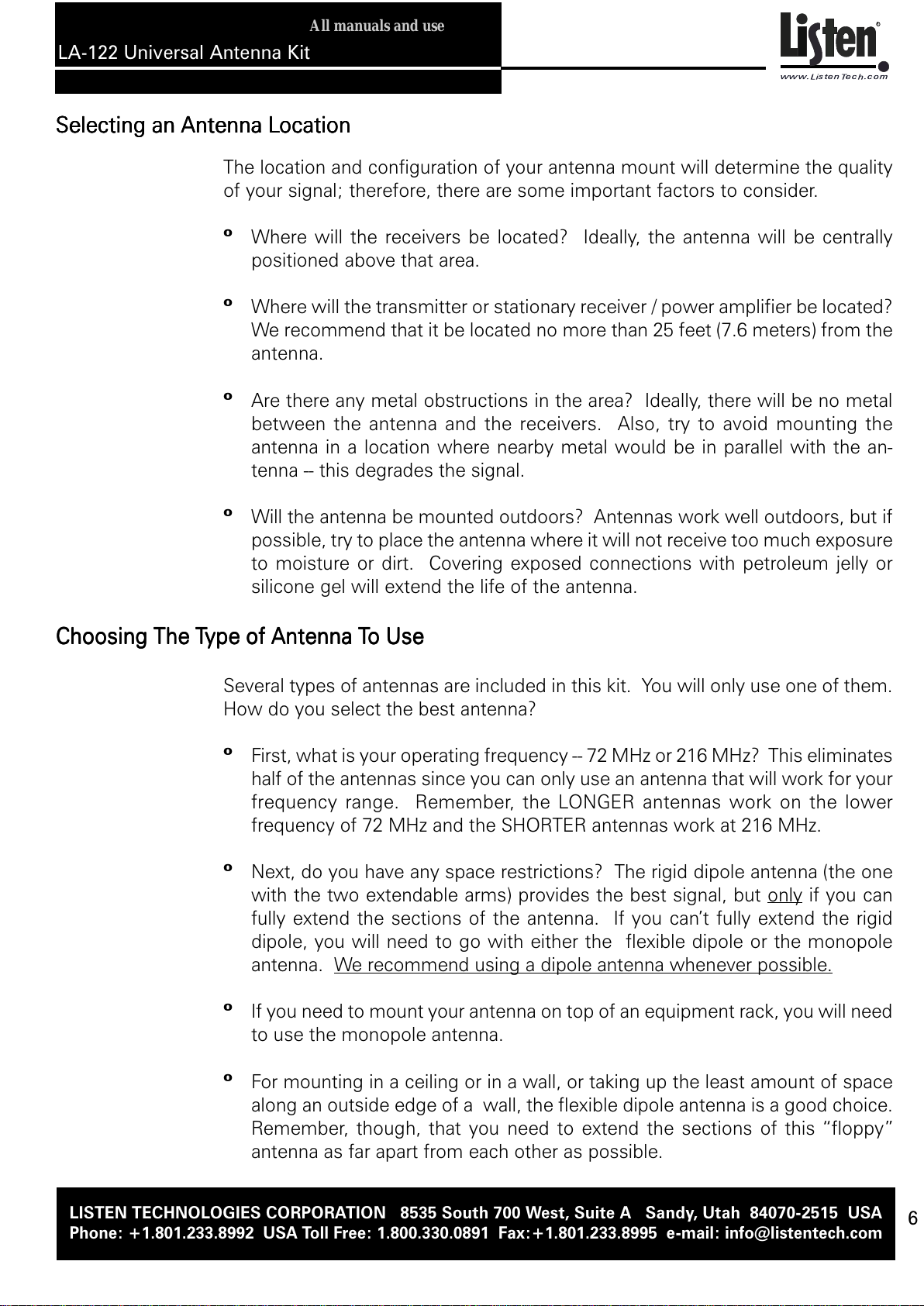

The location and configuration of your antenna mount will determine the quality
of your signal; therefore, there are some important factors to consider.
ºWhere will the receivers be located? Ideally, the antenna will be centrally
positioned above that area.
ºWhere will the transmitter or stationary receiver / power amplifier be located?
We recommend that it be located no more than 25 feet (7.6 meters) from the
antenna.
ºAre there any metal obstructions in the area? Ideally, there will be no metal
between the antenna and the receivers. Also, try to avoid mounting the
antenna in a location where nearby metal would be in parallel with the an-
tenna -- this degrades the signal.
ºWill the antenna be mounted outdoors? Antennas work well outdoors, but if
possible, try to place the antenna where it will not receive too much exposure
to moisture or dirt. Covering exposed connections with petroleum jelly or
silicone gel will extend the life of the antenna.
Choosing The TChoosing The T
Choosing The TChoosing The T
Choosing The Type of Antenna Type of Antenna T
ype of Antenna Type of Antenna T
ype of Antenna To Useo Use
o Useo Use
o Use
Several types of antennas are included in this kit. You will only use one of them.
How do you select the best antenna?
ºFirst, what is your operating frequency -- 72 MHz or 216 MHz? This eliminates
half of the antennas since you can only use an antenna that will work for your
frequency range. Remember, the LONGER antennas work on the lower
frequency of 72 MHz and the SHORTER antennas work at 216 MHz.
ºNext, do you have any space restrictions? The rigid dipole antenna (the one
with the two extendable arms) provides the best signal, but only if you can
fully extend the sections of the antenna. If you can’t fully extend the rigid
dipole, you will need to go with either the flexible dipole or the monopole
antenna. We recommend using a dipole antenna whenever possible.
ºIf you need to mount your antenna on top of an equipment rack, you will need
to use the monopole antenna.
ºFor mounting in a ceiling or in a wall, or taking up the least amount of space
along an outside edge of a wall, the flexible dipole antenna is a good choice.
Remember, though, that you need to extend the sections of this “floppy”
antenna as far apart from each other as possible.
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
www.ListenTech.com
R
6
All manuals and user guides at all-guides.com
all-guides.com

LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]

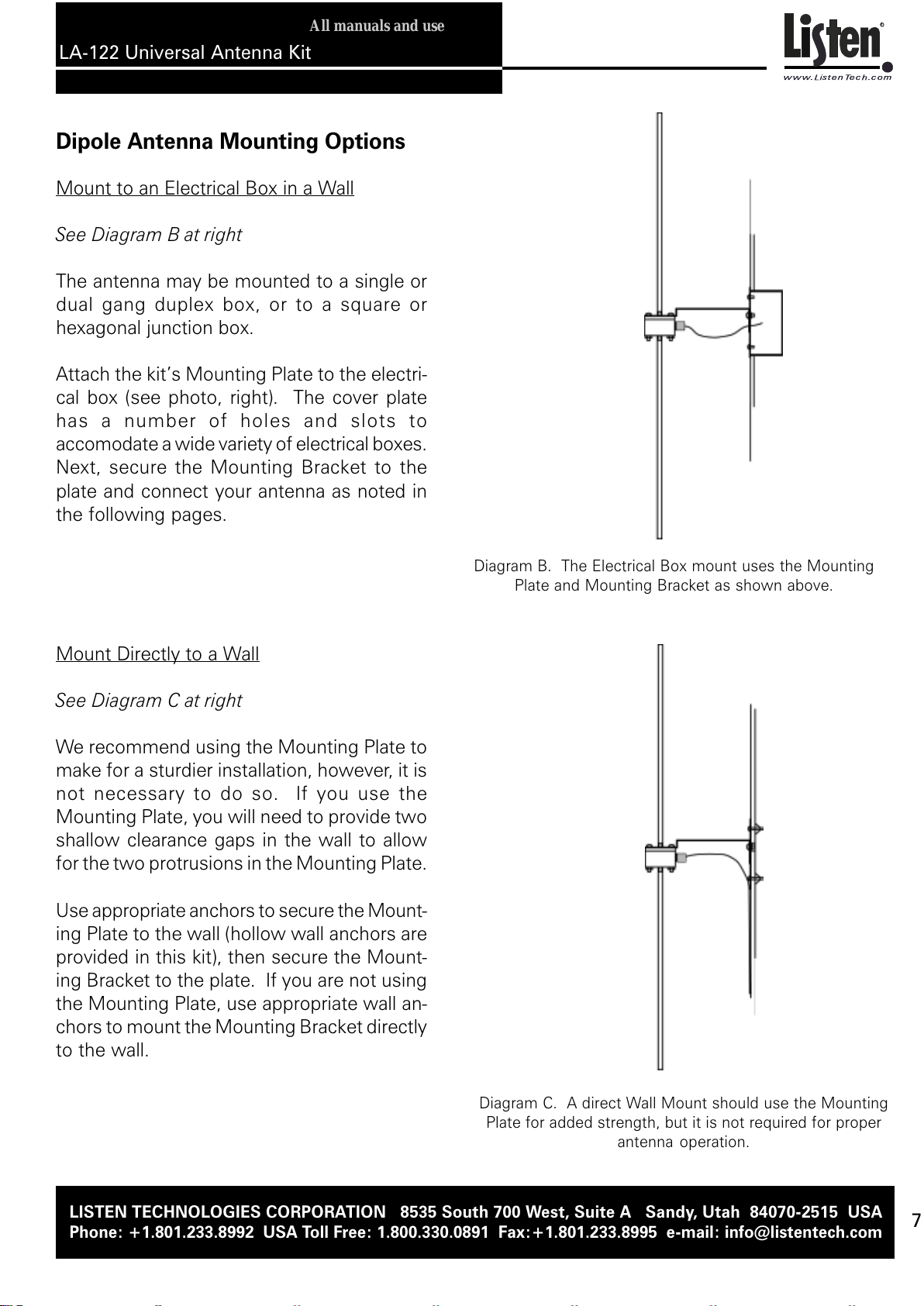

Dipole Antenna Mounting Options
Mount to an Electrical Box in a Wall
See Diagram B at right
The antenna may be mounted to a single or
dual gang duplex box, or to a square or
hexagonal junction box.
Attach the kit’s Mounting Plate to the electri-
cal box (see photo, right). The cover plate
has a number of holes and slots to
accomodate a wide variety of electrical boxes.
Next, secure the Mounting Bracket to the
plate and connect your antenna as noted in
the following pages.
Mount Directly to a Wall
See Diagram C at right
We recommend using the Mounting Plate to
make for a sturdier installation, however, it is
not necessary to do so. If you use the
Mounting Plate, you will need to provide two
shallow clearance gaps in the wall to allow
for the two protrusions in the Mounting Plate.
Use appropriate anchors to secure the Mount-
ing Plate to the wall (hollow wall anchors are
provided in this kit), then secure the Mount-
ing Bracket to the plate. If you are not using
the Mounting Plate, use appropriate wall an-
chors to mount the Mounting Bracket directly
to the wall.
www.ListenTech.com
R
7
Diagram B. The Electrical Box mount uses the Mounting
Plate and Mounting Bracket as shown above.
Diagram C. A direct Wall Mount should use the Mounting
Plate or added strength, but it is not required or proper
antenna operation.
All manuals and user guides at all-guides.com

Diagram E. A lexible dipole can be mounted in your ceiling or wall
as shown here. Although the Mounting Bracket is not shown here ,
it would be used to secure the Antenna Module to a beam.
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
Coaxial Cable runs to your transmitter or
stationary receiver
End of antenna is attached to beam in ceiling or wall
Mounting Inside a Wall or Ceiling
See Diagrams D and E
The antenna may be hidden inside a wall or ceiling IMPORTANT: Do not install
the antenna inside a metal wall or ceiling, as this would obstruct the signal
You will use a flexible dipole (the floppy wires) in this configuration Select the
correct wires for your configuration (72 MHz or 216 MHz) Connect one
antenna wire to the ground side of the Antenna Module using one of the Hex
Kep nuts provided Connect the other wire to the active side using the other
Hex Kep nut, as noted in Diagram D below If you are using a Mounting Bracket,
you will need to install the provided fiber washer between the antenna and
mounting bracket
Secure the mounting bracket to a beam, making sure the active (non grounded)
side of the antenna is directed toward the area where the receivers will be
located (see Diagram E below) Then, secure the ends of the antenna to beams
using wood screws or the provided sheet metal screws Try to make the wires
as straight as possible, and make sure they extend in opposite directions
Diagram D. F exib e Dipo e connec-
tion to the Antenna Modu e.
Active Side
Ground side
iber Washer
(if using Mounting
Bracket)
Hex Kep Nut
Hex Kep Nut
Mounting Bracket
(optional)
www.ListenTech.com
R
8
All manuals and user guides at all-guides.com

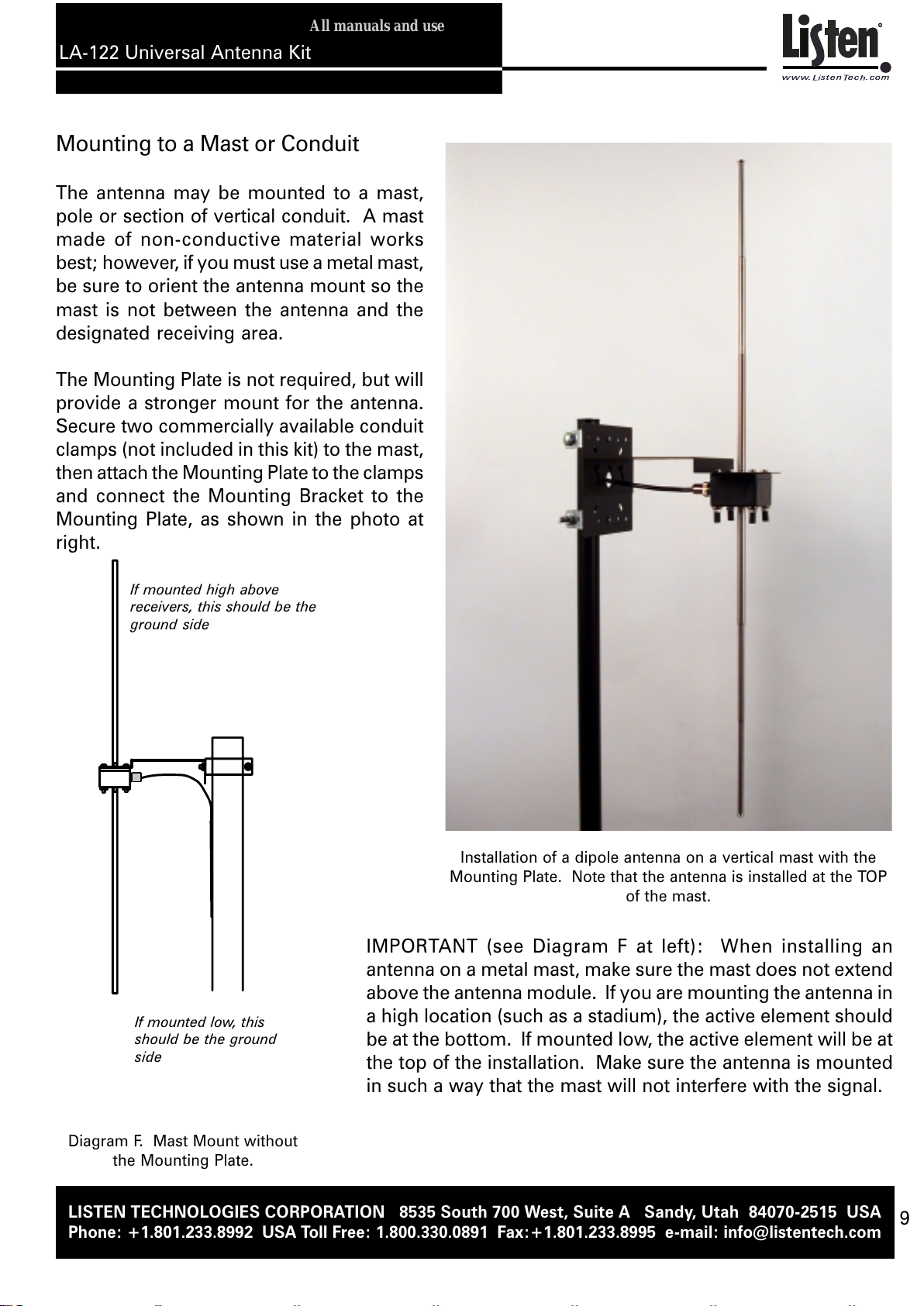

Mounting to a Mast or Conduit
The antenna may be mounted to a mast,
pole or section of vertical conduit A mast
made of non-conductive material works
best; however, if you must use a metal mast,
be sure to orient the antenna mount so the
mast is not between the antenna and the
designated receiving area
The Mounting Plate is not required, but will
provide a stronger mount for the antenna
Secure two commercially available conduit
clamps (not included in this kit) to the mast,
then attach the Mounting Plate to the clamps
and connect the Mounting Bracket to the
Mounting Plate, as shown in the photo at
right
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
Insta ation of a dipo e antenna on a vertica mast with the
Mounting P ate. Note that the antenna is insta ed at the TOP
of the mast.
IMPORTANT (see Diagram F at left): When installing an
antenna on a metal mast, make sure the mast does not extend
above the antenna module If you are mounting the antenna in
a high location (such as a stadium), the active element should
be at the bottom If mounted low, the active element will be at
the top of the installation Make sure the antenna is mounted
in such a way that the mast will not interfere with the signal
Diagram F. Mast Mount without
the Mounting P ate.
If mounted high above
receivers, this should be the
ground side
If mounted low, this
should be the ground
side
www.ListenTech.com
R
9
All manuals and user guides at all-guides.com

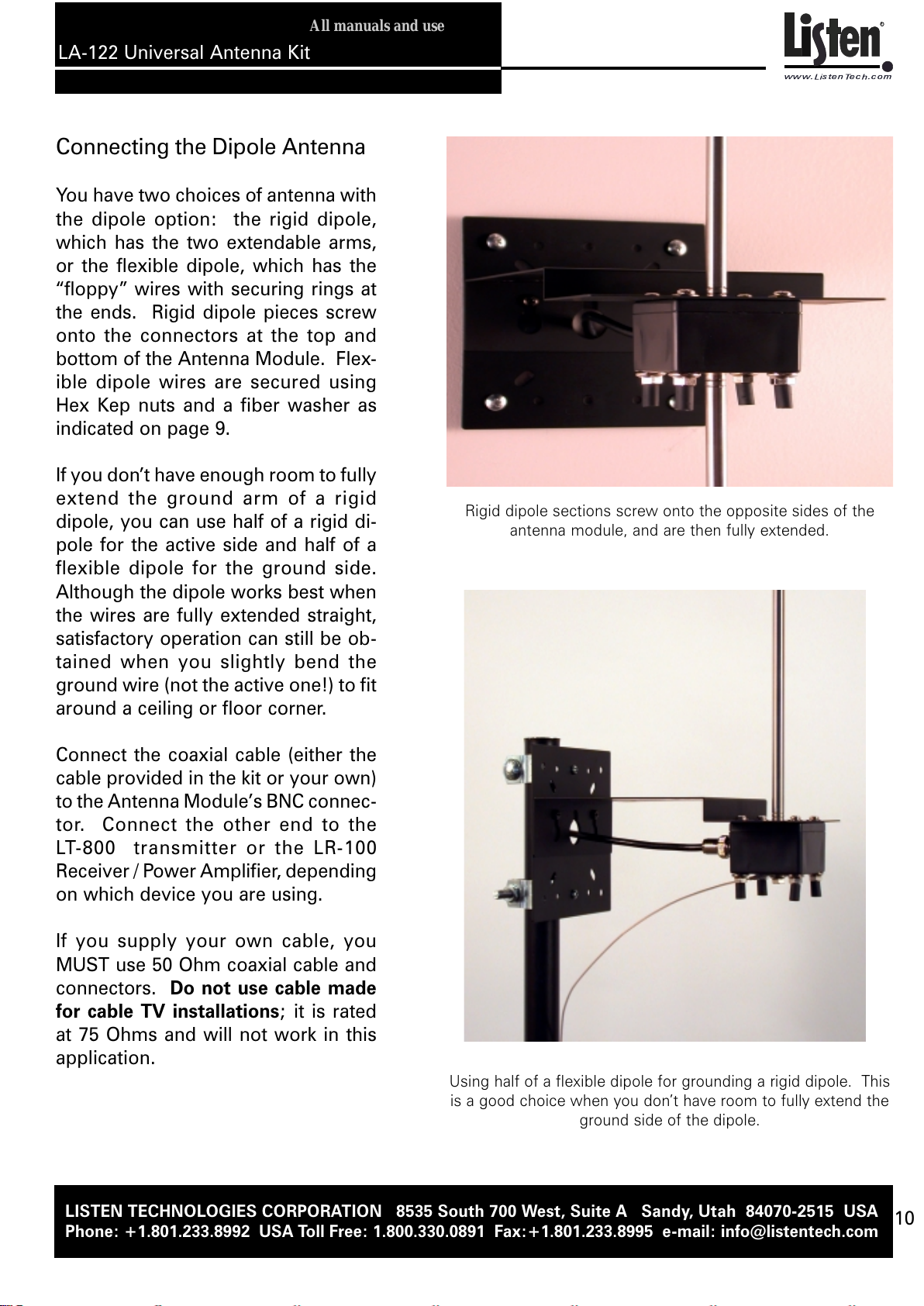

Connecting the Dipole Antenna
You have two choices of antenna with
the dipole option: the rigid dipole,
which has the two extendable arms,
or the flexible dipole, which has the
“floppy” wires with securing rings at
the ends Rigid dipole pieces screw
onto the connectors at the top and
bottom of the Antenna Module Flex-
ible dipole wires are secured using
Hex Kep nuts and a fiber washer as
indicated on page 9
If you don’t have enough room to fully
extend the ground arm of a rigid
dipole, you can use half of a rigid di-
pole for the active side and half of a
flexible dipole for the ground side
Although the dipole works best when
the wires are fully extended straight,
satisfactory operation can still be ob-
tained when you slightly bend the
ground wire (not the active one!) to fit
around a ceiling or floor corner
Connect the coaxial cable (either the
cable provided in the kit or your own)
to the Antenna Module’s BNC connec-
tor Connect the other end to the
LT-800 transmitter or the LR-100
Receiver / Power Amplifier, depending
on which device you are using
If you supply your own cable, you
MUST use 50 Ohm coaxial cable and
connectors Do not use cable made
for cable TV installations; it is rated
at 75 Ohms and will not work in this
application
Rigid dipole sections screw onto the opposite sides o the
antenna module, and are then ully extended.
Using hal o a lexible dipole or grounding a rigid dipole. This
is a good choice when you don’t have room to ully extend the
ground side o the dipole.
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
www.ListenTech.com
R
10
All manuals and user guides at all-guides.com

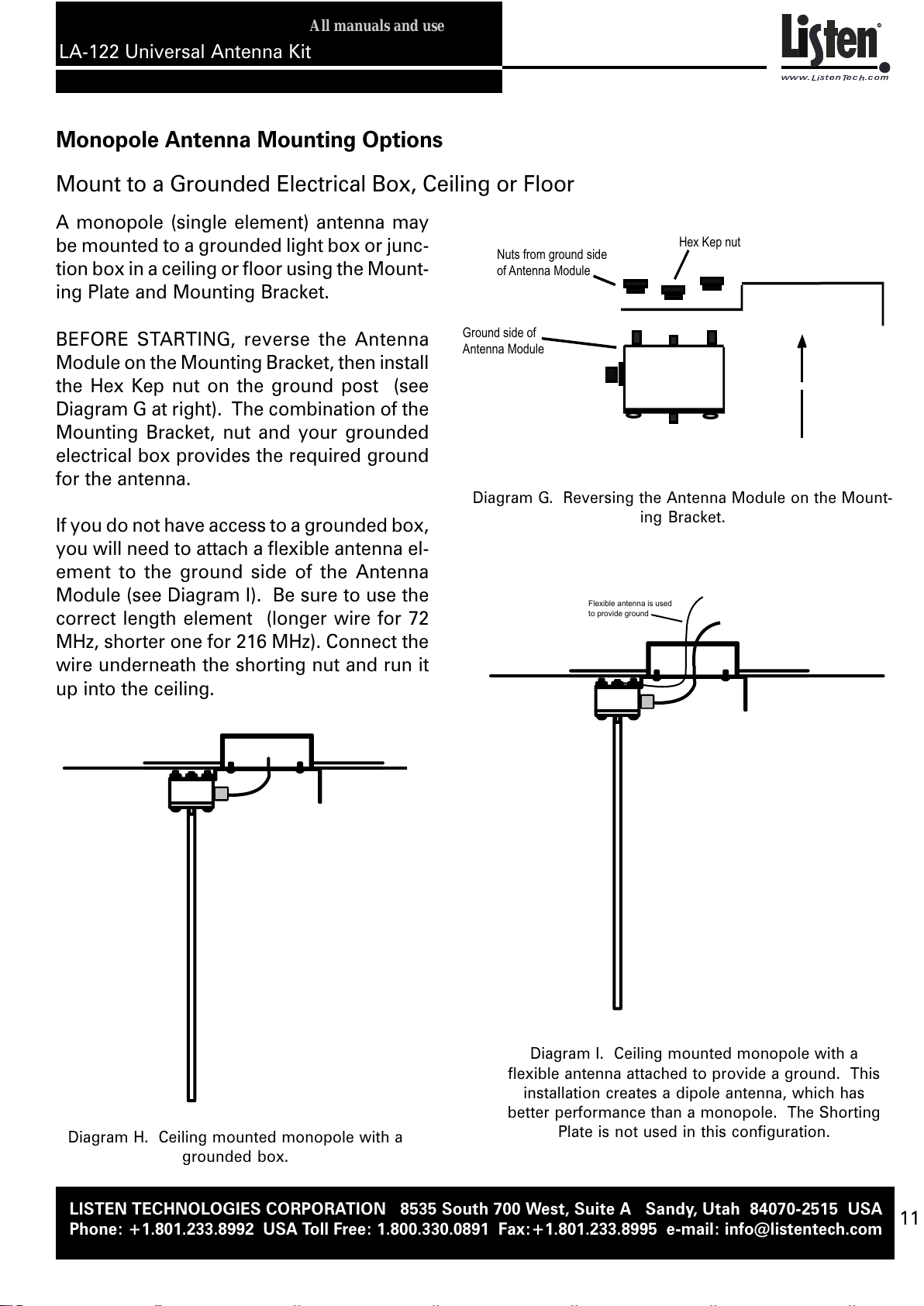

Monopole Antenna Mounting Options
A monopole (single element) antenna may
be mounted to a grounded light box or junc-
tion box in a ceiling or floor using the Mount-
ing Plate and Mounting Bracket
BEFORE STARTING, reverse the Antenna
Module on the Mounting Bracket, then install
the Hex Kep nut on the ground post (see
Diagram G at right) The combination of the
Mounting Bracket, nut and your grounded
electrical box provides the required ground
for the antenna
If you do not have access to a grounded box,
you will need to attach a flexible antenna el-
ement to the ground side of the Antenna
Module (see Diagram I) Be sure to use the
correct length element (longer wire for 72
MHz, shorter one for 216 MHz) Connect the
wire underneath the shorting nut and run it
up into the ceiling
Diagram H. Cei ing mounted monopo e with a
grounded box.
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
Diagram I. Cei ing mounted monopo e with a
f exib e antenna attached to provide a ground. This
insta ation creates a dipo e antenna, which has
better performance than a monopo e. The Shorting
P ate is not used in this configuration.
Mount to a Grounded Electrical Box, Ceiling or Floor
Ground side of
Antenna Module
Hex Kep nut
Nuts from ground side
of Antenna Module
Diagram G. Reversing the Antenna Modu e on the Mount-
ing Bracket.
www.ListenTech.com
R
lexible antenna is used
to provide ground
11
All manuals and user guides at all-guides.com
all-guides.com

Diagram J. A reversed Antenna Modu e with Ground P ane
and Shorting P ate.
Mount to a Metal Surface Using the Ground lane and Shorting late
See Diagram J
It is often convenient to place an antenna
on top of a metal equipment rack In order
for the antenna to function properly, it must
be secured to the equipment rack using the
Grounding Plate and Grounding Base
The Mounting Bracket is not used in this
configuration Remove the four nuts and
screws from the Antenna Module and care-
fully remove it from the bracket With a
lockwasher still over each screw, put the
screws through the Ground Plane Make
sure the ground side of the Antenna Mod-
ule (as indicated on the module) is oriented
AWAY from the Grounding Plane Then,
slide the Shorting Plate over the ground side
(bottom) of the module Replace the four
nuts on the bottom of the assembly Then,
place a Hex Kep nut on the center ground
post and tighten
Secure the Ground Plane to your metal rack
using sheet metal screws
Attach the proper Monopole antenna ele-
ment to the Antenna Module Systems on
72 MHz will use the LONGER antenna; sys-
tems on 216 MHz will use the SHORTER one
Connect the supplied coaxial cable between
the Antenna Module and the stationary
transmitter or receiver If you use your own
coaxial cable, be sure to use cable and con-
nectors rated at 50 Ohms
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
Ground Plane
Shorting Plate
Ground side of
Antenna Module
Hex Kep nut
Screws from Antenna Module
Nuts from ground side
of Antenna Module
Metal Equipment Rack
Ground Plane
Sheet metal
screws
Shorting Plate
Hex Kep Nut
Diagram K. Mounting a Monopo e on a meta surface.
www.ListenTech.com
R
12
All manuals and user guides at all-guides.com

Mounting a Monopole Antenna to a
Metal Beam or Metal Ceiling
See Diagram K
Follow the instructions for mounting to a
metal equipment rack, orienting the antenna
downward rather than upward
Mounting a Monopole Antenna to a
Non-Conductive Surface
Follow the instructions for mounting to a
metal equipment rack, however, there are
two additional steps:
1 Connect a length of flexible antenna
(appropriate to the frequency you are
using) on the ground post of the antenna
module under the Hex Kep nut You will
NOT use the shorting plate in this con-
figuration
2 Drill a hole in the non-conductive sur-
face and run the flexible antenna
through the hole This antenna will pro-
vide the ground for your antenna since
the non-conductive surface cannot sup-
ply a ground
If you are mounting the monopole upside
down on a ceiling, run the flexible length
inside the ceiling and stretch it out as far as
possible from the monopole antenna ele-
ment Secure the antenna through the con-
nection lug at the end of the wire
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
See Diagram L
Diagram K. Inverse mounting of a monopo e.
Diagram L. Mounting a monopo e on a non-conduc-
tive surface. Use of the f exib e wire creates a
dipo e, which is a better antenna than the monopo e.
www.ListenTech.com
R
lexible antenna used
as ground
Hole drilled
in surface
13
All manuals and user guides at all-guides.com

TT
TT
Troubleshootingroubleshooting
roubleshootingroubleshooting
roubleshooting
I’m not hearing anything in my receiver.
1. Make sure the receiver’s batteries aren’t dead, that it is turned on, set to
the right channel, and the volume has been turned up.
2. Make sure your transmitter or stationary receiver has been powered up
and set to the right channel, and the desired audio has been applied.
3. Make sure the coaxial cable has been tightly attached to both the antenna
and the transmitter / stationary receiver.
4. Make sure you have used 50 ohm coaxial cable.
5. Make sure the antenna element(s) has been securely attached to the
Antenna Module.
I’m getting a signal, but it isn’t very strong.
1. Make sure you are using the correct antenna element(s) for your operating
band (72 MHz or 216 MHz). Antennas for 72 MHz are longer than those
used for 216 MHz.
2. If you are using a dipole antenna, make sure both elements are securely
attached to the Antenna Module and that they have been fully extended in
opposite directions.
3. If you are using a monopole antenna, make sure it has been grounded with
either the grounding plate / grounding base or a flexible antenna attached
to the grounding post on the Antenna Module.
4. Make sure the active element of the antenna is directed toward the area
where the receivers are being used and that the ground side is directed
AWAY from the receive area.
5. Make sure the antenna has been placed in an area free of metal obstruc-
tions.
6. Check the operating power of your transmitter - there are three settings,
1/4, 1/2 and full power. Increase the power if it’s low.
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
www.ListenTech.com
R
14
All manuals and user guides at all-guides.com

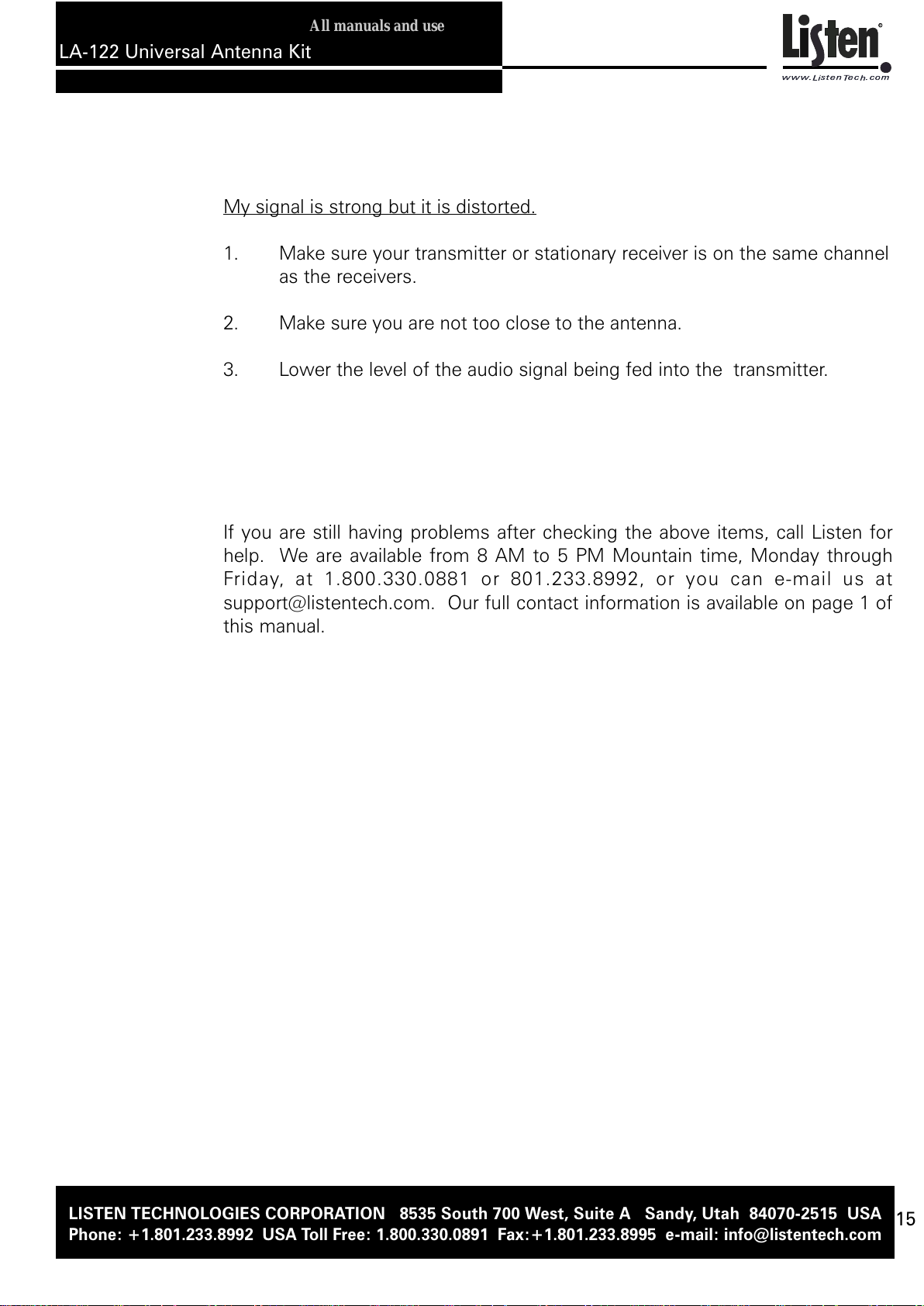

My signal is strong but it is distorted.
1. Make sure your transmitter or stationary receiver is on the same channel
as the receivers.
2. Make sure you are not too close to the antenna.
3. Lower the level of the audio signal being fed into the transmitter.
If you are still having problems after checking the above items, call Listen for
help. We are available from AM to 5 PM Mountain time, Monday through
Friday, at 1. 00.330.0 1 or 01.233. 992, or you can e-mail us at
[email protected]. Our full contact information is available on page 1 of
this manual.
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
www.ListenTech.com
R
15
All manuals and user guides at all-guides.com

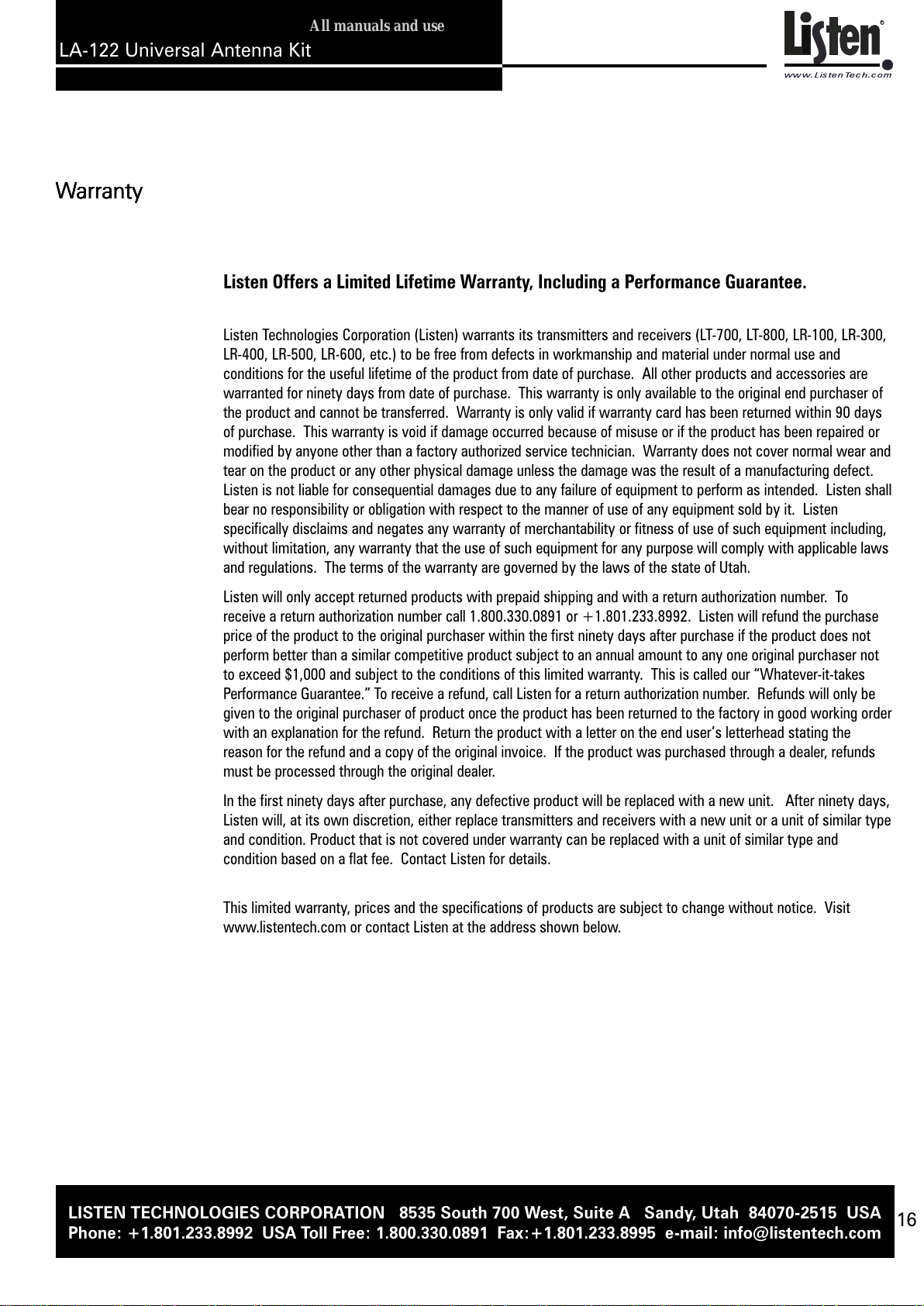

Listen Offers a Limited Lifetime Warranty, Including a Performance Guarantee.
Listen Technologies Corporation (Listen) warrants its transmitters and receivers (LT-700, LT-800, LR-100, LR-300,
LR- 00, LR-500, LR-600, etc.) to be free from defects in workmanship and material under normal use and
conditions for the useful lifetime of the product from date of purchase. All other products and accessories are
warranted for ninety days from date of purchase. This warranty is only available to the original end purchaser of
the product and cannot be transferred. Warranty is only valid if warranty card has been returned within 90 days
of purchase. This warranty is void if damage occurred because of misuse or if the product has been repaired or
modified by anyone other than a factory authorized service technician. Warranty does not cover normal wear and
tear on the product or any other physical damage unless the damage was the result of a manufacturing defect.
Listen is not liable for consequential damages due to any failure of equipment to perform as intended. Listen shall
bear no responsibility or obligation with respect to the manner of use of any equipment sold by it. Listen
specifically disclaims and negates any warranty of merchantability or fitness of use of such equipment including,
without limitation, any warranty that the use of such equipment for any purpose will comply with applicable laws
and regulations. The terms of the warranty are governed by the laws of the state of Utah.
Listen will only accept returned products with prepaid shipping and with a return authorization number. To
receive a return authorization number call 1.800.330.0891 or +1.801.233.8992. Listen will refund the purchase
price of the product to the original purchaser within the first ninety days after purchase if the product does not
perform better than a similar competitive product subject to an annual amount to any one original purchaser not
to exceed $1,000 and subject to the conditions of this limited warranty. This is called our “Whatever-it-takes
Performance Guarantee.” To receive a refund, call Listen for a return authorization number. Refunds will only be
given to the original purchaser of product once the product has been returned to the factory in good working order
with an explanation for the refund. Return the product with a letter on the end user’s letterhead stating the
reason for the refund and a copy of the original invoice. If the product was purchased through a dealer, refunds
must be processed through the original dealer.
In the first ninety days after purchase, any defective product will be replaced with a new unit. After ninety days,
Listen will, at its own discretion, either replace transmitters and receivers with a new unit or a unit of similar type
and condition. Product that is not covered under warranty can be replaced with a unit of similar type and
condition based on a flat fee. Contact Listen for details.
This limited warranty, prices and the specifications of products are subject to change without notice. Visit
www.listentech.com or contact Listen at the address shown below.
WW
WW
Warrantyarranty
arrantyarranty
arranty
LA-122 Universal Antenna Kit
LISTEN TECHNOLOGIES CORPORATION 8535 South 700 West, Suite A Sand , Utah 84070-2515 USA
Phone: [phone] USA Toll Free: 1.800.330.0891 Fax:[phone] e-mail: [email protected]
www.ListenTech.com
R
16
All manuals and user guides at all-guides.com
all-guides.com
