Lites F200 T Zoom Application guide

Lites
Lites F200 T Zoom
(Tunable)
Owners ‘s & Service manual
Read this manual totall and carefull follow all the instructions contained. File this manual for future
use. It is essential to read all the information contained to ensure installation, service and full operation
of the LitesF200.
All operations must be accomplished, handled and carried out b qualified personnel onl . Not compl ing
with given notice will void warrant and will free manufufacturer from an liabilit /responsabilit
www.litessrl.com

Pagina 2 di 8
Unpacking
Unpack the carton and gently remove Lites F200 from the box. nsure Lites F200 received is integer from origin in all
its components.
In the event the Lites F200 shows any damage, do not use it and contact immediately your transporter as well as your
seller.
Items in the carton consist of:
− Lites F200 luminaire
− Colour frame
− Blue Neutrik PowerCon connector
− This owner's and service manual
Safety information for the use of the LitesF200 as well as its periodical maintenance”
‒ Lites F200 is for professional use only and N V R for domestic use therefore refrain from this latter utilisation.
‒ Users must scrupulously comply with information that follows, any other use in contrast will void warranty and
will free the manufacturer of any sort of responsibility and liability.
‒ Never use Lites F200 on any flammable surfaces.
‒ Minimum distance from any flammable source is of 0.25m.
‒ Minimum throw distance from illuminated surface: 0.5m.
‒ Installation of the unit(s) must be secured with adequate clamps, safety cords, nuts and bolts to bear the
weight of the whole unit(s)
‒ Always Power Lites F200 to safety circuit breakers. Lites F200 must NOTand CAN NOT be operated via Phase
Control Dimmer.
‒ Install Lites F200 in ventilated ambient which temperature must not trespass 35°C
‒ Some outer parts of the LitesF200 can reach temperatures of up to 60C° when in operation.
‒ Lites F200 must be fitted with protection shields (Lenses)
‒ On no account, directly or indirectly, L D must be touched
‒ Always disconnet power, (always double check that power is off) before any Service/Operation of the unit.
‒ Lites F200 is rated Class I.
‒ arth connection is MANDATORY!
An essential and periodically throughout cleaning of the LitesF200 is recommended. This practice avoids that layers of
dust and other impurities jeopardise and reduce the correct operation of the unit. Lenses must be cleaned to remove
layers of dust that may impede and or reduce the passage of the light through the lenses. The correct and periodically
maintenance keeps also fans and vents clean to keep the LitesF200 in its best performance conditions. Never touch the
Yellow core of the L D both directly or indirectly nor use solvents that can damage the L D irremediably. Protection
shields if battered, must be replaced with new ones (Lenses)
CE APPROVALS
The HPL D products to which this manual refers to, complies with uropean directive pursuant to:
2006/95/ C safety of electrical equipment supplied at low voltage (LVD)
2004/108/ C lectromagnetic compatibility ( MC)
2011/65/ U Restriction of the use of certain hazardous substances (RoHS)
WARRANTY
A 12-month warranty is granted on the LitesF200 from its purchase’s date. Warranty covers fabrication defects only,
unit will not be replaced but will be 100% fixed. Warranty is immediately voided if the Lites F200 has not been handled
by qualified personnel. Any improper and unauthorised use, such modification(s) or misapplication of the unit will also
void the warranty of the product(s). Silver colour label showing technical data and serial number, if removed or if data
are impaired to render details illegible, will immediately void the warranty.

Pagina 3 di 8
Technical specifications
Power Supply: 100/240V~ 50/60Hz (auto setting)
Maximum power consumption 200W
Stand-by power consumption 4W
LED Colour temperatuRes and CRI : 3000°K (CRI90) – 5700°K (CRI90)
Fresnel Lens: Ø 150mm
Colour frame dimensions: 195x185 mm (the use of standard 185x185mm colour frame is totally acccettable)
Aluminium die-caste body to maximize heat dissipation
Operating temperature range: -15°C + 35° C
Maxium temperature on the Lites F200 +60°C
Weight of the unit: Kg 6,9
Worm-gear beam adjustment on standard Lites200F/ Automatic zoom on Lites F200Zoom
Rear handle for good grip of unit ; side-lock on mounting yoke to adjust and set unit to position.
Beam angle: 20°-60°
Working position: +90°/-90° on vertical axe
Protection rating: IP 20
DMX 512 , RDM, Protocols (wireless on request)
Neutrik powercon IN & OUT connectors
Neutrik XRL5 IN & OUT signal connectors
4-digit display
Manual operation via 4-digit display
Idle fan mode for totally silent use of the unit.
Adjustable L D frequency
Selection of two L D dimming curves
Comply with

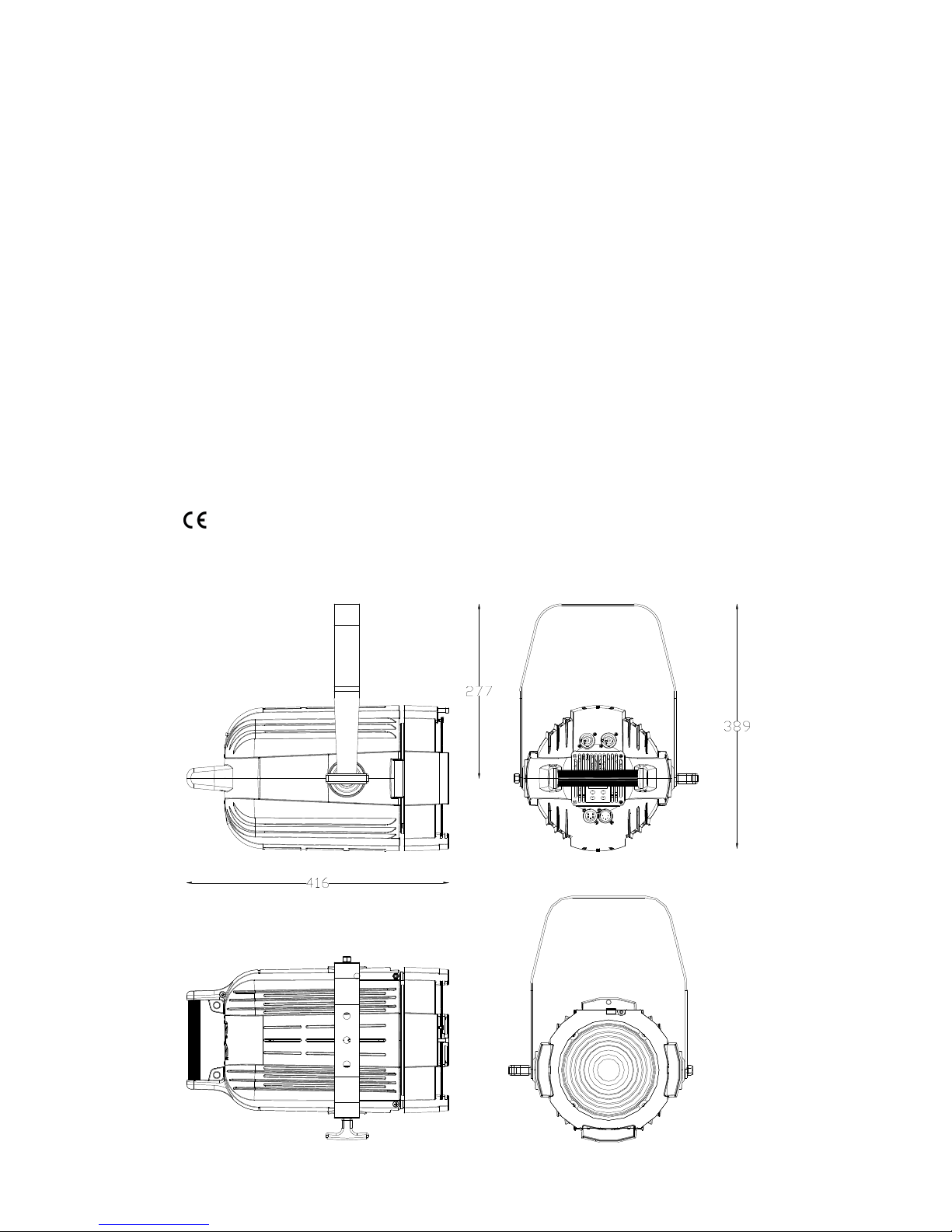

Dimensions: see figure

Pagina 4 di 8

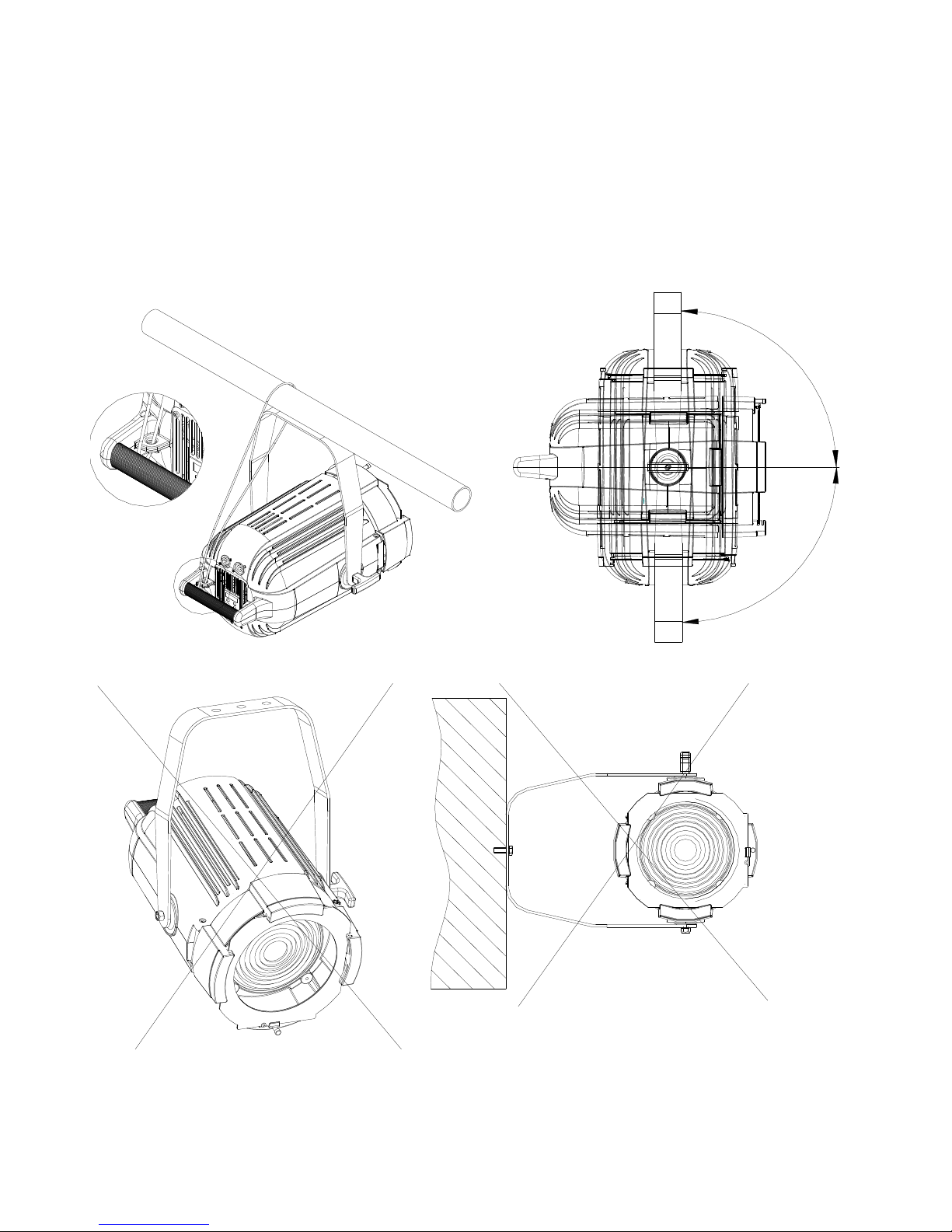

Lites F200 installation
Lirtes F200 is delivered with a robust yoke which hosts 3 x 12 mm mounting holes
The use of an adequate G-clamp to sustain at least twice the weight of the Lites200F (Lites F200 weighs 6,9 kg)
and/or M10 screw is mandatory. The use of safety chain(s) to sustain twice the weight of the Lites F200 is also
mandatory, the safety chain adds more protections to users and third-parties. ye-lid for the safety chain is provided
on the Lites F200. (see Fig)
The Lites F200 yoke revolves on 360° on the projector’s axis. Lites200F can be installed +-90° on the vertical axis.
(see Fig.). Best Lites F200 ’s perfomrances are achiieved if unit is installed as shown in the illustrations that follows.
(never install LitesF200 upside down, illustrations that folllow show installation positions that must be avoided) .
Incorrect installation(s) can, immediately or in short/long terms, jeopardise the correct operation of the Lites F200.
Incorrect installations may void the warranty of the unit.
90°
90°
AVOID INCORRECT INSTALLATIONS AS ILLUSTRATED

Pagina 5 di 8
Installations of the accessories
Lites F200 is delivered with a standard
195x185mm colour frame (standard colour
frame 185x185 can als be used). The L D
source used on Lites F200 allows the use of
colour filters that cannot be used with high
wattage tungstene lamps which would impair
colour filters. Optional and standard 185x185
mm 4-leaf-barndoor can also be installed in the
provided gates. nsure that accessories when
installed on the Lites F200 are securely fitted in
the gates and that are triggered and secured by
the spring-lock provided. (see figure)
Connection to mains
WARNING ! Installation(s) must be accomplished, handled and carried out b qualified personnel onl and
must compl with all norms in force in the installation's countr
Lites F200 is supplied with a free Blue Neutrik PowerCon plug that must be wired using a 3x1.5mm² lead; additional
specifications include:
‒ Operating Voltage: 300/500V
‒ Test Voltage: 2KV
‒ Operating Temperature: -10°C / +100°C
Connect blue wire to N terminal, brown wire to L terminal and Yellow/Green wire to earth terminal. (see also illustration
fig) nsure connections to safety circuit breaker at all times. Daisy chain of up to maximum 8 units is permitted if
connected to 230VAC. Daisy chain of up to maximum 4 units is permitted when connected to 110VAC. Maximum daisy
chain length with LitesF 200 is of 25m.
WARNING: LitesF200 CANNOT be powered b using an angle phase dimmer pack
POWER IN
A
POWER OUT
A

Pagina 6 di 8
UP
Down
Enter
Esc
Signal Control Connection
Lites F200 can be operated via either DMX512A and or RDM ready . For dasy chain connection use a -2 x 0,5 mm²
size lead wire plus shield. Connect Pin 1 to ground, 2= data – while Pin 3 = data +. Pins 4 & 5 are not connected.
nsure that DMX wires and shield do not interfere, nor touch each other as well as they must not touch/interfere with
the body of the unit . (DMX connectors are not provided)
Important note: when DMX is available a red dot will illuminate on the left hand side of the displa .
Whenthe red dot is off, no DMX signal is available.
WARNING ! Before powering Lites F200 ensure that all installation(s) procedure(s) have(s) been
properl set and accomplished
DMX OUT
DMX IN
Projector mode settings
When Lites F200 is powered, setup-display will show the software release version The UP,
DOWN, NT R and SC buttons will allow the operations of the Lites F200 menu. UP and
DOWN buttons allow to scan menu options, NT R button allow to select. The SC button is
to retun to the previous menu or to quit the previous setting.
Menu items
Displa ed
message
Allowed or
displa ed
values
Mode
Addr
001..510 DMX address : as of 1 to 511
Auto
(Automatic
mode)
co01
co02
co03
co04
co05
co06
co07
co08
co09
co10
co11
co12
Preset 1 white 3000°k
Preset 2 …………………..
Preset 3 …………………..
Preset 4 …………………..
Preset 5 …………………..
Preset 6 …………………..
Preset 7 …………………..
Preset 8 …………………..
Preset 9 …………………..
Preset 10 …………………..
Preset 11 …………………..
Preset 12 white 5700°k
Values between co001 through co12 allow
for fixed white set-up without DMX 512
protocol signal. When fixture is turned, the
last selected preset will be held
Pr01
Pr02
Program 1: auto
Program 2 : auto
Automatic mode without DMX 512
Protocol signal.
Program selections run between Pr01
through Pr 02
Both programs can be modified. To
change program select nter then view
(Scn0…Scn9; max scenes of each
program). Clicking on enter once more
it shows P.00.0 (time) followed by
F.00.0 (speed) and ultimately the last
view shows 1c.01… though c12 (colour
to be assigned to each scene) The use
of UP/Down keys allow for setting
values. When selections are completed
press enter to confirm
Mode
3 ch
3000°k- 5700 °K- zoom
Dmx mode (view next page)
3 ch (D) 3000°k /5700°K –dimmer-zoom(default)
4 ch 3000/5700°k-dimmer- strobo-zoom
5 ch 3000/5700°k-dimmer16(bit)strobo-zoom
XLR 5
connection
leads
descri
ption
1 GND
2 DMX-
3 DMX+
4 NC
5 NC

Pagina 7 di 8
drUt
..°C Shows driver operating temperature
LEdt
..°C Show led operating temperature
PUM
0..100% Shows current led power (0-100%)
SMOO
FAST
M D
SLOW
DMX data Speed adjustment
GAMM
LIn
qUAd
Dimmer profile selection:
- Lin for linear dimming regulation
- qUAd for tungsten lamp emulation)
FREQ
1K
2K
3K
4K
5K
6K
7K
8K
9K
10K
L D operation frequence
booS
Off
on
Boost selection:
off = maximum led power at 90%
on = maximum led power at 100%
FAn
FAST
LOW
2
fa
n operating modes i.e fast, slow speed.
Fan speed adjujstments (fan-sound) reflect on self-correct output L D brightness and other
factors as room-temperature, number of engaged channels
PoS
AA
VV
I Display orientation selection:
AA = normal
VV = inverted
StbY
Off
on
Standby display activity:
off = display always switched on
on = display switched off after few seconds of buttons inactivity (only the right side
dot will be lighted to indicate DMX availability)
dEF
Off
on
ON Will restore the default factory values
TiML ..h ..
Shows L D life
TiMU ..h ..
Shows HPLed life
SoFt
Shows Software version
DMX Operating Modes (Mode)
LitesF200 provides with different DMX operating modes ensuring the ideal use of the DMX universe
Shutter/strobo, 8/16 bit dimmer, fan speed and L D frequence are all adjustable
mode 3 ch white indipendenti
Ch funzione Livelli dmx
1
3000°k White
0..255
From 0 to max 255
2
5
6
00°k White
0..255
From 0 to max 255
3
zoom
0..255 Zoom IN (20°) - zoom OUT (60°)
mode 3 ch (default)
Ch funzione Livelli dmx
1 3000°k-5600°k 0..255 When set to level 0 = 3000°k – When set to level
255 = to 5600°k
2 dimmer 0..255 From 0 to max 255
3 zoom 0..255 Zoom IN (20°) - zoom OUT (60°)
mode 4 ch dimmer
Ch funzione Livelli dmx
1 3000°k-5600°k 0..255 When set to level 0 = 3000°k – When set to level
255 = to 5600°k
2 dimmer 0..255 From 0 to max 255
3 shutter 0-9
Strobe
disengaged
10..255
Strobe
from slow (
10
) to fast (
2
55)
4 zoom 0..255 Zoom IN (20°) - zoom OUT (60°)

Pagina 8 di 8
mode 5 ch dimmer 16 bit
Ch funzione Livelli dmx
1 3000°k-5700°k 0..255 When set to level 0 = 3000°k – When set to level
255 = to 5700°k
2 dimmer 0..255
From 0 to m
6
ax 255
3 Dimmer fine 0..255
From 0 to max 255
4 shutter 0-9
Strobe
disengaged
10..255
Strobe
from slow (
10
) to fast (
2
55)
5 zoom 0..255 Zoom IN (20°) - zoom OUT (60°)
Error messages
In case of malfunction, the following messages may be shown:
L D RROR : sympthon of a possible short-circuit on L D driver.
T MP RATUR RRor: sensors have measured temperature below -15°C or failure on NTC- In such event L D will
automatically switch to off mode. Should any of the above given messages occur, for precaution measures the L D
will always switch to off mode. Users must halt the unit immediately and refrain from the use of it and promptly
contact any authorized service centre.
Periodical maintenance
To ensure the correct Lites F200 ’s operations we suggest the following periodical maintenance operations:
Remove dust or any kind of other dirty from the fans and loop-holes to ensure the correct air flow
Remove dust from lenses using a clean cloth. This maintenance will ensure the maximum light efficiency
Replace damaged protection screens and lenses when necessary
Always handle Lites F200 gently and with care, do not drop, do not shake do not cause shocks to the unit as it could
damage it irremediably.
Do not touch nor clean the LED as well as the ellow area around it with solvents
Device disposal information
At the end of its life, Lites F200 must be disposed to an appropriate electrical and electronic equipment
waste collection centre. co-friendly disposal, helps to avoid possible negative impact on the
environment and human health and promotes the reuse and/or recycling of the materials making up
the product. Illegal disposal involves administrative sanctions provided by laws enacted.
Manufacture declines any sort of personal/corporate responsibility/liability for damages caused by the inadequate use
of the product as well as if unqualified personnel have handled the product. Not complying with security
norms/periodical maintenance as expressed in the owner's/service manual will also totally free personal/corporate
responsibility/liability.
Lites F200 T zoom 05/10/2016 rev.00
