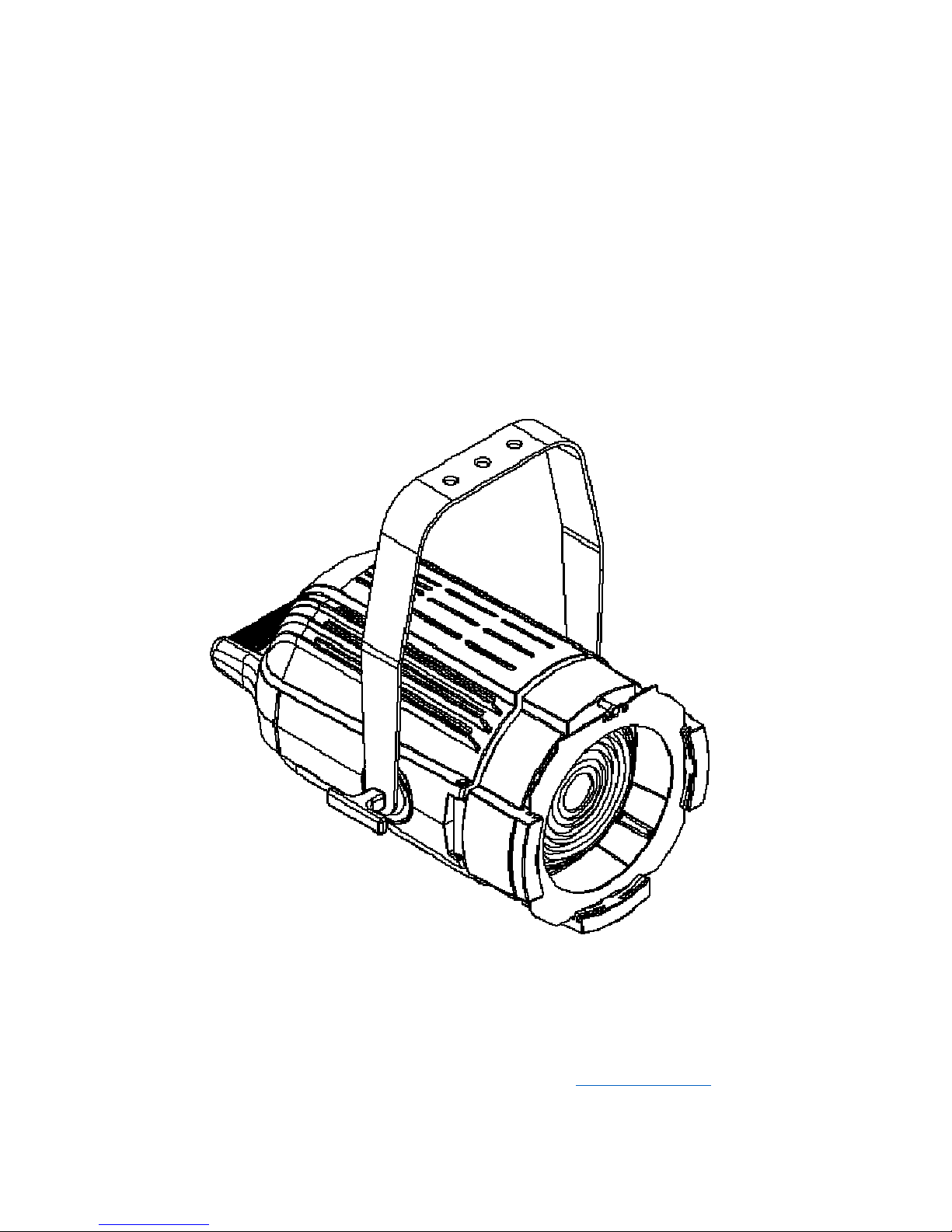

Lites F200 Zoom Application guide

Lites
Lites F200 Zoom
Owners ‘s & Service manual
Read this manual totally and carefully follow all the instructions contained. File this manual for future
use. It is essential to read all the information contained to ensure installation service and full operation
of the LitesF200.
All operations must be accomplished handled and carried out by qualified personnel only. Not complying
with given notice will void warranty and will free manufufacturer from any liability/responsibility
www.litessrl.com

Pagina 2 di 8
Unpacking
Unpack the carton and gently remove Lites F200 from the box. nsure Lites F200 received is integer from origin in all
its components.
In the event the Lites F200 shows any damage, do not use it and contact immediately your transporter as well as your
seller.
Items in the carton consist of:
− Lites F200 luminaire
− Colour frame
− Blue Neutrik PowerCon connector
− This owner's and service manual
Safety information for the use of the Lites F200 as well as its periodical maintenance”
‒ Lites F200 is for professional use only and N V R for domestic use therefore refrain from this latter utilisation.
‒ Users must scrupulously comply with information that follows, any other use in contrast will void warranty and
will free the manufacturer of any sort of responsibility and liability.
‒ Never use Lites F200 on any flammable surfaces.
‒ Minimum distance from any flammable source is of 0.25m.
‒ Minimum throw distance from illuminated surface: 0.5m.
‒ Installation of the unit(s) must be secured with adequate clamps, safety cords, nuts and bolts to bear the
weight of the whole unit(s)
‒ Always Power Lites F200 to safety circuit breakers. Lites F200 must NOTand CAN NOT be operated via Phase
Control Dimmer.
‒ Install Lites F200 in ventilated ambient which temperature must not trespass 35°C
‒ Some outer parts of the LitesF200 can reach temperatures of up to 60C° when in operation.
‒ Lites F200 must be fitted with protection shields (Lenses)
‒ On no account, directly or indirectly, L D must be touched
‒ Always disconnet power, (always double check that power is off) before any Service/Operation of the unit.
‒ Lites F200 is rated Class I.
‒ arth connection is MANDATORY!
An essential and periodically throughout cleaning of the Lites F200 is recommended. This practice avoids that layers of
dust and other impurities jeopardise and reduce the correct operation of the unit. Lenses must be cleaned to remove
layers of dust that may impede and or reduce the passage of the light through the lenses. The correct and periodically
maintenance keeps also fans and vents clean to keep the Lites F200 in its best performance conditions. Never touch
the Yellow core of the L D both directly or indirectly nor use solvents that can damage the L D irremediably.
Protection shields if battered, must be replaced with new ones (Lenses)
CE APPROVALS
The Lites F200 products to which this manual refers to, complies with uropean directive pursuant to:
2006/95/ C safety of electrical equipment supplied at low voltage (LVD)
2004/108/ C lectromagnetic compatibility ( MC)
2011/65/ U Restriction of the use of certain hazardous substances (RoHS)
WARRANTY
A 12-month warranty is granted on the Lites F200 from its purchase’s date. Warranty covers fabrication defects only,
unit will not be replaced but will be 100% fixed. Warranty is immediately voided if the Lites F200 has not been
handled by qualified personnel. Any improper and unauthorised use, such modification(s) or misapplication of the unit
will also void the warranty of the product(s). Silver colour label showing technical data and serial number, if removed
or if data are impaired to render details illegible, will immediately void the warranty.

Pagina 3 di 8
Technical specifications
Power Supply: 100/240V~ 50/60Hz (autosetting)
Maximum power consumption 200W
Stand-by power consumption 5W
CRI :90
Fresnel Lens: Ø 150mm
Colour frame dimensions: 195x185 mm (the use of standard 185x185mm colour frame is totally acccettable)
Aluminium die-caste body to maximize heat dissipation
Operating temperature range: -15°C + 35° C
Maxium temperature on the LitesF200 +60°C
Weight of the unit: Kg 6,9
Worm-gear beam adjustment on standard Lites200F/ Automatic zoom on LitesF200Zoom
Rear handle for good grip of unit ; side-lock on mounting yoke to adjust and set unit to position.
Beam angle: 20°-60°
Working position: +90°/-90° on vertical axe
Protection rating: IP 20
DMX 512 , RDM, Protocols (wireless on request)
Neutrik powercon IN & OUT connectors
Neutrik XRL5 IN & OUT signal connectors
4-digit display
Manual operation via 4-digit display
Idle fan mode for totally silent use of the unit.
Adjustable L D frequency
Selection of two L D dimming curves
Comply with

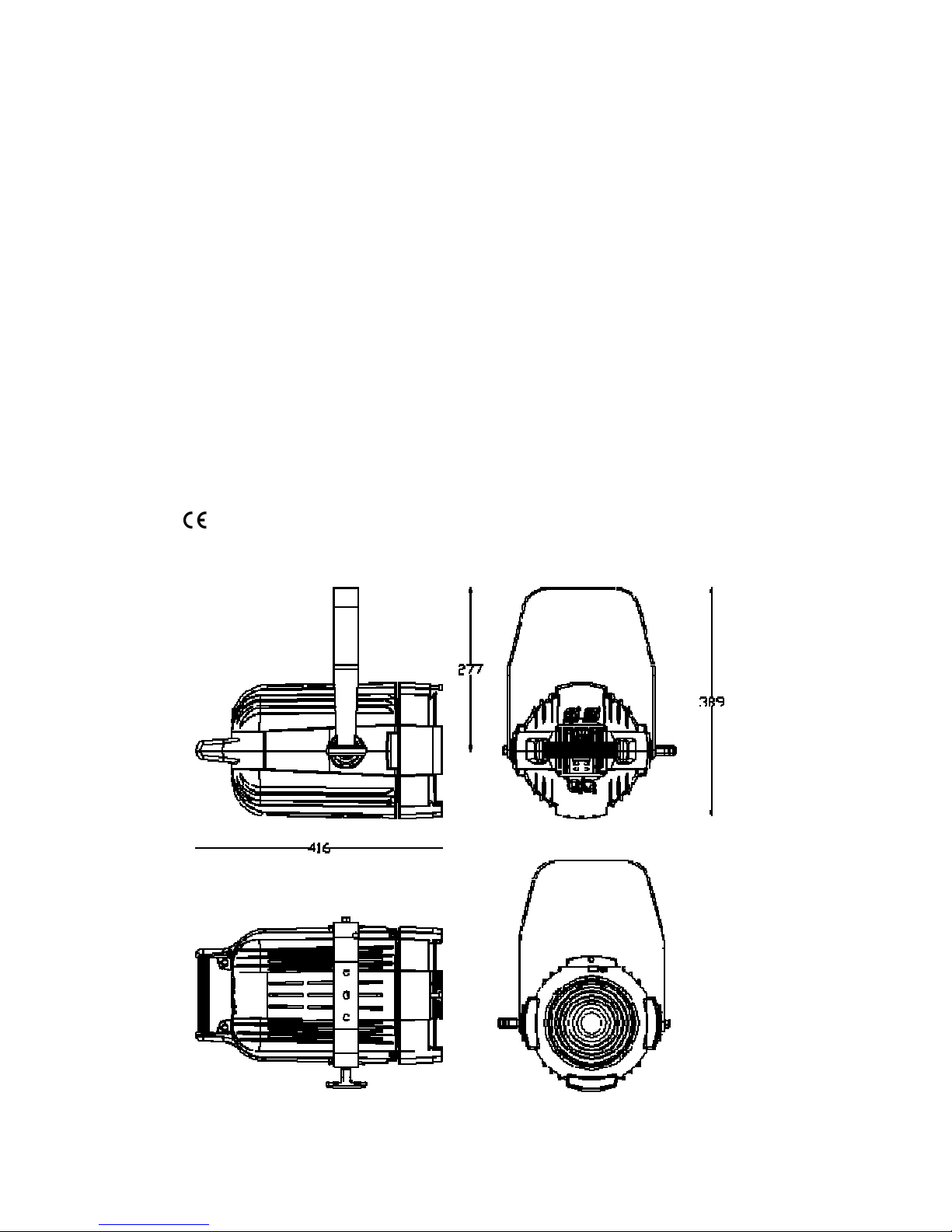

Dimensions: see figure

Pagina 4 di 8
Lites F200 installation
Lirtes F200 is delivered with a robust yoke which hosts 3 x 12 mm mounting holes.
The use of an adequate G-clamp to sustain at least twice the weight of the Lites200F (Lites F200 weighs 6,9 kg)
and/or M10 screw is mandatory. The use of safety chain(s) to sustain twice the weight of the Lites F200 is also
mandatory, the safety chain adds more protections to users and third-parties. ye-lid for the safety chain is provided
on the Lites F200. (see Fig)
The Lites F200 yoke revolves on 360° on the projector’s axis. Lites F200 can be installed +-90° on the vertical axis.
(see Fig.). Best Lites F200 ’s perfomrances are achiieved if unit is installed as shown in the illustrations that follows.
(never install Lites F200 upsidedown, illustrations that folllows show installation positions that must be avoided) .
Incorrect installation(s) can, immediately or in short/long terms, jeopardise the correct operaton of the Lites F200.
Incorrect installations may voide the warranty of the unit.
90°
90°
AVOID INCORRECT INSTALLATIONS AS ILLUSTRATED

Pagina 5 di 8

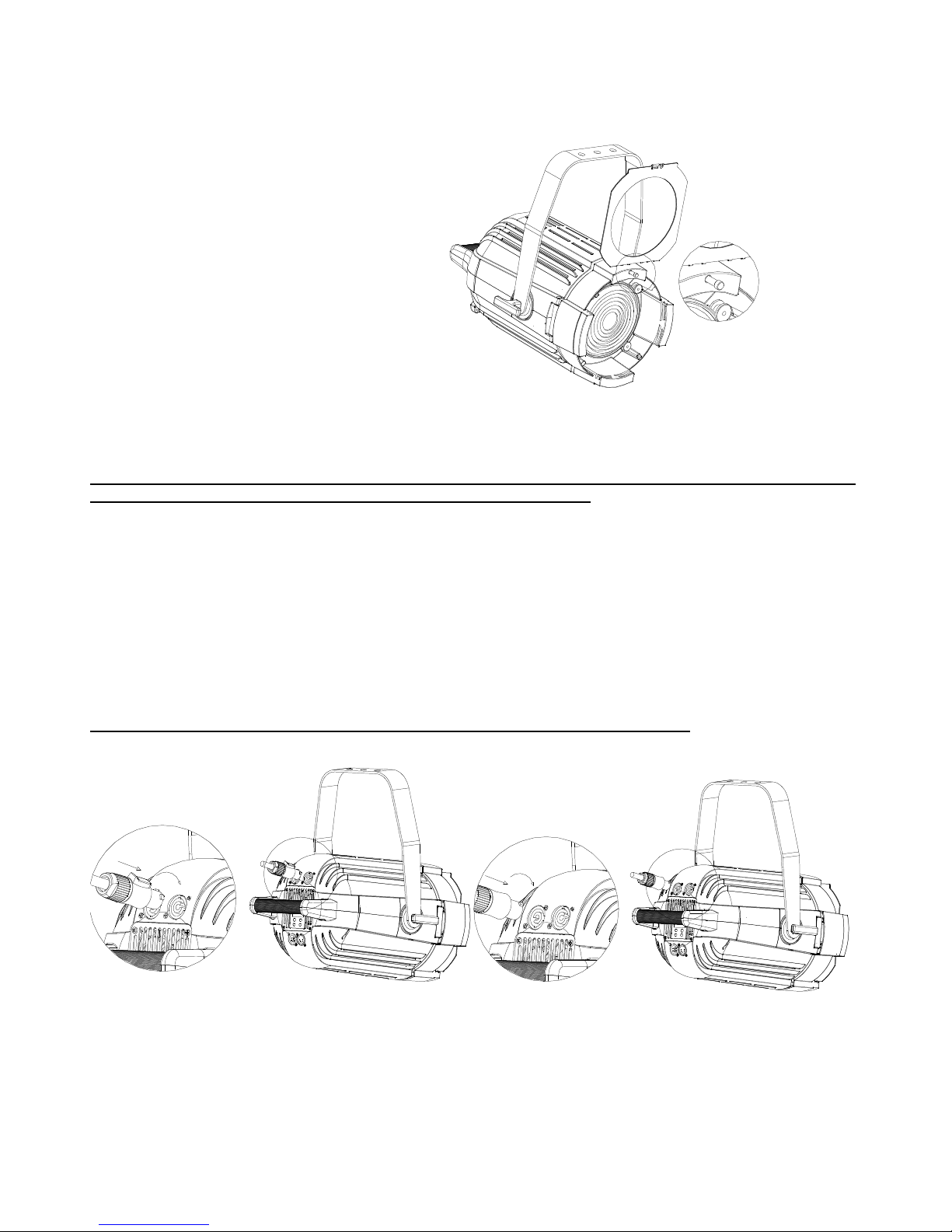

Installations of the accessories
Lites F200 is delvered with a standard
195x185mm colour frame (standard colour
frame 185x185 can als be used). The L D
source used on LitesF200 allows the use of
colour filters that cannot be used with high
wattage tungstene lamps which would impair
colour filters. Optional and standard 185x185
mm 4-leaf-barndoor can also be installed in the
provided gates. nsure that accessories when
installed on the LitesF200 are securely fitted in
the gates and that are triggered and secured by
the spring-lock provided. (see figure)
Connection to mains
WARNING ! Installation(s) must be accomplished handled and carried out by qualified personnel only
and must comply with all norms in force in the installation's country
Lites F200 is supplied with a free Blue Neutrik PowerCon plug that must be wired using a 3x1.5mm² lead , additional
specifications include:
‒ Operating Voltage: 300/500V
‒ Test Voltage: 2KV
‒ Operating Temperature: -10°C / +100°C
Connect blue wire to N terminal, brown wire to L terminal and Yellow/Green wire to earth terminal. (see also
illustration fig) nsure connections to safety circuit breaker at all times. Daisy chain of up to maximum 8 units if
connected to 230VAC. Daisy chain of up to maximum 4 units when connected to 110VAC. Maximum daisy chain
length: 25m.
WARNING: Lites F200 CANNOT be powered by using an angle phase dimmer pack
Collegamento alla rete elettrica
POWER IN
A
POWER OUT
A
