3 Drawer Dresser
Keep this Assembly Manual for future reference.
Two adults
recommended
for assembly
Las traducciones en español se encuentran
al final de este manual.
Vous trouverez les traductions en français
à la fin de ce manuel.
Secure Your Furniture
Keep your home and family safe
with the wall anchor kit that is
included with the product.
Serious or fatal crushing injuries can
occur from tipping furniture.
WARNING: Manufacturer assumes no liability
for improper installation or excessive loads
placed on screws or bracket. This wall anchor
is not a substitute for proper adult supervision.
This product is not intended for commercial use.
Follow little seeds on
Do NOT return this product.
For missing or broken parts
- Visit littleseedskids.com
- Call 1-800-489-3351

3
littleseedskids.com
Tube
You
Call us!
1-800-489-3351
Monday-Friday
9am - 5pm CST
Assembly Tips
Contact our friendly customer service team first for help.
Do NOT return this product!
Visit littleseedskids.com to view the
limited warranty valid in the U.S. and Canada.
PEOPLE NEEDED FOR ASSEMBLY: 1-2
Helpful Hints
- Open your item in the area you plan to keep it for less heavy lifting
- Identify, sort and count the parts before attempting assembly
- Compression dowels are tapped in with a hammer
- Slides are labeled with a R (right) and L (left) for proper placement
- Make sure to always face the point on the top of the Cam Lock towards the
outer edge
- Use all the nails provided for the back panel and spread them out equally
- Back panel must be used to make sure your unit is sturdy
- Do NOT use harsh chemicals or abrasive cleaners on this item
- Never push, pull, or drag your furniture

4
littleseedskids.com
Board Identification
Left Panel
36827015012 Right Panel
36827015022
Top
36827015031 Bottom 36827015040
x2
Brace
36828015072 Apron
36827015082
x4
Drawer Side
39991167346200C
x2
Drawer Back
39991167075890B Upper Drawer Front
36828015163
Lower Drawer Front
36828319093
A B
CD
G
H
P
Middle Drawer Front
36828350103
I
DWR
SIDE
DWR
BACK
J

5
littleseedskids.com
Board Identification
x3
Drawer Bottom
36828331201
x2
Front Leg
36828015210
x2
Rear Rail
36828015260
Drawer Back
39991120075890B
x2
drawer Side
39991120346200C
TU
Back Panel
K682700000
AA
This piece is paperboard construction. It
is not made from wood but is required for
the assembly of your unit.
DWR
BACK
DWR
SIDE
Z

6
littleseedskids.com
Board Identification
A
C
D
G
G
U
AA
H
U
P
TT
I
J
This piece is paperboard construction. It
is not made from wood but is required
for the assembly of your unit.
Lower and Middle Drawers
Upper Drawer
Z
B
DWR
BACK
DWR
BACK
DWR
SIDE
DWR
SIDE
DWR
SIDE
DWR
SIDE

7
littleseedskids.com
Parts List
Actual Size
Please Note: Your model
may contain extra
hardware.
3
45
6
8910
12 13 14
x8
#A22700
cam lock
x8
#A22710
cam bolt
x30
#A12120
7/16" pan head x8
#A23030
2" flat head
x30
#A11080
7/16" flat head
x8
#A12800
1" flat head
x3
#A21960
hidden fastener
x12
#A21970
drive fastener
x6
#A21660
6mm x 30mm
wood dowel
x6
#A17400
7/8" truss head
x28
#A21110
nail
x12
#A12420
5/8" pan head
x6
#A52535
knob
12
7

8
littleseedskids.com
Parts List
Not Actual Size
x3
#A56770
drawer slide package
x1
#A84050
safety bracket kit
x4
#A44375
leg
x2
#A54510
drawer bracket
x4
#A54520
drawer bracket
x6
#A52795
knob
left
cabinet
member
right
cabinet
member
left
drawer
runner
right
drawer
runner
11
20
16
17
18
19a 19b 19c 19d
19
11a
11b
11c
11d
x3
#A54900
drawer brace
21

9
littleseedskids.com
Read through each step carefully and follow the proper order
Separate and count all your parts and hardware
Parts are labeled on the surface or edge of part
Give yourself enough room for the assembly process
Have the following tools: Flat Head Screwdriver, Phillips Head
Screwdriver and Hammer
Before You Start
Cam Lock Fastening System
This Cam Lock Fastening System will be used throughout the assembly process.
P
P
P
P
Press parts together so CAM BOLT inserts
into edge hole.
Press CAM BOLT into hole. Press CAM LOCK into hole.
Using a screwdriver, turn the CAM LOCK clockwise to
lock the CAM LOCK and CAM BOLT into their holes
and fastening parts together.
End hole
Arrow to point towards end
hole in edge of part.
1
3
2
4

10
littleseedskids.com
Step 1
Caution: If you are using a power drill or a power screwdriver for screwing,
please be aware to slow down and stop when the screw is tight. Failure to
do so may result in stripping the screw.
(x3)
#A21960
(x4)
#A22710 (x1)
#A84050
finished surface
superficie acabada
surface finie
Do not fully tighten this
screw in this step.
finished edge
borde acabado
bord fini
11a
11b
27
2
2
7
7
7
2
2
C
H

11
littleseedskids.com
Step 2
(x4)
#A22700 (x4) #A21660
x2
9
9
Proper orientation of CAM LOCK
Tip
Assembly
Quick
9
1
1
1
G

12
littleseedskids.com

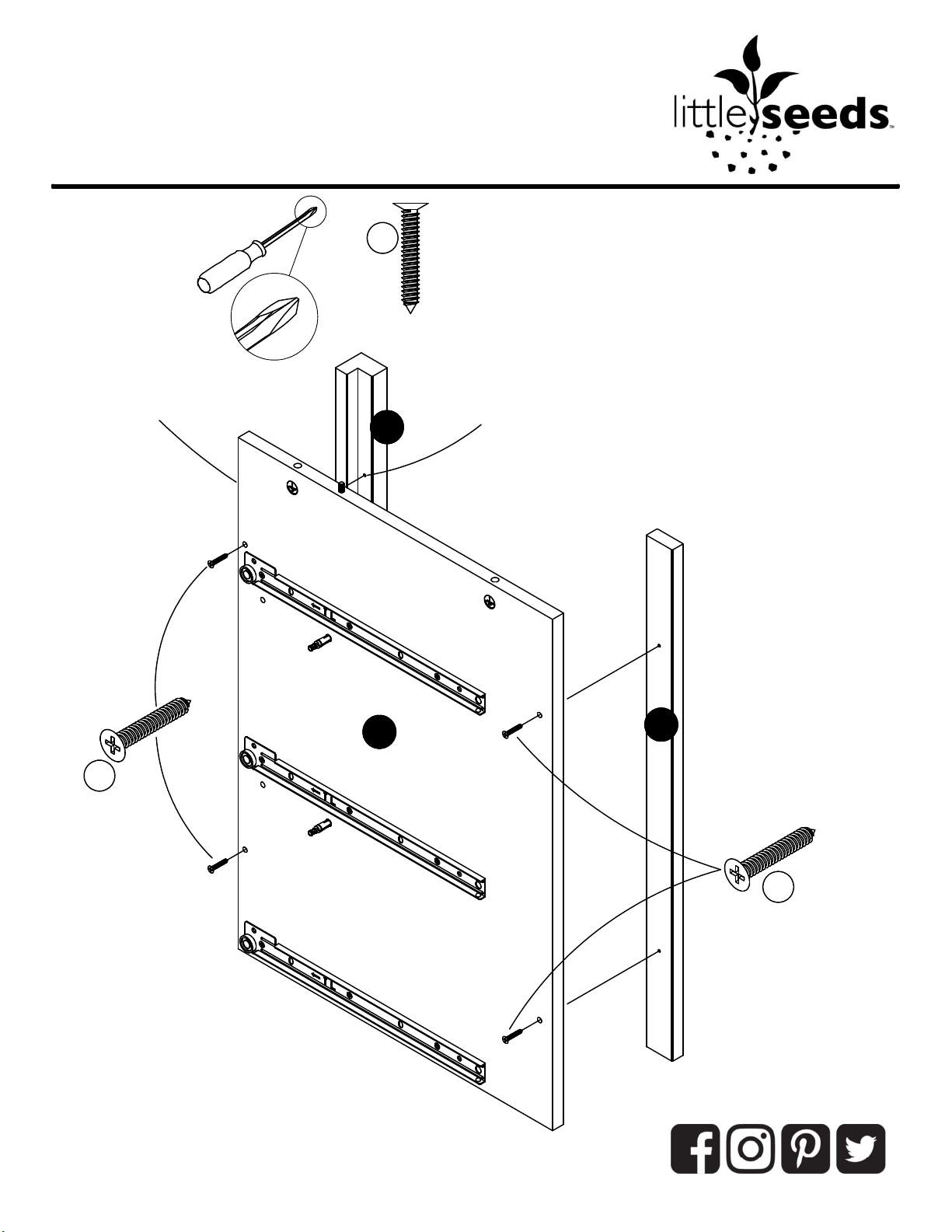

Step 3
A
(x3)
#A56770
(x9)
#A11080
finished edge
borde acabado
bord fini
19a
19a
5
5
marked with a "L"

13
littleseedskids.com
Step 4
A
(x2)
#A22700 (x2) #A22710
(x1)
#A21660
1
2
9
9
12
Proper orientation of CAM LOCK
Tip
Assembly
Quick
2
1

14
littleseedskids.com
Step 5
A
U
(x4)
#A12800
Notice pilot holes inside.
finished edge
borde acabado
bord fini
Z
6
6
6

15
littleseedskids.com
Step 6
B
U
(x3)
#A56770 (x9)
#A11080
(x2)
#A22700 (x2) #A22710
(x1)
#A21660
(x4)
#A12800
Assemble the right panel component the
same as the left in steps 3,4 & 5.
finished edge
borde acabado
bord fini
Z
marked with a "R"
19b
19b
5
5
1
9
9
6
6
6
6
19b
19b
12
2
Proper orientation of CAM LOCK
Tip
Assembly
Quick

16
littleseedskids.com
Step 7
D
D
Bottom Surface (more holes)
Top Surface (less holes)
Note: If needed,
you may need to
loosen screws if
the holes in the
leg do not line up
with the three
holes in the
bottom surface.
After screws are
secure, retighten
screws.
(x4)
#A23030 (x4)
#A44375
1st
2nd
(x12)
#A12420
4
20
20
4
13
13
20

17
littleseedskids.com
Step 8
A
D
(x2)
#A23030
finished edge
borde acabado
bord fini
4
4

18
littleseedskids.com
Step 9
G
G
A
D
finished edge
borde acabado
bord fini
UNLOCKLOCK

19
littleseedskids.com
Step 10
B
G
D
G
Attach the right panel (B) to the two braces
(G) then fasten to the bottom (D) with two
screws.
(x2)
#A23030
4
4
UNLOCKLOCK

20
littleseedskids.com
Step 11
B
A
C
UNLOCKLOCK
