LIVINOX LCH-90SWGM User manual

COOKER HOOD
INSTRUCTION MANUAL
Read this manual carefully before operation
Pictures inthis manual are for reference only, the product in kind prevail.
LCH-90SWGM

2
Contents
01 Contents..........................................................................
2
02 Warnings.........................................................................3
03 Safety Warning. ............................................................ 5
04 Installation instruction....................................................6
05 First using......................................................................10
06 Maintenance.................................................................11
07 Main Parameters. ........................................................13
08 Trouble shooting..........................................................14
09 Disposal.........................................................................14

3
Warnings
This appliance is not intended for use by persons
(including children) with reduced physical, sensory or
mental capabilities, or lack of experience and
knowledge, unless they have been given supervision
or instruction concerning use of the appliance by a
person responsible for their safety. Children shall
not play with the appliance. Cleaning and user
maintenance shall not be made by children without
supervision. If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
There shall be adequate ventilation of the room when
the range hood is used at the same time as appliances
burning gas or other fuels.
Please do not use corrosive detergent for cleaning. The
proper function of the unit is conditioned by the
regularity of the maintenance.
To protect the main body from corrosive of the long time
accumulation of dirt, the cooker hood should be
cleaned with hot water with non-corrosive detergent
every two months.
There is a fire risk if cleaning is not carried out in
accordance with the instructions.
Do not flame under the range hood.
The air must not be discharged into a flue that is used
for exhausting fumes from appliances burning gas or
other fuels.
The minimum distance between the supporting surface
for the cooking vessels on the hob and the lowest part of
the range hood. (When the range hood is located above a
gas appliance, this distance shall be at least 65 cm. If the
instructions for installation for the gas hob specify a
greater distance, this has to be taken into account. The
distance of 65 cm can be reduced for:

4
Warnings
non-combustible parts of range hoods, and
parts operating at safety extra low voltage,
Provided these parts do not give access to live parts if
deformed;)
Regulations concerning the discharge of air have to be
fulfilled.
The appliance uses 6 hob elements at most.
CAUTION : Accessible parts may become hot when
used with cooking appliances.
The first time connecting the supply power or re-up
electricity , the hood have self-inspection function, the top
glass plate will open and close one time, so minds your
hand to be pinched, not to handle your hand near the
panel!"
Range hoods and other cooking fume extractors may
adversely affect the safe operation of appliances burning
gas or other fuels (including those in other rooms)
due to back flow of combustion gases. These gases can
potentially result in carbon monoxide poisoning. After
installation of a range hood or other cooking fume
extractor,the operation of open flued gas appliances
should be tested by a competent person to ensure that
back flow of combustion gases does not occur.

5
Safety Warning
⚫The appliance is not intended for use by young children or infirm
persons without supervisions.
⚫Young children should be supervised to ensure they do not play with
the appliance.
⚫Plug the power cord to socket outlet with earthing continuity terminal.
⚫The cooker hood is for home use only, not suitable for barbecue, roast
shop and other commercial purposes.
⚫The cooker hood and its filter should be cleaned regularly
according to the instruction.
⚫Do not use open flame, or allow oil to go beneath the appliance.
⚫If there is any fault occurred with the appliance, please call after-sale
service department.
⚫Please keep the kitchen room ventilated.
⚫Prior to any maintenance, cleaning operation, ensure the power is cut
off.
⚫If the supply cord is damaged, it must be replaced by the manufacturer,
service agent or similarly qualified person in order to avoid a hazard.
The replaced power cord should be provided by manufacturer or seller.
⚫If the plug or cord is damaged, please call after-sale service center.
⚫There is a fire risk if cleaning is not carried out in accordance with the
instruction.
⚫In case of damaged connecting wire, please refer to the manufacturer,
after-sale service personnel or other qualified technicians.
⚫Use the unit according to the instructions to avoid any fire hazard.
⚫The exhaust air must not be introduced into a smoke flue or chimney
that is used for exhausting fumes from appliances burning gas.
⚫Follow the local laws applicable for external air evacuation.
⚫As the upper panel is closing, don’t put your hands between the upper
panel and the body in case of clamp your hand.
⚫As steam generator is working, be careful of hot steam out of the body.

6
Installation instruction
Determine location
Range hood should be installed horizontaly on the top of the stove,
the installation diagram is as follows:
The socket is suggested to fix on both sides of the range hood, with
distance from the decorative cover no more than 800mm.Please note
that the socket should not install in the back area of the decorative cover.
Exhaust pipe
Suspended
ceiling
407
Inlet
905~915
650~750
800~850 1015~1150
Line for Installation

7
Ф200
The top of machine
76
Wall
120
Schematic diagram of the hole size
of the exhaust pipe at the ceiling
Note: This installation height is only applicable to
electric stove, if installed above the gas stove,
the installation height should be in accordance
with the installation height requirements of gas
stove.

8
Installation instruction
lnstallation plate
The decorative cover hanging plate should be installed
according to actual needs. 310
Decorative cover
hanging plate
324 Fixing hole of limit block
180
Body hanging plate
Drill 5 holes with a diameter of 10mm and a depth of 50-60mm in
the corresponding position of the wall as shown in the figure. The
single hole on the upper side is used to fix the limit block. Press the
plastic expansion tube into the hole, and then fix the body hanging
plate reliably with the randomly equipped 5x50 countersunk head
wood screw.
156~416
1050~1150
110~120

9
Accessories
Range hood body 1
Exhaust pipe 1
Check valve 1
Check valve Sealing gasket 1
Installation plate 1
Expansion bolt 7
Screws (ST2.9x9.5) 2
Screws (ST4.2x16) 4
Screws (5x50) 6
Screws (M5x16) 1
Screws (ST5x45) 1
Screws (ST4.2x9.5)2
Oil cup 2
Water cup 1
Water Pipe 1
Decorative Cover Hanging Plate 1
limit block 1

Short press: 0.5 second
Long press: 2~3 seconds
First Using
Range hood can be used after power.

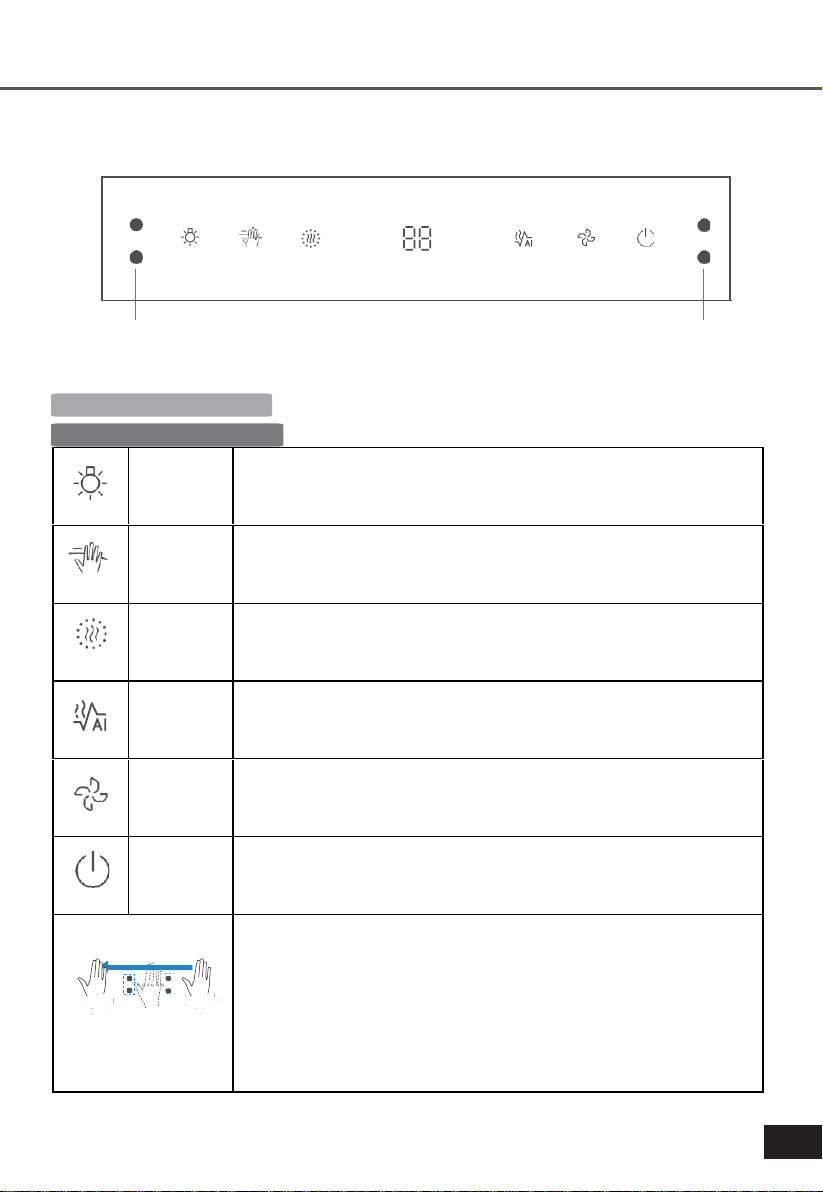

Light Gesture Steam washing Auto Speed Switch
Gesture control left
Gesture control right
Light
Short press: Turn on the light;
Long press: Adjust the light.
Gesture
Short press: Open the gesture;
Short press: Close the gesture.
Steam
washing
Long press: Start;
Twice short press: Cancel the indicator
Auto
Short press: the senor can adjust suction level automatically
depends on the fume heavily or slightly. The level is adjustable
from 1-8 level.
Speed
Short press: Adjust speed .
(08 speed return to 03 speed after 2 min)
Switch
1st Short press: Startup;
2nd Short press: Delay 3 min;
3rd Short press: OFF immediately.
Wave hand from left to right in stand by status to turn on the
product. The default speed is the last speed set by user.
Default speed is the 03 speed at the first switch on. In running
state, waving hand to the left side to enter the Delay Off state
for 3 minutes. Waving hand to the right side to switch speed
(01-02-03-08-01) repeatedly.
Screws(M5*50)
10
1

11
Cleaning and maintenance
Maintenance
1. The surface of the range hood and filter should be clean regularly, do not use clean
balls, brushes, coarse cloth, so as not to scratch the surface of the machine.
2. It’s suggested that the oil cup should be cleaned every half a month to avoid any
overwhelm oil drop from the full oil cup.
3. Get the condensation plate clean every half a month - better to be cleaned no more
than a month.

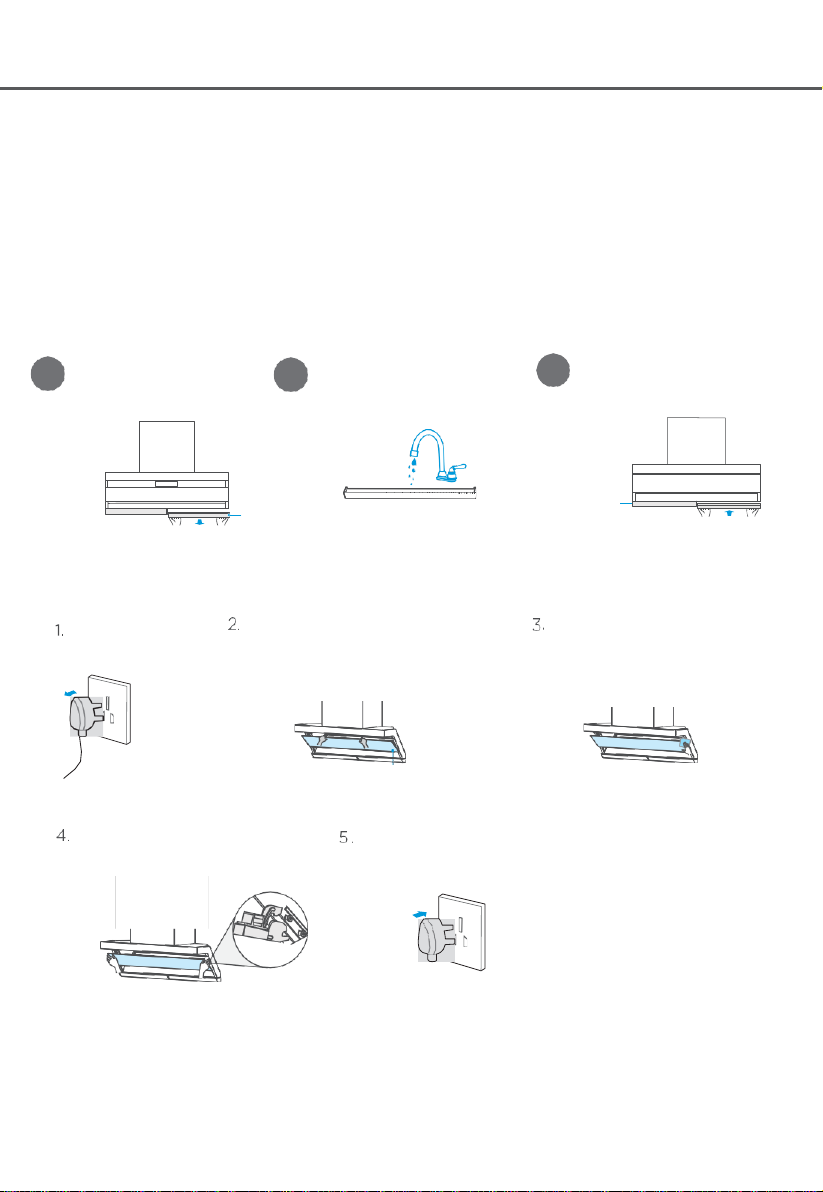

Cleaning mode (Oil cup cleaning)
Draw out the oil cup with
both bands horizontally
and pour away the oil
oil cup
Clean the oil cup and wipe it
clean
Returnyourhands horizontally
to the oil cup
oil cup
The condensation plate cleaning
unplug Open the condensation plate Clean the inside after the
Pull out directly by holding it condensation plate is open
The condensation plate
Close the condensation plate
by holding the both sides and
insert the clip to the screws
After cleaning,insert the power plug
1
2
3
Pull upward to fix

12
5
6
7
During steam washing, do not touch the surface
CAUTION of glass panels or deflector to avoid scalding.

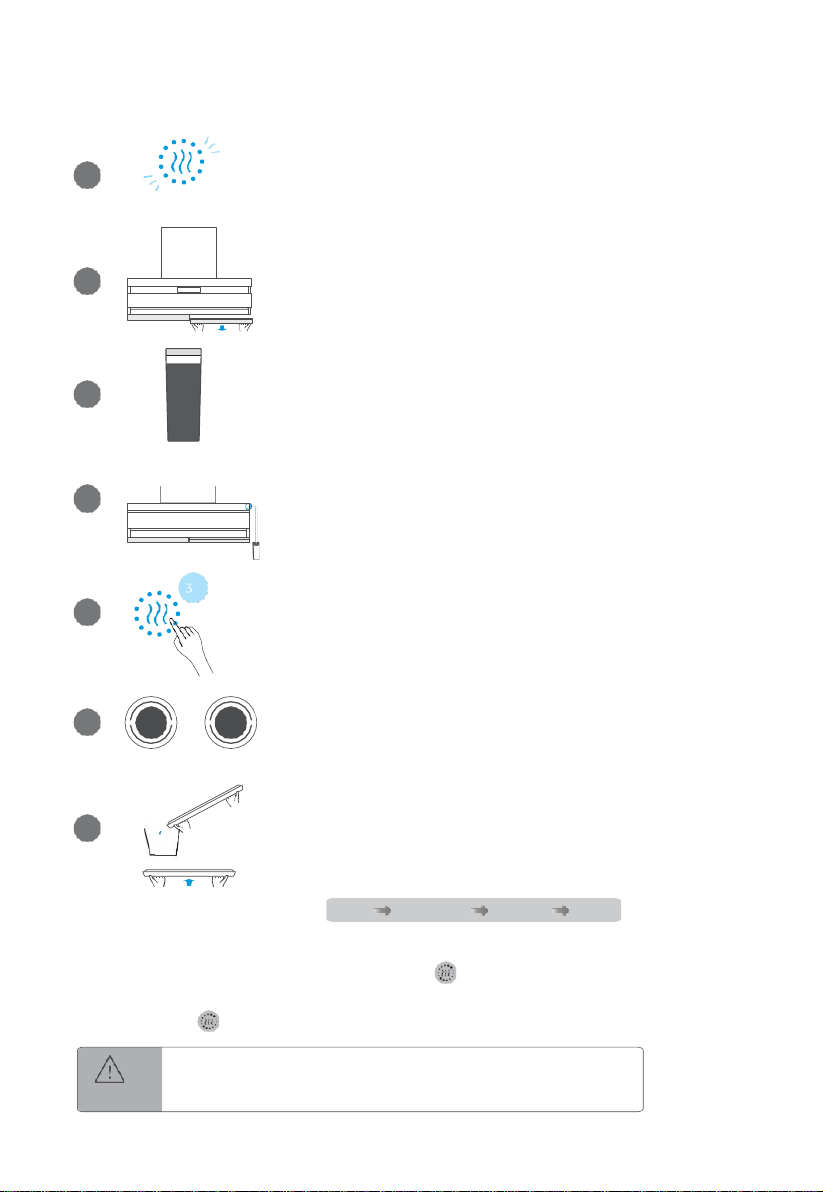

Steam Washing (Cleaning inner of the hood)
As the indicator light turns red and flashes,
it is indicated that steam washing is required.
a) Remove oil cup
b) Dump accumulated oil
c) Install oil cup
Cup filled with purified water or distilled water.
water inlet
washing drying
Plug the tube into the water inlet.
Press "Steam Washing" for 3 seconds to start
the steam washing.
Steam washing: 12 min
Drying: 3 min
a) Remove oil cup
b) Dump accumulated water
c) Install oil cup
Steam washing process
1. Cancel the steam washsing reminder (not washing):
Long press 2 seconds + short press twice to fast forward to the end.
2. Fast forward or end in advance（during washing）:
Short press again to fast forward to the next step.
start washing drying over
1
2
3
4

13

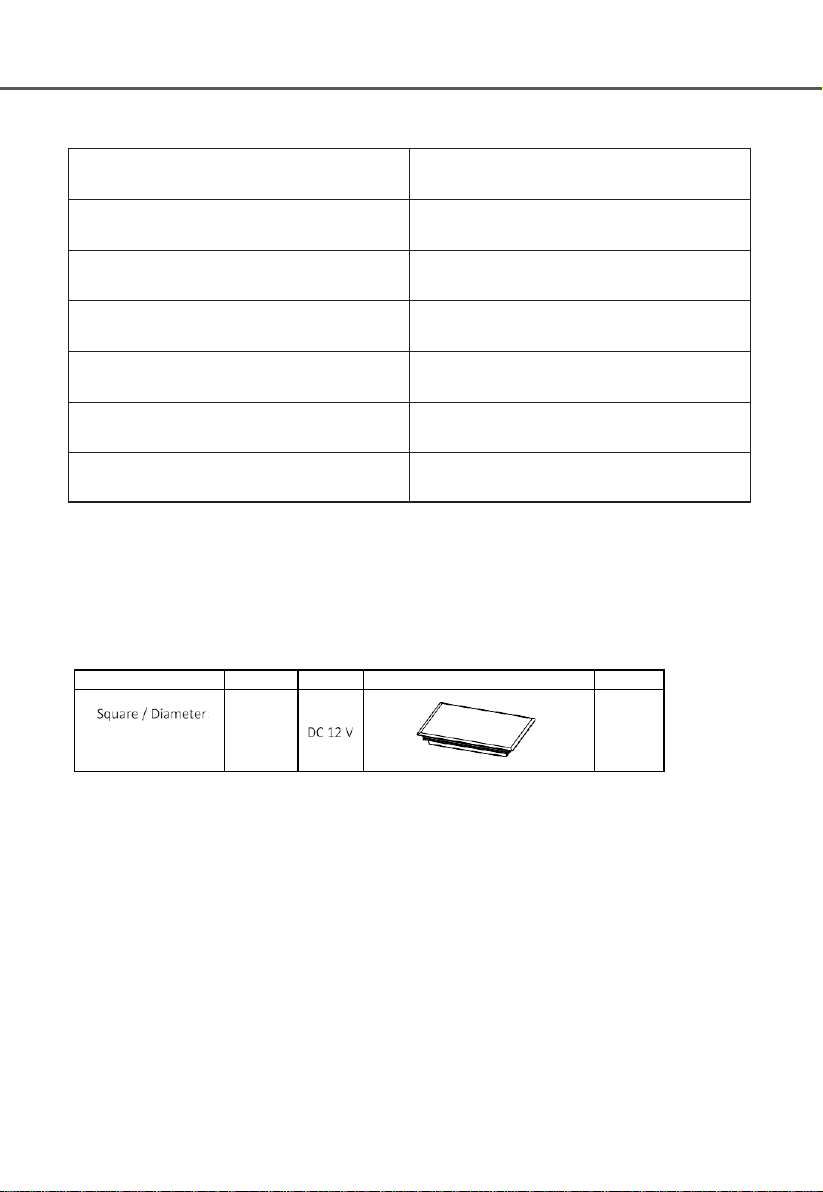

Main Parameters
Voltage
220V-240V~
Frequency
50Hz
Rated Power
1600W
Lighting Power
4W X 1
Motor Input Power
160 W
Diameter of air tube
Ф195mm/Ф190mm(inner diameter)
The air flowparameter is tested under conditions of230V~/50Hz when the voltage is
220V-240V~/50H.z
LED light imformation
Max Power
Voltage
Lamp Cap
160x121mm
4W
——

Trouble Shooting
Fault
Solution
Both light andmotor
do not work
Unplug power plug and reconnect the power supply.
Oil leakage
Oil cup tilt, please reinstall.
Oil cup full filled with oil, please dump the oil.
Oil-way blockage caused by long time uncleaned internal oil-way,
needs professionals to wash the hood.
Insufficient suction
Avoid opening window or door frequently.
Adjust to max. speed.
Steam washing fault
Water cup lack of water, please fill with water.
Filter cotton blockage, please change the filter cotton.
Disposal
Please dispose of it at your local community waste collection /
recycling center and ensure it presents no danger to children
while being stored for disposal. The plug must be rendered
useless and the cable cut off to prevent misuse.

The manufacturer shall decline all responsibility if the foregoing
recommendations and instruction regarding installation, maintenance
and use are not observed and respected when using the cooker hood.
