Lloyd LFR590FDT User manual

REFRIGERATOR
Instruction Manual
Model: LFR590FDT

Dear Customer
Congratulations on being the proud owner of Lloyd
Refrigerator. Your Refrigerator comes with a Lloyd Guarantee
of Quality.
Lloyd takes great pride in providing its customers with perfect
products that adheres to international quality standards.
Lloyd is committed to provide the ultimate customer satisfaction
as nothing brings us greater joy than having satisfied
customers of Lloyd.
At Lloyd, feedback and suggestions based on your product
usage experience are greatly appreciated.
Please feel free to contact us at [email protected]
NIPUN SINGHAL
DIRECTOR

Thank you for choosing Lloyd. This manual contains all the information you
will need to safely and correctly use your refrigerator. Please read all the
instructions prior to using the appliance, and keep this manual in a secure place
containing code, model number, manufacturer and other information from the
refrigerator. This label will be used by the Lloyd authorized service
representative when your refrigerator needs servicing.
Welcome to the world of
simple handling and no worries
Environmental advice
The packaging material used is recyclable; we recommend that you separate
plastic, paper and cardboard and give them to recycling companies. To help
preserve the environment, the refrigerant used in this product is R134a
impact on the greenhouse effect. According to WEEE (Waste of Electrical and
Electronic Equipment) guidelines, waste from electrical and electronic devices
should be collected separately. If you need to dispose of this appliance in the
future, do NOT throw it away with the rest of your domestic garbage. Instead,
please take the appliance to the nearest WEEE collection point.
1

Contents
Safety.........................................................................................................03
Features.....................................................................................................05
Product Description ...................................................................................07
Installation........................... ...............................................................09........
Door Handles .......................................... ................................................14...
Making Minor Adjustments between doors................................................15
Operation...................................................................................................16
Cleaning and Maintenance ........................................................................18
Solutions to Problems ...............................................................................19
The refrigerator you have just purchased may be slightly different from the one shown in
the drawings in this manual, but its overall design is the same.
Please read the information referring to its operation.This refrigerator is intended for
domestic use only.
The plug on the refrigerator you have purchased may be different from the one shown in
the manual, as the plug that accompanies the product meets your country's electrical
Attention
2

Please keep children from entering into or climbing on the refrigerator to
avoid locking the children inside the refrigerator and hurting them when
the refrigerator falls. Do not let the children to come near the refrigerator
when open and close the doors. Children should be supervised to ensure
Never pull out the plug by pulling the power cable. Always hold the plug and pull it
out from the socket. Don't press the power cable under the refrigerator or by
feet. When the refrigerator is moved away from the wall, never press or damage
the power cable. When the power cable is damaged or the plug is worn, don't use
it anymore. You must change it at the repair station designated by the manufacturer.
gases. Open the door and windows. Don't pull out or insert the plug of refrigerator
or other electric appliances.
It is advisable that you don't put the power socket, voltage stabilizer, microwave
oven and other electric appliances on top of refrigerator to ensure safety. Don't
appliances inside the refrigerator (except for the model
recommended) to avoid electromagnetic interference or other accidents.
When the refrigerator started don't touch the cold surface of the freezer
compartment, especially with wet hands, to avoid hurting.
The gap between refrigerator door and body is small. Don't put your hands into
refrigerator's door, don't let children approach.
Don't disassemble or reform the refrigerator by yourself. Never damage the
refrigeration pipeline. Please get the refrigerator repaired by professionals.
Safety
For children
For the user
accidents.
use any electric
Don't spray water for cleaning and don’t place refrigerator in wet places.
that they do not play with the appliance.
3

Don't put airtight or sealed bottles inside the freezer, to avoid explosion
due to freezing.
When power outage or cleaning, pull out the plug. Turn on the power supply after
When refrigerator is not in use remove doors and shelves and put them at
proper place to avoid any accident.
This product is a household refrigerator and is only suitable for storage of food
according to state standards. It can't be used for other purposes, like storage of
blood, drugs, biological products and etc.
4

Product description
Left door for refrigerator compartment
Upper door for freezer compartment
Lower door for freezer compartment
Right door for refrigerator compartment
Manual ice maker
Ice scoop
Partition plate for lower freezer drawer
Partition plate for upper freezer drawer
Upper freezer drawer
Lower freezer drawer
8
9
10
11
12
13
6
8
9
10
11
12
13
Refrigerator body
1Display
Door handle
Drawer handle
2
3
4
5
6
7
1
2
3
4
5
7
5

1
Left door for refrigerator compartment
Cantilever rack
Turnover beam
Sliding cantilever rack
Fruit and vegetable drawer
Small drawer
Big drawer
Drawer handle
Leveling leg
Switch for refrigerator compartment lamp
Top lamp for refrigerator compartment
Right door for refrigerator compartment
Butter box
Air duct cover plate
Folded cantilever rack
Side lamp for refrigerator compartment
Gallon bottle rack (With egg bracket)
Special-shaped bottle rack
Top lamp for freezer compartment
Upper door for freezer compartment
Lower door for freezer compartment
Decorative cover for bottom beam
2
3
8
9
10
4
5
6
7
11
12
13
14
19
20
21
15
16
17
18
22
1
2
3
4
5
6
7
8
9
10
11
14
16
12
13
15
17
18
19
20
21
22
6

Remove all packaging material before
using the new refrigerator. This
includes the foam base and all
adhesive tape holding the refrigerator
accessories inside and outside.
Clean both the inside and outside of
the refrigerator with wet cloth (a little
detergent could be added into the
warm water to wash the cloth and
then wipe it again with the clean
water);
Prepare an independent two-pole
socket with grounding contact for the
refrigerator and it shall not share a
multi-purpose socket with other
electrical appliances;
Do connect grounding wire! The
grounding pole of the socket shall be
provided with a reliable grounding
wire.
Open the refrigerator body and take
out the accessory (decorative cover
for bottom beam) and the three
screws from the instruction
packaging bag; then install them into
the bottom beam as shown by the
schematic diagram on the right.
The decorative cover for bottom
beam is used as ornament, so you
can choose not to install it. It won't
affect the refrigerator's performance
or conditions no matter whether you
install it or not.
Installation
Transport and Placing of Your
Refrigerator
Transport
Keep upright and avoid squeezing or
vibration during transport. Avoid a
slant angle over 45 degree during
handling.
To avoid deformation, don't press
the door or top cap of the refrigerator
while moving.
Screws
Decorative cover for bottom beam
7

Placing
Place your refrigerator in a well ventilated place and keep it away from heat
source and direct sunlight. Don't place it in any humid or wet place
to avoid rusting and weakening of insulation effect.
For proper movement of the door and heat emission the spacing of refrigerator
with the wall should be 30cm from top and 10cm from both sides.
use the leveling legs for adjustment.
Keep Your Refrigerator Standing
Don't connect your refrigerator to the power supply immediately after it is
placed vertically. You should keep it standing for at least 6 hours before
switching it on in order to ensure it is running well.
Make sure the power cable is not pinned by the refrigerator or other
object to avoid accidents arising from power cable faults.
check the voltage scope of your
8

Start to Use
You ought to get a good knowledge of all safety precautions and make
before using.
1. Unpacking
Please install the decorative cover for bottom beam onto your refrigerator
after unpacking and adjust the front leveling legs to level your refrigerator.
2. Connecting Your Refrigerator to
the Power Supply
Your refrigerator will enter the ex- factory default state after connecting
to the power supply and it will display target temperature for the refrigerator
compartment and freezer compartment.
3. Work Modes of Your Refrigerator
You can set your refrigerator in either of the following two ways:
Auto mode: we suggest you choosing this mode if you have no
special requirements. Your refrigerator will work automatically
after you chose this mode.
Manual mode: You can set the temperature by pressing the
temperature adjustment key.
4. Put Food into Your Refrigerator
You can put your food into the refrigerator after a period of time
(About hours in summer)
Tips: The interior temperature will reach to the required level after
certain period of time which intern depends on setting temperature,
opening and closing of doors and stored food.
9

Refrigerator compartment
Though the temperature-adjustable
device could keep most of the
refrigerator compartment at an average
o
temperature around 2-8 C, it fails to
preserve the freshness of food for long.
As a result, the refrigerator
compartment can be used only for
shortterm storage.
Use of turnover beam
It is a normal phenomenon that the surface
of the turnover beam is hot. Dews on
the surface are also normal in summer
or when the surrounding environment
is wet. What you need to do is to clean
them with dry cloth.

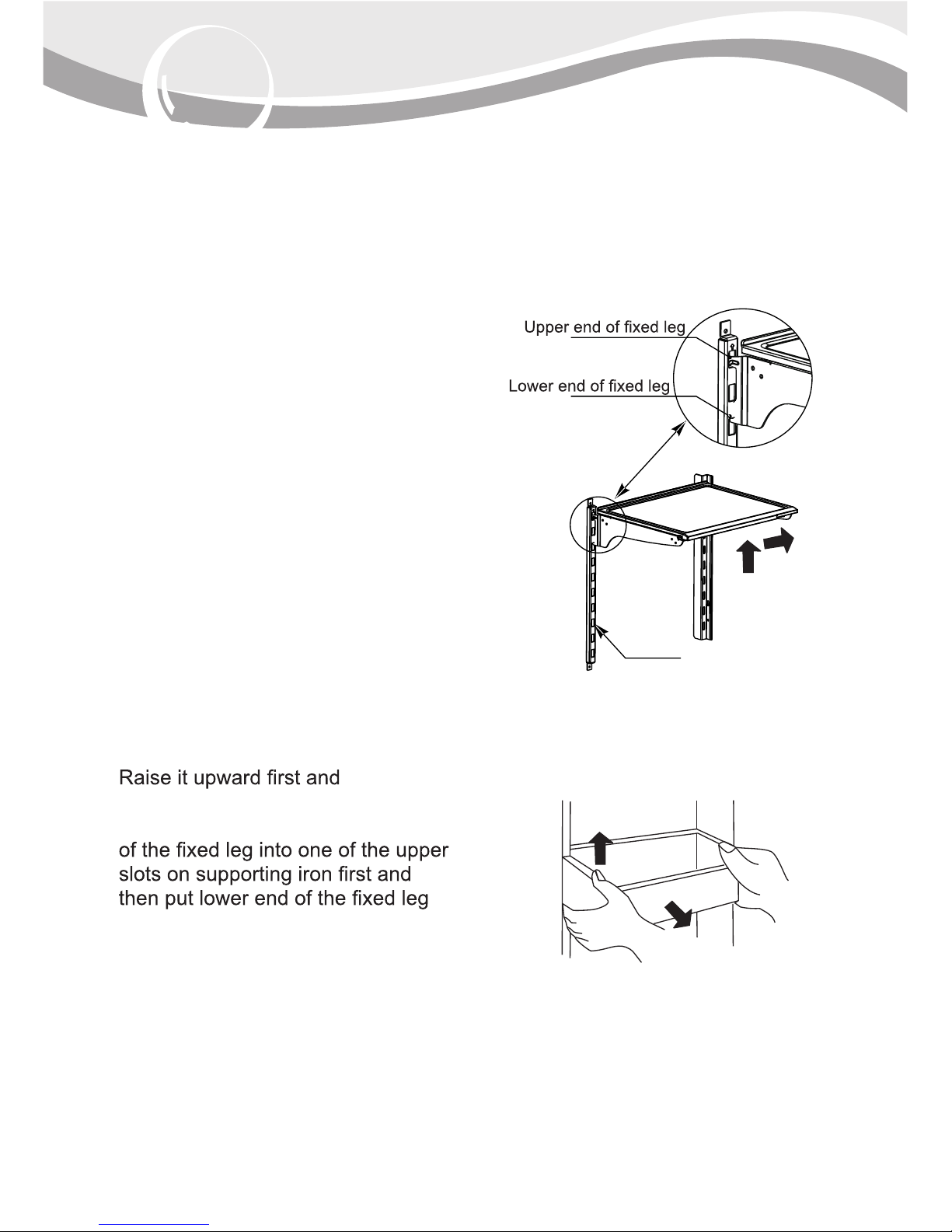

Adjustment of cantilever rack
The cantilever rack could be adjusted
to the proper height as required
food. Please adjust the cantilever rack
as shown in the diagram.
then take it out by tilting it upward.
During installation, put upper end
into the third slot on the lower part of
supporting iron.
Height adjustment and cleaning of
door-mounted bottle rack
Raise the bottle rack in the direction- 1,
hold it with both hands and take it out
in the direction- 2. After cleaning, you
can install the rack in the reverse order
and you can also adjust the height of
the rack.
Adjustment of cantilever rack
Slot
Adjustment of door-mounted bottle rack
1
2
10

Freezer compartment
The temperature in the freezer compartment is very low so it could
preserve the freshness of food for long time.
You can take out the drawers of the freezer compartment to increase its
capacity and store more food.
Food suggested to store in freezer
ice-cream and etc.
2. Ice storage box is used to store the ice.
packaged poultry meat.
compartment
Food suggested to store in
refrigerator compartment
1. Cooked food, cans, milk,
2. Snacks, food subject to
tainting, dairy product
3. Cooked cold meat, sausage
5. Eggs, butter, cheese
7. Drinks, other bottled food
etc.
4. Fruit, vegetables
6. Cans, seasoning
11

Taking-out and installation of the
lower freezer drawer
1. Pull out the lower freezer drawer
the partition plate of the lower
freezer drawer with screw driver
and then take off the partition plate.
3. Take off the rear stopper from the
lower drawer as shown in Fig. A.
4. Take out the lower drawer body
with force as directed by the arrows
in Fig. B.
5. The installation of the lower drawer
body is conducted in the reverse
order. You should install the lower
the rear stopper for the lower
drawer as shown in Fig. C. Finally,
both sides of the drawer shall be
connected to the position shown by
the arrows respectively.
6. The partition plate is installed into
the corresponding slots and then is
the partition plate for the lower
drawer can be adjusted
according to your preference.
Don't remove the lower freezer drawer
if not necessary.
Rear stopper for the lower drawer
Partition plate for the
lower drawer
Insert into
the edge
Align with
the slot
Lower drawer body
Align with the slot
Positioning hole for
the partition plate
12

Big drawer
The big drawer has a maximum load
of 10kg.
Pull out and install the big drawer
1. Pull out the big drawer;
2. Find the hook at the left and right sides at the drawer bottom (shown
3. Hold the hook at two sides with a nose pliers or tweezers and push it
up and out of the groove of sliding rail, and take out the hook at the
other side with the same method.
4. Take out the drawer.
5. Install the drawer by putting the hook into the right place.
Hook
Sliding rail
Big drawer
13

Assembly instructions of cold
storage door handle:
1. Firstly, take the handle set bolts out
from the box, use cross
recessed screwdriver to set the bolt
on the door. Fix it tight with all the
screw thread twisted through the
take the Cold storage door handle
out from the box, place it as per the
i.e. the direction which both screw
holes on the handle are close to the
edge), and hang the handle above
the set bolt;
3. Use the small hexagon spanner
of the cold storage door handle,
after installation gently shake the
handle is well erected.
Assembly instructions of the
refrigeration door handle:
The assembly steps of the
refrigeration door handle is same as
cold storage door handle.
Please note that: during the assembly
of the handle, the direction of tapping
hole is downward (to the ground).
Door handles
Scheme of installation of
cold storage door handle
Difference between the chilling and refrigeration
height is the refrigeration handle
Cold storage door handle
Refrigeration door handle
80
61
Inner socket head cap
Chilling chamber
door handle
Inner socket head cap
Bolt
Bolt
14

Remember a leveled refrigerator is necessary for getting the doors perfectly even.
If you need help, review the previous section on leveling the refrigerator.
When the left doors is lower than the right door(left). Or the right doors is lower
than the left door.
Making minor adjustments between doors
Do as follows
1) Raise the left door or the right door.
2) Insert the supplied fastener-ring using (2) A pair of pliers (3) The gap
between the hinge-grommet (1) The lower hinge (4) And the number of fasten-
rings you will need to insert depends on the gap.
1
2
3
4
15

Control buttons
1Temperature control
“∧”
2
Super cool mode
3
“∨”
4
Energy saving mode
5
Child Lock
6
Display items
7Refrigerator compartment icon
Fast-cooling icon
8
Fast-freezing icon
9
Refrigerator temperature
15
Freezer temperature
16
Energy-saving icon
10
Locked icon
11
Freezer compartment icon
14
Refrigerator indicate
12
Freezer indicate
13 Off icon: means refrigerator
shut down
17
Initial power-on status
11, 12, 14, 15 and 16 turn on at initial power-up. 8,9, 10, 13 and 17 do not turn on.
Locking and unlocking
In the unlock state (icon 11 does not turns on), push the key 6 to enter the lock state
then icon 11 turns on. In the lock state, push and hold the key 6 for 3 seconds, then icon 11
turns off and the lock is cancelled. In the unlock state, if no other input has been given then
it enters the lock state automatically.
The below functions can be performed while in the “Unlocked”state.
1
3
5
7 915
17 8
13 11
12 16
2
4
6
Introduction of Your Refrigerator's Functions
10
14
16

Introduction of Your Refrigerator's Functions
Energy saving mode
Entry: push the key 5, the icon 10 turns on. Choose the energy-saving mode to
operate the refrigerator, and the mode operated before will be cancelled.
Exit: ① enter other modes ② push key 2 or 4 to set temperature ③ push
key 5. When each condition mentioned above occurs, the refrigerator will
exit from energy-saving mode.
Fast-cooling mode
Entry: push the key 3, the icon 8 turns on. Choose the quick cooling mode to
operate the refrigerator. If the refrigerator is operating in the energy saving
mode, it will exit from that mode.
Exit: ① enter the energy saving mode ② push the key 2 or 4 to set
temperature ③ push key 3. When each condition mentioned above occurs,
then refrigerator will exit from the quick cooling mode.
Fast-freezing mode
Entry: push and hold the key 3 for 3 seconds, the icon 9 turns on. Choose the
quick-freeze mode to operate the freezer. If the freezer is operating in the
energy-saving mode, the energy-saving mode exits.
Exit: ① enter the energy-saving mode ② push the key 2 or 4 ③ push and hold
the key 3 for 3 seconds. When each condition mentioned above occurs, then
refrigerator will exit from quick-freeze mode.
To set the temperature of the refrigerator compartment
Push the key 1until the display changes to refrigerator temperature setting.
The icon 1,2 and 4 turns on. Use key 2 and 4 for setting the temperature as required.
temperature changes 1℃ according to the regulation of “(8)- (2) -(8)”.
To set the temperature of the freezer compartment
Push the key 1 until the display changes to the freezer temperature setting. The
icon turns on. Use key 2 and 4 for setting the temperature of the freezer as required.
Temperature changes 1℃ according to the regulation of “(-15)- (-24)- (-15)”
Backlight action
When the refrigerator/ freezer door is open or any button is pressed,the
Function Display Screen will become illuminated.If no button is pressed and
the refrigerator/freezer door has remained open for 30 seconds,the Function
Display will turn off.
17

Cleaning and maintenance
Refrigerator's maintenance and repair
Cleaning
Clean the dust from back and down the refrigerator regularly.
Clean regularly the space inside the refrigerator to avoid any unpleasant smell.
Before cleaning, pull out the plug and use soft towels and neutral detergent and
Never use following substances to clean the space inside the refrigerator:
Alkaline or weakly alkaline detergent (it might cause cracking of the liner and
plastic parts).
Soap powder, benzoline, thinner, alcohol and etc (might damage plastic parts).
Lights and replacement
Replace by professionals.
Refrigerator compartment keep fresh with optical wave (only some models)
Keep fresh with optical wave--- use the optical-wave lamp to maintain the
Photosynthesis of fruit and vegetables, prolong the growth period and keep it
fresh effectively.
Shutdown
When the refrigerator isn't in use for a long period:
Pull out the power cable to avoid that the power cable gets old and causes
Clean the space inside the refrigerator
Open the door for a period for drying, close the door with a gap left to avoid
unpleasant odor.
Power outage
Reduce the times of door opening during power outage, don't put fresh food
inside the refrigerator anymore.
Disposal
When you discard an unused refrigerator, remove the door seal to avoid locking
children inside the refrigerator.
Danger
Risk of child entrapment. Before you throw away your old refrigerator or freezer:
1. Take off the doors.
2. Leave the shelves in place so that children may not easily climb inside.
as and when required.
18
