Lloyd LFR500SS User manual

REFRIGERATOR
Instruction Manual
Model: LFR500SS

Dear Customer
Congratulations on being the proud owner of Lloyd
Refrigerator. Your Refrigerator comes with a Lloyd
Guarantee of Quality.
Lloyd takes great pride in providing its customers with
perfect products that adheres to international quality
standards.
Lloyd is committed to international quality standards.
Lloyd is committed to provide the ultimate customer
satisfied customers of Lloyd.
At Lloyd, feedback and suggestions based on your product
usage experience are greatly appreciated.
Please feel free to contact us at
[email protected]
NIPUN SINGHAL
DIRECTOR

Contents
1. SAFETY WARNINGS............................................................................................................ 1
2. INSTALLTION...................................................................................................................... 2
2.1 Location...................................................................................................................... 2
2.2 Door Handle Install Illumination ................................................................................ 2
2.3 Door Space Requirements.......................................................................................... 3
2.4 Levelling the Unit ....................................................................................................... 3
2.5 Cleaning Before Use ................................................................................................... 3
2.6 Before Using Your Unit............................................................................................... 3
2.7 Interior Accessories.................................................................................................... 4
3. PRODUCT OVERVIEW ........................................................................................................ 5
4. OPERATION........................................................................................................................ 5
4.1 Switching On Your Unit .............................................................................................. 5
4.2 Noise Inside the Unit!................................................................................................. 6
4.3 Tips for Keeping Food in the Unit............................................................................... 6
4.4 Change the Light Bulb ................................................................................................ 7
5. CLEANING .......................................................................................................................... 7
5.1 Defrosting................................................................................................................... 7
5.2 Cleaning the Interior and the Exterior of the Unit ..................................................... 7
5.3 Cleaning Tips .............................................................................................................. 7
6. MAINTENANCE .................................................................................................................. 7
6.1 Changing the Internal Light........................................................................................ 7
6.2 Care When Handling / Moving Your Unit................................................................... 7
6.3 Servicing ..................................................................................................................... 8
6.4 Switching Of for Long Periods of Time....................................................................... 8
7. Trouble shooting ............................................................................................................... 8
7.1 Warm tips:.................................................................................................................. 8
8. TIPS FOR ENERGY SAVING ................................................................................................. 9
9. DISPOSAL ........................................................................................................................... 9

1
1. SAFETY WARNINGS
1) WARNING―Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
2) WARNING―Do not use mechanical devices or other means to accelerate the defrosting
process, other than those recommended by the manufacturer.
3) WARNING―Do not damage the refrigerant circuit.
4) WARNING―Do not use electrical appliances inside the food storage compartments of the
appliance, unless they are of the type recommended by the manufacturer.
5) The appliance has to be unplugged after use and before carrying out user maintenance on the
appliance.
6) This appliance is not intended for use by persons (including children) with reduced physical,
sensory or mental capabilities, or lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a person responsible for their
safety.
7) Children should be supervised to ensure that they do not play with the appliance.
8) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
9) Please abandon the refrigerator according to local regulators for it use flammable blowing gas
and refrigerant.
10) Please according to local regulations regarding disposal of the appliance for its flammable
refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent
children trapped.
11)This appliance is intended to be used in household and similar applications such as
–staff kitchen areas in shops, offices and other working environments;
–farm houses and by clients in hotels, motels and other residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications.
12) Do not store explosive substances such as aerosol cans with a flammable propellant in this
appliance.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO
CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.

2
2. INSTALLTION
2.1 Locaon
When selecng a posion for your unit you should make sure the floor is flat and firm, and the
room is well venlated. Avoid locang your unit near a heat source, e.g. cooker,boiler or radiator.
Also avoid direct sunlight as it may increase the electrical consumpon. Extreme cold ambient
temperatures may also cause the unit not to perform properly. This unit is not designed for use in
a garage or outdoor installaon. Do not drape the unit with any covering.
When installing the unit,ensure that 10 cm of free space is leat both sides,15 cm at the rear
and 20 cm at the top of the unit. This will allow cold air to circulate around the wine cooler and
improve the efficiency of the cooling process.
2.2 Door Handle Install Illuminaon
Note: Figures in the user manual are only for reference. The actual product may differ slightly.
The refrigerator must be disconnected from the source of electrical supply before aempng the
installaon of accessory.
①Take out the two crisscross-screw;and install them into the door holes;turn the screws ll to
the bottom;
②Aim at screws to install the handle;
③The screws in the hole at the side of the handle and turn the screws ll them very ght;
④Screw cap should be put on the screw.

3

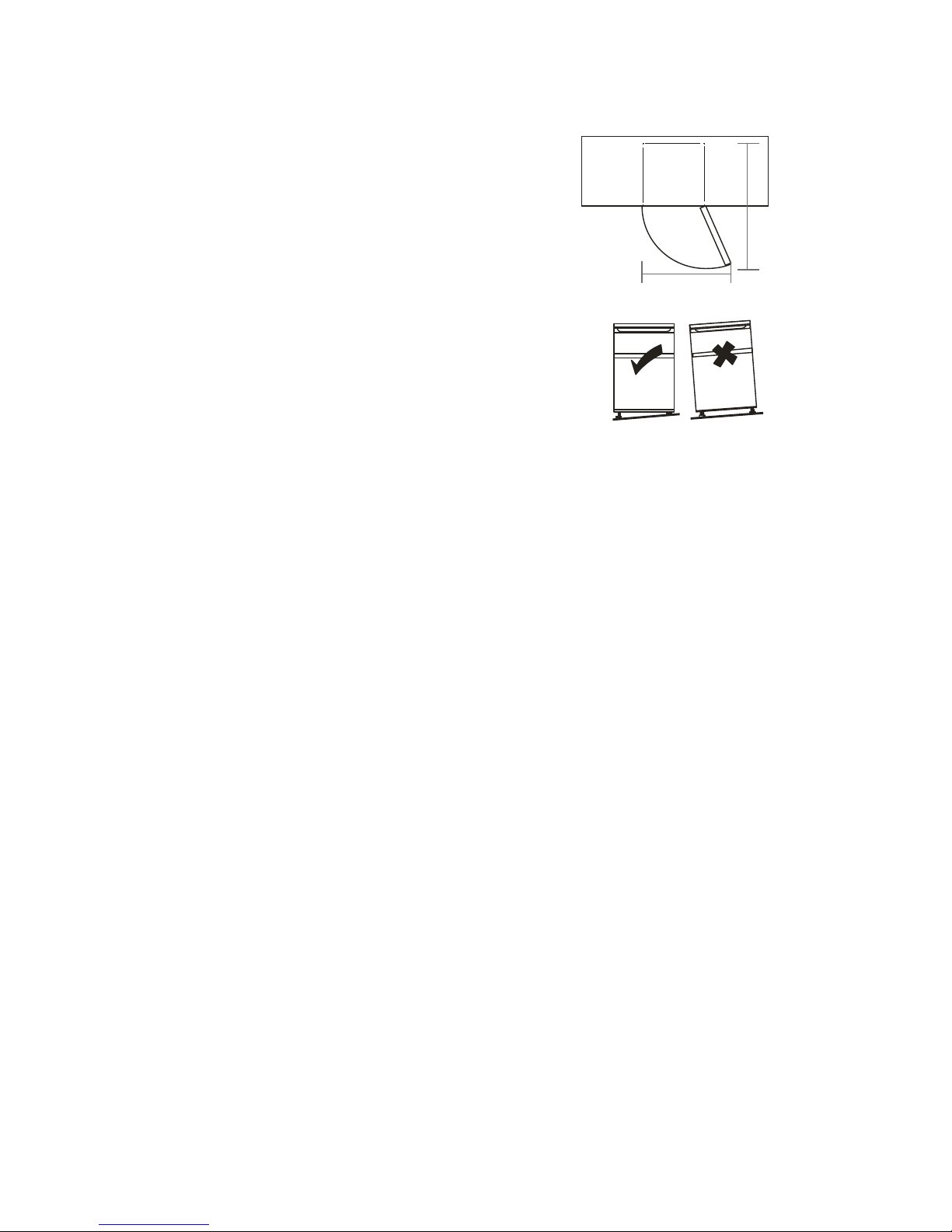

2.3Door Space Requirements
The unit's door must be able to open fully as shown.
W×D≥1270×1240mm
2.4 Levelling the Unit
To do this adjust the two levelling feet at the front of the unit.
If the unit is not level, the door and magnetic seal alignments
will not be covered properly.
Make sure that the foot touches the ground before use.
Look down from the top, clockwise and counterclockwise loosening, tightening.
2.5 Cleaning Before Use
Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm
water using a 'Wrung-out' sponge or cloth. Wash the shelves and salad bin in warm soapy water
and dry completely before replacing in the unit. Clean the exterior of the unit with a damp cloth.
If you require more information refer to the Cleaning section.
2.6 Before Using Your Unit
The refrigerator adopts 220-240V/50Hz AC power, voltage fluctuations over the range of 198 ~
264V will cause malfunction or even damage,so a 750 W automatic voltage regulator must be
installed in concert with the AC power.
Do not damage the power cord under any condition so as to ensure safety use, do not use when
the power cord is damaged or the plug is worn.
Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent
damages to the product or fire accidents.
Do not place flammable items near the refrigerator to avoid fires.
This product is household refrigerators and shall be only suitable for the storage of foods.
According to national standards, household refrigerators shall not be used for other purposes,
such as storage of blood, drugs or biological products.
Do not place items such as bottled or sealed container of fluid such as bottled beers and
beverages in the freezer to prevent bursts and other losses.
Before placing any food in your unit, turn it on and wait for 24 hours, to make sure it is working
properly and to allow it time to fall to the correct temperature. Your unit should not be overfilled.
W
D

4
◆Before Plugging in
You must check that you have a socket which is compatible with the plug supplied
with the unit.
◆Before Turning On!
Do not turn on until two hours after moving the unit. The coolant fluid needs time to
settle.
2.7 Interior Accessories
Various glass or plastic storage shelves are included with your appliance - different
models have different combinations.
You should always slide one of the full size glass storage shelves into the lowest set of
guides, above the fruit and vegetable containers, and keep it in this position. To do
this, pull the storage shelf forward until it can be swivelled upwards or downwards
and removed.
Please do the same in reverse to insert the shelf at a different height.
In order to make the most of the volume of the fresh food storage compartment and
frozen-food storage compartment, the user can remove one or more shelves, drawers, out
of the appliance, according to your daily use.

5
3. PRODUCT OVERVIEW
*All images in this instruc on manual are for indica on only; please refer to your individual unit for
Adjustable
Glass Shelves
Adjustable
Glass Shelves
Salad Bin
Cover
Salad Bin
Levelling Feet
Thermostat
Co
Lock
ntrol Dial
Thermostat
Control Dial
details.
4. OPERATION
4.1 Switching On Your Unit
�By turning the knob inside the cabinet, you can adjust the refrigerator and the freezer’s
temperature you want.
�According to the sketch, the upper knob control the freezer’s temperature, the bo om one
control the refrigerator’s temperature. Turn the knob clockwise, the cabinet temperature will
be lower, counter-clockwise, the temperature will be raised.
Door Shelf
Door Shelf
Ice maker

6
�When you use fast-freezing feature or do freezing capacity test, please turn the freezer knob
to the posion of COLDER, i.e. the value at the rightmost side. Then adjust the refrigerator
control knob as needed. The suggeson of turning the control knob as follows:
4.2 Noise Inside the Unit!
You may noce that your unit makes some unusual noises. Most of these are perfectly normal,
but you should be aware of them!
These noises are caused by the circulaon of the refrigerant liquid in the cooling system. It has
become more pronounced since the introducon of CFC free gases. This is not a fault and will not
affect the performance of your unit. This is the compressor motor working, as it pumps the
refrigerant around the system.
4.3 Tips for Keeping Food in the Unit
◆Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid
bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices
and cover it properly. Place the container on the lowest shelf.
◆Leave space around your food, to allow air to circulate inside the unit. Ensure all parts of the
unit are kept cool.
Thermostat Freezer Refrigerang
Under normal use, we recommend
the food freezer and fresh-food
storage knob is used to adjust the
temperature in the “intermediate
zone”.
▲
▲
When ambient temperature
around the refrigerator is below
10℃for a long me or fast freeze
is needed, we recommend food
freezer knob is adjusted to the
“right zone” posion, and the
fresh-food storage knob is adjusted
to the “right of the middle zone”.
▲
▲
When ambient temperature above
43℃cooling is needed, it is
recommended the food freezer
knob is adjusted to the “lezone”,
and the fresh-food storage knob is
adjusted to the “right of the
middle zone”.
▲
▲
Warning: When fresh-food storage knob is adjusted to the
right zone (as shown in figure on the right), fast cooling is
realized, but adjusng to this posion for a long me, the
fresh-food storage temperatures may be lower than 0℃.
▲

7
◆To prevent transfer of favours and drying out, pack or cover the food separately. Fruit and
vegetables do not need to be wrapped.
◆Always let pre-cooked food cool down before you put in the unit. This will help to maintain
the internal temperature of the unit.
◆To prevent cold air escaping from the unit, try to limit the number of mes you open the
door. We recommend that you only open the door when you need to put food in or take food
out.
4.4 Change the Light Bulb
Lamp replacement by professionals
5. CLEANING
5.1 Defrosng
Auto-defrost for Frost-free Refrigerator
5.2 Cleaning the Interior and the Exterior of the Unit
◆Remove all the shelves and the salad bin. To remove the salad bin first remove the lower
door shelf.
◆Wipe the inside of the unit with a weak soluon of bicarbonate soda and then rinse with
warm water using a“wrung-out”sponge or cloth. Wipe completely dry before replacing the
shelves and salad bin.
◆Use a damp cloth to clean the exterior, and then wipe with a standard furniture polish. Make
sure that the door is closed to avoid the polish geng on the magnec door seal or inside
the unit.
◆The grille of the condenser at the back of the unit and the adjacent components can be
vacuumed using a sobrush aachment.
5.3 Cleaning Tips
Condensaon may appear on the outside of the unit. This may be due to a change in room
temperature. Wipe of any moisture residue. If the problem connues, please contact a qualified
technician for assistance.
6. MAINTENANCE
6.1 Changing the Internal Light
Lamp replacement by professionals.
Illuminang lamp parameter: MAX 4W
6.2 Care When Handling / Moving Your Unit
Hold the unit around its sides or base when moving it. Under no circumstances should it be lied
by holding the edges of the top surface.
Do not turn upside, horizontally place or vibrate the refrigerator, the carrying angle can not be
greater than 45°.
