Lloyd LFR330SS User manual

REFRIGERATOR
Instruction Manual
Model: LFR330SS

Dear Customer
Congratulations on being the proud owner of Lloyd
Refrigerator. Your Refrigerator comes with a Lloyd
Guarantee of Quality.
Lloyd takes great pride in providing its customers with
perfect products that adheres to international quality
standards.
Lloyd is committed to international quality standards.
Lloyd is committed to provide the ultimate customer
satisfied customers of Lloyd.
At Lloyd, feedback and suggestions based on your product
usage experience are greatly appreciated.
Please feel free to contact us at
[email protected]
NIPUN SINGHAL
DIRECTOR

This appliance is not intended for use by persons (including children) with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of the appliance by a
person responsible for their safety.
Children should be supervised to ensure that they do not play with the appliance.
If the supply cord is damaged, it must be replaced by the manufacturer, its service
agent or similarly qualied persons in order to avoid hazards.
WARNING:
-WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in
structure, clear of obstruction.
-WARNING: Do not use mechanical devices or other means to accelerate the
defrosting process, other than those recommended by the manufacturer.
-WARNING: Do not damage the refrigerant circuit.
-WARNING: Do not use electrical appliances inside the food storage compartments
of the appliance, unless they are of the type recommended by the manufacturer.
-Do not store explosive substances such as aerosol cans with a ammable propellant
in this appliance.
This appliance is intended to be used in household and similar applications such as
staff kitchen areas in shops, ofces and other working environments;
farm houses and by clients in hotels, motels and other residential type environments;
bed and breakfast type environments;
catering and similar non-retail applications.

Please follow the safety hints listed below :
Please unplug the unit immediately if you
nd any abnormal smell or smoke, and contact
your local service center.
Hanging or sitting on the door is very dangerous,
it may overturn the unit and subvert the goods in
(or on) the refrigerator.

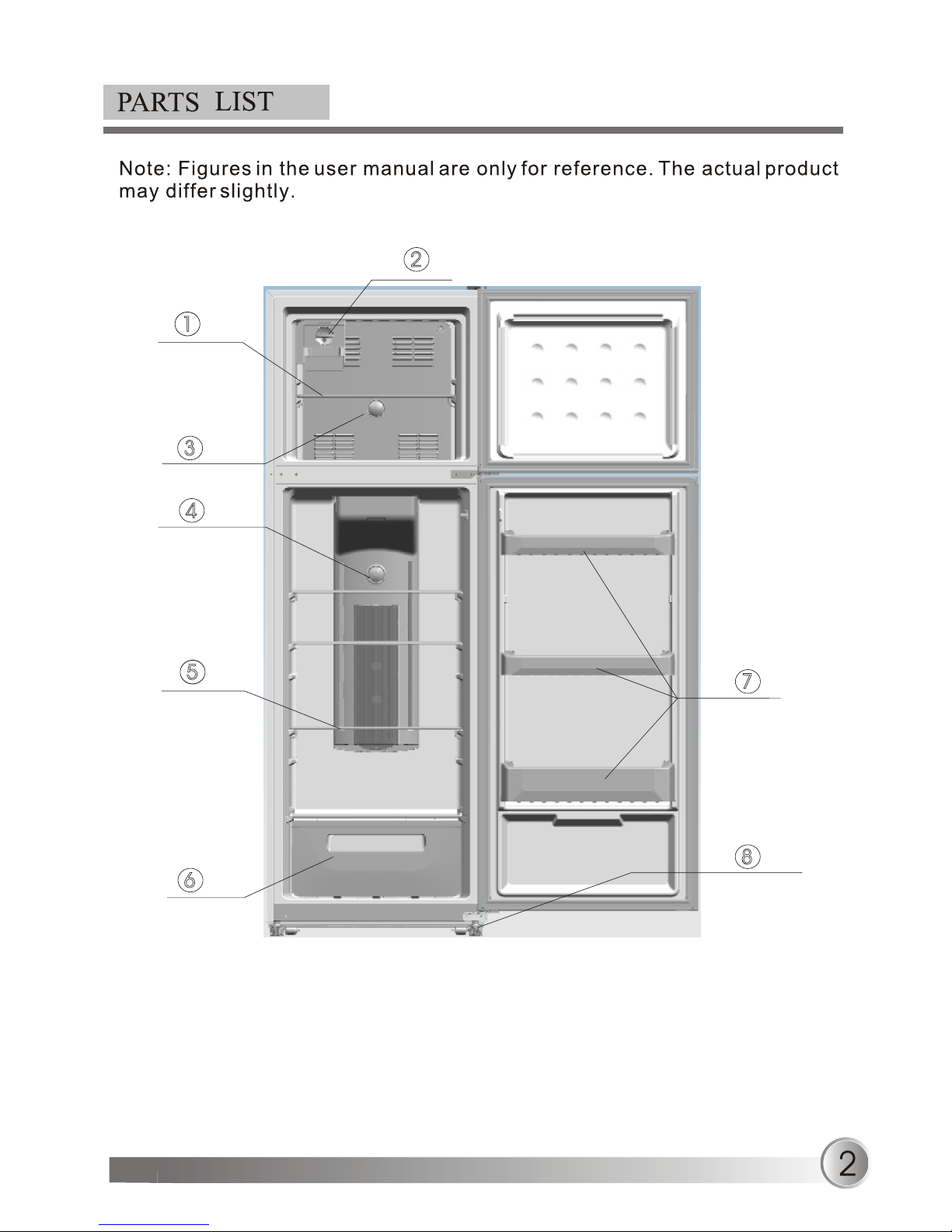

1. Freezer Shelf 2. Ice Maker 3. Control Knob Freezer
4. Control Knob Refrigerator 5. Shelf 6. Crisper
7. Door Tray 8. Adjustable Foot

100mm 100mm
300mm
There should be enough space
around the unit as shown, to allow proper
ventilation.
The unit should be placed in a ventilated and
dry environment. Do not put the unit under
direct sunlight, and keep it as far as possible
from heat sources.
The unit should be placed on at and
steady ground. Keep the unit level by
adjusting the front leg levelers.

After some time set the compartment
temperature as per needs.
Make sure the unit has been placed properly
and all instructions have been followed.
eventually.

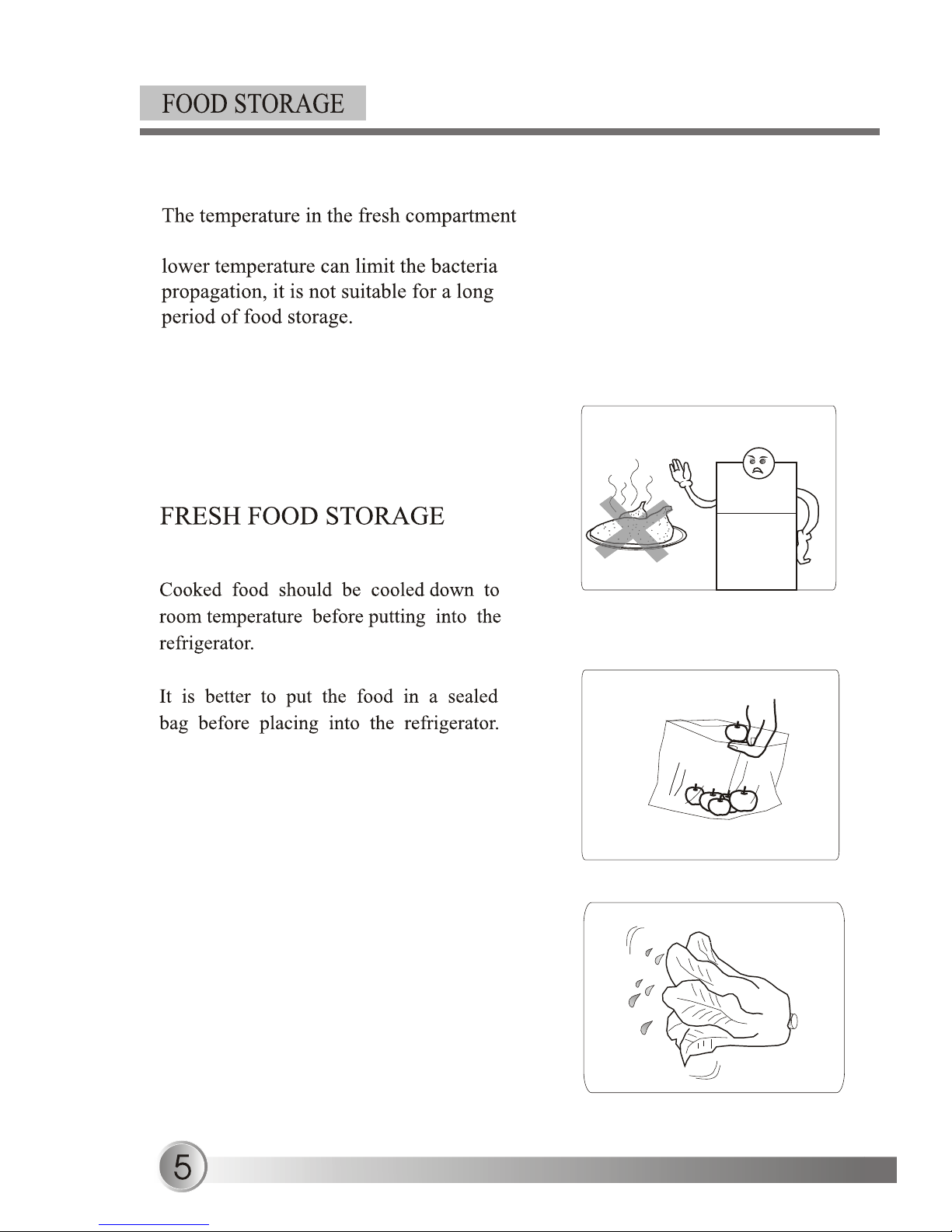

is between 0-4 degrees C. Although this
In order to keep vegetables fresh in the crisper,
moisture should be removed rst, otherwise, the
vegetables may spoil. Vegetables in a bag
may be stored for a longer period.

R-TEMP control knob F-TEMP control knob
The left knob is used for controlling temperature of cooling while the right
one is for freezing.
T
T
urn the knob clockwise, the cabinet temperature will fall counter-clockwise,
the temperature will rise.
urn the knob counter-clockwise, the cabinet temperature will fall, clockwise,
the temperature will be raised.
Picture:
R-TEMP control knob
F-TEMP control knob
The temperature of the freezer is less than
o
-18 C. It is to store food for a long period.
After buying frozen food, please put it into the
freezer compartment as soon as possible.
.

When the cubes are fully frozen, twist the
knob to separate the ice from cubes, take
ice from the box below, Do not over-bend
the ice maker tray to avoid breaking it.
3
It is better to sort the food before putting
them into the freezer. Put the same kind of
foods together to help minimize the time of
the freezer door opening when you take the
food out, and helps to save energy.
The food should not be kept too close to
the outlet or inlet of the airow, It may
affect the air circulation.
There are some ventilation holes on the
bottom of the door tray. Prevent blocking
all of them when you keep food.

Discharge pipe
Make sure the fridge is unplugged before
you take out the water pan.
the defrosted water. Usually it does not need
special care, but if you nd some water overow
or odd smell, it needs to be checked and cleaned.
Pull out the power cord rst. Lift the water pan
up a little, and then pull it straight out carefully.
(Caution: make sure the discharge pipe is not too
hot). After cleaning, re-x the water pan into its
original position. Make sure that the pipe is on
top of the water pan before you push it into the
original position.
If the unit is switched off for a long time,
the plug should be pulled out, and the unit
should be cleaned thoroughly. Ensure that
the door is not completely closed (leave suitable
gap), and place the unit in a well- ventilated
area to avoid any odor.
The unit should be cleaned frequently both
inside and outside using water and a little
neutral detergent. Never use boiling water,
harsh cleaning agents, acid, alkali, benzene etc.
The water pan is locked in the back of the cabinet.
Its function is to collect and evaporate

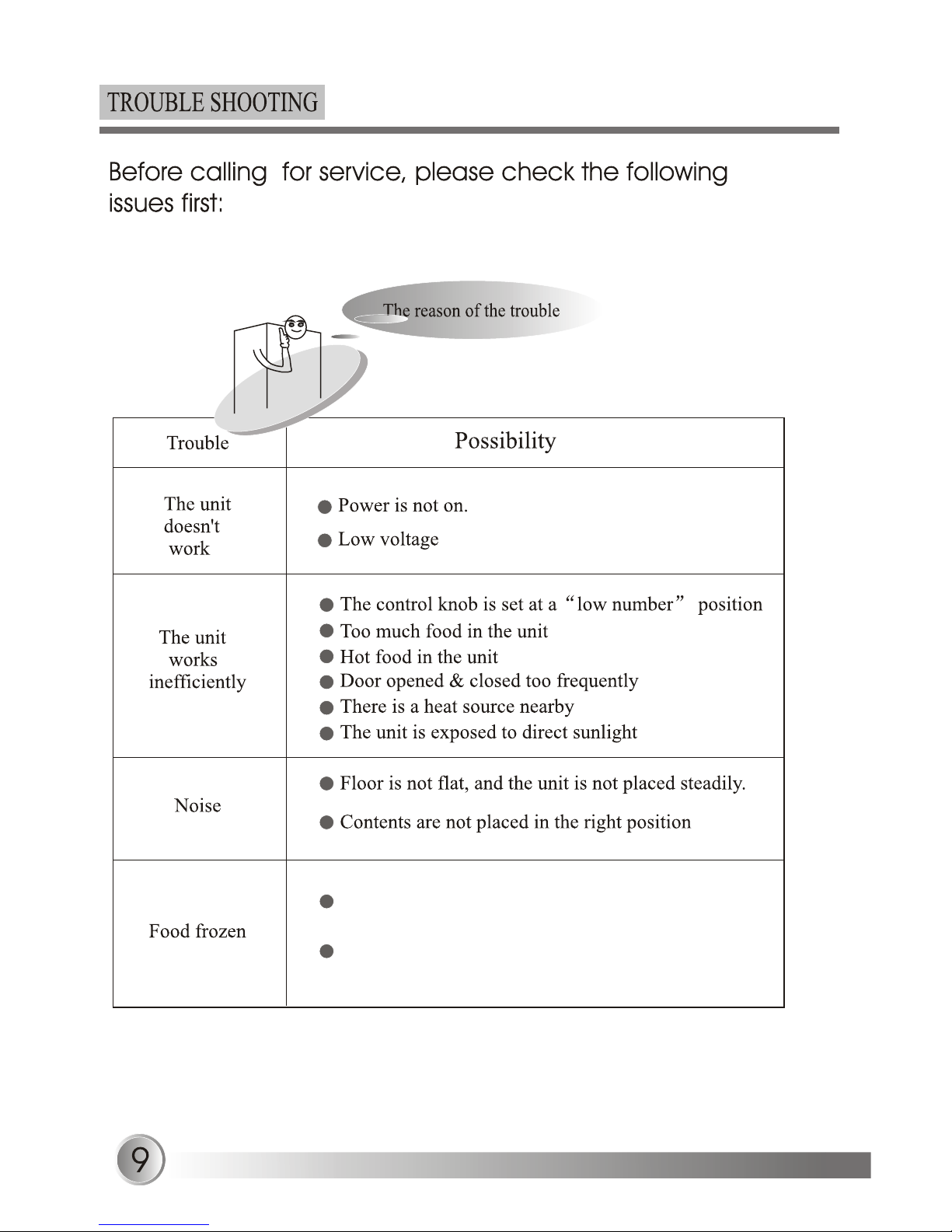

Control knob is set too high.
Food is kept near the outlet of the cold draught.

Light
cover LED lamp
Please contact the service agent or similarly qualied persons
if the light needs to be changed.
Before changing the light board ,please unplug the fridge rst,
then pull down the light cover and change the light board according
to the picture,as shown above.
Make sure the light board is 220-240V~/50Hz/2W.

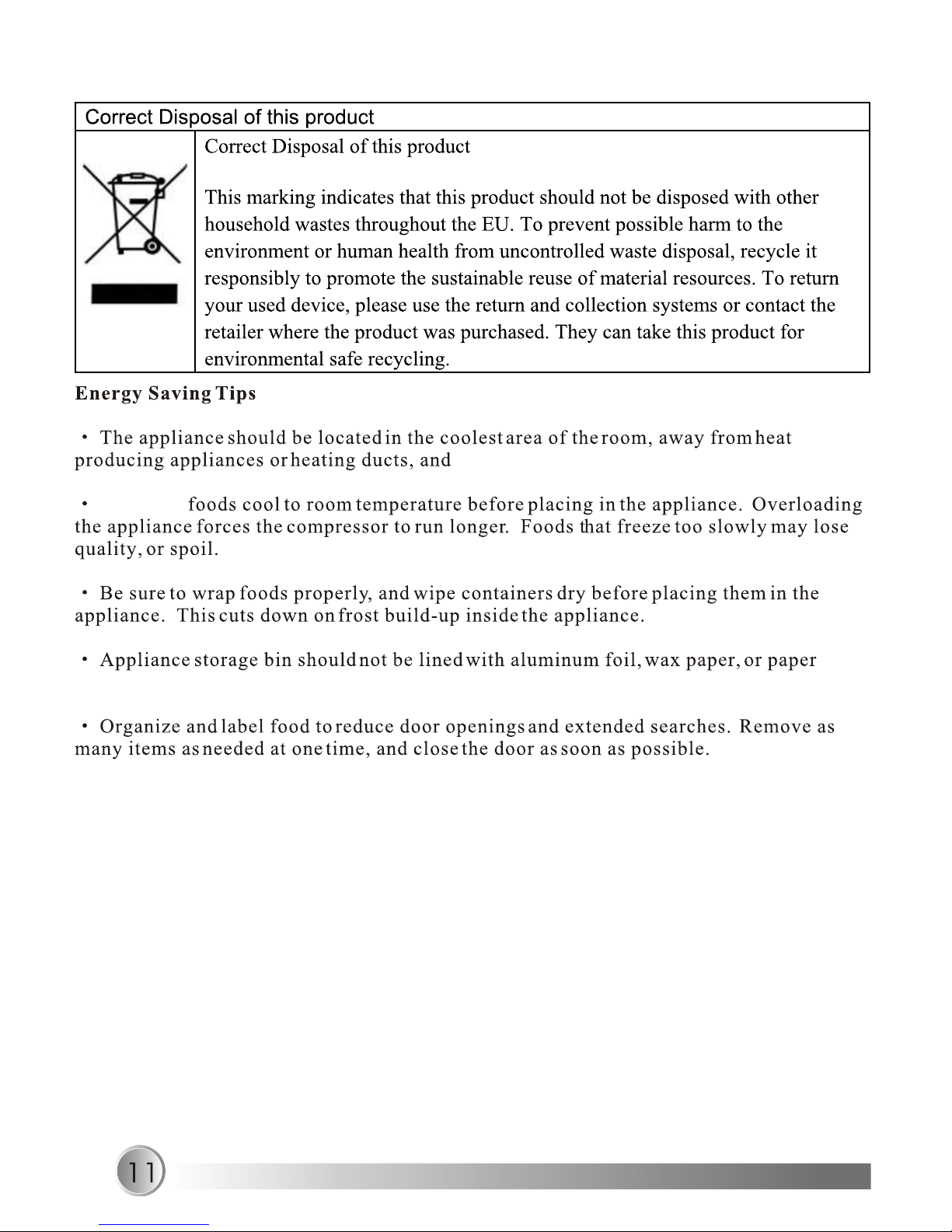

. Wipe it with a dry cloth.

away from direct sunlight.
Allow hot
towels. Liners interfere with cold air circulation, making the appliance less efcient.
A) TYPE X ATTACHMENT WITH SPECIALLY PREPARED CORD-DAMAGED SUPPLY CORDS MUST
BE REPLACED BY A SPECIAL CORD OR ASSEMBLY AVAILABLE FROM THE MANUFACTURER OR
ITS SERVICE AGENT
B) TYPE Y ATTACHMENT-DAMAGED SUPPLY CORDS TO BE REPLACED BY THE MANUFACTURER,
SERVICE AGENT OR SIMILARLY QUALIFIED PERSON TO AVOID HAZARD
C) TYPE Z ATTACHMENT-DAMAGED SUPPLY CORD CANNOT BE REPLACED AND THE APPLIANCE
SHOULD BE SCRAPPED

SPECIFICATION
12
Model LFR330SS
Climate Class N/ST/T
Pretec on Against Electric Shock I
Rated Voltage/Frequency 220V-240V/50Hz
Rated Power(W) 90
Rated Defrost Power(W) 150
Lamp Rated Power(W) MAX 2
Rated Current(A) 0.42
Foaming Agent Cyclopentane
Energy Comsump on(kwh/24h) 0.76
Total Gross Volume(L) 310
Gross Freezer Volume(L) /
Total Storage Volume(L) 294
Freezer Storage Volume(L) 57
Refrigerator Storage Volume(L) 237
Refrigerant,Amount R600a,42g
Freezing Capacity(kg/24h) 3.0
Net Weight(kg) 58
Gross Weight(kg) 65
Product Dimensions(mm)(wxdxh) 598x642x1764

LLOYD ELECTRIC ENGINEERING LIMITED (hereinaer referred to as 'the company')
guarantees to the purchaser that this product carries a warranty for the period
menoned below, commencing from the date of purchase. The company will repair
or replace free of charge any part or parts of the product , if the defect is due to the
faulty material or workmanship. Warranty involves repairing of defecve
product/parts and does not entle purchaser for the replacement of complete
product.
1. This warranty is confined to the first purchaser of the product only.
2. Repair or replacement will be carried out through the Company's Service Centres or
it's Authorised Service Centres.
3. For units installed beyond the municipal limits of the jurisdicon of the authorised
service centre/company's service centre, all expenses incurred in collecon the unit or
part/s thereof from the company's service centre/authorised service centre, as well as
expenses incurred in connecon with depung of service personnel/ technicians
towards to and fro travel, conveyance and other incidentals etc. will be borne by the
customer.
4. In the event of repairs/replacement of any part/s of the unit, this warranty will
thereaer connue and remain in force only for the unexpired period of the warranty.
Moreover, the me taken for repair/replacement and in transit whether under the
warranty or otherwise shall not be excluded from the warranty period.
5. The company or it's authorised service centre, reserves the right to retain any part/s or
component/s replaced at it's discreon in the event of a defect noced in the equipment
during the warranty period.
6. (a) Any change of address shall be inmated to concerned service centre for
connuaon of warranty.
(b) Warranty for the unexpired period shall connue aer the product is inspected by
the concerned service centre and the product is found free from transit damage.
The customer shall have to pay a vising charge towards inspecon, as applicable.
(c) In case of any transit damage, the product shall be repaired by the concerned
service centre on charges and warranty for unexpired period to connue.
7. The warranty does not cover demonstraon/ installaon of the product purchased.
WARRANTY TERMS AND CONDITIONS
Refrigerator Comprehensive - 1 year
Compressor - 5 years Plasc / Glassware / Bulb / Tube
Product Warranty Period Part Not Covered
13

8. The company's obligaon under this warranty shall be limited to repair or providing
replacement of part/s only. The maximum claim /s if entertained by the company will be
subject to the maximum retail price of the product purchased or the purchase price,
whichever is lower.
9. In the event of any unforeseen circumstance, and spares not being available, the
company's prevailing depreciaon rules will be binding on the purchaser to accept as a
commercial soluon in lieu of repairs.
10. The warranty is issued at New Delhi , and Courts at New Delhi shall have exclusive
jurisdicon over matters covered or flowing from this warranty.
11. The company's obligaon under this warranty shall be limited to repairing or
providing replacement of part/s, which are found to be detecve.
12. Repairs during warranty period shall be carried on "Carry In" basis. Wherein for
service the purchaser shall bring the product to the Service Centre with whom the set is
registered for warranty service. The warranty does not cover cost of transportaon of
system from place of installaon to the Service Centre.
13. The concerned Service Centre will advise the customer whether to effect the repair
at site or its Service Centre.
14. Any part/s of the system replaced by the company at it's discreon shall be with a
funconally operave part.
THIS WARRANTY IS NOT APPLICABLE IN ANY OF THE FOLLOWING CASES:
1. The warranty card is not duly filled and mailed back to the service centre for
registraon by the purchaser.
2. The completed warranty card and invoice is not presented to authorised personnel at
the me of repair.
3. The product is not purchased from an Authorised LLOYD dealer.
4. The product is not used according to instrucons given in the instrucon manual.
5. Defects caused by improper use as determined by the company personnel.
6. Modificaon or alteraon of any nature is made in the electrical circuitry/ or physical
construcon of the set.
7. Installaon/ repair work is carried out by persons/agency other than authorised by
the company.
8. Site (premises where the product is kept) condions that do not confirm to the
recommended operang condions of the machine.
9. The original serial number is removed, obliterated or altered from the machine or
cabinet.
10.Defects due to cause beyond control like lightning, abnormal voltage, acts of God or
while in transit to service centre or purchaser's residence
14
