Lloyd LDR275W User manual

REFRIGERATOR
Instruction Manual
Model: CB-BCD242-T
LDR275W

Dear Customer
Congratulations on being the proud owner of Lloyd
Refrigerator. Your Refrigerator comes with a Lloyd Guarantee
of Quality.
Lloyd takes great pride in providing its customers with perfect
products that adheres to international quality standards.
Lloyd is committed to provide the ultimate customer satisfaction
as nothing brings us greater joy than having satisfied
customers of Lloyd.
At Lloyd, feedback and suggestions based on your product
usage experience are greatly appreciated.
Please feel free to contact us at [email protected]
NIPUN SINGHAL
DIRECTOR
2

General：
T
student dormitories and houses. It is mostly suitable for refrigerating and
preserving foods such as fruits and beverages. It provides the advantages of
small size, lightweight, low electric consumption and easy use.
3

：
Ice tray
Steel shelf
Thermostat
Plastic pallet
Steel shelf
Drawer
Leveller leg
7
6
5
4
3
2
1
4

UNPACKING YOUR FREEZER
Remove tapes or any labels from your Freezer before using (except the
rating label).
To remove any residue of the tape or glue, rub the area briskly with your thumb.
Tape or glue residue can also be easily removed by rubbing a small amount of
then dry it.
cleaners to remove tape or glue. These products can damage the surface of the
Freezer.
When moving the Freezer, do not tilt the Freezer beyond 45° from the
uprigh t position.
SPACE REQUIREMENTS:
WARNING:
from the Freezer.
To ensure proper ventilation for the Freezer, allow for 200mm space on each
Failure to do so may result in hazardous consequences.
5

side between the freezer and wall, 200mm space between back of the Freezer
and the wall, and 300mm space between the counter top and the roof or ceiling.
If you are installing the Freezer
hinge side to allow the door to swing open.
Never install the Freezer near heat source and direct sunlight.
ELECTRICAL REQUIREMENT
WARNING: DO NOT REMOVE GROUND PRONG.
DO NOT USE AN ADAPTOR.
DO NOT USE AN EXTENSION CORD.
Failure to follow these instruct
Before moving the Freezer
you have the proper electrical connection.
Recommended Earthing Method
A 220～240 Volt /50 Hz AC, 10 ampere fuse and properly earthed electrical
supply is required. It is recommended that a separate circuit serving only for this
appliance be provided. Use a receptacle which cannot be turned off with a switch
or pull chain. Do not use an extension cord.
NOTE: Before performing any type of installation, disconnect the Freezer from
the electrical source. When you are done, connect the Freezer to the electrical
source and reset the control to the desired setting.
LEVELLING
If the Freezer is not levelled during the installation, the doors may not close or seal
properly, causing cooling, frost, or moisture problems. It is very important for the
6

Freezer to be level in order to function properly.
To level your Freezer you may either turn the level leg clockwise to raise that side
of the Freezer or turn counter – clockwise to lower that side.
NOTE: Having someone push against the top of the Freezer take some weight off
the levelling leg. This makes it easier to adjust the levelling leg.
USE OF THE APPLIANCE
To obtain the best possible results from your Freezer, it is important that you
operate it properly.
Temperature Control
The temperature in the freezer is controlled by the thermostat control knob. The
thermostat control box is loaded in compressor compartment. Turn the thermostat
control knob up or down to regulate the temperature inside the freezer. The
markings on control knob indicated from ‘1~6’are for the different temperature grades.
The temperature decreases from position ‘1’ being the warmest to position ‘6’
being the coldest. The setting “off ” means cease work.
Store Frozen Food
ature
control to set ‘6’ for at least two hours before introducing the food to be stored.
All frozen food products purchased should be placed in the freezer as soon as
possible to avoid defrosting.
Storage recommendation printed on the packaging of frozen food by the
defrosting ,set the temper
For normal use ,setting ‘3’ is advised.
7

manufacturers should be always be followed.
Make sure that the drawer does not interfere with the refrigeration pipeline.
Freezing Fresh Food
Ensure that freezing operations are carried out under the most hygienic
conditions as freezing alone does not sterilise food. It is advisable to freeze
the food by packing it into separate meal portions and not in bulk . Never put
hot or even warm food items into the freezer. Prior to storing the frozen food, pack
it in plastic bags, aluminum sheets or freezing containers and place it into the
freezer. Refer data sheet at the rear of this booklet for maximum
permissible amount in kilograms of fresh food that can be frozen in any 24 hour
period with a room temperature of 25℃. Never store more than the maximum
permissible limit.
Note: Do not put bottled food or drinks in the freezer compartment.
For optimum performance, leave enough space in the Freezer compartment for
air to circulate around the packages.
ICE TRAY
The ice tray is to make ice cubes. Fill with cold drinkable water to four-fifth of
take the ice tray out and twist it back and forth to separate the ice cubes. Avoid
over-bending the ice tray to prevent breakage.
Defrosting
Remove the mains plug from the wall socket, open the door and remove all the
food to a cool place. Defrost using a plastic scraper, or let the temperature rise
the ice tray ,and place it in the freezer.When the cubes are frozen,
the height of
8

naturally until it defrosts . Then wipe away the remaining ice and water. After
this, plug the freezer back into mains supply.
Note: To avoid damaging the freezing compartment wall, do not use any sharp
objects to remove the frost or separate the frozen food.
Cleaning your freezer
Before you start cleaning your freezer, remove the mains plug from the power
supply.
Use a clean sponge or soft and a mild detergent in warm water. Do not use
abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces thoroughly.
Do not use cleaning waxes, concentrated detergents, bleaches or cleaners
containing petroleum on plastics and rubber parts.
on plastic parts as these can scratch or damage material.
Clean with a cloth soaked in this solution and then dry with a soft cloth.
PROLONGED INACTIVE PERIODS
If the freezer is not in use for a long period of time, proceed as follows:
Disconnect the freezer from the main supply by removing the plug from the wall
socket.
Clean and dry the inside as instructed under the heading of ‘Cleaning your Freezer’.
Leave the door open to prevent any unpleasant odours from building up while the
freezer is not in use.
9

TROUBLE SHOOTING
In case of malfunction, you can solve many common problems easily.
Your Freezer does not operate…Check if
The power supply cord is unplugged.
The doors do not close completely…Check if
The drawers are in position.
The gaskets are clean.
The Freezer is level.
The freezer is noisy while running…Check if
s level and it is not in contact with another appliance or
kitchen furniture.
…Check if
If the door has been opened too often, or if it has been left open for a while.
takes time for the freezer to reach its set temperature.
The following characteristics should not be looked upon as a problem:
Compressor operating at high temperature.
If customers need the door to be changed from Right to left ,please
service department
.
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
Ÿ
The freezer i
It
The airflow in the rear of the freezer has sufficient clearance.
owing in the pipe.
contact our
10

WARNING
The
persons without supervision.
Young children should be supervised to ensure that they do not play with
the appliance.
REQUESTING ASSISTANCE OR SERVICE
Refrigerator door installation guidelines about swapping left & right
1 Remove the four screw caps and two catches with the even- slot screwdriver.
Then disassemble the screws top the with the cross-slot screwdriver.
2the
top-hinge with cross- slot screwdriver.
3 Replace the top-hinge and the top-door limit block and the door bearing bush to
the other side.
a) Remove the nut with sleeve.Take off the washer then remove the axes to
Screw（three）
screw cap（four）
Catch（two）
Ÿ
Ÿ
Remove the screws holding
11

4Unscrew -hinge with cross-slot screwdriver and
Note：the refrigerator incline angle less than 45°.
5 Replace the bottom door bearing bush and the limit block.
6 R with screws.
The screws
bottom-hinge
the screws holding the bottom
13

b) Remove the top door limit block.
c) Please take out another door limit block, with screw mounting to the door.
12

7 Replace the mid-hinge.
8 Set the bottom mid-hinge.
9 Replace the top -hinge.
14

10 Set the top top-hinge and the cover.
11 Install the four screw caps and two catches to the corresponding position.
· Ensure the appliance is unplugged and empty.
· Adjust the two levelling feet to their highest position.
· We recommend you have someone to assist you.
12 Replace the leveller to the other side and adjust it to make sure the cabinet
is level.
15

NOTE：

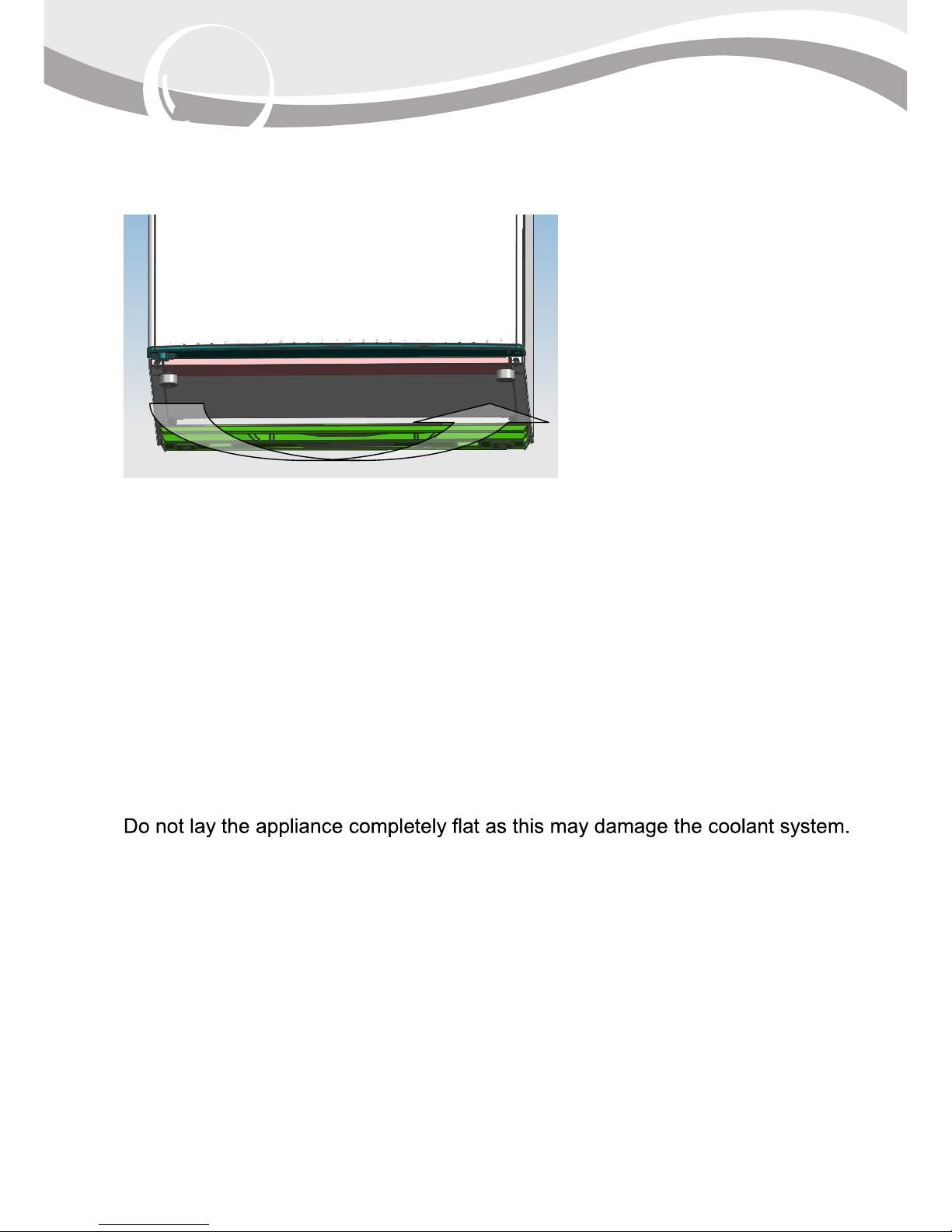

To take the door off,it is necessary to tilt the appliance backward.
Rest the appliance on something solid e.g. a chair just below the top
panel.
16

17
Model LDR275W
Climate Class T
Pretecon Against Electric Shock I
Rated Voltage/Frequency 220V-240V~/50Hz
Rated Power(W) 110
Rated Defrost Power(W) /
Lamp Rated Power(W) MAX 15
Rated Current(A) 0.85
Foaming Agent Cyclopentane
Energy Comsumpon(kwh/24h) 1.11
Total Gross Volume(L) 251
Gross Freezer Volume(L) /
Total Storage Volume(L) 242
Freezer Storage Volume(L) 55
Refrigerator Storage Volume(L) 187
Refrigerant,Amount R134a,90g
Freezing Capacity(kg/24h) 2.5
Net Weight(kg) 49
Gross Weight(kg) 53
Product Dimensions(mm)(wxdxh) 550x595x1550
