Lnk SoundWire User manual
SoundWire Analyzer
User Manual
SoundWire Protocol Analyzer
User Manual V1.0
of 129
1. HARDWARE SPECIFICATION 5
1.1. Hardware dimension 6
1.2. User Interface 6
1.3. Connectivity 6
1.3.1. SoundWire bus connector 7
1.3.2. Multi-purpose connector 7
1.3.2.1. GPI operation 8
1.3.2.2. Serial Audio Interface 8
1.3.3. Clock input and output connectors 11
1.3.4. Monitoring Signals connector 12
1.3.5. USB3 connector 13
1.3.6. Power supply connector 13
1.4. Hardware Operation 13
1.4.1. Multi Purpose I/O 13
1.4.2. SoundWire I/O 14
1.4.3. Clock I/O 14
1.5. Hardware Parameter Control 14
2. SOFTWARE OPERATION 15
2.1. Installation 15
2.1. Software units 15
2.2. Launching the Protocol Analyzer 15
2.3. Load a script in the traffic generator 17
2.4. Play and record a script 18
2.4.1. Recording options 19
2.4.2. Full recording mode 19
2.4.3. Live View 19
3. Stream analysis 20
3.1.1. Message View 20
3.1.2. RAW View 23
3.1.3. DATA View 24
3.1.4. Info notebook 26
1. Statistics 26
2. Memory Inspector 26
3. Device Mapping 27
4. Ports Mapping 28
5. Port Properties 28
SoundWire Protocol Analyzer
User Manual V1.0
of 229
6. Data Samples 29
7. Port Registers 29
8. Stream Mapping 29
SoundWire Protocol Analyzer
User Manual V1.0
of 329
SoundWire Protocol Analyzer
User Manual V1.0
of 429
1. HARDWARE SPECIFICATION
SoundWire Protocol Analyzer
User Manual V1.0
of 529

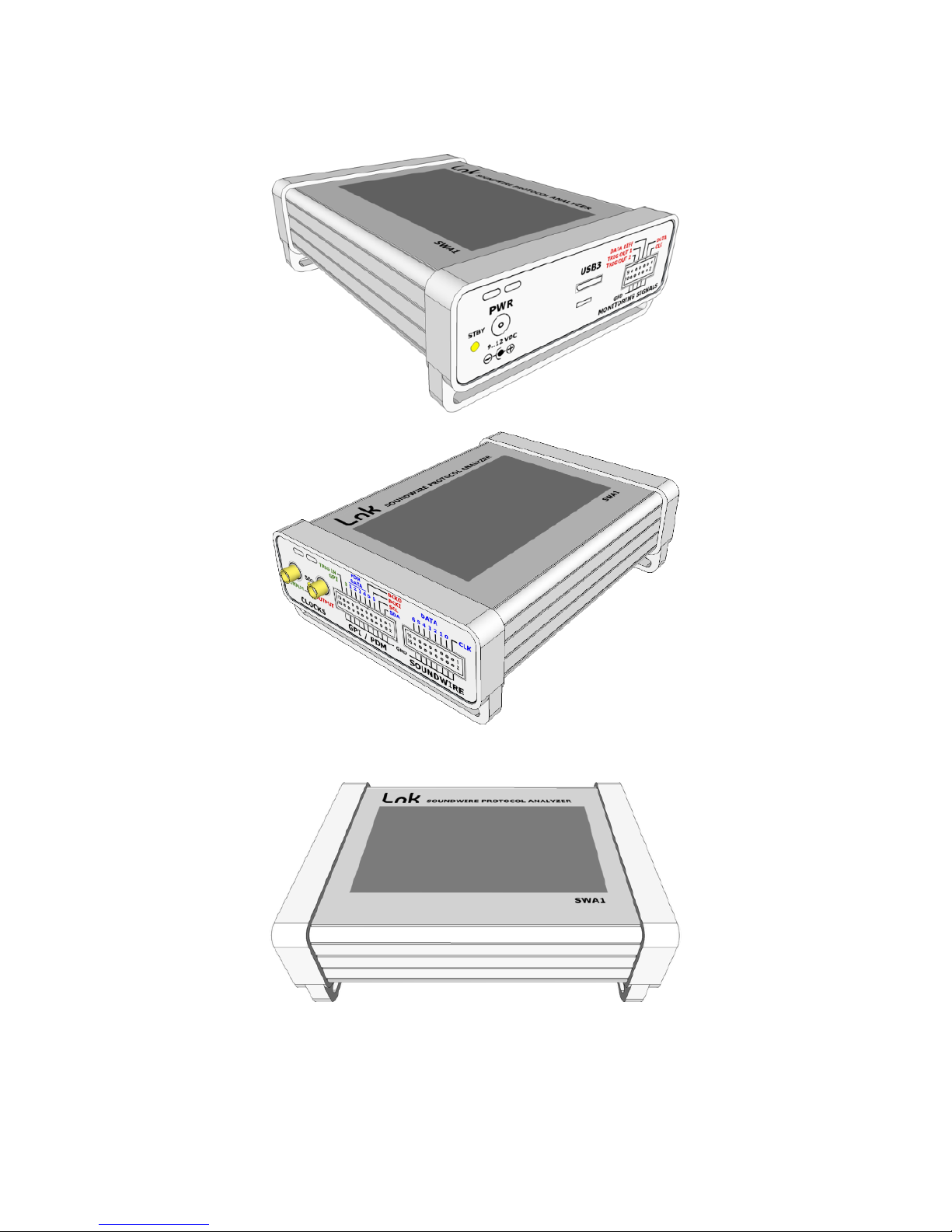

1.1. Hardware dimension
All dimensions are in millimetres.
Unit weight : 490 g.
Body material: anodised aluminium.
1.2. User Interface
All the hardware controllable features are accessible through the 4.3” colour touch screen of the
unit.
1.3. Connectivity
The unit has multiple connectors located on the left side and on the right side.
(left)
(right)
GND
50
CLOCKS
INPUT OUTPUT
SOUNDWIREGPI / PDM
CLK
0123456
DATA
1
2
19
20
1
2
15
16
PWR
9..12 VDC
DATA
CLK
DATA DIFF
TRIG OUT 1
TRIG OUT 2
GND
STBY
USB3
MONITORING SIGNALS
1
2
9
10
SOUNDWIRE PROTOCOL ANALYZER
SWA1
GPI
0123456
BCKO
BCKI
SCL
SDA
TRIG IN
PDM
DATA
SoundWire Protocol Analyzer
User Manual V1.0
of 629
1.3.1. SoundWire bus connector
The SoundWire signals (clock and data) are available on a boxed IDC 16 pin header connector
with a regular pitch of 2.54 mm (0.1”). The bottom pins are all connected to ground.
The data line bus keepers cannot be controlled individually. Either all ON or all OFF.
1.3.2. Multi-purpose connector
The signals (clock and data) are available on a boxed IDC 20 pin header connector with a regular
pitch of 2.54 mm (0.1”). The bottom pins are all connected to ground.
This connector serves multiple purposes. It features an I2C interface that can either acts as a
slave or as a master (not implemented yet). There is a dedicated trigger input pin. Six of the
seven general purpose input pins can be reassigned to a multichannel PDM input & output
interface or a multichannel PCM input or output.
Pin
Signal
Direction
1
Clock
Input & output
3
Data Line 0 (main)
Input & output
5
Data Line 1
Input & output
7
Data Line 2
Input & output
9
Data Line 3
Input & output
11
Data Line 4
Input & output
13
Data Line 5
Input & output
15
Data Line 6
Input & output
2..16
Ground
Electrical Parameter
Min
Nominal
Max
Units
Remarks
SoundWire signaling level
0.9
1.8
3.2
V
Programmable by steps of 50 mV
Bus Keeper impedance
6950
1M
Ohms
Bus keeper can be deactivated
Output impedance
15
Ohms
Input impédance
1M
Ohms
When Bus Hold is disabled
Electrical Parameter
Min
Nominal
Max
Units
Remarks
GPI & I2C signaling level
0.9
3.2
V
Programmable by steps of 50 mV
Output impedance
47
Ohms
Input impédance
47k
Ohms
SoundWire Protocol Analyzer
User Manual V1.0
of 729
1.3.2.1. GPI operation
The GPI pin logical levels are all sampled by the analyzer at the beginning of every frame. The
captured value are shown in the analyzer traces.
1.3.2.2. Serial Audio Interface
The interface is always a clock master because clocks are either directly derived from the
SoundWire bus clock or generated from an external audio master clock. The Serial Audio Interface
supports PDM and PCM streaming on up to 4 data lines.
FUNCTION
Pin
GPI
PDM 8 CH IN
PDM 4 IN / 4 OUT
PDM 8 CH OUT
1
I2C_SDA
I/O
I2C_SDA
I/O
I2C_SDA
I/O
I2C_SDA
I/O
3
I2C_SCL
I/O
I2C_SCL
I/O
I2C_SCL
I/O
I2C_SCL
I/O
5
GPI6
IN
PDM_BCKI
OUT
PDM_BCKI
OUT
PDM_BCKI
OUT
7
GPI5
IN
PDM_BCKO
OUT
PDM_BCKO
OUT
PDM_BCKO
OUT
9
GPI4
IN
PDM_DATA4
IN
PDM_DATA4
OUT
PDM_DATA4
OUT
11
GPI3
IN
PDM_DATA3
IN
PDM_DATA3
OUT
PDM_DATA3
OUT
13
GPI2
IN
PDM_DATA2
IN
PDM_DATA2
IN
PDM_DATA2
OUT
15
GPI1
IN
PDM_DATA1
IN
PDM_DATA1
IN
PDM_DATA1
OUT
17
GPI0
IN
GPI0
IN
GPI0
IN
GPI0
IN
19
TRIG IN
IN
TRIG IN
IN
TRIG IN
IN
TRIG IN
IN
2..20
Ground
FUNCTION
Pin
PCM 8 CH IN
PCM 8 CH OUT
1
I2C_SDA
I/O
I2C_SDA
I/O
3
I2C_SCL
I/O
I2C_SCL
I/O
5
PCM_BCLK
OUT
PCM_BCLK
OUT
7
PCM_LRCLK
OUT
PCM_LRCLK
OUT
9
PCM_DATA4
IN
PCM_DATA4
OUT
11
PCM_DATA3
IN
PCM_DATA3
OUT
13
PCM_DATA2
IN
PCM_DATA2
OUT
15
PCM_DATA1
IN
PCM_DATA1
OUT
17
GPI0
IN
GPI0
IN
19
TRIG IN
IN
TRIG IN
IN
2..20
Ground
SoundWire Protocol Analyzer
User Manual V1.0
of 829
The interface can operate in a single data rate mode (PDM and PCM) or in dual data rate mode
(PDM only).
In single data rate mode (SDR), the data is set after the falling edge of the bit clock. The delay
between the clock falling edge and the data edge (TCHA_EN) is equal to 13.6 ns. The data line is
sampled on the clock rising edge.
In dual data rate mode (DDR), the data is set after every clock edge (falling or rising). The delay
between the clock falling edge and the data edge (TCHA_EN) is equal to 13.6 ns. The delay between
the clock rising edge and the data edge (TCHB_EN) is equal to 12.5 ns. The data line is sampled on
the every clock edge.
SoundWire Protocol Analyzer
User Manual V1.0
of 929
When the Serial Audio Interface is configure to allow both PDM input and output streams, the two
bit clocks are totally independent (frequency, phase and time of activation).
The PDM data paths have dedicated routers (one per data line) to increase the data handling
flexibility of the interface. See the ScriptBuilder suer manual for the configuration of these data
routers.
PDM input path PDM output path
When configured to operate in PCM mode, the interface generates a nit clock and a word clock.
The word clock transition always happens on the falling edge of the bit clock. The bit clock is
always 64 times greater than the word clock. The data are left aligned, MSB first and each frame
channel is 32 bits long.
BIT CLOCK
SoundWire
Source
Port
Control
Registers
DATA ROUTER
DATA ROUTER
DATA ROUTER
DATA ROUTER
Ch 1
Ch 2
Ch 3
Ch 4
Ch 5
Ch 6
Ch 7
Ch 8
PDM DDR
DECODER
PDM DDR
DECODER
PDM DDR
DECODER
PDM DDR
DECODER
SDI1.ChA
SDI1.ChB
SDI1
SDI2
SDI4
SDI3
BCKI
8
PDM
CH A
PDM
CH A
PDM
CH B
PDM
CH B
SDIn
BCKI
SAMPLE
CH A
SAMPLE
CH B
SAMPLE
CH A
SAMPLE
CH B
Sample window: 25 ns
0
1
0
1
SDIn_Setup[0]
SDIn_Setup[1]
SDIn.ChA
SDIn.ChB
Ch
2n
Ch
2n+1
SDI2.ChA
SDI2.ChB
SDI3.ChA
SDI3.ChB
SDI4.ChA
SDI4.ChB
DATA ROUTERPDM DDR DECODER
SoundWire
Sink
Port
DATA ROUTER PDM SDR/DDR
ENCODER
Ch 1
Ch 2
SDO1.ChA
SDO1.ChB
SDO1
Control
Registers
BIT CLOCK
PDM
CH A
PDM
CH A
PDM
CH B
PDM
CH B
SDOn
(DDR)
BCKO
2 x BCKO
SAMPLE
CH A
SET
CH B
SAMPLE
CH B
SET
CH A
SAMPLE
CH A
SET
CH B
SAMPLE
CH B
SET
CH A
PDM
CH A
PDM
CH A
SAMPLE
CH A
SAMPLE
CH A
SET
CH A
SET
CH A
BCKO
4
4
DATA ROUTER PDM SDR/DDR
ENCODER
Ch 3
Ch 4
SDO2.ChA
SDO2.ChB
SDO2
DATA ROUTER PDM SDR/DDR
ENCODER
Ch 5
Ch 6
SDO3.ChA
SDO3.ChB
SDO3
DATA ROUTER PDM SDR/DDR
ENCODER
Ch 7
Ch 8
SDO4.ChA
SDO4.ChB
SDO4
SDOn
(SDR)
0
1
0
1
Ch
2n
Ch
2n+1
SDOn_Setup[0]
SDOn.ChA
SDOn.ChB
SDOn_Setup[1]
DATA ROUTER PDM SDR/DDR ENCODER
SoundWire Protocol Analyzer
User Manual V1.0
of 10 29
1.3.3. Clock input and output connectors
The unit can input an external clock to feed the SoundWire Traffic Generator. It can also output a
configurable clock. The connectors are 50 Ohms SMA.
The input impedance is configurable and can be set to 50 Ohms or 1MOhms. The 50 Ohms state
is indicated by a glowing yellow led close to the input connector. The clock signalling level is
programmable (from 0.9V to 3.2V by steps of 50mv).
The unit has a flexible clock tree.
The traffic generator clock can be generated from a 12.288 MHz high purity oscillator or from an
externally fed clock. The PLLs are actually bypassed when the desired frequencies can be derived
from the reference clock by an integer divider. If this is not possible, the PLL is used.
Electrical Parameter
Min
Nominal
Max
Units
Remarks
Clock signaling level
0.9
3.2
V
Programmable by steps of 50 mV
Output impedance
50
Ohms
Input impédance
50
1M
Ohms
Programmable (50R or 1M)
Input frequency
1
50
MHz
When PLL are used
0
26
MHz
When using direct feed
SoundWire Protocol Analyzer
User Manual V1.0
of 11 29
It is possible to completely bypass the PLL chip to generate the traffic generator clock. It is
therefore possible to proceed with direct injection of clock signals. This is especially interesting
when jitter sensitivity tests of frequency variation tests must be performed.
The external input clock can have an arbitrary value. The frequency is measured and the PLLs are
configured to generate the desired target frequencies. However, it is always better to use common
frequencies for audio and communication system. The unit software will compare the measured
frequencies with known values and take the known values that are close (+/- 0.8%) to the
measured frequency. This is done to reduce the risk of wrongly set target frequencies. If nothing
matches, the PLL parameters will be computed with the measured input frequency value.
When using the PLL, the lowest usable input frequency is 1 MHz.
Note: When using direct feed, the external clock frequency must be twice the desired SoundWire
bus clock (SoundWire clock = 1/2 external clock).
The output clock is fed by one of the two PLL outputs. The Auxiliary clock frequency is manually
programmable.

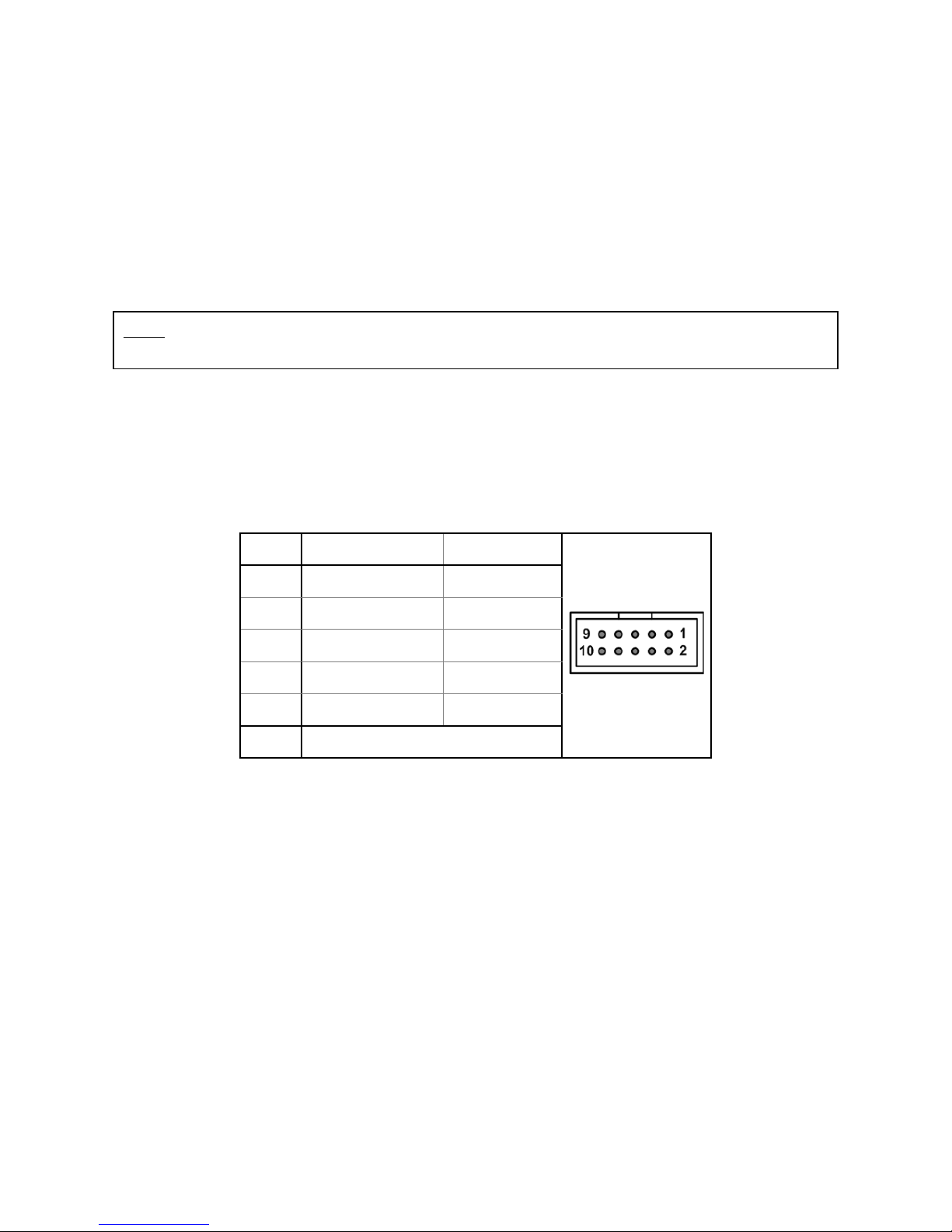

1.3.4. Monitoring Signals connector
The monitoring signals are available on a boxed IDC 10 pin header connector with a regular pitch
of 2.54 mm (0.1”). The bottom pins are all connected to ground.
The buffered SoundWire clock signal is a copy of the captured SoundWire clock. It enables scope
probing without disturbing the bus. The buffered SoundWire data signal is a copy of one of the 7
SoundWire data lines. The selected line is control through a script command or directly via the PC
application.
The Data Diff signal is high every time there is a difference between the transmitted data and the
captured data. It indicates where the DUT is writing or if there is a bus clash condition.
The TRIG 1 and TRIG 2 outputs are used to flag specific events happening on the bus. The Trig
Out signals are controlled directly by a script command (to spot a specific part of the script) or by
an internal event decoder that flags specific events (especially in sniffer mode). The event filter
engine is controlled via the PC application.
The monitoring signals use the same signaling level as the GPI/PDM connector.
Pin
Signal
Direction
1
Buffered SW clock
Out
3
Buffered SW data
Out
5
DATA DIFF
Out
7
TRIG 1 OUT
Out
9
TRIG 2 OUT
Out
2..10
Ground
SoundWire Protocol Analyzer
User Manual V1.0
of 12 29
1.3.5. USB3 connector
The unit needs to be connected to a PC for operation. It does not work as a stand-alone piece of
equipment. A USB3 port is required on the PC to properly operate the unit. No power is drawn
from the USB3 port. The unit is self powered.
1.3.6. Power supply connector
The unit needs an external supply to operate. The typical supply voltage is 9V. The power
consumption depends on many parameters. At a minimum, the unit will consume 1.5 W. If the
display is set to maximum brightness and the FPGA is loaded with an IP running a maximum of
gates at full speed, the power consumption can reach 5 W.
1.4. Hardware Operation
Connect the hardware unit to a USB3 port.
Power on the unit before launching the Protocol Analyzer software.
While the unit is waiting for the PC activation, the display will show a standby message asking for
PC connection.
Once the Protocol Analyzer software has detected and configured the hardware, the display will
show the main page, providing information about the system configuration and the various
connector pin functions.
1.4.1. Multi Purpose I/O
By default, the multi-purpose IOs are configured as input pins. Their state is captured on every
frames. When the audio hardware interface option is available, the pins can be configured as
serial data lines and clock lines.
8 Channel PDM inputs 4 Ch PDM in and 4 Ch PDM out 8 Channel PDM outputs
8 Channel PCM inputs 8 Channel PCM outputs
The operation mode is indicated as well as the bit and word clocks (from release 1.27 and
upwards).
SoundWire Protocol Analyzer
User Manual V1.0
of 13 29
1.4.2. SoundWire I/O
This part of the display shows the measured bus frequency, the status of the bus hold and the
SoundWire signalling voltage. When activity is detected on a pin, the display shows a yellow circle
in place of the corresponding pin (grey by default).
1.4.3. Clock I/O
The hardware can input a clock signal on a SMA RF connector and output a clock signal on
another SMA RF connector.
The display shows the clock IO configuration and functions as well as the measured clocks.
1.5. Hardware Parameter Control
All of these parameters can be controlled by a script, when the tool is used as a traffic generator
(see the ScriptBuilder user manual) or in real time by the hardware control panel of the analyser
software.
SoundWire Protocol Analyzer
User Manual V1.0
of 14 29
2. SOFTWARE OPERATION
2.1. Installation
Double click on the installation software located on the USB memory stick.
It has a name in the form of LnK_SoundWire_Tools_XXX.exe.
Note that it’s always a good practice to copy the latest software release on the provided USB
memory stick.

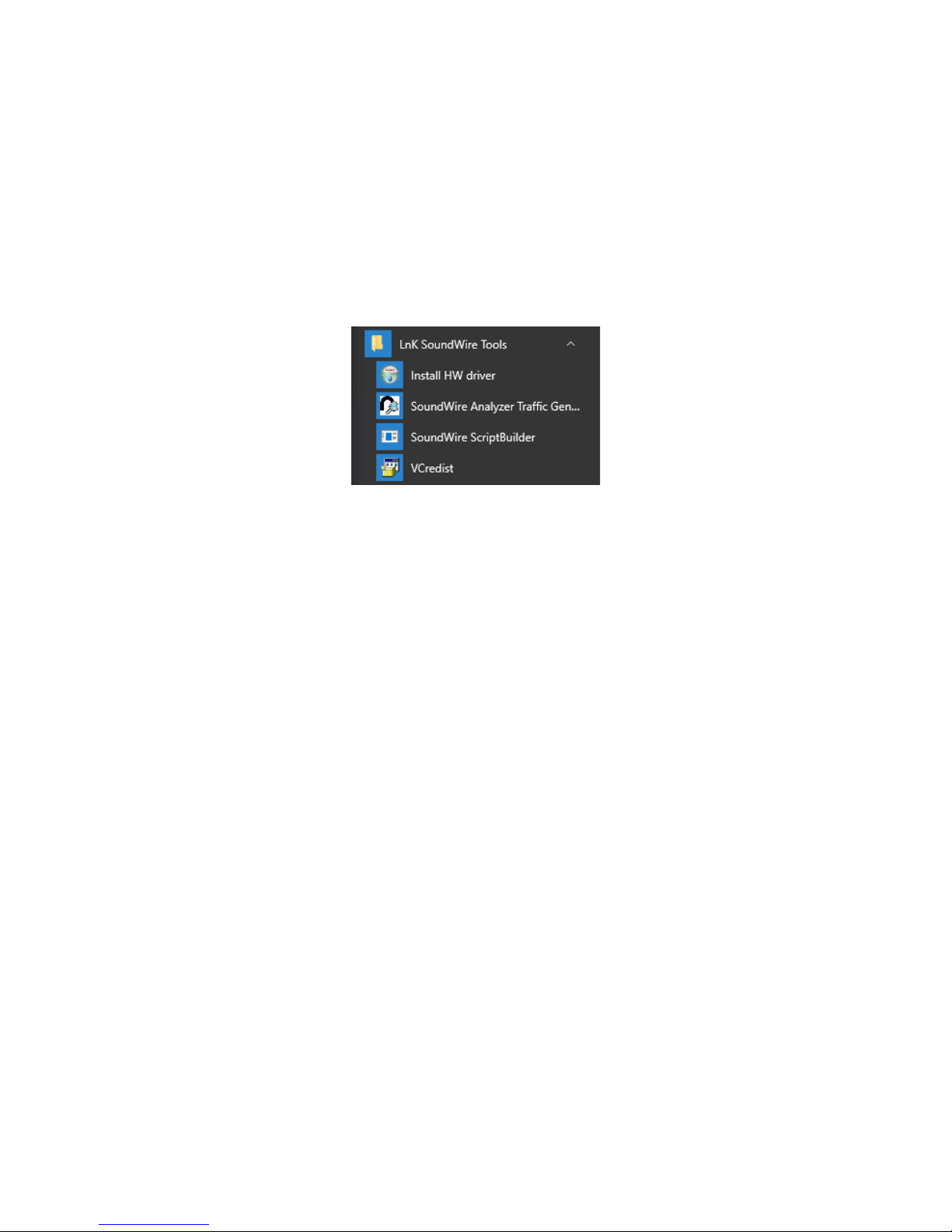

Once the installation is finished, go to the windows menu Program (in the task bar) and select LnK
SoundWire Tools.
• Make sure the the HW unit is unplugged from any USB port of the PC.
• Run the Install HW driver application.
• In some cases, it might be required to install the Microsoft redistributable DLLs by running the
VCredist application.
• Plug the USB license key (blue dongle) in any of the USB port of the host PC. Drivers
installation is not required to operate the license dongle.
• Plug the hardware unit on a USB3 port (preferably) or a USB2 port.
The tools are ready for operation.
2.1. Software units
The tool uses 2 softwares:
-The SoundWire Protocol Analyzer & Traffic Generator. The present user manual is dedicated to
this piece of software.
-The script editor (named ScriptBuilder) to generate XML scripts to be used by the Traffic
Generator. ScriptBuilder also provide a very powerful capture post processing tool. Refer to
the ScriptBuilder user manual for detailed explanation on the XML scripting tags.
2.2. Launching the Protocol Analyzer
Make sure that the license key is plugged on a USB port of the host PC.
Launch the analyzer application.
As soon as the application is running, it will search for the hardware unit and configure it.
As long as the hardware unit has not been detected and configured by the PC, its display will show
a standby message asking for PC connection.
The HW status can be seen in the status bar at the bottom of the window. The hardware functions
(like record and play) are greyed out if the hardware is not available.
SoundWire Protocol Analyzer
User Manual V1.0
of 15 29
HW not present or non configured
HW detected and being configured
HW detected and configured
SoundWire Protocol Analyzer
User Manual V1.0
of 16 29

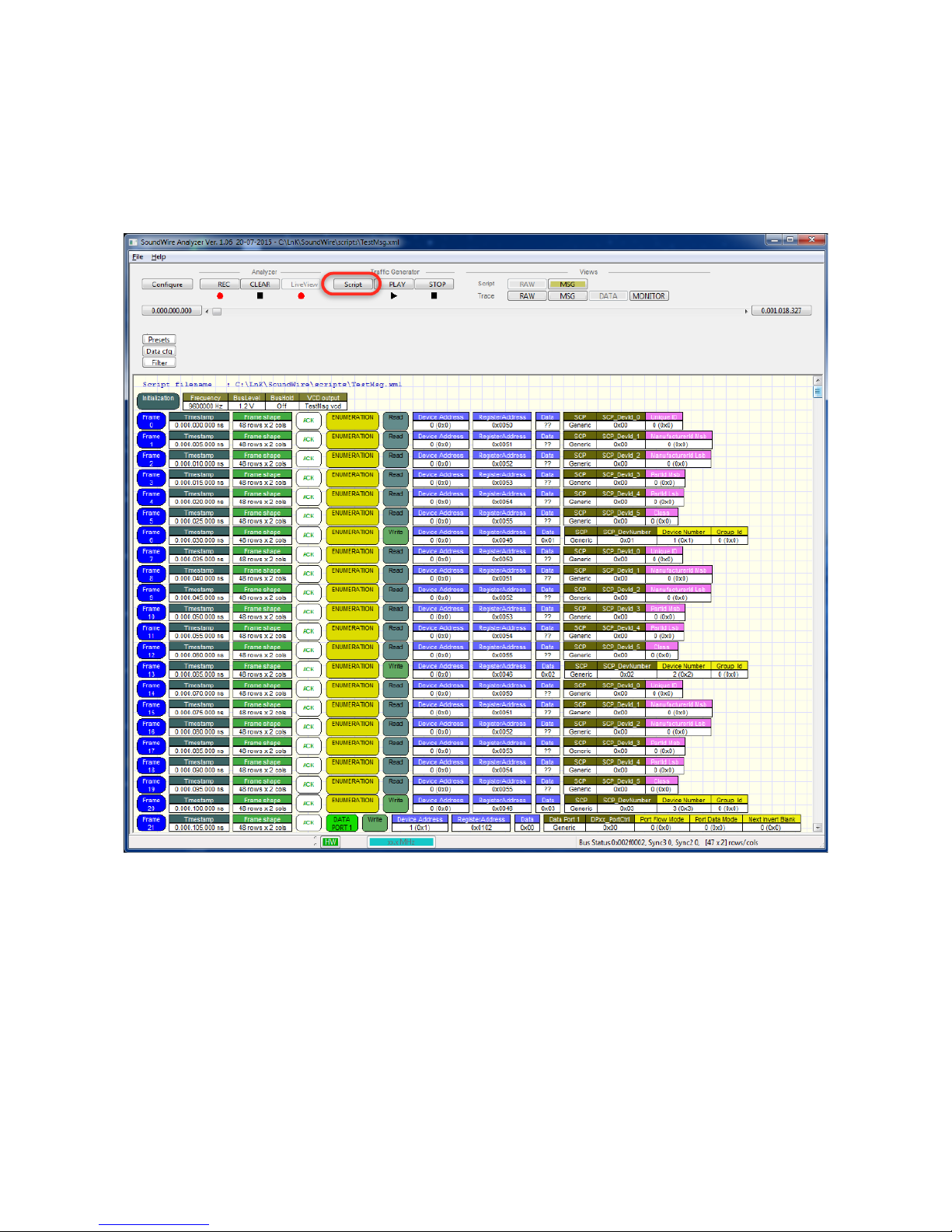

2.3. Load a script in the traffic generator
There are 2 ways to load a script in the traffic generator:
-Load an XML script from the traffic generator itself (though File menu or by pressing the Script
button)
-Push it directly from the script editor (use CTRL+T or press the button Send to TG in the
Finalize window).
The script content is shown in the main analyzer window.
SoundWire Protocol Analyzer
User Manual V1.0
of 17 29
2.4. Play and record a script
First press the REC button. Once pressed, it is greyed out. The analyzer is waiting for any clock
activity on SoundWire to start the recording process. It’s possible to stop the recording at any
moment by pressing the STOP button besides the REC button. The amount of recorded data is
shown in the status bar, on the bottom left side of the window. The maximum record size is now
limited to 500 MB to prevent internal database files exceeding 4GB.
Then, press the PLAY button of the Traffic Generator to stream out the script. Once the script has
been executed, press the STOP button of the analyzer to start the decoding of the recorded
stream.
SoundWire Protocol Analyzer
User Manual V1.0
of 18 29

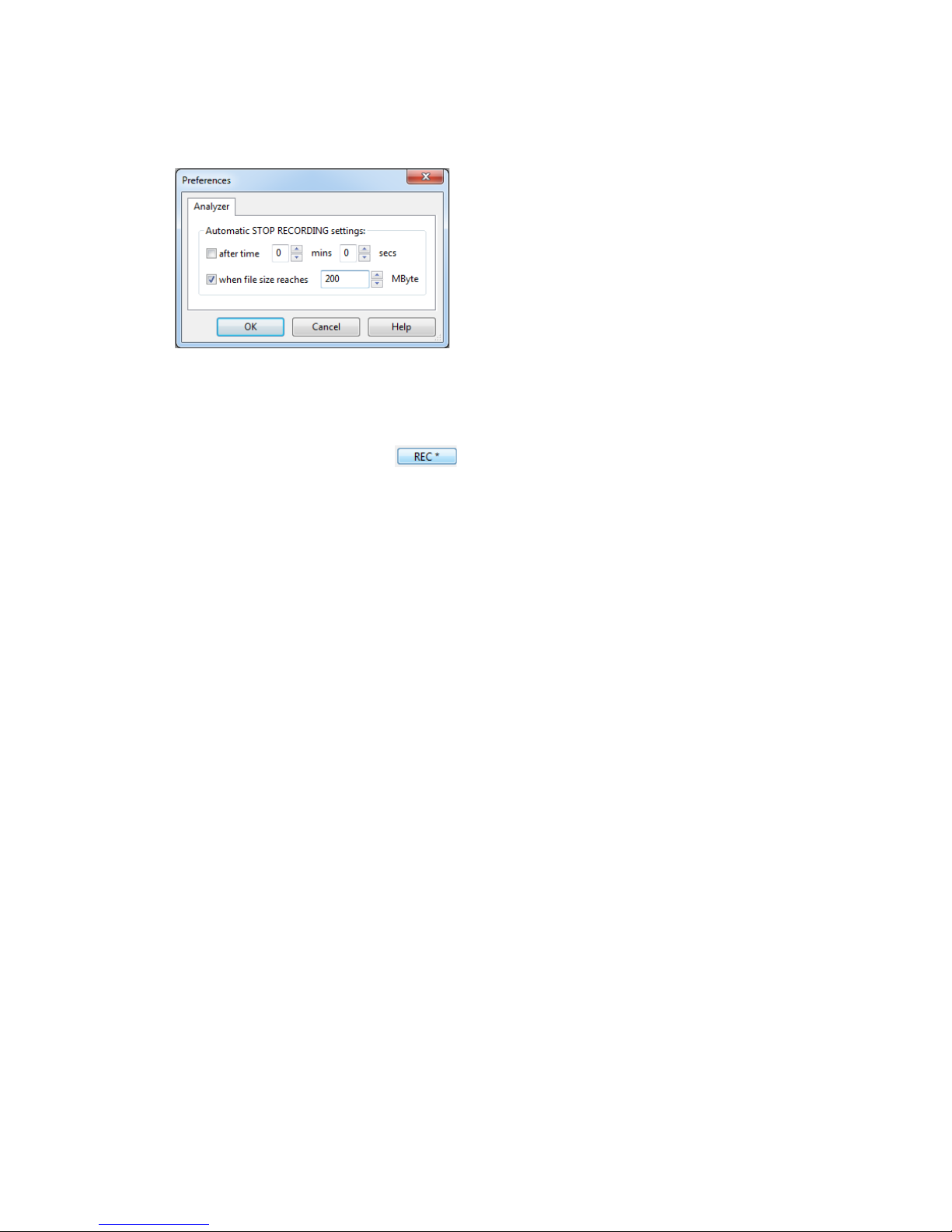

2.4.1. Recording options
File -> Preferences
Recording can be limited by defining a maximum time period or by a certain maximum file length.
This is useful when recording is started due to a trigger event so only the relevant trace is being
recorded and avoiding unnecessary long processing time and large files.
The REC button will have a ‘*’ added when a limiting option is enabled.
2.4.2. Full recording mode
Full Recording is capturing all the bits from the bus and is able to reconstruct the complete trace
and decoding and extracting all audio data.
This mode is consuming a lot of disk space and decoding time but gives the most detail.
While recording, the Live View is combined, so all relevant messages are shown on the screen
while happening on the bus.
2.4.3. Live View
Live view is a monitor of all relevant messages captured from the bus. This mode is not capturing
all the data bits from the bus thus it is not possible to reconstruct any audio data.
But the capturing of the messages is allowing to build up the configuration and show all detected
data port and device configurations.
SoundWire Protocol Analyzer
User Manual V1.0
of 19 29
3. Stream analysis
The protocol analyzer software offers various levels of reading of the captured SoundWire bit
stream.
3.1.1. Message View
The Message View has multiple levels of analysis:
SoundWire Protocol Analyzer
User Manual V1.0
of 20 29
Table of contents
Popular Measuring Instrument manuals by other brands
Racal Instruments
Racal Instruments 9057 Technical manual
Eagle Eye Power Solutions
Eagle Eye Power Solutions SG-100M user guide
Larson Davis
Larson Davis Spartan 730 Reference manual
Niigata seiki
Niigata seiki BB-180A instruction manual
Sierra Monitor Corporation
Sierra Monitor Corporation Sentry 5000 instruction manual
Berkeley Varitronics Systems
Berkeley Varitronics Systems Butterfly manual
