Logan SX-SP06S User manual

Operating Instructions
Safety information
Safeguards
To reduce the risk of electric shock, do not
expose this product to rain or moisture
PRODUCT SERVICE
1) Damage requiring service: The unit should be serviced by qualified service
personnel if:
(a)The DC power supply cord or AC adaptor has been damaged;
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;
(d)The unit does not operate normally or exhibits a marked change in performance;
(e)The unit has been dropped or the cabinet damaged.
Servicing Personnel: Do not attempt to service the unit beyond that described in
these operating instructions. Refer all other servicing to authorized servicing
personnel.
2) Replacement parts: When parts need replacing ensure the servicer uses parts
specified by the manufacturer or parts that have the same characteristics as the
original parts. Unauthorized substitutes may result in fire, electric shock, or other
hazards.
3) Safety check: After repairs or service, ask the servicer to perform safety checks to
confirm that the unit is in proper working condition.
WARRANTY
If your product does not work properly because of a defect in materials or
workmanship, our Company (referred to as "the warrantor" ) will , for the length of the
period indicated as below, (Parts(2)Years ,Labor(90) Days) which starts with the date
of original purchase ("Limited Warranty period"), at its option either(a) repair your
product with new or refurbished parts, or (b) replace it with a new of a refurbished
product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in
your product during the warranty period. This Limited Warranty is extended only to the
original purchaser and only covers product purchased as new. A purchase receipt or
other proof of original purchase date is required for Limited Warranty service.
Mail-In Service
When shipping the unit carefully pack and send it prepaid, adequately insured and
preferably in the original carton. Include a letter detailing the complaint and provide a
day time phone and/or email address where you can be reached.
LIMITED WARRANTY LIMITS AND EXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship, and DOES NOT COVER normal wear and tear or cosmetic damage.
The Limited Warranty ALSO DOES NOT COVER damages which occurred in
shipment, or failures which are caused by products not supplied by warrantor,or
failures which result from accidents,misuse,abuse,neglect, mishandling,
misapplication, alteration, faulty installation, set-up adjustments, misadjustment of
consumer controls, improper maintenance, power line surge, lightning damage,
modification, or service by anyone other than a Factory Service center or other
Authorized Servicer, or damage that is attributable to acts of God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER
"LIMITED WARRANTY COVERAGE".THE WARRANTOR IS NOT LIABLE FOR
INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE OF
THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY. (As
examples, this excludes damages for lost time, cost of having someone remove or
re-install an installed unit if applicable, travel to and from the service, loss of or
damage to media or images, data or other recorded content. The items listed are not
exclusive, but are for illustration only.
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED
WARRANTY, ARE YOUR RESPONSIBILITY.
4
Operating Instructions
HDMI 2.0 1x4 HDMI Splitter, HDCP2.2
Supports 3D, 4Kx2K@60Hz(YUV 4:4:4), 18G, HDR, EDID
Operating Instructions
Notice
The information in this document is subject to change without notice. Every effort has
been made in the preparation of this document to ensure accuracy of the contents, but
all statements, information, and recommendations in this document do not constitute
the warranty of any kind, express or implied.
Features
Simultaneously displays an UItra Hi-Def source on up to four UItra HD displays.
Supports resolutions up to UItra HD 4Kx2K(3840x2160@60Hz YUV 4:4:4 ).
Supports four kinds of EDID handling abilities.
Supports HDCP2.2/1.4 Compliant.
Supports 36 bit Deep Color.
Supports LPCM 7.1, Dolby TrueHD, Dolby digital Plus, and DTS-HD Master
Audio.
Support 3D.
Bandwidth 18G.
Support HDR.
Support online firmware upgrade via Micro USB Port.
Package Contents
1 x HDMI Splitter
1 x 5V/1A DC Adapter
1 x User Manual
1

Operating Instructions
SPECIFICATIONS
Operating Temperature Range -5 to +40℃(+23 to +104℉)
Operating Humidity Range
5 to 90%RH (No Condensation)
Bandwidth frequency
18Gbps
HDCP HDCP2.2
Input ports 1xHDMI(female)
Output ports 4xHDMI outputs(female)
Resolution outputs up to 4Kx2K(3840x2160@60Hz YUV 4:4:4)
Dimensions(LxWxH) 150x64.2x17mm
Power consumption
2W(MAX)
Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG
Net Weight 245g

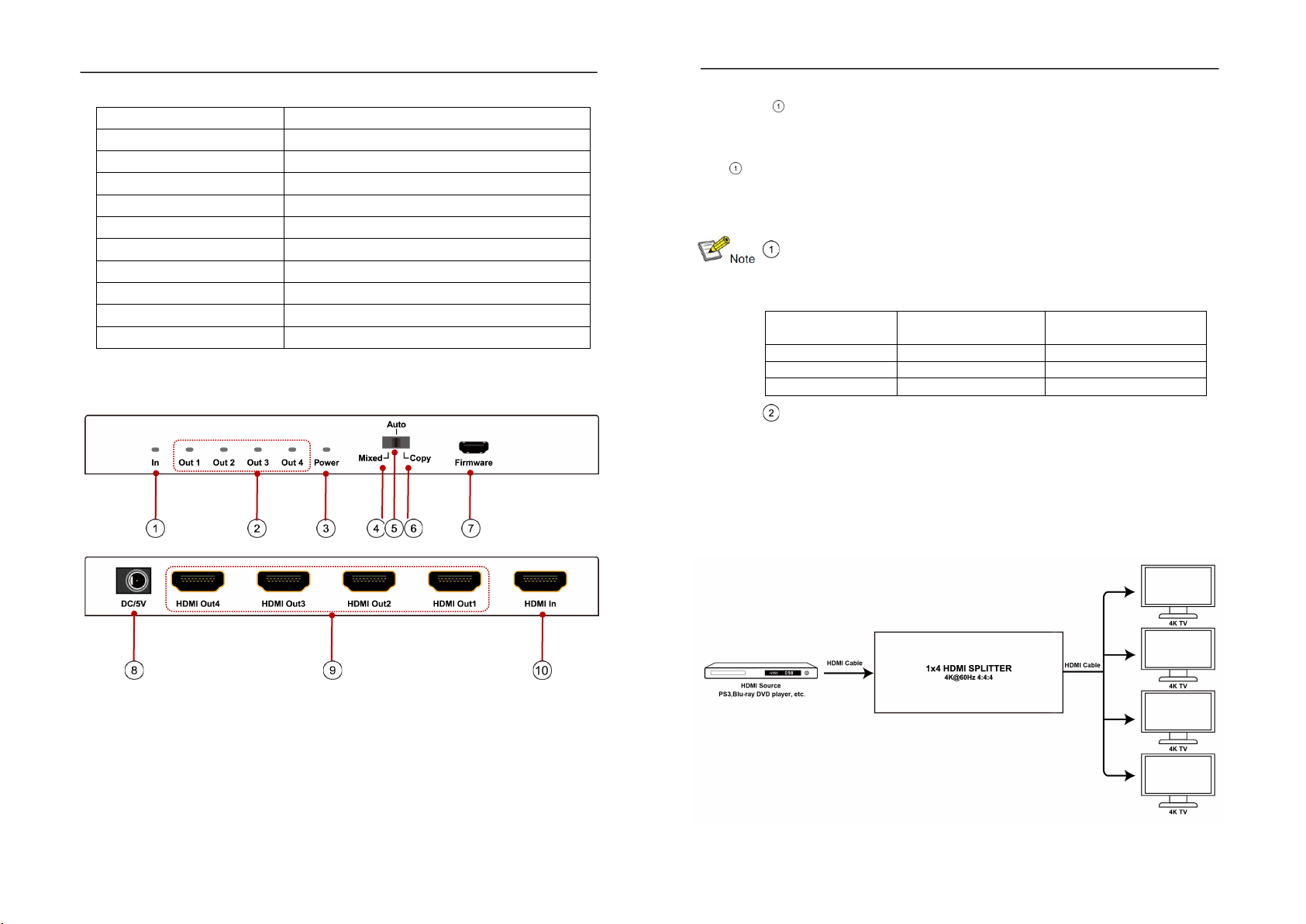

PANEL DESCRIPTIONS
①Indicator of HDMI input
②Indicator of HDMI output
③Indicator of Power input
④Switch to “Mixed EDID” mode
⑤Switch to “Auto EDID” mode
⑥Switch to “Copy EDID” mode
⑦Firmware port
⑧Power input
⑨HDMI output ports
⑩HDMI input port
2
Operating Instructions
EDID Introduction:
Copy EDID: output 4 is prior port
When output 4is connected to one display, another display which connected to output
1/2/3 will follow the Resolution of output 4.
Auto:Default 4K@60Hz.
Mixed EDID: always follow the lowest resolution of the displays connected to 4 outputs
in order to support all displays show the source.
The HDCP Version is prior to EDID, when the source is HDCP2.2,
if the TV supports HDCP2.2, it will output 4K@60Hz,
if the TV doesn’t support HDCP2.2, it will output 1080p.
please see below table:
Input source
HDMI display
Support HDCP2.2
HDMI display
Doesn’t support HDCP2.2
HDCP2.2 4K@60Hz
HDCP2.2 4K@60Hz
HDCP1.4 1080p@60Hz
HDCP2.2 4K@24Hz
HDCP2.2 4K@24Hz
HDCP1.4 1080p@24Hz
HDCP1.4 4K@24Hz
HDCP1.4 4K@24Hz
HDCP1.4 4K@24Hz
Support HDR under copy EDID and Mixed EDID mode!
Connecting and operating
1) Connect the HDMI input source to input port of HDMI splitter.
2) Connect the HDMI splitter output ports to the displays.
3) Power up splitter, source and displays.
Connection Diagram
3
