Preparation
5
Unpacking the TV
Remove all packaging from the TV. Retain the packaging. If you dispose of it please do so according to local regulations.
The following items are included:
TV Base
(P.N.: 506C1961101)
TV Stand Support
(P.N.: 115C2461101)
Remote Control / AAA Batteries x 2
(P.N.: 504C1961101 & 32200007158)
Thank you for purchasing your new Logik 19" HD Ready LED TV with DVD Player.
Your new TV has many features and incorporates the latest technology to enhance your viewing
experience. We recommend that you spend some time reading this instruction manual so that you fully
understand these features. You will also find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction manual for future reference.
Preparation
TV
Screw A x 1
(P.N.: 209100422B1)
Screw B x 1
(P.N.: 20912223101)
Instruction Manual
(P.N.: 4031C196111)
Quick Start Guide
(P.N.: 4033C196115)
L19HED12I_IB_120612_Annie.indd 5 12年6月12日 下午7:43

GB
Preparation
6
4. To install the base stand, align the screw hole, then
secure with a screw driver (not included) using the
screw B provided.
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side facing up. Please make sure a soft cushioned material (such as a pillow or
thick piece of foam) is placed beneath the screen.
3. To install the TV stand, first attach the stand support
to the TV by using screw A. Align the screw hole then
use screw A to fix the stand support to the TV.
5. To remove the stand assembly, untighten the screw
holding the stand assembly to the rear of the TV. Slide
the stand assembly out.
6. Mounting on the wall. This TV is designed to be wall-
mounted with a standard 75 mm x 75 mm mounting
kit (sold separately) designed for flat-panel TVs.
Mount this TV according to the instructions included
in the mounting kit. Due to space restrictions, we
recommend that you make all connections (refer to
page 13-16 and page 44 for details) before mounting
on to the wall.
Installing / Removing the Base Stand
Keep all the spare screws should you want
to use the stand assembly option.
The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be
sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with it.
DO NOT exert pressure on the front of the TV at any time because the screen could crack.
75 mm
75 mm
Four mounting holes
(size M4x8 screw)
Screw A x 1
(P.N.: 209100422B1)
unscrew
Screw A x 1
(P.N.: 209100422B1)
screw
Remove the stand assembly before mounting the TV onto the wall.
Screw B x 1
(P.N.: 20912223101)
TV Front Base Stand
Front
screw
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our UK Call Centre on 0844 561 1234. Our UK
Customer Contact Centre is open Monday-Saturday 8am-8pm or Sunday 8am-6pm.
L19HED12I_IB_120612_Annie.indd 6 12年6月12日 下午7:43

GB
Preparation
7
Front / Right Side View and Controls
Item Description
1POWER LED
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will flash blue and red when the timer programming has started in
standby mode.
2IR (Infrared Receiver) Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 Disc Slot Insert the disc with the label side facing towards the rear of the TV. (12 cm discs only.
Don't insert 8 cm discs.)
4 Press to eject disc. (DVD mode)
5 Press to start playback or pause. (DVD mode)
6 INPUT
Press to select among different input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / USB.
Use the buttons on the remote control to select the input, and then press the OK
button to confirm.
7MENU Displays the OSD (on screen display) menu.
8 CH + / – Press to select a channel or select a sub-menu from the OSD menu.
9 VOL + / – Adjusts the volume.
Press to select and adjust a setting in the OSD menu.
10 Switches the TV on from standby mode.
Switches the TV back to standby mode.
6
4
5
7
9
10
3
8
1 2
L19HED12I_IB_120612_Annie.indd 7 12年6月12日 下午7:43

GB
Preparation
8
Rear View and Sockets
Socket Description
1 Y, PB, PR / AUDIO (L/R) Connects to a DVD player, Digital Set-Top-Box, or other AV devices with component
(YPbPr) video and audio output sockets.
2 VIDEO / AUDIO (L/R) Connects to the Composite VIDEO and AUDIO (L/R) output sockets on external video
devices.
3 SCART Connects to a VCR, DVD Player, or other AV device with a SCART output socket.
4 RF Aerial Connects to the aerial socket on the wall with the RF coaxial cable.
5 PC IN / PC AUDIO Connects to a computer or other devices with a VGA interface.
6 COMMON INTERFACE Allows the insertion of a Common Access Module. (Refer to page 26 for details.)
7 HEADPHONE Connects to the headphones.
8 HDMI1 / HDMI2 Connects to a High-Definition (HD) signal output device, such as a set-top box, blu-ray
disc player or AV receiver.
9 USB Allows the insertion of a USB storage device to play video, audio, photo and text files
(USB mode) and record DTV programmes on to a USB storage device.
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
4
5
6
7
9
8
1 2
Y PB PR
R L VIDEO
SCART
3
L19HED12I_IB_120612_Annie.indd 8 12年6月12日 下午7:43

GB
Preparation
9
Remote Control Operation Range
Point the remote control at the TV no more than 5 metres from the
remote control sensor on the TV and within 60° in front of the TV.
The operating distance may vary depending on the brightness of the
room.
Installing Batteries in the Remote Control
1. Press and lift the back cover to open the battery compartment of the
remote control.
2. Insert two AAA size batteries. Make sure the (+) and ( - ) ends of
the batteries match the (+) and ( - ) ends indicated in the battery
compartment.
3. Close the battery compartment cover.
30° 30°
5M
Handling the Batteries
• Improper or incorrect use of batteries may cause
corrosion or battery leakage, which could cause
fire, personal injury or damage to property.
• Only use the battery type indicated in this manual.
• When the batteries are exhausted, the remote will
not function. Replace both batteries at the same
time with new ones.
• Do not install new batteries with used ones and do
not mix different types of batteries.
• Do not dispose of used batteries as domestic
waste. Dispose of them in accordance with local
regulations.
Handling the Remote Control
• Take care of your fingernails when you press and
hold the battery release tab.
• Do not drop or cause impact to the remote control.
• Do not spill water or any liquid on the remote
control.
• Do not place the remote control on a wet object.
• Do not place the remote control under direct
sunlight or near sources of excessive heat.
• Remove the battery from the remote control
when not in use for a long period of time, as it
could cause corrosion or battery leakage and may
result in physical injury and/or property damage
including fire.
L19HED12I_IB_120612_Annie.indd 9 12年6月12日 下午7:44

GB
Preparation
10
1.
Switch the TV between on and standby mode.
2. MUTE
Mute and restore your TV sound.
3. 0-9 Number Button
• Press to select a programme.
• Select numbered items in a menu. (DVD mode)
4. LIST
• Display the channel list. (ATV / DTV mode)
• Display the text page on the teletext screen. (ATV mode)
5. RECALL
• Return to the previous viewing channel. (ATV / DTV mode)
• Return to menu (DVD mode)
6. SLEEP
Set the TV sleep timer: OFF / 10 / 20 / … / 180 / 240 min.
7. VOL + / –
Adjust the volume.
8. CH + / –
Select a channel.
9. PROG
• Display the channel edit menu. (ATV / DTV mode)
• Programme the DVD. (DVD mode)
10. S.MODE
Select sound mode: Standard / Music / Movie / Sports / User.
11. ASPECT
Watch the screen in various formats: Auto / 4:3 / 16:9 / Zoom /
Subtitle / Smart Zoom.
12. GUIDE
Display the EPG Electronic Programme Guide. (DTV mode)
TITLE
Display the DVD title content. (DVD mode)
13. P.MODE
Select picture mode: Standard / Mild / User / Dynamic.
14. MENU
Display the OSD (On Screen Display) menu.
15. INPUT
Select among the dierent input signal sources:
DTV / ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD /
USB
16.
Allow you to navigate the OSD menus and adjust the system
settings to your preference.
OK
Conrm the selection in the OSD menus.
17. BACK
Return to the previous menu in the OSD menus.
18. Exit
Exit the OSD menu.
Remote Control
12
5
8
12
15
18
9
13
3
4
7
11
14
16
17
6
10
L19HED12I_IB_120612_Annie.indd 10 12年6月12日 下午7:44

GB
Preparation
11
19. FAV
Display the favourite channel list. (ATV / DTV mode)
SETUP
Display and exit the DVD setup menu. (DVD mode)
20. i
Display the present screen information such as the current
channel on ATV / DTV mode and the input source except
ATV / DTV mode.
21. TV.RD
A short-cut to switch input source to TV / Digital radio
channels.
ANGLE
Select dierent angles for the video. (DVD mode)
22. AD (Audio Description)
• Turn on / o the Audio Description (AD) function (only
applicable when the TV programme has this feature).
(DTV mode)
• Select dierent Audio modes on DVD mode. (DVD
mode)
• Select Stereo / Dual Sound Reception. (ATV mode)
23. TEXT
Turn on and o the teletext function. (ATV / DTV mode)
MENU
Display the DVD menu. (DVD mode)
24. S (Subtitle)
• Display subtitles which are broadcast with the
programme. (DTV mode)
• Display subtitles on the DVD. (DVD mode)
25. REC
Record the current programme. (DTV mode).
ZOOM
Zoom in on the displayed frame. (DVD mode)
26.
Navigate the DVD menu and adjust the system settings to
your preference. (DVD mode)
OK
Conrm the selection in the DVD menus. (DVD mode)
CANCEL
Exit the teletext mode. (ATV mode)
MIX
Select TELETEXT with a TV programme. (ATV mode)
SIZE
Enlarge the picture on the TV in teletext. (ATV mode)
27. Stop
Stop the playback or recording. (DVD / USB / DTV mode)
28.
Eject a disc. (DVD mode)
29. Pause
• Pause playback. (DVD / USB mode)
• Start the time-shift function (DTV mode)
STEP
Play the playback forwards frame by frame. (DVD mode)
30. PL AY
Start playback. (DVD / USB mode)
25
27
29
30
23
24
26
28
22
20
2119
L19HED12I_IB_120612_Annie.indd 11 12年6月12日 下午7:44

GB
Preparation
12
31.
Skip to the beginning of the next chapter / track / photo.
(DVD / USB mode)
REVEAL
Reveal hidden information such as the answer to a quiz
in teletext. (ATV mode)
32.
To skip to the beginning of the previous chapter / track /
photo. (DVD / USB mode)
HOLD
Freeze a multi-page passage on screen in teletext. (ATV
mode)
33.
Reverse playback rapidly. (DVD / USB mode)
SUBPAGE
Display the subpage on the teletext screen. (ATV mode)
34.
Advance playback rapidly. (DVD / USB mode)
INDEX
Select the page number of the index from teletext. (ATV
mode)
35. Coloured buttons
Access the TELETEXT items or channel edit when using
Digital / Freeview TV Channels. (ATV / DTV mode)
GOTO (RED)
Skip to a specic location on a DVD / CD. (DVD mode)
SLOW (GREEN)
Play video slowly. (DVD mode)
REPEAT (YELLOW)
Select between dierent repeat modes. (DVD mode)
A–B (BLUE)
Repeat a segment between A and B. (DVD mode)
34
33
32
35
31
L19HED12I_IB_120612_Annie.indd 12 12年6月12日 下午7:44

GB
Connections
13
Connecting an AV Device Using an HDMI Cable
• This TV can accept High-Definition Multimedia Interface (HDMI) supports HDCP (High-Bandwidth Digital Content Protection)
Protocol.
• This TV has a total of 2 HDMI input sockets, please make sure the correct input source is selected and corresponds to your
connected HDMI input socket.
• When you connect to the output of an HD ready player (blu-ray disc player, game console, set-top box or computer) switch to
the HDMI function and the TV will automatically detect the resolution used by the HDMI source.
• To get the best picture quality, adjust the blu-ray disc player, game console or set-top box output resolution up to 1920 x
1080p.
1. Use an HDMI cable to connect the TV’s HDMI input
socket to the external AV device’s HDMI output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the TV
or on the remote control to turn on your TV.
4. Press the button on the right side panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the buttons to select HDMI1
/ HDMI2 and then press the OK button to confirm.
Making Video and Audio Connections
Not all AV devices have the ability to connect to a TV, please refer to the owner’s manual of your AV device for compatibility and
connection procedures.
When connecting any external AV device, do not connect the mains cable to the mains socket until all other connections are
complete.
Signal Type Separate Audio
Connection Required
HDMI1
HDMI
(480i/480p/576i/576p/720p/1080i/1080p*) No
PC IN
PC
Yes
Y PB PR
Component Video
(480i/480p/576i/576p/720p/1080i/1080p*)
Yes
R L
SCART
SCART (RGB Input) No
VIDEO
Composite Video
Yes
R L
Best Video
Performance
Although this TV is able to connect to an
HDMI device, it is possible that some devices
may not operate correctly.
Connections
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
Rear Right Side View of TV
HDMI Cable
(not included)
Blu-ray Player / DVD Player /
Recorder
Set-top BoxGame Console
*1080p: Although this TV is compatible with a 1080p input, the screen is not capable of
displaying this resolution and consequently the image will be scaled to suit the screen.
L19HED12I_IB_120612_Annie.indd 13 12年6月12日 下午7:44

GB
Connections
14
Connecting an AV Device Using a Component (YPbPr) Cable
1. Use a component cable to connect the TV’s YPbPr
input sockets to an external AV device’s component
output sockets.
2. Use an AV cable to connect the TV’s AUDIO(L/R) input
sockets to the external AV device’s component audio
output sockets. (Audio Left = white, and Audio Right
= red)
Component port on the TV YPb Pr
Video output ports on DVD
player
YPb Pr
Y Cb Cr
3. Plug the connected devices into the mains socket
before switching on the TV.
4. Press the button on the right side panel of the TV
or on the remote control to turn on your TV.
5. Press the button on the right side panel of the TV
or the INPUT button on the remote control to display
the Source List. Use the buttons to select YPbPr
and then press the OK button to confirm.
Connecting a Computer Using a VGA Cable
1. Use a VGA cable to connect the TV’s PC IN input
socket to a computer’s VGA output socket. Use an
audio cable to connect the TV’s PC AUDIO input
socket to the computer’s audio output socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the button on the right side panel of the
TV or the INPUT button on the remote control
to display the Source List. Use the buttons
to select PC and then press the OK button to
confirm.
• The best resolution is 1366 x 768.
• If your computer is set to shut down after a few
minutes in the idle mode, the TV will also switch
to standby due to no signal being received, this
is to save energy. Press the button on the right
side panel of the TV or on the remote control to
restart the TV.
Rear Right Side View of TV
Computer
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
VGA Cable
(not included)
Audio Cable
(not included)
Video Camera
Blu-ray Player / DVD Player /
Recorder
Set-top Box
Game Console
L
R
COMPONENT
OUT
Y
Pr
Pb
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Component Cable
(not included)
Pb/Cb
Pr/Cr
Y
Pb/Cb
Pr/Cr
Y
Y PB PR
R L VIDEO
SCART
Rear Right Bottom View of TV
Satellite Receiver
Satellite
antenna
cable
L19HED12I_IB_120612_Annie.indd 14 12年6月12日 下午7:44

GB
Connections
15
Connecting an AV Device Using a SCART Cable
1. Use a SCART cable to connect the TV’s SCART input
socket to an external AV device’s SCART output
socket.
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the TV
or on the remote control to turn on your TV.
4. The TV will change the input source to SCART
automatically once the AV device is switched on.
Connecting an AV Device Using Composite Cable
1. Use an AV cable to connect the TV’s AUDIO(L/R)
/ VIDEO input sockets to the external AV device’s
composite audio / video output sockets.
(VIDEO = yellow, Audio Left = white, and
Audio Right = red)
2. Plug the connected devices into the mains socket
before switching on the TV.
3. Press the button on the right side panel of the
TV or on the remote control to turn on your TV.
4. Press the button on the right side panel of the
TV or the INPUT button on the remote control
to display the Source List. Use the buttons
to select AV and then press the OK button to
confirm.
Video Camera
VCR
DVD Player / Recorder
Set-top Box
Game Console
AV Cable
(not included)
Yellow (Video)
Red (R)
White (L)
Yellow (Video)
Red (R)
White (L)
Y PB PR
R L VIDEO
SCART
Rear Right Bottom View of TV
Satellite Receiver
Satellite
antenna
cable
Y PB PR
R L VIDEO
SCART
SCART Cable
(not included)
VCR
DVD Player / Recorder
Set-top Box
Satellite Receiver
Satellite
antenna
cable
Rear Right Bottom View of TV
L19HED12I_IB_120612_Annie.indd 15 12年6月12日 下午7:44

GB
Connections
16
Connecting Headphones
Connect your headphones to the TV’s HEADPHONE
socket.
Before putting on the headphones, turn the volume
down then put the headphones on and slowly
increase the volume until you reach a comfortable
listening level.
Rear Right Side View of TV
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
Earphones Cable
(not included)
Long-term exposure to loud music may
cause hearing damage. It is best to avoid
extreme volume when using headphones,
especially for extended periods.
L19HED12I_IB_120612_Annie.indd 16 12年6月12日 下午7:44

GB
Initial Setup
17
Initial Setup
7. Press the buttons to select DVB-T / DVB-C and then press the OK
button to confirm.
6. Press the buttons to select your desired language to be
displayed on the menu. The default on-screen menu language is set as
English. Press the OK button to confirm.
Turning the TV On for the First Time
1. Connect one end of the RF coaxial cable to the
aerial socket on the wall and the other end of the
cable to the RF (75Ω) socket at the rear right side
of your TV.
Do not connect the TV to the mains
supply until you have completed all the
connections.
USB HDMI2 HDMI1 PC IN RF
COMMON INTERFACE (CI)
HEADPHONE PC AUDIO
RF coaxial cable
(not included)
OR
2. Connect the mains cable to the mains socket after
you have completed all the connections.
3. At this stage, the TV switches to standby mode. The
red LED indicator will illuminate on the front panel of
the TV.
4. In standby mode, press the button on the right side
panel of the TV or on the remote control to turn the
TV on. The red LED indicator will turn blue.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The button on the right side panel of the TV or on the remote control is only used for switching the TV into
standby, it does not disconnect the TV from the mains power. To completely disconnect the mains power, please
remove the mains plug from the mains socket.
To the mains
socket
5. The first time you turn the TV on, it will go straight into the First Time
Installation menu. Please ensure the aerial is plugged in and then press
the OK button. (If you have already installed the TV using the Quick Start
Guide, please go to the section “Selecting the Input Source” on the next
page.)
Dansk
Deutsch
Hrvatski
Italiano
OSD Language
OK
Magyar
Nederlands
Norsk
PolskiEnglish
Cesky
E k
Espanol
~
Fran ais
Portugues
Pycck
First Time Installation
Please ensure aerial is plugged in!
Then press OK button.
DVB-C
DVB SELECT TYPE
DVB-T
L19HED12I_IB_120612_Annie.indd 17 12年6月12日 下午7:44

GB
Initial Setup
18
8. Channel tuning will commence. This operation may take up to 6 minutes.
The display will show the progress of the tuning and the number of
channels found.
9. If you have selected DTV+ATV and want to skip the ATV tuning, press
the MENU button to interrupt the tuning half way. A pop-up screen will
be displayed, press the button to select YES to confirm. You will then
go straight to DTV tuning. You may repeat the above step if you also
want to skip the DTV tuning. An installation reminder will appear the
next time you turn on the TV.
10. After tuning is complete, the channels are arranged in a preset order. If
you wish to skip channels, modify the preset order or rename channels,
select Channel Edit under the Channel menu (refer to page 24 for
details).
Target Region Descriptor
During tuning your TV may have received signals from more than one
transmitter. If this has occurred the Target Region Descriptor screen will be
displayed. This will enable you to select the correct regional transmission for
the local news service that you require.
Press the buttons to adjust each option's setting and then press the OK
button to confirm.
Country Code This will be shown as GBR for the UK.
Primary Region This will show the regional country (England, Wales,
Scotland, Northern Ireland (NI)).
Secondary Region This will allow you to set the region for your local
news service.
Tertiary Region
You may receive signals from more than one
transmitter within the Secondary Region, (e.g Beds
and Cambs may have Luton or Sandy Heath).
b. If you select DVB-C, the next step is to congure the DVB-C system
(Scan type / Frequency / Network ID / Symbol(ks/s). Press the OK
button to go to the tune type and add country select menu. This
step is the same as the DVB-T's select the tune type (DTV) process.
Press the buttons to select the desired country and then
press the OK button to start tuning.
a. If you select DVB-T, press the buttons to select the desired
country and then press the OK button to start tuning. Tune Type DTV
Ireland
Austria Croatia
Belgium Czech
Australia Bulgaria Denmark
UK
MENU
DVB-C Scan Menu
Scan type Full
610000
Auto
Auto
Frequency
Network ID
Symbol(ks/s)
OK MENU
Channel Tuning
TV : 0 Channel(s)
DTV : 3 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36%... 668.75MHz
Please press MENU to skip.
(DTV)
Target Region Setting
Country Code GBR
Primary Region England
Secondary Region
Tertiary Region
London
L19HED12I_IB_120612_Annie.indd 18 12年6月12日 下午7:44

GB
Initial Setup
19
Selecting the Input Source
1. Press the button on the right side panel of the TV or the INPUT
button on the remote control to display the Input source list.
2. Press the buttons to select the input source that you want: DTV /
ATV / SCART / YPbPr / PC / HDMI1 / HDMI2 / AV / DVD / USB.
3. Press the OK button to confirm your selection.
Alternative
Press the TV.RD button to switch to TV / digital radio channels
directly.
Input Source
OK
DTV
ATV
SCART
YPbPr
PC
HDMI1
HDMI2
AV
DVD
USB
Channel Selection
• Press the CH + / – buttons on the remote control repeatedly or the 0-9 buttons to select the channel.
Alternative
Press the LIST button to enter the Channel List. Then use the buttons to highlight and select the channel.
Press the OK button to view the selected channel.
• If a blocked channel is selected, the password screen will be displayed. Press the 0-9 buttons to enter the password, the
channel will then be unlocked (refer to page 38 for details on Block Channel).
• Press the FAV button to view the Favourite List. Then use the buttons to highlight and select the channel. Press the OK
button to view the selected channel (refer to page 24 for details on Channel Edit).
• Press the button to return to the previously viewed channel.
Display Channel Information
• Press the ibutton to view the current information.
Volume Adjustment
• Press the VOL + or –button on the side panel of the TV or on the remote control to adjust the volume.
• If you wish to switch the sound off, press the MUTE button. Press the MUTE button again or the VOL + or –button to
resume audio listening.
L19HED12I_IB_120612_Annie.indd 19 12年6月12日 下午7:44

GB
Customising TV Settings
20
5. Channel tuning will commence. This operation may take up to 6 minutes.
The display will show the progress of the tuning and the number of
channels found.
6. If you have selected DTV+ATV and want to skip the ATV tuning, press
the MENU button to interrupt the tuning half way. A pop-up screen will
be displayed, press the button to select YES to confirm. You will then
go straight to DTV tuning. You may repeat the above step if you also
want to skip the DTV tuning. An installation reminder will appear the
next time you turn on the TV.
7. After tuning is complete, the channels are arranged in a preset order. If
you wish to skip channels, modify the preset order or rename channels,
select Channel Edit under the channel menu (refer to page 24 for
details).
4. In the Tune Type menu, press the buttons to select DTV / ATV /
DTV + ATV. Press the button and then press the buttons to
select the country where you will operate the TV. Press the OK button to
confirm.
3. Press the buttons to select DVB-T and then press the OK button to
confirm.
2. Press the buttons to select Auto Tuning and then press the OK
button.

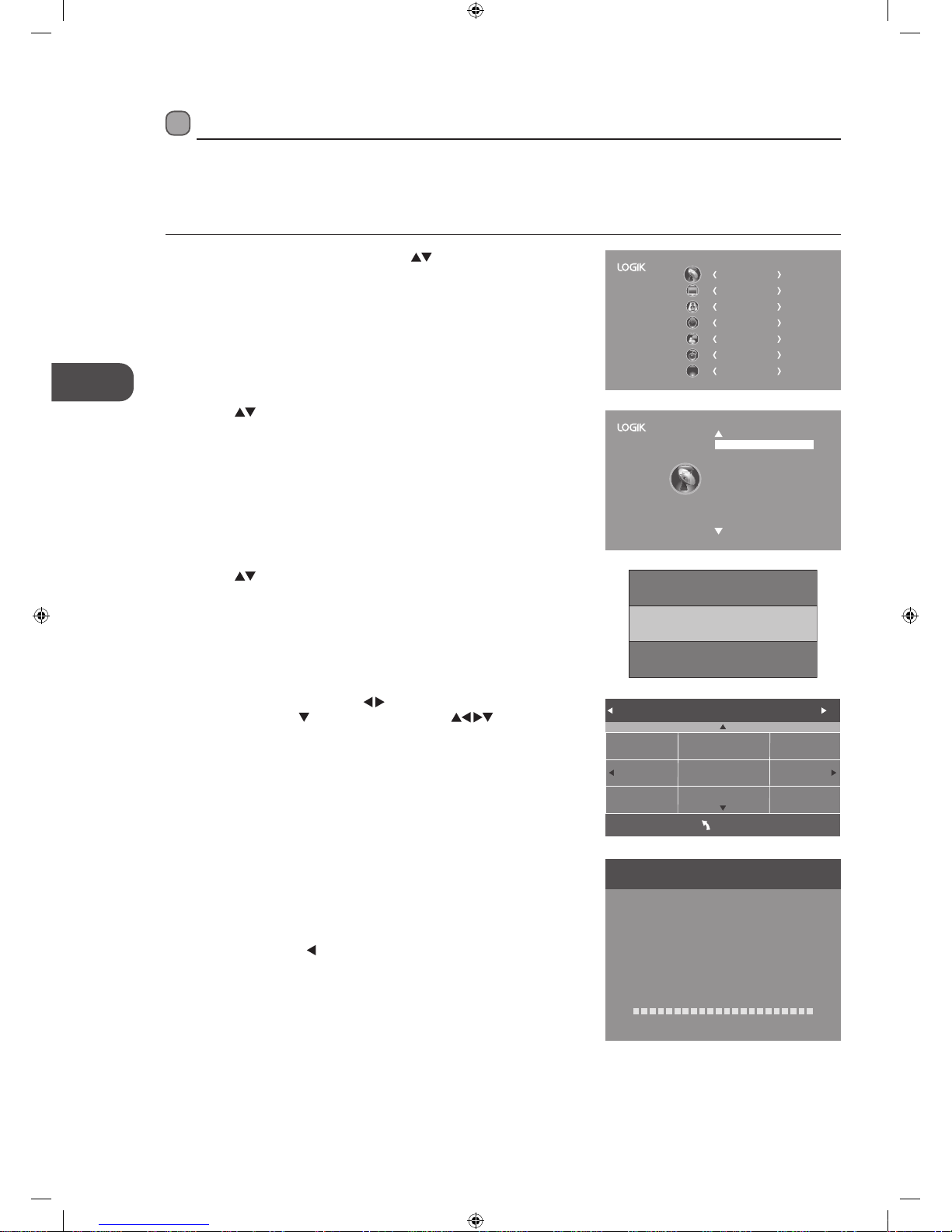

Channel Setting (DTV, TV or Radio Mode)
Auto Tuning (DVB-T)
Use this to automatically find and store all available channels. This is normally recommended if some channels have been added
or removed by the broadcaster or if you have moved house.
1. Press the MENU button and then press the buttons to select the
CHANNEL menu and then press the OK button.
Channel Tuning
TV : 0 Channel(s)
DTV : 3 Channel(s)
Radio : 0 Channel(s)
Data : 0 Channel(s)
36%... 668.75MHz
Please press MENU to skip.
(DTV)
CHANNEL
SOUND
TIME
OPTION
LOCK
EXIT
EXIT
Auto Tuning
DTV Manual Tuning
ATV Manual Tuning
Signal Information
CI Information
Software Update(USB)
Channel Edit
Tune Type DTV
Ireland
Austria Croatia
Belgium Czech
Australia Bulgaria Denmark
UK
MENU
Customising TV Settings
DVB-C
DVB SELECT TYPE
DVB-T
L19HED12I_IB_120612_Annie.indd 20 12年6月12日 下午7:44
