Contents
Unpacking.......................................................................................................5
Installing Your Phone .....................................................................................6
Connecting the Base Unit...........................................................................................6
Installing and Charging the Batteries.....................................................................6
Handling the Batteries .................................................................................................7
Getting to Know Your Phone .........................................................................8
Handset Overview.........................................................................................................8
Base Unit Overview.......................................................................................................9
Display Icons and Symbols.......................................................................................10
Menu Structure.............................................................................................................11
Operations ................................................................................................... 12
Switching ON/OFF.......................................................................................................12
To Lock/Unlock the Keypad .....................................................................................12
Set Time and Date........................................................................................................12
Change your Handset’s Name.................................................................................13
Change the Display Language................................................................................13
Using Your Phone......................................................................................... 14
Make a Call .....................................................................................................................14
Answer and End a Call................................................................................................14
Adjust the Earpiece Volume.....................................................................................15
Mute/Unmute Microphone......................................................................................15
Paging..............................................................................................................................15
Call Waiting ....................................................................................................................15
Private Phonebook...................................................................................... 16
Store a Contact in the Phonebook ........................................................................16
Access Phonebook ......................................................................................................17
Modify a Phonebook Entry.......................................................................................17
Delete a Phonebook Entry........................................................................................17
Delete all Entries from the Phonebook List........................................................18
Direct Access Memory ...............................................................................................18
Add/Edit Direct Access Memory.............................................................................18
Delete Direct Access Memory .................................................................................19
Using the Redial List ...................................................................................................19
Access Redial List .........................................................................................................19
Save a Redial Number into the Phonebook .......................................................19
Delete a Redial Number ............................................................................................20
Delete the Redial List..................................................................................................20
Caller Display (Network Dependent) ......................................................... 21
Access Call Log..............................................................................................................21
Delete a Call Log Entry...............................................................................................21
Delete All Entries in the Call Log ............................................................................22
L1_2DTAM11_running change_121116_Michelle.indd 3 16/11/2012 12:02 PM

Answer Machine Operation By Handset.................................................... 23
Turn the Answering Machine On or O...............................................................23
The Outgoing Message .............................................................................................23
Set the Answer Mode.................................................................................................24
Record a Personalized Outgoing Message.........................................................24
Playback and delete messages...............................................................................24
Playback recorded messages ..................................................................................25
Using the Intercom......................................................................................................25
Intercom another Handset.......................................................................................25
Transfer an External Call to another Handset....................................................25
Answer an External Call during Intercom ...........................................................26
Switch between an internal and external call...................................................26
Establish a Three-party Conference Call..............................................................26
Phone Settings (Handset Tone) .................................................................. 27
Set the Ring Volume ...................................................................................................27
Set the Ring Melody....................................................................................................27
Activate/Deactivate Key Tone .................................................................................27
Activate/Deactivate Auto Hang-up.......................................................................28
Set Date/Time Format................................................................................................28
Set Time Format ...........................................................................................................28
Set Date Format............................................................................................................28
Set Alarm.........................................................................................................................29
Set alarm tone...............................................................................................................29
Advanced Use of your Telephone ..........................................................................29
Answering Machine Settings...................................................................... 34
Set Ring Delay...............................................................................................................34
To Activate/Deactivate Remote Control Access ...............................................34
To Check Messages Remotely .................................................................................35
The Remote Feature lets you perform the following functions:.................35
Set the OGM Voice Language (optional).............................................................36
Call Screening ...............................................................................................................36
Default Settings............................................................................................................36
Text and Digit Entry Table........................................................................... 37
Hints and Tips............................................................................................... 38
ALWAYS check rst that: ............................................................................................38
Everyday use..................................................................................................................38
Intercom and transfer.................................................................................................40
Batteries ..........................................................................................................................40
Specication ................................................................................................ 41
Safety First ................................................................................................... 42
L1_2DTAM11_running change_121116_Michelle.indd 4 16/11/2012 12:02 PM

5
Base Unit x 1
PN: L1DBS
Mains Adapter x 1
PN: L1DMPA
Telephone Linecord x 1
PN: L1DTL
Handset x 1
PN: L1DHS
AAA Batteries x 2
PN: L1DRB
Instruction manual x 1
PN: L1DIM
Charging Cradle x 1
PN: L2DCP
Handset x 1
PN: L1DHS
AAA Batteries x 2
PN: L1DRB
OK
Menu
1 2
ABC DEF
3
4 5
JKLGHI MNO
6
7 8
TUVPQRS
Mute Int
WXYZ
9
0
R Redial
Calls
Back
OK
Menu
1 2
ABC DEF
3
4 5
JKLGHI MNO
6
7 8
TUVPQRS
Mute Int
WXYZ
9
0
R Redial
Calls
Back
Thank youfor purchasing your new Logik
Cordless Telephone with Answer Machine. We recommend that you spend
some time to read this instruction manual in order to fully understand how to
install and operate it.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it
please do so according to local regulations.

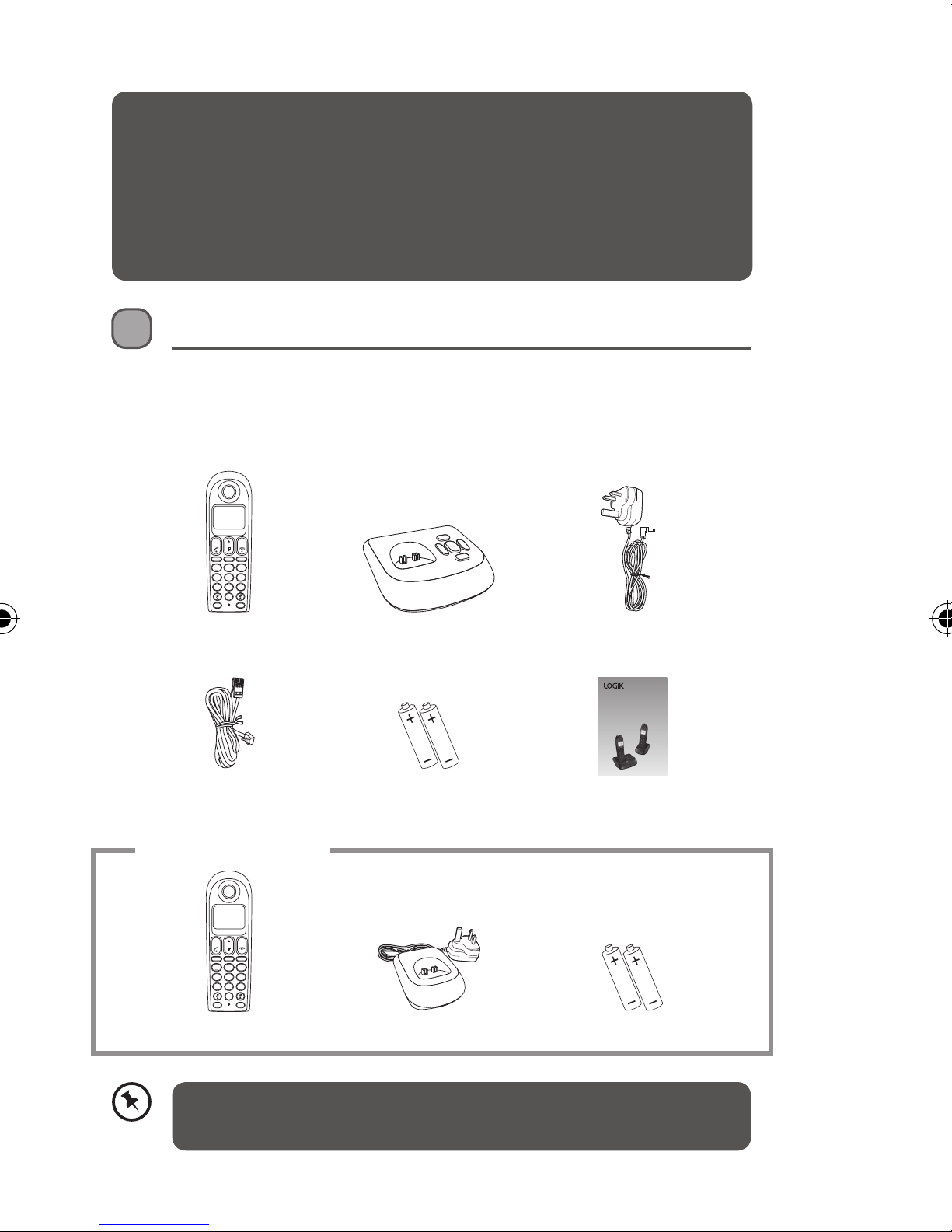

The following items are included:
If items are missing, or damaged please contact Partmaster (UK
only). Tel: [phone] for assistance.
for L2DTAM11 only
Cordless Telephone
with Answer Machine
Instruction Manual
L1DTAM11
L2DTAM11 (with additional handset)
For L2DTAM11 only
L1_2DTAM11_running change_121116_Michelle.indd 5 16/11/2012 12:02 PM

6
Installing Your Phone
• Use only the mains adapter provided for the base unit.
• Use only NiMH rechargeable batteries.
Connecting the Base Unit
OK
Menu
2
ABC
1
DEF
3
5
JKL
4
GHI
MNO
6
8
TUV
7
PQRS
Mute
Int
WXYZ
9
0
R
Redial
Back
Calls
Del
Answer
ON/OFF
SKIP
REPEAT

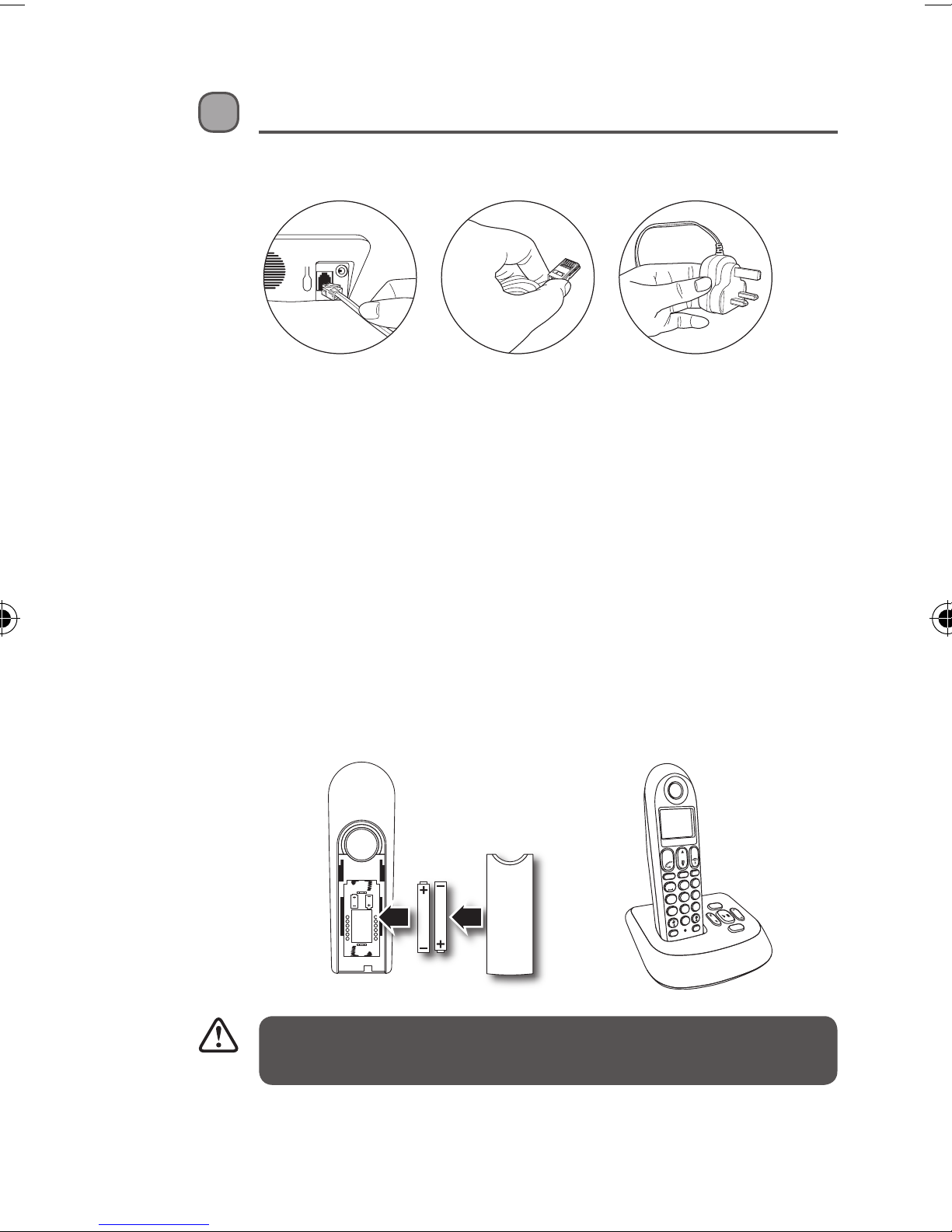

1. Plug the mains adaptor & telephone line cable into the base unit.
2. Plug the mains adaptor & telephone line cord into the wall socket.
3. Always use the cables provided in the box.
Installing and Charging the Batteries
1. Slide open the battery compartment cover.
2. Insert the 2 x AAA batteries (included) as indicated. Follow the polarity
indicated on the handset.
3. Slide the battery compartment cover back on.
4. Put the handset on the base unit to charge. Charge the handset for 14
hours the rst time you charge it. An audible tone indicates that the
handset is properly placed on the base unit.
L1_2DTAM11_running change_121116_Michelle.indd 6 16/11/2012 12:02 PM

7

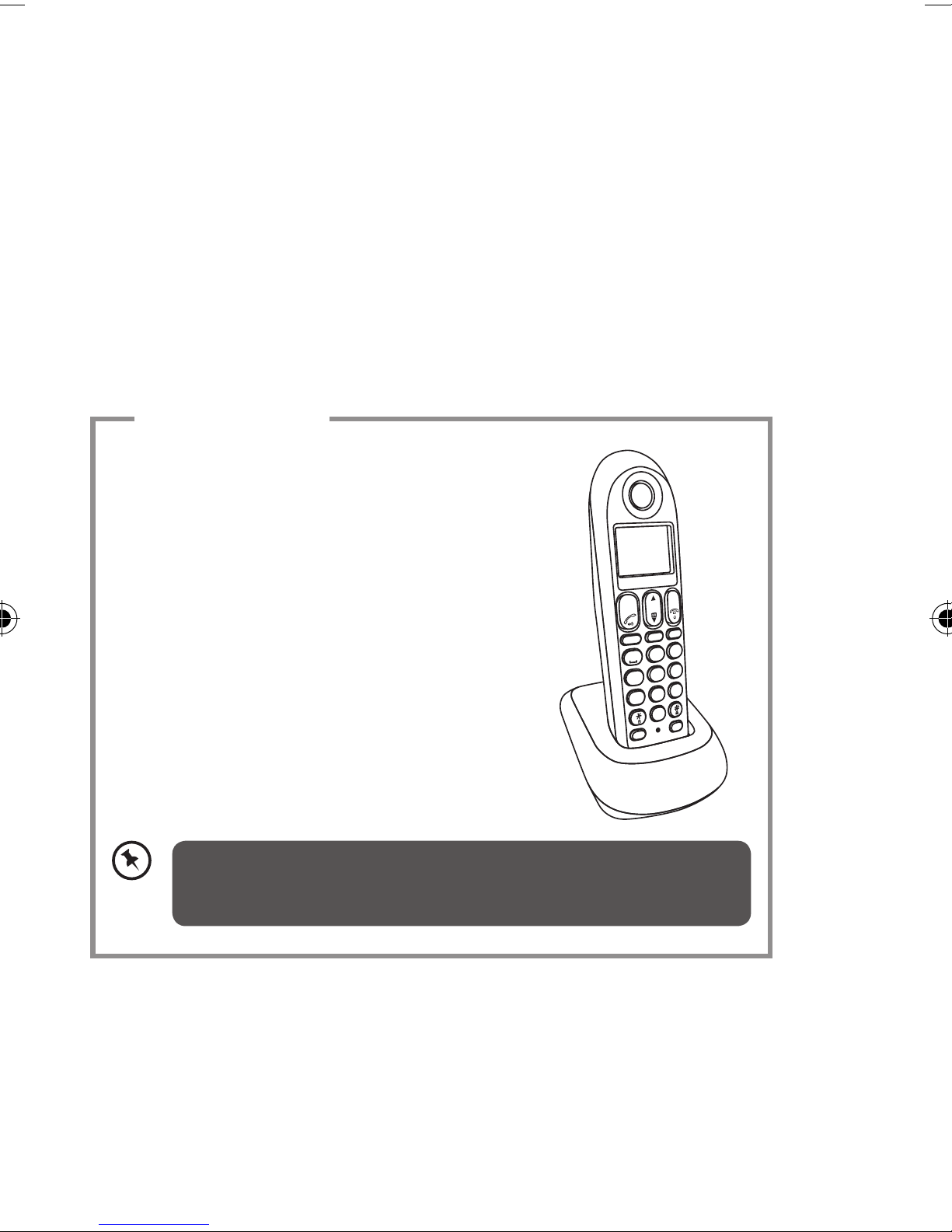

Place the charging cradle within reach of a mains
power socket.
1. Plug the charging cradle into the mains power
socket.
2. Insert 2 x AAA rechargeable batteries
(supplied), taking note of the ‘+’ and ‘-’
markings inside the battery compartment,
then slide the battery compartment back on.
3. Place the handset on the charging cradle. You
should let the batteries charge continuously
for at least 14 hours.
Handling the Batteries
• Improper or incorrect use of batteries may cause corrosion or battery
leakage, which could cause personal injury or damage to property.
• Install the batteries correctly by following the polarity (+ and -)
indications in the battery compartment.
• Use only the types of the batteries which are indicated in this manual.
• Do not install new batteries with used ones and do not mix dierent
types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of them
in accordance with local regulations.
OK
Menu
2
ABC
1
DEF
3
5
JKL
4
GHI
MNO
6
8
TUV
7
PQRS
Mute
Int
WXYZ
9
0
R
Redial
Back
Calls
for L2DTAM11 only
• The display will show the time and the handset number, e.g. 2, to
show it is registered to the base unit.
• Your phone is now set up to make and receive calls.
L1_2DTAM11_running change_121116_Michelle.indd 7 16/11/2012 12:02 PM

8
OK
Menu
1 2
ABC DEF
3
4 5
JKLGHI MNO
6
7 8
TUVPQRS
Mute Int
WXYZ
9
0
R Redial
Calls
Back
1
2
3
4
6
7
5
Getting to Know Your Phone
Handset Overview
1. Earpiece
2. Display
3. (Up) / Calls Button
• Press to increase volume and view CID.
(Down) / (Phonebook) Button
• Press to decrease volume and access
Phonebook.
4. OK Button
(Talk) / (Speakerphone) Button
• Press to make a call and to receive a call.
• Press to activate the speakerphone.
5. Menu Button
• Press to access to main menu.
6. / (Key Lock) Button
• Long press to activate or deactivate
the key lock.
7. Mute Button
• Press to mute the microphone and
press again to unmute.
8. Back Button
• Press to cancel a menu entry.
• Press to backspace the digit(s) or
character(s).
• Press and hold to toggle between
handset name and date/time in idle
mode.
(End) / (On/O) Button
• Press to end a call.
• Press and hold to turn the handset
on/o.
• Press to exit the menu/operation.
9. R (Flash) Button
• Press to ash the phone line.
10. Redial Button
• Press to enter redial list and dial the
recent number.
11. / (Ringer ON/OFF) Button
• Press to insert a pause.
• Long press to turn the ringer on/o.
12. Int Button
• Press to make a intercom call.
• Press to make a conference call.
13. Microphone
8
11
12
13
9
10
L1_2DTAM11_running change_121116_Michelle.indd 8 16/11/2012 12:02 PM

9
Base Unit Overview
Control Panel
Charging Cradle
Handset Locator Button
• Press to locate the missing handsets.
1
5
3
4
2
Del
Answer
ON/OFF
SKIP
REPEAT
6
7
1. Answer ON/OFF Button
• Press to switch the answering machine on/o.
2. (Play/Stop) Button
• Press to play or stop message playback.
3. Button
• Press to increase speaker volume.
4. Button
• Press to decrease speaker volume.
5. Del (Delete) Button
• Press to delete current message, long press to delete all read messages.
6. SKIP Button
• Press to skip to the next message.
7. REPEAT Button
• Press to go back to the previous message or replay the current message.
L1_2DTAM11_running change_121116_Michelle.indd 9 16/11/2012 12:02 PM

10
Display Icons and Symbols
Battery Charge
Level
Displays when the battery is fully charged.
Flashes when the battery is fully discharged.
Call Indicates that an external call is connected or held.
Icon ashes when receiving an incoming call.
Message Indicates you have a new voice mail message.
Caller display Indicates you have new missed calls, or the call log
is being viewed.
Phonebook Displays when the phonebook is accessed.
Alarm Displays when the alarm clock is activated.
Speakerphone Displays when the speakerphone is activated.
Ringer O Displays when ringer volume is turned o.
Tam
Slowly ashes to indicate new TAM message(s).
Fast ashes to indicate TAM is full.
Tam o to indicate TAM o.
Signal Level
Indicates that the handset is registered and within
range of the base station.
Icon ashes when the handset is out of range or is
searching for a base unit.
L1_2DTAM11_running change_121116_Michelle.indd 10 16/11/2012 12:02 PM
