Logik L20DBIG10 User manual

Instruction Manual
Cordless Big Button
Telephone
L20DBIG10

Contents
Safety First .................................................................................................... 4
Unpacking..................................................................................................... 6
Installing Your Phone ................................................................................... 7
Connecting the Base Unit...........................................................................................7
Installing and Charging the Batteries.....................................................................7
Handling the Batteries.................................................................................................8
Getting to Know Your Phone ....................................................................... 9
Handset Overview......................................................................................................... 9
Base Unit Overview.....................................................................................................10
Display Icons and Symbols.......................................................................................11
Menu Structure.............................................................................................................12
Using Your Phone........................................................................................13
To Make a Call................................................................................................................13
To Make a Call from Direct Access Memory .......................................................14
To Answer a Call ...........................................................................................................14
Audio Boost Feature ...................................................................................................14
To End a Call...................................................................................................................14
Adjust Earpiece and Handsfree Volume..............................................................15
Mute a Call......................................................................................................................15
Set the Silent Mode.....................................................................................................15
Turn on the Keypad Lock ..........................................................................................15
Redial the last number...............................................................................................15
Find the Handset..........................................................................................................17
Make an Internal Call..................................................................................................17
Private Phonebook.....................................................................................19
Add a New Phonebook Entry ..................................................................................19
Search a Phonebook Entry .......................................................................................19
View a Phonebook Entry...........................................................................................19
Edit a Phonebook Entry.............................................................................................20
Delete a Phonebook Entry .......................................................................................20

Delete the Entire Private Phonebook...................................................................20
Check the Phonebook Usage..................................................................................20
Set the Fast Dial Numbers ........................................................................................21
Caller Display (Network Dependent)............................................................. 22
View the Call List ..........................................................................................................22
Store a Call List Number into the Phonebook...................................................22
Delete an Entry in the Call Log................................................................................23
Delete the Entire List of the Call Log.....................................................................23
View the Details of the Call List Entry...................................................................23
Voice Mail (Network Dependent) ..............................................................24
Access Voice Mail Messages.....................................................................................24
Delete VMWI Entries ...................................................................................................24
Delete All VMWI Entries .............................................................................................25
Phone Settings............................................................................................ 26
Clock Settings ...............................................................................................................26
Set the Time...................................................................................................................26
Set the Date ...................................................................................................................27
Alarm Settings ..............................................................................................................27
Handset Settings..........................................................................................................28
Set the Equalizer ..........................................................................................................29
Select Base .....................................................................................................................30
Set the Handset Language.......................................................................................30
Rename the Handset..................................................................................................30
Choose the Information to be displayed in Idle ...............................................30
Set the Auto Answer...................................................................................................31
Set the Direct Memory Buttons..............................................................................31
Set the Mailbox Number...........................................................................................31
Base Settings .................................................................................................................32
Registration....................................................................................................................33
Reset Your Phone.........................................................................................................34
Text and Digit Entry Table.........................................................................................35
Hints and Tips .............................................................................................38
Specication ...............................................................................................39

4
Safety First
For your continued safety and to reduce the risk of injury or electric
shock, please follow all the safety precautions listed below.
• Read all instructions carefully before using the telephone and keep
them for future reference.
• Retain the manual. If you pass the telephone onto a third party,
make sure to include this manual.
• Follow all warnings and instructions marked on the telephone.
• Do not use the product near water for example near a bathtub,
kitchen sink, etc.
• Place the product securely on a stable surface. Serious damage and/
or injury may result if the product falls.
• Do not cover slots and openings on the telephone. They are
provided for ventilation and protection against overheating.
Never place the telephone near radiators, or in place where proper
ventilation is not provided.
• Do not place objects on the telephone cable. Install the phone
where no one can step or trip on the telephone cable.
• To reduce the risk of injury or electric shock, do not disassemble the
telephone. Incorrect reassembly can cause electric shock when the
product is subsequently used.
• During thunderstorms, avoid using telephones except cordless
types. There may be a remote risk of an electric shock from
lightning.
• Do not use the telephone to report a gas leak, when in the vicinity
of the leak.
• Young children should be supervised to ensure that they do not
play with the telephone.
• The telephone is not intended for use by persons (including
children) with reduced sensory or mental capabilities, or lack of
experience and knowledge unless they have been given supervision
or instructions concerning the use of the phone by a person
responsible of their safety.

5
• Battery - To reduce the disk of injury to persons, read and follow
these instructions.
• Use only the battery(ies) specied. Do not dispose the battery(ies) in
a re. They may explode. Check with local council oce for special
disposal instructions not open or mutilate the battery(ies).
• Released electrolyte from batteries is corrosive and may cause
burns or injury to the eyes or skin. The electrolyte may be toxic if
swallowed.
• Exercise care when handling the battery(ies). Do not allow
conductive materials such as rings, bracelets or keys to touch the
battery(ies).
• Otherwise a short circuit may cause the battery(ies) and/or the
conductive material to overheat and cause burns.
• Environment - Place the unit in a room where the temperature is
between 0°C and 40°C. Allow 5cm clearance around the unit for
proper ventilation.
• Avoid excessive smoke, dust, mechanical vibration, shock, or direct
sunlight.
• Cleaning - Wipe the unit with a soft cloth. Do not use benzine,
thinner, or any abrasive cleaners.
• If there is no sound - Disconnect the unit from the telephone line
and connect a known working phone. If the known phone does
not operates or have sound, then it could be the phone line issues.
Please contact your telephone company for assistance.
• Moving your phone - Carefully pack your unit, preferably in the
original packaging.
• Disposal - Old units still have some residual value. An
environmentally friendly method of disposal will ensure that
valuable raw materials can be recovered and used again. Up to
date information concerning options of disposing of your old unit
and packaging from the new one can be obtained from your local
council oce.
Use only power supplies listed in the user instructions.
• The base unit must be used only with the adapter supplied by Ten
Pao Industrial Co., Ltd.: S002CB060030 / S003IB0600030.
• For pluggable equipment, the socket-outlet (power adapter) shall
be installed near the equipment and shall be easily accessible.

6
Base Unit x 1 Mains Adapter x 1
Telephone Linecord x 1
Handset x 1
AAA Batteries x 2 Instruction manual x 1
Charging Cradle x 1Handset x 1 AAA Batteries x 2
Thank you for purchasing your new product.
We recommend that you spend some time to read this instruction
manual in order to fully understand how to install and operate it.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.

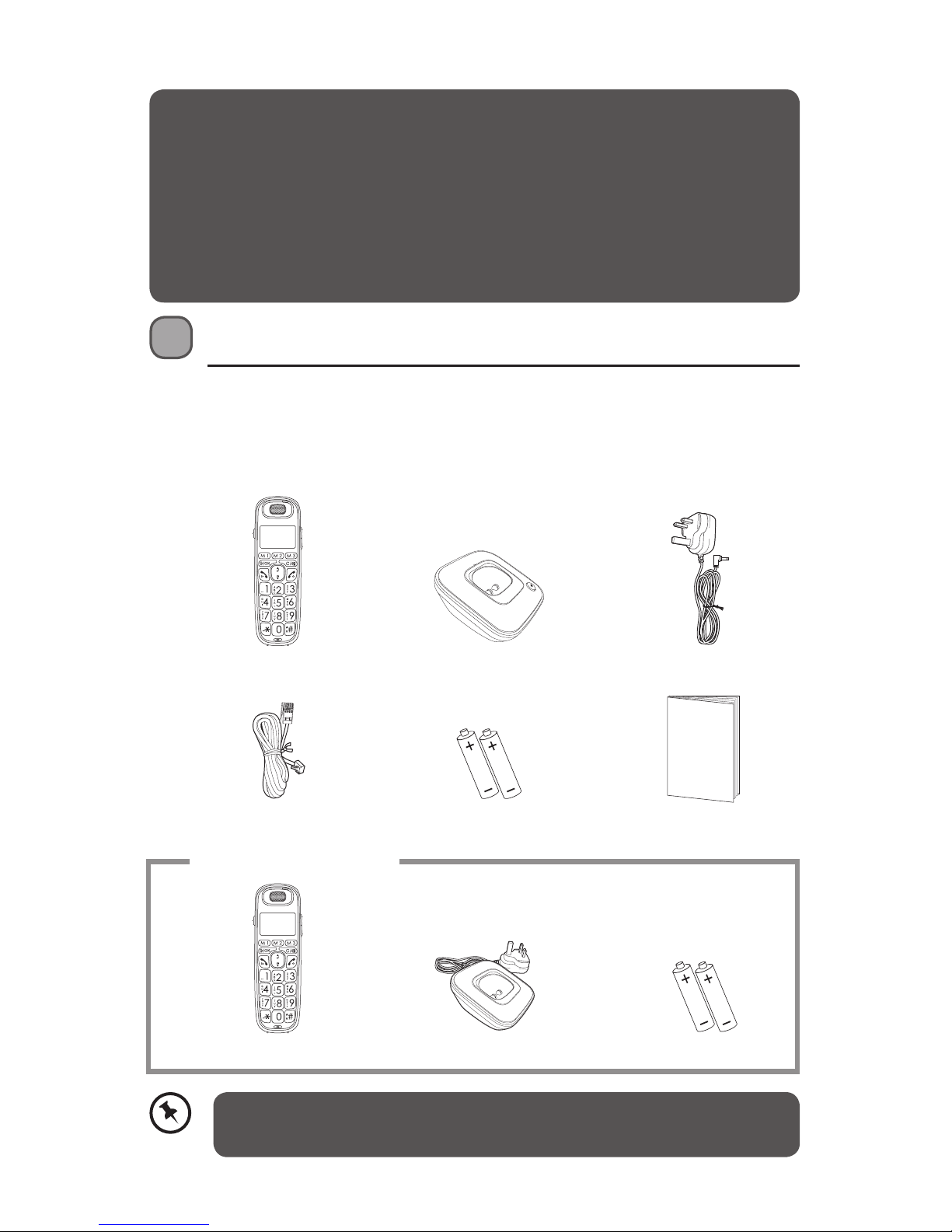

Unpacking
Remove all packaging from the unit. Retain the packaging. If you
dispose of it please do so according to local regulations.
The following items are included:
If items are missing, or damaged please contact Partmaster
(UK only). Tel: [phone] for assistance.
for L20DBIG10 only
Instruction
Manual

7
Installing Your Phone
• Use only the power pack provided for the charging cradle.
• Use only NiMH rechargeable batteries.
Connecting the Base Unit
1. Plug the mains adaptor & telephone line cable into the base unit.
2. Plug the mains adaptor & telephone line cord into the wall socket.
3. Always use the cables provided in the box.
Installing and Charging the Batteries
1. Slide open the battery compartment cover.
2. Place the two batteries as indicated. Follow the polarity indicated on
the handset.
3. Slide the battery compartment cover back on.
4. Put the handset on the base unit to charge. Charge for 14 hours the
rst time you charge. A beep indicates that the handset is properly
placed on the base unit.

8
Place the charging cradle within reach of a
mains power wall socket.
1. Plug the mains power adaptor into the
mains power wall socket.
2. Insert the 2 x AAA rechargeable batteries
supplied, taking note of the ‘+’ and ‘-’
markings inside the battery compartment,
then slide the battery compartment back
on.
3. Place the handset on the charging cradle.
You should let the batteries charge
continuously for at least 14 hours.
Handling the Batteries
• Improper or incorrect use of batteries may cause corrosion or
battery leakage, which could cause personal injury or damage to
property.
• Install the batteries correctly by following the polarity (+ and -)
indications in the battery compartment.
• Use only the types of the batteries which are indicated in this
manual.
• Do not install new batteries with used ones and do not mix dierent
types of batteries.
• Do not dispose of the used batteries as domestic waste. Dispose of
them in accordance with local regulations.
• The display will show the time and the handset number,
e.g. 2, to show it is registered to the base.
• Your phone is now set up to make and receive calls.
for L20DBIG10 only

9

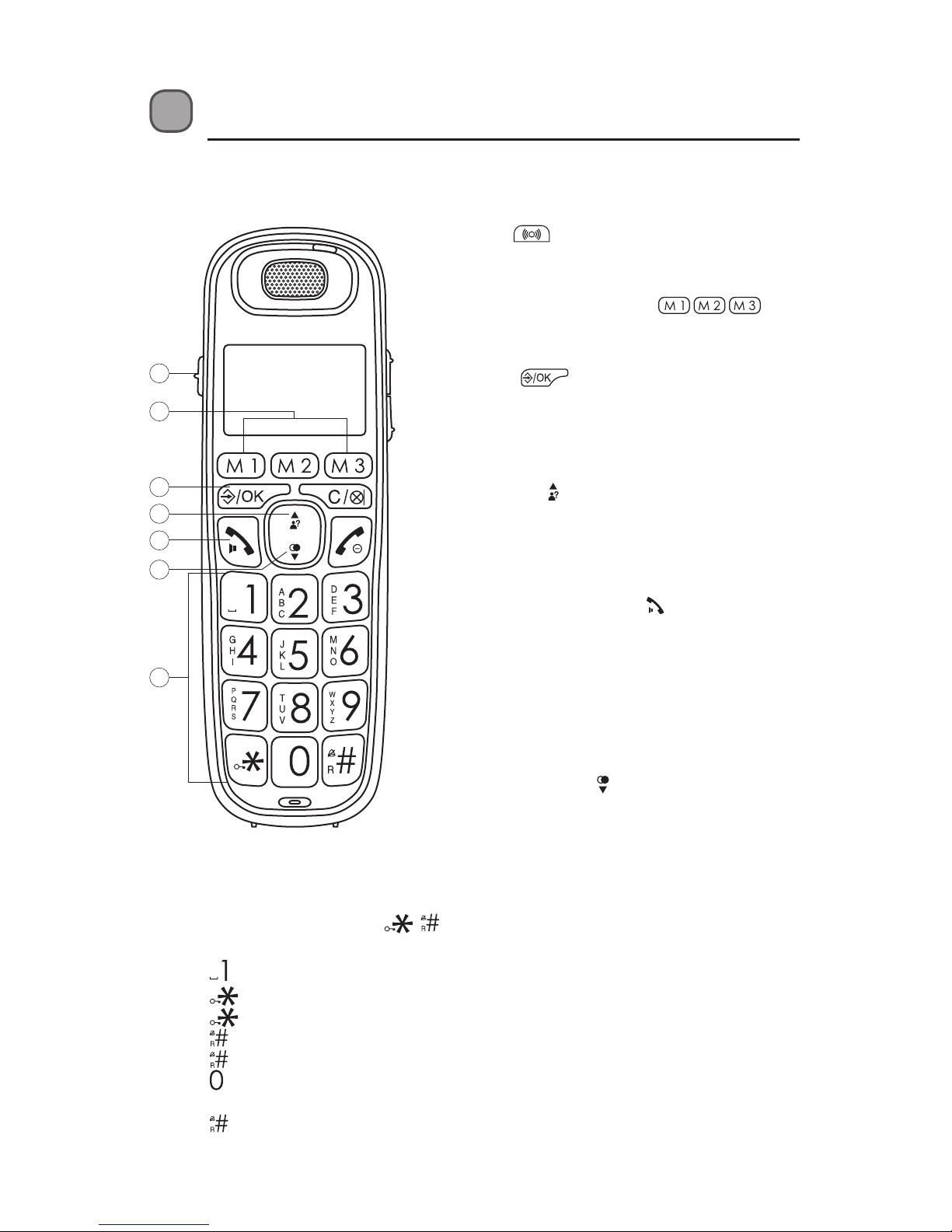

1. AMPLIFY
During a call: Press to turn on or o the audio
boost.
2. DIRECT MEMORY BUTTONS
In idle mode: Press and hold to dial the stored
number.
3. MENU/OK
In idle mode: Press to access the main menu.
In sub-menu mode: Press to conrm the selection.
During a call: Press to access Intercom /
Phonebook / Redial List / Call List.
4. UP/CALL LOG
In idle mode: Press to access the call list.
In menu mode: Press to scroll up the menu items.
In Contacts list / Redial list / Call List: Press to scroll
up the list.
5. TALK ON/SPEAKERPHONE
In idle / predialing mode : Press to make a call.
Press again to turn on the speakerphone.
In Redial list / Call List / Contacts entry: Press to
make a call to the selected entry in the list. Press
again to turn on the speakerphone.
During ringing: Press to answer a call. Press again
to answer with speakerphone.
6. DOWN/REDIAL LIST
In idle mode: Press to access the redial list.
In menu mode: Press to scroll down the menu
items.
In Contacts list / Redial list / Call List: Press to scroll
down the list.
1
2
3
4
5
6
7
Getting to Know Your Phone
Handset Overview
7. ALPHANUMERIC KEYPAD, ,
Press to insert a digit / character / * / #.
The button in idle mode: Press and hold to access voice mail.
The button in idle mode: Press and hold to enable or disable the keypad lock.
The button during a call (in Pulse mode): Press to switch to tone mode.
The button during a call: Press and hold to insert a ash.
The button in Idle mode: Press and hold to turn on / o the ringer.
The button in idle / predialing / number editing mode: Press and hold to insert
a pause.
The button in Call List mode: Press to review caller’s number if applicable.

10
8. LED
Illuminates when audio boost is turned on.
Flashes when receiving an incoming call.
9. EARPIECE
10. SLIDE UP/DOWN
During a call: Press to increase or decrease the
earpiece volume.
11. CLEAR/BACK/MUTE/INTERCOM
In main menu mode: Press to go back to idle
screen.
In sub-menu mode: Press to go back to previous
level.
In sub-menu mode: Press and hold to go back to
idle screen.
In editing / predialing mode: Press to clear a
character / digit.
In editing / predialing mode: Press and hold to
delete all the characters / digits.
During a call: Press to mute / unmute the
microphone.
In idle mode: Press to intercom another handset.
12. TALK OFF
During a call: Press to end a call and go back to
idle screen.
In menu / editing mode: Press to go back to
previous menu.
In menu / editing mode: Press and hold to go
back to idle screen.
In idle mode: Press and hold to power o the
handset.
In idle mode (when the handset is powered o):
Press and hold to power on the handset.
13. MICROPHONE
8
9
10
11
12
13
1
2
Base Unit Overview
1. CHARGING CRADLE
2. PAGE
Press the button on the base unit
to page your handset. It will ring for
approximately 60 seconds.
