Logik LVD6W13 Parts list manual

Instruction / Installation Manual
Air-vented Tumble Dryer
LVD6W13

Contents
Safety Warnings............................................................................................................................ 4
Unpacking..................................................................................................................................... 9
Installing Your Dryer .................................................................................................................. 10

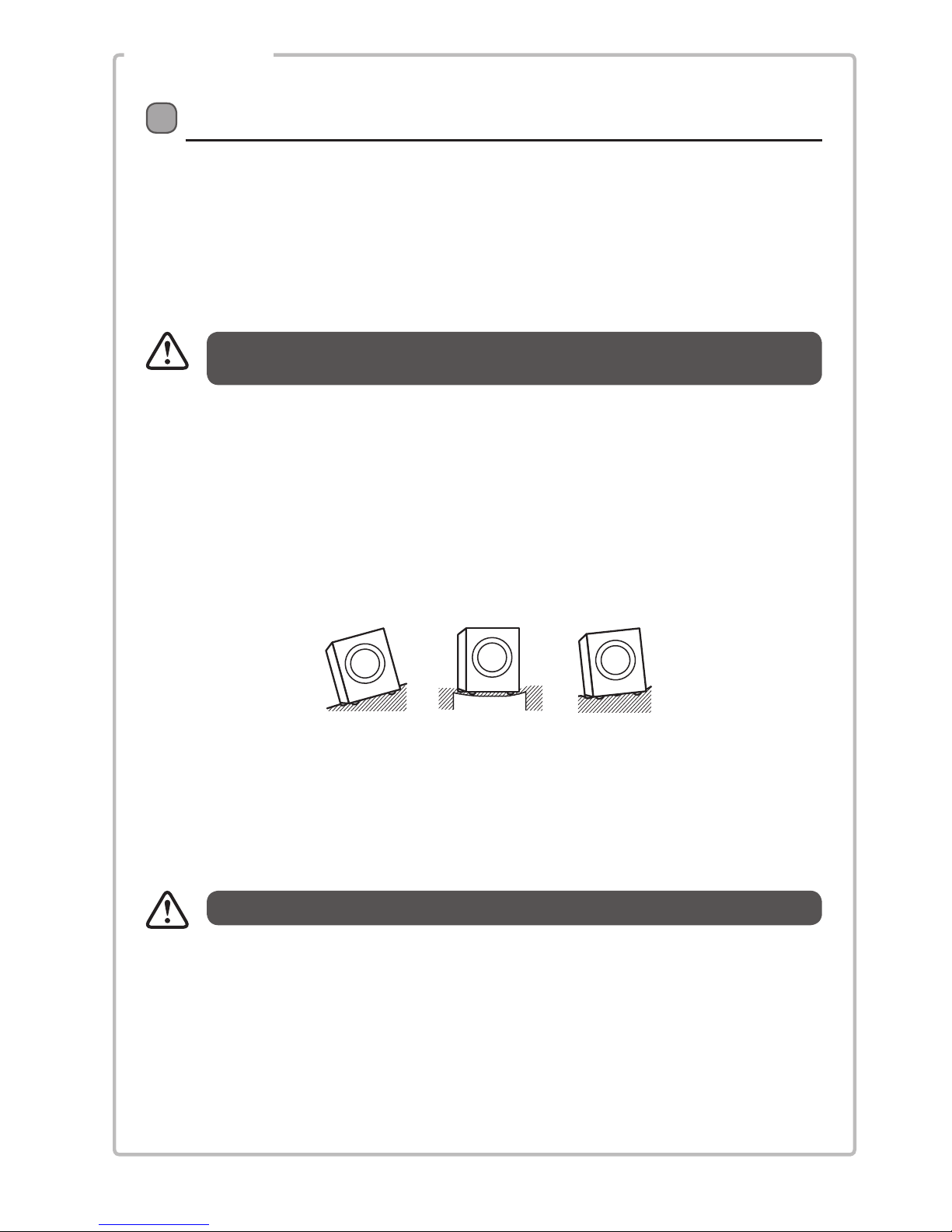

Choosing the Right Location for Your Dryer................................................................................................10
Moving and Installing ................................................................................................................ 11
Moving the Dryer from One Location to Another.....................................................................................11

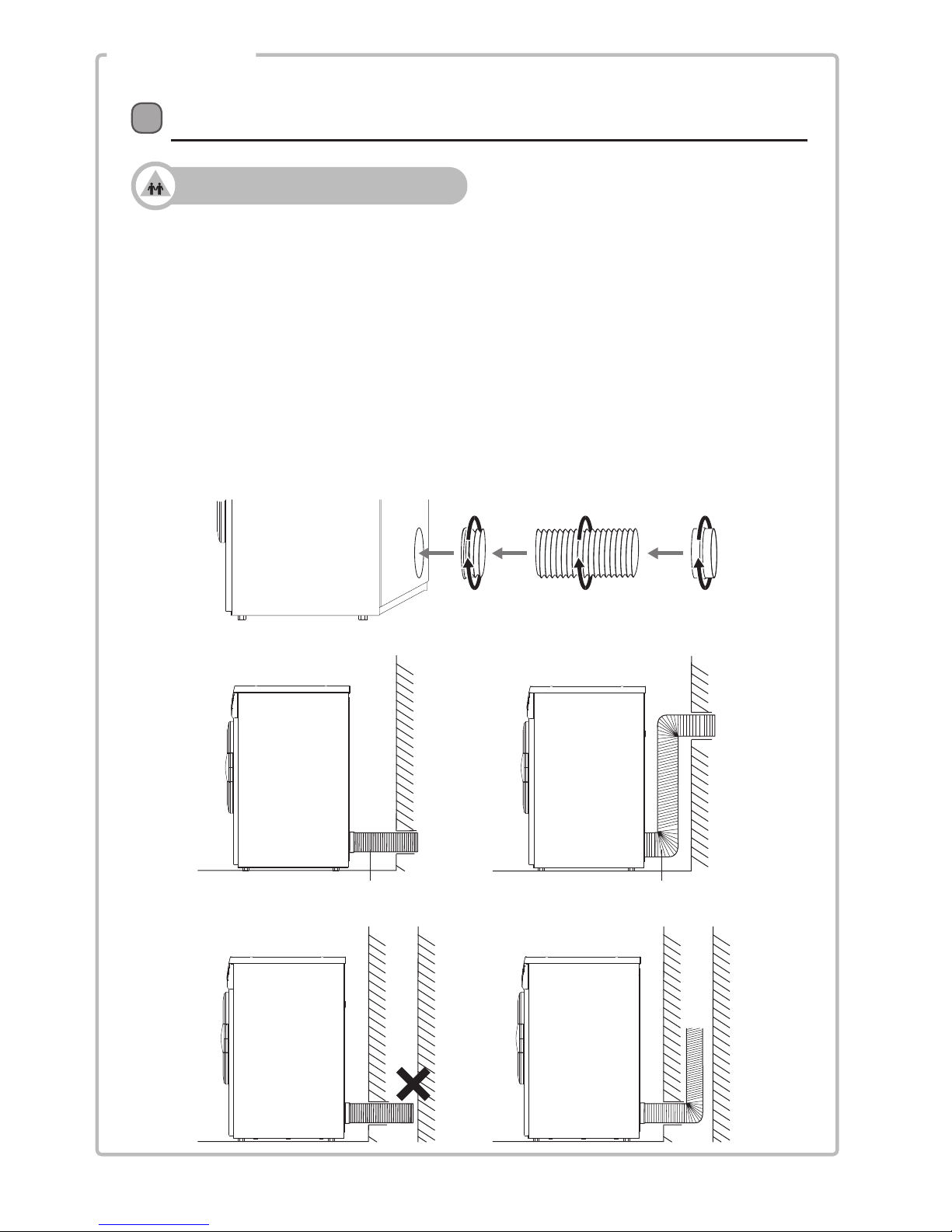

Installing the Vent Hose ......................................................................................................................................11

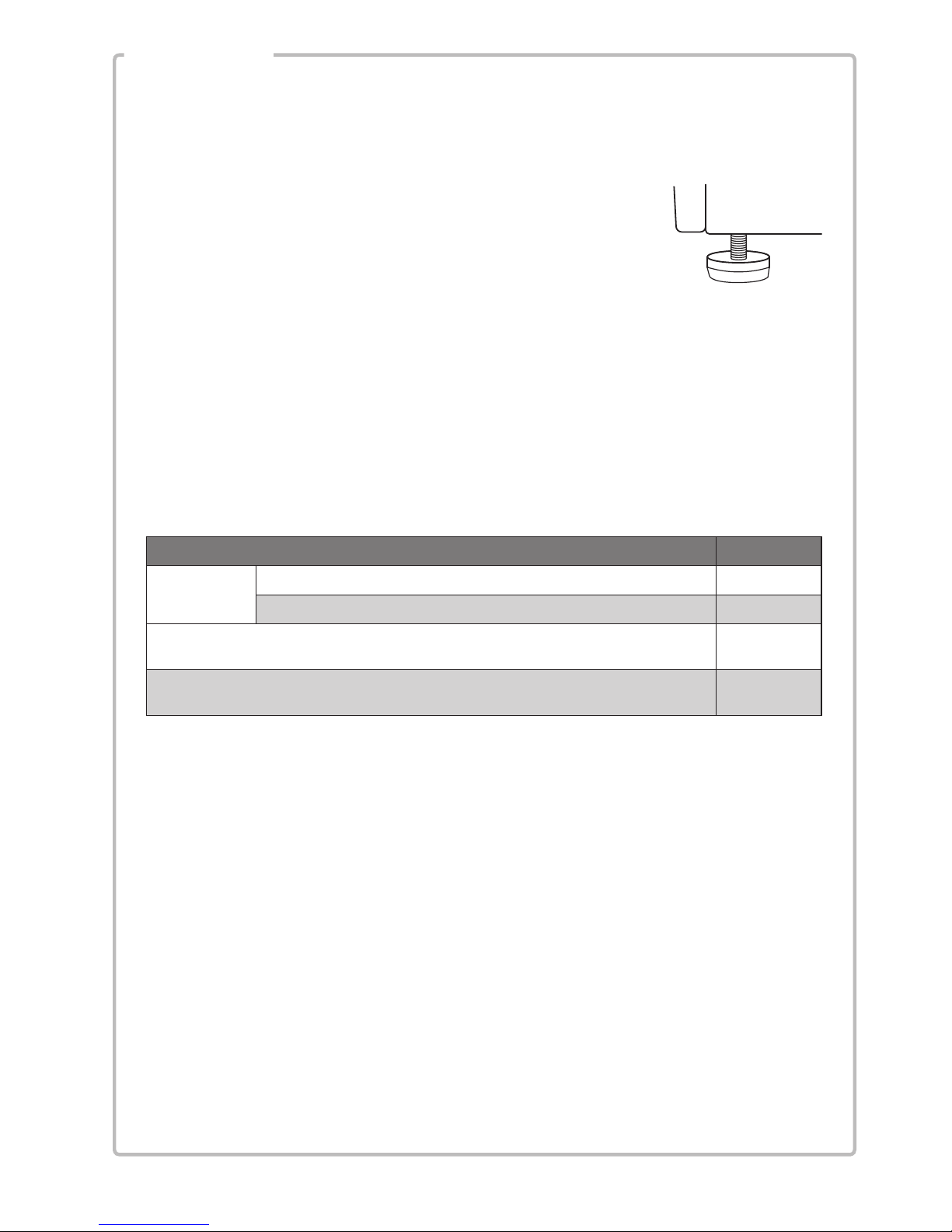

Levelling the Dryer................................................................................................................................................12
Connecting to the Mains Supply .....................................................................................................................12
Product Overview....................................................................................................................... 13

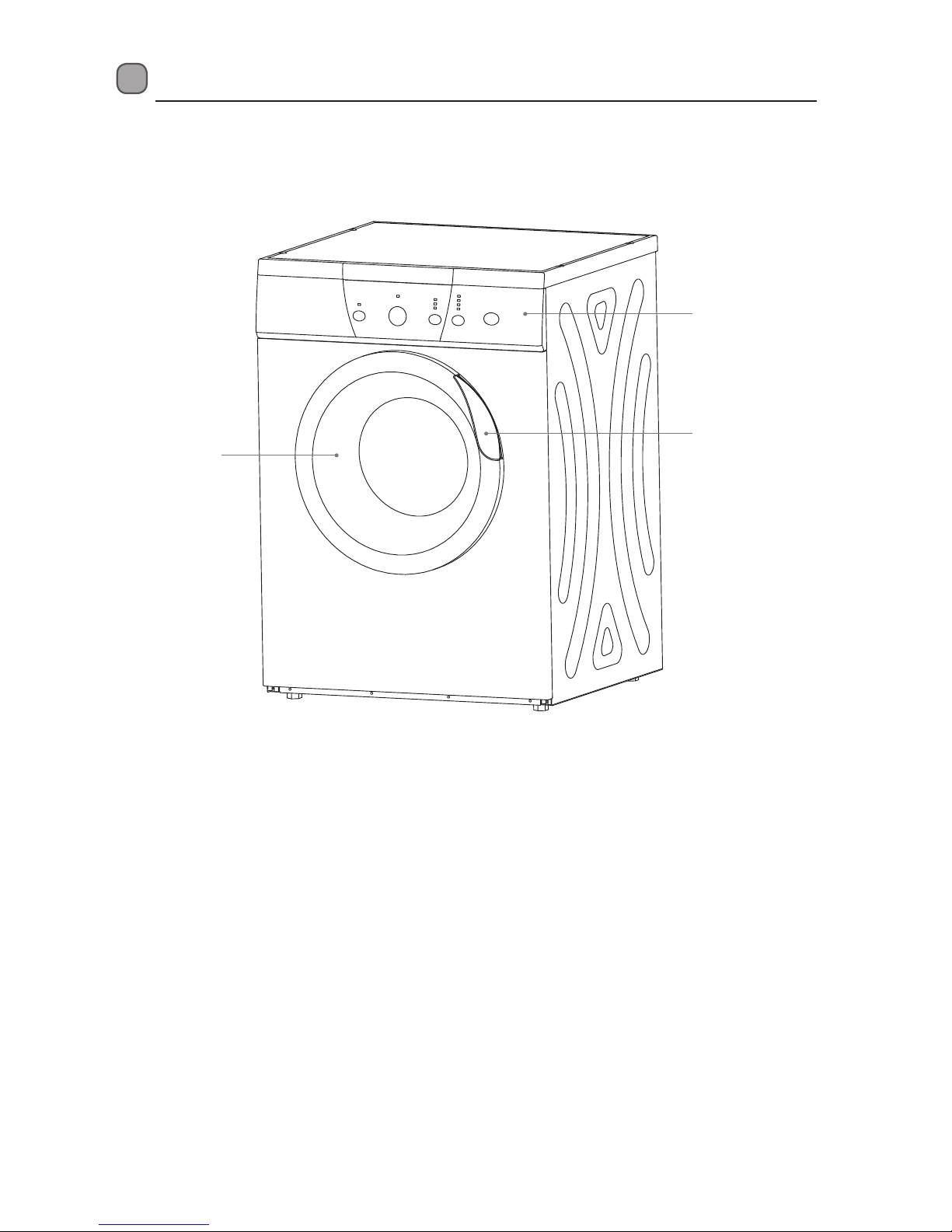

The unit .....................................................................................................................................................................13

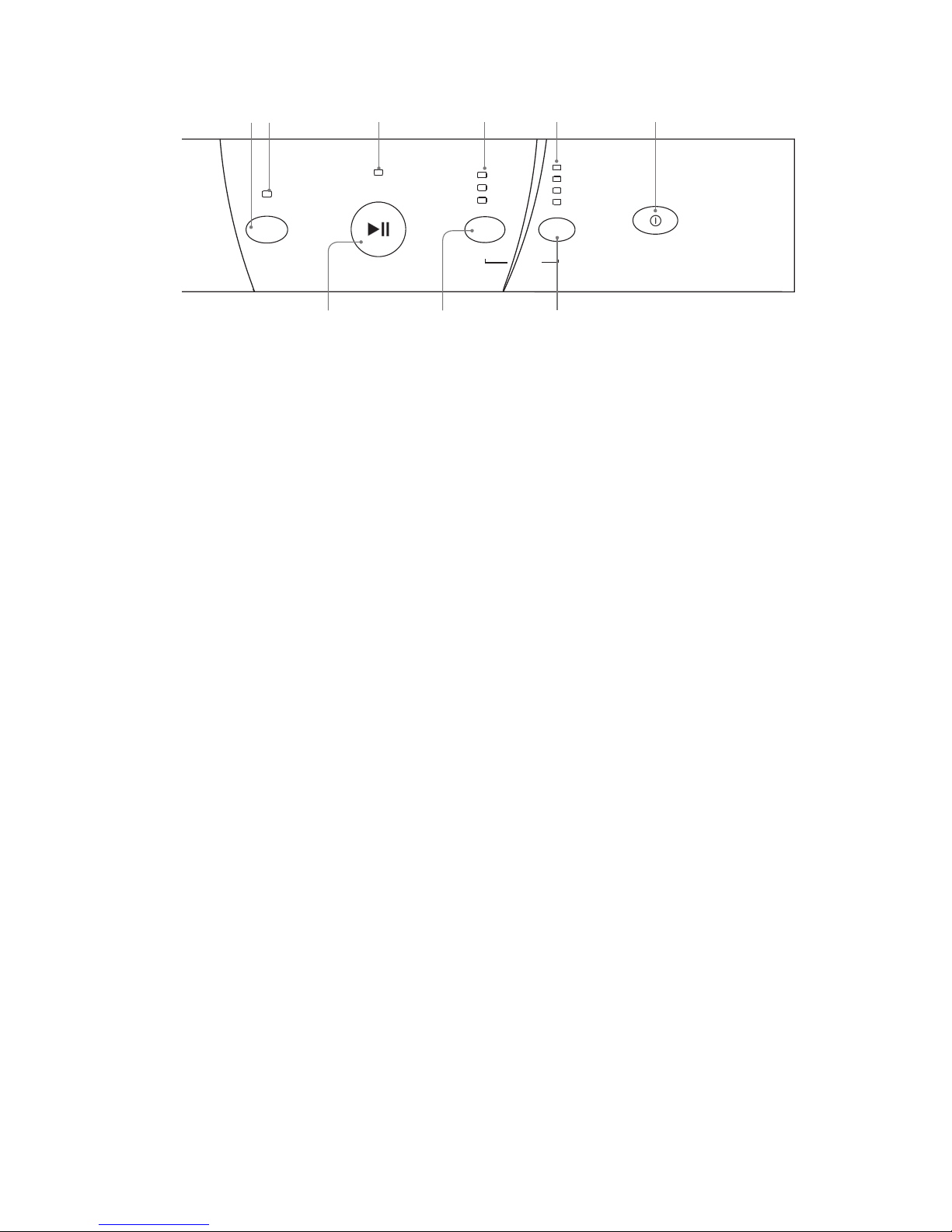

Control Panel ..........................................................................................................................................................14
Preparation ................................................................................................................................. 15
Preparing to Tumble Dry Laundry...................................................................................................................15
Organising Laundry..............................................................................................................................................15
Selecting the Programme...................................................................................................................................16
Drying Laundry Loads 0.5kg or Less...............................................................................................................16
Dry Programme Setting ............................................................................................................. 17
First Time Use..........................................................................................................................................................17
Standard Drying Cycle......................................................................................................................................... 17
Tips for Optimum Drying....................................................................................................................................17
Cancelling a Programme ....................................................................................................................................17
Removing Laundry................................................................................................................................................18
Switching O .......................................................................................................................................................... 18
Setting the Child Lock..........................................................................................................................................18
Maintenance – Cleaning the Dryer............................................................................................ 19
Cleaning the Drum................................................................................................................................................19
Cleaning the Exterior of your Dryer................................................................................................................19
Cleaning the Door Seal and Window .............................................................................................................19
Cleaning the Lint Filter ........................................................................................................................................19
Cleaning the Vent Hose.......................................................................................................................................19
Hints and Tips ............................................................................................................................. 20
Troubleshooting ......................................................................................................................... 21
Error Code ................................................................................................................................................................21
Specications.............................................................................................................................. 22
Product Fiche .............................................................................................................................. 23

4
Safety Warnings
For your continued safety and to reduce the risk of injury or electric shock,
read all instructions carefully before using the unit and keep them for
future reference. Please follow all the safety precautions listed below.
Retain this manual. Include this manual if you pass the unit onto a third
party.
WARNING!
• Do not climb on the dryer. You may hurt yourself or damage the dryer.
• If you will not be using the dryer for a while, such as when you go on
holiday, turn o the electricity supply to the dryer and remove the plug
from the socket.
• Never stop a tumble dryer before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is dissipated.
• Never store plastic, paper or clothing that may burn or melt on top of the
dryer during operation.
• Keep ammable substances well away from the dryer – for example
kerosene, gasoline, benzene, paint thinner and alcohol, or clothing
soaked with these. They may cause an explosion or a re.
Installation
• Check that the voltage marked on the rating label matches your mains
voltage.
• The appliance must be placed on a at stable surface (not on a carpet)
and should not be subjected to excessive vibrations or any impact.
• Do not install your dryer anywhere that is exposed to high humidity,
water or the weather. If you do, it may cause an electric shock, re, failure
or deterioration.
• Your tumble dryer should NOT be located next to a gas hob, cooker,
heater, or eye-level grill as ames from the burners could cause damage
to your machine.
• DO NOT operate the dryer in an enclosed environment, ensure the dryer
is adequately ventilated.
• If the dryer is enclosed or tted under a work surface, a gap of at least
10mm must be allowed above the top of the dryer and at least 25mm
(1”) either side. This allows air to enter into the rear air inlet. The dryer
must NEVER be run in a cupboard with a closed door.

5
• Do not stack the tumble dryer on top of other appliances.
• Any electrical work required to install the appliance should be carried
out by a qualied person.
• Failure to install, maintain and/or operate the dryer according to the
manufacturer’s instructions may result in conditions which can lead to
bodily injury and/or property damage.
• Ensure that the end of the hose is not directed towards the air intake
grille at the rear of the dryer.
• The ventilation openings at the rear of dryer must not be obstructed by a
carpet.
• The exhaust air must not be discharged into a ue that is used to extract
fumes from an appliance burning gas or other fuels.
• The appliance must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the tumble
dryer, in such a way that a full opening of the tumble dryer door is
restricted.
• Do not use a mains plug adapter or extension cable. It may overheat and
cause a re.
• Do not operate this dryer until you are sure the dryer has been installed
according to the INSTALLATION INSTRUCTIONS, and installation and
grounding are in compliance with all local codes and/or other applicable
codes and requirements.
• Before the appliance is removed from service or discarded, remove the
door to the drying compartment.
Caring for Laundry
• The dryer must only be used for its intended purpose.
• Always observe the rules for drying garments. If in doubt, do NOT tumble
dry.
• Take particular care that woolen articles are NOT dried in a tumble dryer
unless they are labelled ‘Superwash’, ‘Machine Washable’ or have the ‘May
be tumble dried’ symbol. If in any doubt, do not dry wool in the machine.
Unlike other materials, the mechanism of wool shrinkage is irreversible,
i.e. it will not stretch back to its original size and shape.
• Do not dry water-proof sheets or clothing. These may cause dryer failure,
which could lead to injury, or damage to the laundry or to the dryer.

6
• Do not use heat to dry clothing containing foam rubber (may be labelled
“Latex Foam”), plastic, or similarly-textured rubber-like materials. Foam
rubber materials under certain circumstances, when heated, can be
ignited by spontaneous combustion.
• Do not use fabric softeners or products to eliminate static unless
recommended by the manufacturer of the fabric softener or product.
• Do not dry unwashed items in the tumble dryer.
• Do not attempt to dry dripping wet articles.
• Do not overload the dryer with laundry. Drying results may be
unsatisfactory.
• Be careful not to get your laundry caught in the door when you close it.
This could damage your laundry.
• Always check and remove objects such as nails, pins, coins, clips, etc.
Cigarette lighters, in particular, present a hazard that can be avoided by
this process. They could damage your laundry or the dryer.
• Do not dry articles that have been previously cleaned in, washed
in, soaked in, or spotted with gasoline, dry cleaning solvents, other
ammable, or explosive substances as they give o vapours that could
ignite or explode.
• To reduce the risk of re, clothes, cleaning rags, mop heads and the like
which have traces of any ammable substance, such as vegetable oil,
cooking oil, petroleum based oils or distillates, waxes, fats, etc., must
not be placed in the dryer. These items may contain some ammable
substance(s) even after washing, which may smoke or catch re by itself.
General Use
• This appliance is for normal, indoor, household, domestic use only.
• Make sure the mains plug is pushed rmly in the socket. A loose
connection may overheat and cause electrical shock or a re.
• Check the mains lead and mains plug for any wear and tear, looseness,
or damage. If the mains cable is damaged, it must be replaced by a
qualied service agent in order to avoid a hazard.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains
plug, it could cause a re. To prevent this, unplug the cable and clean the
mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the

7
cable. Pulling the cable may cause an electric shock or a re.
• Do not touch the laundry inside the dryer, not until the drum has
completely stopped. Even if the drum is spinning at low speed it can
cause an injury. Take particular care of children.
• Do not operate the dryer with any guards and/or panels removed.
• Never attempt to operate this appliance if it is damaged, malfunctioning,
has missing or broken parts, including a damaged mains cable or plug.
• Do not bypass any safety devices.
• Do not allow the air inlet at the back of the dryer, the air outlet or vent
hose to be obstructed.
• Do not touch the mains lead or mains plug with wet hands. It may cause
an electric shock.
• Do not put any electrical equipment near the dryer.
• The nal part of a tumble dryer cycle occurs without heat (cool down
cycle) to ensure that the items are left at a temperature that ensures that
the items will not be damaged.
• Children shall not play with the appliance. Children must be closely
supervised to ensure that they do not play with the appliance.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Cleaning and user maintenance shall
not be made by children unless they are older than 8 and supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.
CAUTION: WHEN THE DRYER IS IN USE AVOID
TOUCHING THE REAR OF THE DRYER AS IT MAY
BE HOT.
Cleaning & Maintenance
• Clean the Lint Filter before and after every load.
• Keep all the area surrounding exhaust openings free from accumulation
of dust, lint and dirt. An obstructed opening may reduce airow and
eciency.
• Do not use the dryer if industrial chemicals have been used for cleaning.

8
• Do not pour water directly onto any part of the dryer. It may cause a
short circuit or electric shock.
• Keep burning objects, such as candles or cigarettes, away from the dryer.
They may cause a re or damage.
• The interior of the machine and exhaust duct should be cleaned
periodically by qualied service personnel.
• Do not dismantle, repair or modify the dryer. The dryer could
malfunction and cause a re or injury. If service is required, contact a
qualied service agent.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.

9

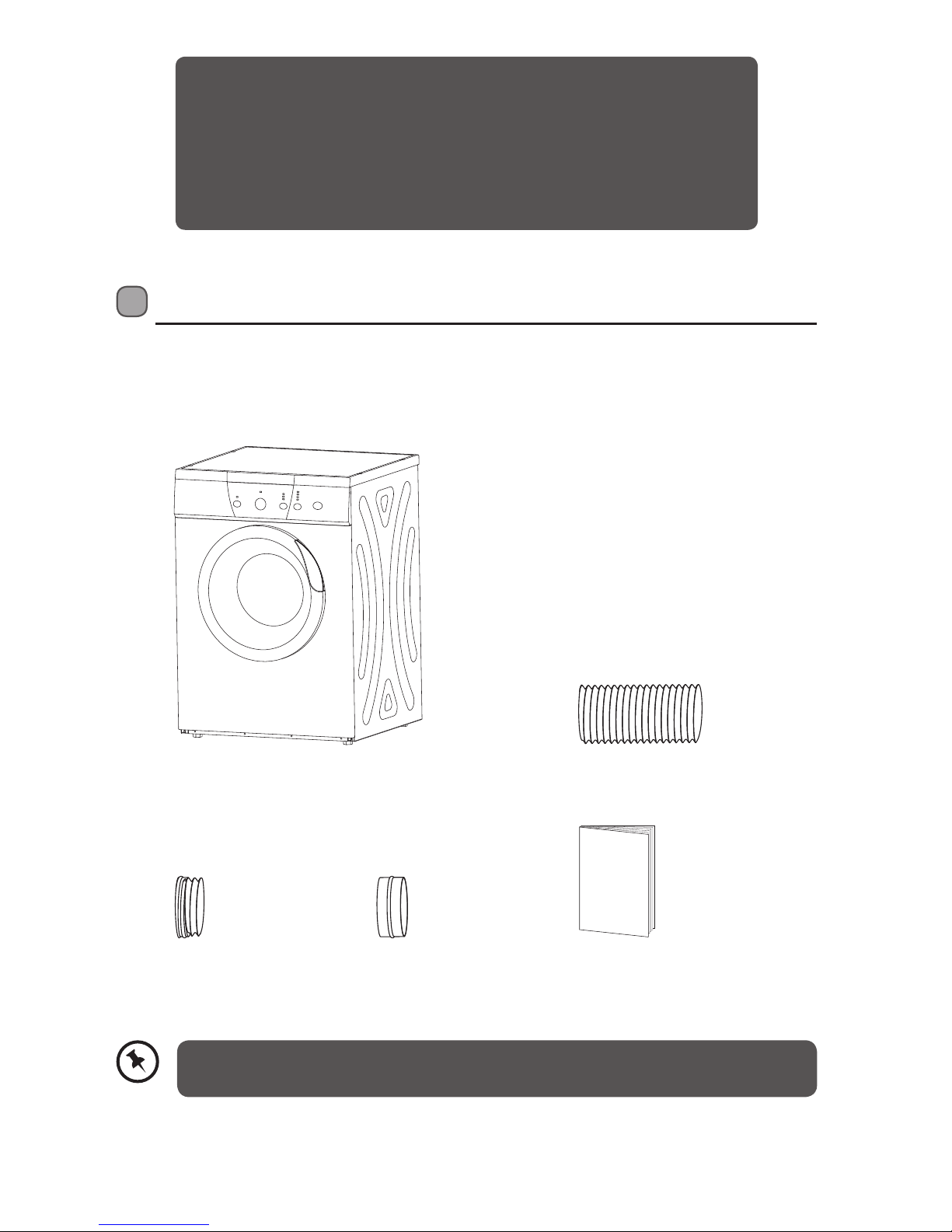

Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
The Main Unit
Adapter A x 1 Adapter B x 1 Instruction Manual
Vent Hose x 1
* All images in this document are for indication only; please see your individual product for
details.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Thank you for purchasing your new Logik Dryer.
We recommend that you spend some time reading this instruction manual in
order that you fully understand all the operational features it offers. You will also
find some hints and tips to help you resolve any issues.
Read all the safety instructions carefully before use and keep this instruction
manual for future reference.
Instruction
Manual

INSTALLATION
10
Installing Your Dryer
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant power
supply companies may apply. If in doubt, have the dryer connected by a qualified
technician.
• The dryer is heavy - caution when lifting it. Do not lift by projecting components
(e.g. dryer door).
• Lay hoses and cables in such a way that there is no risk of tripping over them.
Choosing the Right Location for Your Dryer
• Make sure there is enough space for your dryer.
• Install your dryer on a flat, stable surface to avoid excessive vibrations and noise.
• Do not install your dryer in direct sunlight or in a place where temperatures reach
freezing.

Sloping
surface
Unstable Bumpy
surface
• Start by tilting the dryer backwards.
• One person should stand behind it, holding the rear of the top panel. The other person
should grip the bottom feet at the front.
• Do not touch the door opening button while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the dryer to a qualified technician.
An additional space of (150mm) is required at the rear of the dryer. This is to allow enough
space for the vent hose.
Two or more people are required to move the dryer.
