Logik LVD7W18 Parts list manual

7kg Vented Tumble Dryer
Instruction / Installation Manual
LVD7W18

Contents
Safety Warnings...................................................................................................................................4
Unpacking............................................................................................................................................9
Installing Your Dryer .........................................................................................................................10
Choosing the Right Location for Your Dryer........................................................................................................ 10
Moving and Installing .......................................................................................................................11
Moving the Dryer from One Location to Another............................................................................................. 11
Installing the Vent Hose.............................................................................................................................................. 11
Levelling the Dryer........................................................................................................................................................ 12
Connecting to the Mains Supply ............................................................................................................................. 12
Product Overview..............................................................................................................................13
The unit ............................................................................................................................................................................. 13

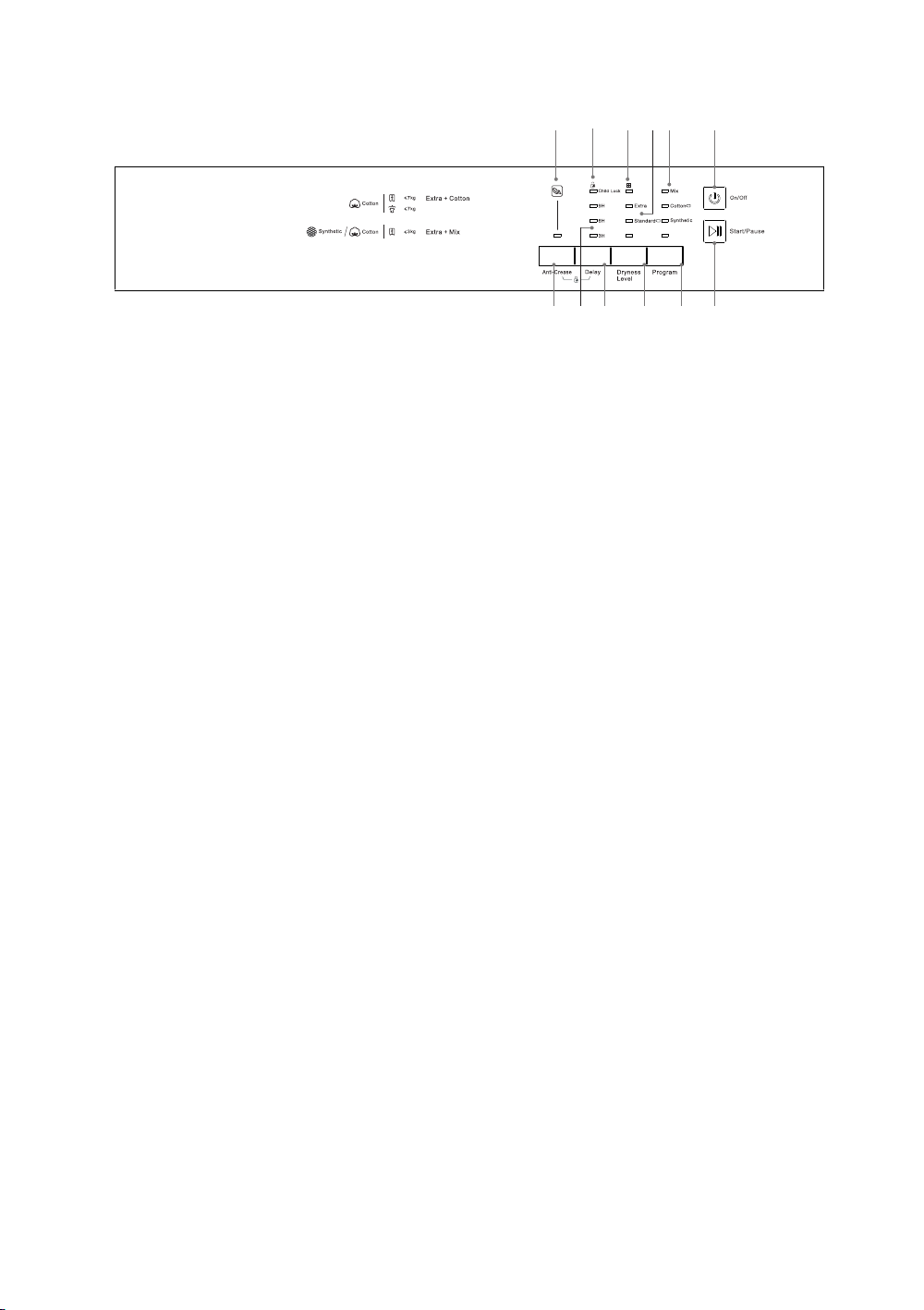

Control Panel .................................................................................................................................................................. 14
Preparation ........................................................................................................................................15
Preparing to Tumble Dry Laundry........................................................................................................................... 15

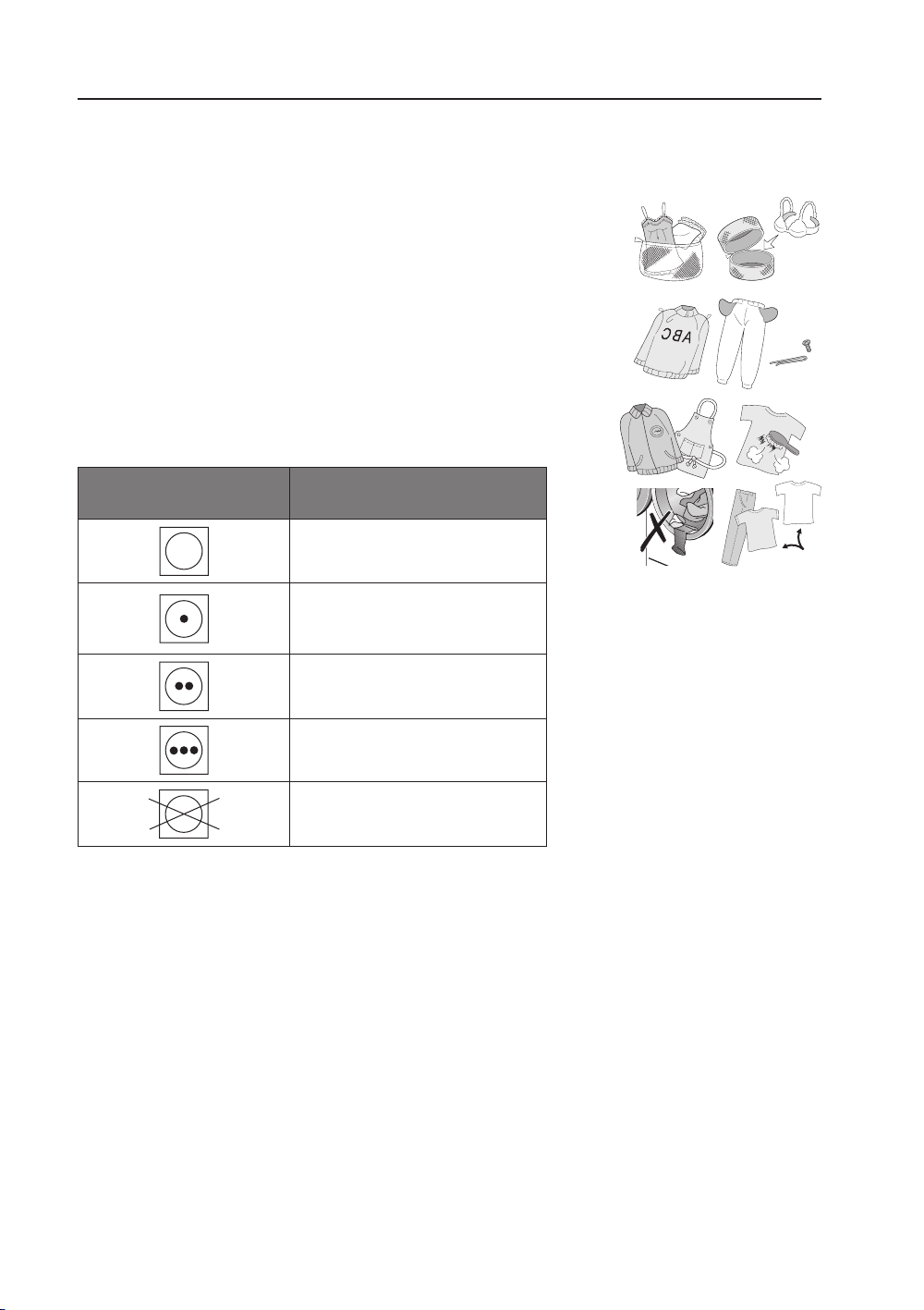

Organising Laundry...................................................................................................................................................... 15
Selecting the Programme........................................................................................................................................... 16
Drying Laundry Loads 1kg or Less .......................................................................................................................... 16
Dry Programme Setting ....................................................................................................................17
First Time Use.................................................................................................................................................................. 17
Standard Drying Cycle................................................................................................................................................. 17
Tips for Optimum Drying............................................................................................................................................ 17
Cancelling a Programme ............................................................................................................................................ 17
Removing Laundry........................................................................................................................................................ 18
Switching O .................................................................................................................................................................. 18
Setting the Child Lock.................................................................................................................................................. 18
Maintenance – Cleaning the Dryer...................................................................................................19
Cleaning the Drum........................................................................................................................................................ 19
Cleaning the Exterior of your Dryer........................................................................................................................ 19
Cleaning the Door Seal and Window ..................................................................................................................... 19
Cleaning the Lint Filter ................................................................................................................................................ 19
Cleaning the Vent Hose............................................................................................................................................... 19
Hints and Tips ....................................................................................................................................20
Troubleshooting ................................................................................................................................21
Specications.....................................................................................................................................22
Product Fiche .....................................................................................................................................23

4
Safety Warnings
For your continued safety and to reduce the risk of injury or electric shock,
read all instructions carefully before using the unit and keep them for
future reference. Please follow all the safety precautions listed below.
Retain this manual. Include this manual if you pass the unit onto a third
party.
WARNING!
• Never allow large loads to remain in the dryer after each drying cycle
ends.
• Softener sheets can cause a waxy build-up on the lint lter. Wash the lint
lter in warm soapy water and dry it completely before replacing it in the
dryer.
• Do not leave damp items in a warm or hot dryer. Start the drying cycle
immediately and keep the exhaust opening clutter free.
• Do not climb on the dryer. You may hurt yourself or damage the dryer.
• If you will not be using the dryer for a while, such as when you go on
holiday, turn o the electricity supply to the dryer and remove the plug
from the socket.
• Never stop a tumble dryer before the end of the drying cycle unless all
items are quickly removed and spread out so that the heat is dissipated.
• Never store plastic, paper or clothing that may burn or melt on top of the
dryer during operation.
• Keep ammable substances well away from the dryer – for example
kerosene, gasoline, benzene, paint thinner and alcohol, or clothing
soaked with these. They may cause an explosion or a re.
• All airways (including wall vents) must be kept free from blockages.
• Never use the dryer without the lint lter.
• Never place heavy items or wet washing directly on top of the appliance.
Installation
• Check that the voltage marked on the rating label matches your mains
voltage.
• The appliance must be placed on a at stable surface (not on a carpet)
and should not be subjected to excessive vibrations or any impact.
• Do not install your dryer anywhere that is exposed to high humidity,

5
water or the weather. If you do, it may cause an electric shock, re, failure
or deterioration.
• Your tumble dryer should NOT be located next to a gas hob, cooker,
heater, or eye-level grill as ames from the burners could cause damage
to your machine.
• DO NOT operate the dryer in an enclosed environment, ensure the dryer
is adequately ventilated.
• If the dryer is enclosed or tted under a work surface, a gap of at least
10mm must be allowed above the top of the dryer and at least 25mm
(1”) either side. This allows air to enter into the rear air inlet. The dryer
must NEVER be run in a cupboard with a closed door.
• Do not stack the tumble dryer on top of other appliances.
• Any electrical work required to install the appliance should be carried
out by a qualied person.
• Failure to install, maintain and/or operate the dryer according to the
manufacturer’s instructions may result in conditions which can lead to
bodily injury and/or property damage.
• Ensure that the end of the hose is not directed towards the air intake
grille at the rear of the dryer.
• The ventilation openings at the rear of dryer must not be obstructed by a
carpet.
• The exhaust air must not be discharged into a ue that is used to extract
fumes from an appliance burning gas or other fuels.
• The appliance must not be installed behind a lockable door, a sliding
door or a door with a hinge on the opposite side to that of the tumble
dryer, in such a way that a full opening of the tumble dryer door is
restricted.
• Do not use a mains plug adapter or extension cable. It may overheat and
cause a re.
• Do not operate this dryer until you are sure the dryer has been installed
according to the INSTALLATION INSTRUCTIONS, and installation and
grounding are in compliance with all local codes and/or other applicable
codes and requirements.
• Before the appliance is removed from service or discarded, remove the
door of the drying compartment.

6
Caring for Laundry
• The dryer must only be used for its intended purpose.
• Always observe the rules for drying garments. If in doubt, do NOT tumble
dry.
• Take particular care that woolen articles are NOT dried in a tumble dryer
unless they are labelled ‘Superwash’,‘Machine Washable’or have the ‘May
be tumble dried’ symbol. If in any doubt, do not dry wool in the machine.
Unlike other materials, the mechanism of wool shrinkage is irreversible,
i.e. it will not stretch back to its original size and shape.
• Do not dry water-proof sheets or clothing. These may cause dryer failure,
which could lead to injury, or damage to the laundry or to the dryer.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles,
rubber backed articles and clothes or pillows tted with foam rubber
pads should not be dried in the tumble dryer.
• Fabric softeners, or similar products, should be used as specied by the
fabric softener instructions.
• Do not dry unwashed items in the tumble dryer.
• Do not attempt to dry dripping wet articles.
• Do not overload the dryer with laundry. Drying results may be
unsatisfactory.
• Be careful not to get your laundry caught in the door when you close it.
This could damage your laundry.
• Always check and remove objects such as nails, pins, coins, clips, etc.
Cigarette lighters, in particular, present a hazard that can be avoided by
this process. They could damage your laundry or the dryer.
• Do not dry articles that have been previously cleaned in, washed
in, soaked in, or spotted with gasoline, dry cleaning solvents, other
ammable, or explosive substances as they give o vapours that could
ignite or explode.
• Items that have been soiled with substances such as cooking oil,
acetone, alcohol, petrol, kerosene, spot removers, turpentine, waxes and
wax removers should be washed in hot water with an extra amount of
detergent before being dried in the tumble dryer.
General Use
• This appliance is for normal, indoor, household, domestic use only.
• The maximum mass of dry textile material to be used in the appliance is

7
7kg.
• Make sure the mains plug is pushed rmly in the socket. A loose
connection may overheat and cause electrical shock or a re.
• Check the mains lead and mains plug for any wear and tear, looseness,
or damage. If the mains cable is damaged, it must be replaced by a
qualied service agent in order to avoid a hazard.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains
plug, it could cause a re. To prevent this, unplug the cable and clean the
mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the
cable. Pulling the cable may cause an electric shock or a re.
• Do not touch the laundry inside the dryer, not until the drum has
completely stopped. Even if the drum is spinning at low speed it can
cause an injury. Take particular care of children.
• Do not operate the dryer with any guards and/or panels removed.
• Never attempt to operate this appliance if it is damaged, malfunctioning,
has missing or broken parts, including a damaged mains cable or plug.
• Do not bypass any safety devices.
• Do not allow the air inlet at the back of the dryer, the air outlet or vent
hose to be obstructed.
• Do not touch the mains lead or mains plug with wet hands. It may cause
an electric shock.
• Do not put any electrical equipment near the dryer.
• The nal part of a tumble dryer cycle occurs without heat (cool down
cycle) to ensure that the items are left at a temperature that ensures that
the items will not be damaged.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children
without supervision.
CAUTION: WHEN THE DRYER IS IN USE AVOID
TOUCHING THE REAR OF THE DRYER AS IT MAY
BE HOT.

8
Cleaning & Maintenance
• Clean the lint lter before and after every load.
• If the supply cord is damaged, it must be replaced by the manufacturer,
its service agent or similarly qualied persons in order to avoid a hazard.
• Keep all the area surrounding exhaust openings free from accumulation
of dust, lint and dirt. An obstructed opening may reduce airow and
eciency.
• Do not use the dryer if industrial chemicals have been used for cleaning.
• Do not pour water directly onto any part of the dryer. It may cause a
short circuit or electric shock.
• Keep burning objects, such as candles or cigarettes, away from the dryer.
They may cause a re or damage.
• The interior of the machine and exhaust duct should be cleaned
periodically by qualied service personnel.
• Do not dismantle, repair or modify the dryer. The dryer could
malfunction and cause a re or injury. If service is required, contact a
qualied service agent.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT
ATTEMPT REPAIRS YOURSELF.

9
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
The Main Unit Instruction Manual
Vent Hose x 1
Instruction
Manual
Thank you for purchasing your new product.
We recommend that you spend some time reading this instruction
manual in order that you fully understand all the operational features it
oers.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.

INSTALLATION
10
Installing Your Dryer
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant
power supply companies may apply. If in doubt, have the dryer connected by a qualied
technician.
• The dryer is heavy - caution when lifting it. Do not lift by projecting components
(e.g. dryer door).
• Lay hoses and cables in such a way that there is no risk of tripping over them.
Choosing the Right Location for Your Dryer
• Make sure there is enough space for your dryer.
• Install your dryer on a at, stable surface to avoid excessive vibrations and noise.
  
Sloping
surface
Unstable Bumpy
surface
• Do not install your dryer in direct sunlight. If this appliance is installed in an unheated cold
room, the optimum ambient storage temperature must be 5°C or above. If placed below
this temperature, the appliance performance will be considerably aected and in some
instances may not even operate until the ambient temperature rises above 5°C.
• Start by tilting the dryer backwards.
• One person should stand behind it, holding the rear of the top panel. The other person
should grip the bottom feet at the front.
• Do not touch the door opening button (door handle) while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the dryer to a qualied technician.
An additional space of (150mm) is required at the rear of the dryer. This is to allow
enough space for the vent hose.
Two or more people are required to move the dryer.

INSTALLATION
11
Installing the Vent Hose
• Connect and x one end of the vent hose to the back vent of the unit and turn it into the
vent until screwed securely.
• Extend the other end to the outdoor. Please refer to the diagrams below for correct
assembly.
Moving the Dryer from One Location to Another
Before you move the dryer:
• Turn o the power source, and disconnect the mains cable.
• Shrink the vent hose to keep it out of the way.
Moving and Installing
Two or more people are required to carry the
dryer and for any installation work.
Vent Hose
~36cm
Dryer
Vent Hose
Vent Hose (Extended)
~150cm

INSTALLATION
12
Levelling the Dryer
There are levelling feet on the underside. They must be adjusted to make sure the dryer is
level.
1. Adjust all levelling feet.
2. Use a spirit level to ensure the dryer is level.
Connecting to the Mains Supply
For your safety:
• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, stop using them and call a qualied
technician for assistance.
Installation Check List
By now, you should have installed the dryer.
Let us go through the checklist to ensure that the installation has been done correctly!
Questions Checkbox
Levelling feet Are they bolted securely to the dryer?
Are they standing flat?
Power supply - Is the household dedicated mains socket fully rated at
AC220V to 240V independently?
Location - Is your dryer on a flat, stable surface? Does it run without
wobbling/moving excessively?

13
Product Overview
The unit
Control Panel
Door Handle
Window

14
Ligh t 1 Ho ur
Light + C ott on
End/Anti-
Crease
Control Panel
1. Anti-Crease Indicator
• Indicator lights up when the anti-crease
function is selected.
• Indicator ashes when programme is running.
2. Lock Indicator
Indicator lights up when the child lock function
is activated.
• Press the Anti-Crease and Delay buttons
together for 3 or more seconds to set the
child lock.
• Press the Anti-Crease and Delay buttons
together again for 3 or more seconds to
release the child lock.
3. End/Anti-Crease Indicator
Indicator lights up after end of wash and when
the unit starts the anti-crease mode (default).
4. Dryness Indicator
Indicator lights up when a degree of dryness is
selected.
• Extra Dry
• Standard Dry
• Light Dry
5. Programme Indicator
• Indicator lights up when a programme is
selected.
• Indicator ashes when a programme is
running.
6. On/O Button
Switches the machine On and O.
7. Start / Pause Button
• Press to start your dry programme.
• Press to pause your dry programme.
8. Program Button
Select the drying programme suitable for your
load: Mix / Cotton / Synthetic / 1 Hour.
9. Dryness Level Button
Select the degree of dryness for your load:
• Extra Dry: Suitable for particularly thick or
multi-layered clothing.
• Standard Dry: Suitable for clothing that will
not be ironed.
• Light Dry: Suitable for ironing.
10. Delay Button
Select the hours for the drying process to start:
9H (hours) / 6H (hours) / 3H (hours).
11. Delay Indicator
Indicator lights up when the hours to start the
drying process is selected.
12. Anti-Crease Button
Select to loosen up clothes after drying to
reduce creasing.
12
16
78
2 3 4 5
10 9 11

15
Preparation
Read the following to understand how best to prepare your laundry for drying.
Preparing to Tumble Dry Laundry
• Before loading laundry into the tumble dryer, thoroughly
spin the laundry in the washing machine. This will reduce
remaining moisture content and help dry your laundry
faster. It will also be more energy-ecient.
• Make sure all zips are closed, buttons are done up, hooks
and eyelets are fastened, and ties and belts are already
looped.
• Always check the washing label of your clothes to make
sure they are suitable for tumble drying. If no washing
label is available, it is recommended not to tumble dry your
clothes.
Symbol Description
Tumble dry, normal
Tumble dry, low heat
Tumble dry, medium heat
Tumble dry, high heat
Do not tumble dry
Organising Laundry
• Sort your laundry according to fabric type, e.g., polyester/
cotton; denim; etc.
• Sort your laundry by colour.

16
Selecting the Programme
Clothing
Type Description Load (kg) Programme Dryness Level
Cotton
Suitable for particularly thick or multi-layered cotton clothing. 7.0
3.5 Cotton Extra
Suitable for cotton clothing that will not be ironed. 7.0
3.5 Cotton Standard
Suitable for cotton clothing that requires ironing. 7.0
3.5 Cotton Light
Mixed
Fabrics
Suitable for clothing comprising particularly thick or multi-layered materials. 7.0
3.5 Mix Extra
Suitable for clothing comprising multiple materials that will not be ironed. 7.0
3.5 Mix Standard
Synthetics
Suitable for man-made, thick or multi-layered fabrics. 3.5 Synthetic Extra
Suitable for delicate man-made fabrics that may need ironing. 3.5 Synthetic Standard
Drying Laundry Loads 1kg or Less
1. Load your laundry into the dryer.
2. Turn on the dryer.
3. Select 1 Hour programme.
4. Operate as normal.
5. When the programme has nished, press the On/O button to switch o the dryer. Unplug
the dryer.
Duration of drying may vary due to the moisture content, type of garment fabric, and/or
other factors not within the unit’s control. The lower the temperature of the room, the
longer it will take for the dryer to dry clothing.

17
Dry Programme Setting
First Time Use
Before the rst use, wipe the dryer drum with a damp cloth to remove any residues which may
have been produced during production. Alternatively, run a brief drying cycle (around 1 hour)
with damp clothes in the drum.
Standard Drying Cycle
1. Pull the door handle and put the laundry in the drum. Make sure laundry is loose and not
caught in the door.
2. Close the door rmly. It will click.
3. Press the On/O button to switch on the dryer.
4. Press the Program button to select the drying programme appropriate for your load.
5. If you wish to use the anti-crease function, press the Anti-Crease button.
6. Press Dryness Level button to select the dryness level for your laundry.
7. Press the Start/Pause button to start the drying programme. If you wish to delay start the
drying programme, press the Delay button to select the hours that you want the drying cycle
to start then press the Start/Pause button.
8. When the drying programme has nished, the machine will beep. Press the On/O button to
switch o the dryer. Unplug the dryer.
Tips for Optimum Drying
• Do not over-dry the clothes, as this increases the chance of shrinkage and creasing.
• Do not dry clothes containing rubber, foam, and similar elasticated fabrics.
• Do not dry clothes if they have been dry-cleaned.
• Always check your clothes’washing labels for tumble dry suitability. If in doubt, do NOT
tumble dry.
Cancelling a Programme
To cancel a drying programme:
1. Press the Start/Pause button.
2. Switch o the power.
The drying programme is now cancelled.
To choose a dierent programme, turn on the power and use as normal.
Before use, check that the lint lter is clean and positioned properly in the dryer. Never
use the appliance without the lint lter in place. If there is no lter, the dryer will not
operate.
• If the anti-crease option is selected, it will increase the drying time up to 2 hours.
• Always check the clothing manufacturer’s care label before placing the clothing in the
tumble dryer. If in doubt, do NOT tumble dry.
If you need to pause the unit or open the door for any reason during a drying cycle, take
extra care! The interior drum temperature will increase because air movement has been
stopped.

18
Setting the Child Lock
The Child Lock prevents children from stopping programmes accidentally. It locks all buttons,
EXCEPT the On/O button.
1. Make sure the dryer is plugged into the mains.
2. Switch on the dryer.
3. During a drying programme, press the Anti-Crease and Delay buttons at the same time for 3
seconds or more to activate the Child Lock function. The machine will beep.
4. Press the Anti-Crease and Delay buttons at the same time again for 3 seconds or more to
cancel the Child Lock function. The machine will beep.
Removing Laundry
Always allow the unit to complete the drying cycle before removing laundry.
1. Press the On/O button to switch o the dryer. Unplug the dryer.
2. Open the dryer door and remove your laundry.
Switching O
Press the On/O button to switch o the dryer. Unplug the dryer.

19
Cleaning the Exterior of your Dryer
• Clean the outside of your dryer with a soft cloth and mild detergent such as kitchen
detergent.
• Do not splash water over the dryer.
• Do not use cream cleansers, thinners or products containing alcohol or kerosene.
Cleaning the Door Seal and Window
• Wipe the window and seal after each use to remove lint and stains. If lint builds up, it can
aect drying performance.
• Remove any coins, buttons and other objects from the door seal after each drying cycle.
Cleaning the Lint Filter
1. Open the door.
2. Pull the lint lter straight up. Open the lint
lter.
3. Clean using a cloth to wipe away lint and
dust. You can also wash the lint lter, but
you must thoroughly dry it afterwards.
4. Replace the lint lter rmly.
Maintenance – Cleaning the Dryer
Cleaning the Drum
Any rust left inside the drum by metal articles must be removed immediately with chlorine-free
detergent.
Never use steel wool.
Cleaning the Vent Hose
1. Turn o the dryer and remove the plug from the mains.
2. Undo the vent hose.
3. Thoroughly air the vent hose. You can also rinse out the vent hose with cold water, but you
must thoroughly dry it afterwards.
4. Replace the vent hose rmly.
Do not put laundry in the dryer when cleaning the drum. Unplug the dryer before
cleaning.
Be careful not to burn yourself while handling your clothes or touching the inside of the
drum after a high temperature drying cycle. Periodically check the condition of the vent
hose for signs of blockage.
Before use, check that the lint lter is clean and positioned properly in the dryer. Never
use the appliance without the lint lter in place. If there is no lter, the dryer will not
operate.

20
Hints and Tips
Problems Description / Possible
Cause
Solution
Dryer will not start. • Power cut.
• The plug is not firmly
inserted into the mains.
• Overloading.
• On/Off button or Start/
Pause button has not been
pressed.
• Temperature fuse has blown.
• There is no filter in the unit.
• Restore power.
• Check the plug and make sure it is
fully and firmly inserted into the mains
socket.
• Remove some laundry. The load must
NOT exceed 7kg.
• Press the On/Off button to turn on the
dryer, then press Start/Pause to start
the drying programme.
• Please contact a qualified service agent
for repairs.
• Install the filter properly in the unit.
Exterior is hot / burning
smell.
• The lint filter is dirty.
• Vent hose may be dirty or
clogged with lint / dust.
• Make sure the lint filter is cleaned
before and after each use of the dryer.
• Clean the vent hose.
Clothes are too dry. • Clothes were not removed
promptly after the drying
cycle had finished.
• Temperature is too high.
• Remove clothes promptly after the
drying cycle is finished.
• Check the apparel’s cleaning label to
make sure you have selected the correct
drying programme.
Clothes are still wet /
not dry enough.
• Too many clothes in the
drum.
• Clothes were not sorted
prior to tumble drying.
• Remove some of the laundry. The load
must NOT exceed 7kg.
• Sort clothes before tumble drying.
Clothes have shrunk. • Selected drying programme
was unsuitable.
• Check the apparel’s cleaning label to
make sure you have selected the correct
drying programme.
• Remove the clothes while they are still
damp, then line dry.
Drying results still
unsatisfactory.
• Wrong programme selected.
• Lint filter / vent hose is
clogged.
• Overloading.
• Ventilation slots covered.
• Residue on drum interior or
drum ribs.
• Check the apparel’s cleaning label to
make sure you have selected the correct
drying programme.
• Clean the lint filter / vent hose before
and after each use of the dryer.
• Remove some laundry. The load must
NOT exceed 7kg.
• Uncover ventilation slots.
• Clean the drum interior and ribs.
Door will not close. • An item is obstructing the
door.
• Clear / remove obstructing item.
Drying cycle
ends shortly after
programme starts.
• Not enough laundry.
• Laundry is too dry for the
selected programme.
• Add more laundry, or select a higher
drying level (e.g., Extra Dry).
