Logik L21SP10 User manual

11Unpacking
22Product Overview
BASS
INPUT
OUTPUT
L
R
Congratulations on the purchase of your new Logik 2.1 PC Speakers.
Before commencing the installation and set up, please check that you have all the items and familarise
yourself with this Quick Start Guide.
2.1 PC Speakers
Quick Start Guide
L21SP10
Audio Cable
PN: E2001500+372918 Quick Start Guide
PN: WOLS201D+110000
Main Unit Satellite Speaker x 2
PN: S0LS201D+144000
LED Indicator
Mains plug
RCA plug
Power switch
Speaker
cable
x 2
Volume
Control
Bass Control
RCA socket
3.5mm stereo socket
VOLUME
VOLUME
VOLUME
2.1 PC Speakers
Quick Start Guide
L21SP10
Remove all packaging from the unit. Retain the packaging. If you dispose of it,
please do so according to the local regulations. The following items are included:
If items are missing or damaged, please contact Partmaster (UK only). Tel: [phone] for assistance.

33Connection
Output Power (Total): 12W RMS
Speaker Driver Unit: (Woofer)3”6Ω 15W; (Satellite)2.5”4Ω 3W x 2
Frequency Response Range: 30Hz-18KHz
Size (LxWxH)mm : (Woofer)157 x 228 x 225; (Satellite)88 x 65 x 147
Power Supply Input: AC power
We continually strive to improve our products, specications may change without prior notice.
Notebook
MP3
Desktop
Mains socket
BASS
INPUT
OUTPUT
L
R
• Read all instructions before using these speakers and keep them for future reference.
•Use only voltage specied on the rating label of the speaker.
•Do not place speakers close to heat sources, such as radiators and heaters.
•These speakers are intended for household use only and not for commercial or industrial use.
•Use these speakers only as described in this Quick Start Guide. Any other use is not
recommended by the manufacturer and may cause re, electric shock or injury.
•Always operate on a at horizontal surface. Do not place the speakers on an unstable table,
stand, tripod or bracket.
•If the mains cable is damaged, it must be replaced by a qualied electrical person in order to
avoid a hazard.
•Do not use these speakers outdoors, or on wet surfaces. Avoid spilling liquid on the
speakers. Keep the speakers dry and avoid contact with damp or wet areas.
•Do not block the openings in the speaker cabinets, never push objects into the speaker vents
or slots, and provide sucient space around the speakers for proper ventilation.
•Only use attachments/accessories specied by the manufacturer.
•For added protection during lighting storms, unplug the speakers from the mains socket and
turn o the computer.
•Unplug the speakers when it is not in use for a long period of time.
•Do not expose these speakers to rain or moisture to reduce the risk of electric shock.
•Place the speakers away from strong electro magnetic environments.
•These speakers are not intended for use by persons (including children)with reduced
physical, sensory or mental capabilities, or lack of experience and knowledge, unless they
have been given supervision or instruction concerning use of the speakerss by a person
responsible for their safety.
•Children should be supervised to ensure that they do not play with the speakers.
44Important Safety Instructions 55Specication

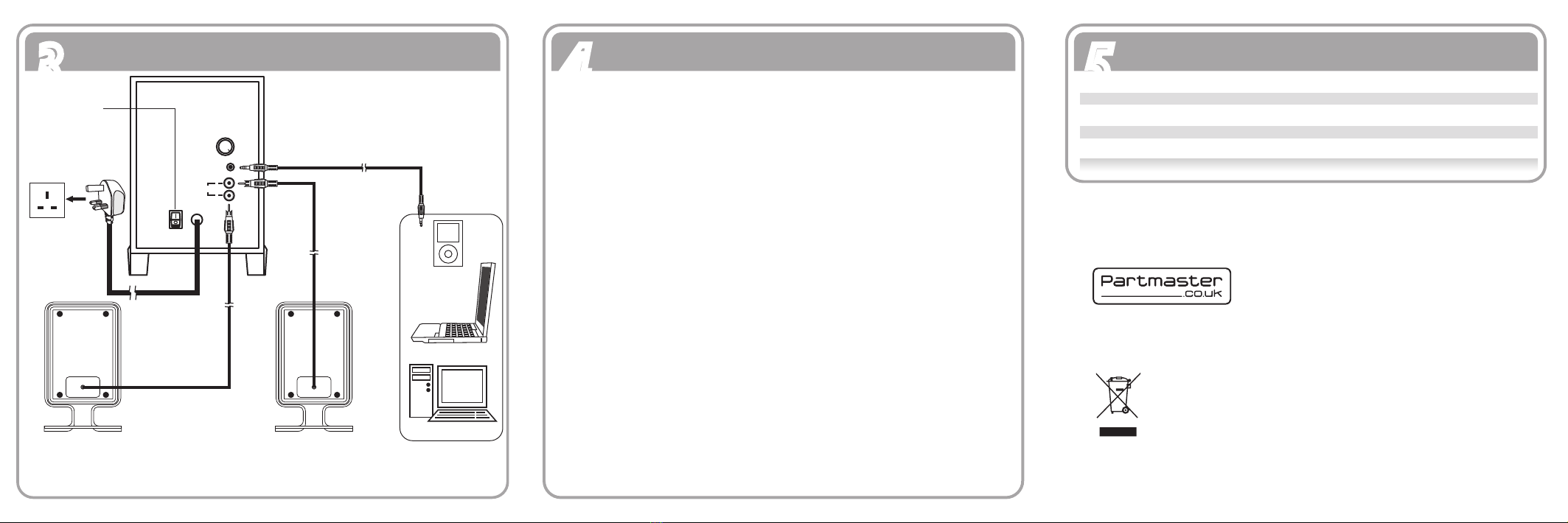

Connect the mains
plug to the mains
socket and turn on the
power switch.
Connect 3.5mm stereo audio plug to
your PC or other compatible device.
Connect the two satellite
speakers to the speaker output
section on the back panel.
Power switch
Notes:
• The speakers will mute if a headphone is connected .
• Adjust the volume level by tuning the volume control.
• Check that your PC volume level is sucient.
This symbol on the product or in the instructions means that your electrical and
electronic equipment should be disposed at the end of its life separately from your
household waste. There are separate collection systems for recycling in the EU.
For more information, please contact the local authority or your retailer where you
purchased the product.
