SAFETY WARNINGS
WASHING MACHINE
For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
WARNING!
• If you will not be using the washing machine for a while such as when
you go on holiday, disconnect the plug from the mains supply and
turn o the water supply to the washing machine. This is particularly
important if there is no drainage around the washing machine.
• If the water supply is left on, water pressure may build up and cause a
leak.
General Use
• Transit bolts are used to transport the washing machine. You should
remove these using a spanner or similar tool before you install the
washing machine. If you do not, it will cause strong vibrations when the
washing machine is spinning.
• Do not install your washing machine anywhere that is damp or exposed
to the weather. If you do, it may cause an electric shock, re, failure or
deterioration.
• Do not pour water directly onto any part of the washing machine. It may
cause a short circuit or electric shock.
• Keep burning objects such as candles or cigarettes, away from the
washing machine. They may cause a re or damage.
• Keep ammable substances well away from the washing machine – for
example kerosene, gasoline, benzene, paint thinner and alcohol, or
clothing soaked with these. They may cause an explosion or a re.
• This washing machine is only suitable for washing textiles labelled
‘washing machine washable’.
• Do not connect the washing machine to hot water. The washing
machine works with cold water only.
• Before you start using the washing machine, turn the tap on to check
that the hose is properly connected. If it’s not, there may be a water leak.
• Do not put too much laundry or detergent into the washing machine. It
may cause issues with the washing machine or laundry.
• Be careful not to get your laundry caught in the door when you close it.
This could cause a water leak or damage your laundry.
• This washing machine is for household (domestic) use only.
IB safety_Washing Machine_UK_Final200714.indd 1IB safety_Washing Machine_UK_Final200714.indd 1 14/7/2020 10:58 AM14/7/2020 10:58 AM

2
• The higher the spin speed, the noisier the spin cycle. The higher the spin
speed, the lower the remaining moisture content in the laundry after
spinning.
• Load your appliance up to the recommended load capacity. This will help
to reduce the overall energy/water consumption of washing/drying your
clothes.
• Do not dismantle, repair or modify the machine. This may invalidate your
guarantee and could lead to malfunction and cause fire or injury.
Power Source and Cable
• Use an independent household dedicated mains socket. If the washing
machine is plugged in with other appliances, it may overheat the socket
and cause a re.
• Make sure the mains plug is pushed rmly into the socket. A loose
connection may overheat and cause electrical shock or a re.
• Check the mains lead and mains plug for any damage. If the mains cable
is damaged, it must be replaced by the manufacturer, its service agent
or similarly qualied persons in order to avoid a hazard.
• Unplug the mains lead when cleaning the washing machine.
• Do not touch the mains lead or mains plug with wet hands. It may cause
an electric shock.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains
plug, it could cause a re. To prevent this, unplug the cable and clean
the mains plug with a dry rag.
• If you disconnect the mains plug, hold onto the mains plug not the
cable. Pulling the cable may cause an electric shock or a re.
• Do not use a mains plug adaptor or extension cable. It may overheat
and cause a re.
• Make sure your home voltage matches the voltage displayed on the
washing machine. If you are not sure, contact an electrician.
• The mains plug must remain accessible to allow disconnection or an all
pole switch must be incorporated in the xed wiring in accordance with
the wiring regulations.
To Prevent Injury / Damage
• Do not climb on the washing machine. You may hurt yourself or damage
the washing machine.
• When opening and closing the door ensure you keep ngers away from
the door hinge, or this could lead to injury.
• Check your washing for objects such as nails, pins, coins, clips etc. They
IB safety_Washing Machine_UK_Final200714.indd 2IB safety_Washing Machine_UK_Final200714.indd 2 14/7/2020 10:58 AM14/7/2020 10:58 AM

3
could damage your laundry or the washing machine.
• To prevent any large, heavy objects (e.g., buckles, large buttons, etc.)
from hitting the glass door, turn your clothing inside out or remove
the heavy objects. They could damage your laundry or the washing
machine.
• Do not wash, rinse or spin water-proof sheets or clothing. These may
cause vibration or washing machine failure during spin-drying, which
could lead to injury, damage to the washing machine or damage due to
water leaking.
• Be careful when draining hot water or any detergent from the drum.
• Do not dismantle, repair or modify the washing machine. The washing
machine could malfunction and cause a re or injury.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Children should be supervised to ensure that they do not play with the
appliance.
• Children of less than 3 years should be kept away unless continuously
supervised.
• Do not touch the laundry inside the washing machine, until the drum
has completely stopped. Even if the drum is spinning at low speed it can
cause an injury. Take particular care of children in this respect.
• The appliance is to be connected to the water mains using the new
hose-set supplied. Old hose-sets should not be reused.
• The ventilation openings at the base of the washing machine must not
be obstructed by a carpet.
• Never place heavy items or wet washing directly on top of the appliance.
WARNING
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH
INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.
IB safety_Washing Machine_UK_Final200714.indd 3IB safety_Washing Machine_UK_Final200714.indd 3 14/7/2020 10:58 AM14/7/2020 10:58 AM

IB safety-Washing Machine-UK-200714V1
Visit Partmaster.co.uk today for the easiest way to
buy electrical spares and accessories. With over 1
million spares and accessories available we can
deliver direct to your door the very next day. Visit www.partmaster.co.uk or call
0344 800 3456 (UK customers only) Calls charged at National Rate.
The symbol on the product or its packaging indicates that this
product must not be disposed of with your other household
waste. Instead, it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for
the recycling of waste electrical and electronic equipment. The
separate collection and recycling of your waste equipment at the
time of disposal will help conserve natural resources and ensure
that it is recycled in a manner that protects human health and the
environment.
For more information about where you can drop off your waste
for recycling, please contact your local authority, or where you
purchased your product.
DSG Retail Ltd. (co. no. 504877)
1 Portal Way, London, W3 6RS, UK
EU Representative
DSG Retail Ireland Ltd (259460)
3rd Floor Oce Suite,
Omni Park SC, Santry, Dublin 9, Republic of Ireland
IB safety_Washing Machine_UK_Final200714.indd 4IB safety_Washing Machine_UK_Final200714.indd 4 14/7/2020 10:58 AM14/7/2020 10:58 AM

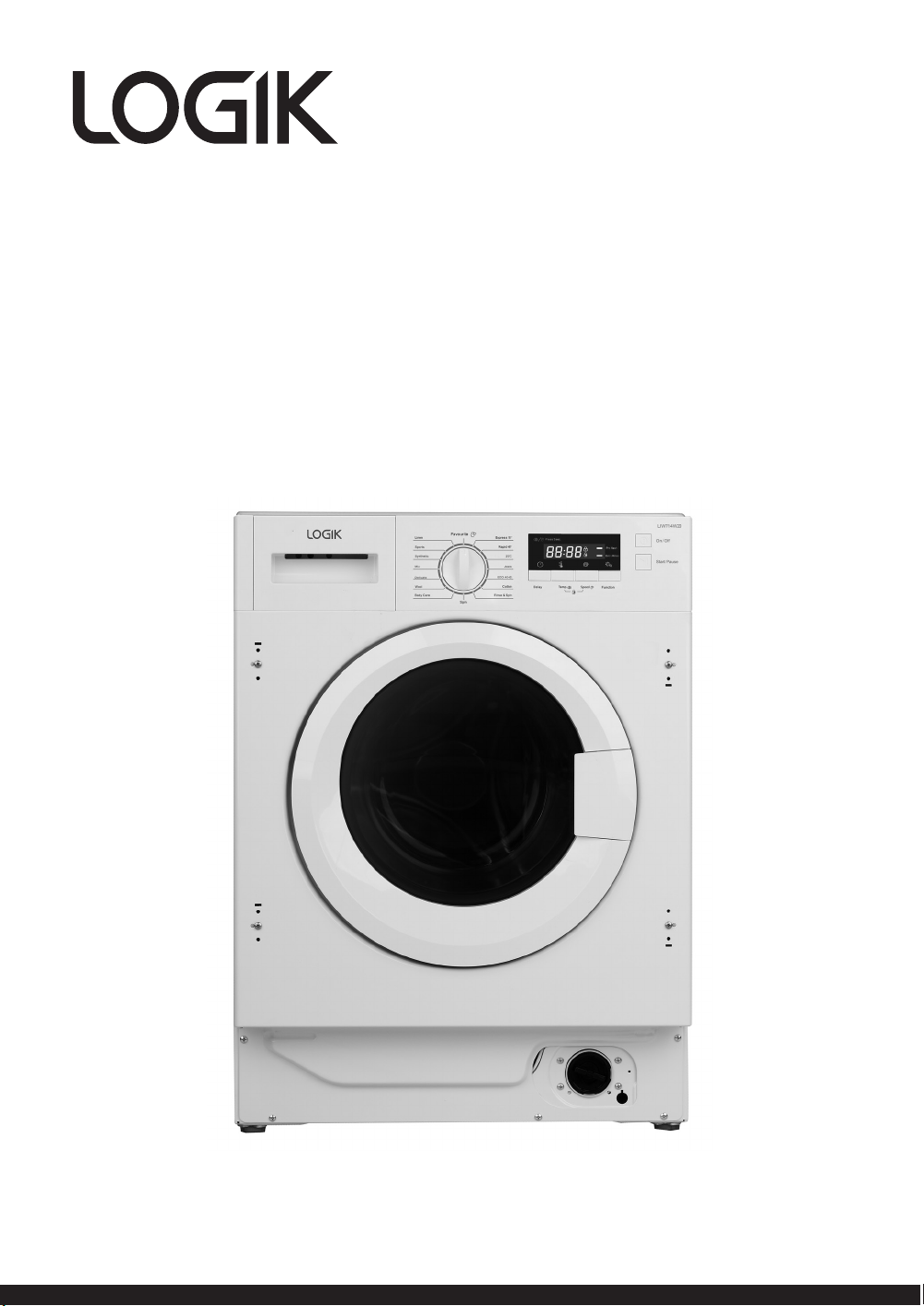

7kg Integrated Washing
Machine
Instruction / Installation Manual
LIW714W20
LIW714W20_IB_RC_Final200909.indd 1LIW714W20_IB_RC_Final200909.indd 1 9/9/2020 7:17 PM9/9/2020 7:17 PM

LIW714W20_IB_Final200729.indd 2LIW714W20_IB_Final200729.indd 2 29/7/2020 5:33 PM29/7/2020 5:33 PM

Contents
Unpacking............................................................................................................................................5
Installing Your Washing Machine .......................................................................................................6
Choosing the Right Location for Your Washing Machine ..................................................................................6
Moving and Installing .........................................................................................................................7
Removing the Transit Bolts ...........................................................................................................................................7
Removing the Polystyrene Foam................................................................................................................................7
Moving the Washing Machine from One Location to Another........................................................................7
Hose and Cable Lengths................................................................................................................................................8
Levelling the Washing Machine ..................................................................................................................................8
Water Supply Hose...........................................................................................................................................................8
Water Drain Hose..............................................................................................................................................................9
Installing into Kitchen Furniture .............................................................................................................................. 10
Connecting to the Mains Supply ............................................................................................................................. 12
Product Overview..............................................................................................................................13
The unit ............................................................................................................................................................................. 13
The Control Panel ......................................................................................................................................................... 14
Preparation ........................................................................................................................................15
Organising Laundry...................................................................................................................................................... 15
Preparing Laundry ........................................................................................................................................................ 15
Adding Detergent and Softener .............................................................................................................................. 16
Before First Use..................................................................................................................................17
Wash Setting ......................................................................................................................................17
Standard Washing ......................................................................................................................................................... 17
Removing Washing (Once programme is nished)........................................................................................... 17
Selecting the Programme........................................................................................................................................... 18
Delay Start the Programme ....................................................................................................................................... 19
Important Information......................................................................................................................20
Washing Delicates (Wool and Silk Programmes) ............................................................................................... 20
Adding Delicate Laundry Items to the Drum ...................................................................................................... 20
Which Detergent to Use.............................................................................................................................................. 20
How to Set the Child Lock.......................................................................................................................................... 20
Muting & Turning On the Sound.............................................................................................................................. 20
Maintenance – Cleaning the Washing Machine ..............................................................................21
Cleaning the Drum........................................................................................................................................................ 21
Cleaning the Exterior of your Washing Machine................................................................................................ 21
Cleaning the Detergent Drawer............................................................................................................................... 21
Siphon Plug ..................................................................................................................................................................... 21
Cleaning the Door Seal and Window ..................................................................................................................... 21
Cleaning the Drain Filter............................................................................................................................................. 22
Preventing a Frozen Water Supply Hose............................................................................................................... 22
Cleaning the Filter Net of the Water Supply Hose............................................................................................. 22
LIW714W20_IB_Final200729.indd 3LIW714W20_IB_Final200729.indd 3 29/7/2020 5:33 PM29/7/2020 5:33 PM

Hints and Tips ....................................................................................................................................23
Questions and Answers.....................................................................................................................25
Error Codes ...................................................................................................................................................................... 26
Specications.....................................................................................................................................26
LIW714W20_IB_Final200729.indd 4LIW714W20_IB_Final200729.indd 4 29/7/2020 5:33 PM29/7/2020 5:33 PM

5
Unpacking
Remove all items from the packaging. Retain the packaging. If you dispose of it please do so
according to local regulations.
The following items are included:
The Main Unit
Transport Bolt Cover x 4 U-Shape Drain Hose Holder Water Supply Hose
Instruction Manual
Instruction
Manual
Door Drill
Template
Door Drill Template
Hinge x 2
Magnet x 2
Screw A x 8 Screw B x 6
Spacer x 2
Levelling Tool Kit
Thank you for purchasing your new product.
We recommend that you spend some time reading this instruction
manual in order that you fully understand all the operational features it
oers.
Read all the safety instructions carefully before use and keep this
instruction manual for future reference.
If items are missing or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
LIW714W20_IB_Final200729.indd 5LIW714W20_IB_Final200729.indd 5 29/7/2020 5:33 PM29/7/2020 5:33 PM

INSTALLATION
6
Installation
Installing Your Washing Machine
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant
water and power supply companies may apply. If in doubt, have the washing machine
connected by a qualied technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting
components (e.g. washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or
where there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of tripping over them.
Choosing the Right Location for Your Washing Machine
• Make sure there’s enough space for your washing machine.
• Install your washing machine on a at, stable surface to avoid excessive vibrations and
noise.
• Don’t install your washing machine in direct sunlight or in a place where temperatures can
reach freezing.
ÒÒÒ
Sloping
surface
Unstable Bumpy
surface
• The ventilation openings in the base of the washing machine must not be obstructed by
carpet.
• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person
should grip the bottom feet at the front.
• Check that you have all the required accessories for installation.
• We recommend that you entrust the installation of the washing machine to a qualied
technician.
xSloping
surface
xUnstable xBumpy
surface
Two or more people are required to move the washing machine.
An additional space (approximately 120mm) is required at the rear of the machine.
This is to allow enough space for the water hose and drain hose connections.
LIW714W20_IB_Final200729.indd 6LIW714W20_IB_Final200729.indd 6 29/7/2020 5:33 PM29/7/2020 5:33 PM
