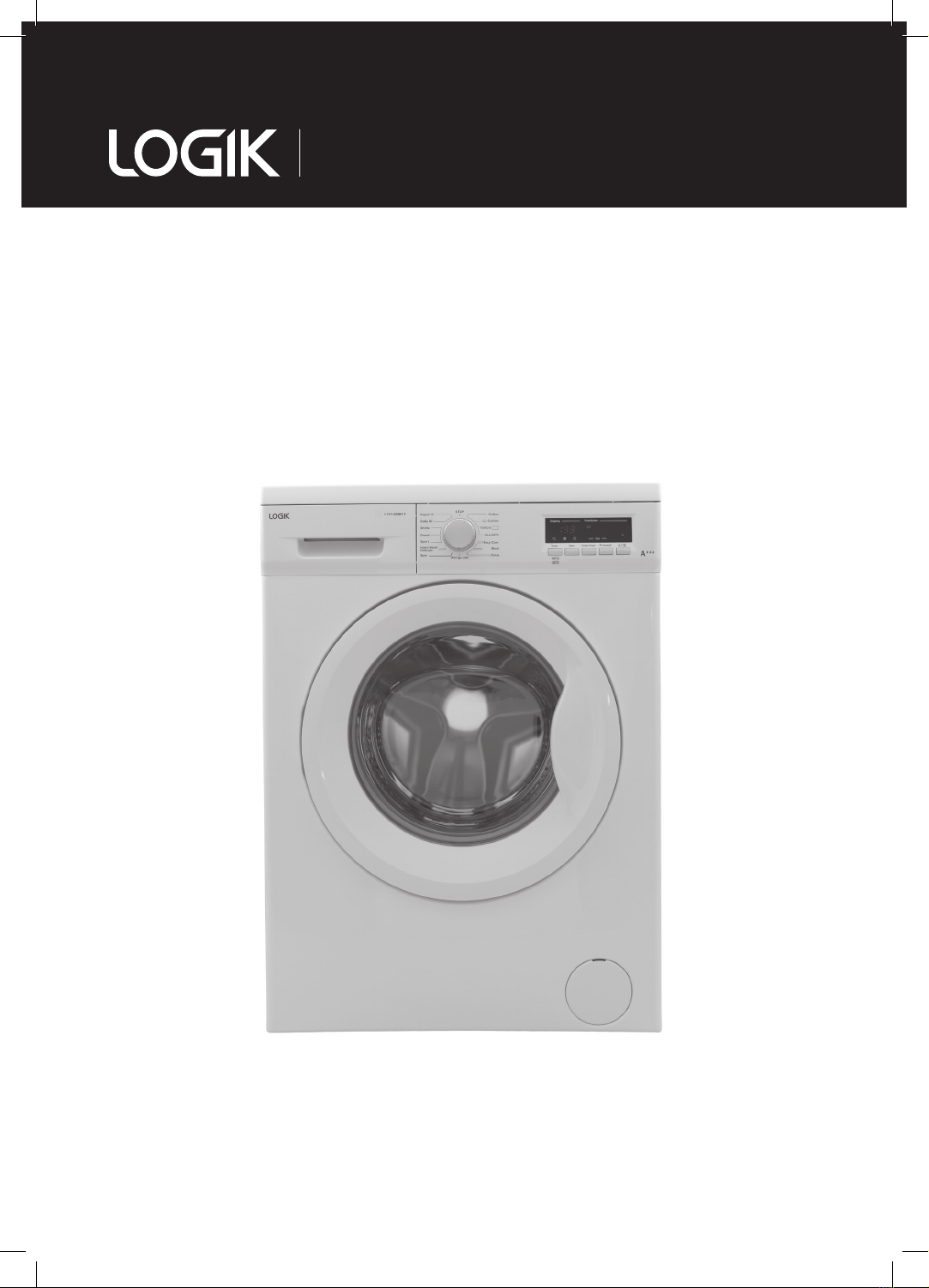

Logik L1014WM17 User manual

Instruction Manual
10kg Washing Machine
L1014WM17
L1014WM17_IB.indd 1 26/07/2017 11:31

L1014WM17_IB.indd 2 26/07/2017 11:31

Contents
Safety Warnings...................................................................................................................................................... 4
Unpacking............................................................................................................................................................... 6
Removing the Transit Bolts.................................................................................................................................... 7
Installing Your Washing Machine .......................................................................................................................... 8
Choosing the Right Location for Your Washing Machine ......................................................................................................... 8
Hose and Cable Lengths....................................................................................................................................................................... 9
Levelling the Washing Machine ......................................................................................................................................................... 9
Water Supply Hose.................................................................................................................................................................................. 9
Connecting to the Mains Supply.....................................................................................................................................................10
First time use...........................................................................................................................................................................................10
Product Overview................................................................................................................................................. 11
The unit.....................................................................................................................................................................................................11
Control Panel .........................................................................................................................................................................................12
Preparation ........................................................................................................................................................... 13
Preparing Laundry ................................................................................................................................................................................13
Adding Detergent and Softener......................................................................................................................................................13
Selecting the Programme ..................................................................................................................................................................14
Which Detergent to Use .....................................................................................................................................................................15
Wash Setting ......................................................................................................................................................... 15
First washing operation ......................................................................................................................................................................15
Standard Washing.................................................................................................................................................................................15
Half-load detection system................................................................................................................................................................16
Optional Functions ...............................................................................................................................................................................16
Washing Water Temperature Selection .........................................................................................................................................16
Spin Speed...............................................................................................................................................................................................16
Manual Soaking .....................................................................................................................................................................................16
Delay Timer..............................................................................................................................................................................................17
How to Set the Child Lock .................................................................................................................................................................17
Selecting a Prewash .............................................................................................................................................................................17
Removing Laundry ...............................................................................................................................................................................17
Maintenance - Cleaning the Washing Machine.................................................................................................. 18
Cleaning the Drum ...............................................................................................................................................................................18
Cleaning the Exterior of your Washing Machine .......................................................................................................................18
Cleaning the Detergent Drawer and Siphon Plug.....................................................................................................................18
Cleaning the Door Seal and Window.............................................................................................................................................18
Cleaning the Drain Filter.....................................................................................................................................................................19
Product Fiche ........................................................................................................................................................ 20
Energy Label ......................................................................................................................................................... 21
Specication ......................................................................................................................................................... 22
L1014WM17_IB.indd 3 26/07/2017 11:31

4
Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
WARNING!
• If you will not be using the washing machine for a while such as when you
go on holiday, turn off the water supply to the washing machine. This is
particularly important if there is no drainage around the washing machine.
If the water is left on, water pressure may build up and cause a leak.
General Use
• This washing machine is for household (domestic) use only.
• Do not install your washing machine anywhere that is damp or exposed to the
weather. If you do, it may cause an electric shock, fire, failure or deterioration.
• Keep flammable substances well away from the washing machine. They may
cause an explosion or a fire.
• Before you start using the washing machine, turn the tap on to check that the
hose is properly connected. If it’s not, there may be a water leak.
• Do not put too much laundry or detergent into the washing machine. It may
cause issues with the washing machine or laundry.
Power Source and Cable
• Make sure your home voltage matches the voltage displayed on the washing
machine. If you are not sure, contact an electrician.
• Use an independent household dedicated mains socket, rated at 13 Amp
220V to 240V AC. If the washing machine is plugged in with other appliances,
it may overheat and cause a fire.
• Make sure the mains plug is pushed firmly into the socket. A loose connection
may overheat and cause electrical shock or a fire.
• Do not use a mains plug adaptor or extension cable. It may overheat and
cause a fire.
• The mains plug must remain accessible to allow disconnection or an all pole
switch must be incorporated in the fixed wiring in accordance with the wiring
rules.
• Check the mains lead and mains plug for any damage. If the mains cable
is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
• Unplug the mains lead when cleaning the washing machine.
L1014WM17_IB.indd 4 26/07/2017 11:31

5
• Do not touch the mains lead or mains plug with wet hands. It may cause an
electric shock.
• Check the mains plug regularly for dirt. If dirt accumulates on the mains plug,
it could cause a fire. To prevent this, unplug the cable and clean the mains
plug with a dry cloth.
• If you disconnect the mains plug, hold onto the mains plug not the cable.
Pulling the cable may cause an electric shock or a fire.
To Prevent Injury / Damage
• When opening and closing the door ensure you keep fingers away from the
door hinge.
• Do not wash, rinse or spin water-proof sheets or clothing. These may cause
vibration or washing machine failure during spin-drying, which could lead to
injury, damage to the washing machine or damage due to water leaking.
• Be careful when draining hot water or any detergent from the washing
machine.
• The glass window can become very hot when using some wash cycles, take
care when touching the window. Do not allow children to touch the window
when in use.
• Do not dismantle, repair or modify the washing machine. The washing
machine could malfunction and cause a fire or injury.
• This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
• Children of less than 3 years should be kept away unless continually
supervised.
• The mains water pressure must be 0.1MPa - 1MPa.
• The appliance is to be connected to the water mains using the new hose-set
supplied. Old hose-sets should not be reused.
• Do not connect to the hot water supply.
L1014WM17_IB.indd 5 26/07/2017 11:31

6
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.

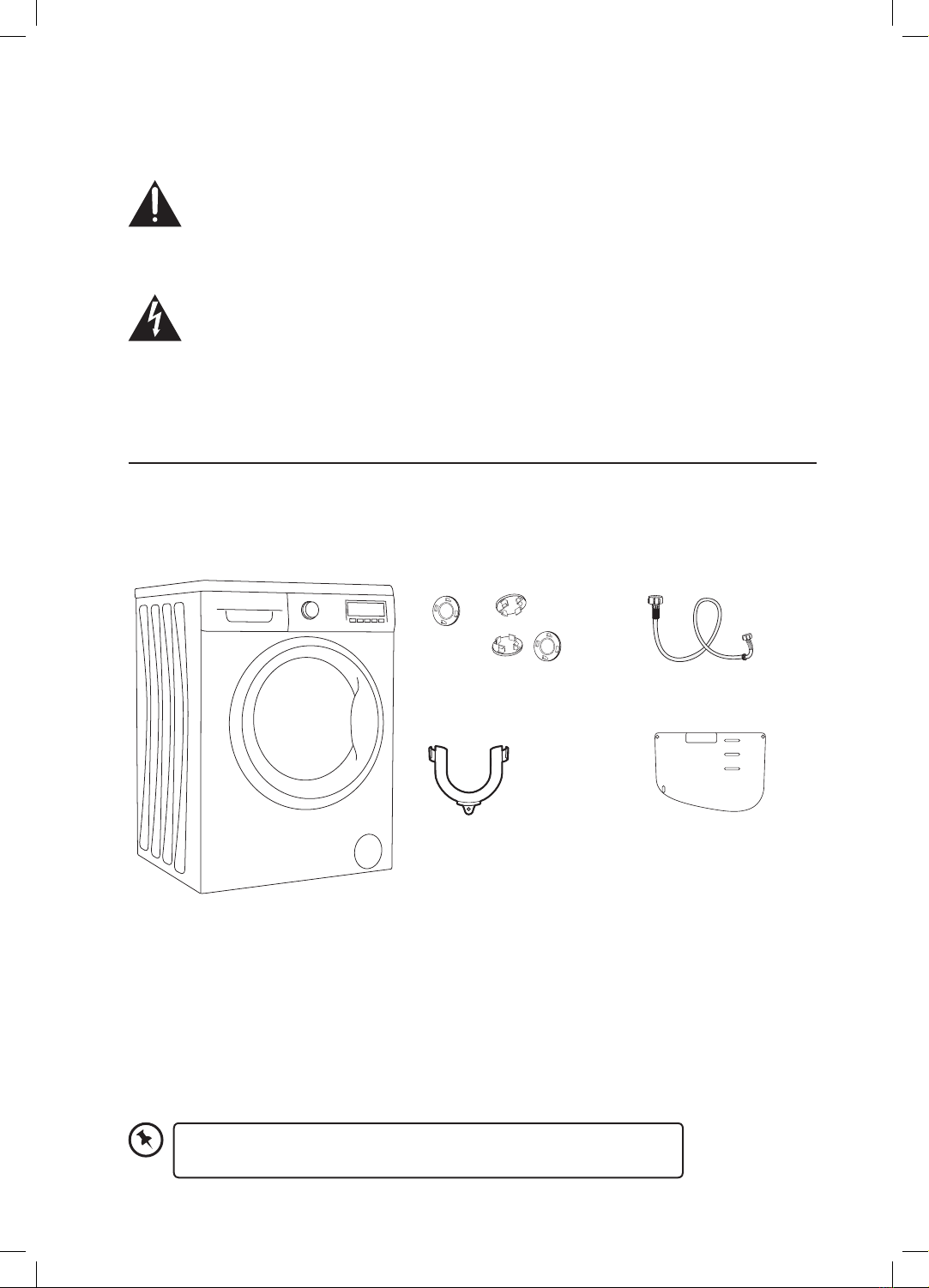

The following items are included:
The Main Unit
Transit Bolt Cover Cap x 4 Water Supply Hose x 1
U-Shape Drain Hose Holder x 1
For xing the water drain hose.
• The ventilation openings in the base of the washing machine must not be
obstructed by a carpet.
• Ensure the transit bolts are removed before installation.
IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED
SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS
WHICH INVOLVE THE REMOVAL OF COVERS.
TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT
REPAIRS YOURSELF.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Liquid detergent guide x1
200
150
100
L1014WM17_IB.indd 6 26/07/2017 11:31

* All images are for indication only; please refer to your individual unit for actual item.
Removing the Transit Bolts
Four transit bolts keep the interior of the washing machine in place while it’s being moved.
They need to be removed before installation. Use a spanner (not supplied) and follow the instructions
detailed below.
Don’t run the washing machine without removing the transit bolts, as this
can cause excessive vibrations and may damage your machine.

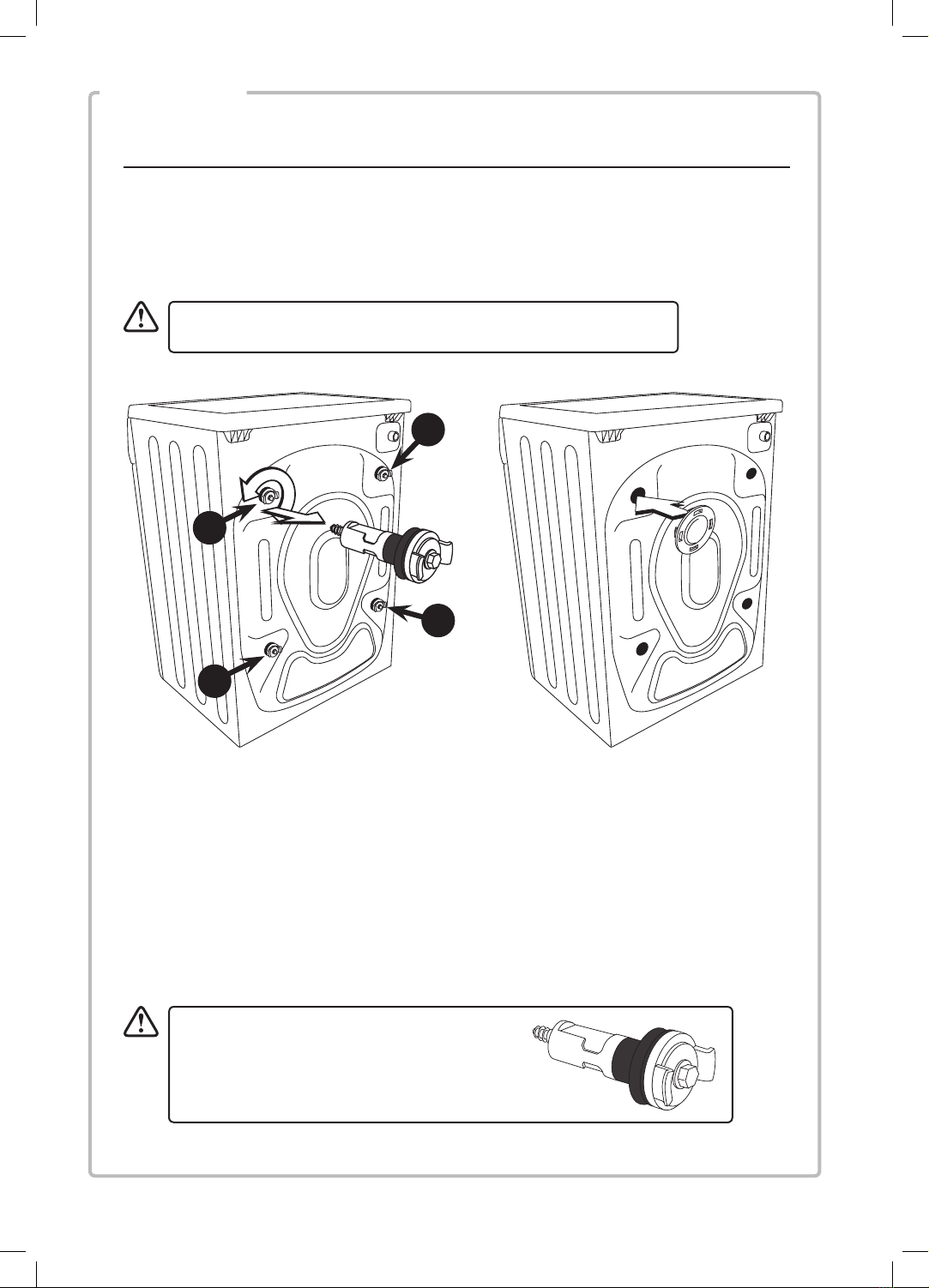

To remove the transit bolts:
1. Ensure the unit is fully disconnected from the mains power by unplugging it from the mains.
2. Unscrew the four (4) transit bolts.
3. They are located at the rear side of the washing machine. Use a spanner (not included) to loosen
the four (4) transit bolts, then pull out the bolts horizontally. Ensure the plastic bolt guides (if any)
are also removed.
4. Snap in the plastic caps to cover the transit bolt holes.
1
2
3
4
Keep the four (4) transit bolts in a safe place,
in case you need to move the washing machine.
INSTALLATION
7
L1014WM17_IB.indd 7 26/07/2017 11:31

Installing Your Washing Machine
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant water and power
supply companies may apply. If in doubt, have the washing machine connected by a qualified
technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g.
washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where
there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of trapping or kinking.
Choosing the Right Location for Your Washing Machine
• Make sure there’s enough space for your washing machine.
• Install your washing machine on a flat, stable surface to avoid excessive vibration and noise.
• The ventilation openings in the base of the washing machine must not be obstructed by carpet.
Two or more people are required to move
the washing machine.
• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person should grip
the bottom feet at the front.
• We recommend that you entrust the installation of the washing machine to a qualified technician.
Additional space (approximately 60mm) is required for the rear of the washing machine. This
is to allow enough space for the water hose and drain hose connections.
INSTALLATION
8
L1014WM17_IB.indd 8 26/07/2017 11:31

L1014WM17
Rapid15’ Cotton
Cotton
Cotton
Eco20˚C
EasyCare
Wool
Rinse
Temp. Spin Delay Timer Prewash
A+++
Allergysafe
OFF
Daily60’
Shirts
Duvet
Sport
Spin
HandWash
Delicate
˚C
Display Functions
Levelling the Washing Machine
There are 4 levelling feet on the underside. They MUST be adjusted to make sure the washing machine
is level.
Ensure all four lock rings are tightened securely. Check the feet are still bolted to
the washing machine - if they’re unbolted, the washing machine will move around.
Hose and Cable Lengths
How to connect from the left side
~95cm
~145cm
~95cm ~150cm
min. 60cm
max. 100cm
~95cm
~140cm
How to connect from the right side
* All images are for indication only; please refer to your individual unit for actual item.
Water Supply Hose
Points to remember
• Follow the instructions in this section to avoid water leaks.
• Don’t connect the hose to a combination tap.
• Don’t twist, squash, modify or cut the hose.
• This machine is designed to connect to the cold water supply. Do not connect to the hot water
supply.
• Use only the new water supply hose supplied. Old hose sets should not be reused.
• The mains water pressure must be 0.1MPa - 1MPa.
• If your washing machine is delivered in freezing weather conditions, leave it at room temperature
for 24 hours after you’ve set it up before using it. This ensures there’s no ice blocking the water
supply hose. If your water supply hose freezes, add 2 or 3 litres of warm water to the drum. Then
run a “Spin” only programme.
Adjust all four
feet by rotating
each upwards or
downwards.
On each foot, loosen
the lock ring by
turning clockwise.
Use a spirit level to
ensure the washing
machine is level.
Tighten each lock ring by
turning them anti-clockwise
(towards the washing
machine body).
Door
Lock
400
600
8001000
1200
COTTON95°
STOP
SPIN
RAPID15’
EASY
IRONING
DELAY
TIMER
TEMPERATURE
SELECT
START
PAUSE
Child
Lock Wash Rinse Spin
COTTON60°DAILY60’
COTTON40°
BABY
WASH50°
SYNTHETIC60°
SILK30°MIX30°
WOOL40°SPORTSWEAR30°
RINSEHANDWASH30°
BLOUSES/
SHIRTS60°
1 2 3 4
INSTALLATION
9
L1014WM17_IB.indd 9 26/07/2017 11:31

Connecting the Water Supply Hose
1. To prevent leakage from the connection
joints, ensure the rubber washer seals are
fitted to each end of the water supply hose.
Do not use without the seals in place.
2. Fit the straight end of the water supply hose
to the cold water tap.
3. Connect the angled end of the white headed hose to the
water inlet valve on the machine. Hand tighten the plastic
parts of the connections. If you are unsure, please call a
qualified plumber.
4. Open the tap slowly and check that there are no leaks around
the connection joints.
Draining to a sink or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through is sufficient to
prevent overflowing.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to flow
back into the washing machine.
U-Shape Holder
Draining to a wash-basin Draining to a drain hose
Connecting to the Mains Supply
For your safety:
• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, disconnect from the main, stop using them and call
a qualified technician for assistance.
• Mains cord of your washing machine is equipped with an Earthed plug. This plug must always be
inserted to an earthed socket capable of supplying 13 Amps. If you don’t have such a socket and
fuses in your house, please call a qualified electrician.
First time use
Some water may be left in your machine due to tests carried out during production. To dispose of this
water, it is recommended to perform the first washing operation with the programme (Cotton 90ºC)
and without laundry by inserting ½ portion of detergent in the main detergent (II) compartment of the
detergent drawer.
* All images are for indication only; please refer to your individual unit for actual item.
3/4”
min. 10 mm
3/4”
min. 10 mm
Plastic joint
Cold water inlet
(White lter valve)
When connecting to
the drain ensure the
blanking plate has been
removed.
During initial start-up and use of the unit, there may be a slight smell while the motor is
settling in. This is not a fault; this is normal operation.
INSTALLATION
10
L1014WM17_IB.indd 10 26/07/2017 11:31

11
Product Overview
The unit
Detergent
Compartment Control Panel
Door Handle
Filter Door
Window
L1014WM17_IB.indd 11 26/07/2017 11:31

12
Control Panel
L1014WM17
Rapid 15’ Cotton
Cotton
Cotton
Eco 20˚C
Easy Care
Wool
Rinse
Temp. Spin Delay Timer Prewash
A+++
Allergy safe
OFF
Daily 60’
Shirts
Duvet
Sport
Spin
Hand Wash
Delicate
˚C
Display Functions
Power and Programme Selection Dial
Dierent wash programmes can be selected
according to your wash requirements.
Function Progress
The symbols light to show the
washing progress.
- The wash cycle is underway
- The rinse cycle is underway
- The spin cycle is underway
- A delay timer has been set
- A prewash is selected
Start / Pause
Delay Timer Prewash
SpinTemp
Child Lock
If you want to cancel any programme running:
• Switch the programme knob to OFF position.
• Your machine will stop the washing operation and the programme will be cancelled.
(Ensure the Child Lock is off, otherwise the original programme will continue.)
• To empty the water accumulated in the machine switch the programme knob to any
programme.
• Your machine will perform the necessary discharge operation and cancel the programme.
• You can then select a new programme.

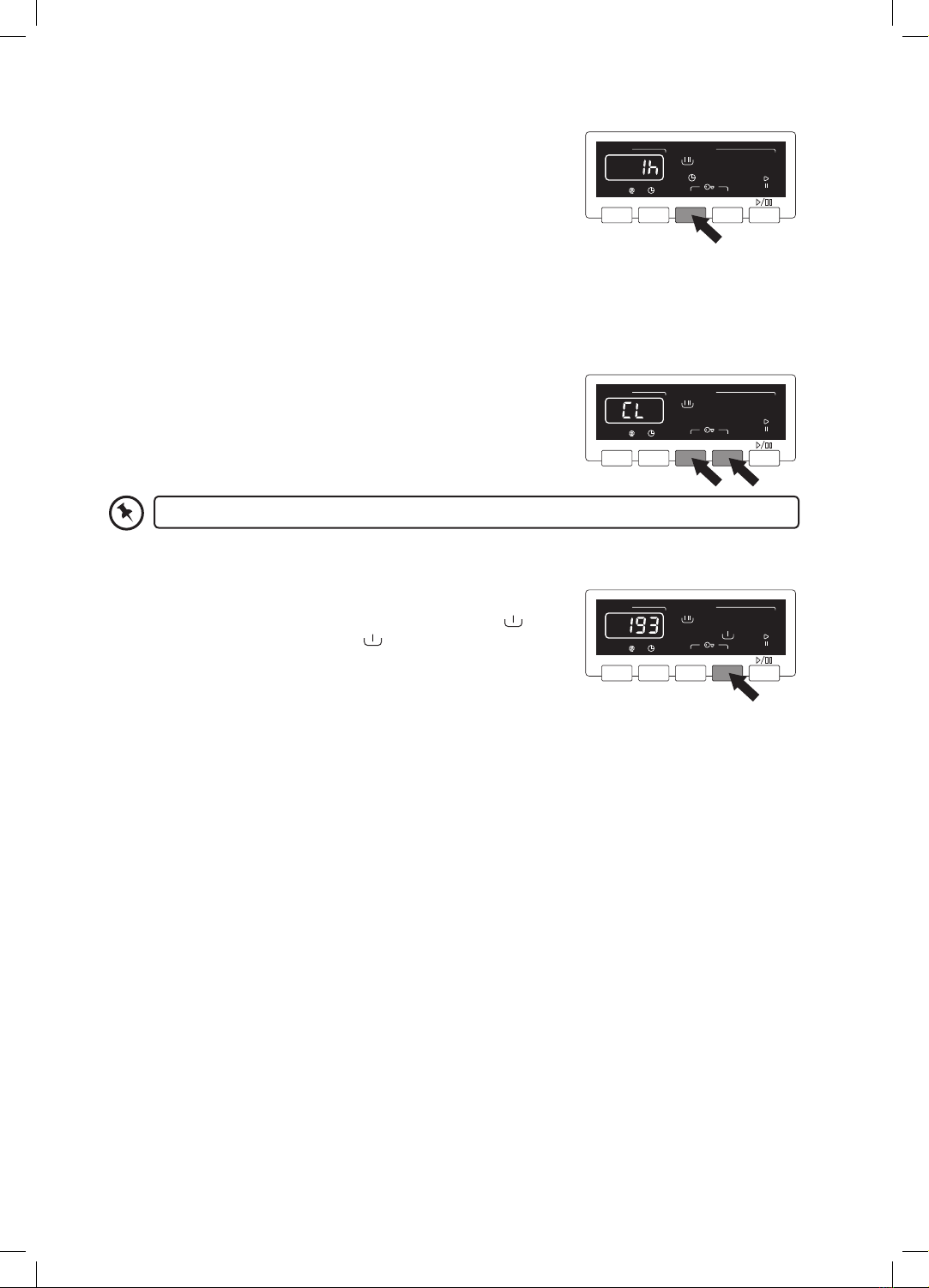

This button is used to
adjust the spin speed
during the spin drying
stage before starting the
selected program.
1400 - 1200 - 800 -
600 - 400 - OFF
This button is used to
set a delay time from 1
to 23 hours.
Your washing machine
will start after the time
selected.
This button is used to
adjust the washing
temperature before
starting the selected
program.
90°C - 60°C - 40°C -
30°C or - - (cold)
Digital Display
This display can show the
time remaining, spin speed,
wash temperature and delay
timer time.
L1014WM17_IB.indd 12 26/07/2017 11:31

13
Preparation

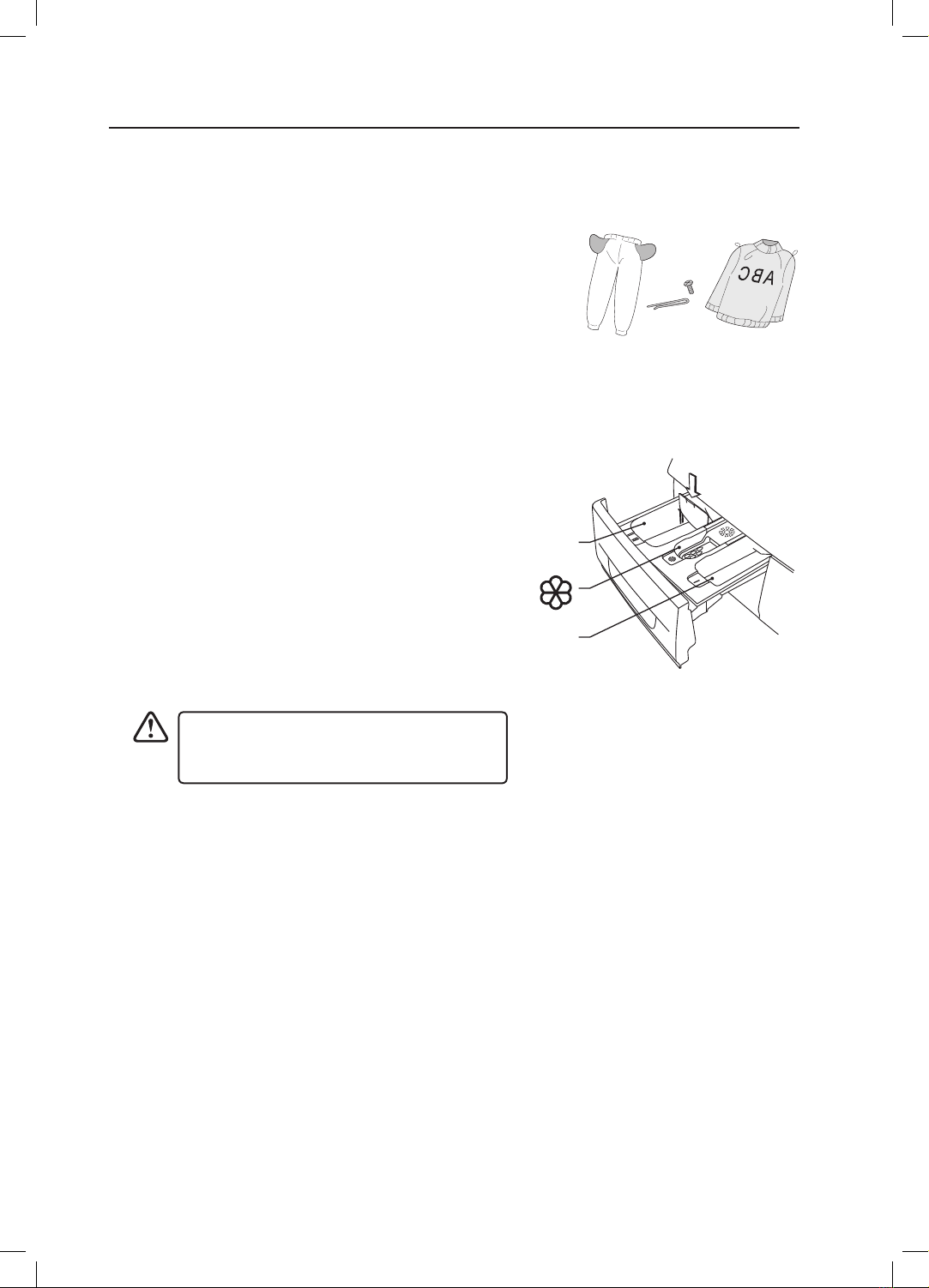

Read the following to understand how best to prepare your laundry for washing.
Preparing Laundry
• Check that pockets do not contain any objects which may damage
your clothes and the washing machine.
• To prevent any large, heavy objects (e.g., buckles, large buttons,
etc.) from hitting the glass door, turn your clothing inside out, or
remove the heavy objects. These could damage your laundry or the
washing machine.
• For small items use a washing net.
Adding Detergent and Softener
• Add detergent into the appropriate dispenser.
• Apply softener before you start washing.
• Apply detergent and softener according to the
washing amount, the soiling level, the water
hardness in your area and the manufacturer’s
instructions of these products.
• For slightly dirty clothes, do not pre-wash
and put a small amount of detergent in
compartment 2 (II) of the detergent drawer.
• For excessively dirty clothes, select a programme
including pre-washing, use ¼ of the detergent
to be used in the detergent drawer in
compartment 1 (I) of the detergent drawer and
the remaining amount in compartment 2 (II).
Dilute viscous fabric softener and fabric
conditioner with water. Prevent blockage of the
overflow. Maximum level is 40ml.
• Do not use washing machine when the detergent drawer is removed. It may cause a water leak or it
may not work normally.
• If you forget to add detergent, you can drain the washing machine by running a spin only programme.
Then you can add detergent and start the programme again. Detergent only reaches the drum when
water flushes through the detergent drawer.
• To prevent powdered detergent staying in the drawer, dry the inside of the drawer with a cloth. Make
sure the powder isn’t lumpy when you add it into the drawer.
• If the rinse cycle isn’t removing all the detergent from your wash, use less detergent.
• Softener should not exceed the MAX level in the compartment.
• Wash out unused softener with a splash of water or a damp cloth after the programme has finished.
• You can use your liquid detergents in all programmes without prewashing. For this, fit the liquid
detergent level plate from the accessories bag into the 2nd compartment of the detergent drawer and
set the amount of liquid detergent according to the levels on this plate. Remember to detach the liquid
detergent plate when done.
• Do not put too much laundry or detergent into the washing machine. It may cause issues with the
washing machine or laundry.
II
I
Main wash
detergent
Softener
Pre-wash
detergent
If you are using liquid
detergent insert the guide
L1014WM17_IB.indd 13 26/07/2017 11:31

14
Selecting the Programme
Here are the available programmes, additional functions and option settings.
Spin speed can be selected separately for certain programmes.
Program Description Prewash
Function†
Max
Temperature
Max Load
(kg)
Preset Setting
Default Spin
(rpm)
Approximate
Time (Min)
Cotton
1 90°C For average soiled
cottons, household
linens and work / play
clothes.
NOT Available ✓90°C 10.0* 1400 193
2Pre set ✓60°C 10.0* 1400 164
3Eco NOT Available ✓60°C 10.0* 1400 260
4 Eco 20°C
For less than average
soiled cottons,
household linens and
work / play clothes.
NOT Available ✓20°C 5.0** 1400 96
5Easy
Care
Very dirty or synthetic-
mixed textiles. NOT Available ✓40°C 3.5 800 89
6 Wool For machine washable
woollens. NOT Available ✓30°C 2.5 600 43
7 Rinse
Separate rinse procedure NOT Available ✗Water temp 10.0 1400 45
8Allergy
Safe For baby laundry NOT Available ✓60°C 5.0 800 212
9 Spin
Separate spin procedure NOT Available ✗- 10.0 1400 17
10
Sensitive
/ Hand
Wash
Laundry recommended
for hand wash or
sensitive laundry
NOT Available ✓30°C 2.5 600 90
11 Sport Sportswear NOT Available ✓30°C 3.5 800 80
12 Duvet
Dirty cotton, synthetics,
colour and ax textiles
can be washed together.
NOT Available ✓40°C 2.5 800 88
13 Shirts
Dirty cotton, synthetics,
and synthetic mixed
shirts/blouses can be
washed together.
NOT Available ✓60°C 5.0 600 112
14 Daily 60’ 60 minute wash NOT Available ✓60°C 4.0 1400 60***
15 Rapid 15’ 15 minute quick wash for
lightly soiled laundry NOT Available ✓30°C 2.0 800 15
* Maximum of 5kg of towelling material. ** Maximum of 2kg of towelling material. *** If 2kg or less of laundry is inserted the wash time
will be reduced to 30 mins.
• Standard washing cycle programs are the Standard 60° C Cotton Program and the Standard
40°C Cotton Program. These cycles are suitable for cleaning naturally-soiled laundry and are the most
efficient washing cycles in terms of combined energy and water consumption.
• For all washing programs, please following the detergent recommendations on the garment label or
on the detergent’s packaging.
• Washing times depend on the program type, ambient water temperature and wash load (weight and type).
• Energy and water consumption will vary according to wash load and type, extra functions, tap water
and ambient temperatures.
• The actual water temperature may differ from the declared cycle temperature.
• Your washing machine will automatically detect if you have only inserted half a load or less of laundry,
it will automatically reduce the washing time, water consumption and energy in some programs.
• Your washing machine has an Auto Balance feature. Washing times will be longer if the laundry in the
drum needs to be balanced.
L1014WM17_IB.indd 14 26/07/2017 11:31

15
Standard Washing
1. Pull the door handle and put the laundry in the drum.
Make sure no laundry gets caught in the door.
2. Close the door and turn the Programme Dial to select
your wash programme and water temperature.
3. Adjust the temperature (if required). The temperature can
not be set higher than the programmes set temperature.
4. Adjust the Spin Speed (if required).
5. Select any Optional Functions.
6. Add detergent into the detergent drawer. The quantity
of detergent will depend on the amount of laundry,
the degree of soiling and the water hardness. Use the
amount of detergent suggested on the packaging of the
detergent.
Wash Setting
First washing operation
Some water may be left in your machine due to tests carried out during production. To dispose of this
water, it is recommended to perform the first washing operation with the programme (Cotton 90ºC) and
without laundry by inserting ½ portion of detergent in 2nd compartment of the detergent drawer.
7. Press the Start / Pause button to start the washing.
8. The washing machines End LED will light when the programme is complete.
Temp. Spin Delay Timer Prewash
˚C
Display Functions

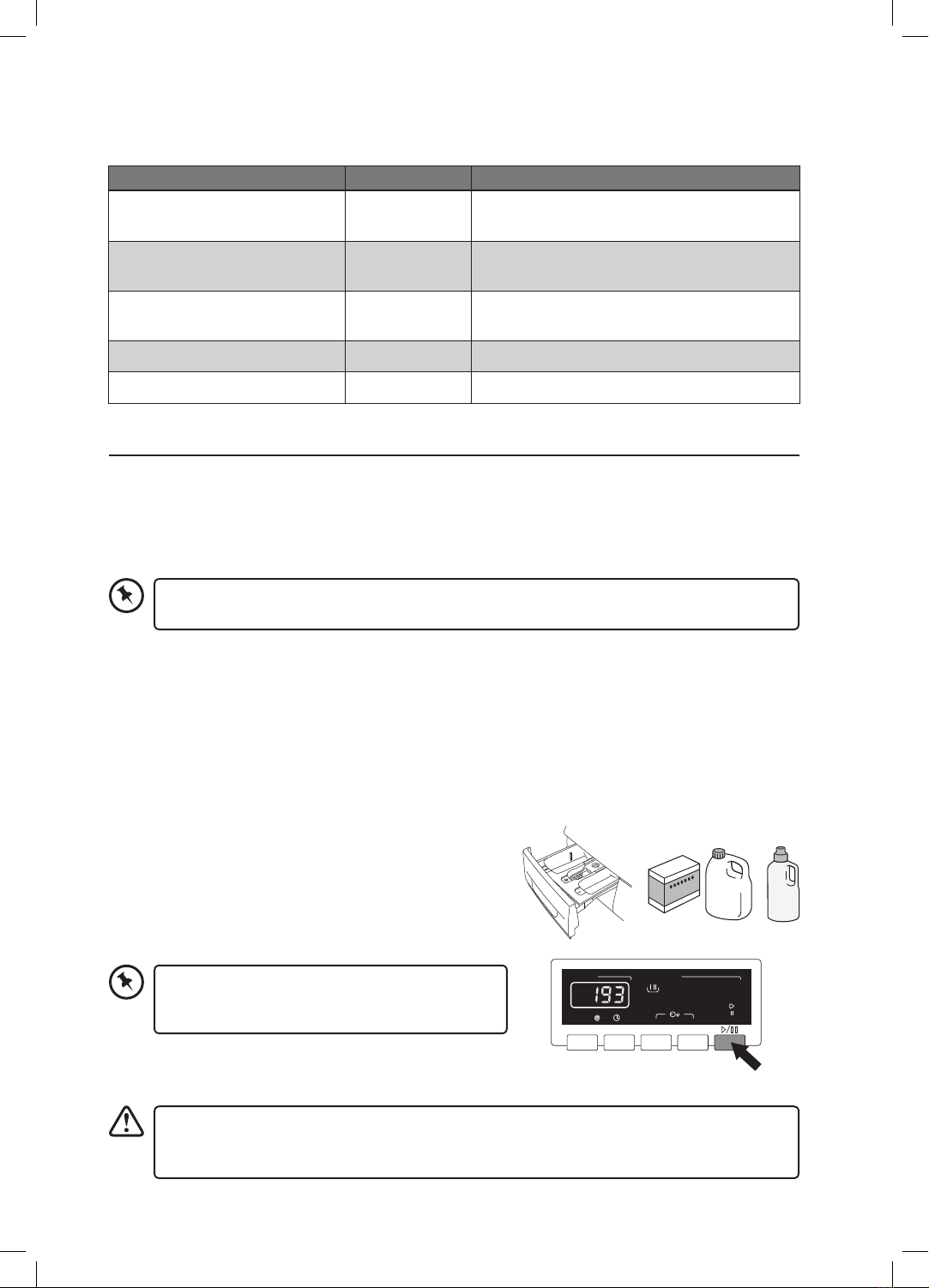

Which Detergent to Use
The care label is crucial to ensure correct detergent selection, temperature and laundry treatment.
Washing and type of textile Washing temperature Detergent
Boil washable white washing
made of linen or cotton 30°C - 90°C (Max) Standard detergent containing bleach and optical brighteners
Coloured washing made of linen
or cotton 30°C - 60°C (Max) Colour detergent without bleach and optical brighteners
Coloured washing made of easy-
care fibres, synthetic materials 30°C - 60°C (Max) Colour/mild detergent without optical brighteners
Delicate fine textiles, silk or viscose 30°C - 40°C (Max) Mild detergent
Wool 30°C - 40°C (Max) Detergent for woollens
During initial start-up and use of the unit, there may be a slight smell while the motor is settling
in. This is not a fault; this is normal operation.
To pause the programme you have selected, press
the Start / Pause button. The electronic display will
blink when the machine is in pause mode.
• If the door is locked and you switched the washing machine off - or if there’s a power cut - it
will stay locked for 2 minutes.
• If the machine is full of water, do not open the door.
L1014WM17_IB.indd 15 26/07/2017 11:31

16
Half-load detection system
Your machine features a half-load detection system. In case you load machine to approximately half or less
than the maximum laundry capacity, your machine will run so as to save washing time, water consumption
and energy in some programmes. When half load function is active, the machine can complete the
programme you have set in a shorter time.
Optional Functions
Depending on the programme you select, you can combine different optional functions.
• Press the button of the optional function you would like to select.
• If the indication of the function button remains lit it means that the function has been selected.
• If the indication of the function button is flashing it means you cannot use that additional function for
the wash programme you selected.
Reason for non-activation:
• The optional function you want to use in the washing programme you have selected is not applicable.
• Your machine has passed the stage, during which the optional function you want to select would be
implemented.
• It is not compatible with an optional function you have selected previously.
Washing Water Temperature Selection
You can select the washing water temperature with the Temp button.
You can gradually decrease the washing water temperature between
the maximum temperature of the selected programme and cold
washing by repeatedly pressing the Temp button.
If you have missed the washing water temperature you want, continue
and the temperature selection will loop back around.
Temperature Cycle
90° - 80° - 70° - 60°- 50° - 40° - 30° - and -- (cold)
Spin Speed
You can adjust the spin speed by pressing the Spin button. Only
a lower spin speed than the one of the selected program can be
selected.
Spin speeds selectable are:
1400 - 1200 - 1000 - 800 - 600 - 400 - or -- (no spin)
Manual Soaking
To manually soak your laundry, press the Start / Pause button a few minutes after the wash programme
has started when the drum is full of water. The washing machine will suspend the laundry to soak it in
the water. After your desired soaking time, press the Start / Pause button, the machine will continue the
previous wash.
Temp. Spin Delay Timer Prewash
˚C
Display Functions
Temp. Spin Delay Timer Prewash
˚C
Display Functions
L1014WM17_IB.indd 16 26/07/2017 11:31

17
Delay Timer
You can set a delay timer on your wash programme. The delay timer
will start then start the wash programme after the time that you set
has expired. For example the time in now 4pm and you set a 2 hour
delay timer, your washing programme will start at 6pm.
• Press the Delay Timer button to cycle through the delay times
starting from 1 hour up to 23 hours.
How to Set the Child Lock
The Child Lock prevents children from stopping programmes accidentally. It only locks the control buttons
not the Programme Dial.
Switch the washing machine on.
1. When the washing machine is operating, press and hold Easy
Delay Timer and Prewash button for 3 seconds. The letters ‘CL’
will be displayed for a few seconds showing the child lock is
active. If any button is pressed or the Programme Dial is turned
the letters ‘CL’ will flash in the display. Press the buttons in the
same way to unlock.
The child lock will switch off automatically at the end of the wash programme.
Selecting a Prewash
On some programmes you can select to add a Prewash to the
programme. Press the Prewash button to add a prewash. The
symbol will appear in the display. If the symbol flashes then
disappears from the display its not possible to add a Prewash to the
selected wash programme.
Finishing programme
• Your machine will stop by itself as soon as the programme you have selected finishes.
• The door lock will release and the End show in the display.
• Turn the Programme Dial back to OFF.
Removing Laundry
1. Open the washing machine door and remove your laundry.
2. Remove any foreign objects to avoid risk of rusting.
3. Leave the door and detergent drawer open so that residual water can evaporate.
4. If you have finished using the washing machine, turn off the water and mains supply.
Temp. Spin Delay Timer Prewash
˚C
Display Functions
Temp. Spin Delay Timer Prewash
˚C
Display Functions
Temp. Spin Delay Timer Prewash
˚C
Display Functions
L1014WM17_IB.indd 17 26/07/2017 11:31

18
Maintenance - Cleaning the Washing Machine
4. Disassemble the detergent drawer. Remove the siphon
plug and clean the any residual softener thoroughly.
Replace the cleaned siphon plug and check that it is
fitted properly.
Cleaning the Door Seal and Window
• Wipe the window and seal after each wash to remove lint and stains. If lint builds up, it can cause leaks.
• Remove any coins, buttons and other objects from the door seal after each wash.
* All images are for indication only; please refer to your individual unit for actual item.
Cleaning the Drum
Rust left inside the drum by metal articles should be removed immediately with chlorine-free detergent.
Never use steel wool.
Don’t put laundry in the washing machine during the drum cleaning.
Cleaning the Exterior of your Washing Machine
• Clean the outside of your washing machine with a soft cloth and mild detergent such as kitchen
detergent.
• Don’t splash water over the washing machine.
• Do not use cream cleansers, thinners or products containing alcohol or kerosene.

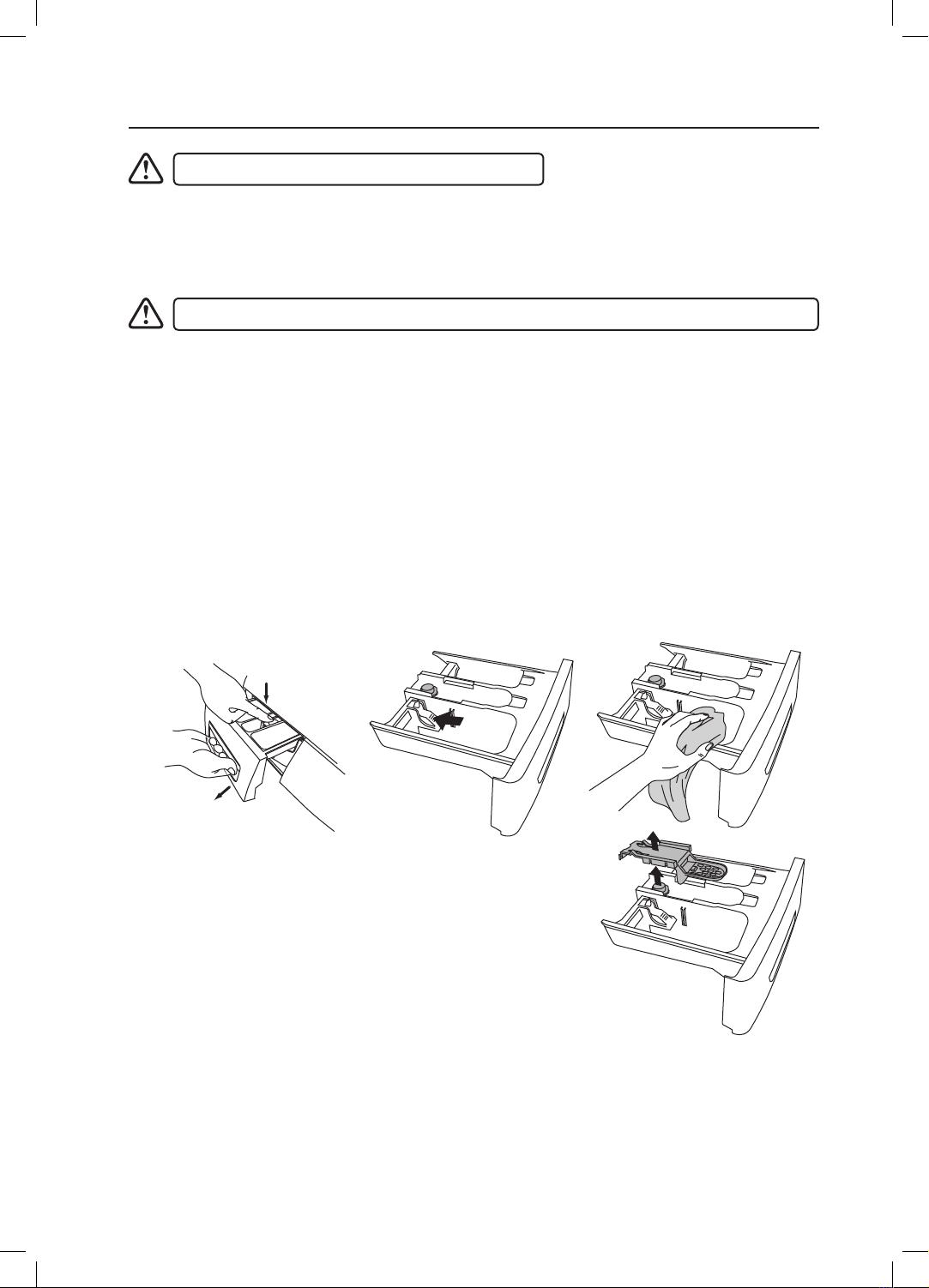

Cleaning the Detergent Drawer and Siphon Plug
1. Remove the detergent drawer by pulling and pressing gently on the rear centre part of the softener
compartment.
2. Wash out old detergent from the drawer with water. (Use a cloth to clean the washing machine.)
Residue detergent soon builds up if you don’t clean the drawer regularly, and can develop mould.
3. Return drawer to original position.
Pull out at the
same time
Press
Always unplug the washing machine before cleaning.
L1014WM17_IB.indd 18 26/07/2017 11:31

19
5. Turn the filter clockwise and screw the filter back into place.
6. Close the service flap.
Cleaning the Drain Filter
Be careful not to burn yourself as water in the pump may be hot after a high temperature wash.
Before cleaning the drain filter, first start the spin programme, then switch off and unplug the washing
machine.
1. Gently Open the Service Flap. Place a suitable container under the service flap to catch the water.
Service
Flap
2. Carefully loosen the drain filter. Turn anti-clockwise until the water gently begins to run out, this is
normal.
3. Remove the filter once the water has stopped.
4. Remove any lint and debris before carefully replacing the filter.
* All images are for indication only; please refer to your individual unit for actual item.
L1014WM17_IB.indd 19 26/07/2017 11:31

20
Product Fiche
Model: L1014WM17
Rated capacity: 10 kg
Energy efficiency class: A+++
Energy consumption is 236 kwh per year based on 220 standard washing cycles for cotton programmes set
at 60° C and 40° C, with full and partial loads, and the consumption of low-power modes.
Actual energy consumption will depend on how the appliance is used.
Energy consumption of:
• StandardCottonprogramme,60°C,withafullload:1.57kwh
• StandardCottonprogramme,60°C,withapartialload:0.68kwh
• StandardCottonprogramme,40°C,withapartialload:0.63kwh
Power consumption when appliance is:
• Turnedoff:0.5W
• Lefton:1.00W
Water consumption is 12760 litres per year based on 220 standard washing cycles for cotton programmes
set at 60° C and 40° C, with full and partial loads.
Actual water consumption will depend on how the appliance is used.
Spin-drying efficiency class is “B”, on a scale of A (most efficient) to G (least efficient).
Maximum spin speed: 1400 rpm
Remaining moisture content: 53%
Standard washing cycle programmes are the Standard 60° C Cotton Programme and the Standard 40° C
Cotton Programme. These cycles are suitable for cleaning naturally-soiled laundry and are the most efficient
washing cycles in terms of combined energy and water consumption.
Time required:
• StandardCottonprogramme,60°C,withafullload:260mins
• StandardCottonprogramme,60°C,withapartialload:195mins
• StandardCottonprogramme,40°C:190mins
Airborne acoustical noise (spinning): 77 dB
Airborne acoustical noise (standard 60° C): 58 dB
L1014WM17_IB.indd 20 26/07/2017 11:31
