Logik L712WM11 User manual

7KG Washing Machine
Installation Guide / Instruction Manual
L712WM11
L712MW11_IB_final110506.indd 1 24/05/2011 5:48 PM

L712MW11_IB_final110506.indd 2 24/05/2011 5:48 PM

Contents
Unpacking..................................................................................................................................................... 4
Installing Your Washing Machine ................................................................................................................ 5
Choosing the Right Location for Your Washing Machine..............................................................................................5
Moving and Installing .................................................................................................................................. 6
Removing the Transit Bolts.......................................................................................................................................................6
Moving the Washing Machine from One Location to Another...................................................................................6
Hose and Cable Lengths ...........................................................................................................................................................7
Levelling the Washing Machine..............................................................................................................................................7
Water Supply Hose......................................................................................................................................................................7
Water Drain Hose.........................................................................................................................................................................8
Connecting to the Mains Supply ...........................................................................................................................................8
Product Overview......................................................................................................................................... 9
The unit ...........................................................................................................................................................................................9
Control Panel .............................................................................................................................................................................10
Preparation ................................................................................................................................................. 11
Organising Laundry .................................................................................................................................................................11
Preparing Laundry.................................................................................................................................................................... 11
Adding Detergent and Softener..........................................................................................................................................11
Selecting the Programme...................................................................................................................................................... 12
Wash Setting ............................................................................................................................................... 13
Standard Washing .................................................................................................................................................................... 13
Manual Soaking......................................................................................................................................................................... 13
Optional Functions...................................................................................................................................................................14
Removing Laundry...................................................................................................................................................................14
Important Information............................................................................................................................... 15
Washing Delicates (Wool and Delicate Programmes)................................................................................................. 15
Adding Delicate Laundry Items to the Drum .................................................................................................................15
Which Detergent to Use.........................................................................................................................................................15
Tips for Hanging Delicate Items to Dry.............................................................................................................................15
If Clothing Shrinks in the Wash............................................................................................................................................ 15
How to Use Laundry Starch...................................................................................................................................................16
How to Use a Water Softener................................................................................................................................................16
How to Set the Key Lock ........................................................................................................................................................16
Maintenance - Cleaning the Washing Machine ........................................................................................ 17
Cleaning the Drum...................................................................................................................................................................17
Cleaning the Exterior of your Washing Machine........................................................................................................... 17
Cleaning the Detergent Drawer .......................................................................................................................................... 17
Cleaning the Door Seal and Window.................................................................................................................................17
Cleaning the Drain Filter ........................................................................................................................................................ 18
Preventing a Frozen Water Supply Hose .......................................................................................................................... 18
Cleaning the Filter Net of the Water Supply Hose ........................................................................................................ 18
Hints and Tips ............................................................................................................................................. 19
Troubleshooting ......................................................................................................................................... 21
Error Code....................................................................................................................................................................................21
Specication ............................................................................................................................................... 22
Safety Warnings.......................................................................................................................................... 23
L712MW11_IB_final110506.indd 3 24/05/2011 5:48 PM

4
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to
local regulations.
The following items are included:
The Main Unit
Thank you for purchasing your new Logik Washing Machine.
We recommend that you spend some time reading this installation/instruction manual
in order that you fully understand all the operational features it offers.
Read all the safety instructions carefully before use and keep this installation/
instruction manual for future reference.
If items are missing, or damaged please contact Partmaster (UK only).
Tel: [phone] for assistance.
Cover Cap x 4
P.N.: 301130650057
Water Supply Hose x 1
P.N.: 301130600020
U-Shape Holder x 1
P.N.: 301130600276
For xing the water drain hose.
Instruction Manual x 1
P.N.: L712MW11-001
Cotton
Prewash
Quick Wash
SpinRinse
Wool
Synthetic
Delicate
Intensive Rinse
L712MW11_IB_final110506.indd 4 24/05/2011 5:48 PM

Installing Your Washing Machine
Please read and follow the instructions carefully.
• In addition to the instructions mentioned here, special regulations of the relevant water and power
supply companies may apply. If in doubt, have the washing machine connected by a qualified
technician.
• The washing machine is heavy - caution when lifting it. Do not lift by projecting components (e.g.
washing machine door).
• Warning: Frozen hoses may tear/burst. Do not install washing machine in outdoor areas or where
there is a risk of frost.
• Lay hoses and cables in such a way that there is no risk of trapping or kinking.
Choosing the Right Location for Your Washing Machine
• Make sure there’s enough space for your washing machine.
• Install your washing machine on a flat, stable surface to avoid excessive vibration and noise.
• Don’t install your washing machine in direct sunlight or in a place where temperatures reach
freezing.

Sloping
surface
Unstable Bumpy
surface
Two or more people are required to carry
the washing machine.
• Start by tilting the washing machine backwards.
• One person should stand behind it, holding the rear of the top panel. The other person should grip
the bottom feet at the front.
• Don’t touch the door opening button while holding.
• Check that you have all the required accessories for installation.
• Entrust the installation of the washing machine to a qualified technician.
Additional space (240mm) is required for the rear side of the washing machine. This is to
allow enough space for the water hose and drain hose.
INSTALLATION
5
L712MW11_IB_final110506.indd 5 24/05/2011 5:48 PM

Moving and Installing
Removing the Transit Bolts

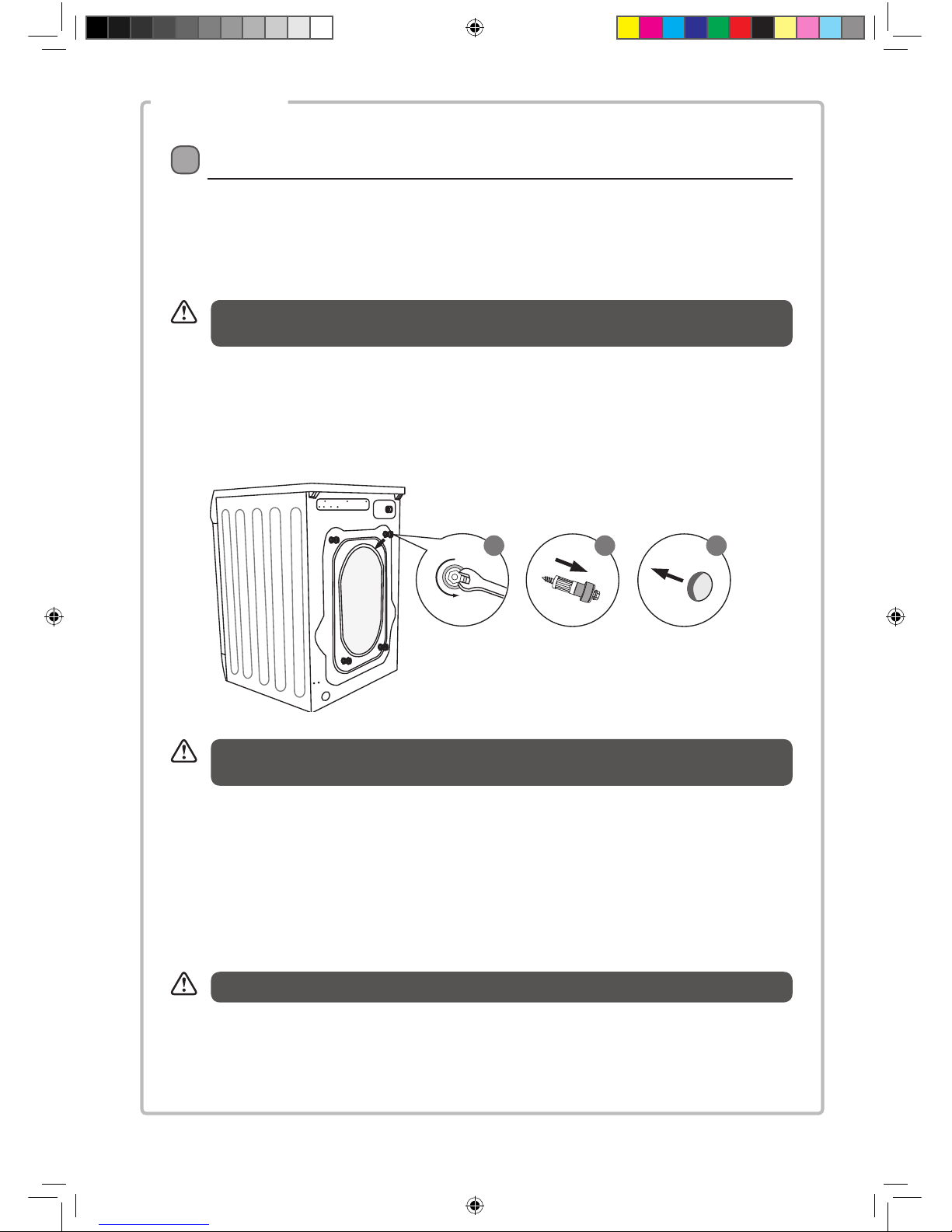

Four transit bolts keep the interior of the washing machine in place while it’s being moved.
They need to be removed before installation. Use a spanner (not supplied) and follow the instructions
detailed below.
Moving the Washing Machine from One Location to Another
Before you move the washing machine:
• Shut off the tap and run the washing machine to drain the water. Drain any remaining water from
the pump hose.
• Disconnect the mains cable.
• Attach the transit bolts.
To remove the transit bolts:
1. Use a spanner to loosen the four bolts. They are located at the rear side of the washing machine.
2. Pull the bolts out horizontally. Make sure the entire bolt is removed.
3. Push the four cover caps (included with your accessories) into the respective bolt holes.
Don’t run the washing machine without removing the transit bolts, as this can cause
excessive vibrations.
You’ll need the anchor bolts again if you move the washing machine, so make sure you keep
them in a safe place.
1 2 3
Make sure to fix the anchor bolts prior to moving the washing machine.
INSTALLATION
6
L712MW11_IB_final110506.indd 6 24/05/2011 5:48 PM

Levelling the Washing Machine
There are 4 levelling feet on the underside. They must be adjusted to make sure the washing machine
is level.
1. On each stand, loosen the lock nut by turning it clockwise with a spanner.
2. Adjust all four feet in this way.
3. Use a spirit level to ensure the washing machine is level.
4. Tighten each lock nut by turning them anti-clockwise (towards the
washing machine body), again using a spanner.
Ensure all four lock nuts are tightened securely. Check the feet are still bolted to
the washing machine - if they’re unbolted, the washing machine will move around.
Water Supply Hose
Points to remember
• Follow the instructions in this section to avoid water leaks.
• Don’t connect the hose to a combination tap.
• Don’t twist, squash, modify or cut the hose.
• Optimum water pressure in the water mains pipe is 0.02 MPa - 1.0 MPa. If the water pressure is set
higher than this, you will need to install a depressurising valve. Water-flow from the tap should be
more than 5 litres per minute. If you’re unsure, ask a qualified technician to connect the hose.
• This unit must only be connected to cold water mains using the new water inlet hose provided.
Connecting the Water Supply Hose
1. Attach the hose to a tap, and tighten the
plastic joint by hand.
2. Open the tap slowly and check that there
are no leaks around the joint.
Hose and Cable Lengths
Cotton
Prewash
Quick Wash
SpinRinse
Wool
Synthetic
Delicate
IntensiveRinse
The joint is subject to water pressure.
How to connect from the left side
~80cm
~90cm
~85cm ~135cm
min. 60cm
max. 100cm
~40cm
~130cm
How to connect from the right side
Lock nut
3/4”
min. 10 mm
3/4”
min. 10 mm Plastic joint
INSTALLATION
7
L712MW11_IB_final110506.indd 7 24/05/2011 5:48 PM

Water Drain Hose
Points to remember:
• Don’t twist, pull out or bend the drain hose.
• Your washing machine should be no more than 85cm from the drain outlet.
Draining to a sink or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through it is sufficient.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to flow
back into the washing machine.
U-Shape Holder
Draining to a wash-basin Draining to a drain hose
Connecting to the Mains Supply
For your safety:
• Do not use a mains plug adapter or extension cable.
• If the mains cable or mains plug are damaged, stop using them and call a qualified technician for
assistance.
Installation Check List
By now, you should have installed the washing machine.
Let’s go through the checklist to ensure that the installation has been done correctly!
Questions Checkbox
Transit bolts - Have you removed them and attached the cover caps properly?
4 levelling feet Are they bolted securely to the washing machine?
Are they standing flat?
Power supply - Is the household dedicated mains socket, fully rated at AC220V to
240V independently?
Location - Is your washing machine on a flat, stable surface? Does it run without
vibrating?
Water Supply Hose - Is it free from leaks and is the water supply normal?
Water Drain Hose - Is it free from leaks and is it draining normally?
INSTALLATION
8
L712MW11_IB_final110506.indd 8 24/05/2011 5:49 PM

9
Product Overview

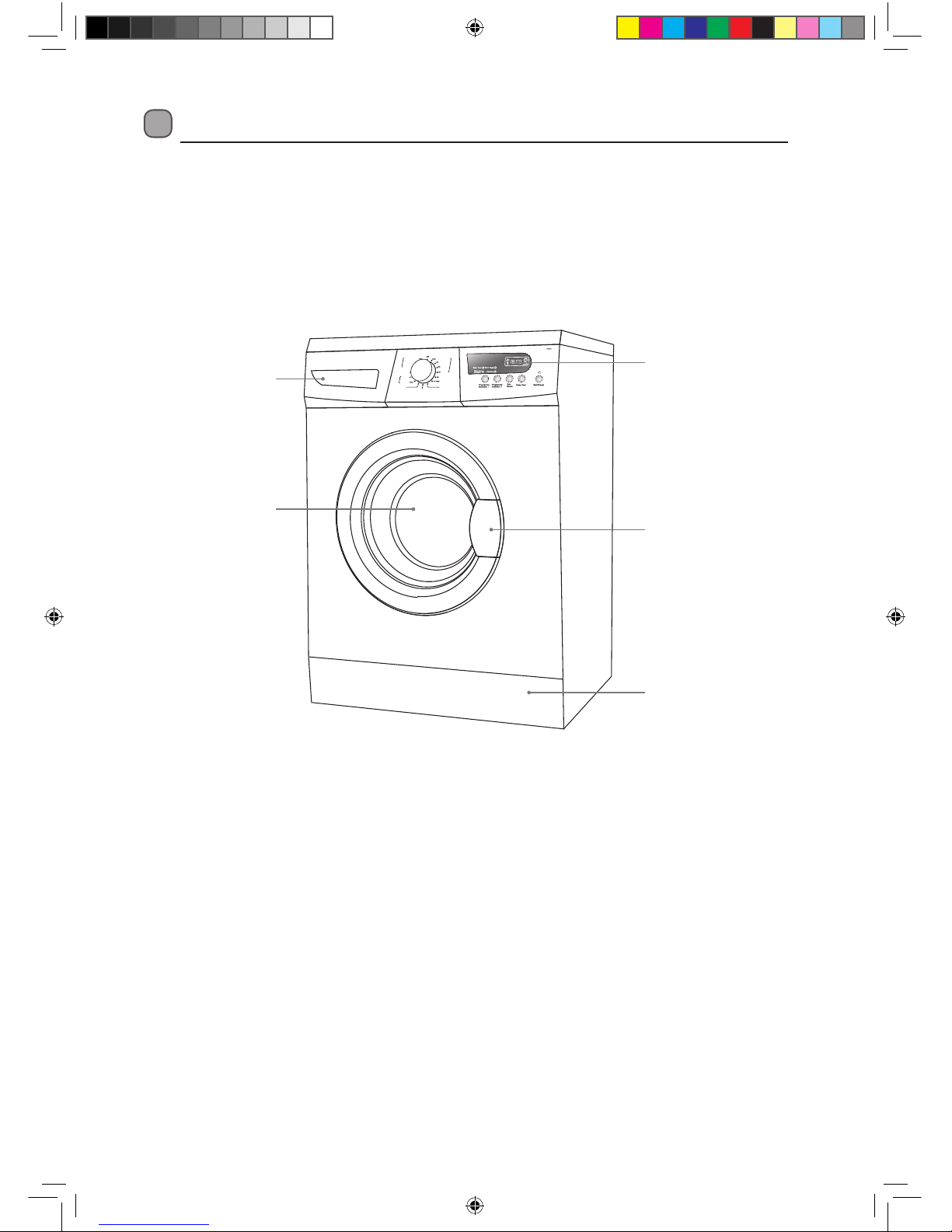

The unit
Cotton
Prewash
Quick Wash
SpinRinse
Wool
Synthetic
Delicate
Intensive Rinse
Detergent
Compartment
Control Panel
Door Handle
Filter Door
Window
L712MW11_IB_final110506.indd 9 24/05/2011 5:49 PM

10
Control Panel
Cotton
Prewash
Quick Wash
SpinRinse
Wool
Synthetic
Delicate
Intensive Rinse
Programme Dial
Dierent wash programmes
can be selected according to
your wash requirements.
Start / Pause
Press to start your
wash. Press while in
operation to pause
your wash.
Programme
Selection 2
This button is
used to choose
ECO Wash
or Intensive
functions.
Programme
Selection 1
You can select
from two
functions. Baby
Care or Reduced
Creases to get a
better wash for
your clothes.
Child Lock
This machine
incorporates a
special child safety
lock, which can
prevent children
from pressing the
keys and changing
the setting .
Delay Start
It delays
washing time
from 0 to 24
hours.
Spin Speed
This button is used to
adjust the spin speed
during the drying
stage. You can change
the spin speed by
pressing this button
repeatedly.
• If you need to change a setting after the wash has started, turn the dial to OFF. Re-select the
programme, spin speed and optional functions, and then press the Start / Pause button.
• Water is poured into the washing machine to perform an inspection at the time of shipment
from the factory, so there may be drops of water or condensation in the washing machine. This
is not an indication of a malfunction.
L712MW11_IB_final110506.indd 10 24/05/2011 5:49 PM
