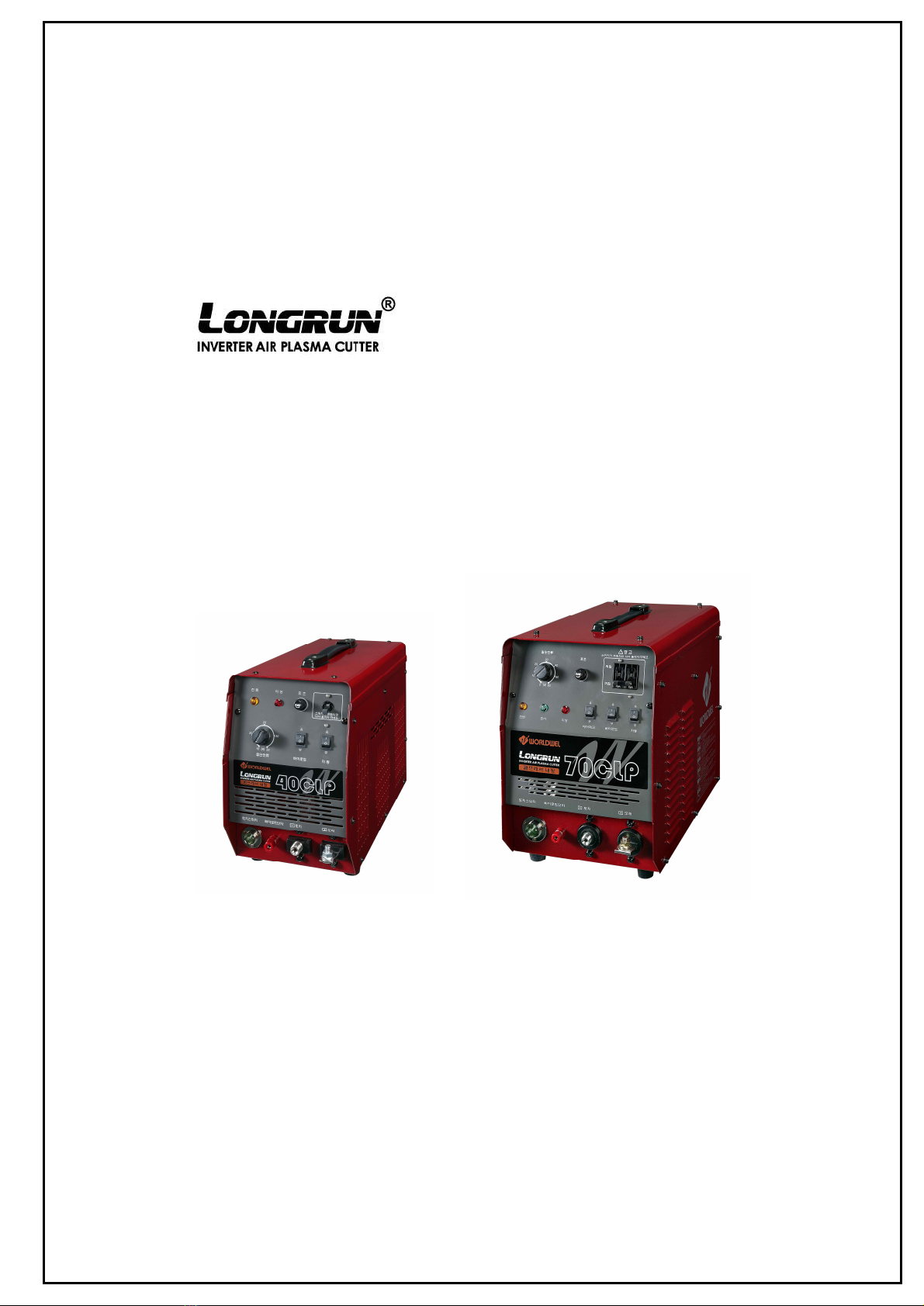

INVERTER AIR PLASMA CUTTING MACHINE
40CLP, 70CLP
[Built-in Compressor]
OPERATION MANUAL
DO NOT INSTALL, OPERATE OR MAINTAIN THIS MACHINE WITHOUT
READING THIS MANUAL AND PLEASE ALWAYS THINK BEFORE YOU
ACT.
www.worldwel.com
■ TECHNICAL SPECIFICATIONS
- Suitable for using at outdoor works by portable
- Possible to cut less 10mm all kinds of metal
- Cutting with air only, no need other gas
- Non contact arc starting by pilot circuit
- No need keeping to push torch switch during cutting by turning AUTO switch On
which is on front panel of power source.
ITEM UNIT 40CLP 70CLP
Input Voltage V 220V, Single Phase 220V, Single Phase
Frequency Hz 50/60 50/60
Input Current A 18 36
No Load Voltage V 270 325
Output Current Range A 15 ~ 40 30 ~ 60
Output Voltage V 120 128
Duty Cycle @ rated output % 40 40
Dimension (W×D×H) mm 190 × 430 × 310 250 × 480 × 380
Weight kg 19 29
General Safe Practices
■ Wear approved safety glasses with side shields under your welding helmet or face shield and at all
times in the work area.
■ When working above floor level, use a safety belt to protect yourself from a fall should you get a
shock.
■ Do not install or place machine on or over combustible surfaces.
■ Be sure that all installation, operation, maintenance and repair procedures are performed only by
qualified persons.
Electric shock can kill.
■ Wear Dry, hole-free insulating gloves and body protection. Do not touch electrode with bare hand.
Do not wear wet or damaged gloves.
■ Do not touch live electrical parts.
■ Never dip the electrode in water for cooling.
■ Properly install and ground all equipment.
■ Protect yourself from electric shock by insulating yourself from work and ground.
Use non-flammable, dry insulating material if possible, or use dry rubber mats, dry wood or
plywood, or other dry insulating material big enough to cover your full area of contact with the
work or ground, and watch for fire.
■ Turn off input power using the disconnect switch at the fuse box before working on the equipment.
■ Frequently inspect input power cable for damage or bare wiring and repair or replace cable
immediately if damaged.
Fumes and gases can be dangerous.
■ Cutting may produce fumes and gases hazardous to health. Avoid breathing these fumes and
gases. When cutting, keep your head out of the fume. Use enough ventilation and/or exhaust at
the arc to keep fumes and gases away from the breathing zone.
■ Use enough forced ventilation or local exhaust (forced suction) at the arc to remove the fumes
from your breathing area.
■ Use a ventilating fan to remove the fumes from the breathing zone and welding area.
Arc rays can burn eyes and skin.
■ Use welding helmet with correct shade of filter to protect your eyes from sparks and the rays of the
arc.
■ Wear welders cap and safety glasses with side shields. Use ear protection when welding out of
position or in confined spaces. Button shirt collar.
■ Wear complete body protection. Wear oil-free protective clothing such as leather gloves, heavy
shirt, cuffless pants and high boots.
Cutting sparks can cause fire or explosion.
■ Remove fire hazards from the welding area. If this is not possible, cover them to prevent the
welding sparks from starting a fire. Remember that welding sparks and hot materials from welding
can easily go through small cracks and opening to adjacent areas. Avoid welding near hydraulic
lines.
■ When not use, make certain no part of the electrode circuit is touching the work or ground.
Accidental contact can cause overheating and create a fire hazard.
■ Do not cut on drums, tanks, or any closed containers unless a qualified person has tested it and
declared it or prepared it to be safe.
■ Connect the work cable to the work as close to the cutting area as practical. Work cables
connected to the building framework or other locations away from the cutting area increase the
possibility of the cutting current passing through lifting chains, crane cables or other alternate
circuits. This can create fire hazards or overheat lifting chains or cables until they fail.
■ INSTALLATION
● The welding & cutting machine shall be installed at a place ;
․ free from the inflammables
․ less humidity, dirt and dust
․ protecting from influence of direct sunlight, wind and rain
․ not generated oil vapor and corrosive gas
․ operating temperature range is from -10℃ to 40℃
․ least 30㎝ away from wall and other welding machine
● Input Connection (Rear of the machine)
Be sure the voltage, phase and frequency of the input power is as specified on the name
plate located on the rear panel of the machine.
․ To connect the power cables, turn the power switch OFF
․ Verify the voltage to be supplied from main power.
․ Open the cover of terminal and connect the power cable to the power input terminal on the rear of the
machine and close the cover of terminal. For grounding the machine, connect a ground wire to the
ground terminal marked with the symbol is located on the rear panel of the machine.
․ Connect the air hose to the air-in of air regulator.

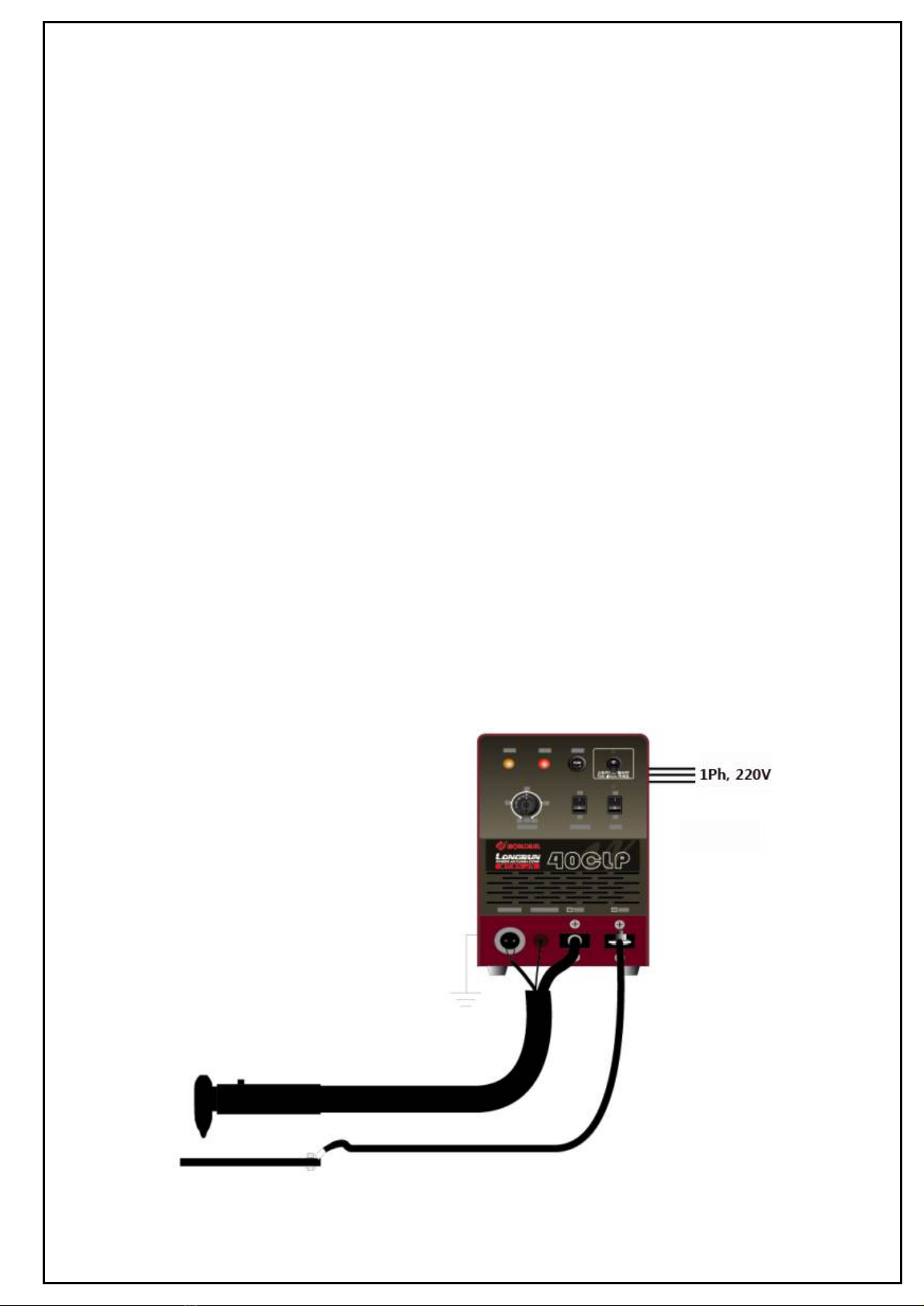

● Output Connection (Front of the machine)
․ Connect the work cable (which is connected to the work clamp) to the "+ METAL"terminal.
․ To connect the torch,
- Connect a electrode cable to the "- TORCH" terminal
- Connect a torchswitch connector to the torch switch receptacle
- Connect a pilot wire to the pilotreceptacle.
■ FRONT PANEL
1Power Switch When it is turn on, the cooling fan and all of electrical circuit inside the
machine will be operated.
2Fuse, 3A
3Current Volume Adjust the current
4Power Lamp It indicates that the machine is on and input voltage is within acceptable
range.
5Ready Lamp
6Warning Lamp
It indicates the thermal over load or output disabled by any electrical problems
or the failure of program. When it is on, the machine will not supply power at
the output.
7Air Check Switch Air check
8Pilot Switch Possible the non contact cutting with workpiece by pilot circuit.
9Auto Switch If it is On, no need keeping to push torch switch during cutting
10 Torch S/W
11 Pilot connector
12 Torch connector
13 Metal connector
■ START UP
Turn On the main power supplied to machine

Turn On the power switch of machine and then verify that the power lamp is On and the cooling
fan is running

Regulate the air pressure to 60PSI using the lever of air regulator when pushing torch switch

Select PILOT ON or OFF of the pilot selection switch

Select AUTO ON or OFF of the auto selection switch

Set the proper cutting current by the output current adjusting volume

Start cutting
40CLP PARTS LIST
NO.
PART NAME DESCRIPTION QTY.
1 Magnet GMC-30P2 1
2 Main PCB WTM06[Ver.01] 1
3 HF PCB TME-10A65 1
4 PWD PCB WPD-01 1
5 Cable Lock   1
6 MF Condensor 10㎌/800V[SMALL] 2
7 Condensor 1500/400V 1
8 Control Transformer LP-7630(300LT2) 1
9 NFB DCP31PR 45A 1
10 Slave PCB WPSB-02 1
11 Switch KCD1-202, 2 WAY 2
12 FUSE 5A 1
13 Volume RV24YN, 5K 1
14 Resistor, Stick 100W3Ω1
15 FAN-120T 120T(PIN TYPE) 1
16 Output Diode PCB 36S * 6EA, WDO-08 1
17 IGBT LUH75G602Z 75A/600V 2
18 IGBT Drive PCB 220Ω / 10Ω,WGE-01 2
19 Input Bridge Diode GBPC 7010 1
20 Temp. Switch N75 1
21 Terminal,MID MID 1
22 Terminal, Air   1
23 Terminal Pilot OT LARGE 1
24 Connector K20-2R 1
25 Noise Filter PCB WTF-01 1
26 Pilot Surge PCB WNF-02 2
27 Induction Coil 40CLP 1
28 Choke Transformer 40CLP 1
29 Coil 40CLP 1
30 Main Transformer 40CLP 1
31 Compressor 60RAS N/220V 1
