Lopi Foxfire AGP User manual

Foxfire AGP
Pellet Stove
• Horizontal or Vertical Vent
• Freestanding Stove
• Mobile Home Approved
• Class A Chimney Retrofit
• Hearth Stove into Existing
Masonry Chimney , Masonry
Fireplace, or Z.C. Fireplace
-- Please read this entire manual before
installation and use of this pellet fuel-
burning room heater. Failure to follow
these instructions could result in
property damage, bodily injury, or even
death.
-- Contact local building or fire officials
about restrictions and installation
inspection requirements in your area.
-- Save these instructions.
Tested and Listed by:
ASTM E1509-12 ULC-S627
Installer: After installation give this manual to the home-
owner and explain operation of this heater.
Consumer: Retain this manual for future reference.
$10.00 Copyright 2017, T.I.
Part # 100-01402 4170126
www.travisproducts.com
12521 Harbour Reach Drive SW
Mukilteo, WA 98275

2Introduction
© Travis Industries 4141007 100-01402
Introduction
We welcome you as a new owner of a Foxfire pellet stove. In purchasing an pellet stove you have
joined the growing ranks of concerned individuals whose selection of an energy system reflects both
a concern for the environment and aesthetics. The Foxfire pellet stove is one of the finest home
heaters the world over. This manual will explain the installation, operation, and maintenance of this
pellet-burning heater. Please familiarize yourself with this Owner's Manual before operating your
heater and save the manual for future reference. Included are helpful hints and suggestions which
will make the installation and operation of your new heater an easier and more enjoyable experience.
We offer our continual support and guidance to help you achieve the maximum benefit and enjoyment
from your heater.
Important Information
No other Foxfire pellet stove has the same serial
number as yours. The serial number is on the safety
label on the back of the appliance.
This serial number will be needed in case you require
service of any type.
Model: Foxfire AGP
Serial Number:
Purchase Date:
Purchased From:
Mail your Warranty Card Today, and Save
Your Bill of Sale.
To receive full warranty coverage, you will need
to show evidence of the date you purchased
your heater. Do not mail your Bill of Sale to us.
We suggest that you attach your Bill of Sale to
this page so that you will have all the information
you need in one place should the need for
service or information occur.

Table of Contents 3
© Travis Industries 4141007 100-01402

Heating Specifications.............................................7

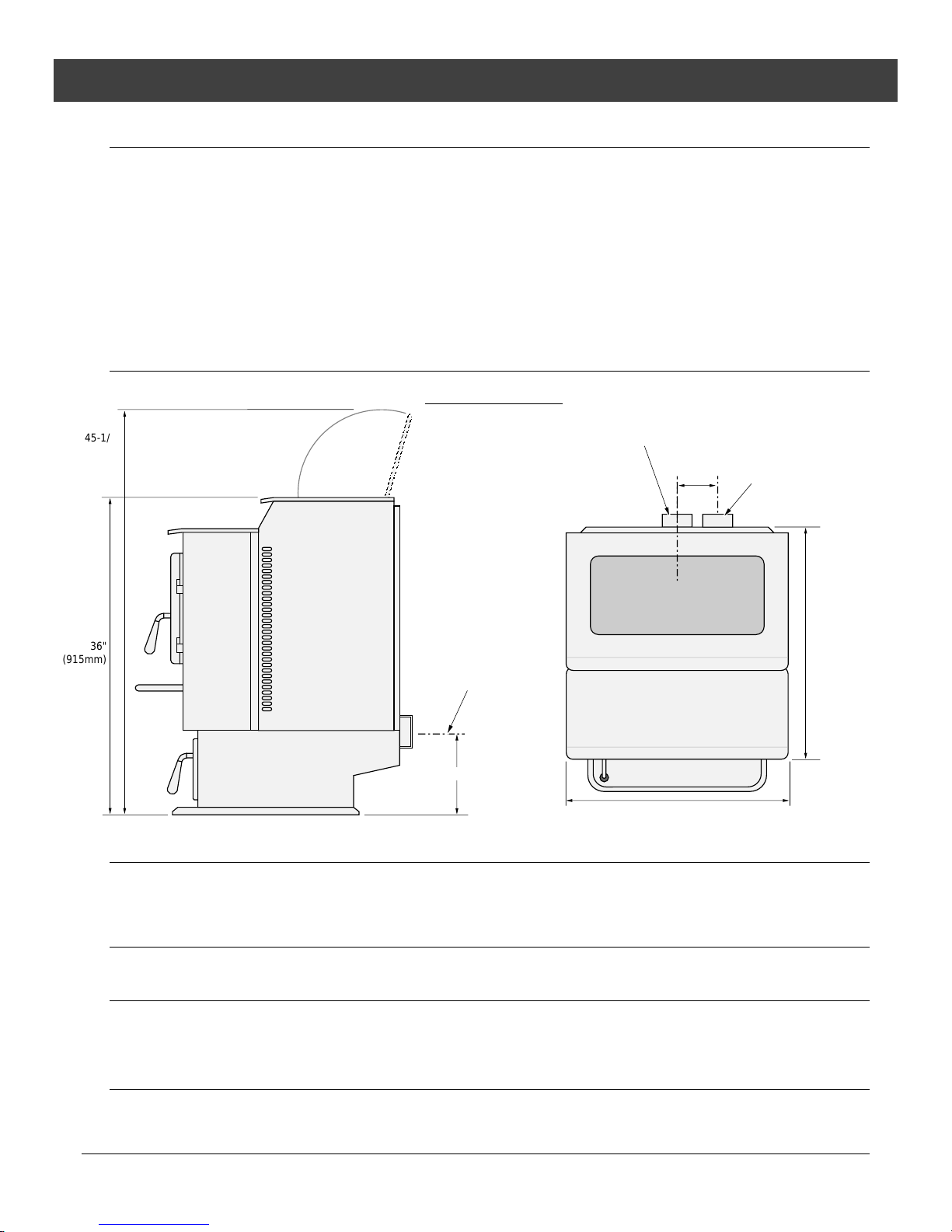

Dimensions...............................................................7
Electrical Specifications..........................................7
Fuel............................................................................7
Emissions.................................................................7
Efficiency..................................................................7
Before You Begin.....................................................8
Packing List..............................................................8
Installation Options..................................................8
Planning the Installation..........................................9
Stove Placement ......................................................9
Floor Protection Requirements...............................9
Electrical Requirements ..........................................9
Clearances..............................................................10
Straight Installations............................................10
Corner Installations.............................................10
Venting the Pellet Stove ........................................11
Maximum Venting Distance ................................11
Pellet Vent Type..................................................12
Installing the Pellet Vent .....................................12

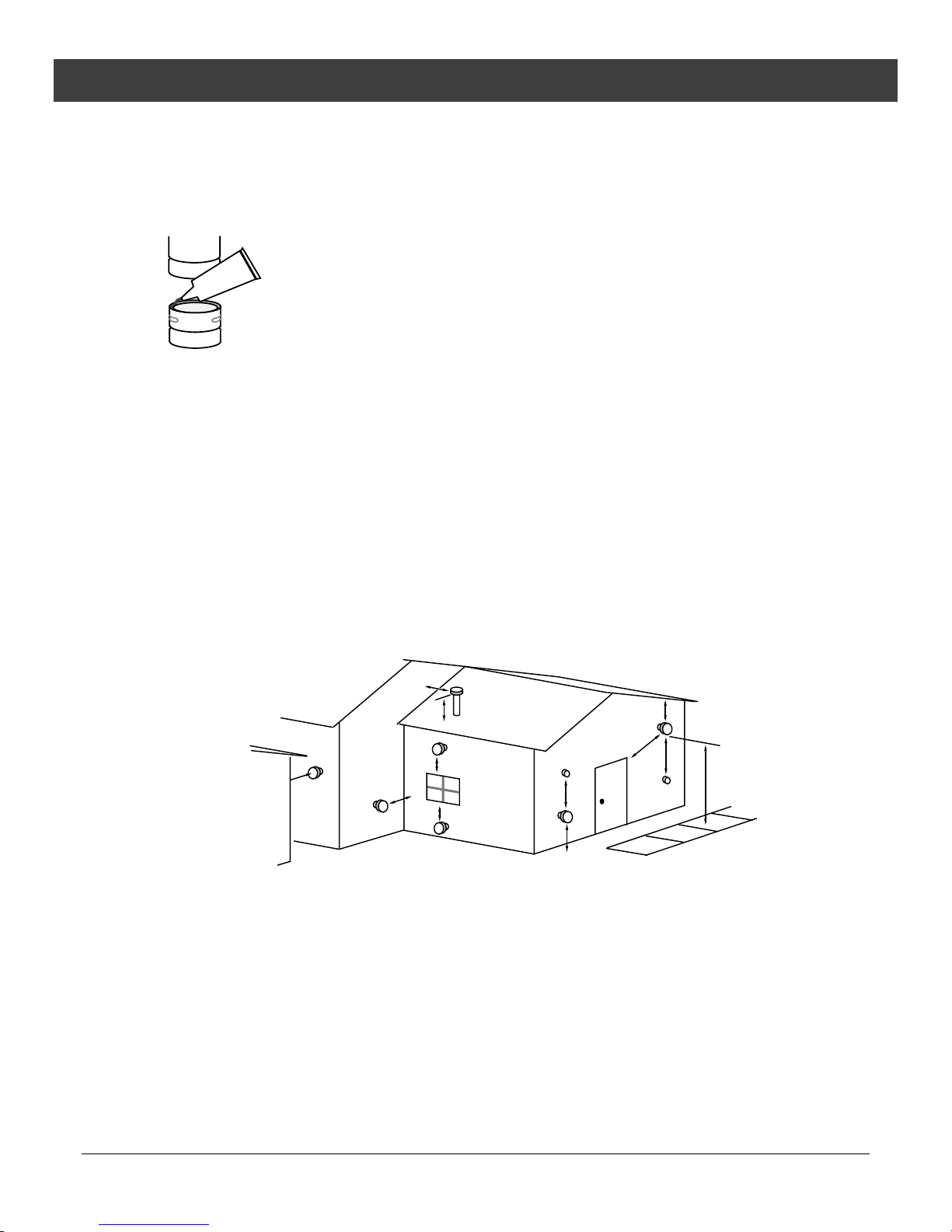

Pellet Vent Termination.......................................12
Mobile Home Requirements..................................13

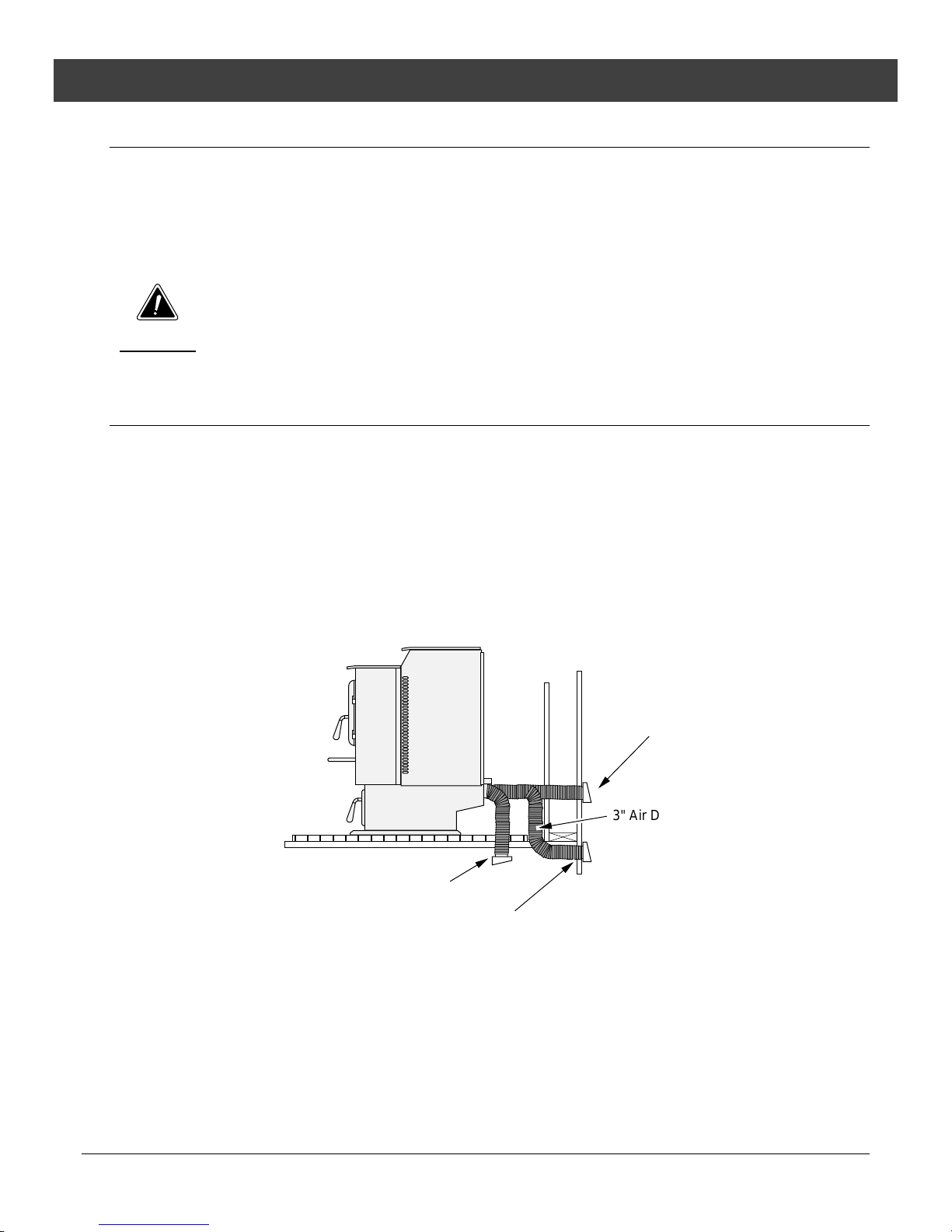

Outside Air (Used for Combustion) .......................13
Alcove Installation Requirements.........................14
Restrictor Adjustment ...........................................14

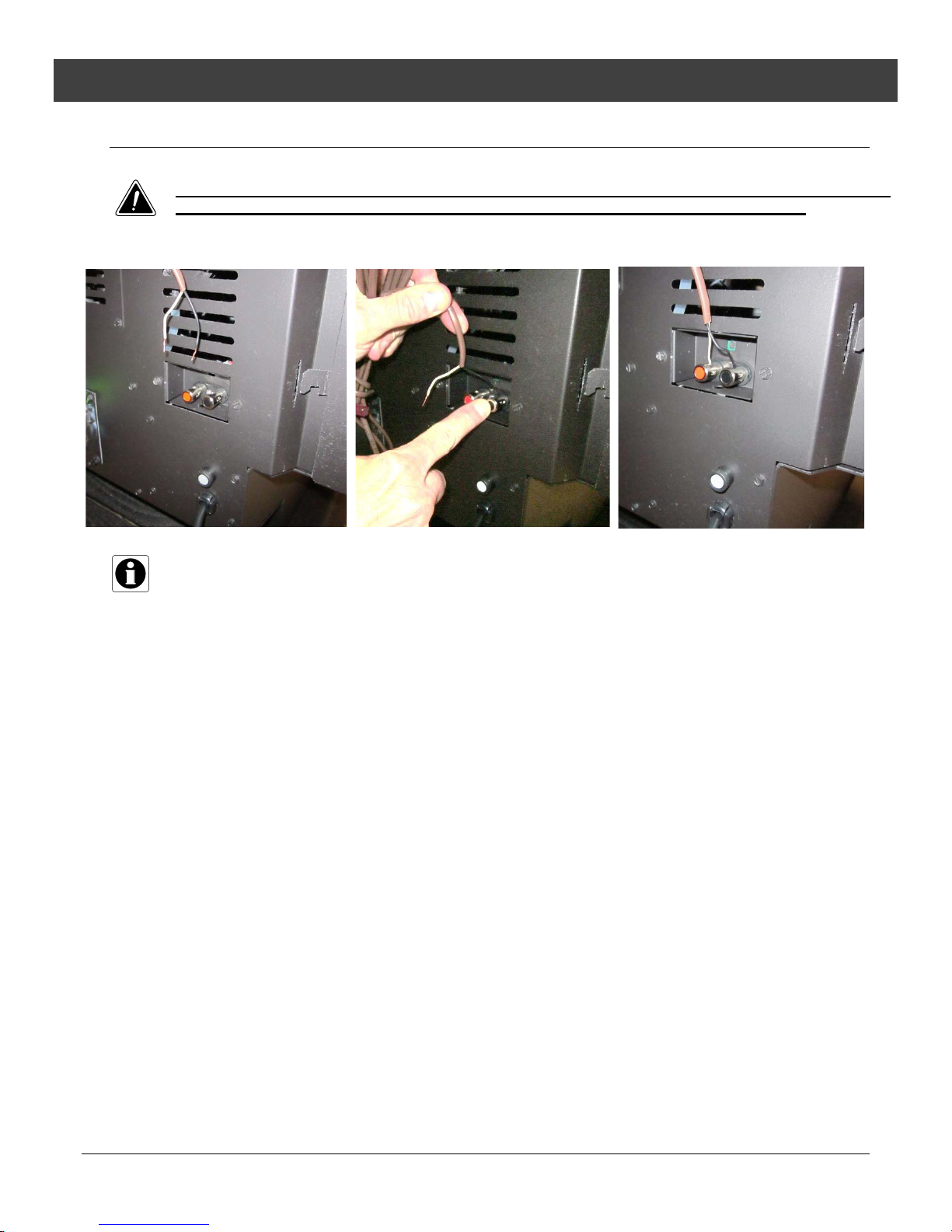

External Thermostat Installation............................15
Installation Examples ............................................16
Direct "Through-the-wall" Installation..................16
Interior Vertical Installation..................................17

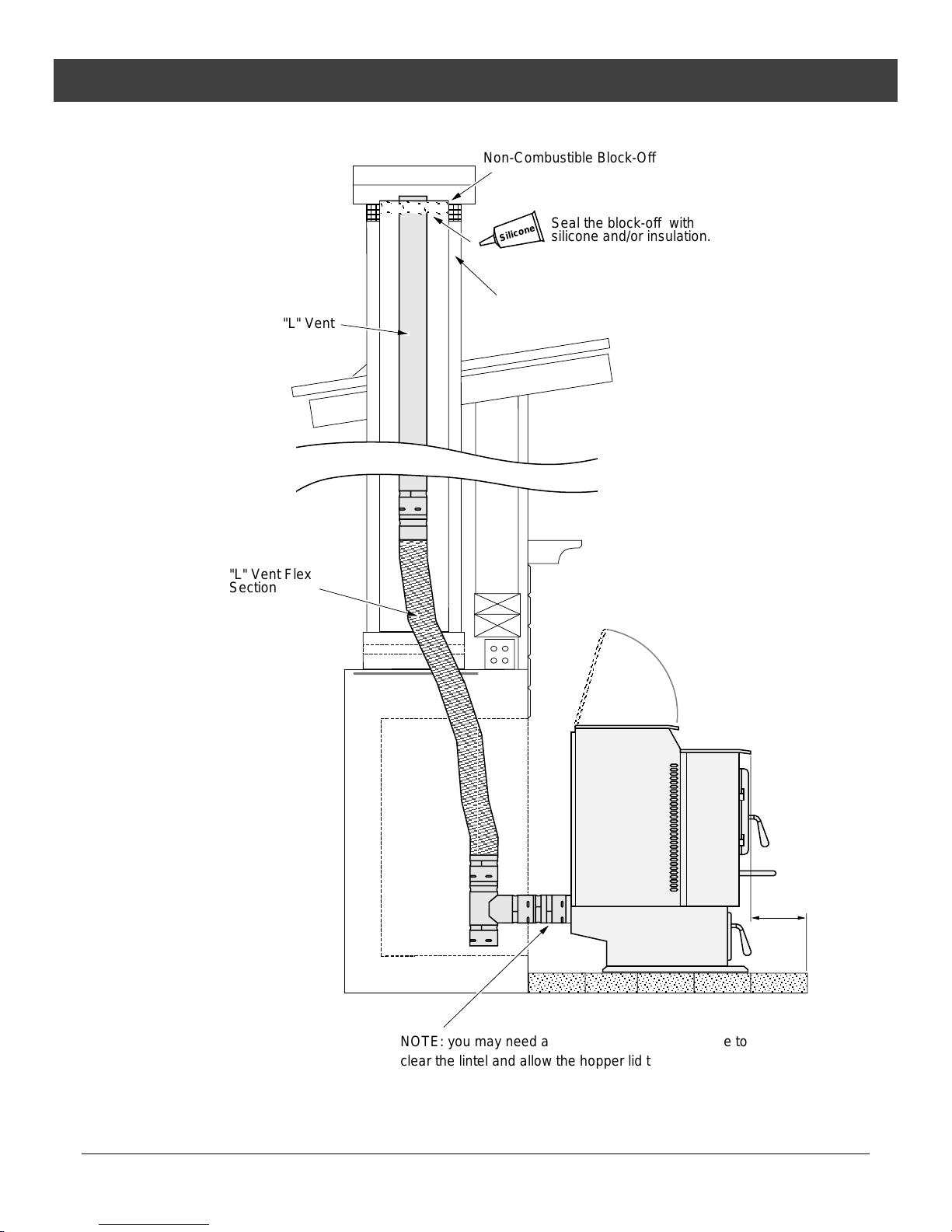

Class A Chimney Retrofit....................................18
Masonry Fireplace Hearth Stove.........................19
Zero-Clearance (Metal) Fireplace Hearth Stove .20
Freestanding Masonry Chimney.........................21
Safety Notice ..........................................................22
Touch Screen Controls..........................................22
Loading Pellets.......................................................23
Starting the Heater for the First Time...................23
Curing the Paint..................................................23
Modes of Operation – Manual or Thermostat......24
Manual Mode..........................................................24
Thermostat Mode.................................................... 24
Manual Mode ..........................................................25
Adjusting the Heat Setting...................................25
Thermostat (T-stat) Mode......................................26
Setting the Target Temperature ............................. 26
-Internal (Built-In) Thermostat ..........................26
-External Thermostat........................................ 26
To Start the Stove in Thermostat Mode.................. 26
To Adjust the Heat Output.......................................26
To Shut Down .........................................................26
Thermostat Programs .........................................27
How to Get to the Thermostat Program Screen......27
Slow Cooldown Program (Program 1) ....................27
Fast Cooldown Program (Program 2).....................27
Low Burn Program (Program 3)..............................27
Fan Setting .............................................................28
Manual Adjustments ...........................................28
Auto-Fan.............................................................28
Heater Status..........................................................29
Standby...............................................................29
Start-Up...............................................................29
Heating ...............................................................29
Cool-Down..........................................................29
Fault....................................................................29
Menu Button...........................................................30
T-Stat Temperature.............................................30
T-Stat Source......................................................30
T-Stat Program ...................................................30
Screen Lock........................................................30
Hour Meter..........................................................30
Version..................Error! Bookmark not defined.
Power Outages.......................................................31
Manual Mode ..........................................................31
TSTAT Mode...........................................................31
Stove Maintenance.................................................32
Maintenance Schedule .......................................32
Removing Flyash................................................32
Disposal of Ashes...............................................32
Stove Maintenance Tools ...................................33
Stove Tool Storage .................................................33
Opening the Door................................................33
Weekly Maintenance - Inspect the Burn ............34
Weekly Maintenance - Clean the Burn Platform 34
Cleaning Behind the Firebox Liners....................37
Monthly Maintenance - Clean the Glass ............38
Monthly Maintenance – Empty the Ashpan........39
Yearly Maintenance - Clean Lower Exhaust Duct40
Yearly Maintenance - Clean Convection Blowers42
Yearly Maintenance - Clean Negative P. Tube..44
Yearly Maintenance - Clean the Vent ................44
Yearly Maintenance - Adjust Door Cam..............45
Yearly Maintenance - Check for Air Leaks..........45
Bi-Yearly Maintenance – Chisel Inspection.........45
Troubleshooting Table ..........................................46
Replacement Parts.................................................46
Door Parts...........................................................46
Wiring Diagram.......................................................47

4 Safety Precautions
© Travis Industries 4141007 100-01402

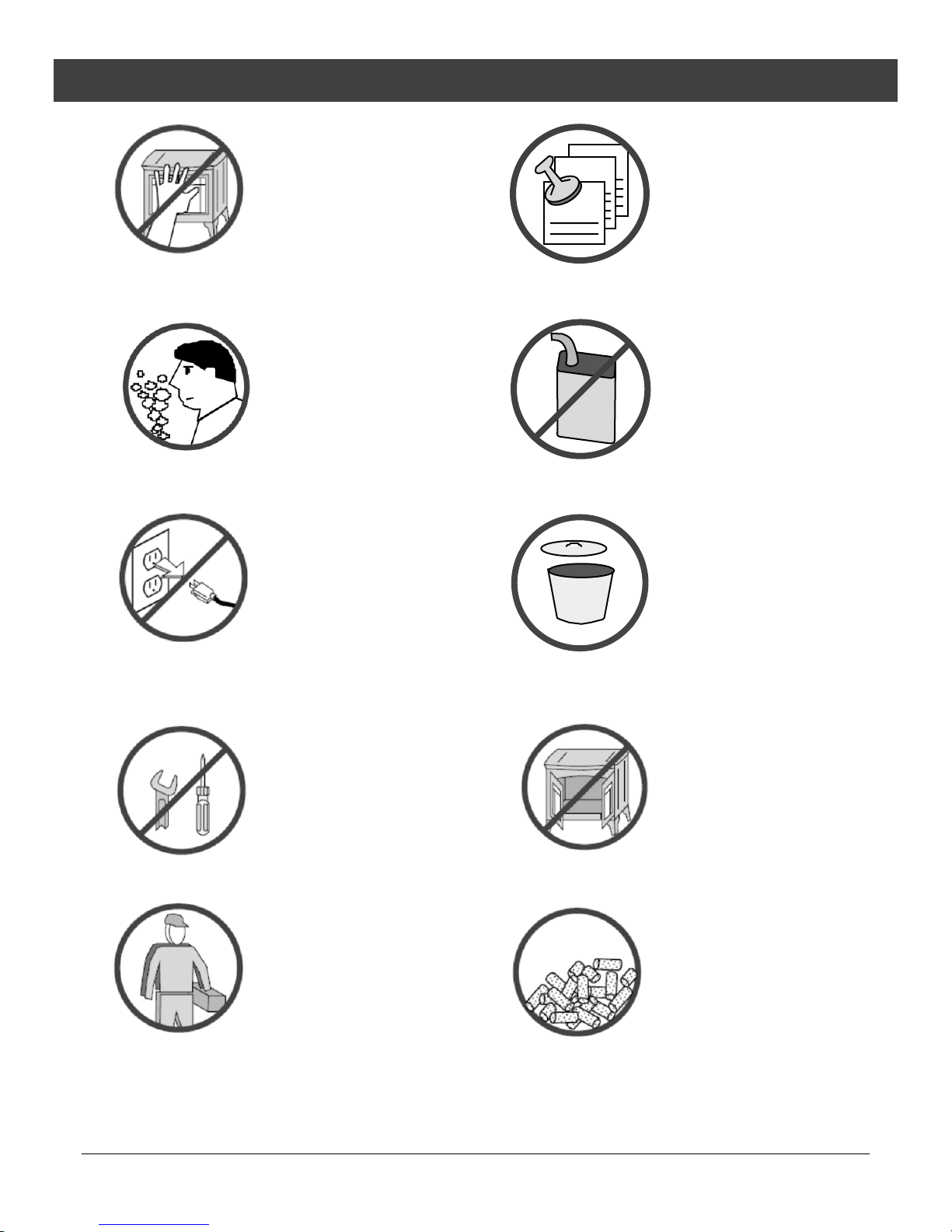

HOT WHILE IN OPERATION.
KEEP CHILDREN, CLOTHING,
AND FURNITURE AWAY.
CONTACT MAY CAUSE SKIN
BURNS.
Educate all children of the danger of
a high-temperature heater. Young
children should be supervised when
they are in the same room as the
heater.
Contact your local building officials
to obtain a permit and information
on any installation restrictions or
inspection requirements in your
area. Notify your insurance
company of this appliance as well.
Do not operate the heater if you
smell smoke coming from the
heater. Press the “STOP” button,
monitor your heater, and call your
dealer.
Never use gasoline, gasoline-type
lantern fuel, kerosene, charcoal
lighter fluid, or similar liquids to start
or “freshen up” a fire in this heater.
Keep all such liquids well away from
the heater while it is in use.
Do not store solid fuel or place such
fuel within heater installation
clearances or within the space
required for charging and ash
removal.
Do not unplug the heater if you
suspect a malfunction. Press the
“STOP” button and periodically
inspect the heater.
Do not alter this appliance in any
way.
Ashes should be placed in a metal
container with a tight-fitting lid. The
closed container of ashes should be
placed on a noncombustible floor or
on the ground, well away from all
combustible materials, pending final
disposal. If the ashes are disposed of
by burial in soil or otherwise locally
dispersed, they should be retained in
the closed container until all cinders
have been thoroughly cooled.
Never try to repair or replace any
part of the heater unless
instructions are given in this
manual. All other work should be
done by a trained technician.
The viewing door and ashpan must
be closed and latched during
operation.
This unit must be properly installed
to prevent the possibility of a house
fire. The instructions must be strictly
adhered to. Do not use makeshift
methods or compromise in the
installation.
This heater is designed and approved
for pelletized wood fuel only.
Ok
Gas
ASHES

Safety Precautions 5
© Travis Industries 4141007 100-01402
Allow the appliance to cool
completely before carrying out any
maintenance or cleaning.
Maintain the door and glass seal
and keep them in good condition.
Do not operate this heater with
broken or missing glass.
Do not slam the door or strike the
glass.
Notify your dealer to replace the
glass if glass on this appliance is
broken or damaged.
Do not operate the heater if the
flame becomes dark and sooty or if
the burn platform overfills with
pellets. Press the “STOP” button
and periodically inspect the heater.
Do not place clothing or other
flammable items on or near this
appliance.
The heater will not operate during a
power outage.
This heater must be connected to a
standard115 V., 60 Hz grounded
electrical outlet. Do not use an
adapter plug or sever the grounding
plug. Do not route the electrical cord
underneath, in front of, or over the
heater.
Keep foreign objects out of the
hopper. The exhaust system must be
completely airtight and properly
installed. The pellet vent joints must
be sealed with RTV 500F. (260C.)
silicone sealant.
Your heater requires periodic
maintenance and cleaning (see
"Heater Maintenance"). Failure to
maintain your heater may lead to
accumulation of soot, creosote, and
ash, and smoke spillage or fire in
your home.
When installed in a mobile home,
the heater must be bolted to the
floor, have outside air, and NOT BE
INSTALLED IN THE BEDROOM
(per H.U.D. requirements). Check
with local building officials.




6 Safety Precautions
© Travis Industries 4141007 100-01402
Do not throw this manual away.
This manual has important
operating and maintenance
instructions that you will need at a
later time. Always follow the
instructions in this manual.
Disconnect the power before
performing any maintenance.
The exhaust system should be
checked at least twice a year for
any build-up of soot or creosote.
Travis Industries, Inc. grants no
warranty, implied or stated, for
the installation or maintenance of
your appliance, and assumes no
responsibility of any
consequential damage(s).
DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.
INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER.
Soot and Flyash: Formation and Need for Removal – The products of combustion will contain
small particle of flyash. The flyash will collect in the exhaust venting system and restrict the
flow of the flue gases. Incomplete combustion, such as occurs during startup, shutdown, or
incorrect operation of the room heater will lead to some soot formation which will collect in
the exhaust venting system. The exhaust venting system should be inspected at least twice
every year to determine if cleaning is necessary.
NEVER USE SUBSTITUTE MATERIALS FOR ANY PURPOSE ON THIS APPLIANCE.
Establish a routine for fuel and firing technique. Check for creosote build-up daily until you
know how often to clean the appliance for safe operation. Be aware that the hotter the fire, the
less creosote is deposited, and weekly cleaning may be necessary in mild weather even
though monthly cleaning may be enough in the coldest months. Contact your municipal or
provincial fire authority for information on how to handle a chimney fire. Have a clearly
understood plan in place for how to handle a chimney fire.
Do not burn this heater if unburned pellets are in the ashpan. These should be removed as they
may ignite.
Smoke and CO Detectors: Make sure your home has a working smoke detector, especially near any bedrooms. We
recommend having a smoke and/or CO detector in the same room as the wood heater for additional safety.
Proposition 65 Warning: Fuels used in gas, woodburning or oil fired appliances, and the products of combustion of such fuels,
contain chemicals known to the State of California to cause cancer, birth defects and other reproductive harm.
California Health & Safety Code Sec. 25249.6
U.S. and Foreign Patents Pending.
This
Manual

Installation (For Qualified Installers Only) 7
© Travis Industries 4141007 100-01402
Heating Specifications
Approximate Maximum Heating Capacity (in square feet)*............................................Up to 2,000 Sq. Feet
BTUs Per Hour...............................................................................................................13,940 to 49,200 **
Burn Rate (Pounds per Hour)***....................................................................................1.7 to 6
Maximum Burn Time on Low Burn***.............................................................................47 Hours
Hopper Capacity............................................................................................................80 Pounds
Turn-Down Ratio............................................................................................................72%
* Heating capacity will vary depending on the home's floor plan, degree of insulation, and the outside temperature. It is
also affected by the fuel size, quality, and moisture level.
** Based on 8,200 BTUs per pound.
*** Small pellet size will decrease the stated burn rates and burn times. Differences of plus or minus 20% depending on
fuel quality may occur.
Dimensions
Electrical Specifications
Electrical Rating......................................................................................................115 Volts, 4 Amps, 60 Hz
Watts during Start-Up Sequence ............................................................................480 (approximately)
Watts during Operation...........................................................................................300 (approximately)
Fuel
This heater is designed and approved for pelletized wood fuel only (all grades).
Emissions
This heater meets the 2015 U.S. EPA’s pelletized wood emission limits for pellet heaters sold after May
15, 2015. Tested to Method 28, 5G2 this heater has been shown to deliver heat at rates ranging from
12,100 to 41,100 BTU/hr and an emission value of 0.73g/h.
Efficiency
This model was not tested for efficiency however it is assigned a default efficiency of 78% by the EPA
under previous subpart AAA.
3" (77mm) Dia. Exhaust
(centered on appliance)
3" (77mm) Dia. Air Intake
5" (127mm)
25-1/2" (648mm)
26-1/2"
(674mm)





36"
(915mm)
45-1/2"
(1156mm)
Centerline of Air
Intake and Exhaust
WEIGHT: 340 lbs. (154 Kg)
9" (229mm)

8Installation (For Qualified Installers Only)
© Travis Industries 4141007 100-01402
Before You Begin
READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE THIS HEATER. FAILURE TO
FOLLOW THE INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY, OR EVEN
DEATH.
Check with local building officials for any permits required for installation of this pellet heater and
notify your insurance company before proceeding with installation.
Packing List
Installation Options
Residential or Mobile Home (see the section "Mobile Home Requirements")
Alcove Compatible (see the section "Alcove Installation")
Horizontal or Vertical Vent
Outside Air Compatible
Vent with L-Vent, L-Vent Fireplace Liner, or Type “A” Chimney (with adapter)
Cleaning tool
Brush
Bottle Brush
5 Amp
Fuses
Burn Platform
Wedge

Installation (For Qualified Installers Only) 9
© Travis Industries 4141007 100-01402
Planning the Installation
HINT: Have an authorized Travis Industries dealer install this heater. If you install the
heater yourself, have your dealer review your installation plans.
HINT: Sketch out a detailed plan of the installation including dimensions. Then verify the
dimensions with the requirements listed in this manual.
HINT: When determining the location of the stove, locate the wall studs (for horizontal
penetrations) and ceiling trusses (for vertical penetrations). You may wish to adjust
the stove position slightly to ensure the vent does not intersect with a framing
member.
The location of your wood heater in your home will decide how effectively the heat produced will
spread throughout your house. Attention to the home design with consideration of natural convection
and air circulation should be taken into account when choosing the placement of your heater within
the home.
Stove Placement
Stove must be placed so that no combustibles are within, or can swing within (e.g. drapes,
doors), 36" (915mm) of the front of the heater.
If the stove is placed in a location where the ceiling height is less than 7' (2.134 M), it must follow
the requirements in the section "Alcove Installation Requirements".
Heater and floor protection must be installed on a level, secure floor.
Floor Protection Requirements
The heater must be installed on a non-combustible floor protector extending the full width and
depth of the heater and extending 6" (153mm) in front (minimum .018" thick - 26 gauge).
Must extend under and 2" (51mm) to each side and rear of a "Tee" (if used).
Electrical Requirements
This heater requires a standard 120 volt, 60 Hz grounded electrical outlet. Do not use an
adapter plug or sever the grounding plug.
This heater requires correct polarity. The line (hot) is on the right and has a smaller plug. The
neutral (common) is on the left and has a larger plug. Use a circuit tester (available at hardware
stores) or contact an electrician to verify correct polarity and ground.
WARNING: Connection to a reverse polarity or un-grounded circuit may damage your heater’s
circuit board. This may cause a safety hazard, improper operation, and void your warranty.
Do not route the electrical cord underneath, in front of, or over the heater.

10 Installation (For Qualified Installers Only)
© Travis Industries 4141007 100-01402
Clearances
Straight Installations
Corner Installations
* Install the vent at the clearance specified by the vent manufacturer.
NOTE:If an interior vertical vent is used, the stove to backwall dimension is determined by the
vent being used. This dimension will vary depending on the brand of pellet vent used. To
determine the distance from the backwall to the stove, connect the "Tee" and add the vent
clearance.
** The floor protection must extend 2” (51mm) beyond the pipe – all vent clearances must be met.



































6" Minimum
6” Minimum
2"
Minimum**























3" Minimum
6" Minimum
Through the Wall Installations Interior Vertical Vents
Floor Protection
6” Minimum
Vent
Clearance*






"Tee"
6" Minimum 6" Minimum














6" Minimum
Through the Wall Vents











6" Minimum



3" Minimum 45 deg. Elbow
45 deg.
Interior Vertical Vents
3" Minimum 2"
Minimum*
*
3"
Minimum
"Tee" Vent
Clearance*
3" Minimum

Installation (For Qualified Installers Only) 11
© Travis Industries 4141007 100-01402
Venting the Pellet Stove
INSTALL VENT AT CLEARANCES SPECIFIED BY THE VENT MANUFACTURER.
DO NOT CONNECT THE PELLET VENT TO A VENT SERVING ANY OTHER APPLIANCE OR
STOVE.
DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT.
USE AN APPROVED WALL THIMBLE WHEN PASSING THE VENT THROUGH WALLS AND
A CEILING SUPPORT/FIRE STOP SPACER WHEN PASSING THE VENT THROUGH
CEILINGS (MAKE SURE TO MAINTAIN CLEARANCE TO ANY COMBUSTIBLES).
No more than one tee and 180° of elbows (one tee with two 90° elbows, one tee with one 90° and
two 45° elbows, etc.).

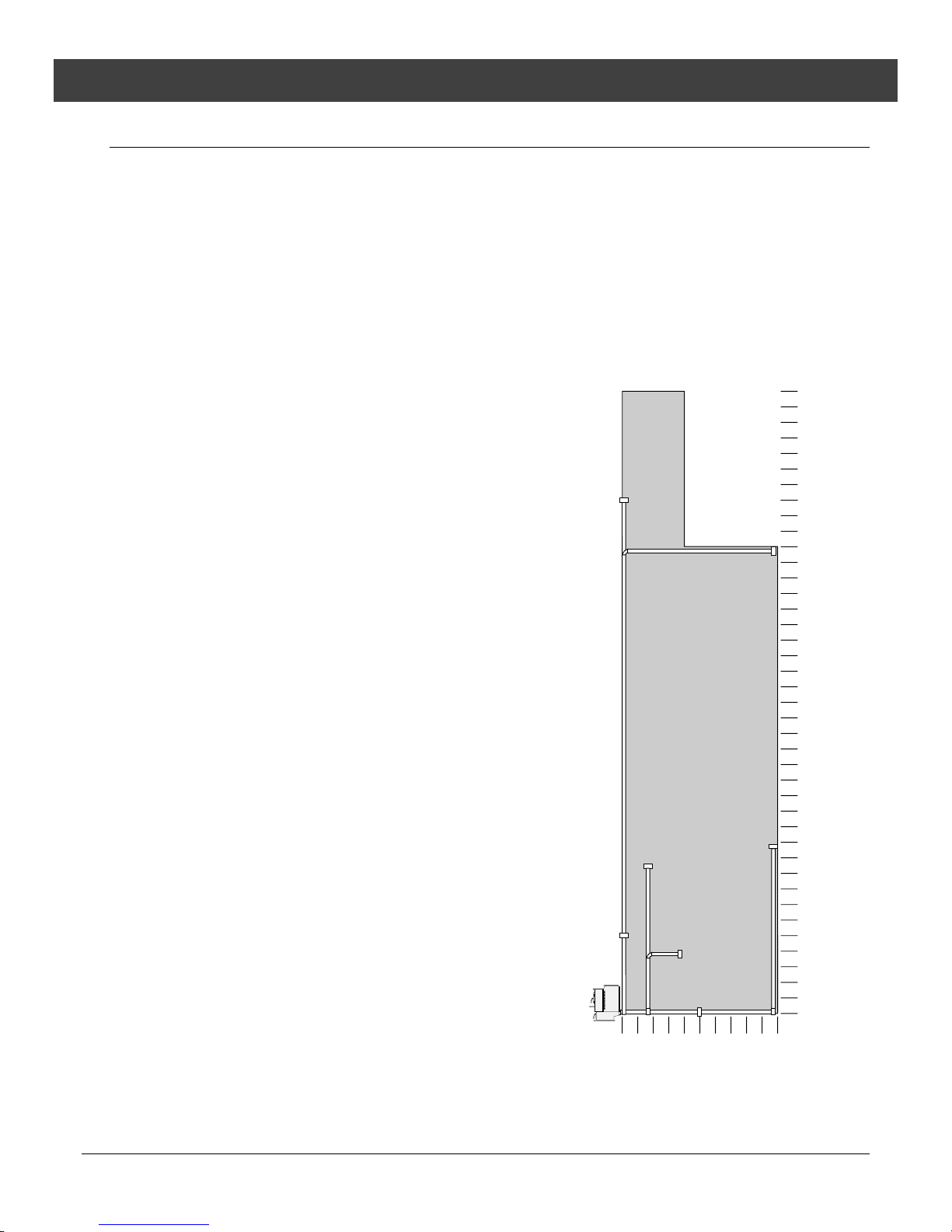

Maximum Venting Distance
Vent must have a support bracket
every 5' (1.524 M) of pellet vent when
on exterior of structure.
NOTE: Travis Industries
recommends a minimum vertical vent
of 5’ to ensure adequate draft during
a power outage.
The vent height and
run must not exceed
the distance shown in
the shaded region
indicated to the right
Restrictor adjustment
may be required
dependent on the vent
configuration. See the
section “Restrictor
Adjustments” for
details.
Note: To achieve
optimum performance,
we recommend
keeping the vent as
short as possible
(horizontal run
especially).
0 Feet
5 Feet
10 Feet
(max.)
0 Feet
5 Feet
10 Feet
15 Feet
20 Feet
25 Feet
30 Feet
35 Feet
40 Feet
(max.)

12 Installation (For Qualified Installers Only)
© Travis Industries 4141007 100-01402
Pellet Vent Type
Must be 3" (76mm) or 4” (102mm) diameter Type "L" (except for masonry fireplace installations) -
or - connect the vent to a factory built type "A" chimney.
Installing the Pellet Vent
Secure each vent section (including the connection to the heater, adapters, elbows, etc…)
following the directions provided by the vent manufacturer or by using 3 sheet metal screws (1/4”
Max.).
Horizontal sections must have a 1/4" (6.4mm) rise every 12" (305mm) of travel.
Install the vent at the clearances specified by the vent manufacturer.
Pellet Vent Termination
Vent must terminate on the exterior of the dwelling. Horizontal terminations must protrude a
minimum of 12" (305mm) from the wall. Vertical terminations must protrude a minimum 24"
(610mm) from the roof surface. In addition, all clearances listed below must be met.
Must have an approved cap (to prevent water from entering) or a 45° downturn with rodent
screen.
If the termination is located on a windy side of the house, an approved house shield is
recommended to prevent soot from building up on the side of the house.
Must not be located where it will become plugged by snow or other material.
A Minimum 4' (1220mm) clearance below or beside any door or window that opens.
(This clearance may be reduced to18” if using outside air (see page 13) – we recommend
the door or window be kept closed during operation.
Minimum 1’ (458mm) clearance below or beside any window that does not open.
B Minimum 1' (458mm) clearance above any door or window that opens
C Minimum 2' (610mm) clearance from any adjacent building
D Minimum 7' (2.134 M) clearance above any grade when adjacent to public walkways
NOTE: Vent may not terminate in covered walkway or breezeway.
E Minimum 2' (610mm) clearance above any grass, plants, or other combustible materials
F Minimum 3' (915mm) clearance from any forced air intake of any other appliance
G Minimum 2' (610mm) clearance below eaves or overhangs
H Minimum 1' (458mm) clearance horizontally from combustible wall
X Must be a minimum of 2' (610mm) above the roof
Seal each vent section (including the connection to the heater, adapters, elbows,
etc...) following the directions provided by the vent manufacturer or by injecting a
liberal amount of 500 deg. F. RTV silicone into the gap between sections.
500 deg. F.
RTV Silicone
H
G
A
D
F
NOTE: Measure clearances to the nearest edge of the exhaust hood.
A
E
B
C
F
X
H

Installation (For Qualified Installers Only) 13
© Travis Industries 4141007 100-01402
Mobile Home Requirements
Outside air is required (used for combustion) - see the directions below.
The heater must be bolted to the floor (Some states do not require this; check with your local building
department).
The heater must be grounded to the steel chassis of the mobile home (Some states do not require this;
check with your local building department).
DO NOT INSTALL IN SLEEPING ROOM.
CAUTION: THE STRUCTURAL INTEGRITY OF THE MANUFACTURED HOME FLOOR, WALL, AND
CEILING/ROOF MUST BE MAINTAINED.
Outside Air (Used for Combustion  Part #99200139)
Must not be drawn from an enclosed space (garage, unventilated crawl space).
HINT: Travis Industries strongly recommends outside air for all residential installations,
especially for those that are energy efficient, air-tight homes, or when using vent without rise.
Must not be over 48” (1220mm) long
Must be made with 3” (76mm) diameter or larger metal or aluminum duct with a metal screen
attached to the end to keep out rodents (P.V.C. or other combustible materials may not be used).
We recommend the Travis Industries Outside Air Kit (part # 99200139).
Must not terminate above or within 1' (305mm) of the chimney termination.
Must have a rain cap or down-turned elbow to prevent water from entering.
Must be located so that it will not become plugged by snow or other material.

3" Air Duct
A screen is required to prevent
rodents from entering.
Outside air entrance must be placed so it
does not become blocked by snow.
Air may be drawn from a ventilated crawl space.

14 Installation (For Qualified Installers Only)
© Travis Industries 4141007 100-01402
Alcove Installation Requirements
When the pellet stove is placed in a location where the ceiling height is less than 7' (2.134 M) tall, it is
considered an alcove installation. Because of the reduced height, the requirements listed below must be
met. Minimum Width 37-1/2“
Maximum Depth 48”
Minimum Height 60“
Restrictor Adjustment
For installations with a tall flue, the restrictor may be needed to adjust airflow to the burn platform. This
keeps the burn platform and glass as clean as possible.
For low heat output settings the restrictor may need to be closed or near closed to limit the amount of
air. This helps prevents the heater from burning the pellet fuel faster than it is fed.
For medium heat output settings the restrictor may need to be opened to a medium position.
For high heat output settings the restrictor may need to be opened to a high position. This helps
prevent the burn platform from over-filling with pellets and becoming clogged with ash clumps.
Keeping your burn platform clean is the most important step to maintaining a safe and efficient heater.
Check and clean your burn platform daily until you find the correct restrictor settings and appropriate burn
platform cleaning interval.
Not Enough Air
If clinkers (ashes that solidify into a clump)
develop or the flame appears lazy and slow
to blow the ash out of the burn platform,
push the restrictor in until the flame
becomes active and the burn platform
holes remain clean.
NOTE: If the restrictor is fully in, yet the
burn platform does not remain clean, the
heater should be cleaned and checked for
air leaks (see “Maintenance” section of this
manual).
Too Much Air
If the flames are too active (small, flickering
flames), move the restrictor rod out until
the flame slows down.
NOTE: It is acceptable to have “glowing
embers” jump out of the burn platform.
Another symptom of too much air is the
heater “blowing the fire out” – a condition in
which the pellets burn faster than they are
fed (this is most common on low heat
settings).
More Air
Less Air

Installation (For Qualified Installers Only) 15
© Travis Industries 4141007 100-01402
External Thermostat Installation
This heater may be used with an external thermostat or remote.
WARNING: Use only a dry-contact thermostat or remote (also called millivolt thermostat/remote).
Use of a voltage producing thermostat (24v, 120v AC, etc.) will damage the appliance.
Connect the leads from the thermostat to the two quick-connect tabs on the back of the heater.
Once the external thermostat is installed, you will need to configure the heater to disable the
internal thermostat. See the instructions on page 26.

16 Installation (For Qualified Installers Only)
© Travis Industries 4141007 100-01402
Installation Examples
Installation Example: Direct "Through-the-wall" Installation
NOTE: Travis Industries recommends a minimum vertical vent of 5’ to ensure adequate draft during a
power outage.
Install the vent at the clearance specified by the vent manufacturer.
























House Shield (used to protect
exterior wall from soot
discoloration) is HIGHLY
RECOMMENDED
12" Minimum
Horizontal Rain Cap
Wall Thimble
(note clearance
between vent and
combustibles)
Type "L" Vent






3" Minimum
6" Minimum
6" Minimum Floor Protection
12"
Minimum



























3" Minimum
Floor Protection

Installation (For Qualified Installers Only) 17
© Travis Industries 4141007 100-01402
Installation Example: Interior Vertical Installation
* Install vent at clearance specified by the vent manufacturer.


Floor Protection
Outside air may be drawn from
a ventilated crawl space.
2” Min.
Vent
Clearance*














































24" Minimum
Insulation
must maintain
clearance.
2" Min.
Ceiling Support / Fire Stop Spacer
Roof Flashing
Storm Collar
Vertical Cap
Vent must
maintain
clearance to
combustibles.
"L" Vent
Vent
Clearance*
Each manufacturer’s
"T" section varies in
height. Make sure to
measure the "T" prior
to installation to verify
it fits.
9" (229mm)



































6" Minimum
6” Minimum
2"
Minimum**
Floor Protection
Vent
Clearance*
"Tee"
6" Minimum

18 Installation (For Qualified Installers Only)
© Travis Industries 4141007 100-01402
Class A Chimney Retrofit
* Install vent at clearance specified by the vent manufacturer.





































Floor Protection









2" Min.
Class A Chimney Ceiling Support
Roof Flashing
Use "L" Vent to Class A Chimney Adapter
- or -
Run vent through chimney and use non-
comustible block-off at top of flue.
Class A Chimney
"L" Vent




























Storm Collar
Class A Chimney must
maintain clearances outlined
in the chimney’s installation
instructions (usually 2").
Vent
Clearance*
Outside air may be drawn from
a ventilated crawl space.








































Non-Combustible
Block-Off

Installation (For Qualified Installers Only) 19
© Travis Industries 4141007 100-01402
Installation Example: Masonry Fireplace Hearth Stove







"L" Vent Flex
Section
Outside air
may be
drawn from
the ash
cleanout.
"L" Vent








































































































































































































































Storm Collar
Vertical Cap
Cover Plate (non-combustible)
Silicone
Seal the cover
plate with silicone.

















NOTE: you may need a short horizontal section here to
clear the lintel and allow the hopper lid to open.
Lintel








Allow room for the
hopper lid to open
6" Min.

20 Installation (For Qualified Installers Only)
© Travis Industries 4141007 100-01402
Installation Example: Zero-Clearance (Metal) Fireplace Hearth Stove











































"L" Vent Flex
Section
"L" Vent












Non-Combustible Block-Off
Silicone
Seal the block-off with
silicone and/or insulation.
NOTE: you may need a short horizontal section here to
clear the lintel and allow the hopper lid to open.
Allow room for the
hopper lid to open










6" Min.















Do not obstruct or seal the outer
chamber of the air-cooled chimney
