1. INTRODUCTION
The Therion DNA75C BF by Lost Vape is the very first 75 Watt Color
screen squonking device. This upgraded version bottom feeder
equips with the smartest chip from Evolv, the 7ML super soft silicone
squonk bottle, and the 30ML silicone refilling bottle to bloom the
vaping experience.
The front of the Therion DNA75C BF is re-designed to adjust the
needs of the Full Color TFT Screen and select button of DNA75 Color.
The device is features onboard programmable multicolor LED,
waterproof onboard buttons, a real-time clock, adjustment buttons,
and USB charging port.
2

3
It is the customisable user interface of the DNA75C that impresses
the Therion DNA75C BF. This advanced feature makes the operation
of Therion DNA75C BF easy to maintain and operate. With theme
designer software build in Escribe, the way of customization are
endless, with 100% customizable user interface.
In order to satisfy and spare vapers’ needs and time, Lost Vape
Therion DNA75C BF provides preset profiles in Nickel (Ni200),
Titanium (Ti) and Stainless Steel (SS) coil builds for ready to go.

2. STANDARD PACKAGE
1 x Therion BF DNA75C Device
1 x USB Charging Cable
1 x 7ML silicone Squonk Bottle
1 x 30ML silicone Refilling Bottle
1 x Therion User Manual
4

5
Fire Button
Programmable
Multicolor LED Indicator
Full Color TFT
Screen Display
Up Button
Down Button
Select Button
USB Port
(Charging & Update Firmware)
510 Atomizer Connector
7ML Squonk Bottle
Single 18650 Setting

6
3. MAIN FEATURES
. Powered by Evolv DNA75C Board
. Wattage Control / Temperature Protection
. Full Color TFT Screen
. Theme Designer Software
. Customizable User Interface
. Escribe Software / Firmware Upgradable
. Onboard Programmable Multicolor LED
. Genuine Leather Battery Cover

7
. Ebony Wood / Carbon Fiber Inlays
. Die Cast Zinc Alloy Body
. Single 17650 Cell Setting
. 1 x 7ML silicone Squonk Bottle
. 1 x 30ML silicone Refilling Bottle
. Temperature Limit: 200°F - 600°F
. Output Power: 1 - 75 Watts
. Stainless Steel 510 Atomizer Connector
. Integrated 1Amp On-board Charger
. Dimensions: 90.5mm*54mm*27mm

8
4. EVOLV DNA 75C
The DNA75C is a power regulated digital switch-mode DC-DC
converter for personal vaporizers. It features Evolv's patented
Wattage Control, Temperature Protection, Preheat, Full Color TFT
Screen, Reverse Polarity Protection, onboard programmable multicol-
or LED, waterproof onboard buttons and a real-time clock. The USB
port, Evolv’s EScribe software and separate Theme Designer
software can be used to fully customize all aspects of the interface or
monitor the user experience. The DNA 75C features battery monitor-
ing and integrated 1A charger.

9

10
The following graphs show the output power range of the DNA75C as a function of the coil resistance.
Output Power

11
5. ESCRIBE
Escribe is a software package used to configure, monitor and modify
the operation of your DNA75C. It installs on a Windows PC and
connects to your DNA 75C using the USB port. Escribe has a separate
manual and tutorials which can be found on Evolv'ssite. Users must go
to the Escribe and update the latest firmware before using the device.
http://www.evolvapor.com/
http://www.evolvapor.com/manuals/EScribeManual.pdf

12
The DNA75C has a full color 80 x 160 px TFT screen.
6. DISPLAY OF DNA75C
Display

13
7. ERROR MESSAGES
The DNA75C will indicate a variety of error states.
Check Atomize: The DNA does not detect an atomizer, the atomizer
has shorted out, or the atomizer resistance is incorrect for the power
setting.
Shorted: The atomizer or wiring are short circuited.
Weak Battery: The battery needs to be charged, or a higher amp rated
battery needs to be used. If this happens, the DNA75C will continue
to fire the atomizer, but will not be able to provide the desired
wattage. The Weak Battery message will continue to display for a few
seconds after the end of the puff.

14
The DNA75C will indicate a variety of error states.
Check Battery: The battery is deeply discharged and needs to be
charged, or is damaged. If this happens, the DNA75C will not fire the
atomizer. The Check Battery message will continue to display for a few
seconds after attempting to fire the device. User should remove and
replace the battery.
Temperature Protected: The heating coil reached the maximum
allowed temperature during the puff. If this happens, the DNA75C will
continue to fire, but will not be able to provide the desired wattage.

15
Ohms Too High: The resistance of the atomizer coil is too high for the
current wattage setting. If this happens, the DNA75C will continue to
fire, but will not be able to provide the desired wattage. The Ohms
Too High message will continue to display for a few seconds after the
end of puff.
Ohms Too Low: The resistance of the atomizer coil is too low for the
current wattage setting. If this happens, the DNA75C will continue to
fire, but will not be able to provide the desired wattage. The Ohms
Too Low message will continue to display for a few seconds after the
end of puff.
Too Hot: The DNA75C has onboard temperature sensing. It will shut
down and display this message if the internal board temperature
becomes excessive.

16
8. REFILLING AND CHARGING
Refilling Instruction
30ML Refilling bottle

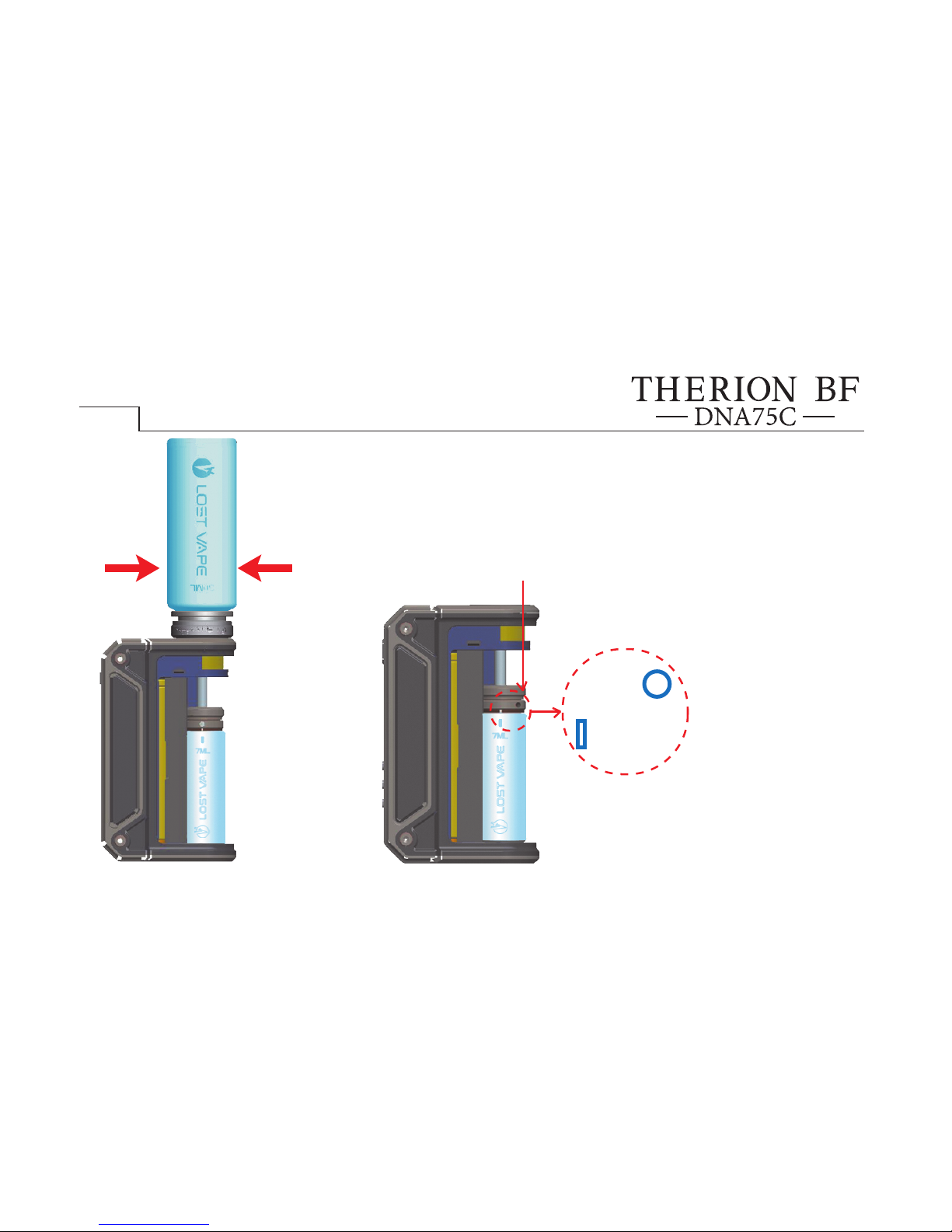

Step 1: Remove the battery cover of device
to turn on the air hole of the squonk bottle
by matching the two signs (See Graph).
Squonk tube
7ML Squonk bottle
Align both signs to
turn on the air hole
Air hole
Scale line

17
Step 2: Screw the
refilling bottle into
the 510 thread and
squeeze the refilling
bottle to start
refilling.

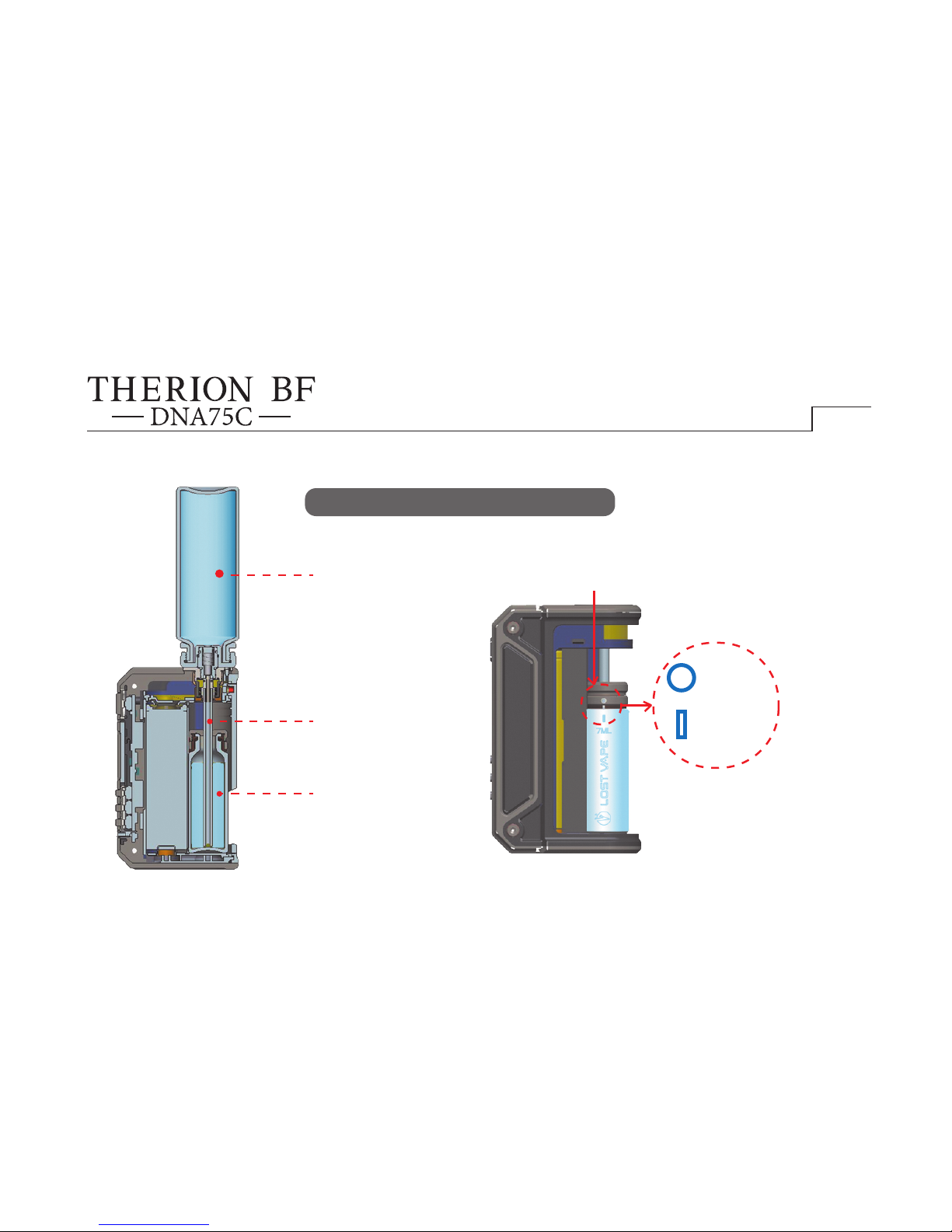

Step 3: once the squonk
bottle is filled or full,
unscrew the refilling
bottle, turn off the air hole
of the squonk bottle by
distancing the two
signs(See Graph).
Distance the two
signs to close the
air hole
Air hole
Scale line

18
Charging the Battery
You have 2 options to charge your Therion DNA75C BF. You can either
remove the 18650 battery from the device and charge it via an
external charger, or you can use the on-board charging option. It is
better to remove and charge the battery via the external charger to
speed up the charging time.
Internal charging
The DNA75C has a built in 1A USB charger. It automatically detects
the type of USB power supply it is connected to, so it can be plugged
into standard PC USB ports or higher power chargers.
External charging (Recommended)
Remove battery from device.
Follow charging instructions with using charger.

19
Please read the following safety recommendations before using this
device.
1. This device is intended for users over the age of 18, and not by
minors, women who are pregnant or breast feeding, or people with or
at risk of heart disease, high blood pressure, hypertension, diabetes,
or taking medicine for depression or asthma.
2. This products is sold purely for recreational purpose, it is not a
smoking cessation product and has not been tested as such.
9. PRECAUTIONS
