Summary
1 Instructions ........................................................32
1.1 Read carefully ..............................................32
1.2 How to use this manual ...............................32
1.3 General warnings ........................................32
1.4 Guarantee ....................................................33
1.5 Typographical conventions ..........................33
2 Presentation ......................................................34
3 Technical data ....................................................34

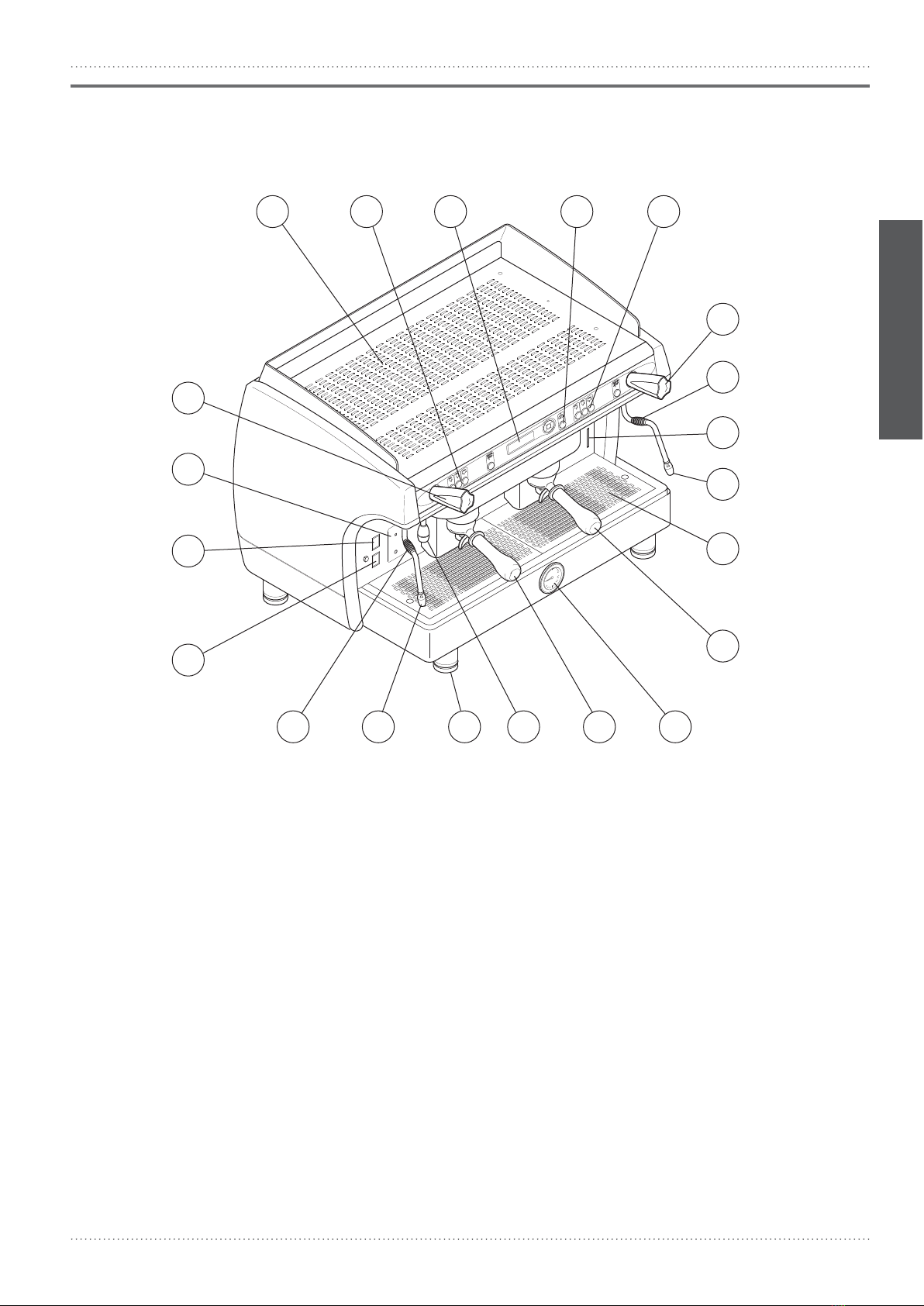

4 Description of the machine ................................35
4.1 Description ..................................................35
4.2 Push-button panel for coee selections ......36
4.3 Display and browser key ................................36
4.4 Push-button Hot water ................................36
5 Warnings for the installer ..................................36
5.1 Power supply ...............................................36
5.2 Materials to be used ....................................36
5.3 Hydraulic connections .................................36
5.4 Installation report .......................................36
5.5 Maintenance and repairs .............................37
6 Preparation .......................................................37
6.1 Preparation of the machine ........................37
6.2 Grinding and dosing coee .........................37
7 Turning the machine on and o ...........................38
7.1 Turning the machine on ...............................38
7.2 Turning the machine o ..............................38
8 Preliminary operations ......................................39
8.1 Changing the water .....................................39
8.2 Cup heater ...................................................39
9 Programming doses ...........................................40
9.1 Programming coee doses ..........................40
9.2 Programming hot water doses ....................40
10 Preparation of beverages ...................................41
10.1 Preparation of coee ...................................41
10.2 Dispensing hot water...................................41
10.3 Dispensing steam ........................................41
11 Autosteamer ......................................................42
11.1 Use of the single-function autosteamer ......42
11.2 Use of the dual-function autosteamer .........42
12 Energy Saving System .......................................44
13 Data reading and programming ...........................45
13.1 Main menu ..................................................45
13.2 Counters ......................................................45
13.3 Services boiler pressure adjustment ...........46
13.4 Cup heater temperature adjustment ...........47
13.5 Date and time adjustment ...........................47
14 Accessories .........................................................48
14.1 Softener .......................................................48
14.2 Cappuccino maker ......................................49
15 Group washing ..................................................50
16 Checks and cleaning ..........................................51
16.1 Checks and maintenance .............................51
16.2 Cleaning ......................................................51
17 Suggestions on how to obtain a good cup of coee 52
18 List of hazards ....................................................53
19 Display indications .............................................54

32 User manual
1 Instructions
1.1 Read carefully
Carefully read every part of this booklet before
using the appliance.
The espresso coee maker that you have pur-
chased has been designed and manufactured with
innovative methods and technologies which ensure
long lasting quality and reliability.
This booklet will guide you in discovering the
advantages of purchasing our product. You will nd
information on how to get the best of your appli-
ance, how to always keep it ecient and what to do
if you should have any problems.
Keep this booklet in a safe place. If you lose it, you
can ask the manufacturer for another copy.
We take this opportunity to send you our best
regards.
ENJOY YOUR READING... AND YOUR COFFEE
1.3 General warnings
t After removing the packaging, check the condi-
tion of the appliance. If in doubt, do not use it
but contact the retailer directly.
t The packaging material must not be left within
the reach of children, since it is a potential source
of danger. It is advisable to keep the packaging
until after the warranty has expired.
t Before using the appliance, make sure that the
mains voltage corresponds to the information on
the data plate of the appliance.
1.2 How to use this manual
The manufacturer reserves the right to make any
improvements and/or modications to the product.
We guarantee that this booklet reects the techni-
cal state of the appliance at the time it is marketed.
We take this opportunity to invite customers to
make any proposals for improving the product or
the manual.
t Installation must be done in accordance with the
safety standards in force and by qualied and
prepared personnel. Incorrect installation may
be harmful to people, property or animals.
t This appliance is completely safe only if it is con-
nected to an eective grounding system, carried
out as required by current safety standards. The
electric system must be equipped with a suitable
dierential circuit breaker. It is important to have
these requirements checked. If in doubt, have the
system carefully checked by qualied personnel.
The manufacturer cannot be considered respon-
sible for any damage caused by an inadequate
electric system.
t Upon installation of the appliance, a main switch
must be installed by qualified personnel, as
required by current safety regulations, with an
opening distance of the contacts equal to or
greater than 3 mm.
t It is not advisable to use extensions or electri-
cal adaptors with multiple outlets. If their use is
indispensable, use only simple or multiple plug
adaptors and extensions which are in accordance
with the safety standards in force. Never exceed
the power value in kW indicated on the simple
adaptor and on the extensions and the maximum
power value indicated on the adaptor.
t This appliance is to be used only for what it has
been designed for. Any other use is considered
improper and therefore dangerous. The manufac-
turer cannot be held responsible for any damage
caused by an incorrect and unreasonable use.
t When using the electrical appliance several safety
behavioural standards must be observed:
- do not touch the appliance when hands or
feet are wet or damp;
- do not use the appliance in bare feet;
- do not use extensions in showering or bath-
ing premises;
- do not pull on the power cord to unplug
the appliance;
- do not leave the appliance exposed to
atmospheric agents (rain, sun, etc...) or in
areas where water jets could be used;
- do not allow the appliance to be used by
children or incapable people;
- do not access the inside of the machine;
- do not to spill liquid on the machine.
t Make sure that the machine is used in a su-

33
User manual
ENGLISH
1.5 Typographical conventions
!This symbol indicates that you must strictly
follow the instructions to which it refers in
order to avoid severe injury and/or damage to
the machine.
iThis symbol provides additional information
on the operation of the machine and its com-
ponents.
ciently lit, aerated, and hygienic premise.
t The access spaces to the machine and main
switch must be left clear, in order to allow the
user to intervene without any constrictions and
be able to leave the area immediately in case of
necessity.
t Do not spray water on the machine to clean it.
Clean daily following the instructions given in
this manual.
t Before any maintenance, disconnect the appli-
ance from the electrical mains through the main
switch.
t For daily cleaning, follow the instructions in this
manual.
t In case of breakdowns or poor functioning, turn
o the appliance, do not attempt any repairs; call
for specialised technical service.
t Any repairs must be done only by the manu-
facturer or an authorised service centre, using
original spare parts only. If this standard is not
observed the safety of the appliance is compro-
mised and cancels the guarantee.
t There is a lithium battery button inside the device
to prevent programming data loss.
t The power cord of the device must not be re-
placed by the user. If the cord is damaged, turn
o the machine and refer to technical or profes-
sionally qualied personnel.
t If you should decide not to use the appliance any
longer, unplug it and have it drained of water by
qualied personnel.
t To guarantee that the machine is ecient and
works properly, it is essential to follow the manu-
facturer instructions, having periodical mainte-
nance and a check of all the safety devices done
by qualied personnel.
t Do not expose your hands or other body parts
to the coee, steam, or hot water spouts. The
steam and water that come from the spouts can
cause burns.
t When functioning, the lter holders, the steam
and water spouts become overheated and are
to be handled with caution only in the indicated
parts.
t Cups must be placed on the special cup-heating
surface only after having been thoroughly dried.
t The dishes belonging to the machine itself are to
be placed on the cup-heater surface. It is incor-
rect to place any other object on this surface.
t The device can be used by children under 8 years
1.4 Warranty
15 months on all components, except for elec-
trical and electronic components and expendable
pieces.
old of age and by persons with reduced physical,
sensory or mental capabilities, or lacking the ex-
perience or knowledge required, provided that
they are under supervision, or receive instruc-
tions for the safe operation of the device and
understand the dangers inherent in it.
t Children should not play with the device.
t Cleaning and maintenance should be carried
out by the user, they must not be carried out by
children without supervision.
t The coee machine must be used at a tempera-
ture between 5°C and 40°C.
t Any unauthorised tampering with any parts of
the machine renders any guarantee null and void.

34 User manual
3 Technical data
The technical data indicated in the table below
corresponds to the data plate located on the front
of the machine.
The data of the appliance can be seen also on the
label located on the package of the machine.
2Gr 3Gr
Power supply voltage V 230/400 240/415 230/400 240/415
Total power W 4.400 4.790 5.600 6.100
Power x group W 150x2 165x2 150x3 165x3
Coee water tank heating element
power per group W 1,000x2 1,090x2 1,000x3 1,090x3
Steam boiler power W 3.000 3.270 3.000 3.270
Steam boiler capacity lt / UK gal 8 / 1,76 8 / 1,76
Coee water tank capacity lt / UK gal (1.2/ 0.26)x2 (1.2/ 0.26)x3
Width mm / in 800 / 31.5 1040 / 40.9
Depth mm / in 580 / 22.8 580 / 22.8
Height mm / in 590 / 23.2 590 / 23.2
Net weight kg / lb 95 / 209 117 / 257
Operating conditions °C / °F 5 ÷ 40 / 41 ÷ 104
2 Presentation
This product is manufactured in compliance with
EU Directives, Regulations and Standards indicated
in the EC Declaration of Conformity provided with
the machine.
The espresso coee machine is strictly for profes-
sional use only. It is designed for the preparation of
hot drinks such as tea, cappuccinos and long, short
and espresso coee, etc.
This device belongs to the family “Green Line”,
that is a range of products with low environmental
impact, able to reduce consumption.
The instructions for a proper use of the machine
are provided below.
!
The user must be suciently informed to oper-
ate the appliance correctly. It is recommended
not to carry out any operations on the ma-
chine which may modify or alter its operation.
WHEN THE MACHINE IS OPERATING, THE BOILER
CONTAINS STEAM AND HOT WATER UNDER PRES-
SURE.
!The machine's installation and maintenance
operations can only be carried out by qualied
technical personnel.
Qualification can be provided by the builder
through participation in specic training courses.
!The installation and maintenance of the machine
must be carried out only by qualied service per-
sonnel with knowledge and practical experience
of the machine itself, with particular attention to
the safety aspects and hygiene.

35
User manual
ENGLISH
4 Description of the machine
4.1 Description
1. Cup heater surface
2. Coee selections push button panel
3. Display and programming selector
4. Tea delivery button
5. Steam knob
6. Anti-burn rubber
7. Smart Card Reader
8. Steam nozzle
9. Tray and Cup support grille
10. Filter holder
11. Pressure gauge
12. Hot water delivery nozzle
13. Adjustable foot
14. Machine power switch
15. Cup heater switch
16. Cup heater indicator light (red) and Machine ON indicator light (green)
12 3 4 2
5
6
7
8
9
10
11101213
86
14
15
16
5

36 User manual
4.2 Push-button panel for coee selections
4.3
Display and browser key
5 Warnings for the installer
5.1 Power supply
The water supply of the appliance must be car-
ried out with water which is suitable for human
consumption, in compliance with the regulations in
force int the place of installation. The owner / man-
ager of the system must conrm to the installer that
the water meets the above listed requirements.
5.2 Materials to be used
During the installation of the appliance the com-
ponents and materials that were provided with the
appliance are to be used. Should the use of other
components be necessary, the installer must verify
their suitability to be used in contact with water
used for human consumption.
5.3 Hydraulic connections
The installer must carry out the hydraulic connec-
tions in accordance with the hygiene norms and the
hydraulic safety norms for environmental protection
in force in the place of installation.
5.4 Installation report
When installation is complete, the appliance
has to be started, brought to the nominal working
condition and left for 30 minutes in the "ready to
operate" condition.
Afterwards, the appliance has to be turned o
and emptied of the rst water introduced in the
whole hydraulic circuit, to eliminate possible initial
impurities.
Then the appliance must be once again loaded
and brought to the nominal working conditions.
After having reached the "ready to operate"
condition, the following deliveries have to be per-
formed:
1. for each coee unit, carry out a continuous
delivery, in order to release the whole volume
of water contained in each associated coee
tank (1.2 liters);
1.2 Bar Press 0.0
08:30 10-FEB-2011
Humidity 62% P 32%
Boiler pressure
Browser key
Steam boiler
hydraulic circuit
Absorbed power
indicator
Hour
Ambient humidity
Date
Instantaneous
absorbed power
Key Description
1 Espresso
1 Long coee
2 Long coees
Hot water
Stop / Programming / Continuous

37
User manual
ENGLISH
6 Preparation
6.1 Preparation of the machine
The preparation of the machine and the instal-
lation operations must be carried out by qualied
personnel only.
The installer must strictly follow the indications
provided in chap. 5 "Warnings for the Installer".
6.2 Grinding and dosing coee
Place the grinder-doser in a convenient place
near the machine.
Grinding and dosing of coee must take place
in accordance with the instructions of the manu-
facturer of the grinder-doser.
To obtain good quality espresso coee we sug-
gest the following:
t not to store large amounts of coee beans. to
observe (in any case) the expiry date indicated
by the producer.
t to grind an amount of coee based on use, pre-
pare the amount contained in the doser and if
possible use it before the end of the day;
t never to buy (if possible) already ground coee,
as it expires quickly. if necessary, to buy it in small
vacuum-sealed packages.
to fill the filter with a dose of ground coffee
(about 6-7 gr.) and press it with the special coee
presser. Hook the portalter to the delivery group.
2. release the whole volume of hot water inside
the boiler (8 liters for 2GR, 13 liters for 3GR and
4GR), by performing a continuous delivery from
the appropriate nozzle. In the case of several
dispensing points, divide the volume on the
base of the number of the dispensing points;
3. continuously release steam for at least 1 minute
for each steam dispensing point;
!Using the machine without all the installation
operations having been carried out by technical
personnel could damage it seriously.
!The machine must be placed in a perfectly hori-
zontal position.
!
To prevent the seal from wearing too soon,
clean the edge of the lter before engaging
the portalter on the delivery group. Do not
excessively tighten the portalter to the dis-
pensing group.
5.5 Maintenance and repairs
After ta maintenance and/or repair intervention,
the components used must ensure that the hygiene
and safety requirements initially foreseen for the ap-
pliance are still met. These are met by using original
spare parts only.
After a repair or a substitution of components
related to parts in direct contact with water and
food, a washing procedure has to be carried out, as
in the case of rst installation.
iMaintenance operations should not be carried out
by children without supervision.

38 User manual
7 Turning the machine on and o
7.1 Turning the machine on
After the hydraulic and electrical connection has
been performed by the qualied personnel, verify
that all the steam taps are closed.
7.2 Turning the machine o
To turn the machine off, just use the main
switch.
When the machine
is turned on, it per-
forms the functional
test and reports in-
formation regarding
the software installed.
t xx-xx-xx : update date
t Rx : software revision number;
t D.Board x.xx: display card version.
The result O.K. in-
dicates that the ma-
chine is working cor-
rectly.
If the machine fails
the functional test, contact the Technical Support
Service.
When the ma-
chine is turned on, it
will activate the mo-
tor pump installed
and begin to ll the
services boiler and the water heaters for the coee
(present in a number equal to the number of deliv-
ery groups installed on the machine.)
In order to bleed
any air present in the
heaters, each time the
machine is turned on
the solenoid valves
of the groups will be activated, making water and
steam come out from the perforated disk of each
group for about 10 seconds.
When the heating
phase of the delivery
groups has finished
(after about 10 min-
utes), signalled by
the disappearance of the “PLEASE WAIT” indication,
it will be possible to make the coee selections. For
the dispensing of hot water and steam, it will be
necessary to wait for the complete heating of the
services boiler.
During the heat-
ing phase of the
services boiler (from
95°C to 98°C), the
machine will execute
a light delivery of water and steam from the hot
water nozzle.
The dispensing of
steam and hot wa-
ter, and thus the full
operation of the ma-
chine, will be possi-
ble only at a pressure greater than 0.6 bar.
!To avoid the risk of burns, it is advisable to
keep hands away from the hot water nozzle,
steam nozzle and delivery groups during the
machine's heating phase.
Turn the ma-
chine on using the
main switch (14)
and follow the in-
dications provided
on the machine's
display, as de-
scribed below.
iBefore using the machine, run deliveries dry with
the filter holder attached for a few seconds to
release any air which may be in the circuit, so that
the delivery groups are completely heated.
14
0.0 Bar Press 0.0
WAIT PLEASE
Humidity 62% P 32%
0.7 Bar Press 0.0
08:30 10-MAY-2010
Humidity 62% P 32%
0.0 Bar Press 0.0
STEAM ESCAPE
Humidity 62% P 32%
FUNCTIONAL TEST
DELN xx-xx-xx Rx
D.Board x.xx
TEST
-O.K.-
0.0 Bar Press 3.5
08:30 10-MAY-2010
COFFEE
WATER FILLING
0.0 Bar Press 0.0
08:30 10-MAY-2010
MAKE ATTENTION
WATER/STEAM ESCAPE

39
User manual
ENGLISH
8 Preliminary operations
8.1 Changing the water
In case of breaks longer than 1 week, it is neces-
sary to perform the changing of the 100% of the
water contained in the hydraulic circuits of the
machine, by using the appropriate dispensing
points, as described in the Paragraph 5.4 "Installa-
tion report".
8.2 Cup heater
Place the cups to be heated on the appropriate
surface (1).
To turn on the cup heater, press the () naviga-
tor key; an asterisk will appear on the rst line of the
display to the far right of the display, indicating that
the cup heater is ON.
To turn it o, press the () navigator key again,
the asterisk will disappear.
To change the temperature of the cup heater,
proceed as described in chapter 13.4.
!For safety reasons, it is advisable not to place
cloths or other objects on the cup heater sur-
face (1).
iWhen the red indicator light (16) goes off,
this indicates that the cup heater is at the
programmed temperature.
iTo change the temperature of the cup heater,
proceed as described in chapter 13.
1
15
16

40 User manual

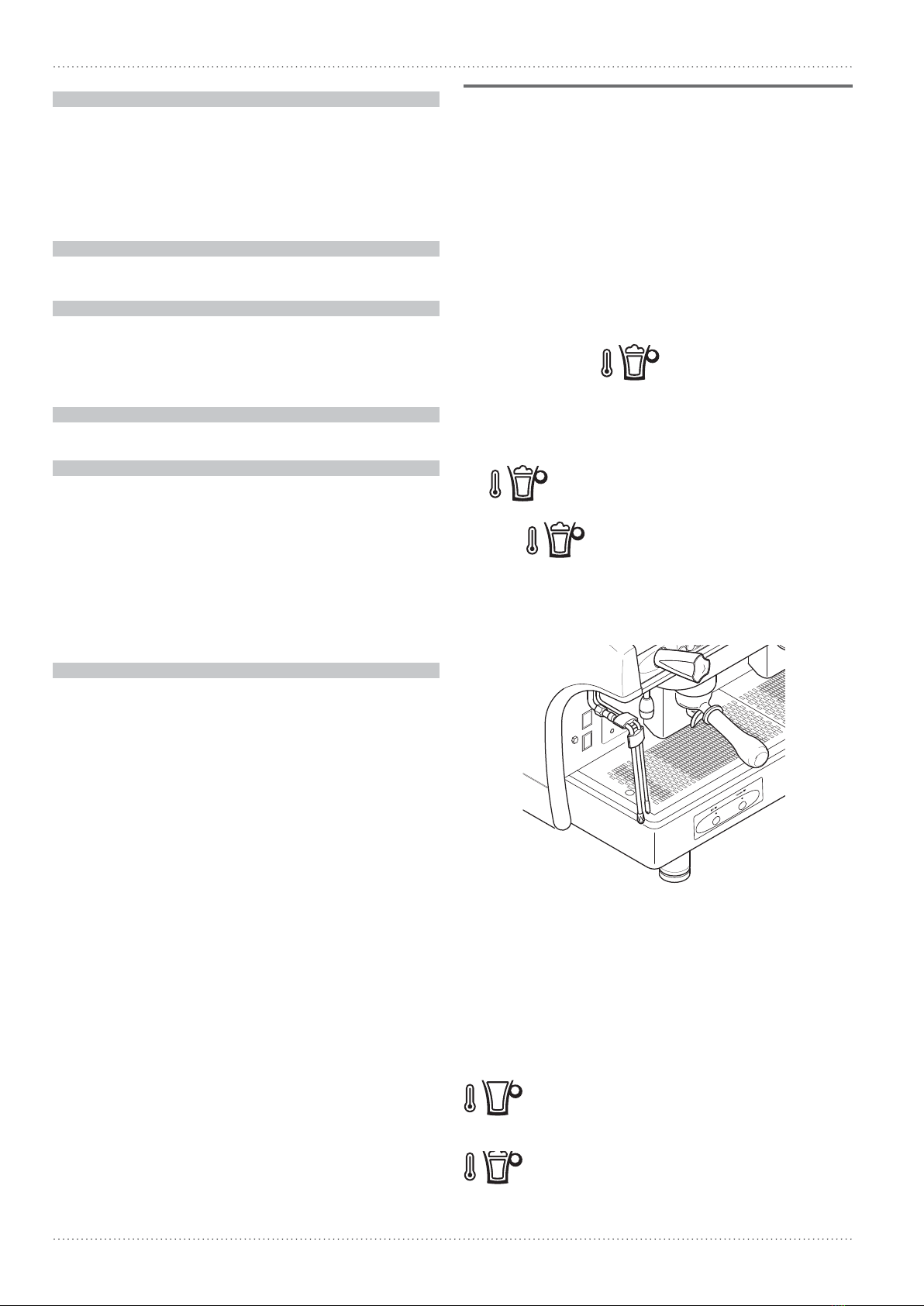

9.2 Programming hot water doses
To program the hot water doses, proceed as fol-
lows:
t insert the prog. smart card into the programming
reader (7) as indicated in the drawing ;
t place the cup under the hot water nozzle;
t press and hold down the "PROG/STOP" key on
the left push-button panel until all dose key LEDs
switch on;
t press the hot water delivery key ;
t when the desired dose has been reached, conrm
by pressing the hot water key again;
t repeat the operation for the other dose button;
t when finished programming, press the key
“PROG/STOP” and remove the smart card from
the reader (7).
9 Programming doses
9.1 Programming coee doses
To program the dose keys, proceed as follows:
t insert the prog. smart card into the programming
reader (7) as indicated in the drawing;
t press and hold the “PROG/STOP” key down for
5 seconds: the LED of the “PROG/STOP” key will
ash and all keys on the push-button panel being
programmed will turn on;
t ll the lter with a dose of ground coee and
press it with the coee press;
t attach the portalter to the delivery group;
t put the coee cup under the dispensing spout;
t press the desired dose key (e.g.: “1 Espresso” );
t wait for delivery;
t to conrm the desired dose press again the dose
key or the "PROG/STOP" key;
t once the dose is conrmed, the LED of the pro-
grammed key switches o and only the keys yet
to be set remain on;
t repeat this operation for the other dose but-
tons;
t when finished programming, press the key
“PROG/STOP” until all LEDs go o on the push
button panel and remove the smart card from
the reader (7).
iAfter 30 seconds of idle time, the machine
will automatically exit the dose programming
mode, confirming the already programmed
ones.
iAll models are provided with 2 keys for the
dispensing of hot water. These can be pro-
grammed individually and supply doses which
are independent from one another.
iThe 4GR version has 2 hot water nozzles. The
left key controls the left hot water nozzle,
while the right key controls the right hot water
nozzle.
iThe programming of each dose must be carried
out with ground coee and not with previously
used coee grounds.
i
It is possible to program all the push-button
panels of the machine simultaneously using
only the left push-button panel. To obtain dif-
ferent doses for the various groups, perform the
programming by starting with the left push-
button panel and then all the others.
7
PROG.

41
User manual
ENGLISH
10 Preparation of beverages
10.1 Preparation of coee
t Fill the lter with a dose of ground coee and
press it with the coee press;
t attach the portalter to the delivery group;
t put the coee cup under the dispensing spout;
t press the desired dose key (e.g. “1 Espresso” )
and wait for coee delivery (all LEDs switch o,
except for that of the selected key).
t to stop delivery of coee in advance, press the de-
livery key again or press the “PROG/STOP” key.
10.2 Dispensing hot water
t Place the cup under the hot water nozzle;
t press the hot water key , wait for the delivery
of water;
t to stop delivery in advance, press the hot water
key again .
10.3 Dispensing steam
Immerge the steam nozzle into the bever-
age to be heated and turn the tap knob
counter-clockwise: the steam coming out of the
nozzle will be proportional to the opening of the tap.
To obtain an optimal foaming, it is recommended
to observe the following simple rules:
t heat only the amount of milk you intend to use,
once heated, it will have to be completely poured
from the jug and mustn't be heated again;
t the milk to be foamed must have a starting tem-
perature of 4°C;
iTo change the temperature of the water deliv-
ered, contact the Technical Support Service.
iWhen the machine is cool (pressure below 0,6
bar) the dispensing of hot water is not active.
!

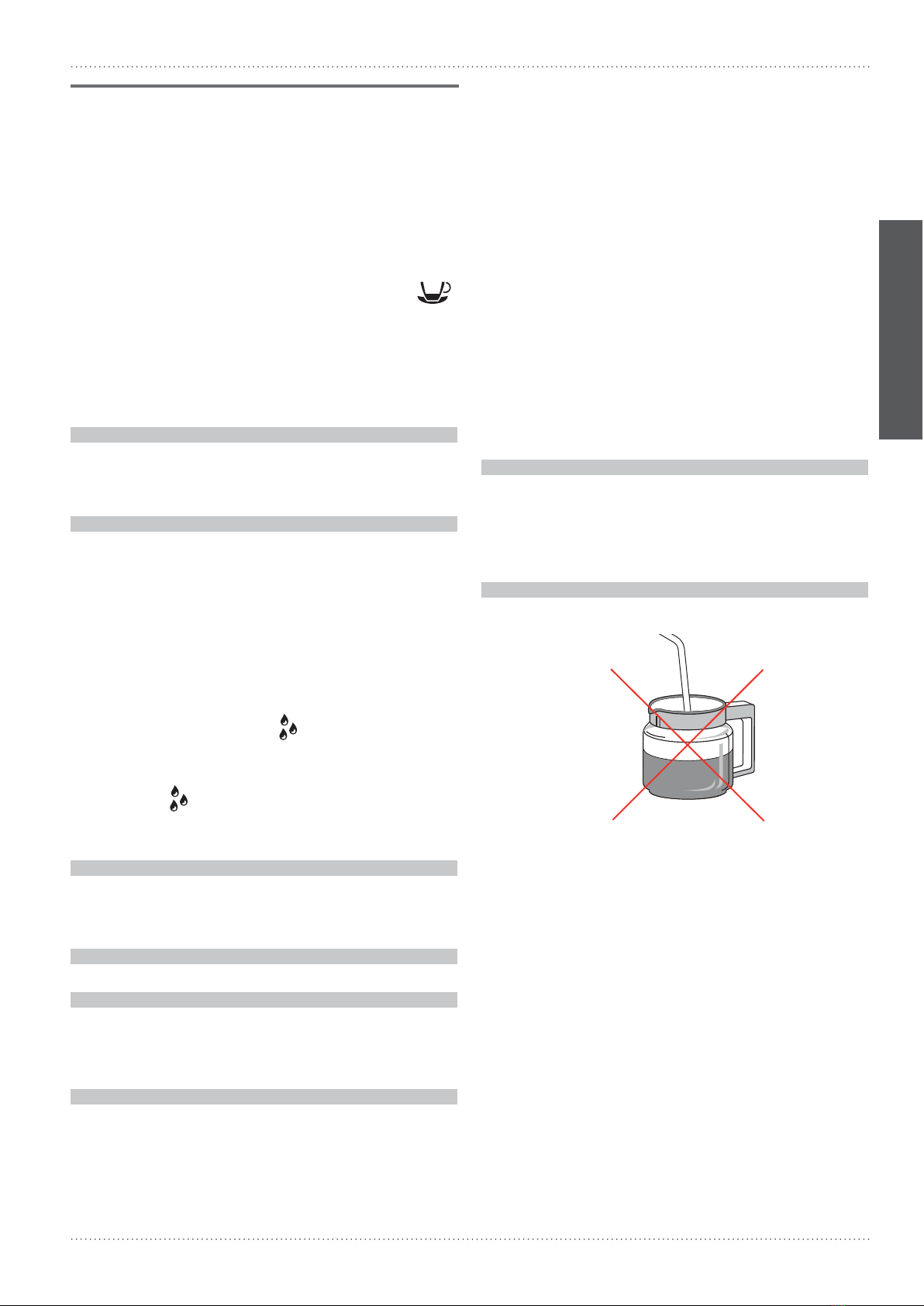

LEAVE THE STEAM NOZZLE IMMERGED IN THE
MILK ONLY FOR THE TIME REQUIRED FOR HEAT-
ING. DO NOT OPEN THE STEAM TAP WITH THE
STEAM NOZZLE IMMERGED IN MILK WHILE THE
MACHINE IS OFF.
!Do not remove the lter-holder from the delivery
group during coee delivery.
MILK

42 User manual
(*) optional.
!
Carefully move the steam nozzle using the
anti-burn rubber bulb and never touch the
steam nozzle or the hot water nozzle: contact
with the hot water or steam may be harmful to
individuals, animals or property.
!The use of the steam dispensing point (steam
nozzle), must always be preceded by the per-
formance of the condensation draining opera-
tion for at least 2 seconds.
!
To keep the steam nozzle tips in perfect working
order, it is advisable to carry out a brief delivery
dry run after each use. Keep the tips clean at
all times using a cloth dampened in lukewarm
water. Handle the nozzle with utmost caution
due to the hazard resulting from the presence
of high-temperature steam.
11 Autosteamer
11.1 Use of the single-function autosteamer
The single-function autosteamer system dispenses
steam and can be used for foaming milk at the pro-
grammed temperature
.
Proceed as follows:
t *NNFSHFUIFFOETPGUIFBVUPTUFBNFSJOUPUIF
beverage.
t 1SFTTUIFLFZ
t8BJUVOUJMUIFEJTQFOTJOHJTöOJTIFE
Notes:
t 5PTUPQEJTQFOTJOHBIFBEPGUJNFQSFTTUIFLFZ
again.
t 5PQSPMPOHTUFBNEFMJWFSZIPMEEPXOUIF
key
11.2 Use of the dual-function autosteamer
The autosteamer system dispenses steam and can
be used for two purposes:
heating a beverage to the programmed
temperature.
f o a m i n g + h e a t i n g m i l k t o t h e
programmed temperature.

43
User manual
ENGLISH
Proceed as follows:
t *NNFSHFUIFFOETPGUIFBVUPTUFBNFSJOUPUIF
beverage.
t 1SFTTUIFLFZPS
t8BJUVOUJMUIFEJTQFOTJOHJTöOJTIFE
Notes:
t 5PTUPQEJTQFOTJOHBIFBEPGUJNFQSFTTUIF
key or again.
t 5PQSPMPOHTUFBNEFMJWFSZIPMEEPXOUIF
key or .
!The use of the steam dispensing point (au-
tosteamer nozzle), must always be preceded by
the performance of the condensation draining
operation for at least 2 seconds.
iThe system includes a time limit of a maximum
of 4 minutes for autosteamer operation.
iTo change the temperature of the autosteamer,
and to enable or disable its operation, contact
the Technical Support Service.
!
To keep the steam dispensers in perfect work-
ing order, it is advisable to carry out a brief
delivery dry run after each use. Keep the tips
of the autosteamer clean at all times using a
cloth dampened in lukewarm water. If regular
cleaning is not carried out, the proper opera-
tion of the autosteamer can be compromised.
!
Do not leave the autosteamer nozzle immerged
in the milk when it is not being used. Handle
the autosteamer with utmost caution due
to the hazard resulting from the presence of
high-temperature steam.
!The autosteamer foaming is factory-adjusted,
in the testing phase of the machine. Therefore,
it is recommended to modify the adjustment
only if strictly necessary.

44 User manual
12 Energy Saving System
The machine is provided with a software that
manages the automatic standby sistem during
breaks, the night Energy-saving feature and the
intelligent adjustment of the temperature.
This allows a considerable energy saving, during
night breaks, maintaining the machine in the condi-
tion to quickly return to operate.
Moreover, the software distributes the power
only where and when it is needed, thus allowing
to save energy during the normal working activity
too.
If provided for in the programming, it automati-
cally puts into standby one or more groups when
the workload decreases and prepares them for full
capacity when needed.
All this is indicated in the following way:
To bring a dispensing group back from standby,
press and hold the respective “PROG/STOP” button
for 3 seconds.
It will return to full operation in about 1-2 min-
utes.
If the machine is in the “ENERGY SAVING” mode,
also the services boiler will be reactivated, thus exit-
ing the "energy saving" mode.
The dispensing groups and the services boiler,
which have been reactivated, will remain opera-
tive until the next time limit set for the start-up of
the energy saving mode (for the machine) or of the
standby mode (for the dispensing groups) expires.
The system will continue to follow the pro-
grammed energy saving settings.
All the groups are in
standby, the entire ma-
chine (including the serv-
ices boiler) is in energy
saving phase.
One or more delivery
groups (but not all of them)
are in standby.
!The use of the steam dispensing point (auto-
steamer nozzle), must always be preceded by
the performance of the condensation draining
operation for at least 2 seconds.
iThe system includes a time limit of a maximum
of 4 minutes for autosteamer operation.
iTo change the temperature of the autosteamer,
and to enable or disable its operation, contact
the Technical Support Service.
!
To keep the steam dispensers in perfect work-
ing order, it is advisable to carry out a brief
delivery dry run after each use. Keep the tips of
the autosteamer clean at all times using a cloth
dampened in lukewarm water. If regular clean-
ing is not carried out, the proper operation of
the autosteamer can be compromised.
!
Do not leave the autosteamer nozzle immerged
in the milk when it is not being used. Handle
the autosteamer with utmost caution due
to the hazard resulting from the presence of
high-temperature steam.
iTo change the operating parameters of the
"energy saving" system, contact the Technical
Support Service.
ENERGY SAVING
+ ashing of the
"PROG/STOP" LEDs
Flashing “PROG/STOP”
LED

45
User manual
ENGLISH

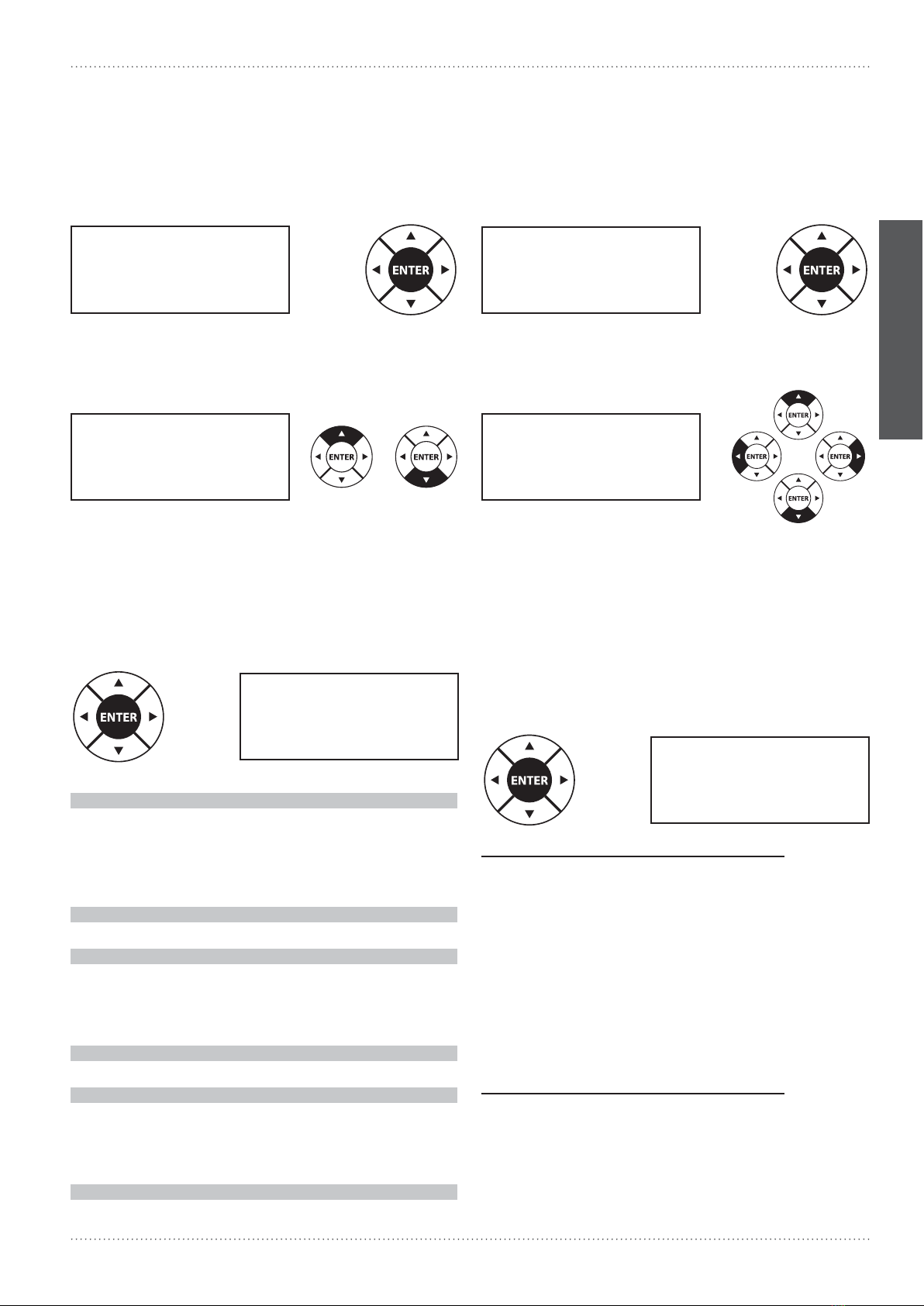

To display the partial strokes for the various types
of delivery, press the respective keys on the push-
button panel.
The selected key will light up, and the count of
selections made will appear on the display.
13.2 Counters
In this section it's possible to display the number
of selections made (total and individual) as well as
the number of doser alarms.

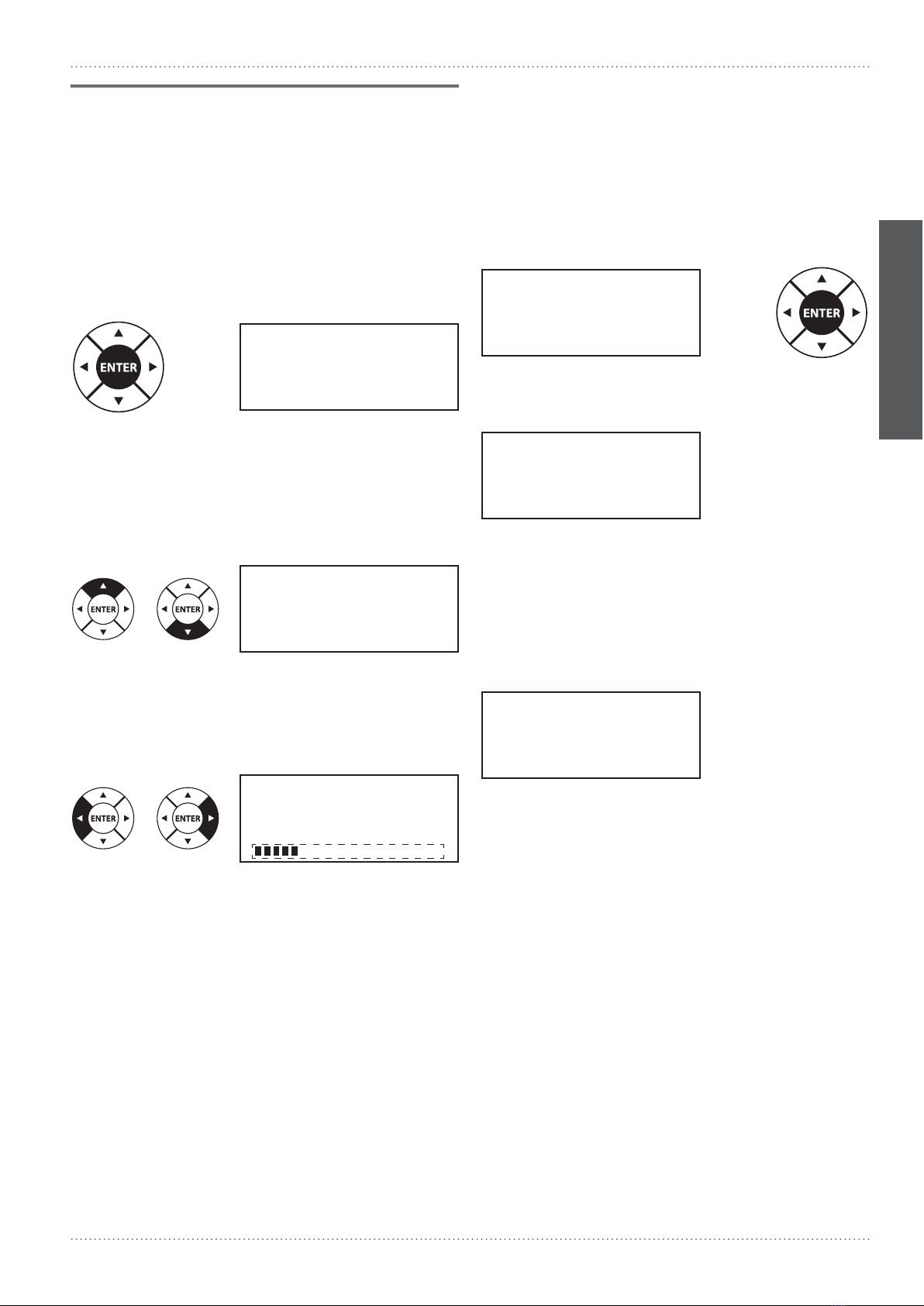

Scroll through the menu until the item
“01 COUNTERS” is highlighted;
Conrm the selection by pressing the ENTER key
and the display will show the following:
13 Data reading and programming
13.1 Main menu
To access the reading of machine data and the
programming of the main parameters, hold down
the ENTER key of the navigator key for at least 5
seconds.
The following messages will appear on the dis-
play:
To select the item concerned, use the () and
() keys.
To exit the menu, press the () or () key. COUNTERS
00000
01 COUNTERS
02 SERV.BOILER PRESS
03 CUP HEATER TEMP.
04 CLOCK SETUP
TOTAL COFFEES
00000
01 COUNTERS
02 SERV.BOILER PRESS
03 CUP HEATER TEMP.
04 CLOCK SETUP
01 COUNTERS
02 SERV.BOILER PRESS
03 CUP HEATER TEMP.
04 CLOCK SETUP
0.7 Bar Press 0.0
08:30 10-MAY-2010
Humidity 62% P 32%
Number of coee/hot
water selections made
on the machine.
Total number of
selections made on the
machine.

46 User manual
To exit the "COUNTERS" menu, press the ENTER
key.
Doser alarms
Inside the “COUNTERS” menu, it's also possible to
display the number of alarms that have occurred for
the volumetric dosers.
When inside the menu, by pressing the () or the
() key, it is possible to alternate the coee/water
selections count screens and the doser alarms.
conrm the selection by pressing the ENTER key
and the display will show the following:
13.3 Services boiler pressure adjustment
In this section it is possible to modify the pressure
of the services boiler (hot water / steam).
Scroll through the menu until the item
“02 SERV.BOILER PRESS” is highlighted;
The value of the pressure will ash.
To change the pressure (from 0 to 1.4 bar), press
the () key or () key.
To conrm and exit from the adjustment mode,
press the ENTER key.
1 2 3
iIn case of inactivity of the operator, after 10
seconds, the display will return to the main
menu.
i
The machine comes out of the factory with a
pressure value of 1.2 Bar, which allows an op-
timal use of the services for a normal workload.
It is possible to increase or decrease this value,
depending on the weight of usage of the hot
water and steam services.
The dispensing of coee is not inuenced by
this parameter.
i
If the machine is provided with an "auto-
steamer" device, it is advisable to leave the
pressure of the services boiler at 1.2 Bar (op-
timal value for the correct operation of the
autosteamer).
01 COUNTERS
02 SERV.BOILER PRESS
03 TEMP. CUP HEATER
04 CLOCK SETUP
DOSER ALARMS
000 000 000 000
DOSER ALARMS
000 000 000 000
01 COUNTERS
02 SERV.BOILER PRESS
03 CUP HEATER TEMP.
04 CLOCK SETUP
01 COUNTERS
02 SERV.BOILER PRESS
03 CUP HEATER TEMP.
04 CLOCK SETUP
BOILER PRESSURE
1.2 Bar
1
1
2
23
TOTAL COFFEES
00000
Correspondence diagram between the display alarm position
and the machine group position

47
User manual
ENGLISH
Conrm the selection by pressing the ENTER key
and the display will show the following:
13.5 Date and time adjustment
In this section it is possible to set the date and
time shown on the machine's display.
Scroll through the menu until the item
“04 CLOCK SETUP” is highlighted;
The value to be changed will ash.
To change the value, press the () key or ()
key.
To move to the next or previous parameter, press
the () key or () key, and repeat the modication
process.
To conrm and exit the menu, press the ENTER
key.
Hhours
Mminutes
DD day 1Monday
MN month 2Tuesday
YY year 3Wednesday
Dday of week ¨4Thursday
5Friday
6Saturday
7Sunday
conrm the selection by pressing the ENTER key
and the display will show the following:
13.4 Cup heater temperature adjustment
This menu allows the user to adjust the operating
temperature of the cup heater or switch it o.
Scroll through the menu until the item
“3 CUP HEATER TEMP.” is highlighted;
The value of the temperature will ash.
To change the temperature (from 70 to 114 °C),
press the () key or () key.
To conrm and exit from the adjustment mode,
press the ENTER key.
iIf a temperature above 114°C is set, the indica-
tion CUP HEATER ON will appear on the display
and the cup heater will be activated in continu-
ous operation.
iIf a temperature lower than 70°C is set, the indi-
cation CUP HEATER --- will appear on the display
and the cup heater will be deactivated.
iTo turn the cup heater on and o, read chapter
8.1.
01 COUNTERS
02 SERV.BOILER PRESS
03 CUP HEATER TEMP.
04 CLOCK SETUP
1 COUNTERS
2 SERV.BOILER PRESS
3 CUP HEATER TEMP.
4 CLOCK SETUP
CLOCK SETUP
H:M DD-MM-YY D
01 COUNTERS
02 SERV.BOILER PRESS
03 CUP HEATER TEMP.
04 CLOCK SETUP
01 COUNTERS
02 SERV.BOILER PRESS
03 CUP HEATER TEMP.
04 CLOCK SETUP
CUP HEATER
85 .C
Legend

48 User manual
14 Accessories
14.1 Softener
Mains water contains insoluble salts, which cause
the build-up of lime scale deposits in the boiler and
in other parts of the machine. The softener makes
it possible to eliminate or substantially reduce the
presence of these mineral salts. The resin softener
has the property of retaining the calcium contained
in the water. For this reason, the resins become
saturated after a certain period and must be re-
generated with coarse kitchen salt (NaCl, sodium
chloride) or special water softening salt. It is very
important to regenerate the softener within the
established times. The regeneration is to be done
regularly every 15 days. However, in locations with
very hard water, it will be necessary to regenerate
more frequently. The same rule can be applied to
places where there is a large consumption of hot
water for tea or other uses.

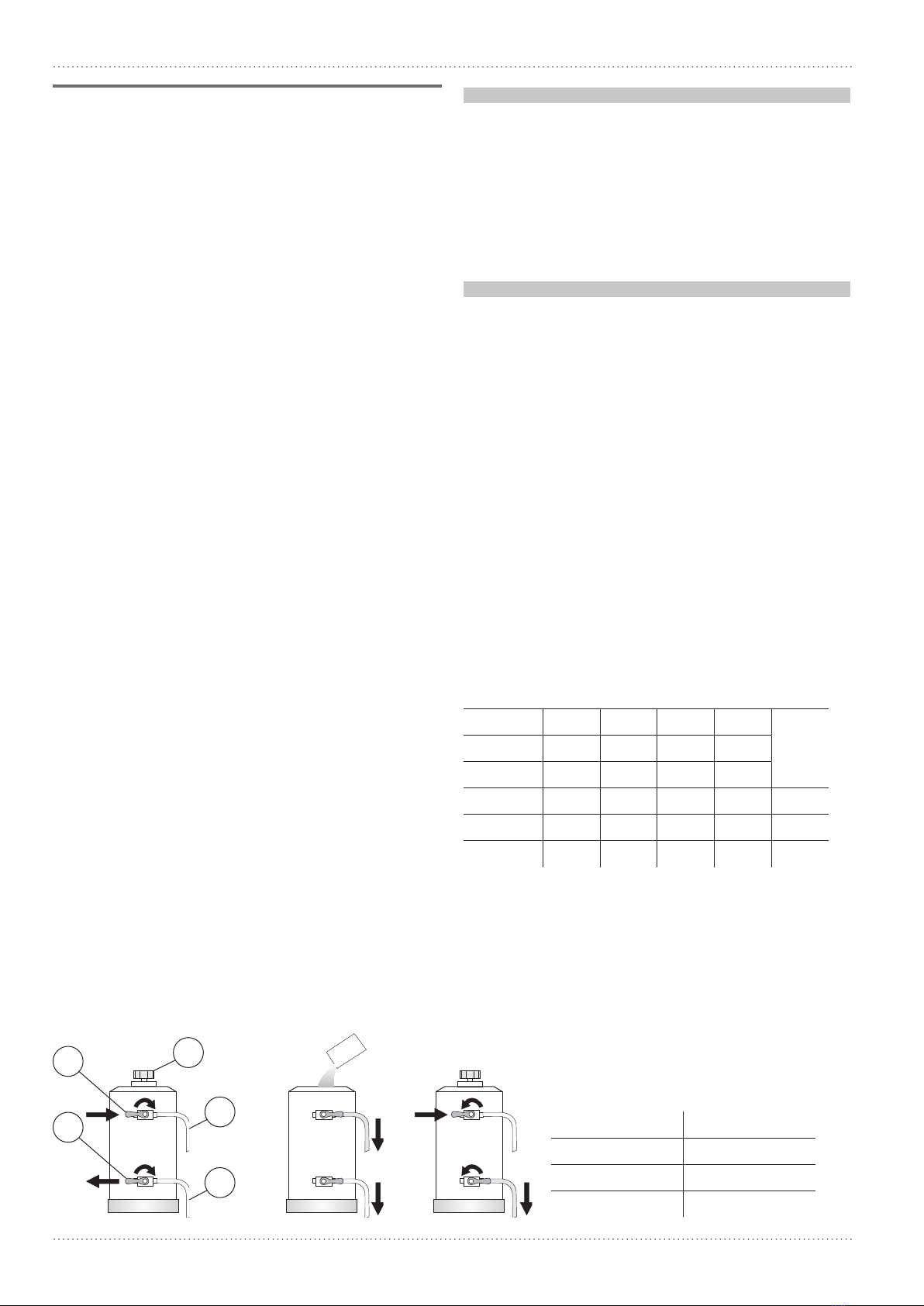

Softener regeneration
Proceed as follows:
t move levers (B) and (E) from left to right;
t remove the lid by loosening the knob (A);
t release enough water through the pipe (C) to
make room for the amount of salt to be intro-
duced, as required depending on the model (see
the table on the following page);
t clean any salt or resin residue from the gasket
located on the lid;
t put the lid back in place by screwing the knob
(A) down securely and move the lever (B) back
from right to left;
t let the salt water drain from the small tube (D)
until the water is no longer salty (about 30-60
minutes). The salt allows the accumulated min-
eral salts to be released;
t bring the lever (E) from right to left back to its
initial position.
Softener model Amount of salt
8 litres 1.0 kg
12 litres 1.5 kg
16 litres 2.0 kg
In order to keep the softener and hence the ma-
chine in perfect operating condition, it is necessary
to perform regeneration periodically based on the
use of the softener and the hardness of the water
that is used. The table below shows the quantity of
softened water based on the hardness of the water
in the various units of measure:
t °f: French degree
t °d: German degree = 1.8 °f
t mg CaCO3
For further information on installation, start-up
and regeneration of the softener, refer to the relative
instruction manual.
Amount of softened water based on hardness
°f 30 40 60 80
salt°d 16,5 22 33 44
mg CaCO330 40 60 80
8 litres 1000 lt 900 lt 700 lt 500 lt 1.0 kg
12 litres 1500 lt 1350 lt 1050 lt 750 lt 1.5 kg
16 litres 2100 lt 1800 lt 1400 lt 1000 lt 2.0 kg
i
The build-up of lime scale deposits in the
hydraulic circuit and boiler inhibits thermal
exchange, thus compromising proper opera-
tion of the machine. Heavy incrustations in the
boiler may cause long machine shutdowns and
in any case invalidate any guarantee, because
this symptom indicates that regeneration has
been neglected.
B
E
A
C
D
