LS Industrial Systems LGRF-H User manual

1/70
“LS Ubi
q
uitous RF-ID S
y
stem”
LGRF-H UBIQUITOUS RF-ID
13.56 MHz Reader User’s Manual
Before using this system, please read this User’s Manual thoroughly.
1. The whole or a part of this User’s Manual can not be permitted to be copied without
permission.
2. The content of this User’s Manual is subject to change without any notice for the
improvement of product function.
September 12, 2004 (Version 0.91)
December 12, 2004 (Version 0.92)
February 8, 2005 (Version 0.93)

2/70
“LS Ubi
q
uitous RF-ID S
y
stem”
Table of Contents
Part 1 ................................................................................. 4
Chapter 1 Notices for the Safety............................................................... 4
Chapter 2 Transportation and Storage ..................................................... 8
2.1 Notices for Transportation.........................................................................................8
2.2 Storage Place............................................................................................................8
2.3 Storage Method.........................................................................................................9
2.4 Checkpoints when unpacking...................................................................................9
Chapter 3 Installation............................................................................... 10
3.1 Range of Temperature & Humidity..........................................................................10
3.2 Air Cleanness degree..............................................................................................10
3.3 Vibration Condition..................................................................................................10
3.4 Power Supply..........................................................................................................12
3.4.1 Power Specification......................................................................................12
3.4.2 Wiring............................................................................................................12
Part 2 ............................................................................... 14
Chapter 1 LGRF-H Reader Introduction ................................................. 14
1.1 Product Overview.................................................................................................14
1.2 RFID Introduction.................................................................................................14
1.3 The Principle of RFID System Operation ...........................................................15
1.4 Application Area ...................................................................................................17
Chapter 2 LGRF-H Reader Specification................................................ 18
2.1 LGRF-H Product Configuration............................................................................18
2.1.1 Embedded Antenna ....................................................................................18
2.1.2 External Antenna ........................................................................................19
2.2 LGRF-H Product Specification.............................................................................20
2.3 Effective distance for Reading..............................................................................21
2.4 Product Appearance and Dimension....................................................................23
Chapter 3 RFID-H Reader Installation..................................................... 26
3.1 Reader Installation Method ..................................................................................26
3.2 Antenna Installation Method.................................................................................27
3.3 Communication Cable Installation........................................................................29
3.3.1 RS-232 Cable Specification.......................................................................29

3/70
“LS Ubi
q
uitous RF-ID S
y
stem”
3.3.2 RS-422 Cable Specification.......................................................................31
3.3.3 RS 422 Multi Drop Connection ..................................................................33
3.4 Power Connection................................................................................................35
Chapter 4 S/W Function and Protocol.................................................. 38
4.1 LGRF-H Reader Function....................................................................................38
4.1.1 LGRF-H Reader Operation Mode..............................................................38
4.2 LGRF-H Reader Main Protocol............................................................................43
4.2.1 Main Protocol Frame Structure..................................................................43
4.2.2 Main Protocol Terminology.........................................................................48
4.2.3 Communication Baud Rate Setting............................................................49
4.2.4 Operation Mode Setting.............................................................................51
4.2.5 Read Single Block......................................................................................53
4.2.6 Write Single Block......................................................................................55
4.2.7 Read Multi Block........................................................................................57
4.2.8 ASCII Communication Frame Structure.....................................................59
Part 3 ................................................................................ 65
Chapter 1 Disposal................................................................................... 65
Chapter 2 Contact Point........................................................................... 66
Appendix. A Hardware Jumper Setting (PCB Circuit Board) ............. 67
Appendix. B Error Response Table...................................................... 68
Appendix. C PLC Examples ................................................................ 69

4/70
“LS Ubi
q
uitous RF-ID S
y
stem”
PART 1
Chapter 1 Notices for the Safety
‘Notices for the Safety’ should be complied by the users to use the product safely and
correctly and prevent the occurrence of any accident or danger.
▶‘Notices for the Safety’ should be complied by the users to use the product safely and
correctly and prevent the occurrence of any accident or danger.
For ‘Notices for the Safety for RFID Reader, please refer to the User’s Manual.
▶‘Notices for the Safety’ are classified by the words “WARNING” and “CAUTION” and
each meaning is as follows :
The meaning of symbols used in the product and User’s Manual is as follows :
‘Notices for the Safety’ are classified by “WARNING” and
“CAUTION”,
WARNING Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury
Indicates a potentially hazardous situation which, if
not avoided, could result in minor injury or product
damage.
CAUTION
This symbol is to take cares for the items or operation that may occur the
danger.
When you find this symbol, you should read the instructions carefully to
avoid the danger occurrence.
This symbol is to take cares as the electric shock may occur under the
specific condition.

5/70
“LS Ubi
q
uitous RF-ID S
y
stem”
WARNING
Do not touch the conductor, terminal connection section while
applying an electric current.
It may cause serious injury or death by the electric shock.

6/70
“LS Ubi
q
uitous RF-ID S
y
stem”
WARNING
1. Do not carry it with overloading.
It may cause the injury or product damage.
2. Supply the power according to the condition described in the product
rated power specification.
It may cause the electric shock, fire, malfunction, product damage or deterioration.
3. Nobody is permitted to install, operate or maintain the product except
the expert.
It may cause the injury or malfunction.
4. Do not work under the environment having a hazard to clothing damage.
It may cause the product damage or electric shock.
5. Pay attention to avoid the +/- terminal contact of power supply platform.
It may cause the explosion or fire by over current.
6. Do not carry out the wiring work while applying the electric current.
It may cause the injury or product damage.
7. At first power input, you should check the input power.
It may cause the fire or product damage.
8. When applying the power, you should confirm the completion of checking
If not, it may cause the fire or product damage.
9. Do not put the product in the fire or boil or disassemble it.
It may cause the fire or explosion.

7/70
“LS Ubi
q
uitous RF-ID S
y
stem”
CAUTION
1. Do not let the product wet by rain or snow during transportation.
It may cause the deterioration of product function.
2. Do not keep the product in the place with high humidity or possible
hazard to submersion.
It may cause the destruction of insulation or deterioration of product function.
3. Do not install the product under the abnormal environment having a
hazard to submersion or dust etc.
It may cause the product damage or deterioration.
4. Connect the external signal cable or power cable correctly.
If not, it may cause the fire or product damage.
5. After installation, remove foreign materials (work tools, electric cables,
Bolt).
It may cause the fire, failure or malfunction.
6. I/O signal/Communication cables shall be installed apart at least 100mm
from high voltage cable or power cable.
It may cause the fire or electric shock.
7. Pay attention to the invasion of rats, insects or animals.
It may cause the malfunction or fire.
8. Dispose the wastes in the designated place not to influence the environment.
It may cause the environment pollution.

8/70
“LS Ubi
q
uitous RF-ID S
y
stem”
Chapter 2 Transportation and Storage
2.1 Notices during Transportation
While transporting the product, the following items should be complied :
1. Pay attention to avoid the falling of the product during transportation.
2. Do not apply the strong impact or forces to the product.
3. Use the waterproof cover to prevent the product from being wet by rain or snow.
4. Pay attention to avoid the collecting of rain water in the waterproof cover.
2.2 Storage Place
The product should be kept indoor and in the place where is dry and free from
particulates.
Please keep the product considering the followings :
1. The place where is clean, dry and well-drained.
2. The place where is higher than the estimated water level in case of flooding in the
frequent occurring area of flooding.
3. The packing should be kept in the state not disassembled.
WARNING
Do not transport the product with overloading.
It may cause the injury or product damage.
CAUTION
Do not let the product wet by rain or snow during transportation.
It may cause the deterioration of product function.

9/70
“LS Ubi
q
uitous RF-ID S
y
stem”
4. Avoid the exposure of the product to the rain or wind.
5. Avoid the exposure of the product to the direct sunlight.
2.3 Storage Method
1. Before storage, please check if the product was damaged or not during transportation.
2. Keep the product and other setting accessories well to prevent the missing.
3. The product shall be apart from the floor and keep the height more than 10cm from the
floor.
4. For long-term storage, wrap the product with protection cover (Vinyl or cover)
considering the change of surrounding environment.
5. If the place is located in the traffic area or surrounded by the working places, please
set the place as “No passing zone”.
6. When keeping the product in narrow and closed warehouse, pay attention to well-
ventilation.
7. While keeping the product wrapped with protection cover (Vinyl or cover), if the
abnormal phenomena (high temperature or high humidity) in the surrounding, take
proper actions for ventilation.
2.4 Checking points when unpacking
1. Please check if the product is broken, transformed or damaged.
2. Please check the types or quantity of the product and setting accessories to check if
there are some missing parts.
CAUTION
Do not keep the product in the place with high humidity
or possible hazard to submersion.
It may cause the destruction of insulation or deterioration.
CAUTION
Pay attention to the invasion of rats, insects or animals.
It may cause malfunction or fire.

10/70
“LS Ubi
q
uitous RF-ID S
y
stem”
Chapter 3 Installation
3.1 Range of Temperature and Humidity
Cares should be taken to avoid the temperature rising or generation of static electricity
caused by the failure of air conditioning equipment or unbalance of ventilation and heat
generation, and to keep the following conditions always and avoid the long time operation
under the condition out of the range.
1) Operation temperature : -5 ~ +60℃
2) Storage temperature : -25 ~ +75℃
3) Humidity : 20 ~ 80% RH (no dewing)
3.2 Air Cleanness
The amount of dust or particulates indoor should be less than 2mg/㎥.
Especially, the indoor should be absolutely free from corrosive gas (H2S, SO, chlorine etc.),
the electric conductive gas (Fe, carbon etc.).
1) H2S : less than 0.01 ppm
2) SO : less than 0.05 ppm
3.3 Vibration Condition
The vibration of installation place shall be less than standard as below.
1) If the vibration frequency is less than 10 ~ 13Hz : vibration displacement less than
0.75mm
2) If the vibration frequency is 13 ~ 100Hz : vibration acceleration less than 1G
WARNING
Nobody is permitted to install, operate and maintain the product
except expert.
It may cause the injury or malfunction.

11/70
“LS Ubi
q
uitous RF-ID S
y
stem”
CAUTION
Do not install the product under the abnormal environment having
a hazard to submersion or particulates.
It may cause the product damage or deterioration of the machine.

12/70
“LS Ubi
q
uitous RF-ID S
y
stem”
3.4 Power Supply
In order to run the Reader stably, the power of good quality should be supplied. You
should check if the operation voltage and consumption current are satisfied with the
required condition.
3.4.1 Supply Power Specification
Operation voltage : DC24 ±20%
Consumption current : 200 mA
3.4.2 Wiring
It is necessary to consider that the power wiring from power supply device to Reader
should be free from inductive noise.
WARNING
Supply the power according to the condition described in the product
rated power specification.
If not, it ma
y
cause the electric shock, fire, malfunction, product dama
g
e or deterioration.
WARNING
Do not carry out the wiring work while applying the electric current.
It may cause the injury and product damage.
WARNING
When applying the power, you should confirm the completion of
checking.
If not, it may cause the fire and product damage.

13/70
“LS Ubi
q
uitous RF-ID S
y
stem”
In order to use RFID product efficiently and safely, please read and understand the
following descriptions thoroughly before using it.
The followings describe the installation of product, wiring and use environment, and the
danger and notices in disposal.
WARNING
1) Communication cable should be apart at least more than 100mm from power
cables.
2) Pay attention to the rated power per product for input. Especially, for the supply
power, apply DC24V(±20%). If AC 110~220V is applied, it may cause the failure.
CAUTION
1) Do not use the product which is damaged or transformed when unpacking.
It may cause the failure or malfunction.
2) Do not apply the impact to the product (falling or tipping). It may cause the
product damage or failure.
3) Keep and use the product under the environment condition described in the
User’s Manual. Especially, as the environment with vibration, dust, corrosive
gas and dewing may cause the failure, use the product under the standard
environment.
4) When communication cable working, be aware of the pin block diagram fully of
User’s Manual before connecting the cables. For the machine to be connected
with RFID product and communication cables, review the connection of
communication cables sufficiently before starting to work.
5) In case of disposal, the product should be handled as industrial waste.

14/70
“LS Ubi
q
uitous RF-ID S
y
stem”
PART 2
Chapter 1 LGRF-H Reader Introduction
1.1 Product Overview
LGRF-H Reader is able to recognize various kinds of tags by adapting the international
standard (ISO15693) which fits in the area of logistics, inventory, personnel management and
Factory Automation (FA). The size was minimized to enable the application in various areas and
the user can select the product with either the embedded antenna or external antenna
according to the purpose. This product provides Multi-Drop function that enables to control 16
RFID Readers only by one communication port from the Host (PLC, PC etc.) and is designed
according to the standard of industrial product.
1.2 RFID Introduction
RF-ID stands for Radio Frequency Identification and means non-contact recognizing
device by using a radio frequency. For example, this device was used to recognize the
objects, persons, and animals. The information of recognized target is recorded in the Tag
and the recorded information in the tag is obtained by the Reader.

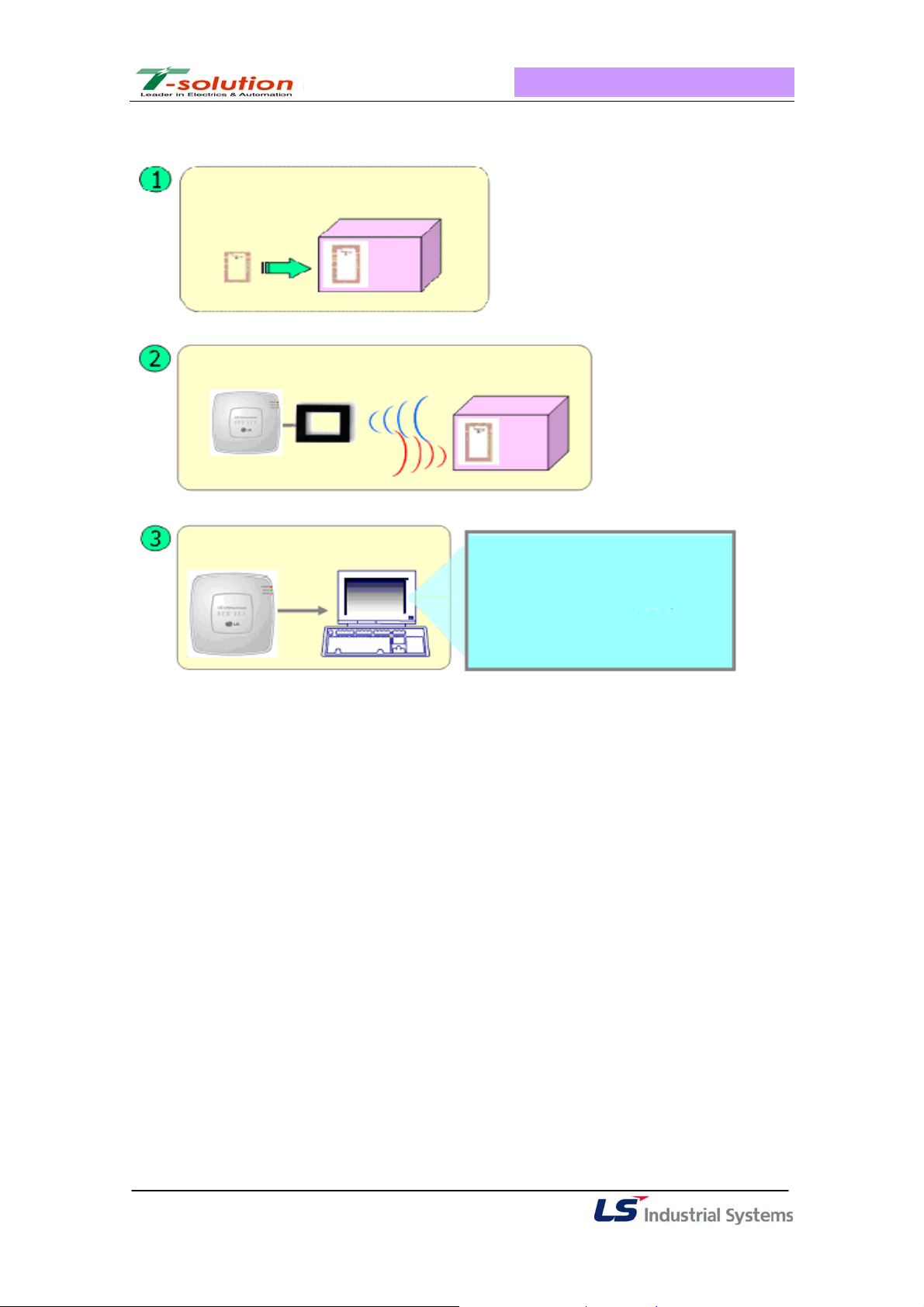

The figure below shows the method of recognizing the goods by using the general RFID
system.
•Example of recognizing the goods by RF-ID system

15/70
“LS Ubi
q
uitous RF-ID S
y
stem”
1.3 Operation Principle of RFID System
The operation principle of RFID Reader is that if the radio wave is sent through the
antenna of Reader as shown on [Figure 1.3.1], the tag becomes activated by getting the
energy from the receiving radio wave. The activated tag sends its own information to the
Reader over the radio and the Reader receives this information of tag.
Attach the tag to the object for recognition.
As the tag attached object approaches, the Reader recognizes.
Reader Antenna
The host computer verifies the recognition. ¾Product name : GPAM2000
¾Manufacturer : LS Industrial System
¾Manufactured date : Aug. 10, 2003
¾Person in charge : Hong, Gil Dong

16/70
“LS Ubi
q
uitous RF-ID S
y
stem”

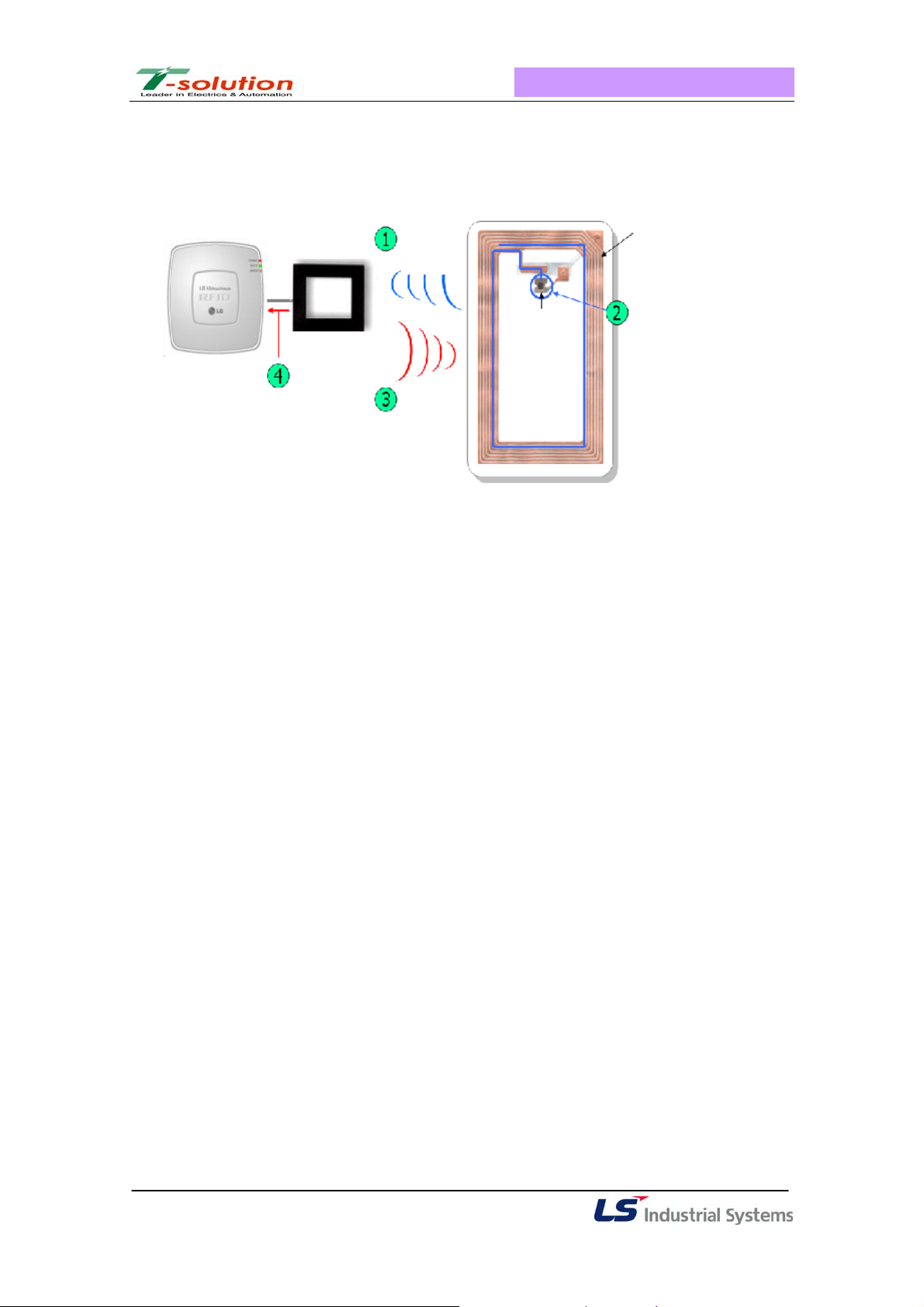

[Fig. 1.3.1] Operation Principle of RFID System
The operation principle of LGRF-H 13.56MHz Reader on [Fig. 1.3.1] is as follows :
①Send 13.56 MHz frequency signal through the antenna of Reader.
②The Tag located in the read range of the antenna activates IC chip by the rule of
electromagnetic induction.
③ Data information of Tag is resent to the antenna of Reader in the form of reflection
wave.
④ The information obtained through the antenna is sent to the Reader to get the tag
information.
Reader
Tag recognized
Antenna
Sending
the
radio
wave
Reflection of wave
including tag
information
Antenna
Ta
g
IC Chip activation
The rule of Electromagnetic
induction
IC
Chi
p

17/70
“LS Ubi
q
uitous RF-ID S
y
stem”
1.4 Application Area
LGRF-H Reader is designed to fit in the asset tracking management such as FA, Freight
management, rental service management, real time position tracking and distribution network
management etc., and can be applied to office attendance management by using the passage
card and the entrance control security and used widely even in traffic card.

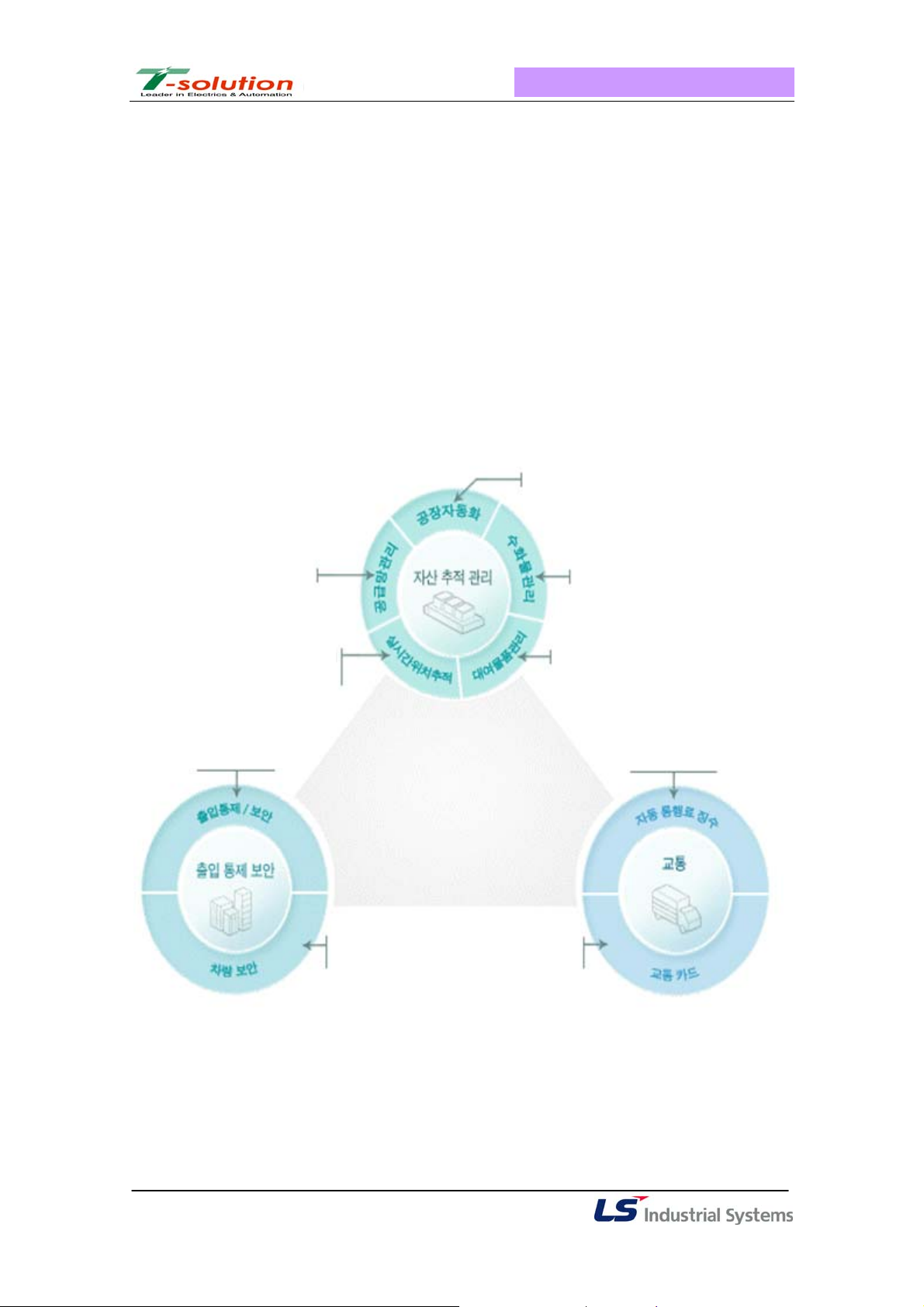

[Fig. 1.4.1] shows the Application are of RFID Reader.
상품, 팔레트에 태그
부착을 통한 유통망관리
고가품,우편물,차량의
실시간 위치파악
카드형 입출입증
근태관리 활용
자동차 인식을 통한
자동 통행료 징수
제품생산 완전자동화 및
생산품 다양화 구현
수화물의 자동검사
자동 목적지 이송
도서,DVD,비디오,
고급의류 대여 관리
도난 방지용 카드
소유자만 사용가능
버스, 지하철
요금징수
[Fig. 1.4.1] RFID Application Area
Full automation of product production and
realization of product diversification
Automatic insection and automatic
transmission to the destination
Distribution network
management by attaching
the tag to the products and
palette
Real time position tracking of
high-valued product, postage,
vehicles etc.
Rental service (books, DVD, video,
luxury clothes) management
Office attendance
management by
p
assa
g
e card Antitheft card used only
by the possessor
Automatic toll
collection
by car recognition
Collection
Of bus fare,
subway fare

18/70
“LS Ubi
q
uitous RF-ID S
y
stem”
Chapter 2 LGRF-H Reader Specification
2.1 LGRF-H Product Configuration
LGRF-H Reader has 2 kinds of model : embedded antenna type and external antenna
type. The external antenna type has 3 different models : Type A, Type B, Type C according to
the antenna type.
(Note. It is not possible to use the embedded antenna type and external antenna type at the same
time.)
2.1.1 Embedded antenna type
LGRF-H Reader with embedded antenna is an integrated model including the
antenna inside the Reader as one set.
[Fig. 2.1.1.1] Embedded antenna type (Reader consisted as one set)
[Fig. 2.1.1.2] Embedded antenna type

19/70
“LS Ubi
q
uitous RF-ID S
y
stem”
2.1.2 External antenna type
LGRF-H Reader with external antenna is consisted of Reader and a separate external
antenna. External antenna is classified by 3 types according to the size. And the external
antenna type Reader shall be connected with the external antenna by antenna cable only for
LGRF-H Reader, that both ends are arranged by SMAconnector.

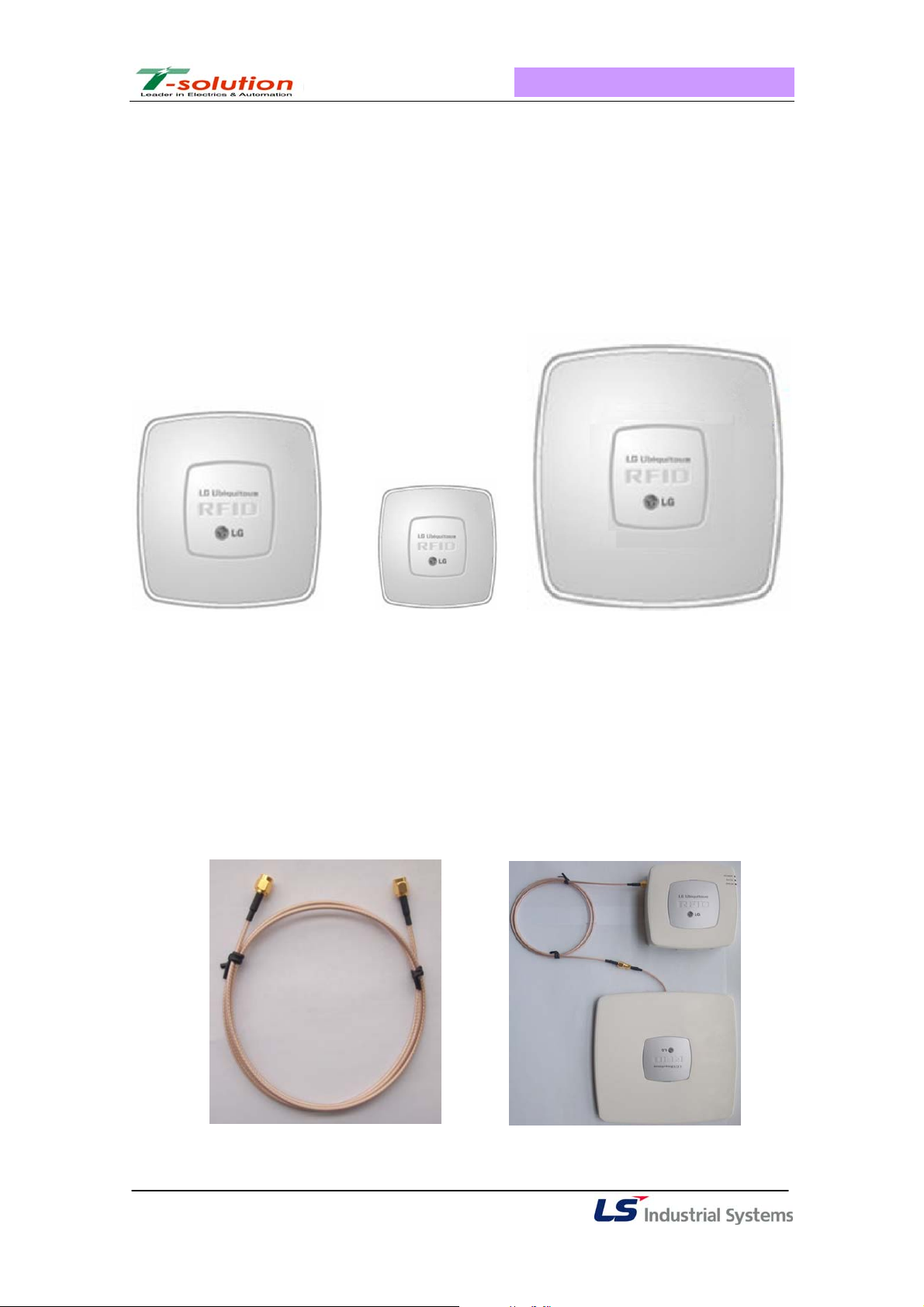

[Antenna A-Type] [Antenna B-Type] [Antenna C-Type]
[Fig. 2.1.2.1] External antenna types
[Fig. 2.1.2.2] below shows the external antenna cable that both ends are arranged by
SMA Connector, and [Fig. 2.1.2.3] shows the state that LGRF-H Reader and C-Type external
antenna are connected.
[Fig. 2.1.2.2] External antenna cable [Fig. 2.1.2.3] Reader with external antenna

20/70
“LS Ubi
q
uitous RF-ID S
y
stem”
2.2 LGRF-H Product Specification
The basic specification of LGRF-H 13.56 MHz Reader is shown on [Table 2.2.1].
[Table 2.2.1] LGRF-H 13.56 MHz Reader product specification
Items Description
Operation frequency 13.56 MHz ±7KHz
RF protocol ISO 15693
Operation voltage 24 VDC(±20% )
Consumption current Less than 200 mA
Transmission power 100 mW
Recognition distance 15 cm (depending onAntenna and Tag)
Antenna impedance 50 Ohm at 13.56 MHz
Display specification 3 LED, 1 BUZZER
High interface Serial Interface (Multiple-Drop: max.16 connectable)
(RS232, RS485, RS422)
Baud Rate 9600 ~ 115,200 bps (Default : 9600bps )
Operation temperature - 5°C ~ + 60 °C
Storage temperature -25°C ~ +75 °C
Size (Body) 112.5(W) x 112.5(D) x 41(H) mm
Material ABS
Option External antenna ( 3 Types)
[Table 2.2.2] External antenna product specification
Antenna type Specification (Antenna size)
A Type 112.5(W) x 112.5(D) x 14.9(H) mm
B Type 61.7 (W) x 61.7 (D) x 12.9(H) mm
C Type 185.0(W) x 185.0(D) x 15.0(H) mm
[Table 2.2.3] External antenna cable specification
Cable length Cable Connector Type
1 1 m SMA–SMA Type
2 1.5 m SMA-SMA Type
