LSS SB17 User manual

PROFESSIONAL AUDIO SYSTEM
SB17
OPERATING MANUAL
Ver. SB17-EN-1.0
LSS Advanced Speaker Systems
Via On. Longo 53-89024 Polistena (RC) ITALY Tel [phone] – Fax [phone] Email: [email protected] - Internet: www.lss.it

SB17__________________________________________________________________________________
2| Operating Manual ver. SB17-EN-1.0
NOTICE:
LSS products are manufactured for use according to proper procedures by a
qualified operator and only for the purposes described in this manual.
The following conventions are used to indicate and classify precautions in
this manual. Always heed the information provided with them. Failure to
heed precautions can result in injury to people or damage to property.
© LSS, 2014
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior
written permission of LSS.
No patent liability is assumed with respect to the use of the information contained herein. Moreover, because
LSS is constantly
striving to improve its high-quality products, the information contained in this manual is subject to change
without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes
no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of
the information contained in this publication.

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |3
SUMMARY
INTRODUCTION ............................................................................................................................................ 4
SAFETY AND WARNING .............................................................................................................................. 5
CONTROLS AND INSPECTIONS ............................................................................................................... 6
APPLICATION ................................................................................................................................................. 7
HYSICAL DESCRIPTION .............................................................................................................................. 7
TECHNICAL SPECIFICATIONS .................................................................................................................. 8
INSTALLATION AND WIRING ..................................................................................................................... 9
MOUNTING THE ARRAY ....................................................................................................................... 10
INSTALLATION ON BUMPER ............................................................................................................... 14
BUMPER AND SYSTEM HANGING ..................................................................................................... 15
ARRAY SIMULATOR SOFTWARE ....................................................................................................... 16
INSTALLATION ON A POLE .................................................................................................................. 17
TRANSPORT OF SPEAKERS ............................................................................................................... 18
ELECTRICAL CONNECTION................................................................................................................. 19
WEEE DIRECTIVE ....................................................................................................................................... 21
DIMENSIONS ................................................................................................................................................ 22
NOTES ........................................................................................................................................................... 23

SB17__________________________________________________________________________________
4| Operating Manual ver. SB17-EN-1.0
INTRODUCTION
Congratulation on the purchase of your new LSS loudspeaker.
Quality innovation and versatility, this is a summary of the new system
developed by LSS for professional sound users.
LSS produces professional audio products – the result of exceptional
engineering and meticulous craftsmanship.
This manual is intended for use with LSS loudspeaker. This includes: safety
precautions; installation, set-up and operating instruction.
Please read this manual plus any accompanying manual and follow all
relevant precautions and instructions. This should allow you to obtain the
maximum performance from your new loudspeaker.
Where there are conflicts or overlaps, the information in any accompanying
manual supersedes the information in this manual.

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |5
SAFETY AND WARNING
IMPORTANT! SAFETY WARNING!
In the interest of their own and others' safety and to prevent voiding the
warranty, we recommend a careful reading of this section before using the
product.
- This product was designed and manufactured to be used as a speaker system in
the context of a typical sound reinforcement system.
The use for any purpose other than these is not provided by the manufacturer and is
therefore under the direct responsibility of the user / installer.
- This device complies with class I (must be connected to the outlet with a protective
earthing connection).
TO AVOID THE RISK OF FIRE AND / OR ELECTRIC SHOCK*:
- Do not expose this system to rain or moisture. Do not expose the apparatus to
dripping orsplashing water. Do not place objects filled with liquids, such as drinks, on
the apparatus.
- Before connecting the system, be sure the mains voltage corresponds to that stated
on the product.
- Connect this appliance to a power outlet with earth contact, according to national
security force, via a power cable of adequate sectionends with a plug or connector
that meets the applicable safety regulations.
- The unit is connected to the network even when the power switch is in position
'0'(OFF). Before any maintenance, disconnect the power cable from the outlet.
*Risk of electric shock only for self-powered system.
IMPORTANT! SAFETY PRECAUTIONS!
Read This First.
Read and heed all warnings and safety instructions in this Manual before using the
product.
Failure to follow all precautions can result in equipment damage and / or personal
injury.
1. Read these instructions.
2. Keep these instructions
3. Heed all warnings and follow all instructions.
4. Use only attachments/accessories specified by the manufacturer.
5. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
6. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
7. LSS loudspeakers can produce sound levels capable of causing permanent
hearing damage from prolonged exposure. The higher the sound level, the less
exposure needed to cause such damage
CAUTION: This product is energized as long as it is connected to the AC.
CAUTION: Allow at least six inches of free space all around the amplifier for sufficient
ventilation.

SB17__________________________________________________________________________________
6| Operating Manual ver. SB17-EN-1.0
CONTROLS AND INSPECTIONS
This chapter contains important information about precautions to be taken
about the suspension of a LSS line-array system.
Before proceeding with any operation for lifting thesystem , therefore
recommend that you read this chapter and follow thetips and warnings it
contains.The lifting of a line-array system must be made only by personnel
familiar with proper preparation,experience and knowledge of the applicable
safety standards.
The flow rates of suspension accessories provided by LSS are certified by a
qualified consultant external to the Company.
The original document is available at the LSS office.
You must regularly inspect the facility and , in case of doubt,immediately
replace all the material and all equipment used for the suspension.
This practice is essential to prevent damage to property and or person:no
way you can overlook this rule and proceed by accepting arisk.
We strongly recommend , therefore , to follow a regular program of checks
and inspections on all components , which must bedocumented by
inspection reports compiled by the staff that has installed the system.
In case of accident , local codes may require proofdocumentation of audit
reports and the corrective actionin place following the detection of defects .
In some countries ( including Italy ) rules on the maintenance oflifting
equipment ( hoists , ropes and chains ) requireperiodic checks and
inspections carried out by a company or byLicensed professionals .
It is absolutely not permissible to accept the risks with regard to safety of
public or staff!
When you suspend a system to support structures on the ceiling or roof,it
must be ensured with extreme care, by calculation or, in some cases,by
instrumental measurements, which do not exceed the maximum flow rate
of the structures themselves in order the installation is absolutely secure .
Do not installspeakers or entire systems to unsafe structures . If necessary,
consult licensed professional.
All suspension accessories NOT provided by LSS are under
theresponsibility of the user, that uses them at his own risk and peril.

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |7
APPLICATION
SB17 is an extension module for low-frequency reinforcement of line array
ST17. It is ideal for creating a vertical array systems with a ratio of one sub
with two ST17. SB17 can be used as main system in the wider range of
professional audio applications. The ultra-compact design is intended to fulfil
the highest demands of audio professionals and delivers the ultimate
performance level in its category and meets the demands of both the fixed
installation and rental production markets. SB17 is the ideal complement to
the ST17 to extend the response up to 150 Hz. SB17 is extremly lightweight
and compact and virtually invisible the integrated rigging system, combines
extremely quick set up and system integration with significant savings on
storage and handling logistics. ST17 and SB17 are ideal with rigging
limitations in theatres, performing art centres, concert halls, convention
centres, sport facilities, and TV/Broadcast studios, with the added bonus of
being stealth philosophy.
PHYSICAL DESCRIPTION

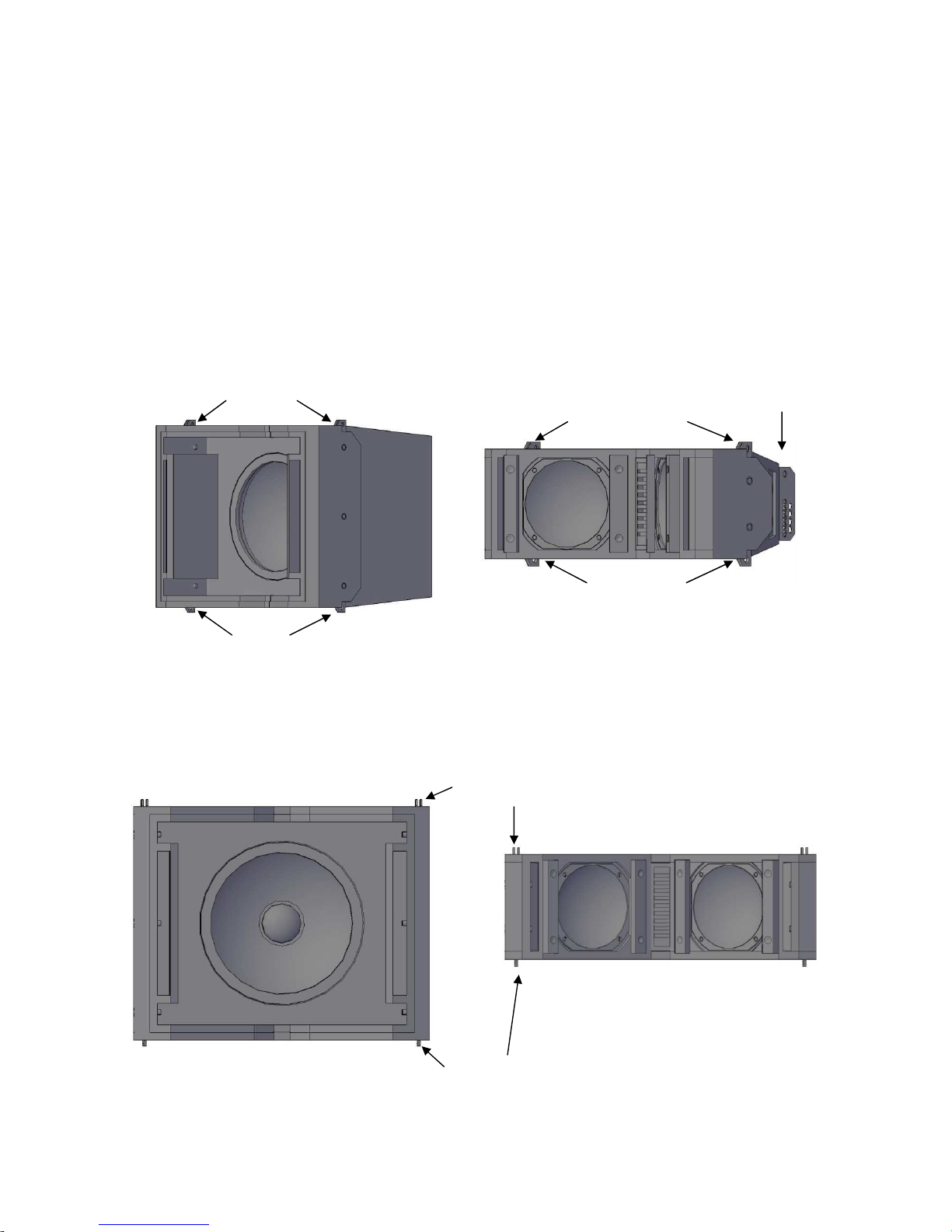

FRONT
TOP
BOTTOM
SIDE REAR
[B][A] [C] [D] [G]
[F]
[E]
[A] Rear brackets [E]Connection panel
[B] Enclosure Cabinet [F]Top Fixing brackets
[C] Steel protection grid [G] BottomFixing brackets
[D] Woofer
Materials and construction meet the highest professional standards to ensure maximum reliability

SB17__________________________________________________________________________________
8| Operating Manual ver. SB17-EN-1.0
TECHNICAL SPECIFICATIONS
PHYSICAL
Dimensions mm (±1 mm)
[Inches]
Width 580 [22.83’’]
Front Height 460 [18.11’’]
RearHeight 405 [15.94’’]
Depth 476 [18.74”]
Trapezoid Angle (degrees)
4.5° per side
WeightKilograms Net Weight25
ShippingWeight29
SYSTEM PERFORMANCE
FrequencyResponse ±3 dB 40 Hz ~ 150 Hz
-10 dB 35 Hz
Sensitivity (1 Watt @ 1 m)
98 dB
Max SPL Calculated
126 dB
Nominal Input Impedance (
Ω)
8 Ω
Power Handling (Watt cont.
AES) 700 W
Peak Power (W) 2800W
NominalDispersion (@
-
6 dB)
360°
MECHANYCAL
Enclosure material Birch Plywood of 15 mm
[0.59 inches]
Finish Texture poliurethanic black
paint
Grille Powder coated perforated
steel with anti dust foam
Connectors 2 Neutrik NL4 Speakon
Accessories
Flight Case for 2
SB17(optional), Pole mount
cup,coupling and suspension
hardware (included)

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |9
INSTALLATION AND WIRING
SB17 is an extension module for low-frequency reinforcement of line array
ST17 and can be used both in flying or stacking configuration.
ST17 and SB17 have the same mounting hardware and similar shape in
order to facilitate the creation of arrays.
It is preferable to install one sub every two speakers.
Maximum number of
speakers in Stacking
configuration is 4
Maximum number of
speakers in Flying
configuration is 16

SB17__________________________________________________________________________________
10| Operating Manual ver. SB17-EN-1.0
MOUNTING THE ARRAY
Each loudspeaker has a hardware that allows to be connected and secured
to the other loudspeaker.
Hardware consist of three points System; two in the front side (Rigging
Holes) used to lock the speaker, and one in the rear (Bracket) used to
regulate the tilt.
Specular points are used to hook another speaker in order to create an
array.
Rigging holes are in the top and in the bottom of the case:
The bracket with rigging holes has a female side and a male side in order to
facilitate the snap-in mounting of more speakers.
Top RiggingHoles
Bottom RiggingHoles
RearBracket
emale side
of bracket
Male side
of bracket
Top RiggingHoles
Bottom RiggingHoles

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |11

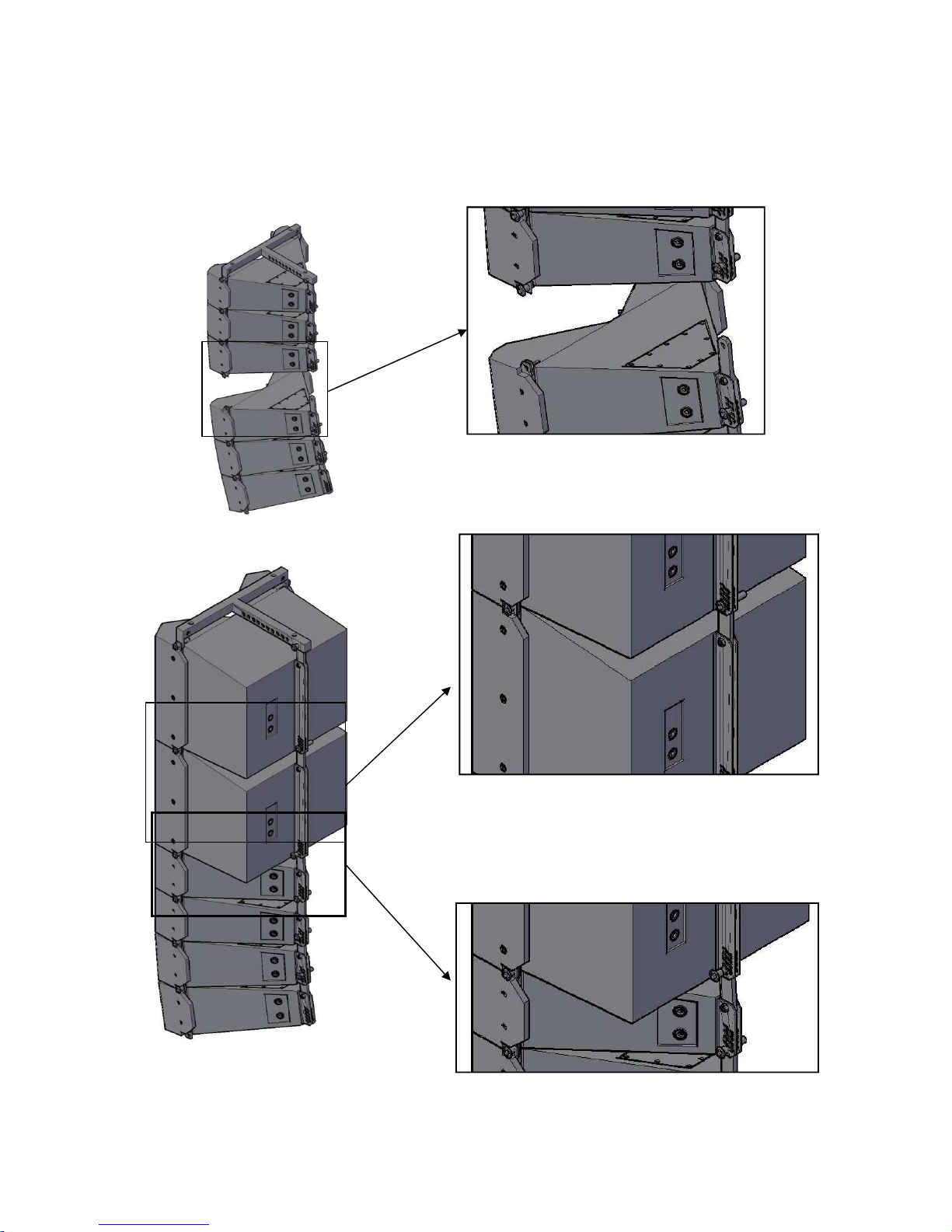

Overlap the speakers aligning the rigging holes, then secure them with the
quick release pins.

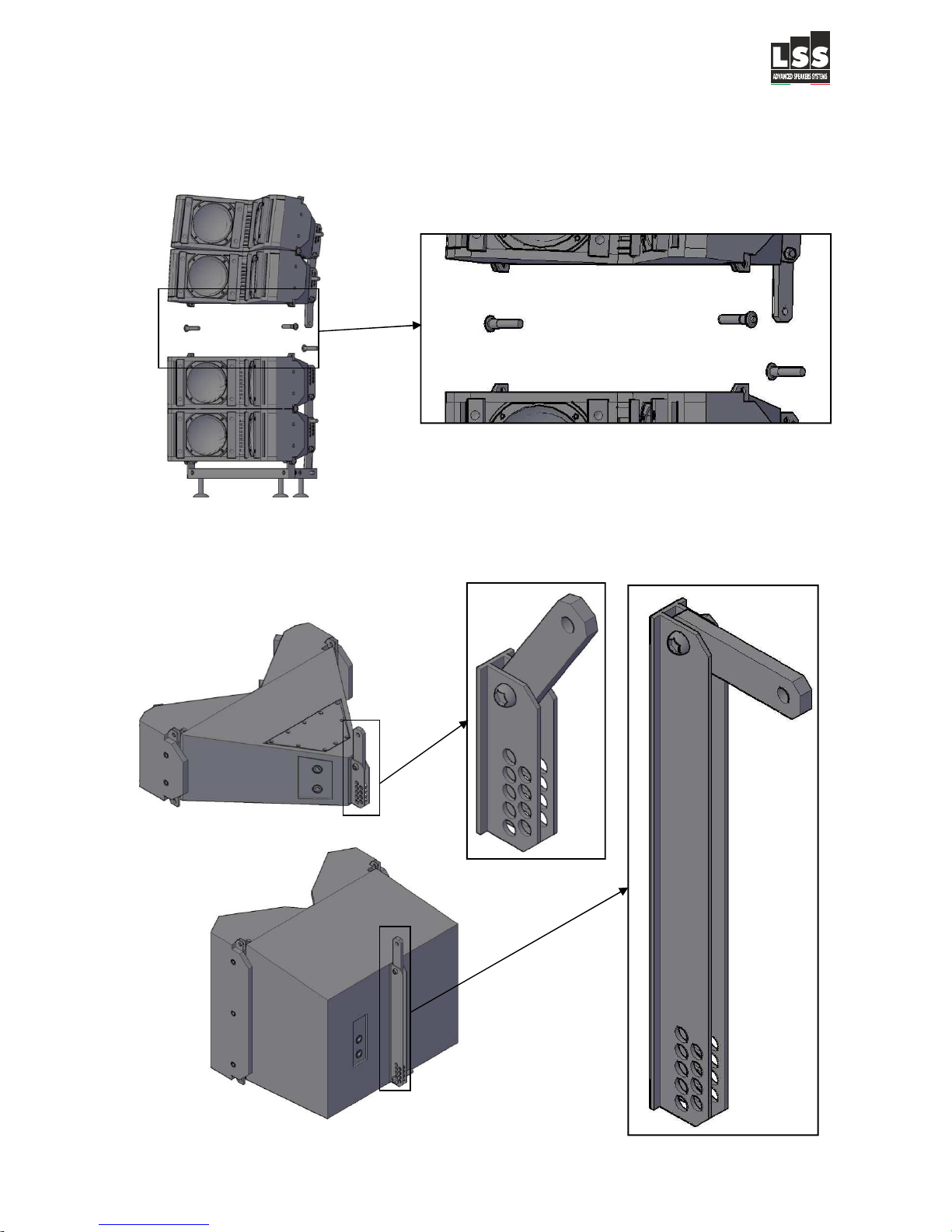

The bracket for the regulation of inclination is in the rear of the case.

SB17__________________________________________________________________________________
12| Operating Manual ver. SB17-EN-1.0
Rear brackets of two overlapping speakers must be connected via the
connecting bracket. Align the holes in the desired position, then secure them
with the quick release pins.

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |13
The regulation holes of the bracket allow to choose the desired inclination of
the top speaker than the bottom speaker.
Value of the degrees of inclination for each hole are shown on the printed
label on the plate: 0°-1.25°-2.5°-3.75°-5°-6.25°-7.5°-8.75°-10°.
Connecting
Bracket
Bottom
Speaker’sPlates
Top
Speaker’sPlat
es
Regulation
Holes
CAUTION
See the user manual
! !
ST17
400W
16 Ohm
ST17 LABEL
SB17 LABEL
Sub'sPlates

SB17__________________________________________________________________________________
14| Operating Manual ver. SB17-EN-1.0
INSTALLATION ON BUMPER
In both modes Stacking or Flying, it is necessary to use the dedicated
hardware.
In case of installation in Stacking mode, install the feet and mount the
speakers.
The fixing method of the first case to the bumper takes place in the same
way of fastening between multiple speakers:attach the speaker to the sides
via rigging holes, then connect the rear bracket adjusting the inclination.
Bumper
eet
ConnectingBracket
Holes for
suspension and
regulation of
inclination
Hole for connection
with rear bracket of
speaker
Hole for
connection
with rigging holes
of speaker

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |15

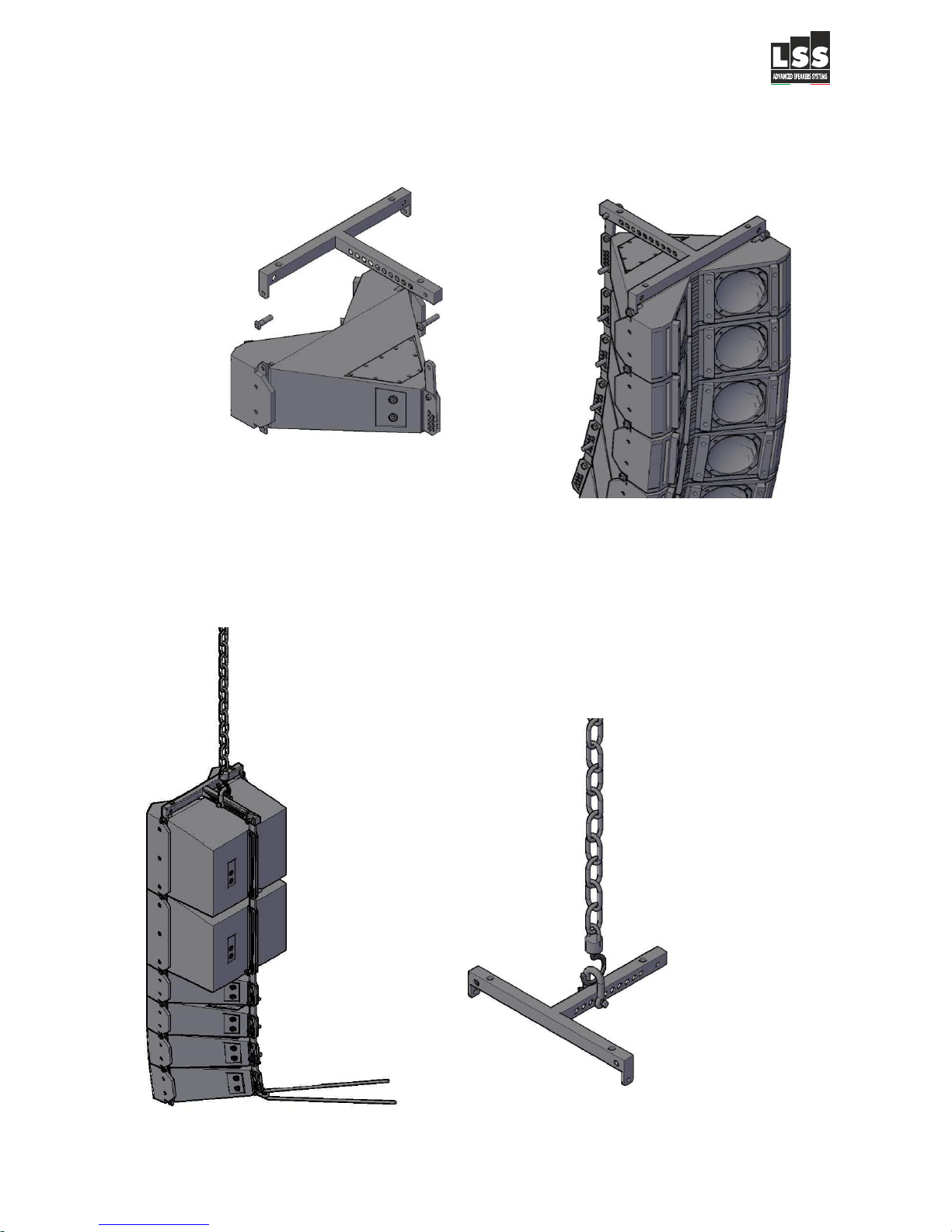

In case of installation in Flying mode, use the bumper without feet, attach the
speaker to the sides via rigging holes, then connect the rear bracket
adjusting the inclination.
BUMPER AND SYSTEM HANGING
Bumper can be fixed to the ceiling or other supports via holes for bumper
suspensionor the holes for suspension and regulation of inclination using
eyebolts and a chain or a rope able to support the weight of the entire
apparatus.

SB17__________________________________________________________________________________
16| Operating Manual ver. SB17-EN-1.0
Suspending the bumper from holes for suspension and regulation of
inclination, it is possible to determine the inclination of the entire system.
Inclination value depends from hole and speakers used because of varying
the number of speakers, change the center of gravity, so for an exact
operation use an inclinometer.
To pull back the system, connect an eyebolt to the rear speaker plates and a
rope or a chain, then manage the inclination.

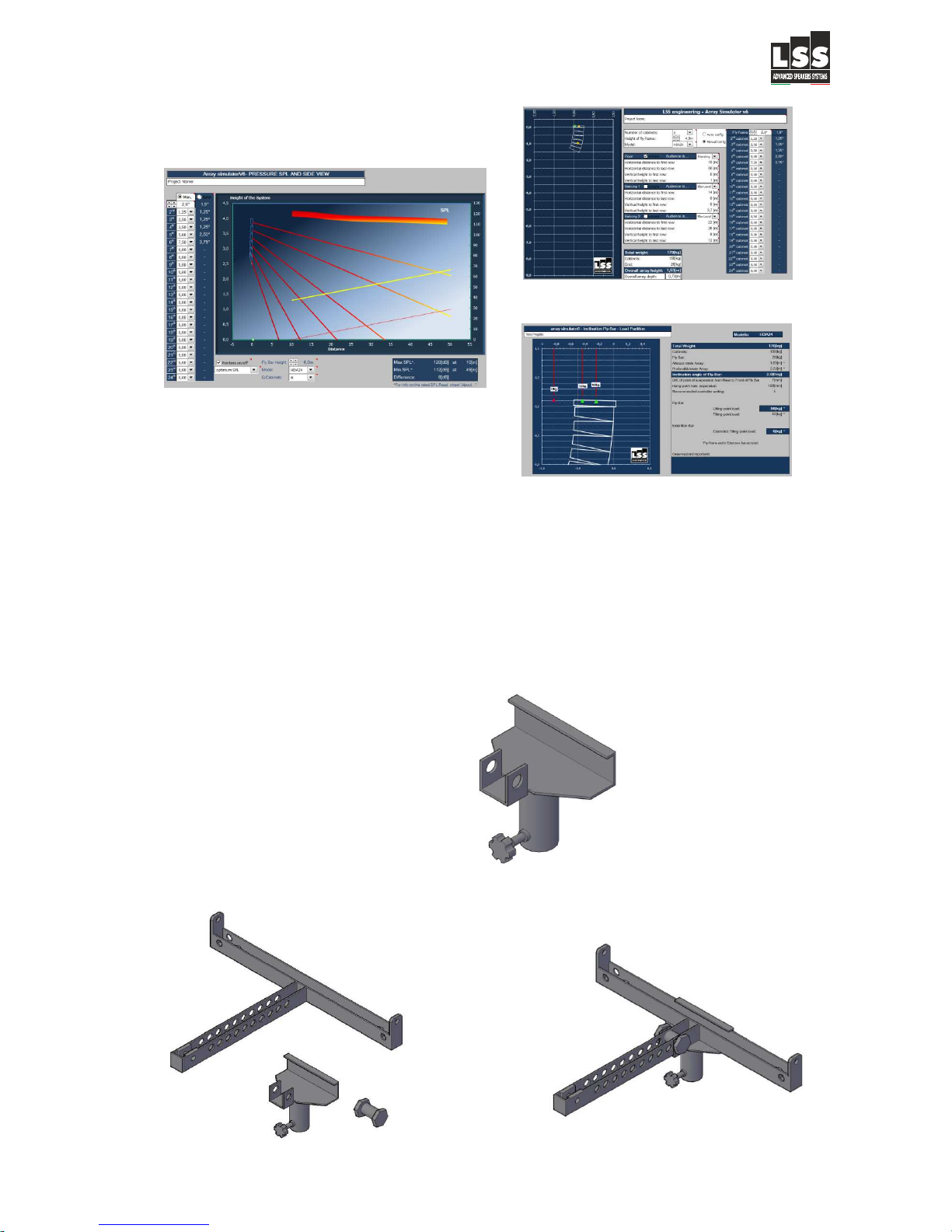

ARRAY SIMULATOR SOFTWARE
The angle of tilt of the single speaker, as well as the inclination of the entire
system depends on the location of installation and the listening audience.
To know exactly these angles for optimal installation,equip with an
inclinometer and use the software ‘Array Simulator’* of LSS.
After inserting the information of the speakers system and installation
location, ‘Array Simulator’ software* allows to:
- Display of pointing and layer maps.
- Display the structure of the hanging system .
- Print complete reports.
- Display levels on the areas of listening.
- Calculation of the angle of inclination to thechosen point of suspension.
- Preset for the areas of listening and the setup of the array.
- Display Pressure Levels (SPL).
…………………….

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |17
*To receive the software or to have more information, contact your LSS distributors or send an
email to [email protected].
INSTALLATION ON A POLE
To install the speakers on a pole, it is necessary to use the dedicated
hardware: bumper and pole mount cup.
Install the bumper on the pole mount cup, then secure them with the quick
release pins.

SB17__________________________________________________________________________________
18| Operating Manual ver. SB17-EN-1.0
TRANSPORT OF SPEAKERS
If you need to move the speakersit is possible touse a flight case on wheels.
It may contain up to Two SB17.

______________________________________________________________________________
Operating Manual ver. SB17-EN-1.0 |19
ELECTRICAL CONNECTION
In the connection panel there are two Speakon NL4 connectors referred as
‘IN’ and ‘OUT’.
IN is the input connector and must be connected to the amplifier, ‘OUT’ can
be used to connected other systems.
Woofer of SB17 is connected on pins 1+ 1-.

SB17__________________________________________________________________________________
20| Operating Manual ver. SB17-EN-1.0
To use an array with ST17 and SB17 is necessary an
external digital processor with custom setup provided by
LSS. One output channel drive the SB17 and another one
drive the ST17. If your amplifier can manage a 2 Ohms Load
and has sufficient power, it is possible to connect a
maximum of 6 ST17 in parallel per channel (total impedance
will be 2 Ohms) or 4 SB17 in parallel per channel
Choose a safe mounting location, so as to prevent the
cables can be stepped on or create tripping hazards.
Before making connections between mixer and speakers,
make sure the mixer volume is turned down.
You can now use the system.
