LSS MIL130 User manual

PROFESSIONAL AUDIO SYSTEM
MIL130
OPERATING MANUAL
Ver. MIL130-EN-1.0
LSS Advanced Speaker Systems
Via On. Longo 53-89024 Polistena (RC) ITALY Tel [phone] – Fax [phone] Email: [email protected] - Internet: www.lss.it

MIL130________________________________________________________________________________
2| Operating Manual ver. MIL130-EN-1.0
NOTICE:
LSS products are manufactured for use according to proper procedures by a
qualified operator and only for the purposes described in this manual.
The following conventions are used to indicate and classify precautions in
this manual. Always heed the information provided with them. Failure to
heed precautions can result in injury to people or damage to property.
© LSS, 2014
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior
written permission of LSS.
No patent liability is assumed with respect to the use of the information contained herein. Moreover, because
LSS is constantly
striving to improve its high-quality products, the information contained in this manual is subject to change
without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, LSS assumes
no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of
the information contained in this publication.

______________________________________________________________________________
Operating Manual ver. MIL130-EN-1.0 |3
SUMMARY
INTRODUCTION ............................................................................................................................................ 4
SAFETY AND WARNING .............................................................................................................................. 5
APPLICATION ................................................................................................................................................. 6
PHYSICAL DESCRIPTION ........................................................................................................................... 6
TECHNICAL SPECIFICATIONS .................................................................................................................. 7
INSTALLATION AND WIRING ..................................................................................................................... 8
WEEE DIRECTIVE ....................................................................................................................................... 10
DIMENSIONS ................................................................................................................................................ 11
NOTES ........................................................................................................................................................... 12

MIL130________________________________________________________________________________
4| Operating Manual ver. MIL130-EN-1.0
INTRODUCTION
Congratulation on the purchase of your new LSS loudspeaker.
Quality innovation and versatility, this is a summary of the new system
developed by LSS for professional sound users.
LSS produces professional audio products – the result of exceptional
engineering and meticulous craftsmanship.
This manual is intended for use with LSS loudspeaker. This includes: safety
precautions; installation, set-up and operating instruction.
Please read this manual plus any accompanying manual and follow all
relevant precautions and instructions. This should allow you to obtain the
maximum performance from your new loudspeaker.
Where there are conflicts or overlaps, the information in any accompanying
manual supersedes the information in this manual.

______________________________________________________________________________
Operating Manual ver. MIL130-EN-1.0 |5
SAFETY AND WARNING
IMPORTANT! SAFETY WARNING!
In the interest of their own and others' safety and to prevent voiding the
warranty, we recommend a careful reading of this section before using the
product.
- This product was designed and manufactured to be used as a speaker system in
the context of a typical sound reinforcement system.
The use for any purpose other than these is not provided by the manufacturer and is
therefore under the direct responsibility of the user / installer.
- This device complies with class I (must be connected to the outlet with a protective
earthing connection).
TO AVOID THE RISK OF FIRE AND / OR ELECTRIC SHOCK*:
- Do not expose this system to rain or moisture. Do not expose the apparatus to
dripping or splashing water. Do not place objects filled with liquids, such as drinks, on
the apparatus.
- Before connecting the system, be sure the mains voltage corresponds to that stated
on the product.
- Connect this appliance to a power outlet with earth contact, according to national
security force, via a power cable of adequate section ends with a plug or connector
that meets the applicable safety regulations.
- The unit is connected to the network even when the power switch is in position '0'
(OFF). Before any maintenance, disconnect the power cable from the outlet.
*Risk of electric shock only for self-powered system.
IMPORTANT! SAFETY PRECAUTIONS!
Read This First.
Read and heed all warnings and safety instructions in this Manual before using the
product.
Failure to follow all precautions can result in equipment damage and / or personal
injury.
1. Read these instructions.
2. Keep these instructions
3. Heed all warnings and follow all instructions.
4. Use only attachments/accessories specified by the manufacturer.
5. Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
6. Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or
has been dropped.
7. LSS loudspeakers can produce sound levels capable of causing permanent
hearing damage from prolonged exposure. The higher the sound level, the less
exposure needed to cause such damage
CAUTION: This product is energized as long as it is connected to the AC.
CAUTION: Allow at least six inches of free space all around the amplifier for sufficient
ventilation.

MIL130________________________________________________________________________________
6| Operating Manual ver. MIL130-EN-1.0
APPLICATION
LSS’s MIL130 system is a 2-way full range system in a compact trapezoidal
enclosure engineered for exceptional performance in the nearfield. Very
effective as a fill / delay element in a larger overall systems or for foreground
/ background music reproduction. It is also ideal for distributed systems. The
comprehensive system mounting points permit safe suspension in a
permanent installation.
MIL130 includes two 130mm (5’’) woofers in vented enclosure and a 25mm
(1’’) HF Driver on conical horn.
This loudspeakers, is designed to work in full range mode. LSS’s advanced
crossover includes professional protection of HF system.

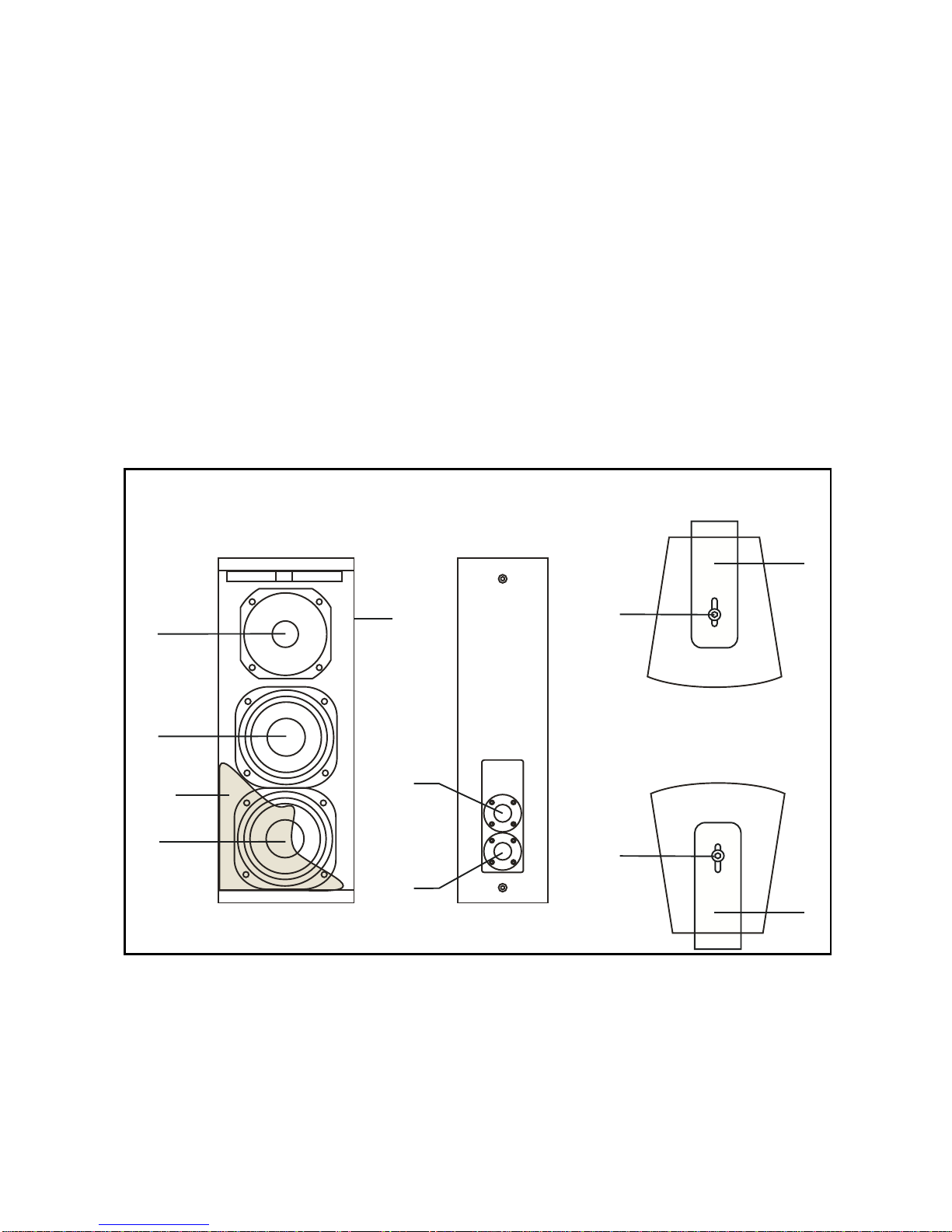

PHYSICAL DESCRIPTION
FRONT
BOTTOM
REAR
TOP
[A]
[B]
[C]
[F]
[G]
[D]
[E] [H]
[I]
[L]
[L]
[I]
[A] HF Driver [F] Output
[B] Woofer [G] Input
[C] Woofer [H] Mounting Nut
[D] Steel Protection Grid [I] Mounting Nut
[E] Enclosure Cabinet [L] Mounting Braket
Materials and construction meet the highest professional standards to ensure maximum reliability.

______________________________________________________________________________
Operating Manual ver. MIL130-EN-1.0 |7
TECHNICAL SPECIFICATIONS
PHYSICAL
Dimensions mm (±1 mm)
[Inches]
Height 460 [18.11’’]
Front Width 180 [7.08’’]
Rear Width 120 [4.72’’]
Depth 200
Trapezoidal Angles 9°
Weight Kilograms Net Weight 8
Shipping Weight 9
SYSTEM PERFORMANCE
Frequency Response ±5 dB 70 Hz ~ 20 KHz
-10 dB 60Hz
Sensitivity (1 Watt @ 1 m) Full Range Passive 91 dB
LF 91 dB
HF 91 dB
Max SPL Calculated 114 dB
Nominal Input Impedance (Ω) Full Range Passive 16 Ω
LF 16 Ω
HF 16 Ω
Power Handling (Watt cont.
AES)
Full Range Passive 200
LF 200
HF 20
Nominal Dispersion (@ -6 dB) Horizontal 80°
Vertical 80 °
MECHANYCAL
Enclosure material Birch Plywood of 12 mm [0.47
inches]
Finish Texture poliuretanic black paint
Suspension 4 point mounting suspension
Grille Powder coated perforated steel
with anti-dust
foam
Connectors Neutrik Speakon NL4
Optional Accessories Fly clip with ring, Flight case on
wheels for 4 or 8 MIL130

MIL130
______________________________________________________________
8| Operating Manual ver. MIL130-
EN

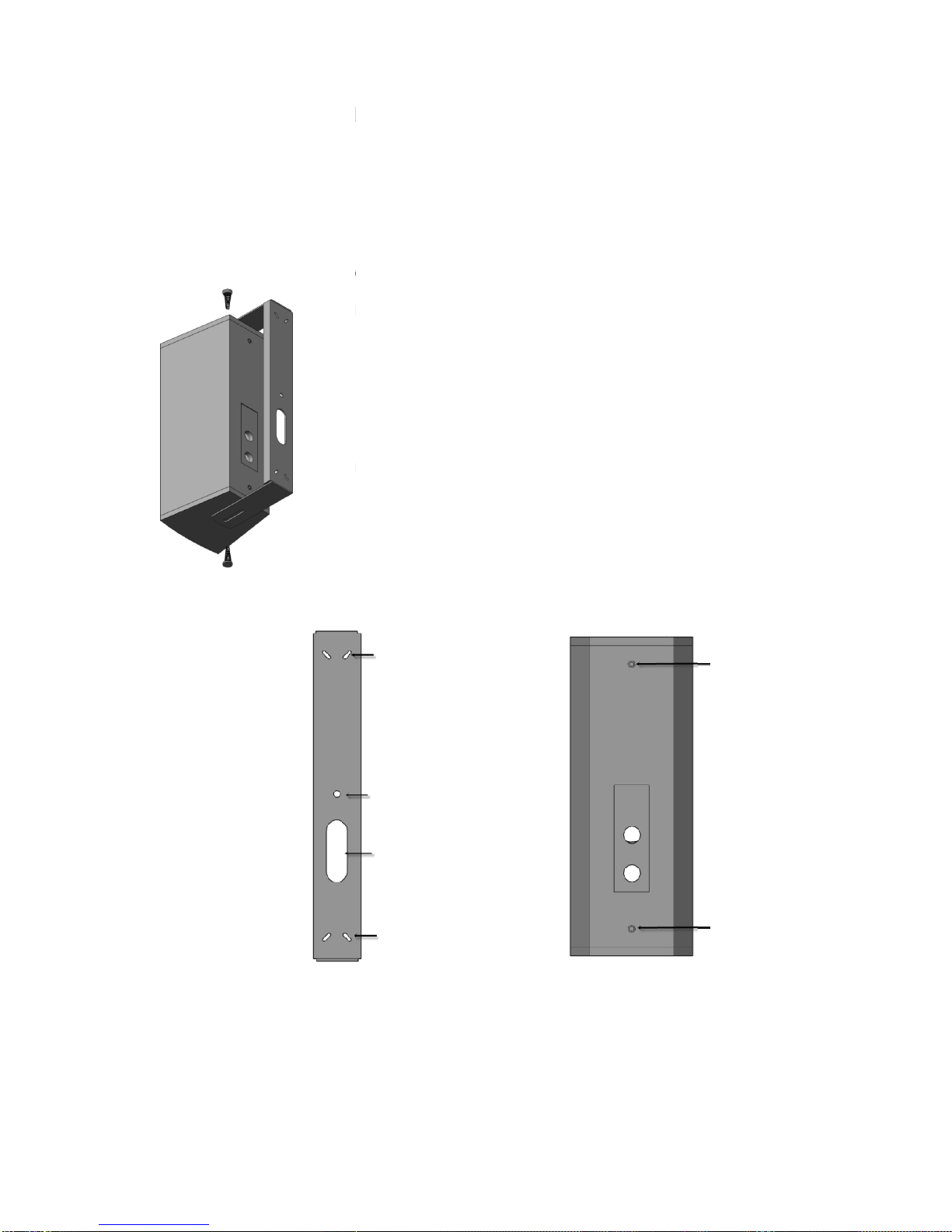

INSTALLATION AND WIRING
MIL130
The bracket must be fixe
suitable to support the weight of the entire apparatus.
Bra
cket must be secured to the speaker
bottom of the case.
Once the bracket
the bracket
I
nstallation can be done either in vertical or horizontal position
Choose a safe mounting location, so as to
stepped on or create tripping hazards.
Make sure that the shape and extent of the supporting surfaces are such as
to ensure a safe support.
In the back of speaker there are two other mounting holes, one of them can
be used as sa
______________________________________________________________
EN
-1.0
INSTALLATION AND WIRING
MIL130
speaker can be mounted to the
wall or floor using its own
The bracket must be fixe
d to the wall through the fixin
suitable to support the weight of the entire apparatus.
cket must be secured to the speaker
with the screws on the top and
bottom of the case.
Once the bracket
is fixed to the support, you can
rotate
the bracket
.
nstallation can be done either in vertical or horizontal position
Choose a safe mounting location, so as to
prevent the cables can be
stepped on or create tripping hazards.
Make sure that the shape and extent of the supporting surfaces are such as
to ensure a safe support.
In the back of speaker there are two other mounting holes, one of them can
be used as sa
fety fixing point if required.
F
i
x
i
n
g
H
o
l
e
s
Fixing Hole
Cable
Connection
Hole
Fixing Holes
______________________________________________________________
__________________
wall or floor using its own
bracket.
d to the wall through the fixin
g holes using plugs
suitable to support the weight of the entire apparatus.
with the screws on the top and
rotate
the case respect to
nstallation can be done either in vertical or horizontal position
.
prevent the cables can be
Make sure that the shape and extent of the supporting surfaces are such as
In the back of speaker there are two other mounting holes, one of them can
Safety Fixing
Hole
Safety Fixing
Hole

______________________________________________________________________________
Operating Manual ver. MIL130-EN-1.0 |9

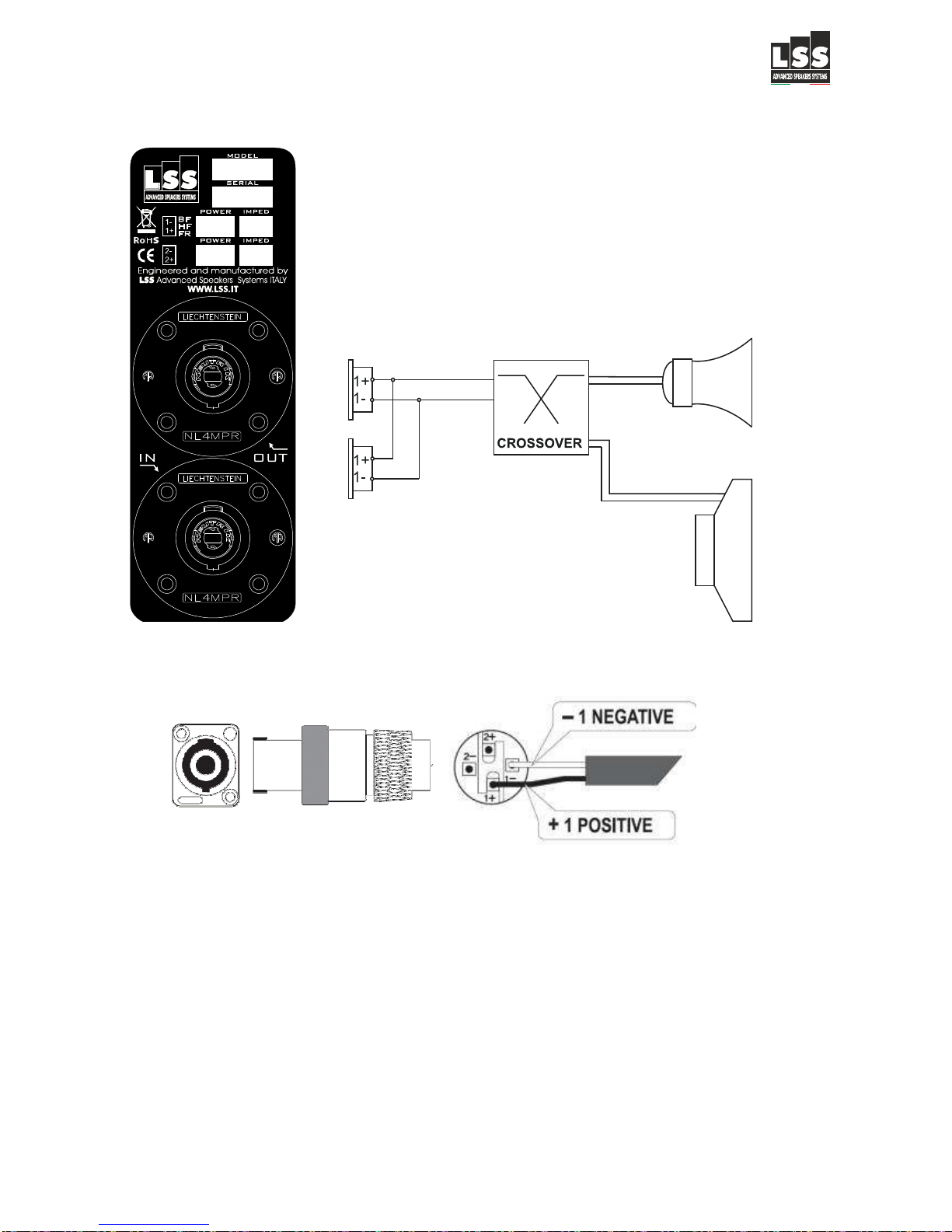

Before making connections between mixer and speakers, make sure the
mixer volume is turned down.
In the connection panel there are two Speakon NL4 connectors referred as
‘IN’ and ‘OUT’.
IN is the input connector and must be connected to the amplifier, ‘OUT’ is a
LINK OUT and can be connected to other systems.
You can now use the system

MIL130________________________________________________________________________________
10| Operating Manual ver. MIL130-EN-1.0
WEEE DIRECTIVE
WEEE Directive
Warning!
The product is marked with this symbol which indicates not to discard
electrical and electronic equipment via the normal procedure for disposal of
household waste. For these products there is a diverse collection system in
accordance with legislation that requires proper treatment, recovery and
recycling of used products. For more information please contact the
appropriate local authority.
The black bar underneath indicates that the product was placed on the
market after 13 August 2005.
INFORMATION FOR PROPER DISPOSAL
For home users
In the European Union
Warning: To dispose of this equipment, do not use the ordinary dust bin!
The electrical and electronic equipment must be treated separately and in
accordance with legislation that requires proper treatment, recovery and
recycling of used products. Following the implementation by member states,
private households within the EU can give free electrical and electronic
equipment to designated collection facilities *.
In some countries (*), your local retailer may withdraw the old product for
free if you purchase a new one of similar type.
* For more information please contact the appropriate local authority.
In countries outside the EU: please contact your local authorities and ask
for the correct method of disposal.
In Switzerland: Used electrical or electronic equipment can be returned free
of charge to the dealer, even if you do not purchase a new product.
Further collection facilities are listed on the homepage or www.swico.ch.
www.sens.ch.
For professional users
In the European Union
Warning: If the product is used for business purposes, the following steps to
delete it:
contact your LSS dealer for information about the product recall.
Might be charged for the costs of collection and recycling. Small products
(and amounts) might be taken back by your local collection facilities.
In Spain: contact the established collection system or the local authority for
collection of used products.
In countries outside the EU: please contact your local authorities and ask
for the correct method of disposal.

______________________________________________________________________________
Operating Manual ver. MIL130-EN-1.0 |11
DIMENSIONS
FRONT
BOTTOM
SIDE
12cm20cm
4
6
c
m
REAR
18cm
TOP
60 mm
10 mm
5 mm
15 mm
30 mm
20 mm
30 mm
41 mm
30 mm
90 mm
460 mm
10 mm
182 mm
182 mm
470 mm
4
6
0
m
m

MIL130________________________________________________________________________________
12| Operating Manual ver. MIL130-EN-1.0
NOTES

______________________________________________________________________________
Operating Manual ver. MIL130-EN-1.0 |13
CONTACT INFORMATION:
LSS Advanced Speaker Systems
Via On. Longo 53
89024 Polistena (RC) ITALY
Tel [phone] – Fax [phone]
Email: [e-mail] - Internet: www.lss.it
