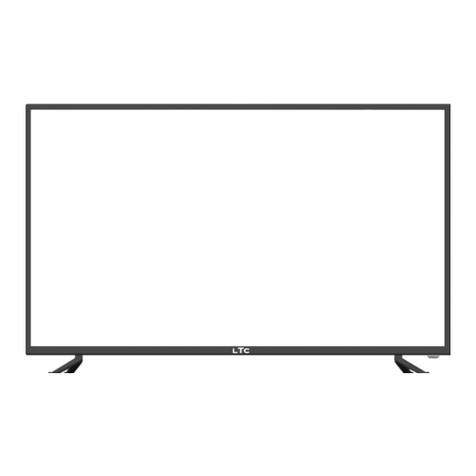

LTC 19 User manual

22”/24” HD LED TV with DVB-T2/-S2
2209 g.1 / 2409 g.1

Contents
Caution
Safety Information
Accessories
OSD Menu
1. Picture menu
2. Sound menu
3. Channel menu
4. Feature menu
Simple Troubleshooting
Product Introduction
Connections
Remote Control
Basic Operation
Multimedia Operation
Recording Operation
5. Setup menu

Caution
Correct disposal of this Product
(Waste Electrical & Electronic Equipment (WEEE)
Your product is designed and manufactured with high quality materials and
components which can be recycled and reused.
This symbol means that electrical and electronic equipment, at their end-
of-life should be disposed of separately from your household waste.
Please dispose of this equipment at your local community waste collection/
recycling center.
In the USA there are separate collection systems for used electrical and
electronic products. Please help us to conserve the environment we live in!
1
The exclamation point within an equilateral triangle is intend to alert the
user to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
The lightning flash with arrowhead symbol, within an equilateral triangle
is intended to alert the user to the presence of un-insulated “dangerous
voltage” within the products enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to the persons.
directives.
This unit complies with The Restriction of the use of certain Hazardous
substances in Electnical and Electronic Equipment

Safety Information
To ensure reliable and safe operation of this equipment, please read carefully all the
instructions in this user guide, especially the safety information below.
Electrical safety
• To prevent overload, don't share the same mains supply socket with too many other
items of equipment.
- Do not place any connecting wires where they may be stepped on or tripped over.
- Do not place heavy items on the leads, which may damage them.
- Hold the Mains plug, not the wires, when removing from a socket.
- During a thunderstorm or while leaving the TV for long periods, disconnect the aerial
(if outdoor) and mains power from the supply.
- Do not allow water or moisture to enter the TV . Do NOT use in wet
or moist areas such as Bathrooms, steamy kitchens or near swimming pools.
• Pull the plug out immediately, and seek professional help if:
- the mains plug or cable is damaged.
- liquid is spilt onto the set, or if it is accidentally exposed to water or moisture.
- anything accidentally penetrates the ventilation slots.
- the set does not work normally.
- Do NOT remove the safety covers. There are no user serviceable parts inside.
You may invalidate the warranty. Qualified personnel only are permitted to service
this apparatus.
-T
oavoid battery leakage, remove exhausted batteries from the remote control
handset, or when not using for along period.
- Do NOT break open or throw exhausted batteries on a fire.
Physical safety
• Do NOT block ventilation slots in the back cover. You may place the TV in a cabinet,
but ensure at least 5cm (2") clearance all around the unit.
• Do NOT tap or shake the TV screen, you may damage the internal circuitry. Take good
care of the remote control, do not drop it or allow it to come into contact with liquids.
• To clean the TV use a soft dry cloth. Do NOT use solvents or petrol based fluids. For
stubborn stains, you may use a damp soft cloth with diluted detergent.
2

DC-cable
Adapter
3
Technical Specification
* Note: The configuration of the components may look different from the following illustration
- TV System
- Screen Size
- Resolution
- Aerial input
PAL BG/DK/I SECAM BG/DK L/L’
19”/22”/24 ”inch(diagonal)
1920x1080
- Audio output power
- Power Consumption
2x3W
12V 2.5A 30W /
Accessories
User’s Guide
Remote Control Mini AV cable
E-35D
RF cable
12V 3A 36W
NFX EShare You

Front View
Product Introduction
:Turn on/standby the TV set.
(IR) Infrared Receiver: Receives IR signals from the remote control.
(Power on/Standby) LED indicator: Press to turn on and standby.
The effective receiving range for the signal is 5-8 metres from the front of the remote
control window, and 30
0
to the left or right side and 20
0
above or below the control
window.
:Display the input source menu.
MENU: Display/exit the OSD menu.
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
Indicator on(Red) Standby mode
Indicator on(Green) Power on mode
4
Remote Control window

Connections
5
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
POWER: Connect to the mains adaptor.
HDMI: Connect it to the HDMI of DVD or other equipment.
VGA: For PC display.Connect it to the D-Sub 15 pins analog output connector of the PC.
PC in: Connect it to the audio output terminal of PC.
SCART: Connect them to the SCART video output terminal of DVD.
Coax: Digital output to AV receiver.
USB: Connect to USB device for multimedia and PVR.
DVB-S2: Connect a Satellite signal.
Common Interface: CI slot.
Headphone: Connect it to your headphone or other audio equipment.
POWER
COAX
Common Interface
DVB-S2
USBHDMI
Headphone out
VGA
PC IN RF

Remote Control
The remote control is using Infra-Red(IR). Point it towards the front of the LED TV. The remote
control may not work correctly if it is operated out of range or out of angle.
6
EPG : Electronic program guide.
TV/RADIO : TV/Radio Select .
REC:Press to start recording in DTV mode (In DTV mode only).
: Set your TV to power on or standby mode.
:Press to mute the sound.Press again or press VOL+ to unmute.
0--9:Press 0-9 to select a TV channel directly while watching TV.
DISPLAY:Press to display the source and channel‘s Information.
: Return to the previously viewed program.
P.MODE : Adjust the picture mode.
S.MODE : Adjust the sound mode.
SLEEP : Select amount of time before TV turn itself off
automatically.
VOL+/- : Press to increase /dscrease the sound level.
AUDIO : Select audio mode.
CH+/- : Press to scan through or to select a channel.
SOURCE : Press the button to display the sources list.
MENU : Brings up the main menu to the screen. Press MENU
key to exit when searching.
EXIT : Press to close the OSD.
: Allows you to navigate the on-screen menus.
ENTER: Press to confirm the selection (MEDIA as input source).
TEXT : Switch to Teletex* mode.
FAV : Favourite channel list.
SUBTITLE : DTV subtitle.
NFX: press the key "NFX" go into NETFLIX app directly .
: press the key "You " go into YouTube app directly.
SUBPAGE : Sub coded page access.
EShare : press the key "EShare" go into E-Share app directly.
REVEAL : Reveal/hidden the hidden words .
[]
[]
[]
[]
[]
[]
/ / /
Shortcut buttons in TV and Media mode.
Press to PLAY/PAUSE.
Press to play a program in fast rewind mode.
Press to play a program in fast forward mode.
Press to STOP playing.
Press to go to previous chapter.
Press to go to next chapter.
: Home button, back to main page.
NFX EShare You
You

Remote Control
7
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
P-MODE: Select the picture mode.
S-MODE: Select the sound mode.
SLEEP: Standby timer.
Press 0-9 to select a TV channel directly when you
are watching TV.
SOURCE: Press to display the input source menu.
EXIT: Exit the OSD menu.
DISPLAY: Press to display the current mode’s information.
CH + /- : Scan through channels.
VOL+/- : Adjust the volume.
-/-- : Press this button to enter a program number for different digit.
TITLE:Return to the title in DVD mode.
Return to the previous channel viewed.
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
CURSOR KEYS / OK
/ / /
NFX EShare You

button to select the function item, press / OK button to enter
Basic Operation
8
Power on/off
1. Connect to the power supply with the adaptor.
2. -To turn on the TV
Press button on the TV or remote control.
-To turn off the TV
Press button on the TV or remote control.
Input Source select
Press INPUT button on the TV set or remote control to display the
input source menu, and use CH+/- button on the TV set or button
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Press MENU button to display the OSD menu as below:
Use / button to select the main menu, and press / OK button to enter the submenu.
In the submenu, use
the setup menu, then press / button to adjust, or press / to select and press OK /
/ button to confirm.
/
* (Press MENU / button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.

OSD Menu
9
1. Picture menu
Description
Picture Mode:
TIPS:
Press ▲/▼ button to select Picture Mode, then press ENTER button to enter.
(Available Picture Mode:, Standard, Dynamic, Mild, User)
You only can adjust the value of brightness, contrast, sharpness, color, when the picture is in
User mode.
You can press P-MODE button on the remoter control again and again to change the
picture mode directly.
Press ▲/▼ button to select DNR, and then press ENTER button to enter and ◄/► button
to select Off, Low, Middle, High.
Press ▲/▼ button to select Aspect Ratio, then press ENTER button to enter and
press ◄/► button to adjust. Then press EXIT button to return back the previous menu directly.
Press ▲/▼ button to select Colour Temperature, then press ENTER
button to enter and ◄/► button to select Standard, Cool, Warm.
Aspect Ratio:
DNR:
Colour Temperature:

OSD Menu
10
2. Sound Setup
Description
Sound Mode: Press ▲/▼ button to select Sound mode, and then press ENTER button to confirm.
(Available Sound mode: Standard, Movie,Music,User).
You can adjust the value of bass and treble, when the sound is in User mode.
TIPS: You can press S-MODE button on the remote control to change the Sound Mode directly.
1.Press ▲/▼ button to select the option that you want to adjust in the Sound menu, then
press ENTER button to enter.
2.press ◄/► button to adjust or press ▲/▼ to select, and press ENTER button to select
submenu.
3.After finishing your adjustment, Press MENU button to save and return back to the previous
menu, or press EXIT button to exit the entire menu.
AVL:
Press ▲/▼ button to select AVL, then press ENTER button to adjust. Then press EXIT button
to return back the previous menu directly.
Audio Description:
Digital Audio output:
Press ▲/▼ button to select Audio Description then press ENTER button to adjust
(Available AD ON/OFF)
When you select AD ON, you can press ◄/► button to adjust Mixing Level.
Press ▲/▼ button to select SPDIF Output, then press ENTER button to confirm
(Available SPDIF mode: AUTO, PCM, OFF)
Then press ENTER button or ► button to enter and press ◄/► button to adjust, then press MEXIT
button to return back the previous menu directly.
Balance:
Press ▲/▼ button to select Balance, then press ◄/► button to adjust. Then press EXIT
button to return back the previous menu directly.

OSD Menu
2. Channel Setup
Country
Auto Search
Press MENU button to display the main menu.
Press ▲/▼ button to select Channel Setup in the main menu, then press ENTER to enter.
1.Press ▲/▼ button to select the option that you want to adjust in the Channel Setup menu,
then press ENTER to enter.
2.After finishing your adjustment, press EXIT button to save and return back to the previous
menu and press EXIT button to exit the entire menu.
Press ▲/▼ button to select Country, and then press ENTER button to confirm
Press ▲/▼ button to select Auto Search, and then press ENTER button to do auto search

OSD Menu
12
DTV Manual Scan
channel Edit
Common Interface
DTV Setting
Subtitle Display
Subtitle Type
Audio Type
Press ▲/▼ button to select ,press ◄/► button to adjust, and then press EXIT button to return
pre.menu ,The menu will appear as follows:
Press ▲/▼ button to select channel Edit, and then press ENTER button to enter, you can use the
Four Color keys to do Delete/Skip/Swap/Lock function, and press Fav.Key to set Fav.channel. The
menu will appear as follows:
Press ▲/▼ button to select Common Interface, and then press ENTER button to enter. You can
check the CAM/CI card information by this menu.
Press ▲/▼ button to select DTV Setting, and then press ENTER button to enter, The menu will
appear as follows:
Press ENTER key to enter the sub-menu, you can Press ENTER Key to select Subtitle ON/OFF,
When the subtitle set to ON, you can select subtitle language by Subtitle language item
Press EXIT button to return pre.menu
Press ENTER key to enter the sub-menu, you can Press ENTER Key to select Normal subtitle or
the subtitle for Hard of Hearing
Press ENTER key to select Prefer Subtitles 1/Prefer Subtitles 2
Press EXIT button to return pre.menu
Press ENTER key to enter the sub-menu, you can Press ENTER Key to select Normal Audio or the
Audio for Hard of Hearing
Press ENTER key to select Prefer Audio 1/Prefer Audio 2
Press EXIT button to return pre.menu

OSD Menu
13
Satellite System
LCN
Press ▲/▼ button to select Satellite , and then press ENTER but
Press ENTER key to enter the sub-menu, you can Press ENTER Key to select LCN ON/OFF
Press EXIT button to return pre.menu
ton to select Satellite
Press ◄/► button to select to setup the parameters

OSD Menu
14
Satellite System
When you select a satellite, after setting the parameters, press the blue button to enter search
Option. Scan Mode :Default Scan/Blind Scan/Network Search/
Press Enter Button start scan.

OSD Menu
15
4. Feature menu
Lock: This menu allows you to lock certain features of the television so that they can not be used
or viewed. For example if you don’t want certain channels viewed by children or if the television
is to be used in a hotel and you want certain channels be locked.
When you enter the system lock menu you will be asked for a password. As default it is 0000.
Lock Channel - Turn on/off the Lock functions.
Parental Guidance - Select the Parental Guidance mode, or turn off the function.
Note: When it is be turned on, the functions of Parental Guidance and Change Pin code
below will be locked, and the functions Lock(in Channel Management), Auto Search, DTV
Manual Search, ATV manual Search in Channel menu will also be locked.
Change Pin Code – Press OK button to enter, first enter the current code, then enter your
new code and confirm your new code.

OSD Menu
16
Hearing Impaired: You can switch on the hearing impaired feature, this provides additional
information and subtitles
CI Info: Pay per view services require a “smartcard” to be inserted into the
PVR/Timeshift: Setup menu for recording, please see the Recording Operation section.
TV.
If you subscribe to a pay per view service the provider will issue you with a ‘CAM’ and a
“smartcard”. The CAM can then be inserted into the COMMON INTERFACE PORT
(CI Card In).
Language: Lets you adjust the different language options available.
Clock: Allows you to set the clock (as default the information is taken automatically from the
digital signal).
Sleep Timer: Lets you set the sleep timer so the television automatically switches off after a
certain amount of time.
Auto Power Off: The TV will switch off itself automatically if no change in status within the
time you select. You can choose 1H, 2H, 4H or off.

OSD Menu
17
OSD Timer: Lets you adjust the amount of time the On Screen Menu stays on the screen
before disappearing.
Blue Screen: Changes the background when there is no input between clear and a blue
background (Only available in some sources).
Home Mode: Press to select from the following home modes:Home,Dynamic.
Reset TV Setting - This clears all the TV settings for the television.
Software Upgrade: From time to time we may release new firmware to improve the running
of the television (available to download). This menu lets you upgrade that software onto the
television. Further details of how to do this will be issued with the firmware. Contact the
helpline or refer to the ‘product support’ section of the website.
5. Setup menu
Description
Auto SCART: The TV will be changed to SCART source automatically when you connect the
TV to the SCART device.
PC Setup: Change the PC Settings in PC mode.
Auto Adjust: Setup the parameter of the screen automatically.
H/V-Position: Adjust the transverse/vertical position of the screen.
Phase: Adjust the phase of the ADC sampling clock relative to the sync signal, until a
stable image is obtained.
Clock: Adjust the pixel clock frequency, until the image size is maximized for the screen.
Load Default Database: Import the default satellites and channel, so that the user can watch
programs directly.
