LTV ISDNO20-M2 User manual

LTV-ISDNO20-M2
Высокоскоростная уличная антивандальная
купольная PTZ IP-камера
Инструкция по эксплуатации
Версия 1.0
www.ltv-cctv.ru

Благодарим за приобретение нашего продукта. В случае возникновения каких-либо
вопросов, связывайтесь с продавцом оборудования.
Данная инструкция подходит для видеокамеры LTV-ISDNO20-M2.
Сведения, представленные в данном руководстве, верны на момент
опубликования. Производитель оставляет за собой право в одностороннем
порядке без уведомления потребителя вносить изменения в конструкцию изделий
для улучшения их технологических и эксплуатационных параметров. Вид изделий
может незначительно отличаться от представленного на фотографиях. Обновления
будут включены в новую версию данной инструкции. Мы своевременно вносим
изменения в документацию.

Техника безопасности
Прочитайте и сохраните данную инструкцию.
Обратите внимание на все предупреждения.
Следуйте всем положениям данной инструкции.
Видеокамера не должна подвергаться воздействию воды.
Протирайте только сухой мягкой тканью.
Не блокируйте вентиляционные отверстия в корпусе видеокамеры.
Устанавливайте видеокамеру в соответствии с данной инструкцией.
Не устанавливайте видеокамеру вблизи источников тепла, таких как радиаторы,
обогреватели, печи и другие приборы.
Прокладывайте кабельные трассы аккуратно, обеспечьте удобный доступ к
требуемым точкам подключения.
Используйте только стандартную кабельную продукцию, разъемы и инструменты,
рекомендуемые производителем.
Соблюдайте осторожность при перемещении тележки или
других грузовых устройств, не допускайте опрокидывания.
Отключайте питание видеокамеры при затяжных грозах или
в случае неиспользования в течение длительного времени.
Не используйте камеру в очень жарких или холодных условиях, влажных, пыльных
местах и не подвергайте воздействию сильного электромагнитного излучения.
Перед использованием камеры убедитесь, что напряжение в источнике питания
соответствует требуемому.
Для проведения сервисного обслуживания или ремонта обратитесь к
сертифицированным специалистам. Ремонт требуется в случае повреждения
видеокамеры в таких случаях, как повреждение разъема или кабеля питания; на
видеокамеру была пролита какая-либо жидкость, или внутрь корпуса попали
посторонние предметы; устройство некорректно работает или его уронили.
ВНИМАНИЕ:В случае неправильной замены батареи существует опасность взрыва.При
замене необходимо использовать батарею такого же типа.
Данная инструкция по эксплуатации предназначена только для квалифицированного
персонала. Для снижения риска поражения электрическим током не проводите
монтажных, ремонтных или сервисных работ, не имея соответствующей квалификации.

Contents
1Product Features.............................................................................................................................
2 Accessing the Camera....................................................................................................................
2.1 Access from a browser ..............................................................................................................
2.2 Accessing the camera from the Internet......................................................................................
2.3 Adjusting the Image and Focus..................................................................................................
2.4 The Live View page...................................................................................................................
2.5 Video stream types....................................................................................................................
2.6 How to stream H.264.................................................................................................................
3The Setup........................................................................................................................................
4Installation.......................................................................................................................................
4.1 Installation Setup.......................................................................................................................
5 Camera and Image ..........................................................................................................................
5.1 Codec.......................................................................................................................................
5.2 Camera.....................................................................................................................................
5.2.1 Exposure Control...............................................................................................................
5.2.2 Day & Night Control ...........................................................................................................
5.2.3 White Balance Control........................................................................................................
5.2.4 Image Property Control......................................................................................................
5.2.5 Lens Adjustment................................................................................................................
6 Audio...............................................................................................................................................
7 Live..................................................................................................................................................
8 FTP..................................................................................................................................................
8.1 FTP > Config.............................................................................................................................
8.2 FTP > Event..............................................................................................................................
8.3 FTP > Periodical........................................................................................................................
9 Event ...............................................................................................................................................
9.1 Event > Alarm Port ....................................................................................................................
9.2 Event > Mapping .......................................................................................................................
10 Network...........................................................................................................................................
10.1 Network > IP Setup....................................................................................................................
10.2 Network > Service Port..............................................................................................................
10.3 Network > E-mail.......................................................................................................................
11 PTZ..................................................................................................................................................
11.1 PTZ>Preset...............................................................................................................................
11.2 PTZ>Scan.................................................................................................................................
11.3 PTZ>Tour..................................................................................................................................
12 System.............................................................................................................................................
12.1 System > User...........................................................................................................................
12.2 System > Date & Time...............................................................................................................
12.3 System > Maintenance..............................................................................................................
12.4 System > Information.................................................................................................................
13 Specification………………………………………………………………………………………………………

142.0
1. Product Features
Product Accessories
Housing Saf e t y
Cable Hanger
Wa t er Proof T ape
Hexagonal W r ench Anchor Bolt(4pcs)
Wall Mount
Type
Ceiling Mount
Type
Hole
T emplat e
Saf e t y
W i r e
Manual
CD
Quick
Manual

1
Wall/Ceiling Mount Bracket
These are used to install the camera on the
wall or ceiling and have a junction box. The
junction box of the bracket accommodates
inner box.
Housing Safety
Wire Hanger
1
Wall Mount Bracket
Ceiling Mount Bracket
2
Sun Shield & Upper Housing
3
PTZ
Mechanism
4
Dome Safety
Wire
55
Dome
Cover
2
Sunshield &Upper Housing
The sunshield protects the bubble dome cover
from sunlight and rain fall. In the sunshield, there
is the upper housing which will accommodates
the PTZ mechanism. In the upper housing, there
is a fan and heater to remove moisture on the
bubble dome. Also, the upper housing will be
connected to both mounting brackets and dome
cover.
3 PTZ Mechanism
Control the PTZ operations of the camera.
4
Dome Safety Wire
Prevents the dome cover fromfalling.
5 Dome Cover
Do not detach protection film from dome cover
before finishing all installation process to protect
dome cover from scratches or dust

2nd
Video Output Port 1
6
Audio Output Port
7
Audio Input Port
Alarm In/Output and 2
2nd Video Output Port
Network Cable Port
3
8
Micro SD Card Slot
& Cover
9
Power Port
Fan 4
Heater 5
12nd
Video Output Port
Video out check the screen during installation.
2AlarmIn/Output and 2nd
Video Output Port
It connects to the alarm lights, siren or lamps,
and it is activated according to the OSD menu or
„Setup‟ on theWeb -viewersetting. The 2nd
video output is used to check the screen during
installation.
3Network
Cable Port
Connect the crossover cable.
4Fan
Defrosts the dome cover and removes moisture.
5Heater
Defrost the dome cover in a low temperature by
increasing the internal temperature of the
housing.
6Audio Output Port
Used to connect the audio output cable.
7Audio Input Port
Used to connect the audio input cable.
8Micro
SD Memory Card Slot& Cover
9
Power Port
Connect the power source here.

Wall Mount Bracket
Installation
Ceiling Mount Bracket
Installation
1
Using the hole template, mark the holes on the wall/ceiling.
2
After drilling the holes, fix the four anchor
boltsinto the holes.
3
After locating the wall/ceiling mount bracket on
theanchor bolts properly, tighten the nuts for
anchor bolts.

[3]
4
You have to detach the PTZ mechanism from
the upper housing to plug the connector of
cable. To detach the PTZ mechanism, pressing
down and holding up the black handles in both
sides of PTZ mechanism.
You should remove the tape used to fixthe
PTZ
mechanism after detaching the PTZ
mechanism from the upper housing.
5 [1]
Wind the water proof tape onthe pipeof
upper housing. [2] Hooking the safety wireon
the hole of pipe.
[3] Attach the upper housing to wallmount
bracket by turning it at least seven turns.
To fix the upper body orientation, turn
the handle of
double nuts to clockwise
tightly.
[1]
[2]

6
Connect each of the following cables to the
applicable port and set the DIP switch to
configure the camera ID,
communication protocol.
a 2nd
Video Output Port
b
Alarm In/Output and 2nd Video Output Port
c
Audio Output Port
c
d d
Audio Input Port
b e
Network Cable Port
g f Power Port
g
Micro SD Card Slot & Cover
e f
- Refer to 14,15 page for detail cablings.
- Refer to 16page for detail audio cablings.
- Refer to 17page for detail inserting SD card.

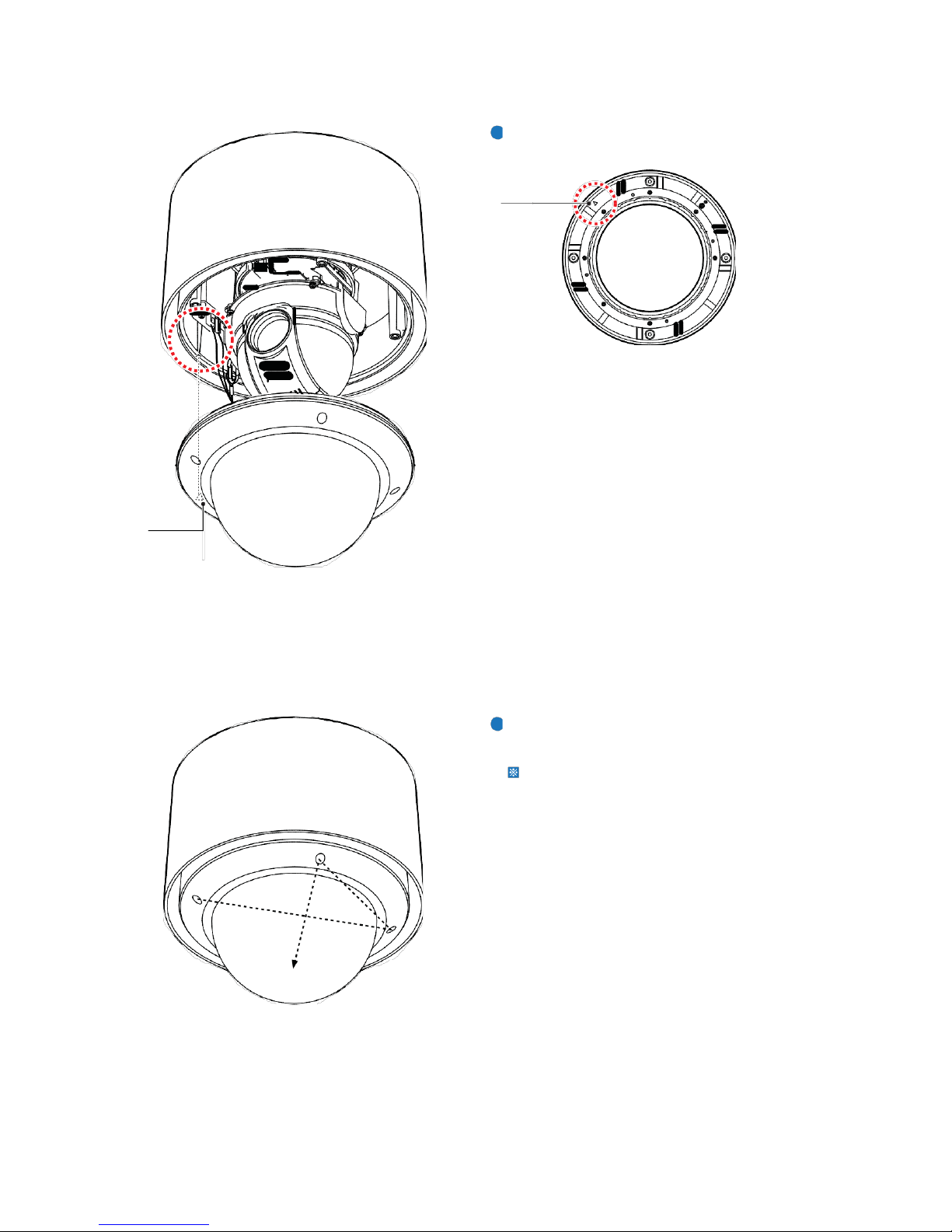

7
Make sure that the dome cover is connected
firmly to the safety wire.

8
Plug the connector of cable from junction box
into properly. After checking the orientation of
one touch connector in the upper housing, press
the PTZ mechanism into the hooks in the upper
housing.
9
To lock the PTZ mechanism to the upper housing,
press the two black handles un til it snaps.

10
Close the dome cover. Care must be taken to
locate the dome cover by matching the „Arrow
Mark‟.
Arrow
Mark
Arrow Mark
11
Tighten four screws on the dome cover in
sequence as shown in the picture.
To maintain the best sealing, the torqueof
each screw
must bein the range between
0.5 ~ 1.0 N·m(0.3 ~ 0.73 lbf·ft).

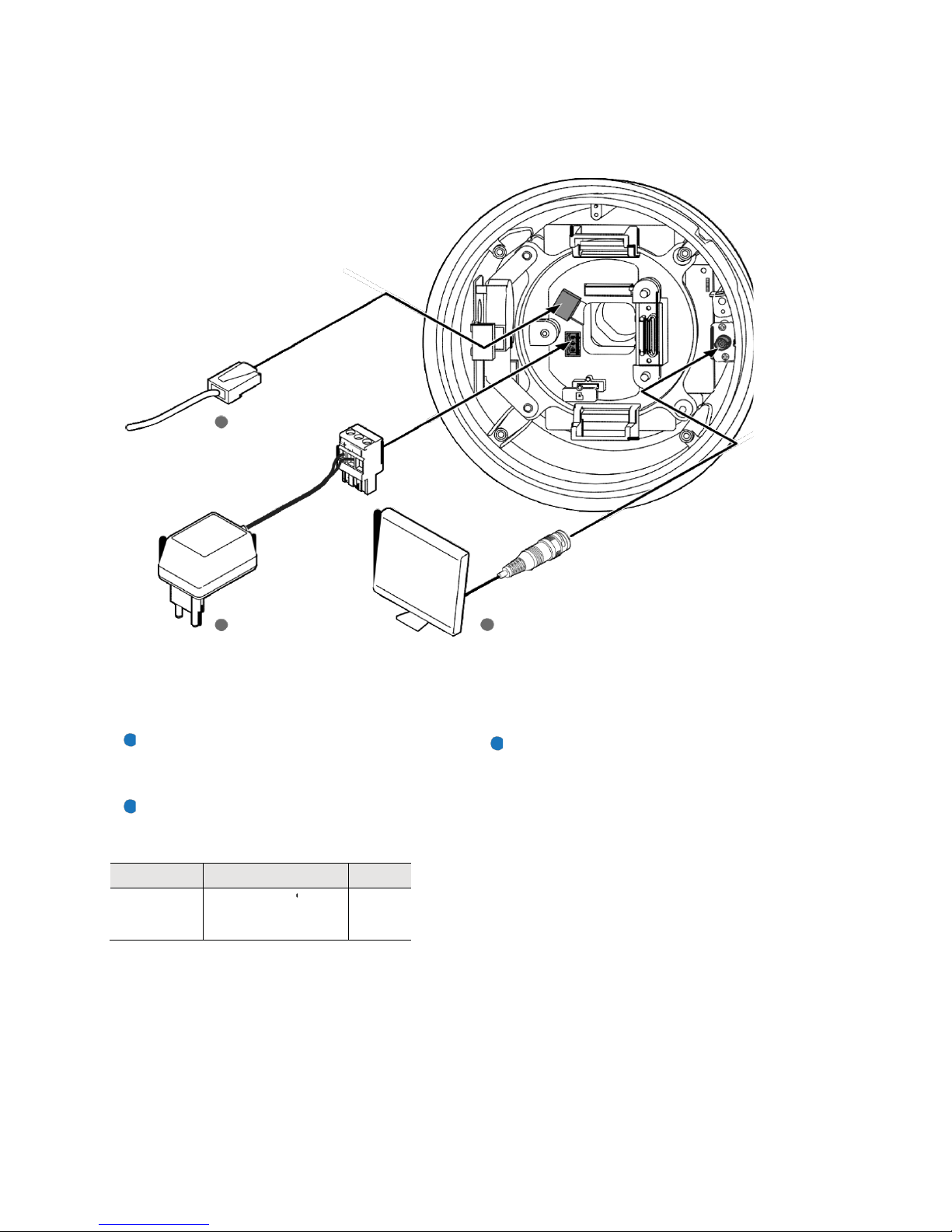

1Network
Connection
2
Power 3 Video Output
1Network Connection
Connect the crossover cable into
the RJ-45.
3
Video Output
Video out check the screen during installation.
2
Power Connection
- Please, check the voltage and current
capacity of rated power carefully.
Rate Power
Current Consumption
PoE
AC 24V
Heater Off: 23W
Heater On: 55W
802.3at
class 4

Alarm
i n/Output and
2nd Video
Output
4
Alarm In/Sensor
In1 CO M
5
Alarm
Out
6
2nd Video Output
4AlarmInput/Sensor
If you want to use alarm input, the types of
sensor must be selected in Setup menu. The
sensor types are „Normal Open‟ and „Normal
Close‟. If sensor type is not selected properly,
the alarm can be activated reversely.
5AlarmOutput
There are 4 alarm outputs and allof them are
relay contact type. Therefore, you do not have
to care aboutpolarity, AC/DC, and isolations
between channels. Care must be taken for the
power capacity of relaycontact written above.
62nd
Video Output
Video out check the screen during installation.

A mplifier Mic.
1
Audio In
Line Out C onnec tion
Dir ec t C onnec tion
2
Audio Out
Line In
C onnec tion
Mic.
Speaker
1
Connect the „Audio In‟ port of the camera
to the microphone directly or „Line Out‟ port
of the amplifier connected with microphone.
2
Connect the „Audio Out‟ port of the camera to the
„Line In‟ port of the speaker.
In case the microphone connects directly to
„Audio Out‟ port, the speaker does not work.
The „Mic In‟ function is not supported.

The memory card is anexternal data
storage device that has been developed
to offer an entirely new way to record
and share video,audio,andtext data
using digital devices.
Recommended SD Card Specification
(Not Included)
- Type: Micro SD (SDHC)
- Manufacturer: Transcend, Kingston,
Toshiba, Sandisk
- Capacity: 4~16G
- Class: over Class 6
1Inserting an
SD Memory Card
Loosen the screw before removing the SD
memory card cover. Insert the SDcard in the
arrow direction.
Don‟t insert the SD memory card while it‟s
upside down by force.
Otherwise, it may
damage the SD memory card.
2
Removing an SD Memory Card
Gently press down on the exposed end of
the memory card asshown in the diagram
to eject the memory card from the slot.
Pressing too hard on the SD memory
card can cause the card to
shoot out
uncontrollably from the slot when
released.
If you have saved data in the SD memory
card,removing the SD
memory card prior
to setting record to OFF will cause damage
to the data stored in the card.

2. Accessing the Camera
Follow the instructions in the PTZ Installation Guide to install the camera.
The PTZ could be accessed with most standard operating systems and browsers.
The recommended browser is Internet Explorer for Windows.
2.1 Access from a browser
1. Start a browser (Internet Explorer)
2. Enter the IP address or host name of the camera in the Location/Address field of
your browser. Press Enter.
3. Login dialog will appear when the camera is accessed for the first time.
4. The default user name is ADMIN, and password is 1234.
5. The camera‟s Live View page is now displayed in your browser.
Note: The layout of the live view page in the camera may have been customized to meet specific
requirements. Consequently, some of the examples and functions featured here may differ from those
displayed on your own Live View page.

2.2 Accessing the camera from the Internet
Once installed, the camera is accessible on the local network (LAN). Configure the
router/firewall to allow incoming data traffic to access the camera from the Internet.
For security reasons this is usually done on a specific port. Please refer to the
documentation for router/firewall for further instructions.
2.3 Adjusting the Image and Focus
To adjust the position of the lens:
1. Open the Live View page in your web browser.
- Select the Setup tab, and open the Video -> Camera page.
- Click „Lens Adjustment‟.
2. Set the desired Zoom position.
3. Click „One Push Focus‟ button for adjust focus automatically or set focus manually.
NOTE: DC Auto-Iris should always be disabled while focusing the camera. This will
set the iris to the wide open position, which yields the smallest depth of field, and
thus the best conditions for focusing the lens. When the focus has been set by using
this method, it will maintain its focus in any kind of lighting conditions.

2.4 The Live View page
PC(Client) Speaker
PC(Client) Microphone
Digital Zoom
Snap Shot
Full Screen
Video Stream change: First stream Second stream
Play: Click this button by manually to start the stream
Stop: Click this button by manually to stop streaming
NOTE: It is possible that not all the buttons described below will be visible unless the
Live View pagehas been customized to display them.
2.5 Video stream types
Motion JPEG
This format uses standard JPEG still images in the video stream. These images are
then displayed and updated at a rate sufficient to create a stream that shows
constantly updated motion.
The Motion JPEG stream uses considerable amounts of bandwidth, but also
provides excellent image quality and access to every individual image contained in
the stream.
H.264 protocols and communication methods
• RTP (RealtimeTransportProtocol) is a protocol that allows programs to manage
thereal-time transmission of multimedia data, via unicast or multicast.
• RTSP (Real Time Streaming Protocol) serves as a control protocol, to negotiate the
type of transport protocol to use for the stream. RTSP is used by a viewing client to
start a unicast session.

• UDP (User Datagram Protocol) is a communications protocol that offers limited
service for exchanging data in a network which uses the Internet Protocol (IP).
UDP is an alternative to the Transmission Control Protocol (TCP). The advantage of
UDP is that, it is not required to deliver all data and may drop network packets when
there is network congestion. This is suitable for live video, as there is no point in re-
transmitting old information that will not be displayed anyway.
• Unicasting is communication between a single sender and a single receiver over a
network. This means that the video stream goes independently to each user, and
each user gets own stream. A benefit of unicasting is, incase one stream fails, it only
affects one user.
• Multicastingis bandwidth-conserving technology that reduces bandwidth usage by
simultaneously delivering a single stream of information to multiple network
recipients. This technology is used primarily on delimited networks (intranets), as
each user needs an uninterrupted data flow and should not rely on network routers.
2.6 How to stream H.264
Deciding on the combination of protocols and methods to use depends on your
viewing requirements, and on the properties of your network. Setting the preferred
method(s) is done in webpage.
RTP+RTSP
This method (actually RTP over UDP and RTSP over TCP) should be your first
consideration for live video, especially when it is important to always have an up-to-
date video stream, even if some images are lost due to network problems. This could
be configured as multicast or unicast.
RTP/RTSP/Multicasting provides the most efficient usage of bandwidth, especially
when there are large numbers of clients viewing simultaneously. Note however, that
a multicastbroadcast couldnot pass a network router unless the router is configured
to allow this. For example, it is impossible to multicast over the Internet.
RTP/RTSP/Unicasting should be used for video-on-demand broadcasting, so that
there is no video traffic on the network until a client connects and requests the
stream. However, as more and more unicast clients get connected, the traffic on the
network will increase and may cause congestion. Although there is a maximum of 10
unicast viewers, note that all multicast users combined count as 1 unicast viewer.
RTP/RTSP
This unicast method is RTP tunneled over RTSP. This could be used to exploit the
fact that it is relatively simple to configure firewalls to allow RTSP traffic.
RTP/RTSP/HTTP
These methods could also be used to traverse firewalls. Firewalls are commonly
configured to allow the HTTP protocol, allowing RTP to be tunneled.
