LÜ 2000
USER MANUAL
User manual English
Prototype 2022
2
TABLE OF CONTENTS
WHAT'S IN THE BOX 4
INSTRUCTIONS 5
Connecting your Lü 5
Keyboard remote 7
Conguring your Internet network 8
Installing Lü in your classroom 10
How to turn on Lü 12
How to turn off Lü 12
CREATE AN ACCOUNT 13
NAVIGATION 14
System 14
Troubleshooting 15
Settings 16
LÜ COMMUNITY 17
How it works 17
Home page 18
FAQ 19
CONTACTS 20
3
SAFETY INSTRUCTIONS
Read and keep this manual.
The module must be placed upright (vertical) to allow the circulation of heat.
Placing the module at on a surface may cause the system to overheat.
The information and specications contained in this user manual are subject
to change without notice.
WARNING
4
WHAT'S IN THE BOX
4 tie wraps
Prototype case and its support Rii keyboard remote
2 wall hooks
Charging cord
for the Rii remote
USB receiver
for the Rii remote
Ethernet cable
D E Z
HDMI cable USB 2.0 cable USB 3.0 cable
* Depending on your interactive whiteboard model, one
of the two cables will be compatible with it. *
* Not included in the box *
A
Power cord
C
B1 B2
5
INSTRUCTIONS
Connecting your Lü
01
A. HDMI cable
To project the image onto the interactive whiteboard.
B. The USB 2.0 or 3.0 cable
For the touchscreen feature of the interactive whiteboard.
C. The power cord
D. The USB receiver of the Rii keyboard remote
Make sure that the USB receiver of the keyboard remote control is
connected to the device.
E. The Ethernet cable
You have the choice between a Wi connection or a wired connection.
The wired connection will offer you a better quality connection and will be
more stable.
D
E
A
C
B
D
E
A
CB
6
02 Plug the other end of the power cord ( C) into a working outlet.
03 Plug the HDMI cable into an available HDMI port on
the back of your interactive whiteboard.
04 Plug the USB 2.0 or 3.0 into the Touch
port on your interactive whiteboard.
Attention! You must plug this cord into the Touch
port next to the HDMI port you are using for the Lü
05 Make sure that all of the cords are securely connected before moving
to the next step.
06 If you haven’t already done so, turn on your interactive whiteboard and select
the source that corresponds to the HDMI jack you plugged your system into.
Wait around ten seconds for the system to start up and bring up the
applications.
A
B1 B2
7
Keyboard remote
Volume
Pause / Start
ON / OFF switch USB charging port
Open Windows
taskbar
Move
selection
Select
button
Quit game +
OK to conrm
Conrm
the selection
and start the
game
1
2
3 4
5
1Left click 2Right click 3Mute 4Web browser 5Open “Documents”
Advanced shortcuts with the keyboard remote
• Press « Win » to open Windows taskbar.
•
•
•
8
Conguring your Internet network
You have the choice between a Wi connection or a wired connection.
The wired connection will offer you a better quality connection and will be more
stable.Contact your IT department if needed.
01 Press the WIN button on the keyboard remote control.
02
03 Click on the name of the available network in your institution.
04 Close the window by clicking on the X in the upper right corner.
If necessary, your school's IT department will be able to help you nd the most
suitable network for the Lü system.
9
01
02 Our operations make automatic updates so that you have the new
applications.
03 Some apps use your school’s network to retrieve content created online or
even save game modes within the app.
10
On the wall
01 Insert 2 screws or hooks into the wall using the
template provided in the box.
If you use the screws, do not screw them all the
way in, leave the tip protruding about 5 mm.
02 Make sure the system is upright and align
the 2 holes behind the module with the 2 screw
heads or hooks on the wall.
03
hooks on the wall through the narrowest part
of the holes and lock your system in a secure
position.
Behind your interactive whiteboard
01 Insert the tie wraps into the slots provided in the
4 upper and lower corners of your module.
02 Attach your module to a secure place behind
your interactive whiteboard (wire cover,
support).
03 Tighten the tie wraps and cut the excess.
Installing Lü in your classroom
INSTALLATION TEMPLATE FOR HOOKS OR SCREWS
GABARIT D’INSTALLATION POUR LES VIS OU CROCHE TS
141 mm
INSTALLATION TEMPLATE FOR HOOKS OR SCREWS
GABARIT D’INSTALLATION POUR LES VIS OU CROCHE TS
141 mm
INSTALLATION TEMPLATE FOR HOOKS OR SCREWS
GABARIT D’INSTALLATION POUR LES VIS OU CROCHE TS
141 mm
INSTALLATION TEMPLATE FOR HOOKS OR SCREWS
GABARIT D’INSTALLATION POUR LES VIS OU CROCHE TS
141 mm
INSTALLATION TEMPLATE FOR HOOKS OR SCREWS
GABARIT D’INSTALLATION POUR LES VIS OU CROCHE TS
141 mm
INSTALLATION TEMPLATE FOR HOOKS OR SCREWS
GABARIT D’INSTALLATION POUR LES VIS OU CROCHE TS
141 mm
11
In the cradle
01
top of the stand.
02 Place your device completely on the stand.
03 Slide your device sideways onto the stand to lock it in place.
12
How to turn on Lü
How to turn off Lü
01 Turn on your interactive whiteboard
Select the source corresponding to the HDMI socket into which you have
plugged the system.
01 Turn off the Rii keyboard remote
Remember to plug it in between
uses.
02 Turn on the Rii keyboard remote
02 Change the HDMI source on your interactive whiteboard if you want to
Your Lü device does not need to be turned off, only the board.
03 Wake up the application
Wait about ten seconds for the system to start up and make the applications
appear.
13
CREATE AN ACCOUNT
Before you embark on your Lü adventure, we invite you to create an account on the
Lü community at lu-community.com.
Note that you can create as many accounts as you want at your school !
There are also tutorial videos on our website
1 2 3
1Create an account
Create an account on our online community at lu-community.com.
Follow the steps provided in the email and log in directly from your Lü.
Log in
Log in with the account you created on lu-community.com.
2
Guest
The Guest option allows you to access apps quickly. Note that you will not
have access to the premium apps associated with your subscription.
3
14
NAVIGATION
System
3
2
1
4
5
6
7
3
2
1
4
5
6
7
Account settings.
Home
Home page.
Applications
Find all of our activities here.
My content
Sign into your account to view
the content you created.
My favorite content
Sign into your account to view
your favorite content.
Help Center
Tutorial and technical support.
Settings
Access general settings of the
application.
It is possible to navigate the interface with the keyboard remote control, the pen of
your interactive whiteboard or directly with your ngers. Note that it is not possible
to scroll the screen with your ngers by sliding them. You have to use the arrows
or the joystick to move.
15
Troubleshooting
When you are having technical diculties with your Lü, select the Help Center icon
from the left-hand side panel. Then choose the method that works best for you to
contact the support team.
01
02
04 You can also look in our help section on our website.
16

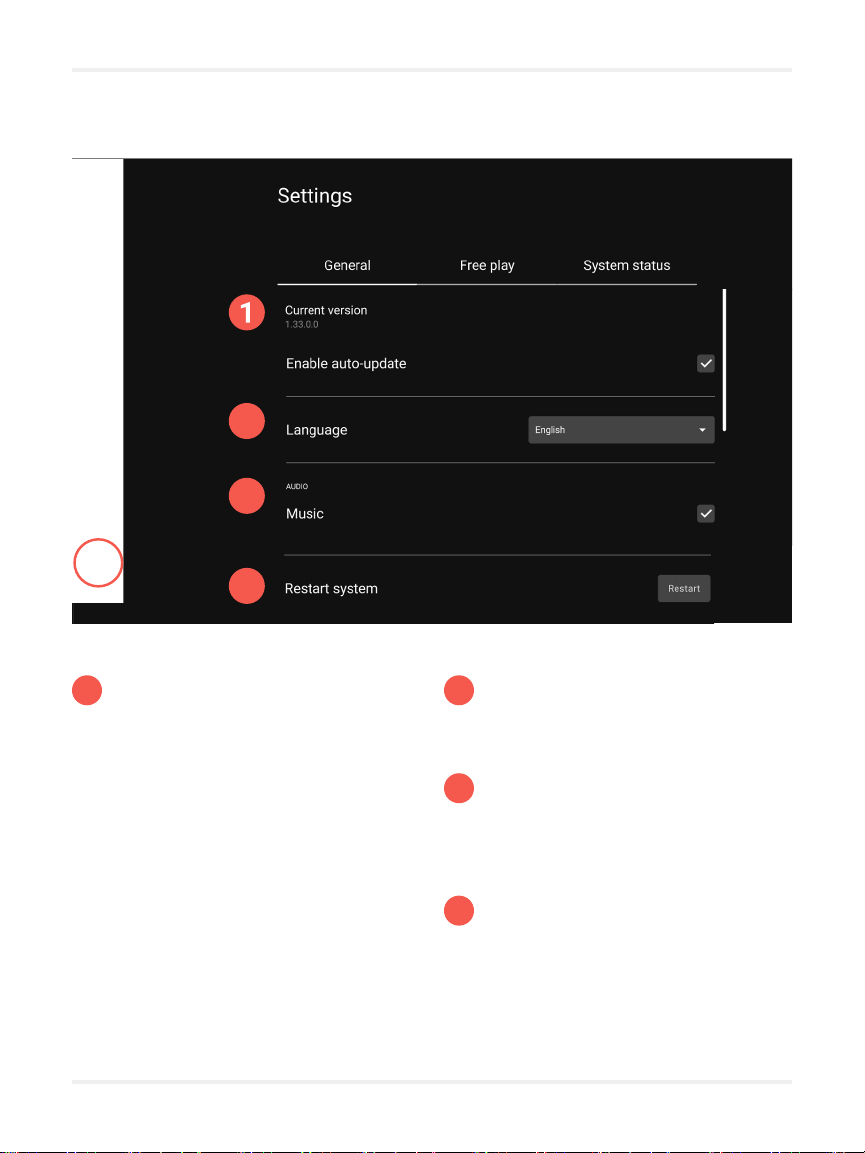

Settings
1Current version
Allows you to determine if your
system is up-to-date. When a new
version of the system is available,
you can download it manually
or wait overnight for the system
to update automatically if the
”Enable automatic update” option
is checked.
You need an Internet connection to
update your system.
2
3
4
Language
Allows you to change the language
of the operating system.
Audio
Allows you to enable or disable
music and sound effects for
applications.
Restart the system
Allows you to restart the system
if you experience technical
diculties.
2
3
4
17
LÜ COMMUNITY
How it works
Creative and passionate teachers are active everyday around the world to engage
students in learning. Lü now thrives to connect them all. To achieve this goal, we’re
proud to introduce the Lü Community !
Discover
Lü Community is a peer-based, free and open online platform that allows teachers
and other Lü users from across the globe to discover original content created by
other Lü enthusiasts. Simply log on to your prole and select “Discover” to open
up your Lü experience to a myriad of new possibilities! Content sharing is entirely
optional, and it is possible for users to like and duplicate content created by others.
Share
Share content with the community so other users can instantly access it on their
Lü systems. Be part of a new synergy between educators, coaches and leaders
around the world to enable kids to develop their full potential.
Create
Create your own content and customize existing one to use in a variety of Lü
applications on your system. Collaborate with other departments to include cross
curriculum pieces into your activities and instantly access your content in the
“My content” tab of your Lü system interface.
To start creating your own content now, go to lu-community.com.
There are also tutorial videos
18
1
2
3
4
5
6
7
Home page
1
2
3
4
5
6
7
Go to the home page
Discover the content from other members
View the content you created
View your favorite content
Go to the Help Center if you need technical assistance
Quickly access the content you recently edited
Access your settings
19
FAQ
the application won’t open.
What do I do?
Make sure that the cords are plugged in prop-
erly and that your board is on the right HDMI
source.You can also try pressing the power
button on your device to make sure it is turned
on. If the problem persists, contact our techni-
When I exit an application,
the application icons are
grayed out.
That’s normal; they take a few seconds to load.
Can I navigate the system
with only the touchscreen?
You can use the touchscreen for most actions,
but to exit an application, you will need the con-
troller (Escape key). Note that it is not possible
to scroll the screen to scroll the screen with
your ngers by sliding them. You have to use
the arrows or the joystick to move.
Who can I contact if I have
ideas for applications, chang
es, or comments?
You can send them to Frédéric Morin-Béland,
Customer Success Advisor frederic.morin-be-
[email protected]. You can also share your
ideas on our Facebook page.
My remote control keyboard
does not work.
Make sure it is charged. Turn it off for a few
moments, then turn it back on.
20
Lü and LÜ are registered trademarks.
CONTACTS
Informations and questions
Education, ideas, training
LuInteractivePlayground
luplayground
play_lu
lu-interactive-playground
Lü Interactive Playground
Technical Support
suppor[email protected]
