Lucky Star 6B810E User manual

6B810/810CD/810E
AT Form Factor
Main Board
User's Manual
(Ver.:2.0)

Copyright
Copyright© 2001 by this company. No part of this document may be
reproduced, transmitted, transcribed, stored in a retrieval system, or
translated into any language or computer language, in any form or
by any means without prior written permission. This manual and the
information contained herein are protected by copyright. All rights
reserved.
Copyright 2001. All Rights Reserved.
Revision History
Revision Date Release Notes
1.0 June-2001 First Official Release

Warning and Disclaimer
This manual is designed to provide information about the Pentium®
III, Cyrix®III system board. Meticulous efforts have been made to
make this manual as accurate as possible, but no warranty or fitness
is implied. All the information is provided on an 'as is' basis. The
author and his corresponding publishing company shall have neither
liability nor responsibility to any person or entity with respect to any
loss or damages arising from the information contained in this
manual or from the use of the system board that accompanies it.
Information contained in this manual is subject to change without
notice. The manufacturer of the system board will not be held
responsible for technical or editorial omissions made herein, nor for
the incidental or consequential damages resulting from its
furnishing, performance, functionality or use. Subsequent changes to
this manual will be incorporated into the next edition. We welcome
any suggestion regarding this manual or our computer products.
Trademarks
●Intel® and Pentium®are registered trademarks of Intel®Corpation.
●IBM® is a registered trademark of International Business
Machines Corporation.
●Microsoft®is a registered trademark of Microsoft® Corporation.
●PCI®is a registered trademark of PCI Special Interest Groups.
●AWARD®is a registered trademark of Award Software Inc.
All other trademarks are the property of their respective owners.

Intel 810 Main Board 1
Table of Contents
Chapter 1 Introduction…………………………………………3
1-1 Main Specifications……………………………………………………4
1-2 Other Features…………………………………………………..……6
1-3 Notice of Hardware Installation………….……………………....……7
Chapter 2 Installation……………….……………………….…8
2-1 Component Locations …………………..…………………………..…8
2-2 Layout Reference……………………………………………..………..9
2-3 Jumputer Setting…………………………………..………..……….10
2-3-1 JP10: Audio Function Selector………………………………………10
2-3-2 CN11: Smart Card Reader Connector (Optional)…………………11
2-3-3 Turbo 66/ Turbo 100 Selection…………………………………..…12
2-4 CPU Installation………………. ……………………………………13
2-4-1 CPU and System Cooling………………….…………………16
2-5 Connectors………..……………………………………………………17
2-5-1 Front Panel…………………………………………………….………17
2-5-2 Back Panel Connectors………………………………………………19
2-5-3 ATX Power Supply Connector………………………………………24
2-5-4 AT Power Supply Connector………………………………………25
2-5-5 I.R. : IrDA Connector………………………………………………26
2-5-6 Floppy Disk Connector………………………………………………27
2-5-7 IDE1 and IDE2………………………………………………………28
2-5-8 Internal Audio Connecotrs……………………………………………29
2-5-9 WOL1:WakeUp On LAN (Optional)………………………………30
2-6 Memory………………………………………………………………31
2-6-1 Memory Installation…………………………………………………32
Chapter 3 Software Installation………………………………33
3-1 Notice of Driver Installation…………………………………………33
3-2 How to Install Software Drivers…………………………………….34

Intel 810 Main Board 2
Chapter 4 The BIOS…..………………………………………36
4-1 Updating the BIOS……………………………………………………37
4-2 The CMOS Memory…………………………………………………38
4-3 The BIOS Setup Pages………………………………………………40
4-3-1 Standard CMOS Setup………………………………………………43
4-3-2 BIOS Features Setup…………………………………………………47
4-3-3 Chipset Features Setup………………………………………..……51
4-3-4 Integrated Peripherals………………………………………..……...55
4-3-5 Power Management Setup………………………………………….60
4-3-6 PNP/PCI Configuration Setup……………………………………….63
4-3-7 Frequency/Voltage Control.…………………………………………65
4-3-8 Passwords Setting……………………………………………………..66
Chapter 5 Appendix………………………………….………68
5-1 Memory Map………………………………………………….………68
5-2 I/O Map………………………………...….………………………….69
5-3 Time & DMA Channels Map…………………………………………70
5-4 Interrupt Map………………………………………….……………...71
5-5 RTC & CMOS RAM Map………………………………………….72
5-6 ISA I/O Address Map……………………………………………..73
Chapter 6 Q & A…………………………………………………………………75
Important Warnings:
STOP
WARNING: NEVER run the processor without the heatsink properly and firmly
attached. This will damage the processor within SECONDS. Also do NOT try to use
Pentium Heatsinks, these will NOT fit and do NOT provide adequate cooling.
STOP
WARNING: Make sure your power supply can deliver the power your system needs.
We recommend AT LEAST a 250W power supply. Even better, get a 300W power
supply, especially when using many peripherals.

Intel 810 Main Board 3
Chapter 1 Introduction
Thank you for purchasing this high quality motherboard, we are confident that you will be
able to use this motherboard to your full satisfaction. This manual is divided into 6 main
sections, as described below:
.
Introduction
The introduction contains information on the main specifications for the 6B810/ 810CD/
810E motherboard, the package contents and cautionary notes.
Hardware Installation
The Hardware Installation section is the most important in the manual. It describes in detail
how to set the motherboard up for operation. Read all information and follow all steps,
especially if you are a new user.
Software Installation
The software section describes the drivers that need be installed to make your OS operates
properly. The drivers are provided on the driver CD.
BIOS Setup
Information on how to enter the BIOS setup and change settings is given here. In addition
all individual BIOS items are described. Although some BIOS setting information is given
in the hardware installation section where appropriate, refer to the BIOS Setup Section for
details.
Appendix
Provides useful information
Q & A

Intel 810 Main Board 4
1-1 Main Specifications
 PCB board size: 22.0cm x 24.0cm
 PCB layer: 4 layers
 Supported CPUs
Can take current PPGA or FC-PGA Cippermine Socket-370 PIII 66/100MHz (133MHz
with i810E only) & Celeron CPUs.
 Chipset Northbridge
The Intel®i810E chipset uses a hub architecture with theGMCH as the host bridge hub and
the 82801AA I/O Controller Hub (ICH) as the I/O hub. The ICH is a highly integrated
multifunctional I/O Controller Hub that provides the interface to the PCI Bus and integrates
many of the functions needed in today’s PC platforms. The GMCH and ICH communicate
over a dedicated hub interface. It supports a 100MHz SDRAM interface. It was designed
especially to deliver enhanced Intel Pentium™ III / Celeron™ or VIA Cyrix®III
processors system performance. The on-chip 3D VGA fraphics function with shared 4MB
3D texture memory (or called display cache) (shared 4MB display cache optional) which
allows this main board to run any 3D graphics program without adding any Extra VGA
card.
 Chipset Southbridge
The Intel®82801AA (ICH) and Intel®80801AB (ICH0) support PCI Rev 2.2 Specification
at 33MHz. The ICH supports Ultra ATA/ 66 (The ICH0 support Ultra ATA/ 33) mode,
which allows burst mode data transfer rates of up to 66MB/sec; AC97 audio (Using the on-
board ALC100 Audio Codec); USB controller with root hub and four function ports.
 Memory
The 6B810/ 810CD/ 810E comes equipped with two Dual Inline Memory Module (DIMM)
sockets to support Intel PC100/ PC133 (with i810E only)-compliant (8, 16, 32, 64, 128, or
256MB) DIMM modules up to 256MB.
 PCI Expansion Slots
With three 32-bit PCI (Rev. 2.2) expansion slots, which can support Bus Master PCI cards,
such as LAN or Video-grabber cards (PCI supports up to 133MB/s maximum throughput),
the 6B810/ 810CD/ 810E motherboard is ready for the most demanding applications.

Intel 810 Main Board 5
 AMR Slot
An Audio Modem Riser (AMR) slot also is supported, a very affordable audio and/ or
modem riser card can be used in combination with this slot.
 USB interface
With support for up to 2 USB ports, two on-board, the 6B810/ 810CD/ 810E provides
ample USB expansion room.
 IDE interface
The 6B810/ 810CD/ 810E comes with an onboard PCI Bus Master IDE controller with two
connectors that support four ATA66/ 33 devices on two channels. Supports UDMA/66,
UDMA/33, PIO Modes 3 & 4 and Bus Master IDE DMA Mode 2, and Enhanced IDE
devices, such as CD-R/ RW, DVD-ROM, CD-ROM, Tape Backup and LS-120 drives.
 Super Multi-I/O
This functionality is integrated into the southbridge of the chipset. It provides two high-
speed UART compatible serial ports and one parallel port with EPP and ECP capabilities.
 Infrared (IrDA) Connector
This functionality is also integrated into the southbridge of the chipset. The IrDA connector
supports an optional IR remote control device for wireless interfacing with external
peripherals, personal gadgets, or an optional remote controller.

Intel 810 Main Board 6
1-2 Other Features
 System BIOS
The 6B810/ 810CD/ 810E comes with a 2MB BIOS that provides CPU/SDRAM
frequency, boot block write protection, and HD/ SCSI/ CD/ Floppy boot selection. DMI is
also supported through BIOS, which allows hardware to communicate within a standard
protocol creating a higher level of compatibility.

Intel 810 Main Board 7
1-3 Notice of Hardware Installation
Before hardware installation, make sure you have checked the following things.
A. Check the package
If any of these items is missing or damaged, contact the dealer from whom you purchase.
Leave this main board in its original package until you are ready to install it. In the
package, there are:
➨ The 6B810/ 810CD/ 810E Motherboard
➨ 1 Manual
➨ 1 Driver Installation CD-ROM
➨ 1 IDE ATA 66/100 Flat-Cable
➨ 1 Floppy Disk Drive Flat-Cable
B. Make sure power is off.
During hardware installation, be sure that there is no power connected during this period.
C. Avoid ESD (Electrical Static Discharge.)

Intel 810 Main Board 8
While installing the main board, wear a grounded wristband or ankle strap to avoid ESD
(Electrical Static Discharge).
Chapter 2 Installation
2-1 Component Locations
1. USB
2. SMART Card
3. WOL1
4. AMR Slot
5. CD-IN
6. COM
7. VGA
8. LPT
9. GAME Port
10.PS/2 Mouse
11.KB
12.BABY AT
Power
13.ATX Power
14.FAN3
15.CPU Socket
16.Intel I810
17.FAN1
18.DIMM
19.IDE
20.FDD
21.Front Panel
Connectors
22.BIOS
1 2 3 4 5 6 7 8 9 10 11
12
13
14
15
16
17
20 19 18
26
25
24
23
22
21
23.Intel
FW8211D1AA
24.Battery
25.FAN2
26.PCI Slot

Intel 810 Main Board 9
2-2 Layout Reference
FAN1
SDRAM
SDRAM
Intel
FW82801AA
Intel 810
FW82810DC100
DIMM1
DIMM2
IDE2
CMOS
POWER LED
SPEAKER
RESET
HD LED
POWER SW
+
+
+
-
-
-
USB
IDE1
FLOPPY
CD2
CD1
FAN2
TURBO100
TURBO66
FAN3
PCI1
PCI2
PCI3
WOL
JP10
IR3 IR4
COM1
COM2

Intel 810 Main Board 10
2-3 Jumper Setting
2-3-1 JP10: Audio Function Selector
JP10 is a 3-pin jumper to enable/disable on board audio function. Set “1-2” to
disable on board audio function and use AMR card installed on slot, set “2-3” to
enable on board audio function and use MR card installed on slot.
JP10 : Audio
Function Selector
Disable on board
AC-97 CODEC
Enable on board
AC-97 CODEC
1
2
3
1
2
3

Intel 810 Main Board 11
2-3-2 CN11: Smart Card Reader Connector (Optional)
The Smart Card is capable of providing secured storage facilities for sensitive
personal information (such as Private keys, Account numbers, Passwords,
Medical information, etc…). The Smart Card Reader can be used for a broad
range of application in GSM, ID, pay TV, banking, … and so forth.
CN11: Smart Card
Reader Connector
Pin 1

Intel 810 Main Board 12

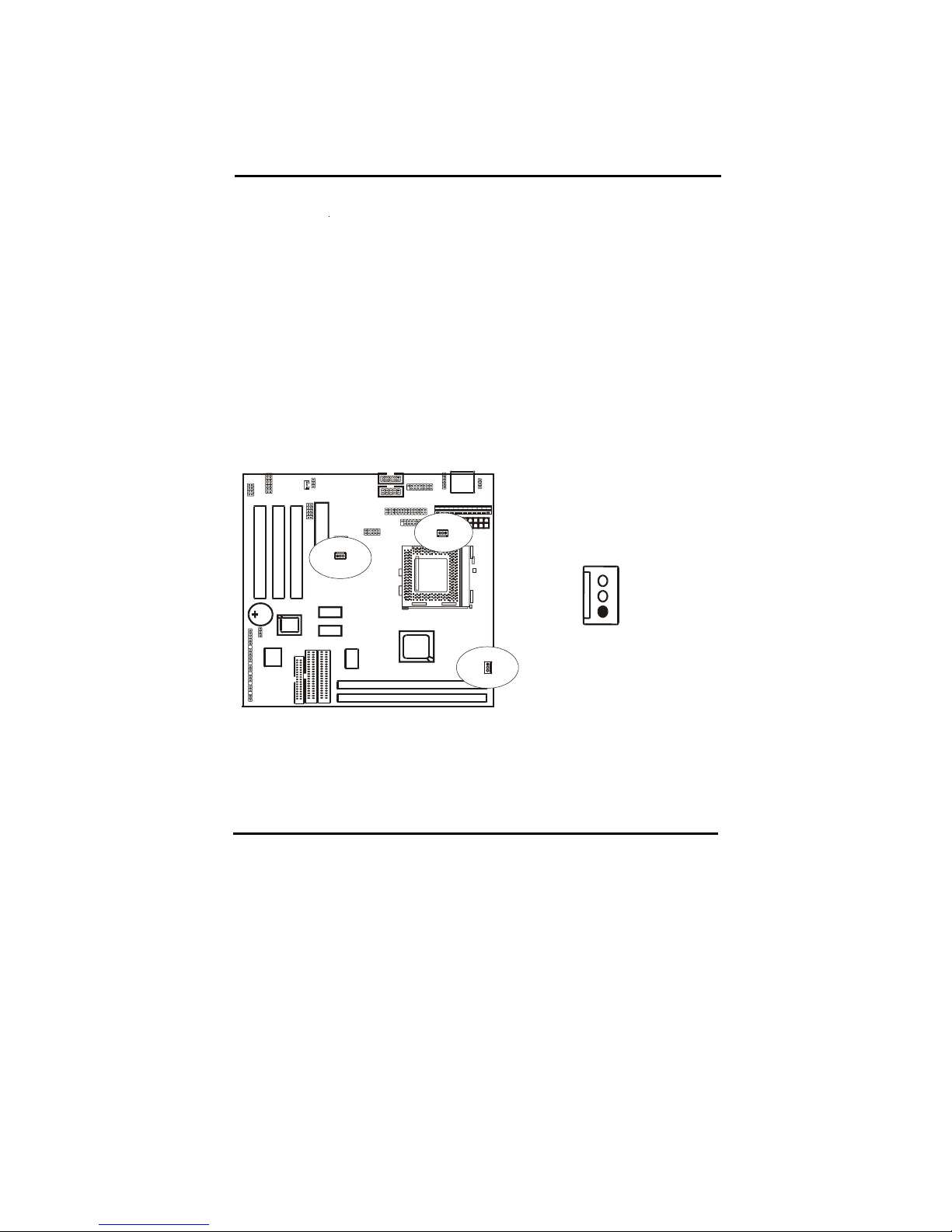

2-3-3 Turbo 66/ Turbo 100 Selection
Turbo 66 / 100 selector allows user to overclock 66 MHz Front side bus CPU to
100 MHz FSB.
 The manufacturer shall have neither liability nor responsibility to any
persion of entity with respect to any loss or damager arising by users’
overclocking.
TRUBO 100
TRUBO 66

Intel 810 Main Board 13
2-4 CPU Installation
The first step in the installation of your CPU is the insertion of the CPU into the 370 pins
CPU socket. Please follow the steps as outlined below carefully to avoid damage to the
CPU.
Avoid Static Electricity
The Intel PIII and Celeron processors and your motherboard contain sensitive electronic
components that can be easily damaged by static electricity. We recommend that you leave
the processor in its original packaging until you are ready to install it. You should only
touch the edges of the processor, NEVER touch the processor pins to avoid static
discharge.
First take a moment to inspect your CPU for obvious damage due to shipping or handling.
Be sure that no noticeable damage exists before proceeding. You should have the following
items:
 1 Intel PIII or Celeron processor.
 1 good heatsink and fan assembly.
Step 1
The following figure shows the processor socket. Note that the release lever on the right
side of the socket is down and latched. This position is used to lock the processor in place.
The lever must be raised to install the processor. To do this, first push the lever sideways to
unlatch it, then raise it all the way up (approximately 90 degrees).
Step 2
The processor pin array at the top two corners is angled and has no pins in the corners.
Notice that at the top of the socket on the motherboard (near where it says "Socket 370")
the corners also do not have positions for pins. The processor must be positioned so the
pins match up properly. When you do that, the corner of processor that is cut off will be
positioned next to the release pivot.

Intel 810 Main Board 14
It should take no force to install the processor, this is a zero insertion force (ZIF) socket. If
it takes any force you are doing something wrong. Check the pin alignment and also make
sure the release lever is raised up completely.
After placing the CPU lower the release lever to lock the processor in place.
Now with the processor properly installed, you can proceed to install the heatsink. It is
important to note that If you have never installed a heatsink on an Intel PIII or Celeron
processor before it may be difficult. We recommend you do a dry run a few times before
doing the final installation. To allow you to do this read the following instructions. Do not
remove the film on the thermally conductive compound until you are ready to do the final
installation.
STOP
WARNING: Never run the processor without the heatsink properly
and firmly attached.
Step3
The picture below shows the bottom of the heatsink. Notice the step in the heatsink surface,
this portion fits over the top of the socket, where the legend "Socket 370" is molded into
the plastic. The heatsink must be mounted with this step above the top of the socket or the
heatsink will not be touching the processor properly.
The next picture shows the removal of the plastic film from the thermally conductive
compound. The thermal compound is a thin layer of material that increases the efficiency
of the heatsink by filling microscopic surface voids in the processor or heatsink surface
with a thermally conductive material. Please do not remove the plastic film until you have
practiced installing the heatsink and mounting the clips on the socket. It can take a few tries
to get used to doing this.

Intel 810 Main Board 15
The following picture shows a side view of the heatsink with the retaining clip at the
bottom of the heatsink. Make sure this retaining clip is at the bottom of the heatsink before
trying to install it.
The following picture shows the non-moveable end of the heatsink retaining clip installed
on the lug at the bottom of the processor socket. This end of the clip simply slides over the
lug when you tilt the heatsink / fan assembly towards the lug.
Now lock the locking clip for the retaining strap over the lug at the other (pivot end) of the
processor socket. This is an easy procedure after you do it a few times, but initially it will
require you to use a finger on one hand to push the latch down and use your other hand to
push the latch in. This is the part you need to practice to install the clip properly. When you
are holding the heatsink, make sure you do apply pressure to the fan. You could damage it
and cause thermal failure of the processor.
STOP
WARNING: Be careful not to scrape the motherboard during the mounting
of the fan or else damage may occur to the motherboard.
Now connect the wire from the heatsink fan to the CPU FAN connector on the
motherboard. This connector is keyed and can only be installed one way. If you use a
heatsink assembly that has two cooling fans, connect one to CPU FAN and the other to
FAN1 . For more information on the FAN connectors, refer to the FAN connector section
later in this section.

Intel 810 Main Board 16
2-4-1 CPU and System Cooling
Any attempt to operate the Intel PIII Processor without a suitable cooling
solution will result in permanent damage to the processor and potentially other
components within the system.
FAN Headers
Your 6B810/ 810CD/ 810E allows the use of in all 3 FANs. Of these 3 FANs,
1 can be used by the CPU Heatsink assembly. The other 2 FAN Headers allow
connection of a Chassis Fan and a Power Supply FAN respectively. For a the
location of the FAN connectors, refer to the following picture:
Fan Signal
GND
+12V
SENSE
