LUDLUM 2929 User manual

LUDLUM MODEL 2929
DUAL-CHANNEL SCALER
January 2016
Serial Number 248597 and Succeeding
Serial Numbers

LUDLUM MODEL 2929
DUAL-CHANNEL SCALER
January 2016
Serial Number 248597 and Succeeding
Serial Numbers
Shown with a Model 43-10-1

STATEMENT OF WARRANTY
Ludlum Measurements, Inc. warrants the products covered in this manual to be free of
defects due to workmanship, material, and design for a period of twelve months from the
date of delivery. The calibration of a product is warranted to be within its specified
accuracy limits at the time of shipment. In the event of instrument failure, notify Ludlum
Measurements to determine if repair, recalibration, or replacement is required.
This warranty excludes the replacement of photomultiplier tubes, G-M and proportional
tubes, and scintillation crystals which are broken due to excessive physical abuse or used
for purposes other than intended.
There are no warranties, express or implied, including without limitation any implied
warranty of merchantability or fitness, which extend beyond the description of the face
there of. If the product does not perform as warranted herein, purchaser’s sole remedy
shall be repair or replacement, at the option of Ludlum Measurements. In no event will
Ludlum Measurements be liable for damages, lost revenue, lost wages, or any other
incidental or consequential damages, arising from the purchase, use, or inability to use
product.
RETURN OF GOODS TO MANUFACTURER
If equipment needs to be returned to Ludlum Measurements, Inc. for repair or calibration, please send to
the address below. All shipments should include documentation containing return shipping address,
customer name, telephone number, description of service requested, and all other necessary information.
Your cooperation will expedite the return of your equipment.
LUDLUM MEASUREMENTS, INC.
ATTN: REPAIR DEPARTMENT
501 OAK STREET
SWEETWATER, TX 79556
800-622-0828 325-235-5494
FAX [phone]

Model2929Scaler TechnicalManual
Ludlum Measurements, Inc. January 2016
Table of Contents
Introduction 1
Specifications 2
Controls and Functions 3
Front Panel 3-1
Rear Panel 3-2
Safety Considerations 4
Environmental Conditions for Normal Use 4-1
Cleaning Instructions and Precautions 4-1
Warning Markings and Symbols 4-1
Recycling 5
Operating Procedures 6
Calibration Procedures 6-1
High Voltage Adjustment Procedures 6-2
Data Output 7
Function Identification 7-1
Function Source 7-1
Output Signals 7-1
Removing Data from the Model 2929 7-2
Optional Equipment 8
Model 264 Printer 8-1
Model 464 RS-232 Interface 8-1
Model 464-2 Two-Channel Counter 8-2
Parts List 9
Model 2929 Dual-Channel Scaler 9-1
Power Supply Board 9-1
Amplifier/Discriminator Board 9-2

Model2929 Scaler Technical Manual
Ludlum Measurements, Inc. January 2016
Scaler Board 9-4
Clock/Logic Board 9-5
Dual Audio Board 9-6
6-Digit Readout Board 9-6
Mother Board 9-6
Preamp Board 9-7
Wiring Diagram 9-8
Drawings and Diagrams 10

Model2929 Scaler Technical Manual Section1
Ludlum Measurements, Inc. Page 1-1 January 2016
Introduction
he Model 2929 is a dual-channel scaler designed for use with
“Phoswich” and/or proportional detectors. A pulse height
analyzer is employed to provide information to the two
independent counters.
The Model 2929 is powered by a 95 to 250 Vac wall transformer with an
output of 24 Vdc. It has a built-in detector high voltage power supply
with front panel readout, as well as adjustable count time periods
ranging from 0.1 to 990 minutes. It also has a click-per-event audio for
each of the two channels. The unit will operate two printing calculators
(Ludlum Model 264) by way of data connectors located on the rear
chassis. The amplifier circuitry consists of a three-stage amplifier fed
directly to the discriminator circuit. All discriminator controls are
located internally and are easily accessible internally on the right-hand
side of the chassis.
The Model 2929 is generally used in conjunction with a Model 43-10-1
Alpha/Beta Sample Counter.
Sectio
n
1
T

Model2929 Scaler Technical Manual Section2
Ludlum Measurements, Inc. Page 2-1 January 2016
Specifications
0
Power: 95 to 250 Vac wall transformer with 24 Vdc output, 50-60 Hz
single phase (typically less than 100 mA)
Input Senstivity: Beta-gamma lower threshold is adjustable from 4 mV,
beta-gamma upper threshold is adjustable from 25 mV to 100 mV, and
alpha threshold is adjustable from 175 mV.
High Voltage (HV): fully adjustable from 200 to 2500 V ±100 V with
the capability of supporting 60-megohm scintillation loads to 1500 V
HV Meter: 6.4 cm (2.5 in.) panel analog meter readout
HV Meter Accuracy: ±10% of reference value
Audio: click-per-event type with volume control for each of the two
channels
Count Time: 0-99 minutes with multiplier of 0.1, 1.0 and 10; external
position for use with an external clock source
Timer Accuracy: The time base for the scaler is crystal-controlled and
has a timer accuracy of ±0.2% of the thumbswitch setting.
Scaler Readout: six-digit, light-emitting diode readout for each of the
two channels
Scaler Accuracy: ±2% of reference value
Size: 24.4 x 37.1 x 25.1 cm (9.6 x 14.6 x 9.9 in.) (H x W x L)
Weight: 5.5 kg (12.1 lb), including detector
Finish: beige powder coat with anodized front panel and silk-screened
nomenclature
Temperature Range: -20 to 50 °C (-4 to 122°F); may be certified for
operation for -40 to 65 °C (-40 to 150 °F)
Sectio
n
2

Model2929 Scaler Technical Manual Section3
Ludlum Measurements, Inc. Page 3-1 January 2016
Controls and Functions
Front Panel
High Voltage: a 10-turn potentiometer control for adjusting HV from 200
V to 2500 V. It provides a linear adjustment of the detector voltage supply.
Changing the detector voltage will cause the detector gain to change. A
linear change in voltage will cause an exponential change in detector gain.
The instrument will support 60-megohm scintillation loads to 1500 V.
HV Meter: a 6.4 cm (2.5 in.) panel meter displaying the high-voltage setting
continuously.
HV: a 10-turn dial used to adjust the detector high voltage.
ON/OFF: a toggle switch used to apply power to the instrument when in the
“ON” position.
Count Lamp: a red light indicating that the scaler is in the count cycle.
Count Switch: resets and starts the counting cycle. This switch will also
reset the two counters when depressed.
HOLD Switch: stops the count cycle without resetting the scaler display.
The counters will hold the value present at the time this button is depressed.
Minutes: a two-decade thumb-wheel switch used for presetting count time.
This switch is used in conjunction with the multiplier switch.
Multiplier: a rotary switch allowing selection of count time mulitpliers of
0.1, 1, 10 or an EXT position for timing using external clock sources.
Detector Input Connection: a series “C” coaxial connector used to supply
the detector with its bias voltage and also to return the signal from the
detector. (Other connectors are available upon request.)
Sectio
n
3

Model2929 Scaler Technical Manual Section3
Ludlum Measurements, Inc. Page 3-2 January 2016
Beta-Gamma Vol: a rotary control used to vary the audio output of the
beta-gamma channel from off to full volume.
Alpha Vol: a rotary control used to vary the audio output of the alpha
channel from off to full volume.
Alpha Count: a six-digit LED readout indicating counts received in the
alpha counting channel.
Beta-Gamma Count: a six-digit LED readout indicating counts received in
the beta channel.
Rear Panel

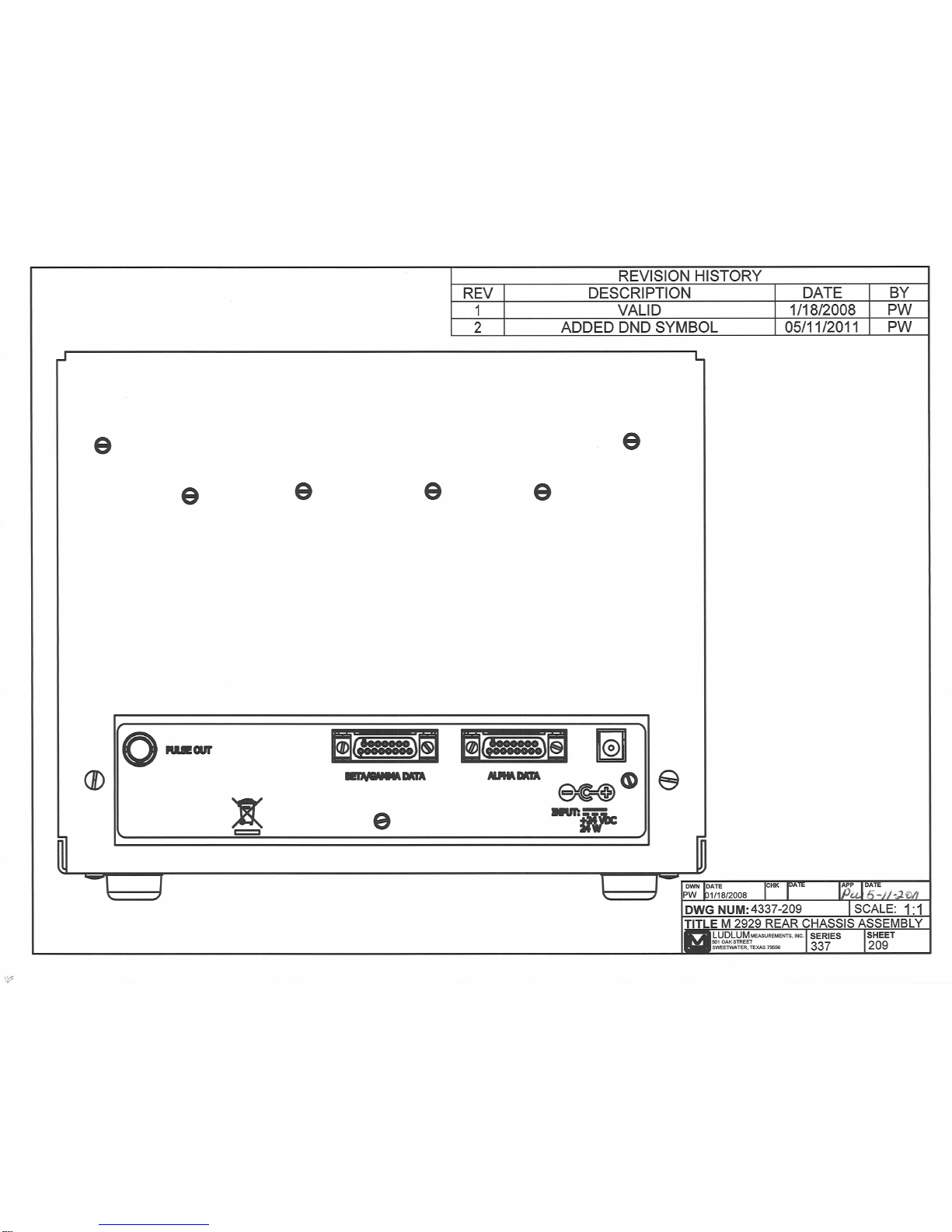

Amp Out: a BNC connector that provides access to the final amplifier stage. The
pulse is positive-going with a maximum amplitude of approximately 22 V.
Alpha Out: a 15-pin D type connector used as a data output for the alpha
counter. (Refer to Section 7 for a listing of pin numbers and their functions.)
Beta-Gamma Out: a 15-pin D type connector used as a data output for the beta-
gamma counter. (Refer to Section 7 for a listing of pin numbers and their
functions.)
Fuse: Use of a 1-Amp, fast-blowing fuse provides protection to the instrument
in case of internal electrical failure.
110 Vac: a connector used to apply line power to the instrument

Model2929 Scaler Technical Manual Section4
Ludlum Measurements, Inc. Page 4-1 January 2016
Safety Considerations
Environmental Conditions for Normal Use
Indoor use only
No maximum altitude
Temperature range of -20 to 50°C (-4 to 122 °F); may be certified for
operation from -40 to 65 °C (-40 to 150 °F)
Maximum relative humidity of less than 95% (non-condensing)
Pollution Degree 2 (as defined by IEC 664).
Cleaning Instructions and Precautions
The Model 2929 may be cleaned externally with a damp cloth, using only
water as the wetting agent. Do not immerse the instrument in any liquid.
Observe the following precautions when cleaning:
1. Turn instrument OFF and disconnect the instrument power
cord.
2. Allow the instrument to sit for one minute before cleaning.
Warning Markings and Symbols
Caution!
The operator or responsible body is cautioned that the
protection provided by the equipment may be impaired if the
equipment is used in a manner not specified by Ludlum
Measurements, Inc.
Sectio
n
4

Model2929 Scaler Technical Manual Section4
Ludlum Measurements, Inc. Page 4-2 January 2016
Caution!
Verify instrument voltage input rating before connecting to a
power converter. If the wrong power converter is used, the
instrument and/or power converter could be damaged.
The Model 2929 is marked with the following symbols:
DIRECT CURRENT (DC) (IEC 417, No. 5032): designates an input
receptacle that accommodates a power cord intended for connection to DC
voltages. This symbols appears on the back panel.
CAUTION, RISK OF ELECTRICAL SHOCK (per ISO 3864, No.
B.3.6): designates a terminal (connector) that allows connection to a voltage
exceeding 1 kV. Contact with the subject connector while the instrument is
on or shortly after turning off may result in electric shock. This symbol
appears on the front panel.
CAUTION (per ISO 3864, No. B.3.1): designates hazardous live voltage
and risk of electric shock. During normal use, internal components are
hazardous live. This instrument must be isolated or disconnected from the
hazardous live voltage before accessing the internal components. This
symbol appears on the front panel. Note the following precautions:
Warning!
The operator is strongly cautioned to take the following
precautions to avoid contact with internal hazardous live parts
that are accessible using a tool:
1. Turn the instrument power OFF and disconnect the power
cord.
2. Allow the instrument to sit for one minute before accessing
internal components.
The “crossed-out wheelie bin” symbol notifies the consumer that the
product is not to be mixed with unsorted municipal waste when discarding;
each material must be separated. The symbol is placed near the DC
receptacle. See section 5, “Recycling” for further information.

Model2929 Scaler Technical Manual Section5
Ludlum Measurements, Inc. Page 5-1 January 2016
Recycling
udlum Measurements, Inc. supports the recycling of the electronics
products it produces for the purpose of protecting the environment
and to comply with all regional, national, and international agencies
that promote economically and environmentally sustainable
recycling systems. To this end, Ludlum Measurements, Inc. strives to supply
the consumer of its goods with information regarding reuse and recycling of
the many different types of materials used in its products. With many
different agencies – public and private – involved in this pursuit, it becomes
evident that a myriad of methods can be used in the process of recycling.
Therefore, Ludlum Measurements, Inc. does not suggest one particular
method over another, but simply desires to inform its consumers of the
range of recyclable materials present in its products, so that the user will
have flexibility in following all local and federal laws.
The following types of recyclable materials are present in Ludlum
Measurements, Inc. electronics products, and should be recycled separately.
The list is not all-inclusive, nor does it suggest that all materials are present in
each piece of equipment:
Batteries Glass Aluminum and Stainless Steel
Circuit Boards Plastics Liquid Crystal Display (LCD)
Ludlum Measurements, Inc. products that have been placed on the market
after August 13, 2005 have been labeled with a symbol recognized
internationally as the “crossed-out wheelie bin.” This notifies the consumer
that the product is not to be mixed with unsorted municipal waste when
discarding; each material must be separated. On the Model 2929, the symbol
will be placed on the rear panel.
The symbol appears as such:
Sectio
n
5
L

Model2929 ScalerTechnical Manual Section 6
Ludlum Measurements, Inc. Page 6-1 January 2016
Operating Procedures
Once the Model 2929 is calibrated for use with a specific detector, the high-
voltage operating point must be determined. See HV adjustment procedures
below for details on selecting the proper operating voltage.
Count time: Selection should be based on the count rates being
observed and the desired statistical accuracy.
Volume Controls: Adjust to desired levels. Note that audio is operating
whether a count cycle is in process or not.
Detector: Connect the detector to the instrument using the cable
supplied with the instrument. Note that a cable length change can cause
a shift in calibration.
Printer: When operating two Model 264 printers and a recycle is
required, be sure that only one printer has its recycle switch “ON.”
Calibration Procedures
The following procedures apply to the Model 2929 when used in
conjunction with the Model 43-10-1 scintillator
NOTE: The following settings are normally:
Beta Threshold (B-G THS) = 4 mV
Beta Window (B-G WIN) = 50 mV
Alpha Threshold (ALPHA THS) = 175 mV
Amp/Disc Board
Apply a negative pulse of 10 mV amplitude to the DETECTOR
input of the Model 2929. A count rate greater than 25,000 cpm
should be used.
Sectio
n
6

Model2929 ScalerTechnical Manual Section 6
Ludlum Measurements, Inc. Page 6-2 January 2016
Adjust the GAIN control located internally and to the right-hand
side of the instrument for a positive pulse amplitude of 200 mV (at
the AMP OUT connector).
This completes the amplifier gain calibration. The optimum amplifier
gain should be approximately 20.
Apply a negative pulse of 200 mV amplitude.
Attach an oscilloscope probe to pin 7 of U5 ad adjust B-G THS
WIDTH (R6) for a five-microsecond wide negative 5 V pulse.
Move the oscilloscope to pin 9 of U6 and apply a negative pulse of
4 mV amplitude.
Adjust B-G THS (R3) until negative 5-volt pulses appear.
Apply a negative pulse of 50 mV amplitude and adjust B-G WIN
(R2) until negative 5-volt pulses just disapper.
Apply a negative pulse of 175 mV amplitude and adjust ALPHA
THS (R4) until a 5-volt positive pulse appears at pin 6 of U6.
High Voltage Power Supply
With a high-voltage meter of at least 1000 megohm input
impedance, adjust the front-panel HV control for 1000 Vdc at the
detector connector.
Adjust R6 for a front-panel meter reading of 1 kV.
NOTE: If adjustment is necessary, a 10-pin extender board will be required.
With no detector attached, turn the HV dial to maximum (fully
clockwise) and adjust R13 for 1500 V. (Higher limits may be
necessary, depending upon the type of detector being used.
High Voltage Adjustment Procedures
High Voltage: Selection of an operating voltage is determined by the plateau
method. With this method, a graph of high-voltage settings versus counts
received from each channel is generated (source counts and background
counts). LMI uses 239Pu as the alpha source; and 99Tc or 14C as beta sources.

Model 2929 Scaler TechnicalManual Section 6
Ludlum Measurements, Inc. Page 6-3 January 2016
The following procedures describes the determination of the operating
voltage for a Model 43-10-1 detector, which is commonly used with the
Model 2929 dual channel scaler. Note that certain criteria must be met for
the background counts, source efficiencies, and crosstalk.
1. Connect the Model 43-10-1 to the counting instrument with proper
cable.
2. Place a calibrated 99Tc source in the sample holder. Close and lock
the sample drawer.
3. Adjust the counting instrument HV until it receives at least 27% 4π
efficiency
4. Decrease HV by 25 volts.
5. Record the HV.
6. Record the 99Tc source count and beta crosstalk in the alpha
channel.
7. Remove the 99Tc source and record the background count in the
alpha and beta channels.
8. Place a calibrated 239Pu source in the sample holder. Close and lock
the sample drawer.
9. Record the 239Pu source count and the alpha crosstalk in the beta
channel.
10. Increase the HV by 25 volts.
11. Repeat Steps 5-10 until one or more of the following conditions
happen:
a. Beta background exceeds 80 cpm
b. Alpha background d exceeds 3 cpm
c. Alpha crosstalk in the beta channel exc14eeds 10%
d. Beta crosstalk in the alpha channel exceeds 1%.
12. The operating voltage should be selected at a point where:
a. 99Tc efficiency greater than or equal to 27%.
b. 239Pu efficiency greater than or equal to 37%

Model2929 ScalerTechnical Manual Section 6
Ludlum Measurements, Inc. Page 6-4 January 2016
c. Alpha crosstalk in beta channel less than or equal to 10%
d. Beta crosstalk in alpha channel is less than or equal to 1%
e. Beta background is less than or equal to 80 cpm
f. Alpha background is less than or equal to 3 cpm.

Model2929 ScalerTechnical Manual Section7
Ludlum Measurements, Inc. Page 7-1 January 2016
Data Output
Function Identification
PIN FUNCTION
1Count Complete
2Printer Ready
3Load Printer
4Printer Clock
5Ground
6Count
7Hold
8+5 Vdc
9Alpha Pulse Out
10 Beta/Gamma Pulse Out
11 Blanking
12 Bit 1
13 Bit 2
14 Bit 3
15 Bit 4
Function Source
All functions are from Model 2929 to accessory except:
PIN 2 Printer Ready
PIN 6 Count
PIN 7 Hold
Output Signals
Output signals are CMOS with LO = GROUND and HI = VOLTAGE
on Pin 8.
Pin 2 Printer Ready: Signal should be of the same voltage swing as the
signals from the Model 2929.
Sectio
n
7

Model2929 ScalerTechnical Manual Section 7
Ludlum Measurements, Inc. Page 7-2 January 2016
6 Count: Signal should be pulled low to start counting.
Pin 7 Hold: Signal should be pulled low to stop counting.
Removing Data from the Model 2929
When the Model 2929 has timed out and counting stops, a HI pulse appears
on pin 1 (count complete). This pulse is approximately 2 milliseconds wide
and is used to signal the accessory unit that data is ready to be transmitted.
When the accessory unit is ready to accept the data, Pin 2 (printer ready) is
pulsed HI for a minimum of 2 milliseconds. When this Pin goes LO, data is
unloaded from the Model 2929 as follows:
The most significant digit appears first. This is valid at the negative eduge of
the first clock pulse and position continues until all digits have been read out.
At this time, Pin 3 (load printer) goes LO, signaling completion of data
transfer.
NOTE: Count Complete (Pin 1) and Printer Ready (Pin 2) are tied together.
The data is presented as BCD data on Pins 12 (BIT 1), 13 (BIT 2), 14 (BIT
3), and (BIT 4).

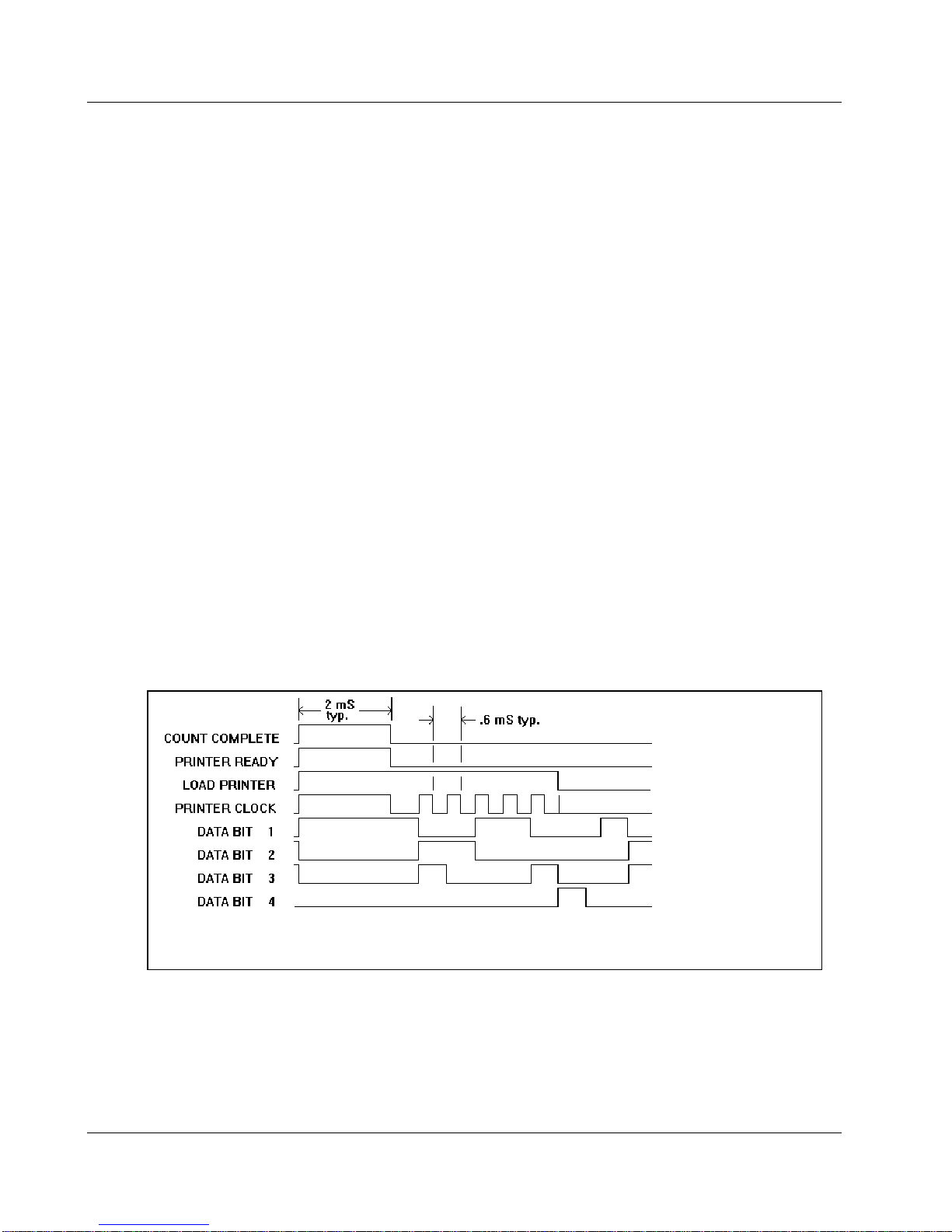

Figure 1
