Lumantek ez-Distributor User manual
ez-Distributor
3G-SDI/ HDMI
DISTRIBUTION AMPLIFER
AUDIO MUX/ DEMUX
OPERATION MANUAL
Revision Number: 1.0.0
Distribution Date: MAY. 2018
Copyrights Notice
Copyright : 2006-2018 LUMANTEK Co., Ltd.
All Rights Reserved.
This document contains information that is proprietary to LUMANTEK. CO., LTD. The
information in this document is believed to be accurate and reliable; however, LUMANTEK
assumes no responsibility or liability for any errors or inaccuracies that may appear in this
document, nor for any infringements of patents or other rights to third parties resulting
from its use.
This publication may contain technical issues, inaccurate information or typos. These will be
revised in revised editions, if there is any. No part of this publication is subject to be
reproduced, stored in retrieval system, or transmitted in any forms, or any means without
prior consent by LUMANTEK.
Trademarks
HD ENCODULATORTM, SD ENCODULATORTM, LUMANTEK Logo, Mega CruiserTM, ORIXTM,
X-CruiserTM, DTA-PlusTM, Media BlasterTM, are Trademarks of Lumantek. Co., Ltd.
Any other trademarks than stated above in this document belongs to its pertinent
corporation.
Warranty Period
Lumantek's products comes with One (1) year limited warranty. Please contact below if you
need more information.
LUMANTEK CUSTOMER SERVICES
TEL : +82 - (0)2-6947-7400
FAX: +82 - (0)2-6947-7440
Installation Precautions
This page states the safety measures the users must take to avoid circumstances where the system may
occur physical damages or injuries. Please THOROUGHLY go over this page before the system installa-
tion/operation.
General Precautions
Maintain dust FREE condition during and after System Installation/Operation.
Please place the system cover in a safe location when opened.
Securely stow tools and cables away from the passages.
Avoid wearing loosened clothes or accessories during installation/Operation.
Avoid any unnecessary actions that may damage/harm system or personnel.
Do NOT open the system unless advised by Lumantek representative.
Lumantek takes no responsibility on units with broken RMA seals.
Power Precautions
Please check cable overload before connecting the system to the power supply.
Avoid wearing metal accessories (Rings, Earrings) connecting system to the power source.
Avoid operating on wet floors. Make sure power extension cables, floors, and instruments are
grounded and in a safe operating condition.
Please discharge static electricity by touching grounding metals before starting hardware installation.
The grounding parts must be disassembled last.
Manufacture takes no responsibilities on Direct/Indirect losses or damages
due to use of inappropriate parts or services by unauthorized service provider
Supplying power during the system installation may cause damages to the system and personnel.
AC Power Precautions
This unit utilizes AC power, the cord comes with a grounding function.
Please connect the system to the power socket with groundings.
Use Green/Yellow 0.75mm2 (18AWG) or higher grade grounding cables.
Do NOT block power sockets with tools or boxes. Please keep it clear at all times.
03
Features
① Support SD/HD/3G
② SDI Video In: SD/HD/3G-SDI (BNC 75Ω) x1
③ HDMI Video Input: SD/HD/3G (HDMI Type A) x1
④ SDI Video Output: SD/HD/3G-SDI (BNC 75Ω) x12
⑤ HDMI Video Output: SD/HD/3G (HDMI Type A) x2
⑥ Audio In/Output: XLR (Female) x2, XLR (Male) x2
⑦ 2.7 inch TFT LCD : Input Video Display(SDI or HDMI),
AUDIO Level Meter Display, Input Video Resolution Display
LUMANTEK’s ez-Distributor is a 14 channels distributor in 1RU size. It has 1 x HDMI and 1 x
3G-SDI inputs, and 2 x HDMI outputs and 12 x 3G-SDI outputs. You can embed external audio
and de-embed incoming video audio. With 2.7 inch TFT LCD screen, you can check input Video
Display, Audio Meter Display, and Input Video Resolution Display.
01. Introduction
04

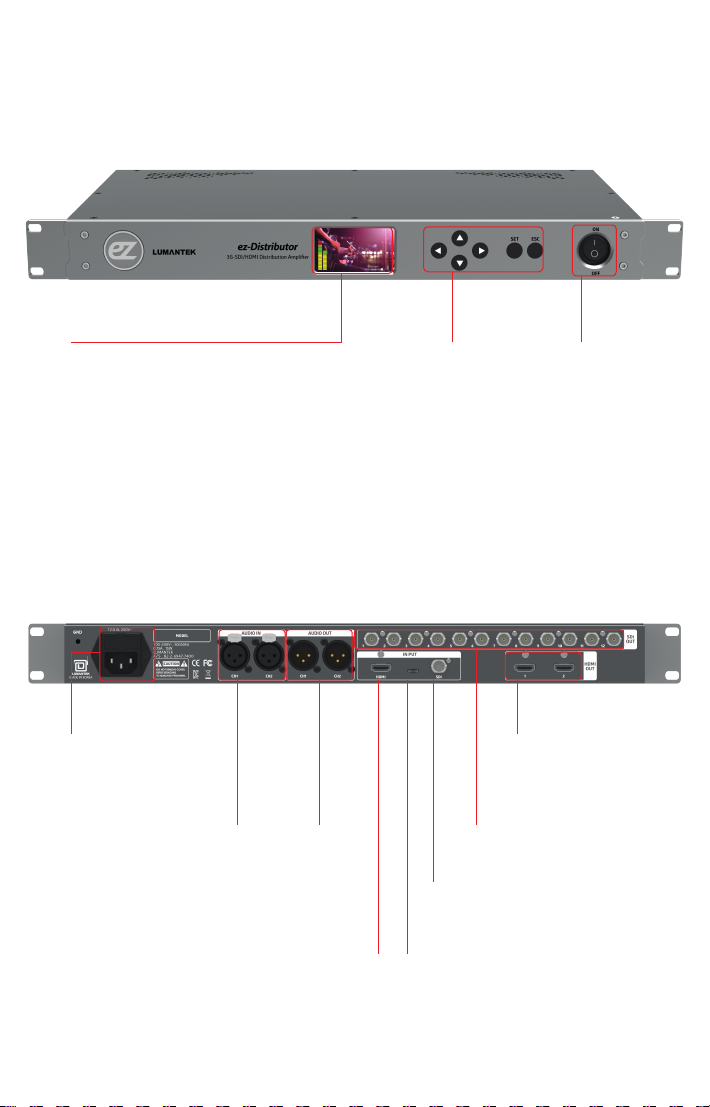

FRONT
REAR
Menu Setting Buttons
Setting input video and audio’s menu
Power Switch
AC Power ON/OFF switch
LCD Diplay
Input Video Display
Input Video Resolution
Audio Level Meter
AC Power
AC Power
(100 -240V, 50/60Hz)
Analog Audio In
XLR(Female) x 2
Analog Audio Out
XLR(Male) x 2
SDI In
Video input x 1 (BNC Connector)
SDI Out
Video output x 12 (BNC Connector)
HDMI IN
Video input x 1 (HDMI Type A)
USB2.0
Update (Micro USB Type)
HDMI Out
Video output x 2
(HDMI Type A)
02. ez-Distributor Interface
- ez-Distributor System Information
05
Press , and active menu-box
This show which input
is being displayed now.
Press , change from SDI to HDMI. And Press
SET
SET
ESC
SDI
HDMI
Press , go back to home menu.
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
SDI
HDMI

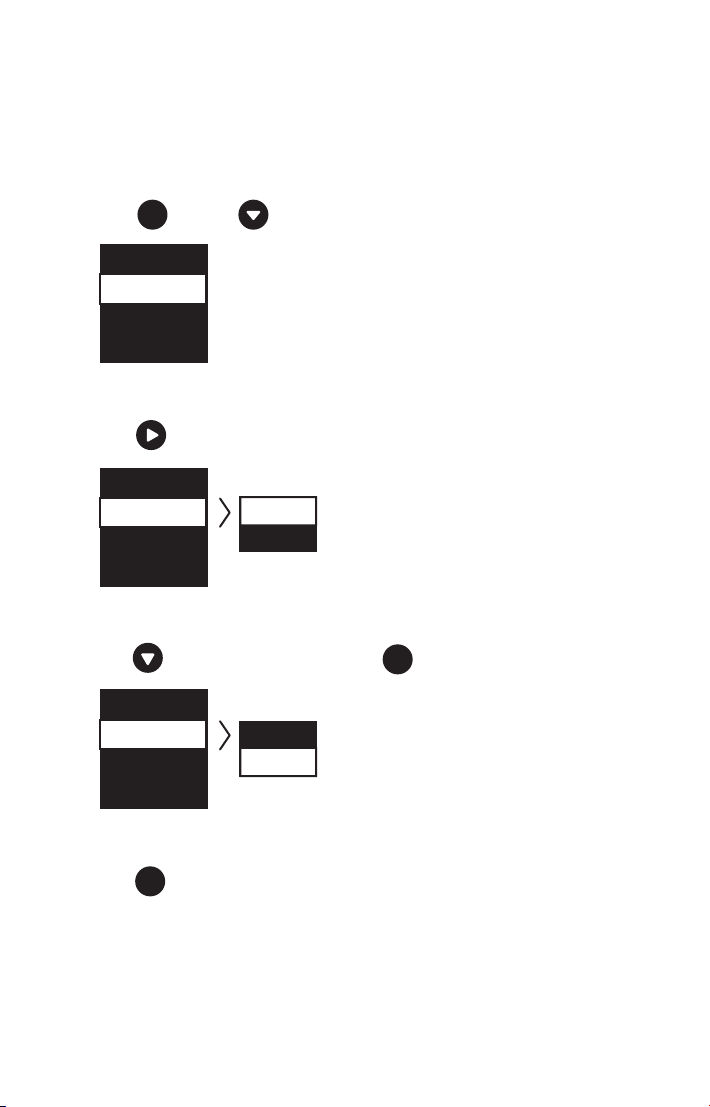

03. ez-Distributor Menu Setting Process
- Video Input Setting
①
Press , and active sub-menu box to choose SDI or HDMI
②
③
④
06
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
Press , and press
Press , change from INT to EXT. And Press
SET
SET
ESC
INT
EXT
INT
EXT
Press , go back to home menu.
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
①
Press , and active the sub-menu box to choose INT or EXT
②
③
④
07
03. ez-Distributor Menu Setting Process
- Audio Input Setting
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
Press , and press 2 times
Press , change from 0dB to -10dB. And Press
SET
SET
ESC
0dB
-10dB
Press , go back to home menu.
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
①
Press , and active sub-menu box to choose two kinds of Gains.
This process is only working at EXT setting.
If you set with INT, then you won’t get any sub-menu box.
This show which Gain
Value is being selected now
(Default: -10dB)
②
③
④
0dB
-10dB
08
03. ez-Distributor Menu Setting Process
- Audio Gain Setting (About EXT Audio)
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
Press , and press 3 times.
SET
ESC
FPGA : 1.0
F/W : 1.0
Press , go back to home menu.
VIDEO INPUT
AUDIO INPUT
AUDIO GAIN
S/W VERSION
①
Press , and active sub-menu box to check two kinds of S/W versions
②
④
09
03. ez-Distributor Menu Setting Process
- Check Software Version
① ez-Distributor Main Frame
② Power Cable
10
04. Product Components
Data Input
SDI Video Input: SD/HD/3G-SDI (BNC 75Ω) x1
HDMI Video Input: SD/HD/3G x1
Video Formats
- [email protected]/60
- 720x576i@50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@23.94/24/25/29.97/30
- 1920x1080p@50/59.94/60
Audio Input
XLR (Female) x2
Data Output
SDI Video Output: SD/HD/3G-SDI (BNC 75Ω) x12
HDMI Video Output: SD/HD/3G x2
Video Formats
- [email protected]/60
- 720x576i@50
- 1280x720p@50/59.94/60
- 1920x1080i@50/59.94/60
- 1920x1080p@23.94/24/25/29.97/30
- 1920x1080p@50/59.94/60
Audio Output
XLR (Male) x2
05. Specification – ez-Distributor
Connections
USB 2.0 : Firmware Update
Display
2.7 inch TFT LCD : Input Video Display(SDI or
HDMI), Audio Level Meter Display,
Input Video Resolution Display
Electrical
Power Input: 100~240VAC @ 50/60Hz
Power Consumption: 15W (max.)
Operation Temperature: 32 to 113 ˚F / 0 to 45 ℃
Physical
Dimension: 44(H) X 478(W) X 226(D) (mm)
Weight: 6.61lb
