Lumberjack BDE1100 Installation manual

+
SAFETY AND OPERATING MANUAL
CHIP COLLECTOR EXTRACTOR
BDE1100
ORIGINAL INSTRUCTIONS
BDE1100

TABLE OF CONTENTS
Welcome to Lumberjack!
Dear customer, Congratulations on your purchase. Before using the
Product for the first time please be sure to read these instructions for use.
They provide you with all information necessary for using the product safely and to
ensure its long service life.
Closely observe all safety information in these instructions!
General Power Tool Safety Warnings………………………………….…......01
Symbols & Cable Rating Chart ……….…………………………………….………05
Machine Details and Product features……….…………………………….….06
Assembly……………………………………………………………………………………..07
Operation…………………………………………………………………………………….08
Maintenance and Service…………………………………………………………….08
Lumberjack Guarantee…………………………………………………………………09

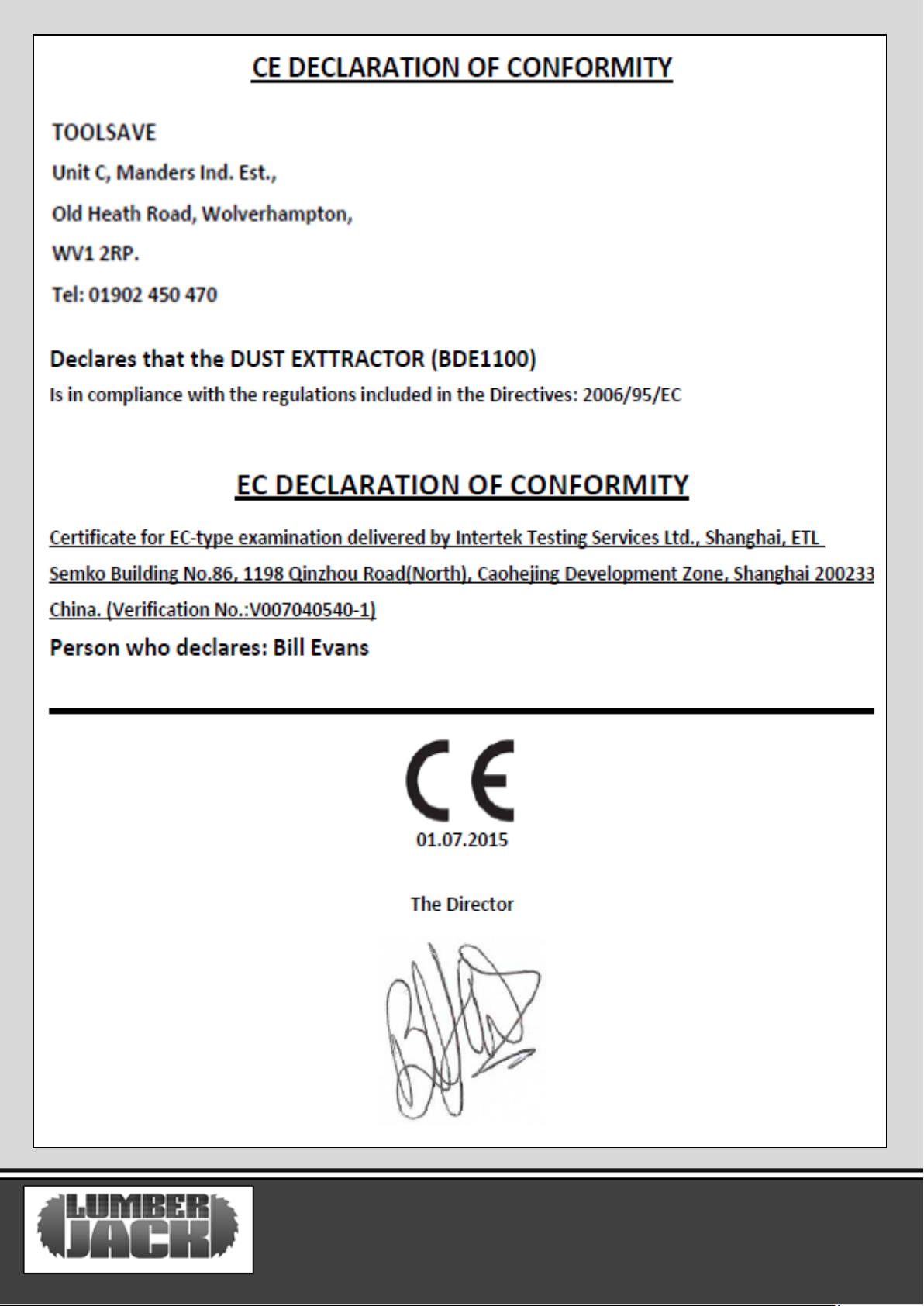

Declaration of conformity……………………………………………………………11

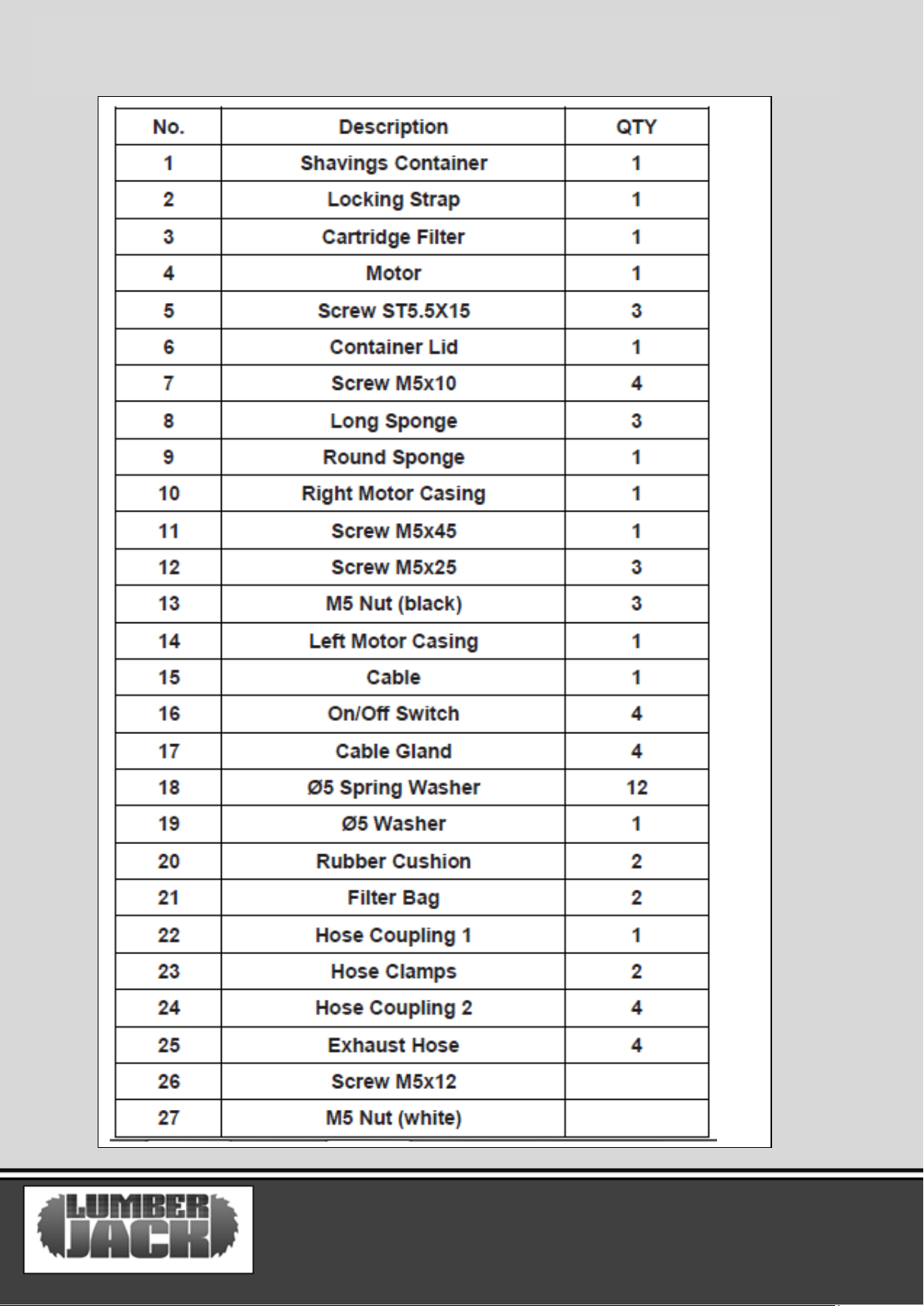

Parts list……………………………………………………………………………………...12

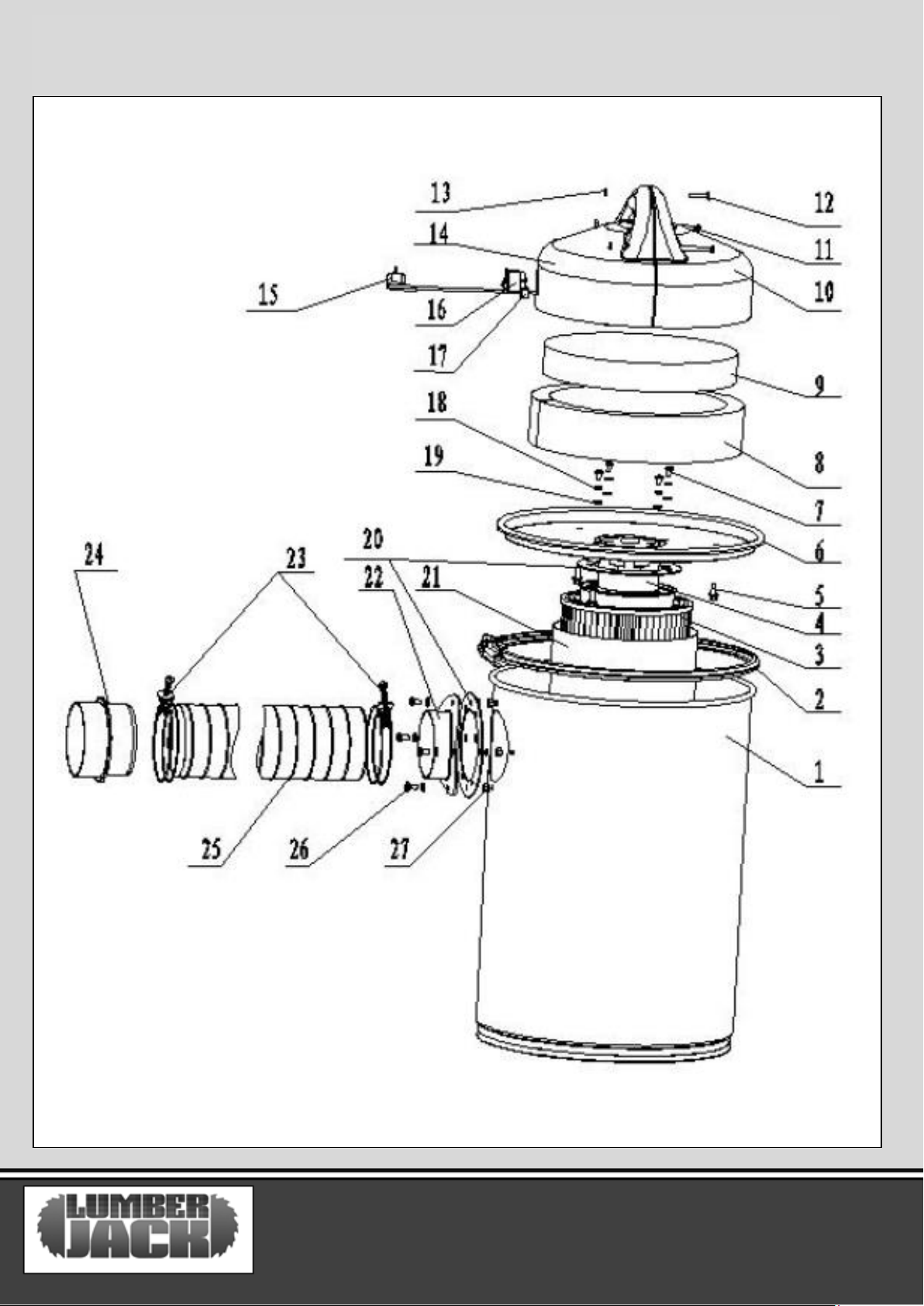

Parts Diagram………………………………………………………………………………13
BDE1100

BDE1100 01
GENERAL POWER TOOL SAFETY WARNINGS
WARNING Read all safety warnings and
all instructions. Failure to follow the warnings
and instructions may result in electric shock, fire
and/or serious injury.
Save all warnings and instructions for
future reference. The term "power tool" in
the warnings refers to your electric (corded)
power tool or battery-operated (cordless) power
tool.
1. Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or
fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2. Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do not use
any adapter plugs with grounded power tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
b) Avoid body contact with grounded surfaces,
such as pipes, radiators, ranges and
refrigerators.There is an increased risk of
electric shock if your body is grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
e) When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a
cord suitable for outdoor use reduces the risk of
electric shock.
f) If operating a power tool in a damp location is
unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk
of electric shock.
3. Personal safety
a) Stay alert, watch what you are doing and use
common sense when operating a power tool. Do
not use a power tool while you are tired or under
the influence of drugs, alcohol or medication. A
moment of inattention while operating power
tools may result in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
c) Prevent unintentional starting. Ensure the
switch is in the off position before connecting to
power source and/or battery pack, picking up or
carrying the tool. Carrying power tools with your
finger on the switch or energising power tools that
have the switch on invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.

BDE1100 02
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
4. Power tool use and care
a) Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
b) Do not use the power tool if the switch does
not turn it on and off. Any power tool that
cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts and
any other condition that may affect the power
tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused
by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier
g) Use the power tool, accessories and tool bits
etc. in accordance with these instructions, taking
into account the working conditions and the work
to be performed. Use of the power tool for
operations different from those intended could
result in a hazardous situation.
5. Service
a) Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
b) If the replacement of the supply cord is
necessary, this has to be done by the
manufacturer or its agent in order to avoid a
safety hazard.
6. Battery Tool Use and Care
a) Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
b) Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury or fire.
GENERAL POWER TOOL SAFETY WARNINGS

BDE1100 03
GENERAL POWER TOOL SAFETY WARNINGS
c) When Battery pack is not in use, keep it away
from other metal objects, like paper clips, coins,
keys, nails, screws or other small metal object
that can make a connection from one terminal
to another. Shorting the battery terminals
together may cause burns or a fire.
D) User abusive conditions, liquid may be
ejected from the battery; Avoid contact. If
contact accidentally occurs, flush with copious
amounts of water. If liquid contacts eyes, seek
medical help immediately. Liquid ejected from
the batter may cause irritation or burns.
7. Additional Safety and working
Instructions
7.1. Dust from materials such as lead-containing
coatings, some wood types, minerals and
metals can be harmful to one’s health and
cause allergic reactions, leading to respiratory
infections and/or cancer. Materials containing
asbestos may only be worked by specialists.
Observe the relevant regulations in your country
for the materials to be worked.
7.2. Prevent dust accumulation at the
workplace. Dust can easily ignite.
8. Safety Warnings for Dust Extractors
8.1 Do not vacuum materials that are harmful
to one’s health, e. g. dust from beech or oak
wood, masonry dust or asbestos. These
materials are considered carcinogenic.
8.2 Use the dust extractor only when you fully
understand and can perform all functions
without limitation, or have received
appropriate instructions. A thorough
introduction reduces operating errors and
injuries.
8.3 Do not vacuum inflammable or explosive
fluids; for example benzene, oil, alcohol or
solvents. Do not vacuum hot or burning dust.
Do not operate the machine in rooms where the
danger of an explosion exists. The dusts, vapours
or fluids can ignite or explode.
8.5 The dust extractor may only be used and
stored indoors. The penetration of rain or
moisture into the dust extractor lid increases the
risk of an electric shock.
8.6 When operating the dust extractor in damp
environments, use a residual current device
(RCD). Using a residual current device (RCD)
reduces the risk of an electric shock.
8.7 Connect the dust extractor to a properly
earthed mains supply. The socket outlet and the
extension cable must have an operative
protective conductor.
8.8 Before each use check the dust extractor,
cable and plug. Do not use the dust extractor
when defects are detected. Do not open the dust
extractor yourself; have it repaired only by
qualified personnel using original spare parts.
Damaged dust extractor, cables and plugs
increase the risk of an electric shock.
8.9 Do not drive over, crush or stretch the cable.
Do not pull the cable to unplug the plug from the
socket outlet or to move the dust extractor.
Damaged cables increase the risk of an electric
shock.
8.10 During work breaks, when not in use or
when working on the machine (e. g. changing tool
inserts, repairs, cleaning, adjustments), unplug
the mains plug. This safety measure prevents
accidental starting of the dust extractor.

BDE1100 04
GENERAL POWER TOOL SAFETY WARNINGS
8.11 Provide for good ventilation at the working
place.
8.12 Supervise children. This will ensure that
children do not play with the dust extractor.
8.13 Have the dust extractor repaired only
through qualified specialists and only using
original spare parts. This ensures that the safety
of your dust extractor is maintained.
8.14 Before restarting, check the proper
condition of the vacuum hose. When doing this
leave the vacuum hose mounted to the dust
extractor to avoid dust from coming out.
Otherwise, you could possible inhale dust.
8.15 Do not use the dust extractor as a seat.
The dust extractor could become damaged.
8.16 Use the mains cable and the vacuum hose
carefully. Other persons could be harmed.
10. Using an Extension Cable.
10.1. If an extension cable is required, use an
approved triple core extension cable suitable for
the power input of the tool.
10.2. Grounded tools always require a three wire
extension cable.
10.3. As the distance from the supply outlet
increases you must use a heavier gauge extension
cable. Using extension cables with inadequately
sized wire causes a serious drop in voltage,
resulting in loss of power and possible tool
damage.
10.4. The smaller the gauge number of the wire
the greater the capacity of the cord.
10.5. When using a cable reel, always unwind the
cable completely.

SYMBOLS AND POWER RATING CHART
Danger! –Read the operating
instructions to reduce the risk of
injury.
Caution! Wear safety goggles.
Caution! Wear ear defenders. The
impact of noise can cause
damage to hearing.
Amperes
7.5M
15M
25M
30M
45M
60M
0 –2.0
6
6
6
6
6
6
2.1 –3.4
6
6
6
6
6
6
3.5 - 5.0
6
6
6
6
10
15
5.1 –7.1
10
10
10
10
15
15
7.1 –12.0
15
15
15
15
20
20
12.1 –20.0
20
20
20
20
25
-
Caution! Risk of Injury! Do
not reach into the running
saw blade.
Caution! Wear a dust mask.
BDE1100 06
BDE1100 05

BDE1100 08
BDE1100 06
MACHINE DETAILS AND PRODUCT FEATURES
Machine Details
Specifications:
Mains Voltage - 230V / 50Hz Power
Consumption - 1100W
Filtration –0.5 Microns
Filling Capacity - 50 Litres
Hose Length - 2m
Hose Diameter - 100mm
Gross Weight –12.0kg
Nett Weight –10.5kg
Package Contents:
1100W Dust Extractor
Filter Cartridge
2m Hose
5 Piece adaptors Set
Product Features
1. Motor Casing
2. Shavings Container
3. on/Off Switch
4. Locking Strap
5. Collector Hose
6. Hose Clamps
7. Hose Coupling
Intended Use
This power tool is intended to remove and
collect wood shavings only. Any other use is
considered as not intended use and any
damages or injuries resulting from this
unintended use is at operators own risk. This
item is also not intended to be used for
continuous production or production line use.

BDE1100 07
ASSEMBLY
Avoid unintentional starting of the
machine. During assembly and for all
work on the machine, the power plug
must not be connected to the mains
supply.
Carefully remove all parts included in the
delivery from their packaging.
Remove all packaging material from the
machine and the accessories provided.
Before starting the operation of the machine
for the first time, check if all parts listed in the
box content section have been supplied.
Note: Check the power tool for possible
damage. Before further use the machine,
check that all protective devices are fully
function. Any lightly damaged parts must be
carefully checked to ensure flawless operation
of the tool. All parts must be properly
mounted and all conditions fulfilled that
ensure faultless operation.
Damaged protective devices and parts must be
immediately replaced by an authorised service
centre.
Assembling the Dust Collector
In the shavings container (2) you will find all the
components of the hose collection system. Take
all parts out and check to make sure that you
have everything listed below.
8. Filter cartridge
9 .Filter bag
5 .Exhaust hose
6. 2 x hose clamps
7. Hose coupling d 100 mm
Mounting the Filter Bag
–Place filter cartridge (8) into filter bag (9).
–Fold any excess bag (9) inside the filter
cartridge (8).
–Now plug the filter cartridge (8 + 9) onto the
motor casing (10).

–Place the entire section into the shavings
container (2) and secure with locking strap (4).
–Mount the collector hose (5) to the shaving
container (2) using one of the 2 hose clamps
(6).
–Attach the other end of the collector hose (5)
to the hose coupling (7) using the other hose
clamp (6).
Operation
–Use the supplied adaptor set find the best fit
for the machine on which you intend to use the
dust collector.
–Make sure the fitting is tight and securely in
place before you start the dust collector up.
–Turn on the dust collector before the power
tool, and turn off after you have first switched
off the power tool.
Maintenance and Service
Before any work on the dust collector itself,
unplug the mains plug.
For safe and proper working, always keep the
dust collector and ventilation slots clean.
If the replacement of the supply cord is
necessary, this has to be done by an authorized
service agent in order to avoid a safety hazard.
If the dust collector should fail despite the care
taken in manufacturing and testing procedures,
repair should be carried out by an authorised
service centre.
Shavings Container (2)
Wipe out the container (2) from time to time
with a commercially available, non-scouring
cleaning agent and allow drying.
BDE1100 08
OPERATION & MAINTENANCE AND SERVICE

BDE1100 09
LUMBERJACK GUARANTEE
1. Guarantee
1.1 Lumberjack guarantees that for a
period of 12 months from the date of
purchase the components of
qualifying products (see clauses 1.2.1
to 1.2.8) will be free from defects
caused by faulty construction or
manufacture
1.2 During this period, Lumberjack, will
repair or replace free of charge any
parts which are proved to be faulty
in accordance with paragraph 1.1
providing that:
1.2.1 You follow the claims procedure
set out in clause 2.
1.2.2 Lumberjack and its Authorised
Dealers are given reasonable
opportunity after receiving notice
of the claim to examine the
product.
1.2.3 If asked to do so by lumberjack or
its Authorised Dealer, you return
the product at your own cost to
Lumberjack’s or the supplying
Authorised Dealer’s Premises -
For the examination to take place clearly
stating the Returns Material Authorisation
Number given.
1.2.4 The fault in question is not caused by
industrial use, accidental damage, fair wear
and tear, wilful damage, neglect, incorrect
electrical connection, misuse, alteration or
repair of the product without approval.
1.2.5 The product has been used in a
domestic environment only.
1.2.6 The fault does not relate to
consumable items such as blades, bearings,
drive belts or other wearing parts which
can reasonably be expected to wear at
different rates depending on usage.
1.2.7 The product has not been used for
hire purposes.
1.2.8 The product has been purchased by
you, as the guarantee is not transferable
from a private sale.

BDE1100 10
LUMBERJACK GUARANTEE
2. Claims Procedure
2.1 In the first instance please contact the
Authorised Dealer who supplied the product to
you. In our experience many initial problems
with machines that are thought to be fault due
to faulty parts are actually solved by correct
setting up or adjustment of the machine. A good
Authorised Dealer should be able to resolve the
majority of these issues much more quickly than
processing a claim under the guarantee. If a
return is requested by the Authorised Dealer or
Lumberjack, you will be provided with a Returns
Material Authorisation Number which must be
clearly stated on the returned package, and any
accompanying correspondence. Failure to
provide a Returns Material Authorisation
Number may result in item being refused
delivery.
2.2 Any issues with the product resulting in a
potential claim under the guarantee must be
reported to the Authorised Dealer from which it
was purchased within 48 hours of receipt.
2.3 If the authorised Dealer who supplied the
product to you has been unable to satisfy your
query, any claims made under this guarantee
should be made directly to Lumberjack. The
claim itself should be made in a letter setting out
the date and place of purchase, giving a brief
explanation of the problem which has led to the
claim.
2.4 Please note that it is essential that the letter of
claim reaches Lumberjack on the last day of this
guarantee at the latest. Late claims will not be
considered.
3. Limitation of Liability.
3.1 We only supply products for domestic and
private use. You agree not to use the product for
any commercial, business or resale purposes and
we have no liability to you for any loss of profit,
loss of business, business interruption or loss of
business opportunity.
3.2 This guarantee does not confer any rights
other than these expressly set out above and does
not cover any claims for consequential loss or
damage. This guarantee is offered as an extra
benefit and does not affect your statutory rights
as a consumer.
4. Notice
This guarantee applies to all product purchased
from an Authorised Dealer of Lumberjack within
the United Kingdom. Terms of guarantee may vary
in other countries.

BDE1100 11

BDE1100 12
PARTS LIST

BDE1100 13
PARTS DIAGRAM
