SLICK PAR TRI RC
User Manual
www.LuminLights.com
[e-mail]
877-842-8338

2
Congratulations on the purchase of your Lumin Lights product. With proper
care and a good working knowledge of the unit and all its controls, it will serve
you well for years to come.
Your Lumin Lights product carries a 2 year Warranty on all parts and labor
(except batteries which carries a 1 year warranty). Every unit we ship is tested
and leaves our warehouse in perfect working order. If a unit ever malfunctions
or is damaged during shipping, contact us immediately and one of our helpful
staff will assist you in repairing or replacing the unit.
Please save all original boxes and packaging in case you ever need to ship a unit
back to us for repair or replacement. Any units shipped back without the
original packaging, parts or accessories are subject to a 20% restocking fee.
If you ever need help with your product and this manual is not clear or does not
answer a specific question, you can always go to our website for demo and
instructional videos on each product. If the manual and the videos still don’t
resolve your questions, then please email or call our staff and we will personally
assist you.
1-888-266-6898
[e-mail]
www.LuminLights.com
Lumin Lights Inc. Limited Warranty
Lumin Lights Inc. warranties its products against manufacturer’s defects
and component failure for a period of 2 years on all products and
Components (except batteries which carry a 1 year warranty) to the original
purchaser. Warranty is not transferrable to a second owner.
If a warranty claim is filed, customer must present proof of purchase and all
original packaging.
Lumin Lights will inspect all warrantee claims and inspect each unit that is
returned. If there is evidence of tampering, modifications or obvious abuse,
the product will not be covered by this warranty.
Lumin Lights will repair or replace at its discretion all warrantied units.

3
CAUTION!
This device has left our premises in perfect condition. In order to maintain this condition
and to ensure safe and reliable operation, it is necessary for the user to follow the safety
instructions and warning notes written in this manual.
Never use this device in a wet area or expose to water. Doing so may result in damage
to the unit or physical injury to the operator.
If power linking, do not connect more than 3 fixtures together as this will result in
blowing the fuse in the first light. More than 5 units can be powered off the same voltage
line with the use of an outlet strip by running the power cord from several units to the
power strip and then connecting no more than 3 additional units in series using the
power in, power outs of the lights. If a fuse should blow, replace it with the same exact
type. The Fuse is located in the power plug socket. Use a flat edge standard
screwdriver to gently lift the plastic tab with the picture of a fuse on it.
Do not open the lights or in any way alter the light or wires as this will void your
warrantee. If there is ever a problem with your unit, contact Lumin Lights and one of our
friendly staff will assist you with repairs or replacements.
.
IMPORTANT!
Do not throw out, destroy, rip, mark up, write on, cut or modify the box and
packing materials. If you ever need to ship your unit back for repairs or
replacement, the unit must be shipped back in the original box with all packing
material and accessories. Failure to do so can result in damage to the unit during
shipping and will void your warrantee. Any units being returned without all
original packaging and accessories or whose packaging and accessories have been
damaged, lost, modified or in any other way not in original sellable condition will
be subject to a 20% restocking fee. SAVE YOUR BOXES OR AT LEAST A FEW OF THEM FOR
REPAIRS AND RETURNS.

4
Package Contents:
1 Slick Par Tri
1 plastic bag for Slick Par Tri
1 Double Yoke Hanging bracket
2 Bracket Knobs
2 black rubber bracket knob washers
1 small zip lock bag for Knobs and rubber washers
1 Edison to IEC power cable
2 square pieces of Styrofoam inside box
1 product manual
1 Remote Control
1 Plastic bag for Remote control
Features:
Voltage: AC110-240V 50/60Hz
Power: 30W
Light source: 9*3W LEDS(9*3W RGB)(3 in 1)
4 operation modes: Stand Alone, DMX, Sound Active, Master/Slave
Sound controlled via built-in microphone
3 / 6 DMX channels selectable
IR Remote
Advantages of LED-technology: extremely long life, low power consumption minimal heat emission
Packing Size: 35x18x23cm
Unit Dimensions: 8.25 X 8.25 X 4.75
Weight: 5.6 lbs (3.8 kgs)

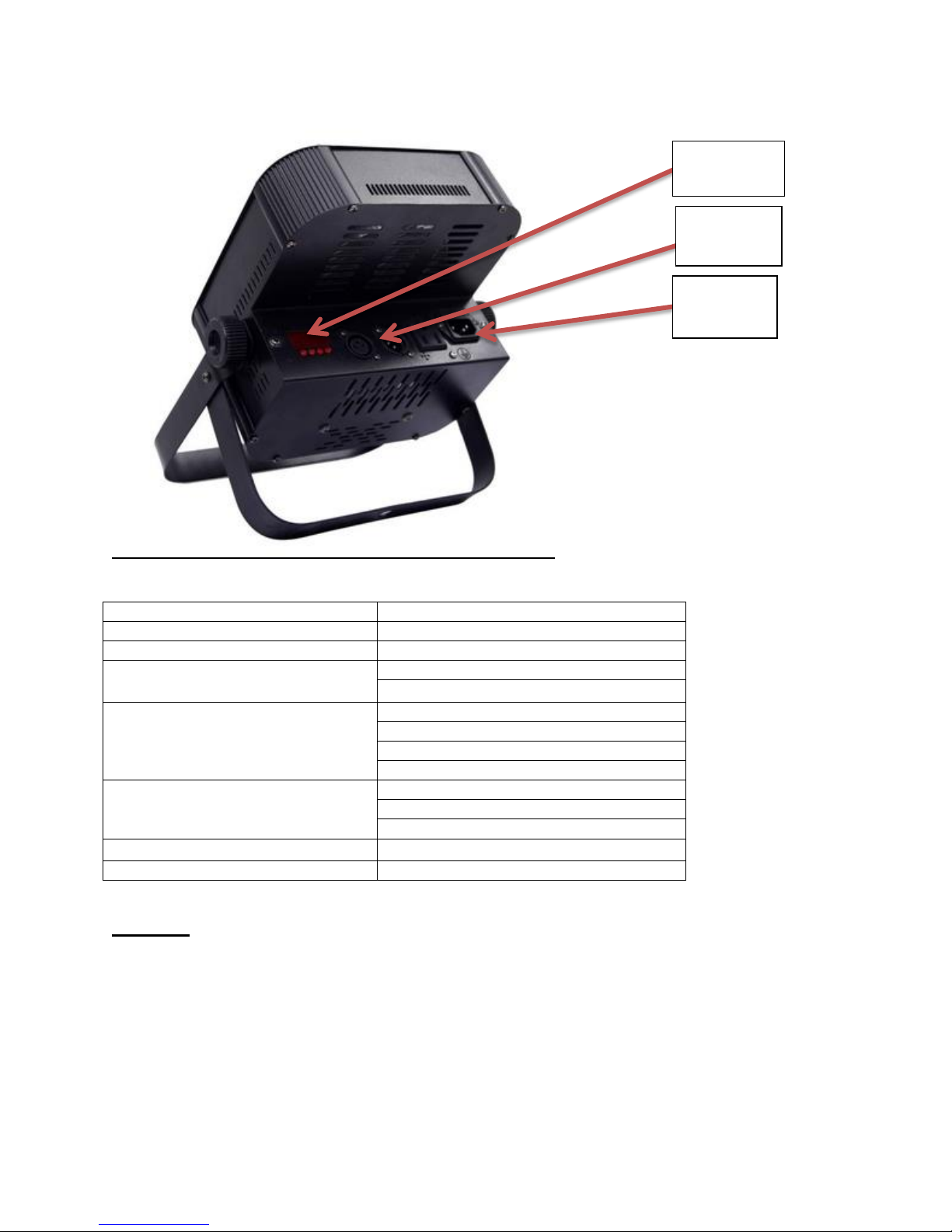

Back Panel:

5
LCD display:
Display
Function
ADDR (DMX Address)
A001-A512
CHND (DMX Channel Mode)
3/6 CH
SLND(Master and Slave)
NAST(Master)
SLAU（Slave）
SHND (Built-In Stand Alone
Programs)
SOUN: sound Active Mode
COLO: color(COL1 – COL7 & Custom)
AUTO
FADE: color fade(speed: SP01-SP08)
MANU (manual color adjusted)
RED(0-255)
GREE(0-255)
BLUE(0-255)
TEST
R、G、B RGB color Auto-check
FHRS
Work times
Operation:
To turn the unit on, plug in the supplied power cable to the power input socket located on the
back of the unit and connect the other end to an electrical wall outlet. Use the 4 button LCD
display to navigate through the various menus listed above. With each press of the MENU
button, the display will advance to the next menu item. Once you get to the menu item you
want, press the ENTER button to enter the value screen for that menu item. Then use the
UP/DOWN buttons to change the value until you get to the setting you want. Then press the
ENTER button once and the display will revert back to the previous screen. Immediately hit
the ENTER button again and the display will go back to the value you just set. Wait 15
Power In
Power Out
DMX IN
DMX OUT
4 Button
LCD Display

6
seconds for the light to store and save the setting. Once the light has saved the setting, it will
revert to the mode it was previously in. (Alternately, you can simply power off and power on
the light after the second press of the ENTER button to save the setting and return the light to
its previous mode).
Stand Alone mode will utilize the SHND menu. There you can set the light into Sound Active
Mode, Color Mode, Auto or Fade Mode.
1. Sound Mode:
A. Press the MENI Button repeatedly until the display shows SHND.
B. Press ENTER and then Press the UP/DOWN buttons until the displays shows
SOUND and press ENTER. The display will show S1, S2, S3 with each
progressive press of the ENTER button. Each setting lets the light react
differently in sound active mode.
C. Choose a setting and press ENTER 2 times to save the setting and wait 15
seconds or simply power the light off and on again to save time.
2. Color Mode:
A. Press the MENI Button repeatedly until the display shows SHND.
B. Press ENTER and then Press the UP/DOWN buttons until the display reads
COLO, then press ENTER.
C. The display will change to NAnu which is the one customizable color you can
program. Press the UP/DOWN buttons until the display reads COL1 which will
be Red. With each press of the UP button, the display will advance to the next
preprogrammed color (COL 2, COL3, COL4, etc.)
D. Once you find the color you want, press ENTER once and immediately press
ENTER a second time to set and store the color (Alternately, you can simply
power off and power on the light after the second press of the ENTER button to
save the setting and return the light to the saved color).
Manual Color Adjustment (NAnu):
If you are using the light in stand-alone mode and none of the preset colors are the
exact shade you need, you can manually adjust the brightness of each individual color in
order to achieve the particular shade you want. For example, if the built in Pink color is too
light and you want it to be a little darker and more towards a lavender or purple , then you can
go into the MANU menu and turn the brightness of the Red LEDs down so that the blue
shows up more which would help to get a lavender or purple color.
To adjust the color manually:
A. Press the MENI Button repeatedly until the display shows SHND.
B. Press ENTER and Press the UP/DOWN buttons until the displays reads MANU
and then press ENTER.
C. The display will read R255. R stands for Red and 255 is the brightness setting.
The brightness scale goes from 0 (LEDs of that color are off) to 255 (LEDs of
that color are at full brightness or Intensity).
D. To select a different color, press the UP/DOWN buttons until you get to the
color you want. Then press ENTER and the display will start flashing (Example:
B255). Use the UP/DOWN buttons to change the value and then press enter
once (Display changes to B255 and is solid (not blinking), Immediately press
ENTER again and the display will read B255 and be flashing (some software
version will not flash), then wait 15 seconds for the light to store the setting, or

7
simply power off and on the light and the setting will be stored.
3. AUTO Mode:
AUTO MODE is a preprogrammed show where the LEDS will “jump” from one
color to the next continuously. To save this setting:
A. Press ENTER when the display shows AUTO and the display will change to
SP1. SP1 is the speed at which the auto program will move from color to color.
B. Press the UP/DOWN buttons to increase or decrease the speed from SP1(Slow)
to SP8 (Fast)
C. Once you chose your speed, repeat the procedure described in section E
above.
4. Fade Mode:
A. Press the MENI Button repeatedly until the display shows SHND.
B. Press ENTER and use the UP/DOWN buttons to navigate to FADE, then press
ENTER..
C. Press the UP/DOWN buttons until the display reads FADE, then press ENTER.
D. The display will change to SP1 (Speed 1). Use the UP/DOWN buttons to change
the speed or rate of the Fades. The higher the #, the faster the color fades.
E. Once the Fade speed is to your liking, repeat the procedure in Section E above.
5. Test Mode:
Test Mode (TEST) will test to see if all the LED colors are working by cycling
through them). To get to TEST mode:
A. Press the MENU Button repeatedly until the display shows TEST.
B. Press ENTER and the test will begin. The light will cycle: Red, Green, Blue,
White/Amber, Mixed colors etc., continuously until the MENU button is pressed
again or the light is powered off and on again.
6. VERSION:
VERSION stands for the software version of the programming on the light. To
access, press menu repeatedly until the display shows a “u” with a # after it. The
number is the software version. As of the writing of this manual, we are up to u11.
7. Master/Slave Mode:
MASTER/SLAVE mode allows the light to either set as a Master to control other
lights, or a Slave which will follow directions from a Master light. To set the light into Master
or Slave mode:
A. Press the MENU button repeatedly until SLND shows on the display, then press
ENTER.
B. Use the UP/DOWN buttons to change the display to either MAST or SLAV and
then press ENTER once and immediately a second time to save the setting.
Wait 15 seconds for the setting to save or simply power off and on the unit.
8. DMX Mode (ADDR):
DMX Mode will allow you to control the light remotely with either a DMX Hardware
control board or Software Controller. To set the DMX starting address of the

8
fixture:
A. Press the MENU button repeatedly until ADDR shows on the display and then
press ENTER.
B. The display will change and show 001. Use the UP/DOWN buttons to change
the DMX starting address to the DMX address that your controller needs in
order to control the light.
C. Once the address is set, press ENTER once and immediately press it again to
store the DMX starting address and wait 15 seconds for the setting to save or
simply power off and on the unit.
9. DMX Channel Mode:
The DMX channel mode means how many channels will the light operate in and
what particular functions of the light will be controlled on each channel. This unit
has either a 4 channel mode or a 7 channel mode. (Refer to the DMX chart for
channel assignments in each mode). To set the DMX Channel Mode:
A. Press the MENU button repeatedly until CHND shows on the display, then
press ENTER.
B. Uses the UP/DOWN buttons to change the display to either 4CH or 7CH and
press ENTER once and then immediately press ENTER again to save the
setting. Wait 15 seconds for the setting to save or simply power off and on the
unit.
DMX Channel Assignment Charts:
3 Channel:
Channel
Channel values
Color
1channel
0-255
Red
2 channel
0-255
Green
3channel
0-255
Blue
6 Channel:
Channel
Channel
values
Function
channel 1
0 - 255
Red
Channel 2
0 - 255
Green
Channel 3
0 – 255
Blue
Channel 4
0 -255
Auto Operation
Channel 5
0 - 255
Strobe
Channel 6
0 -255
Dimmer

9
Remote Control Operation:
1. Turn the light on and press the MENU button until the display shows ADDR and then
press ENTER and hold it in for 2 seconds.
2. The display will change to rFrt and flash for a few seconds.
3. Aim the IR eye on the remote with the IR eye on the light and press any key on the
remote to program the light to accept the remote as a controller. Note: with must be
done within 2 or 3 seconds or else the light will revert back to its previous menu.
Now your remote is active and you can control many of the aspects of your light
such as Color, Strobe, Black Out, DMX Address setting, Manual Color adjustment,
fades and Auto program.

10

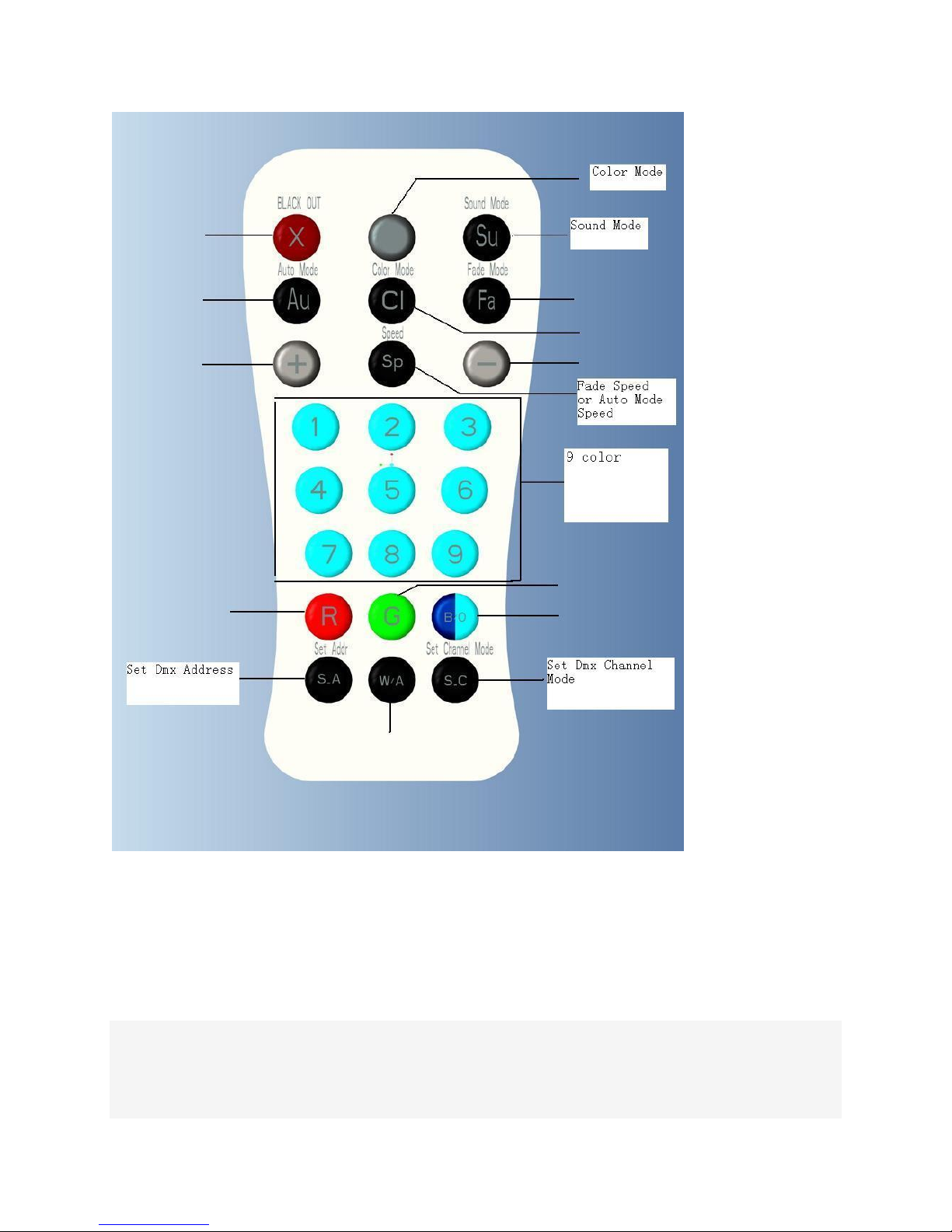

Set Dmx Address:
Push the remote control (S.A) key for 2 seconds, and then the digital display will
show [Addr] and will be flashing. Press the number keys to enter the DMX
address and wait 5 seconds to confirm and set.
Set Dmx Channel Mode:
Push the remote control (S.C) key for 2 seconds, then the digital display will show
[Chnd] and will be flashing. Press the number keys to enter the DMX Channel
Mode and wait 5 seconds to confirm and set.
Each channel mode corresponds to the number pad. So for example, DMX
channel mode 1 would be chosen by pressing the number one on the remote.
Mode 2 would be activated by pressing the number 2 on the remote and so on.
