Lunatec Hydration spray bottle User manual

DIRECTIONS FOR USE
21 3 4 5 6 7 8
Fill
a
b
c
Your hydration spray bottle combines the functionality of a kitchen faucet, garden hose
and water bottle into an easy-to-use design with mist, stream and shower modes for
cooling, cleaning and drinking.
Please contact us if you need any help with your bottle.
SPRAY MODES
ab
There are 2 operating modes called Stealth
and Pulse. Stealth is ideal for drinking,
misting and conserving pressure. Pulse is
ideal for cleaning and conserving water.
a. Expose adaptor hole to use in Pulse mode.
b. Cover adaptor hole to use in Stealth mode.
adaptor hole
1. Remove trigger lock (installed for shipping) and discard.
2. Clean by filling base half full with soapy water, twist on the lid, shake to clean and
then spray soapy water through the unit. Repeat with fresh water.
3. Fill base to fill line on 750ml bottle, 32 oz. mark on 1000mL bottle and
19 oz. on 650mL bottle.
4. Attach bottle lid to top of the bottle and close frimly by rotating clockwise.
5. Pump no more than 6 times. This will pressurize the unit to approximately 35 psi.
Take note of the force required on the last pump and use this as a guide for when
to stop pumping on future charges so that you do not over-pressurize the unit.
6. To release water, firmly press the colored circle on the back of the trigger.
7. Select spray patterns by adjusting the nozzle cap.
a. Mist – rotate the nozzle clockwise until it stops.
b. Stream – from mist position rotate the nozzle cap counterclockwise ¼ to ½ turn.
c. Shower – remove the nozzle cap.
8. The safest method to depressurize the unit is to hold it upside down, while
keeping the weighted screen above the water line. Then press the trigger to
spray out compressed air.
ACCESSORIES
Looking for accessories?
Visit www.lunatecgear.com for a
complete line of custom accessories
made to enhance your Lunatec
Hydration Spray Bottle.
858.653.0401
lunatecgear.com
[e-mail]
STUCK? NEED HELP? CALL US 858.653.0401 or EMAIL [email protected]

1
7
13
2
8
15
3
9
16
4
10
17
19
5
11
18
6
12
14
MAINTENANCE
FUN DRINKING TIP

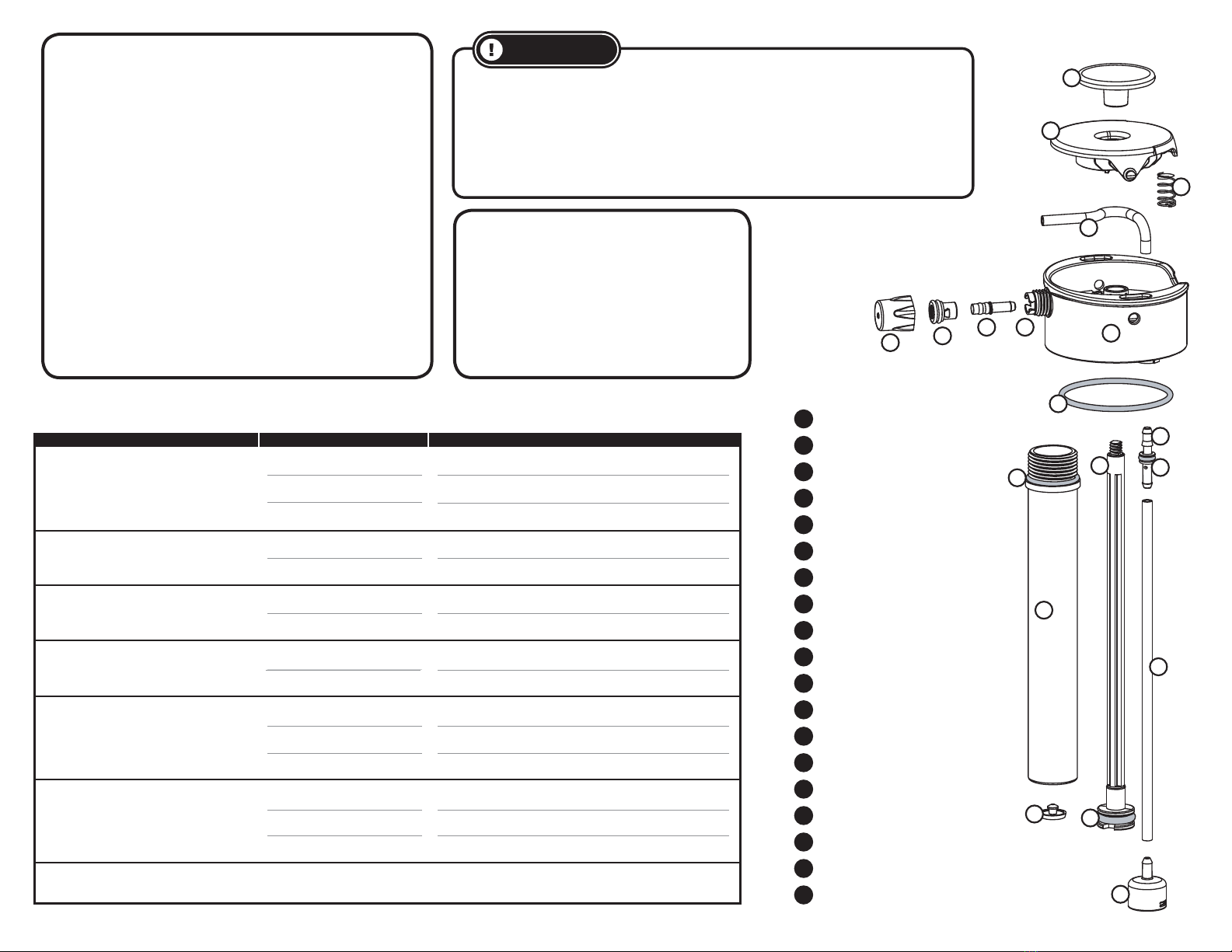

PARTS ID
Pump Handle
Trigger
Spring
Pinch Tube
Lid
Lid Nozzle
Nozzle Adapter
Soft Nozzle
Nozzle Cap
Lid O-ring
Draw Tube Adapter
Draw Tube O-ring
Piston Rod
Pump Barrel O-ring
Pump Barrel
Draw
Umbrella Valve
Piston O-ring
Weighted Screen
1
7
13
2
8
15
3
9
16
4
10
17
19
5
11
18
6
12
14
PROBLEM REASON SOLUTION
TROUBLESHOOTING CHART
Tube
• Clean with soap and water as needed. The base is
dishwasher safe for top ack only. The lid is NOT
dishwasher safe.
• Do not put the unit in the freezer.
• Store out of direct sunlight.
• Do not store pressurized for more than 36 hours.
• Spray air through the unit to dry out the silicone tube
before storing for long periods.
• It’s a good idea to lock the trigger in the ON position
when storing for long periods to keep the Pinch Tube
from kinking.
• Spare parts are available on unatecgear.com.
• Instructional videos are available on product pages at
lunatecgear.com.
• For help, contact us at [email protected]
Unit does not build or hold pressure
Lid O-ring is missing Replacement parts available at lunatecgear.com
Pump Barrel is too loose Tighten Pump Barrel
Something else Email [email protected] or call 858.653.0401
Soft Nozzle is missing Replacement parts available at lunatecgear.com
Wear and tear on Soft Nozzle Replacement parts available at lunatecgear.com
Something else Email [email protected] or call 858.653.0401
Wear and tear Try sanding 0.5 mm of open side of the Nozzle Cap
If that doesn’t work, order a new Nozzle Cap.
Operating mode is in Pulse Switch to Stealth mode
Something else Email [email protected] or call 858.653.0401
Operating mode is in Pulse Switch to Stealth mode
Pinch Tube is kinked Remove trigger and unkink Pinch Tube
Something Else Email [email protected] or call 858.653.0401
Umbrella Valve is not sealing Replacement parts available at lunatecgear.com
Pump Barrel is too loose Tighten Pump Barrel
Pinch Tube is damaged Replacement parts available at lunatecgear.com
Something else Email [email protected] or call 858.653.0401
Builds pressure but does not spray
Water is getting inside of pump barrel
Water is leaking from under trigger
Leaks around Nozzle Cap
Mist is not fine
Spray is too noisy
WARNINGS
• Do not over-pressurize the unit.
• Do not use liquids with temperatures above 120ºF/49ºC.
• CHOKING HAZARD Unit contains small parts. Not suitable for children under 3 years.
• Only use hydration spray lids with Lunatec bottle bases.
• Do not use lid on any metal or glass bases.
FAILURE TO READ AND FOLLOW THE ABOVE WARNINGS AND OPERATING INSTRUCTIONS COULD
LEAD TO SERIOUS BODILY INJURY.
1. Remove the nozzle cap to allow more
water flow.
2. Put your mouth on the nozzle like you
would a drinking straw.
3. Spray the water into your mouth
instead of sucking!
