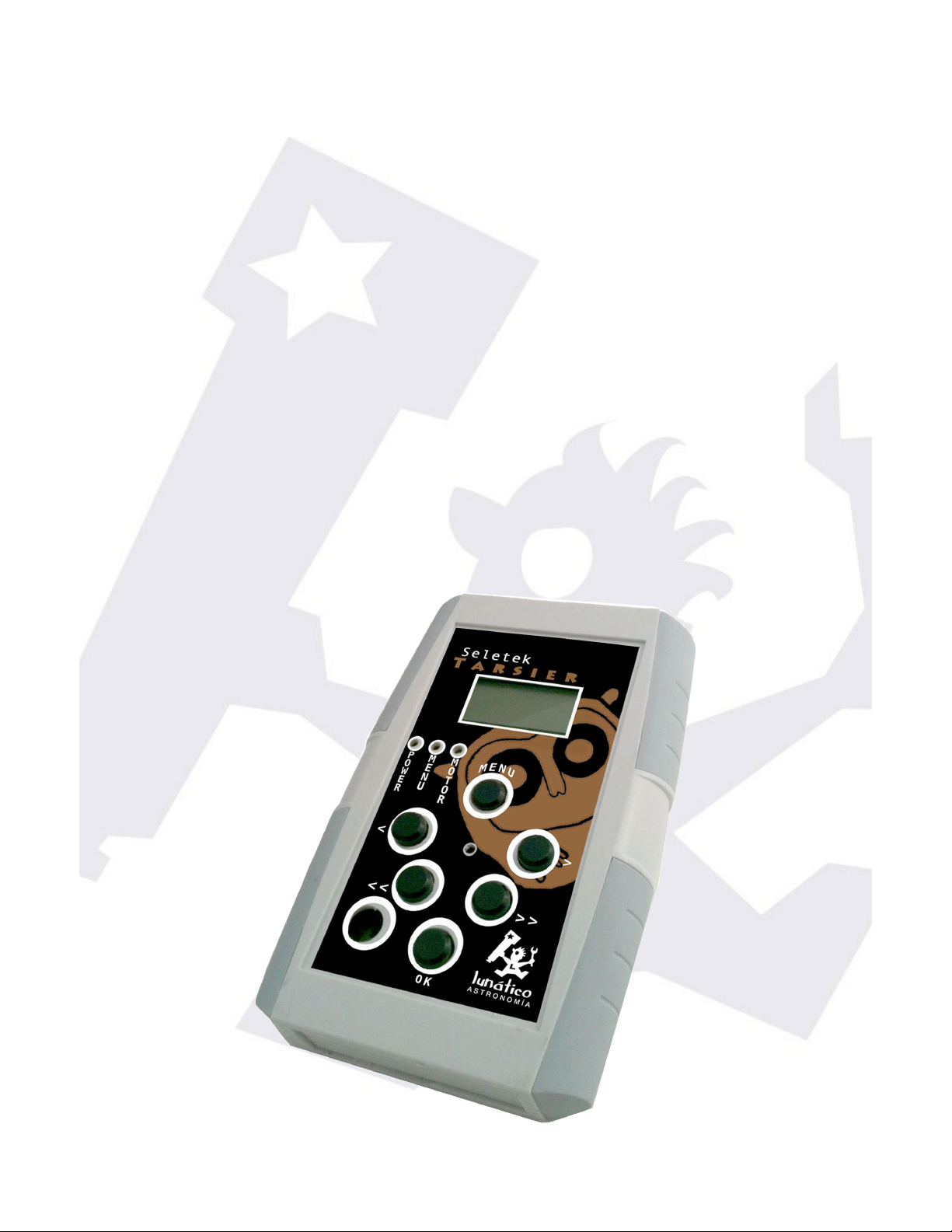

Lunatico Seletek Tarsier User manual

Seletek
Seletek
Tarsier
Tarsier
User's manual
Tarsier users' manual rev. 1.1 1 21/11/2013

The Seletek Tarsier has been designed to assist in the task of focusing a telescope in those
situations where a computer is not desirable or available.
While it will not perform auto-focusing functions it will make the task of focusing much easier
as:
–it will drive almost any kind of motor from inexpensive DC ones to high accuracy stepper
ones
–as you won't touch the focus knob the scope will not vibrate thus making the process
faster and more accurate
–focus positions can be permanently stored for a repeatable positioning of the imaging
train
–it includes a display to make the process much easier
–and last if a careful calibration is done it will track the temperature as the session
progresses and will automatically move the focuser to the correct position avoiding the
need to manually refocus every time.
Setup
For the device to operate you will have to supply:
a 12V DC power supply (standard power jack positive inside)
a suitable motor coupled to your telescope focuser:
either a stepper one (any of the Seletek focuser motors and plates apart from
motors by Technical Innovations Moonlite FeatherTouch Lakeside...)
These motors will use the DB9 connector of the Tarsier
or an inexpensive DC one (from Orion Rigel systems or many others)
These ones will connect to the mono audio jack of the Tarsier
Optionally an external temperature sensor (again compatible with all other Seletek
models)
Tarsier users' manual rev. 1.1 2 21/11/2013

Operation of the Tarsier
One powered we'll be presented with the main screen: Tarsier
P: 0
… where we can see the actual position of the motor (“0”). If
we have installed the optional temperature sensor the
current temp. in ºC will also be displayed
T: +20 Cº
P: 0
First please note the buttons can be pressed in two ways a “ normal ” one button pressed and
released in a few tenths of a second and a “ long ” one if the button is kept pressed for longer.

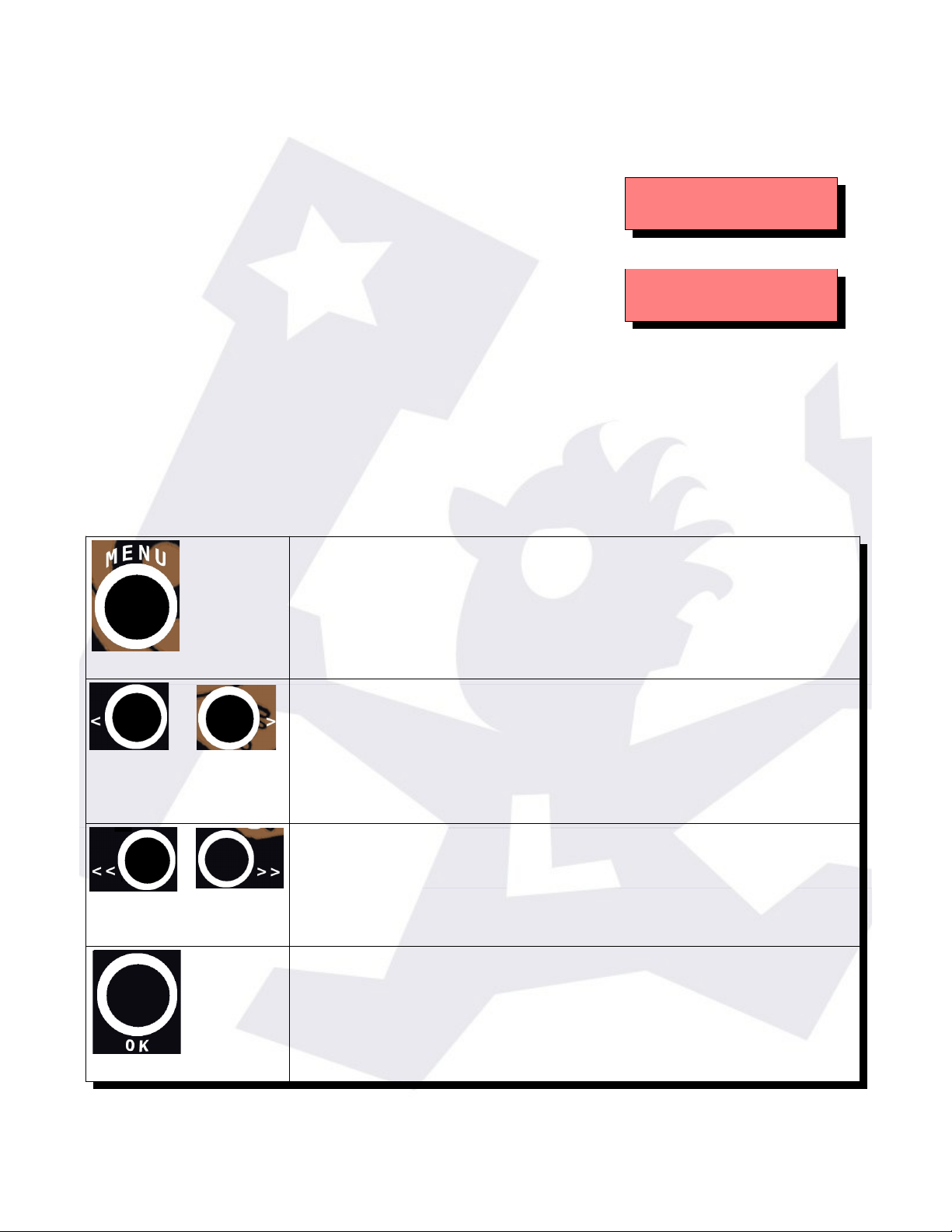

So going to business the buttons will operate in the following way:
“Menu”
[ normal press ] access the →MENU
[ long press ] save the current position see later in the →
manual
“>” and “<” move to either direction in a “slow” way that →
meaning:
–[ normal press ] the motor will move a small number of
steps (you can define that number from the MENU)
–[ long press ] it will move continuously at the slowest
speed defined until the button is released
“>>” and “<<” same as before but faster:→
–[ normal press ] the motor will move a higher number of
steps (you can also define that number from the MENU)
–[ long press ] it will move continuously accelerating from
the slowest speed defined to the fastest one
“OK”
[ long press ] the current position (and temperature if →
available) will be stored in the internal list
Tarsier users' manual rev. 1.1 3 21/11/2013

So far we can already operate our Tarsier; no configuration is needed in many cases and our
“focusing experience” has already improved compared to a fully manual operation.
Take make the most of the Tarsier however it is recommended to keep reading.
From the MENU we will access quite a few options:
Saved points
Temperature compensation (SUBMENU)
✔from current point
✔from saved point
✔parameters
Motor configuration (SUBMENU)
✔Minimum speed
✔Maximum speed
✔High accuracy (steps)
✔Low accuracy (steps)
✔Motor type
✔Wiring
✔Backlash
✔Halfstep
✔Power while moving
✔Power while stopped
✔Reset position
Backlight
Contrast
Volume
Pressing “OK” at any option will go down in the MENU pressing “MENU” will go up until back
to the main screen.
Tarsier users' manual rev. 1.1 4 21/11/2013

Detailed description of options:
Saved points
Access to the list of saved positions; use the direction keys to navigate OK to
perform a goto to the displayed point long press of OK to delete the point.
The points with stored temperature reading will be used for the temperature
compensation algorithm.
Menu to go back
Temperature compensation (SUBMENU) (more on temp. comp. Later)
✔ from current point
the controller will understand the scope is already correctly focused and will start
applying corrections based on the temperature drift from this moment.
Press “Menu” to leave the temperature compensation mode no other buttons will
have any effect while active.
✔ from saved point
the controller will understand the scope is NOT correctly focused and will first
ove to the position atching the current te perature then apply
corrections based on the temperature drift from this moment.
This feature is the most powerful to users with a fixed imaging train as if the
focuser is not moved manually (disengaging the motor) at any time the can be
up and running in no time!
Press “Menu” to leave the temperature compensation mode no other buttons will
have any effect while active.
✔ Parameters
will simply display the parameters calculated for the current set of points showing
the slope and the offset.
Tarsier users' manual rev. 1.1 5 21/11/2013

Motor configuration (SUBMENU)
✔ Minimum speed
•specify the minimum speed of the motor in milliseconds / step.
✔ Maximum speed
•specify the maximum speed of the motor in milliseconds / step.
Note: as it is specified in ms / step the value for
min. speed should be higher than the value for max
speed!
✔ High accuracy (steps)
•this number defines the number of steps that the focuser:
–will move when the buttons “<” or “>” are pressed normally
–will wait for the temperature correction algorithm before applying any
actual movement
So basically this number should be related to the length in steps of your CFZ
(critical focus zone). I suggest to use ½ the CFZ.
✔ Low accuracy (steps)
•number of steps a “ normal press ” of the “<<” and “>>” buttons will imply
✔ Motor type
•used to select unipolar stepper (default) bipolar DC or even step/direction
interface
✔ Wiring
•Lunático (default) Lunático reversed motion RF/Moonlite RF/Moonlite
reversed.
✔ Backlash
•backlash of the setup in steps
✔ Halfstep
•true or false to drive the motor in full (default) steps or halved ones
✔ Power while moving
•% of the input power to be applied to the motor while in motion (PWM)
✔ Power while stopped
Tarsier users' manual rev. 1.1 6 21/11/2013

•same as before while the motor is stopped (defaults to 0 only change if very
sure of what you're doing)
✔ Reset position
•sets current position as “0” then cleans the “saved points” list and also
updates the power on position to 0.
Backlight
✔adjust the brightness of the screen
Contrast
✔adjust the contrast of the screen
Volume
✔adjust the volume of the “key click”
Tarsier users' manual rev. 1.1 7 21/11/2013

A few final notes
a) About focuser position when storing the telescope
If you want your “goto” points or your absolute1 temperature tracking parameters (that is
when you select from “saved point”) to work between sessions then it is important that the
Tarsier “memorizes” the current position before switching it off.
This can be accomplished simply by pressing “Menu” long press before switching it off until
the message “position saved” is displayed.
b) Saving the “fully racked in” position in the list
It may be convenient to store this position as one (the first?) of the “goto” points in the
controller. Doing so it won't be needed to save the position everyday (just the first one) and
packing to go back home will be faster.
Beware however if you plan to use temperature compensation and the temperature is stored
with that position this will void the algorithm as it will believe that point to be a valid focus
point for that temperature.
A trick for this to work not fooling the temperature compensation:
press the direction buttons until the focuser is fully racked in
carefully unplug the motor so the temperature sensor is also removed (in general
it is not recommended hot plugging just be careful this time!)
wait a few seconds until the temperature reading disappears from the main screen
(it will be replaced by “No temp”); please be patient until the “No temp” is fixed
on the screen it may take a while as the temperature readings are averaged
now long-press “Ok” to save the point to the list.
Also long-press “Menu” to store the position as the one it will start from on power
up.
You can now go to the “Saved points” menu option to check the current position was saved
with no temperature attached.
c) About temperature compensation in general
The accuracy of this approach will depend on motor and focuser quality and on the thermal
1 The other way of applying temperature compensation focusing first will always be available whatever the
focuser position... as long as you don't change the focal length of the setup!
Tarsier users' manual rev. 1.1 8 21/11/2013

behavior of the telescope. With a good stepper motor (not with a DC one!) and a decent
focuser if you are careful setting it up you'll be surprised of the results.
In order to maximize the possibilities of success you should remember that:
- It is recommended to place the temperature sensor in contact with the OTA covered in
such a way that no wind affects the reading.
- Usually the tubes “shrink” with the fall of temperature of the night. So it is better to do
the first focusing outwards pulling out the focuser to do it match with small
compensation motions that will also be outwards.
- A good backlash calibration will be of real help in case the motor has to change
direction.
- And of course and foremost a careful selection of points as perfectly focused as
possible and good temperature readings.
Last for those curious even if the temperature is displayed in approx. Celsius degrees no
decimal places it is stored in the system in 1/37 degree increment far more than enough for
the purpose of focusing.
Recommended values:
MinSpeed MaxSpeed MotorType Wiring Halfstep Power
moving
Power
Stopped
Lunatico 10 8 unipolar Lunatico Optional 100 0
RoboFocus 5 5 unipolar rf/moonlite Optional 100 0
FeatherTouch 3 3 bipolar lunatico Optional 100 0
Typ. DC 50 50 DC lunatico No 100 0
