Lusso Filtrata Installation instructions

Installation & Operating Manual
Lusso Filtrata
Cold Filtered &
Boiling Water Tap
FILTRATA
BY

Lusso Filtrata Cold Filtered &Boiling Water Tap
2
Thank you for purchasing a Lusso Filtrata Cold Filtered & Boiling Water
Tap.
We’re excited for you to discover the style and convenience a Lusso Filtrata tap brings to your kitchen.
We’ve designed and manufactured this product to be easy to install, so you can have filtered boiling and cold water on tap
as quickly as possible.
Please read the manual prior to installation to ensure that you have everything you need to succesfully and securely install
your Filtrata Boiling Water Tap.
Please make sure the water pressure, flow and electrical supply are suitable for this tap before starting installation.
Your Lusso Filtrata Filtered Cold & Boiling Water Tap conforms to CE regulations and consists of three packages:
1. Lusso Filtrata 4 in 1 tap (Part Red: FIL400)
2. Lusso Filtrata Filter Kit (Part Ref: FIL401-CAR)
3. Lusso Filtrata Boiler (Part Ref: FIL402-2.4L)
This product must be installed by a qualified electrician and plumber
or your warranty will be void.

3
Contents
...............................................................................................
Lusso Filtrata Cold Filtered &Boiling Water Tap
Important Safety Information
Parts & Tools You Will Need
Installation
Operating The Lusso Filtrata Tap
Operating The Lusso Filtrata Boiler
Care & Maintenance
Troubleshooting
Technical Specification
Filter Specification
...............................................................................................
................................................................................................................
.........................................................................................
...................................................................................
.......................................................................................................
.......................................................................................................
...................................................................................................
.........................................................................................................
4
5
6-9
10
11-12
12
13-14
15
16

Lusso Filtrata Cold Filtered &Boiling Water Tap
4
Safety
Boiling water can be dangerous if care is not taken.
Please take sensible precautions when operating this tap.
This product is not for use by people with reduced physical, mental or sensory capabilities, unless supervised by someone
who is responsible for their safety.
Do not wash children, pets or your own hair in any sink that is within reach of your boiling water tap.
This tap is for domestic purposes only.
Only install the boiler in an area that has adequate ventilation.
The boiler must be installed vertically with the inlet and outlet connections at the top of the boiler.
Do not attempt to open or repair the boiling water tank because this will void your warranty.
Never touch the boiler or plug with wet hands.
The filter supplied must be replaced every 6-12 months or your warranty will be void.
Replacement filters can be found at www.lusso.com

Pencil
5
Parts & Tools You Will Need
Lusso Filtrata Cold Filtered &Boiling Water Tap
Please check you have received all the parts listed below before starting installation.
Remove all packaging and check all parts for damage before installation. We can’t exchange parts that are reported as
being damaged after installation.
Isolation valves (not supplied) should be fitted as close as possible to the inlet connection for ease of maintenance.
Flush out the water supply before installation to prevent any debris from blocking the filter.
Please ensure that you have a minimum water pressure of 0.2 Bar and maximum water pressure of 3.0 Bar in order to
install this tap.
You will need an electric socket close to where the tap is being installed.
Parts List
1. Lusso Filtrata Tap x1
2. Lusso Filtrata Boiler x1
3. Lusso Filtrata Filter x1
4. Base Plate x1
5. Tap Base Seal x1
6. Tap Locking Nut x1
7. Tap Locking Seal x1
8. Tap Fixing Plate x1
9. Silicone Hose x1
10. Tap Stabilising Ring x1
11. Blue PE Pipes x2
12. Pipe Clip x1
13. 1/4 Inch T Quick Connector x1
14. G 1/2 Inch (Female) & PE Tube Adapter x1
15. G 1/2 Inch T-Piece x1
16. 1/4 Inch Quick Connector x2
17. Flexible Hoses x3
18. White PE Pipe x1

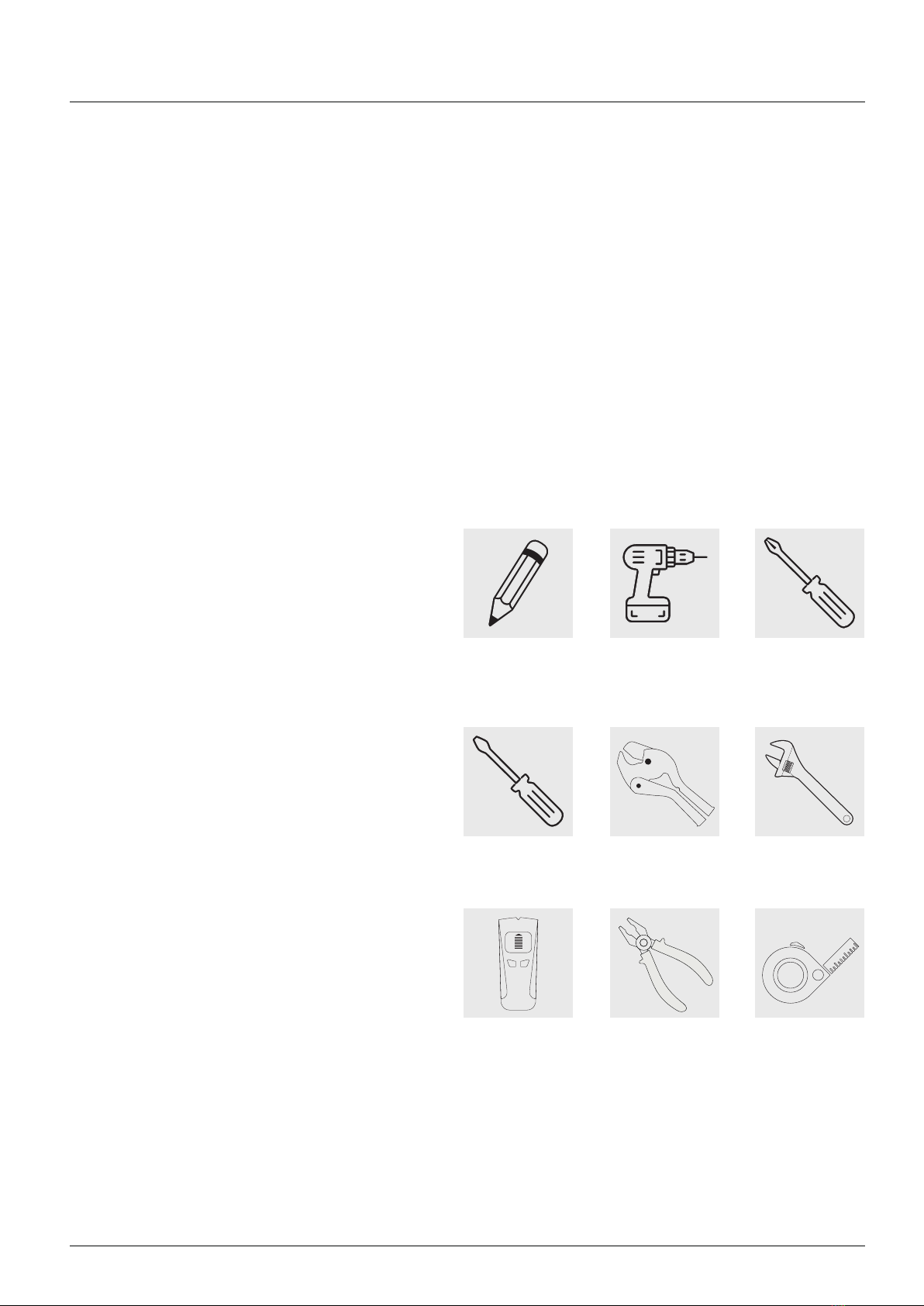

Tools You Will Need
Drill Cross-head
Screwdriver
Flat-head
Screwdriver
Pipe Cutter Adjustable
Spanner
Pipe & Wire
Detector
Pliers Tape
Measure

4
5
10
7
8
6
FIG 1
FIG 2
FIG 3
Lusso Filtrata Cold Filtered &Boiling Water Tap
6

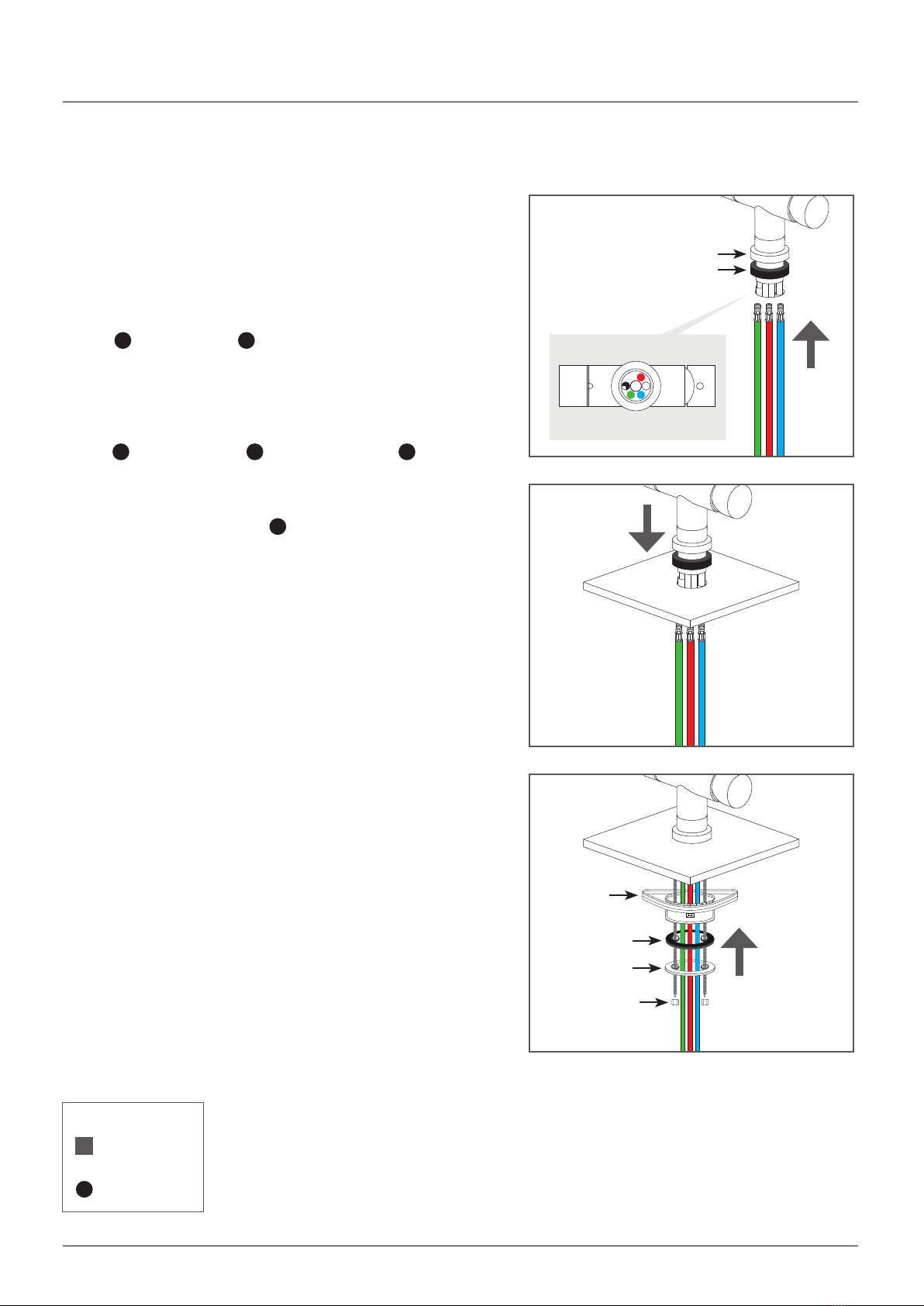

Installation
Your Lusso Filtrata tap requires a standard 35mm
diameter hole.
Important: Make sure you have enough space
between the tap and your splashback or wall to
fully operate the tap levers.
Feed the hot, cold and boiling hoses through base
seal and base plate , then through 35mm
hole. (FIG1)
Put the tap in position in the 35mm hole. (FIG 2)
Working inside the cabinet, slide the tap stabalising
ring , tap locking seal and tap fixing plate
over the hoses and the two brass threads coming
from the tap. (FIG 3)
Screw the two locking nuts onto the brass
threads. Check that the tap is in the correct
position before tightening the two nuts using an
adjustable spanner or tap spanner. (FIG 3)
5
1.
2.
3.
4.
4
10 7 8
6
KEY
FIG
Instruction
Drawing
Part

7
Lusso Filtrata Cold Filtered &Boiling Water Tap
Position the boiler in a suitable location. (FIG 11)
Fix the filter bracket in a suitable location, ensuring
the pipes from the tap and boiler can reach it. (FIG 11)
Connect the hot water flexible hose to the hot water
mains isolation valve. (FIG 4)
Connect the G 1/2 inch T-Piece to the cold water
isolation valve, then connect the cold water flexible
pipe to the T-Piece. (FIG 5)
Screw the white G 1/2 inch (Female) and PE tube
adapter onto the brass T-Piece. (FIG 5)
Cut a suitable length of the white PE tube and connect
it to the PE tube adapter. Connect the other end of the
fillter as shown in the diagram. (FIG 6)
5
5.
4
7 8
6.
7.
8.
9.
10.
2
3
15
14
3
HOT
COLD T-PIECE-L
15
FILTER
3
14
18
FIG 4
FIG 5
FIG 6
KEY
FIG
Instruction
Drawing
Part

Lusso Filtrata Cold Filtered &Boiling Water Tap
8

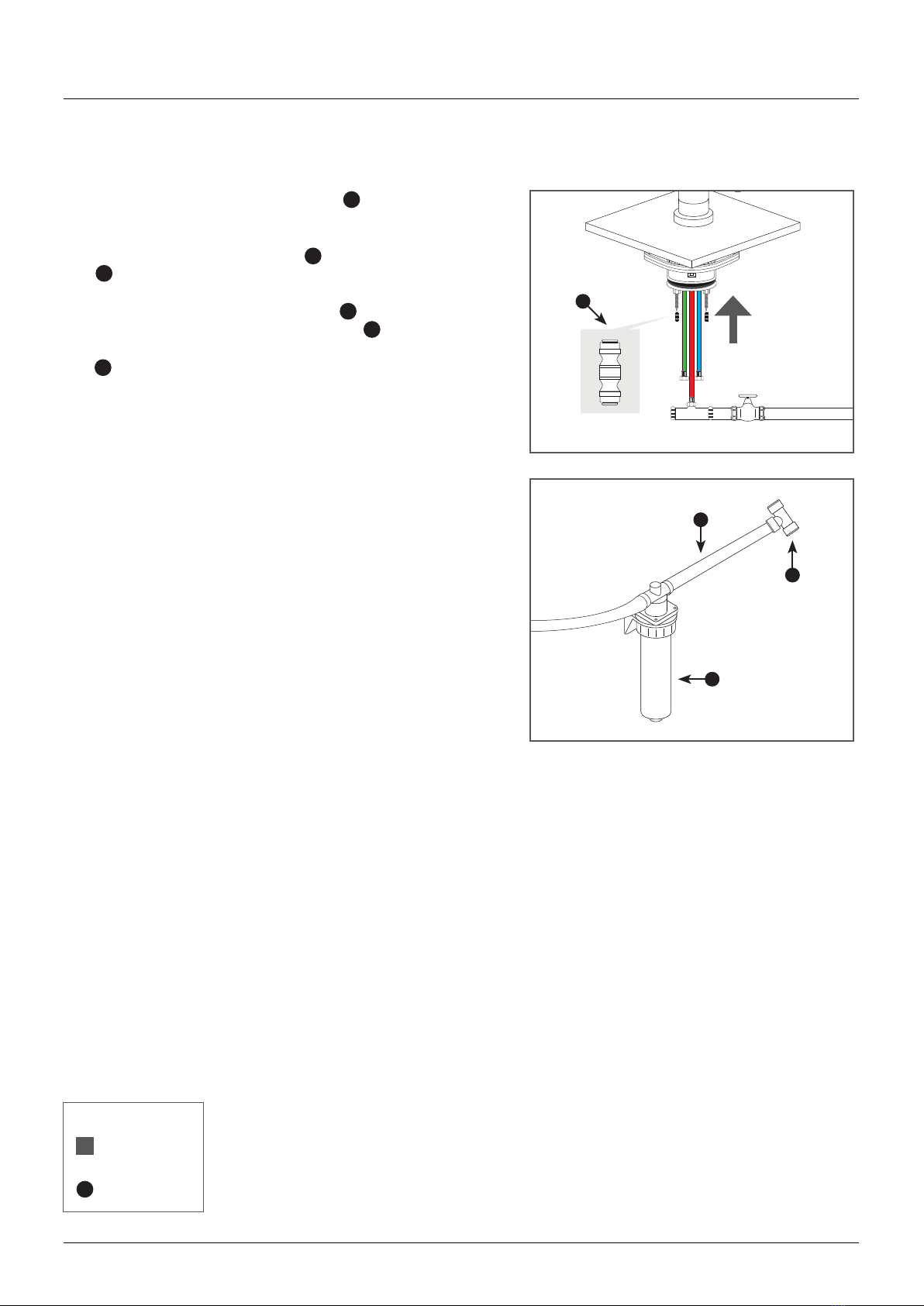

Push both 1/4 inch quick connectors onto the
brass threads coming from the tap. (FIG 7)
Connect the two blue PE pipes to the connectors
. (FIG 9)
Cut a suitable length of wire PE pipe . Connect
one end of the white PE pipe to the filter and
the other end to the 1/4 inch T Quick Connector
. (FIG 8)
16
11.
12.
13.
13
KEY
FIG
Instruction
Drawing
Part
16
11
18
3
HOT
16
T-PIECE-J
FILTER
3
18
13
FIG 7
FIG 8

9
Lusso Filtrata Cold Filtered &Boiling Water Tap

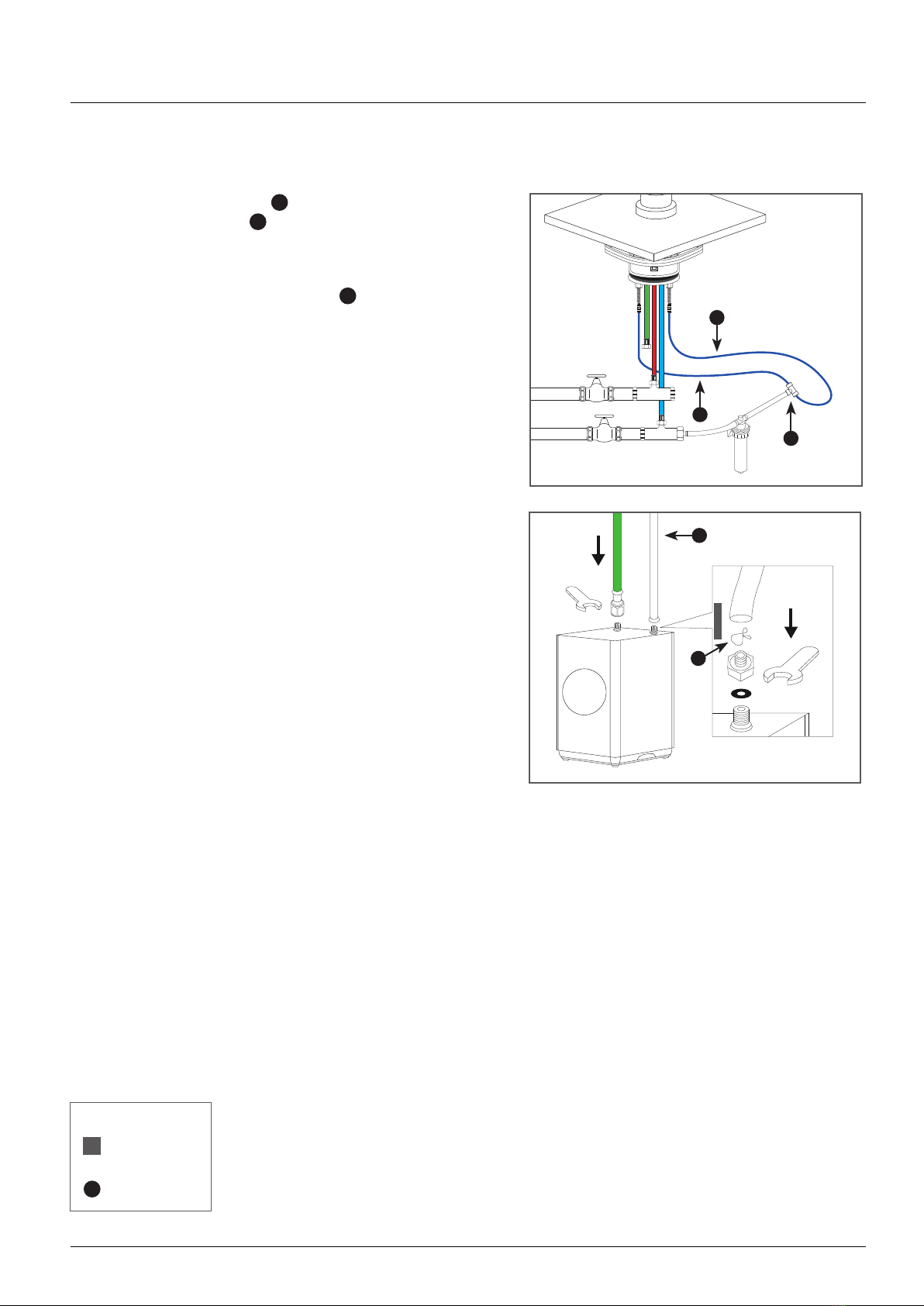

Connect the blue PE pipes to either end of the 1/4
inch T Quick Connector . (FIG 9)
Connect the green flexible pipe coming from the tap to
the inlet on the top of the boiler, using an adjustable
spanner to tighten. Slide the pipe clip over the clear
silicone hose coming from the tap and connect the tube
to the outlet on the top of the boiler. Slide the clip down
to keep the hose in place. (FIG 10)
4
7 8
14.
15.
11
13
12
KEY
FIG
Instruction
Drawing
Part
FILTER
COLD
HOT
11
11
9
12
13
FIG 9
FIG 10
You now need to prime the installation for use.
Open the isolation valves to allow the water flow to the
tap and the boiler.
Turn the boiling water lever until the water starts flowing
out.
Check all connections for leaks.
Once you are satisfied there are no leaks, you can turn
on the power to the boiler.
Your installation is now complete.
Changing the filter.
Isolate the water supply.
Turn the power off to the boiler.
Place a bowl under the filter and turn it clockwise to
release it.
Dispose of the filter and replace it with the new one.
Turn on the water supply and power.
1.
2.
3.
4.
1.
2.
3.
4.
5.

COLDHOT
CH
C
C
FILTERBOILER
98O
HANDLE FOR
STEAMING WATER
HANDLE FOR
MIXED WATER
ON ON
HOSE CLAMPS
QUICK CONNECTOR
QUICK
CONNECTOR
COLD
WATER IN
98O
WATER OUT
TEMPERATURE
ADJUSTMENT
SWITCH
SILVER INLET
HOSE FOR COLD
WATER SUPPLY
HOSE CLAMPS
TRANSPARENT
RUBBER HOSE
FOR HOT
WATER SUPPLY
T-PIECE
T-PIECE
WORKTOP
CABINET
FIG 11
Lusso Filtrata Cold Filtered &Boiling Water Tap
10
Operating the Lusso Filtrata Tap
Please follow the markings on the levers.
Normal hot and cold water
To use normal tap water, push the right-hand lever to the right. Pull it towards you for hot water and push it
backwards for the cold water.
Cold filtered water
Pull the right-hand lever towards you without having pushed the lever outwards for cold filtered water.
Boiling water
Press the safety button on the left-hand lever and push the lever backwards. Keep the lever in that position until
you have the desired amount of boiling water. As a safety feature, when you let go of the lever it automatically
returns to the off position.
H
C
98°

88
SETTING
ACTUAL
HEATING HOT
88
B
A C
D
E
F
G
H
11
Lusso Filtrata Cold Filtered &Boiling Water Tap
Operating The Lusso Filtrata Boiler
A. Confirm
B. On/Off
C. Temperature
D. Temperature Display
E. Hot Indicator
F. Heating Indicator
G. Set Temperature Indicator
H. Heating Dispaly

Lusso Filtrata Cold Filtered &Boiling Water Tap
12
Turning instant boiling water boiler on or off
Tap the On/Off button once to switch the boiler on. Tap it again to turn it off.
Setting the water temperature
Tap the temperature button to scroll through different temperature settings. When the change temperature display
shows the temperature you want, tap the confirm button to set. If you don’t tap the confirm button within five
seconds the temperature will revert back to its previous setting.
Please note
The temperature indicator always shows the current temperature of the water in the boiler, while the change
temperature display shows your desired temperature.
While the water is heating to the temperature you want, the heating indicator will illuminate and the heating display
will animate.
When the water in the boiler reaches your desired temperature, the hot indicator will iluminate and the heating
display will change to a solid light.
If the change temperature display flashes ‘99’, the boiler is working but there is insufficient water in it. Tap the
on/off button , then prime the boiler as described in the installation instructions.
Care & Maintenance
The Lusso Filtrata Tap is a high-quality product and should be treated with care.
All surfaces will wear if not cleaned correctly.
Please use a non-abrasive cleaner, such as a soft cloth with warm water and washing-up liquid. Abrasive cleaners,
such as Cif, will scratch the surface.
The filter must be replaced every 6-12 months.
Replacement filters can be found at www.lusso.com

Symptom Cause Remedy
No boiling water
flowing.
The boiler is empty.
The boiler isn’t holding water.
Touch controls
flashing red.
Boiling water has been running for
too long.
Frequent switching between cold
and boiling water over an extended
period.
Water or steam
is spitting from
the spout.
The unit is boiling.
Water is not hot.
The boiler is unplugged.
Make sure the appliance is plugged
in and the display is lit.
Make sure the circuit breaker and
fuse are working correctly.
The boiler is not switched on. Ensure the boiler is plugged in and
turned on as described on page 11.
lit before use.
or the boiler is airlocked.
Check if all four lights are lit on the
touchscreen. If they are, follow the
page 9 to remove any airlocks.
13
Troubleshooting
Lusso Filtrata Cold Filtered &Boiling Water Tap
If your tap is not working correctly, check the table below for guidance on how to solve possible problems. If the
problem persists, please contact a member of the Lusso team, who will be happy to help.
Follow the instructions for priming the
installation on page 9.
Check connections for any leaks.
Contact Customer Services.
This is a safety feature to prevent
overheating. Turn the power off,
wait for two minutes, then turn the
power back on. If the problem
persists, please contact us.
Press the boiling water touch control
handle and release the water.
Lower the water temperature setting.
See page 12.
Check the aerator at the end of the
spout isn’t blocked.
Follow the priming the installation
section on page 9 to remove any
airlocks.
Water hasn’t finished heating up.
No heating option has been selected
Wait until the heating display stays
priming the installation section on

Water is too hot. The water temperature is set too
high.
Water is dripping
from the spout.
The expansion chamber isn’t
draining correctly.
Blocked spout.
the spout.
straight away.
As a safety feature, water is drawn
prevent accidental scalding. There
will be a slight delay before the
boiling water appears.
valves.
Flexible hoses kinked or blocked. Ensure pipes are not twisted or
restricting flow.
Boiler blocked. Contact us
Lusso Filtrata Cold Filtered &Boiling Water Tap
14
Need help? Give us a call on 0203 370 4057 to speak to on of our trained advisors.
Slow flow from
Water doesn’t flow
No water flowing.
Water filter needs changing.
into the tank after each use to
Closed or partially closed isolation Make sure isolation valves are fully
open.
After you’ve run a large volume of
water, there may be a slightly longer
delay in water appearing from the
boiling water spout.
Change the water filter (see page 9).
Change the filter every 6-12 months
or your warranty will be void.
Clean the aerator with a non-
abrasive cleaner, such as a soft cloth,
warm water and washing-up liquid.
Run 500ml of water from the tap to
clear and prime the system. Avoid
drawing off less than 150ml per use.
Lower the water temperature setting.
See page 12.

15
Technical Specification
Lusso Filtrata Cold Filtered &Boiling Water Tap
Product Type Kitchen Taps
Brass; ABS
Mount Type Deck
Lever Type 1 Hot and Cold and Filter Water Lever,
G 1/2” BSP Flexi Tails
Number of Tap Holes 1
Tank Capacity 2.4 Litres
Plumbing System Requirements Normal Pressure System
Working Pressure Range Min: 0.2 bar; Max: 3 bar
Maximum Hot Water Temperature Maximum Boiler Temperature 100 oC
Hot Water Flow 98 oC
4 bar
Flow Type Dual
Yes
1.5kW
Electrical Supply Requirements 220V-250V
Main Construction Material
Connection Inlet
Temperature Settings
Maximum Static Pressure
Isolation Included
Power Rating
1 Automatic Rebound Boiled Water Lever.
6 Setting; 75°C, 85°C, 95°C, 96°C, 97°C, 98°C

Product Type Carbon Filter
Maximum Flow Rate 3.8 l/m
Maximum Pressure 2.5 Mpa
Applicable Temperature 4-38°C
Life Cycle 7,200 litres
Lusso Filtrata Cold Filtered &Boiling Water Tap
16
Please mark the installation date and change the filter every 6-12 months to protect your tank from
limescale build up. In hard water areas the filter may need to be replaced more often.
Failure to maintain the filters and the quality of water entering the heating tank may affect your
warranty.

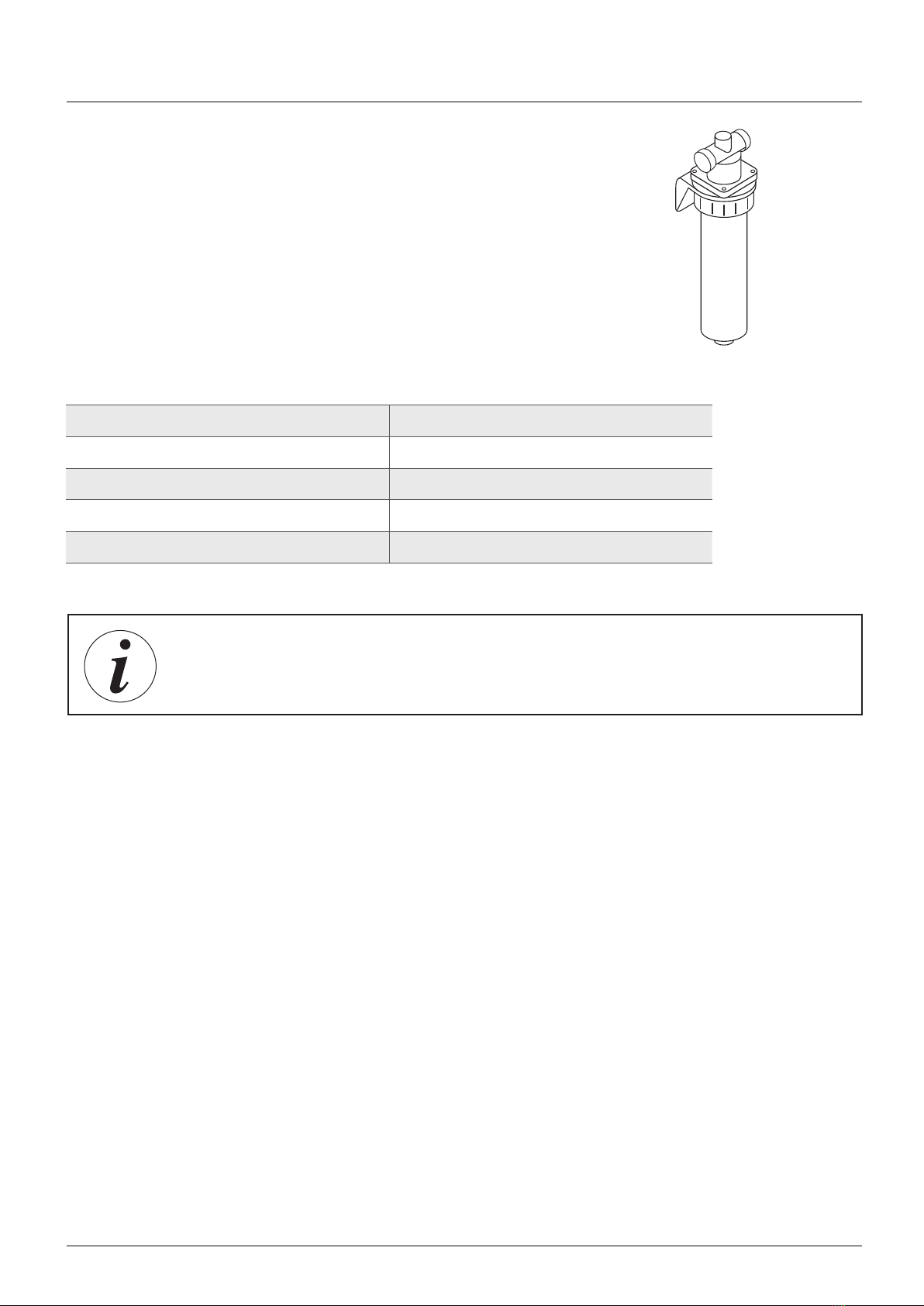

Filter Specification
Benefits:
• Removes limescale, magnesium and particles.
• Removes lead, protozoan cysts and organic compound.
• Reduces chlorine taste.
• Reduces sediment to 1 micron.
• East installation & replacement.

17
Lusso Filtrata Cold Filtered &Boiling Water Tap

Lusso Filtrata Cold Filtered &Boiling Water Tap
18

19
Lusso Filtrata Cold Filtered &Boiling Water Tap

FILTRATA
BY
Lusso
Lusso House
Princeton Drive
Thornaby
Stockton-on-Tees
TS17 6AJ
[email protected]
0203 370 4057
www.lusso.com
