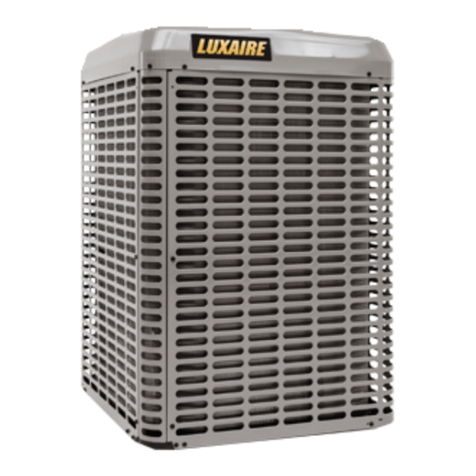

Luxaire LX Series Quick start guide

5523952-LTG-D-1218
FOR DISTRIBUTION USE ONLY - NOT TO BE USED AT POINT OF RETAIL SALE
TECHNICAL GUIDE
LX SERIES
SPLIT SYSTEM
HEAT PUMPS
14 SEER – R-410A – 1 PHASE
1.5 THRU 5 NOMINAL TONS
MODELS: TH4B18 THRU 60
Due to continuous product improvement, specifications
are subject to change without notice.
Visit us on the web at
www.upgnet.com and www.luxaire.com
Additional rating information can be found at
www.ahridirectory.org
WARRANTY SUMMARY*
Extended 10-Years limited parts warranty.
Standard 10-year limited compressor warranty.
Extended 10-Years limited parts warranty requires
online registration within 90 days of purchase for replacement
or closing for new home construction.
*Does not apply to R-22 models, 3-Phase models, or internet sales.
See Limited Warranty certificate in User's Information Manual for details.
FOR INSTALLATION IN ALL US REGIONS AND CANADA
Installation Allowed
®
DESCRIPTION
The TH4 model outdoor units are optimized for the 14 SEER /
8.2 HSPF Minimum Efficiency in all US Regions, and are spe-
cifically designed to be matched with Luxaire indoor coils, fur-
naces, and air handlers to provide a complete system solution.
FEATURES
•Easier Installation - Independent panels provide quick
access for unit setup. Installation time is reduced by easy
power and control wiring access. The factory installed filter-
drier and factory charge for a 15-Ft lineset means less time
spent brazing and charging the system. The small base
dimension and reduced unit size make for easier retrofits.
•Accessible Information - QR code on unit provides quick
access to technical documents and warranty information.
•Durable Finish - The coated steel wire fan guard, coated
external fasteners, and pre-treated G90-equivalent galva-
nized steel chassis components resist corrosion and rust
creep. Titanium colored powdercoat paint further protects
external panels.
•Rugged Coil Protection - Coils are protected from mechan-
ical damage by a proven stamped steel coil guard design.
•Quality Coils - Enhanced aluminum fins are mechanically
bonded to copper tubing.
•Protected Compressor - Compressors are protected inter-
nally by a high pressure relief valve and a temperature sen-
sor, and externally by the system high and low pressure
switches. The liquid line stainless steel filter-drier is factory
installed to protect the compressor against moisture and
debris.
•Reliable Operation - Ball bearing fan motors provide supe-
rior performance in extreme temperatures. Factory installed
accumulator ensures proper functioning across a wide range
of conditions.
•Environmentally Friendly - CFC-free R-410A refrigerant
delivers environmentally friendly performance with zero
ozone depletion.
•Top Discharge - Air is blown up, away from the structure
and any landscaping and allows compact location on multi-
unit applications.
•Low Operating Sound Levels - Developed using CFD and
FEA tools, the sturdy cabinet and top design provides sound
performance of 75 dBA or lower. Compatible accessories for
further sound reduction are also available.
•Better Service Access - Diagonal base valves with open
access for low-loss fittings, single panel access to the electri-
cal controls, full corner access, and removable fan guard
allow easy access for unit maintenance.
•Agency Listed - Safety certified by CSA to UL 1995 / CSA
22.2. Performance certified to ANSI/AHRI Standard 210/240
in accordance with the Unitary Small Equipment certification
program.

5523952-LTG-D-1218
2 Johnson Controls Unitary Products
LIST OF SECTIONS
DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
NOMENCLATURE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
PHYSICAL AND ELECTRICAL DATA . . . . . . . . . . . . . . . . . . . . . . . 3
DIMENSIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS . . . . . . . 4
SYSTEM CAPACITY - Single Piece and Modular Air Handlers . . 5
SYSTEM CAPACITY - Upflow, Downflow & Horizontal
Furnaces and Coils (Coil Only Ratings) . . . . . . . . . . . . . . . . . . . . 9
SYSTEM CAPACITY - With High Efficiency Motor Furnaces . . . 10
APPLICATION & ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . 37
SOUND POWER RATINGS - COOLING . . . . . . . . . . . . . . . . . . . . . 37
SOUND POWER RATINGS - HEATING . . . . . . . . . . . . . . . . . . . . . 38
MECHANICAL SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . 38
TYPICAL INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
TYPICAL FIELD WIRING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
ALTERNATIVE INSTALLATION CLEARANCES . . . . . . . . . . . . . . 40
PERFORMANCE DATA - 1.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 41
PERFORMANCE DATA - 2 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 45
PERFORMANCE DATA - 2.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 51
PERFORMANCE DATA - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 57
PERFORMANCE DATA - 3 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 63
PERFORMANCE DATA - 3.5 TON . . . . . . . . . . . . . . . . . . . . . . . . . 67
PERFORMANCE DATA - 4 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 71
PERFORMANCE DATA - 5 TON . . . . . . . . . . . . . . . . . . . . . . . . . . 77
NOMENCLATURE
BRAND TT= Factory Branded
PRODUCT TYPE HH= Heat Pump
NOMINAL
SERIES EFFICIENCY
AND STAGING 44= 14 SEER / 1-Stage
REFRIGERANT BB= R-410A
NOMINAL
UNIT CAPACITY
(MBH) 36
18 = 1.5 Ton 36 = 3 Ton
24 = 2 Ton 42 = 3.5 Ton
30 = 2.5 Ton 48 = 4 Ton
35 = 3 Ton 60 = 5 Ton
VOLTAGE
(Voltage-Phase-Hertz) 22= 208/230-1-60
GENERATION
(MAJOR REVISION) 11= 1st Gen
2= 2nd Gen
etc
FACTORY OPTION SS= Standard (No Options)
H= Hard Start Kit
STYLE LETTER
(Minor Revision)
Not Used for Ordering AA= Style A
B= Style B

5523952-LTG-D-1218
Johnson Controls Unitary Products 3
‡ Adapter fitting must be field installed for the required 1-1/8” line set.
All dimensions are in inches and are subject to change without notice.
Overall height is from bottom of base pan to top of fan guard.
Overall length and width include screw heads.
PHYSICAL AND ELECTRICAL DATA
MODEL TH4B1821S TH4B2421S TH4B3021S TH4B3521S TH4B3622S TH4B4222S TH4B4822S TH4B6022S
Unit Supply Voltage 208-230V, 1 60Hz
Normal Voltage Range 1
1. Rated in accordance with AHRI Standard 110-2012, utilization range “A”.
187 to 252
Minimum Circuit Ampacity 12.0 15.4 18.1 20.5 22.0 26.8 30.8 31.7
Max. Overcurrent Device Amps 2
2. Dual element fuses or HACR circuit breaker. Maximum allowable overcurrent protection.
20 25 30 35 35 45 50 50
Min. Overcurrent Device Amps 3
3. Dual element fuses or HACR circuit breaker. Minimum recommended overcurrent protection.
15 20 20 25 25 30 35 35
Compressor Type Scroll Scroll Scroll Scroll Scroll Scroll Scroll Scroll
Compressor
Amps Rated Load 9.0 11.7 13.4 15.4 15.4 19.2 23.6 24.3
Locked Rotor 56.3 61.6 72.5 83.9 83.9 123.9 130.0 144.2
Crankcase Heater No No No No No No No No
Factory External Discharge Muffler Yes Yes Yes Yes Yes Yes Yes Yes
HS Kit Required with TXV4
4. Use S1-2SA067***** series kit. See Hard Start KitAccessory Installation Manual.
No No No No No No No No
Optional Start Kit: PN S1-2SA067421806 10106 10106 10106 10106 10106 10106 10106
Fan Diameter Inches 22 22 24 24 26 26 26 26
Fan Motor
Type PSC PSC PSC PSC ECM ECM PSC PSC
Rated HP 1/8 1/8 1/4 1/4 1/3 1/3 1/4 1/4
Rated Load Amps 0.80 0.80 1.30 1.30 2.8 2.8 1.30 1.30
Nominal RPM 1075 1075 850 850 834 834 850 850
Nominal CFM 2850 2850 2995 2995 3715 4000 4000 4100
Coil Face Area Sq. Ft. 16.15 17.94 23.82 23.82 26.40 26.40 26.40 28.80 Rows Deep 11111122
Fins / Inch 22 22 22 22 22 22 18 18
Liquid Line Set OD (Field Installed) 3/8 3/8 3/8 3/8 3/8 3/8 3/8 3/8
Vapor Line Set OD (Field Installed)5
5. For applications with non-standard vapor line sizes, see the “Applications & Accessories” section of this Technical Guide.
3/4 3/4 3/4 3/4 3/4 7/8 7/8 1-1/8‡
Unit Charge (Lbs. - Oz.) 6
6. The Unit Charge is correct for the outdoor unit, smallest matched indoor unit, and 15 feet of refrigerant tubing. For tubing lengths other than 15 feet, add or subtract
the amount of refrigerant, using the difference in actual lineset length (not the equivalent length) multiplied by the per foot value.
5 - 11 6 - 7 7 - 15 8 - 1 9 - 1 10 - 5 15 - 4 14 - 10
Charge Per Foot, Oz. 0.62 0.62 0.62 0.62 0.62 0.67 0.67 0.75
Operating Weight Lbs. 120 131 176 176 200 218 235 256
&
%
$
$
DIMENSIONS
Unit
Model
Dimensions
(Inches) Refrigerant Connection Service Valve Size
A B C Liquid Vapor
TH4B1821S 33-1/4 29-1/4 29-1/4
3/8
3/4
TH4B2421S 36-1/4 29-1/4 29-1/4
TH4B3021S 39-1/2 35-1/4 31-3/4
TH4B3521S 39-1/2 35-1/4 31-3/4
TH4B3622S 39-1/2 38 34-1/4
TH4B4222S 39-1/2 38 34-1/4 7/8
TH4B4822S 39-1/2 38 34-1/4
TH4B6022S 42-3/4 38 34-1/4 7/8‡

5523952-LTG-D-1218
4 Johnson Controls Unitary Products
CHARGING PROCEDURES:
1. Check the Factory Unit Charge listed on the unit data plate to verify the refrigerant charge for the outdoor unit, the smallest matched indoor unit, and the 15 feet of
interconnecting lineset.
2. Verify the indoor metering device and additional charge required for the specific matched indoor unit in the system using the above table.
3. Add additional charge for the amount of interconnecting lineset greater than 15 feet at the rate specified in the Physical and Electrical Data Table.
4. For installations requiring additional charge, weigh in refrigerant for the specific matching indoor unit and actual lineset length.
5. Once the charge adders for matched indoor unit and for lineset have been weighed in, verify the system operation against the temperatures and pressures in the
Charging Chart for the outdoor unit. Locate Charging Charts on the outdoor unit and also in the Service Data Application Guide on www.upgnet.com. Follow the
Subcool or the Superheat charging procedure in the Installation Manual according to the type of indoor metering device in the system, and allow ten minutes after
each charge adjustment for the system operation to stabilize. Record the charge adjustment made to match the Charging Chart.
6. Permanently stamp the unit data plate with the TOTALSYSTEM CHARGE defined as follows: TOTAL SYSTEM CHARGE = Base Charge (as shipped) + charge
adder for matched indoor unit (+ or -) charge adder for actual lineset length + charge adjustments to match the Charging Chart.
SYSTEM CHARGE FOR VARIOUS MATCHED SYSTEMS
Outdoor Unit TH4B1821S TH4B2421S TH4B3021S TH4B3521S TH4B3622S TH4B4222S TH4B4822S TH4B6022S
Required TXV 1,2
1. For applications requiring a TXV, use S1-1TVM*** series kit.
2. A TXV kit must be used with these indoor units to obtain system performance.
BA1 BA1 BB1 or BE1 BE1 BA1 BC1 BC1 BG1
Defrost Jumper Pin Setting 22233242
Indoor Unit 3,4,5
3. Systems matched with furnaces or air handlers not equipped with blower-off delays may require blower Time Delay Kit S1-2FD06700224.
4. CF coils cannot be used in horizontal applications.
5. Charge adders shown above do not indicate that coils are rated for every application. Refer to Performance Data Tables for actual performance for specified
system matches. Obtain certified system ratings from www.ahridirectory.org.
Additional Charge, oz
AP18B 0 – – –––––
AP24B 7 0 – –––––
AP30B – 9 0 –––––
AP36B – – 0 –––––
AP36C – – – –––––
AP37C – – – –8–––
AP42C – – – –––––
AP48(C,D) – – – ––0––
AP60(C,D) – – – –––––
AE18B 0 – – –––––
AE24B 7 0 – –––––
AE30B – 9 0 –––––
AE36(B,C) – – 0 0––––
AE42C – – 3 780––
AE48(C,D) – – – –800–
AE60C – – – –––8–
AE60D – – – ––––2
AVC18B 0 – – –––––
AVC24B 7 0 – –––––
AVC30B – 9 0 –––––
AVC36(B,C) – – 0 0––––
AVC42C – – 3 780––
AVC48(C,D) – – – –800–
AVC60C – – – –––8–
AVC60D – – – ––––2
CF/CM/CU18(A,B) 0 – – –––––
CF/CM/CU24(A,B) 7 0 – –––––
CF/CM/CU30(A,B,C) – 9 0 –––––
CF/CM/CU36(A,B,C) – – 0 0––––
CF/CM/CU42(B,C,D) – – 3 8––––
CF/CM/CU48(C,D) – – – 7800–
CF/CM/CU60(C,D) – – – –––8–
CF/CM64D – – – ––––2
Some of the combinations shown in the above System Charge table require Advanced MainAir Circulating Fan indoor product. For approved coil
only matches, please see the “COOLING CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils” table.
FOOTNOTES:

5523952-LTG-D-1218
Johnson Controls Unitary Products 5
SYSTEM CAPACITY - Single Piece and Modular Air Handlers
UNIT
MODEL
AIR HANDLER COIL
MODEL3RATED
CFM
COOLING 1HEATING 2
MODEL WIDTH NET MBH SEER EER NET MBH HSPF
Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD
TH4B1821S AE18BX21 17.5 – 675 18.0 14.6 15.75 13.00 18.0 11.5 9.00 7.45 3.88 2.60
TH4B1821S AE24BX21 17.5 – 675 18.0 14.6 15.75 13.00 18.0 11.5 9.00 7.40 3.90 2.60
TH4B1821S AP18BX21 17.5 – 600 18.0 12.8 14.00 12.00 18.2 12.1 9.00 7.65 3.52 2.38
TH4B1821S AVC18BX21 17.5 – 650 18.0 14.4 15.75 13.00 18.0 11.5 9.00 7.50 3.82 2.58
TH4B1821S AVC24BX21 17.5 – 650 18.0 14.4 15.75 13.00 18.0 11.5 9.00 7.45 3.88 2.58
TH4B1821S ME08BN21 17.5 CF/CM18B 575 18.0 13.6 15.75 13.00 18.0 11.6 9.00 7.60 3.68 2.54
TH4B1821S ME08BN21 17.5 CF/CM24B 575 18.0 13.5 15.75 13.00 18.0 11.6 9.00 7.50 3.76 2.54
TH4B1821S ME12BN21 17.5 CF/CM18B 675 18.0 14.6 15.75 13.00 18.0 11.5 9.00 7.45 3.88 2.58
TH4B1821S ME12BN21 17.5 CF/CM24B 675 18.0 14.6 15.75 13.00 18.0 11.5 9.00 7.40 3.90 2.60
TH4B1821S MVC08BN21 17.5 CF/CM18B 625 18.0 14.1 15.75 13.00 18.0 11.5 9.00 7.45 3.86 2.56
TH4B1821S MVC08BN21 17.5 CF/CM24B 650 18.0 14.4 15.75 13.00 18.0 11.5 9.00 7.40 3.88 2.58
TH4B1821S MVC12CN21 21.0 CF/CM24C 650 18.0 14.4 15.75 13.00 18.0 11.4 9.00 7.40 3.92 2.60
TH4B2421S AE24BX21 17.5 – 675 24.0 17.4 15.75 13.00 24.0 14.8 8.50 7.55 3.60 2.42
TH4B2421S AE30BX21 17.5 – 750 24.0 17.5 15.75 13.00 24.0 14.9 9.50 7.95 4.00 2.72
TH4B2421S AP24BX21 17.5 – 800 23.8 17.0 14.00 11.75 24.0 15.4 8.65 7.40 3.50 2.32
TH4B2421S AVC24BX21 17.5 – 650 24.0 17.2 15.50 13.00 24.0 14.8 8.50 7.50 3.54 2.42
TH4B2421S AVC30BX21 17.5 – 800 24.0 18.0 15.75 13.00 24.0 15.0 9.50 7.95 4.02 2.72
TH4B2421S ME08BN21 17.5 CF/CM24B 800 24.0 18.7 15.75 13.00 24.0 14.8 8.75 7.65 3.74 2.44
TH4B2421S ME08BN21 17.5 CF/CM30B 800 24.0 18.0 15.75 13.00 24.0 15.0 9.50 7.95 4.02 2.72
TH4B2421S ME12BN21 17.5 CF/CM24B 675 24.0 17.4 15.75 13.00 24.0 14.8 8.50 7.55 3.60 2.42
TH4B2421S ME12BN21 17.5 CF/CM30B 675 24.0 16.8 15.75 13.00 24.0 15.0 9.25 7.80 3.88 2.70
TH4B2421S ME12CN21 21.0 CF/CM24C 600 23.8 16.5 15.50 13.00 24.0 14.9 8.20 7.45 3.46 2.38
TH4B2421S ME14DN21 24.5 CF/CM30D 875 24.0 18.8 15.75 13.00 24.0 14.9 9.50 7.85 4.14 2.78
TH4B2421S ME16CN21 21.0 CF/CM30C 925 24.0 19.2 15.75 13.00 24.0 15.0 9.50 7.85 4.16 2.76
TH4B2421S MVC08BN21 17.5 CF/CM24B 650 24.0 17.2 15.50 13.00 24.0 14.8 8.50 7.55 3.54 2.42
TH4B2421S MVC08BN21 17.5 CF/CM30B 650 24.0 16.7 15.75 13.00 24.0 15.0 9.25 7.85 3.84 2.68
TH4B2421S MVC12BN21 17.5 CF/CM24B 775 24.0 18.4 15.75 13.00 24.0 14.8 8.75 7.35 3.72 2.46
TH4B2421S MVC12BN21 17.5 CF/CM30B 775 24.0 17.7 15.75 13.00 24.0 14.9 9.50 7.95 4.02 2.74
TH4B2421S MVC12CN21 21.0 CF/CM24C 700 24.0 17.7 15.75 13.00 24.0 14.7 8.50 7.15 3.66 2.44
TH4B2421S MVC12CN21 21.0 CF/CM30C 650 24.0 16.7 15.75 13.00 24.0 14.9 9.25 7.80 3.86 2.70
TH4B2421S MVC14DN21 24.5 CF/CM30D 875 24.0 18.7 15.75 13.00 24.0 14.8 9.50 7.85 4.18 2.80
TH4B2421S MVC16CN21 21.0 CF/CM24C 925 24.0 18.9 15.50 13.00 24.0 14.8 8.75 7.35 3.70 2.44
TH4B2421S MVC16CN21 21.0 CF/CM30C 925 24.0 19.2 15.75 13.00 24.0 14.9 9.50 7.85 4.18 2.78
TH4B3021S AE30BX21 17.5 – 900 29.4 22.6 15.75 13.00 30.0 19.5 9.50 7.95 3.94 2.74
TH4B3021S AE36BX21 17.5 – 1000 30.0 23.8 15.75 13.00 30.0 20.0 9.50 7.55 4.44 2.96
TH4B3021S AE36CX21 21.0 – 825 29.8 21.8 15.75 13.00 30.0 19.8 9.50 7.65 4.34 2.96

5523952-LTG-D-1218
6 Johnson Controls Unitary Products
TH4B3021S AP30BX21 17.5 – 1000 28.8 21.6 14.00 12.00 29.6 20.0 9.85 8.45 3.74 2.62
TH4B3021S AVC30BX21 17.5 – 825 29.0 21.4 15.75 13.00 30.0 19.5 9.50 8.05 3.84 2.72
TH4B3021S AVC36BX21 17.5 – 1000 30.0 23.8 15.75 13.00 30.0 20.0 9.50 7.55 4.42 2.94
TH4B3021S AVC36CX21 21.0 – 950 30.0 23.4 15.75 13.00 30.0 19.9 9.50 7.55 4.46 2.98
TH4B3021S ME12BN21 17.5 CF/CM30B 850 29.2 22.0 15.75 13.00 30.0 19.4 9.50 7.95 3.94 2.74
TH4B3021S ME12BN21 17.5 CF/CM36B 850 29.6 22.2 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S ME12CN21 21.0 CF/CM30C 825 29.0 21.4 15.75 13.00 30.0 19.4 9.50 8.00 3.88 2.74
TH4B3021S ME14DN21 24.5 CF/CM30D 825 29.0 21.4 15.75 13.00 30.0 19.4 9.50 8.00 3.88 2.74
TH4B3021S ME14DN21 24.5 CF/CM36D 825 29.8 21.8 15.75 13.00 30.0 19.8 9.50 7.60 4.34 2.96
TH4B3021S ME16CN21 21.0 CF/CM30C 900 29.4 22.6 15.75 13.00 29.8 19.4 9.50 7.95 3.96 2.74
TH4B3021S ME16CN21 21.0 CF/CM36C 900 30.0 22.8 15.75 13.00 30.0 19.8 9.50 7.55 4.40 2.96
TH4B3021S MVC12BN21 17.5 CF/CM30B 875 29.2 22.2 15.75 13.00 30.0 19.4 9.50 7.95 3.92 2.76
TH4B3021S MVC12BN21 17.5 CF/CM36B 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.36 2.94
TH4B3021S MVC12CN21 21.0 CF/CM30C 875 29.2 22.2 15.75 13.00 29.8 19.3 9.50 7.95 3.96 2.78
TH4B3021S MVC12CN21 21.0 CF/CM36C 875 30.0 22.6 15.75 13.00 30.0 19.8 9.50 7.55 4.40 2.98
TH4B3021S MVC14DN21 24.5 CF/CM30D 875 29.4 22.4 15.75 13.00 29.8 19.3 9.50 7.95 3.98 2.78
TH4B3021S MVC14DN21 24.5 CF/CM36D 875 30.0 22.6 15.75 13.00 30.0 19.7 9.50 7.55 4.42 2.98
TH4B3021S MVC16CN21 21.0 CF/CM30C 925 29.6 23.0 15.75 13.00 29.8 19.3 9.50 7.90 4.02 2.78
TH4B3021S MVC16CN21 21.0 CF/CM36C 925 30.0 23.2 15.75 13.00 30.0 19.8 9.50 7.55 4.46 3.00
TH4B3521S AE36BX21 17.5 – 1000 34.6 25.4 14.00 12.25 34.0 22.0 8.20 7.35 3.48 2.30
TH4B3521S AE36CX21 21.0 – 1225 35.2 26.2 14.50 12.00 34.0 21.6 8.90 7.70 3.64 2.48
TH4B3521S AVC36BX21 17.5 – 1000 34.4 25.2 14.00 12.20 34.0 22.2 8.20 7.35 3.46 2.30
TH4B3521S AVC36CX21 21.0 – 1025 34.8 25.8 14.25 12.25 33.8 22.0 8.55 7.40 3.52 2.32
TH4B3521S ME12BN21 17.5 CF/CM36B 1050 34.6 26.0 14.25 12.20 34.0 21.8 8.55 7.40 3.52 2.44
TH4B3521S ME12BN21 17.5 CF42B 1050 35.0 26.2 14.50 12.20 33.6 21.6 8.55 7.40 3.60 2.44
TH4B3521S ME12CN21 21.0 CF/CM36C 1000 34.6 25.4 14.25 12.25 33.8 22.0 8.20 7.40 3.50 2.32
TH4B3521S ME14DN21 24.5 CF/CM36D 825 33.6 23.0 14.75 12.20 33.6 21.8 8.20 7.30 3.36 2.30
TH4B3521S ME16CN21 21.0 CF/CM36C 1100 34.8 26.8 14.50 12.25 33.8 21.6 8.55 7.40 3.58 2.46
TH4B3521S ME16CN21 21.0 CF/CM42C 1100 35.6 27.0 14.75 12.25 33.6 21.4 8.55 7.35 3.64 2.46
TH4B3521S MVC12BN21 17.5 CF/CM36B 1025 34.6 25.8 14.00 12.25 34.0 22.2 8.20 7.35 3.50 2.30
TH4B3521S MVC12BN21 17.5 CF42B 1025 35.0 26.0 14.50 12.20 33.6 21.6 8.55 7.40 3.58 2.44
TH4B3521S MVC12CN21 21.0 CF/CM36C 1000 34.8 25.6 14.25 12.50 33.8 22.0 8.55 7.40 3.52 2.32
TH4B3521S MVC12CN21 21.0 CF/CM42C 1000 35.0 25.6 15.00 12.25 33.4 21.4 8.55 7.40 3.60 2.46
TH4B3521S MVC14DN21 24.5 CF/CM36D 875 34.0 24.0 14.50 12.25 33.6 21.6 8.20 7.45 3.44 2.36
TH4B3521S MVC16CN21 21.0 CF/CM36C 1025 34.8 25.8 14.50 12.50 33.8 22.0 8.55 7.40 3.54 2.32
TH4B3521S MVC16CN21 21.0 CF/CM42C 1025 35.2 26.0 15.00 12.25 33.4 21.4 8.55 7.40 3.62 2.46
SYSTEM CAPACITY - Single Piece and Modular Air Handlers
UNIT
MODEL
AIR HANDLER COIL
MODEL3RATED
CFM
COOLING 1HEATING 2
MODEL WIDTH NET MBH SEER EER NET MBH HSPF
Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
Johnson Controls Unitary Products 7
TH4B3622S AE42CX21 21.0 – 1000 36.0 25.8 15.75 13.00 34.8 22.4 8.75 7.95 3.64 2.58
TH4B3622S AE48CX21 21.0 – 1250 36.6 28.6 15.75 13.00 35.0 22.6 9.00 8.10 3.80 2.62
TH4B3622S AE48DX21 24.5 – 1100 36.2 26.8 15.75 13.00 34.8 22.4 9.00 8.05 3.76 2.62
TH4B3622S AP37CX21 21.0 – 1200 36.0 25.2 14.00 12.00 35.8 23.4 8.75 7.75 3.54 2.46
TH4B3622S AP48DX21 24.5 – 1350 36.0 29.2 14.00 11.75 36.0 23.6 8.50 7.75 3.56 2.46
TH4B3622S AVC42CX21 21.0 – 1150 36.2 27.2 15.75 13.00 35.0 22.6 9.00 8.00 3.70 2.58
TH4B3622S AVC48CX21 21.0 – 1275 36.6 29.0 15.75 13.00 35.0 22.6 9.00 8.05 3.76 2.60
TH4B3622S AVC48DX21 24.5 – 1025 36.0 25.8 15.75 13.00 34.8 22.4 9.00 7.95 3.66 2.58
TH4B3622S ME12CN21 21.0 CF/CM48C 1000 36.0 25.6 15.75 12.75 34.8 22.6 8.75 7.50 3.62 2.58
TH4B3622S ME14DN21 24.5 CF/CM48D 1025 36.0 25.8 15.75 13.00 34.8 22.4 9.00 7.95 3.66 2.58
TH4B3622S ME16CN21 21.0 CF/CM48C 1100 36.0 26.6 15.75 13.00 35.0 22.6 9.00 8.00 3.70 2.58
TH4B3622S ME20DN21 24.5 CF/CM48D 1275 36.6 28.8 15.75 13.00 34.8 22.4 9.00 8.10 3.82 2.64
TH4B3622S MVC12CN21 21.0 CF/CM48C 1000 36.0 25.8 15.75 13.00 34.8 22.4 8.75 7.95 3.64 2.58
TH4B3622S MVC14DN21 24.5 CF/CM48D 1000 36.0 25.8 15.75 13.00 34.8 22.4 9.00 8.00 3.66 2.60
TH4B3622S MVC16CN21 21.0 CF/CM48C 1025 36.0 25.8 15.75 13.00 34.8 22.4 9.00 7.95 3.66 2.58
TH4B3622S MVC20DN21 24.5 CF/CM48D 1175 36.6 27.8 15.75 13.00 34.8 22.4 9.00 8.10 3.78 2.62
TH4B4222S AE42CX21 21.0 – 1,150 40.0 29.2 15.00 12.25 40.0 25.2 8.20 7.25 3.36 2.64
TH4B4222S AE48CX21 21.0 – 1,200 40.5 30.0 15.25 12.25 40.0 25.2 8.20 7.25 3.44 2.66
TH4B4222S AE48DX21 24.5 – 1,250 40.5 30.8 15.50 12.50 39.5 25.0 8.50 7.50 3.50 2.70
TH4B4222S AP48CX21 21.0 – 1,450 41.0 30.2 14.00 11.75 40.5 25.8 8.20 7.55 3.34 2.58
TH4B4222S AP48DX21 24.5 – 1,475 41.0 33.2 14.00 11.25 40.5 26.0 8.20 7.25 3.36 2.56
TH4B4222S AVC42CX21 21.0 – 1,150 40.0 29.2 15.00 12.25 40.0 25.4 8.20 7.25 3.34 2.62
TH4B4222S AVC48CX21 21.0 – 1,200 40.5 30.0 15.00 12.25 40.0 25.4 8.20 7.25 3.38 2.64
TH4B4222S AVC48DX21 24.5 – 1,150 40.5 29.6 15.50 12.25 40.0 25.2 8.20 7.25 3.38 2.66
TH4B4222S ME14DN21 24.5 CF/CM48D 1,200 40.5 30.0 15.25 12.25 40.0 25.2 8.20 7.25 3.40 2.66
TH4B4222S ME16CN21 21.0 CF/CM48C 1,325 40.5 31.6 15.00 12.20 40.0 25.4 8.20 7.25 3.42 2.64
TH4B4222S ME20DN21 24.5 CF/CM48D 1,275 41.0 31.2 15.50 12.50 39.5 25.2 8.50 7.50 3.46 2.66
TH4B4222S MVC14DN21 24.5 CF/CM48D 1,175 40.5 29.8 15.50 12.50 40.0 25.0 8.20 7.25 3.40 2.68
TH4B4222S MVC16CN21 21.0 CF/CM48C 1,150 40.5 29.6 15.25 12.25 40.0 25.2 8.20 7.25 3.36 2.66
TH4B4222S MVC20DN21 24.5 CF/CM48D 1,175 40.5 29.8 15.50 12.50 40.0 25.0 8.20 7.25 3.40 2.68
TH4B4822S AE60CX22 21.0 – 1,525 47.0 33.4 15.00 12.50 47.5 31.4 9.50 8.25 3.64 2.66
TH4B4822S AVC48CX21 21.0 – 1,600 46.5 34.6 14.00 11.50 48.0 32.6 8.75 8.00 3.50 2.52
TH4B4822S ME16CN21 21.0 CF/CM48C 1,500 48.0 36.4 14.50 12.20 48.0 32.4 9.00 8.20 3.64 2.60
TH4B4822S ME16CN21 21.0 CF/CM60C 1,500 47.5 36.2 14.25 12.20 48.0 31.6 9.00 8.20 3.62 2.64
TH4B4822S ME20DN21 24.5 CF/CM48D 1,500 48.0 36.6 15.00 12.50 48.0 32.0 9.25 8.30 3.70 2.66
TH4B4822S ME20DN21 24.5 CF/CM60D 1,500 48.0 36.8 15.00 12.50 48.0 31.2 9.25 8.30 3.70 2.68
SYSTEM CAPACITY - Single Piece and Modular Air Handlers
UNIT
MODEL
AIR HANDLER COIL
MODEL3RATED
CFM
COOLING 1HEATING 2
MODEL WIDTH NET MBH SEER EER NET MBH HSPF
Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
8 Johnson Controls Unitary Products
3. CM coils available with a factory installed horizontal drain pan. See price pages for specific model number.
— = Not applicable.
* Notates “Hot Heat Pump” performance. These ratings are notAHRI listed.
MP ModularAir Handlers use Coil Only Ratings.
TH4B4822S MVC16CN21 21.0 CF/CM48C 1,500 48.0 36.4 14.75 12.25 48.0 32.2 9.25 8.25 3.66 2.64
TH4B4822S MVC16CN21 21.0 CF/CM60C 1,500 47.5 36.4 14.75 12.25 48.0 31.4 9.25 8.25 3.66 2.66
TH4B4822S MVC20DN21 24.5 CF/CM48D 1550 47.0 34.6 14.50 12.20 48.0 32.0 9.00 8.05 3.58 2.58
TH4B4822S MVC20DN21 24.5 CF/CM60D 1375 47.0 34.8 15.00 12.50 48.0 31.2 9.25 8.25 3.62 2.66
TH4B6022S AE60DX21 24.5 – 1650 55.5 38.5 14.25 12.00 57.0 37.8 10.00 8.70 3.88 2.82
TH4B6022S AVC60DX21 24.5 – 1500 54.5 39.5 14.00 12.20 57.5 31.6 8.75 7.50 3.78 2.56
TH4B6022S ME20DN21 24.5 CF/CM64D 1675 55.5 42.0 14.25 12.25 57.5 37.6 9.50 8.20 3.92 2.84
TH4B6022S MVC20DN21 24.5 CF/CM64D 1550 55.5 40.5 14.50 12.25 57.5 37.6 9.50 8.70 3.86 2.82
Rated in accordance with DOE test procedures (Federal Register 12-27-79 and 3-18-88) and ANSI/AHRI Standard 210/240.
1. Cooling MBH based on 80°F entering air temperature, 50% RH (Relative Humidity), and rated air flow.
EER (Energy Efficiency Ratio) is the total cooling output in BTUs at 95°F outdoor ambient divided by the total electric power in watt-hours at those conditions.
SEER (Seasonal Energy Efficiency Ratio) is the total cooling output in BTUs during a normal annual usage period for cooling divided by the total electric power input in watt-hours during the same period.
2. Heating MBH based on AHRI standards of 70°F DB (Dry Bulb) entering indoor air, 72% RH (Relative Humidity) outdoor air with 25 feet of interconnecting piping and no supplemental electric heat operation.
HSPF (Heating Seasonal Performance Factor) is the total heating output during a normal annual usage period for heating divided by the total electric power input during the same period.
COP (Coefficient of Performance) equals Heating MBH output divided by (total KW input x 3.412).
SYSTEM CAPACITY - Single Piece and Modular Air Handlers
UNIT
MODEL
AIR HANDLER COIL
MODEL3RATED
CFM
COOLING 1HEATING 2
MODEL WIDTH NET MBH SEER EER NET MBH HSPF
Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
Johnson Controls Unitary Products 9
— = Not Applicable.
MP ModularAir Handlers use Coil Only Ratings.
PSC furnaces, such as the TG8S, TGLS, and TG9S, use Coil Only Ratings.
SYSTEM CAPACITY - Upflow, Downflow & Horizontal Furnaces and Coils (Coil Only Ratings)
UNIT MODEL COIL CFM RANGE
(MIN.-MAX.)
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER 1EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD
TH4B1821S CF/CM/CU18A 14.5 450 - 750 600 18.0 13.9 14.00 12.20 18.0 12.1 8.75 7.40 3.52 2.38
TH4B1821S CF/CM/CU18B 17.5 450 - 750 600 18.0 13.9 14.00 12.20 18.0 12.1 8.75 7.40 3.52 2.38
TH4B1821S CF/CM/CU24A 14.5 450 - 750 600 18.0 13.9 14.00 12.20 18.0 12.1 8.75 7.40 3.52 2.40
TH4B1821S CF/CM/CU24A 14.5 450 - 750 600 18.0 13.9 14.00 12.20 18.0 12.1 8.75 7.40 3.52 2.40
TH4B1821S CF/CM/CU24B 17.5 450 - 750 600 18.0 13.9 14.00 12.20 18.0 12.1 8.75 7.40 3.52 2.40
TH4B1821S CF/CM/CU24C 21.0 450 - 750 600 18.0 13.9 14.00 12.20 18.0 12.1 8.75 7.40 3.52 2.40
TH4B2421S CF/CM/CU24A 14.5 600 - 1000 675 23.6 17.2 14.00 11.50 24.0 15.4 8.20 7.30 3.40 2.30
TH4B2421S CF/CM/CU24B 17.5 600 - 1000 800 24.0 18.7 14.00 11.50 24.0 15.4 8.20 7.40 3.50 2.32
TH4B2421S CF/CM/CU24C 21.0 600 - 1000 800 24.0 18.7 14.00 11.50 24.0 15.4 8.20 7.40 3.50 2.32
TH4B2421S CF/CM/CU30A 14.5 600 - 1000 675 24.0 16.9 14.75 12.50 24.0 15.6 8.75 7.90 3.62 2.52
TH4B2421S CF/CM/CU30B 17.5 600 - 1000 800 24.0 18.3 14.25 12.20 24.0 15.8 9.00 7.85 3.70 2.50
TH4B2421S CF/CM/CU30C 21.0 600 - 1000 800 24.0 18.0 15.00 12.50 24.0 15.6 9.00 8.00 3.74 2.54
TH4B2421S CF/CM/CU30D 24.5 600 - 1000 800 24.0 18.0 15.00 12.50 24.0 15.6 9.00 8.00 3.74 2.54
TH4B3021S CF/CM/CU30B 17.5 800 - 1200 1000 29.0 23.4 14.00 11.75 30.0 20.0 8.55 7.15 3.74 2.62
TH4B3021S CF/CM/CU30C 21.0 800 - 1200 1000 29.0 23.4 14.00 11.75 30.0 20.0 8.55 7.15 3.74 2.62
TH4B3021S CF/CM/CU30D 24.5 800 - 1200 1000 29.0 23.4 14.00 11.75 30.0 20.0 8.55 7.15 3.74 2.62
TH4B3021S CF/CM/CU36B 17.5 800 - 1200 1000 29.6 23.6 14.00 12.00 30.0 20.6 8.55 6.80 4.16 2.80
TH4B3021S CF/CM/CU36C 21.0 800 - 1200 1000 29.6 23.6 14.00 12.00 30.0 20.6 8.55 6.80 4.16 2.80
TH4B3021S CF/CM/CU36D 24.5 800 - 1200 1000 29.6 23.6 14.00 12.00 30.0 20.6 8.55 6.80 4.16 2.80
TH4B3021S CF/CM36A 14.5 800 - 1200 1000 29.6 23.6 14.00 12.00 30.0 20.6 8.55 6.80 4.16 2.80
TH4B3622S CF/CM/CU48C 21.0 1000 - 1400 1200 36.0 27.6 14.25 12.20 35.8 23.4 8.50 7.75 3.54 2.46
TH4B3622S CF/CM/CU48D 24.5 1000 - 1400 1200 36.0 27.6 14.25 12.20 35.8 23.4 8.50 7.75 3.54 2.46
TH4B4222S CF/CM/CU48C 21.0 1200 - 1600 1400 40.5 32.0 14.00 11.25 40.5 26.0 8.20 7.30 3.32 2.54
TH4B4222S CF/CM/CU48D 24.5 1200 - 1600 1400 40.5 32.0 14.00 11.25 40.5 26.0 8.20 7.30 3.32 2.54
TH4B4822S CF/CM/CU60C 21.0 1400 - 1600 1,600 47.0 33.8 14.00 11.75 47.5 32.0 8.20 7.13 3.54 2.50
TH4B4822S CF/CM/CU60D 24.5 1400 - 1600 1,600 47.0 33.8 14.00 11.75 47.5 32.0 8.20 7.13 3.54 2.50
For rated condition information, see the footnotes below the System Capacity - Single Piece and Modular Air Handlers table.
1. Requires a S1-2FD06700224 Blower Time Delay unless a standard furnace is equipped with one.

5523952-LTG-D-1218
10 Johnson Controls Unitary Products
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD
TH4B1821S TM8V060A12MP12C 14.5 CF/CM/CU18A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.45 3.80 2.54
TH4B1821S TM8V060A12MP12C 14.5 CF/CM/CU18B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.82 2.54
TH4B1821S TM8V060A12MP12C 14.5 CF/CM/CU24A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.74 2.54
TH4B1821S TM8V060A12MP12C 14.5 CF/CM/CU24B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.76 2.56
TH4B1821S TM8V080B12MP12C 17.5 CF/CM/CU18B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.78 2.52
TH4B1821S TM8V080B12MP12C 17.5 CF/CM/CU24B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S TM8V080B12MP12C 17.5 CF/CM/CU24C 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.74 2.54
TH4B1821S TM8X060A12MP11 14.5 CF/CM/CU18A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.78 2.52
TH4B1821S TM8X060A12MP11 14.5 CF/CM/CU18B 650 18.0 14.4 15.75 13.00 18.0 11.6 9.00 7.50 3.78 2.56
TH4B1821S TM8X060A12MP11 14.5 CF/CM/CU24A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S TM8X060A12MP11 14.5 CF/CM/CU24B 650 18.0 14.4 15.75 13.00 18.0 11.6 9.00 7.45 3.84 2.56
TH4B1821S TM8X080B12MP11 17.5 CF/CM/CU18B 675 18.0 14.6 15.75 13.00 18.0 11.6 9.00 7.50 3.84 2.56
TH4B1821S TM8X080B12MP11 17.5 CF/CM/CU24B 675 18.0 14.6 15.50 13.00 18.0 11.5 9.00 7.40 3.86 2.56
TH4B1821S TM8X080B12MP11 17.5 CF/CM/CU24C 675 18.0 14.6 15.75 13.00 18.0 11.5 9.00 7.45 3.86 2.58
TH4B1821S TM8X080C16MP11 21.0 CF/CM/CU24C 700 18.0 14.9 15.75 13.00 18.0 11.5 9.00 7.40 3.88 2.58
TH4B1821S TM8X100C16MP11 21.0 CF/CM/CU24C 700 18.0 14.9 15.75 13.00 18.0 11.5 9.00 7.40 3.88 2.58
TH4B1821S TM8Y060A12MP11 14.5 CF/CM/CU18A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.78 2.52
TH4B1821S TM8Y060A12MP11 14.5 CF/CM/CU18B 650 18.0 14.4 15.75 13.00 18.0 11.6 9.00 7.50 3.78 2.56
TH4B1821S TM8Y060A12MP11 14.5 CF/CM/CU24A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S TM8Y060A12MP11 14.5 CF/CM/CU24B 650 18.0 14.4 15.75 13.00 18.0 11.6 9.00 7.45 3.84 2.56
TH4B1821S TM8Y080B12MP11 17.5 CF/CM/CU18B 675 18.0 14.6 15.75 13.00 18.0 11.6 9.00 7.50 3.84 2.56
TH4B1821S TM8Y080B12MP11 17.5 CF/CM/CU24B 675 18.0 14.6 15.50 13.00 18.0 11.5 9.00 7.40 3.86 2.56
TH4B1821S TM8Y080B12MP11 17.5 CF/CM/CU24C 675 18.0 14.6 15.75 13.00 18.0 11.5 9.00 7.45 3.86 2.58
TH4B1821S TM8Y080C16MP11 21.0 CF/CM/CU24C 700 18.0 14.9 15.75 13.00 18.0 11.5 9.00 7.40 3.88 2.58
TH4B1821S TM8Y100C16MP11 21.0 CF/CM/CU24C 700 18.0 14.9 15.75 13.00 18.0 11.5 9.00 7.40 3.88 2.58
TH4B1821S TM9E040A10MP11 14.5 CF/CM/CU18A 500 18.0 12.9 15.00 12.75 18.0 11.7 8.75 7.45 3.50 2.46
TH4B1821S TM9E040A10MP11 14.5 CF/CM/CU18B 525 18.0 13.1 15.25 13.00 18.1 11.7 8.75 7.85 3.56 2.50
TH4B1821S TM9E040A10MP11 14.5 CF/CM/CU24A 500 18.0 12.8 14.75 12.25 18.0 11.7 8.75 7.40 3.52 2.46
TH4B1821S TM9E040A10MP11 14.5 CF/CM/CU24B 525 18.0 13.1 15.00 12.50 18.0 11.7 8.75 7.35 3.60 2.50
TH4B1821S TM9E080B12MP11 17.5 CF/CM/CU18B 700 18.0 14.9 15.75 13.00 18.0 11.6 9.00 7.45 3.86 2.56
TH4B1821S TM9E080B12MP11 17.5 CF/CM/CU24B 700 18.0 14.9 15.50 13.00 18.0 11.6 9.00 7.45 3.84 2.56
TH4B1821S TM9E080B12MP11 17.5 CF/CM/CU24C 700 18.0 14.9 15.50 13.00 18.0 11.6 9.00 7.40 3.84 2.56
TH4B1821S TM9E100C16MP11 21.0 CF/CM/CU24C 625 18.0 14.1 15.75 13.00 18.0 11.5 9.00 7.45 3.78 2.56
TH4B1821S TM9V060B12MP12C 17.5 CF/CM/CU18B 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.55 3.76 2.52
TH4B1821S TM9V060B12MP12C 17.5 CF/CM/CU24B 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S TM9V060B12MP12C 17.5 CF/CM/CU24C 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.50 3.76 2.54
TH4B1821S TM9V080B12MP12C 17.5 CF/CM/CU18B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.80 2.54

5523952-LTG-D-1218
Johnson Controls Unitary Products 11
TH4B1821S TM9V080B12MP12C 17.5 CF/CM/CU24B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.76 2.56
TH4B1821S TM9V080B12MP12C 17.5 CF/CM/CU24C 625 18.0 14.1 15.75 13.00 18.0 11.5 9.00 7.45 3.78 2.56
TH4B1821S TM9Y040A10MP11 14.5 CF/CM/CU18A 500 18.0 12.9 15.00 12.75 18.0 11.7 8.75 7.45 3.50 2.46
TH4B1821S TM9Y040A10MP11 14.5 CF/CM/CU18B 525 18.0 13.1 15.25 13.00 18.1 11.7 8.75 7.85 3.56 2.50
TH4B1821S TM9Y040A10MP11 14.5 CF/CM/CU24A 500 18.0 12.8 14.75 12.25 18.0 11.7 8.75 7.40 3.52 2.46
TH4B1821S TM9Y040A10MP11 14.5 CF/CM/CU24B 525 18.0 13.1 15.00 12.50 18.0 11.7 8.75 7.35 3.60 2.50
TH4B1821S TM9Y080B12MP11 17.5 CF/CM/CU18B 700 18.0 14.9 15.75 13.00 18.0 11.6 9.00 7.45 3.86 2.56
TH4B1821S TM9Y080B12MP11 17.5 CF/CM/CU24B 700 18.0 14.9 15.50 13.00 18.0 11.6 9.00 7.45 3.84 2.56
TH4B1821S TM9Y080B12MP11 17.5 CF/CM/CU24C 700 18.0 14.9 15.50 13.00 18.0 11.6 9.00 7.40 3.84 2.56
TH4B1821S TM9Y100C16MP11 21.0 CF/CM/CU24C 625 18.0 14.1 15.75 13.00 18.0 11.5 9.00 7.45 3.78 2.56
TH4B1821S TMLV060A12MP12C 14.5 CF/CM/CU18A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.45 3.80 2.54
TH4B1821S TMLV060A12MP12C 14.5 CF/CM/CU18B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.82 2.54
TH4B1821S TMLV060A12MP12C 14.5 CF/CM/CU24A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.74 2.54
TH4B1821S TMLV060A12MP12C 14.5 CF/CM/CU24B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.76 2.56
TH4B1821S TMLV080B12MP12C 17.5 CF/CM/CU18B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.78 2.52
TH4B1821S TMLV080B12MP12C 17.5 CF/CM/CU24B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S TMLV080B12MP12C 17.5 CF/CM/CU24C 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.74 2.54
TH4B1821S TMLX060A12MP11 14.5 CF/CM/CU18A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.78 2.52
TH4B1821S TMLX060A12MP11 14.5 CF/CM/CU18B 650 18.0 14.4 15.75 13.00 18.0 11.6 9.00 7.50 3.78 2.56
TH4B1821S TMLX060A12MP11 14.5 CF/CM/CU24A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S TMLX060A12MP11 14.5 CF/CM/CU24B 650 18.0 14.4 15.75 13.00 18.0 11.6 9.00 7.45 3.84 2.56
TH4B1821S TMLX080B12MP11 17.5 CF/CM/CU18B 675 18.0 14.6 15.75 13.00 18.0 11.6 9.00 7.50 3.84 2.56
TH4B1821S TMLX080B12MP11 17.5 CF/CM/CU24B 675 18.0 14.6 15.50 13.00 18.0 11.5 9.00 7.40 3.86 2.56
TH4B1821S TMLX080B12MP11 17.5 CF/CM/CU24C 675 18.0 14.6 15.75 13.00 18.0 11.5 9.00 7.45 3.86 2.58
TH4B1821S TMLX080C16MP11 21.0 CF/CM/CU24C 700 18.0 14.9 15.75 13.00 18.0 11.5 9.00 7.40 3.88 2.58
TH4B1821S TMLX100C16MP11 21.0 CF/CM/CU24C 700 18.0 14.9 15.75 13.00 18.0 11.5 9.00 7.40 3.88 2.58
TH4B1821S TP9C060B12MP13C 17.5 CF/CM/CU18B 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.55 3.76 2.52
TH4B1821S TP9C060B12MP13C 17.5 CF/CM/CU24B 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S TP9C060B12MP13C 17.5 CF/CM/CU24C 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.50 3.76 2.54
TH4B1821S TP9C080B12MP13C 17.5 CF/CM/CU18B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.80 2.54
TH4B1821S TP9C080B12MP13C 17.5 CF/CM/CU24B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.76 2.56
TH4B1821S TP9C080B12MP13C 17.5 CF/CM/CU24C 625 18.0 14.1 15.75 13.00 18.0 11.5 9.00 7.45 3.78 2.56
TH4B1821S TPLC060A12MP13C 14.5 CF/CM/CU18A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.45 3.80 2.54
TH4B1821S TPLC060A12MP13C 14.5 CF/CM/CU18B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.82 2.54
TH4B1821S TPLC060A12MP13C 14.5 CF/CM/CU24A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.74 2.54
TH4B1821S TPLC060A12MP13C 14.5 CF/CM/CU24B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.76 2.56
TH4B1821S TPLC080B12MP13C 17.5 CF/CM/CU18B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.78 2.52
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
12 Johnson Controls Unitary Products
TH4B1821S TPLC080B12MP13C 17.5 CF/CM/CU24B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S TPLC080B12MP13C 17.5 CF/CM/CU24C 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.74 2.54
TH4B1821S LP9C060B12MP13C 17.5 CF/CM/CU18B 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.55 3.76 2.52
TH4B1821S LP9C060B12MP13C 17.5 CF/CM/CU24B 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S LP9C060B12MP13C 17.5 CF/CM/CU24C 600 18.0 13.9 15.50 13.00 18.0 11.6 9.00 7.50 3.76 2.54
TH4B1821S LP9C080B12MP13C 17.5 CF/CM/CU18B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.80 2.54
TH4B1821S LP9C080B12MP13C 17.5 CF/CM/CU24B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.76 2.56
TH4B1821S LP9C080B12MP13C 17.5 CF/CM/CU24C 625 18.0 14.1 15.75 13.00 18.0 11.5 9.00 7.45 3.78 2.56
TH4B1821S LPLC060A12MP13C 14.5 CF/CM/CU18A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.45 3.80 2.54
TH4B1821S LPLC060A12MP13C 14.5 CF/CM/CU18B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.82 2.54
TH4B1821S LPLC060A12MP13C 14.5 CF/CM/CU24A 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.74 2.54
TH4B1821S LPLC060A12MP13C 14.5 CF/CM/CU24B 625 18.0 14.1 15.75 13.00 18.0 11.6 9.00 7.50 3.76 2.56
TH4B1821S LPLC080B12MP13C 17.5 CF/CM/CU18B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.78 2.52
TH4B1821S LPLC080B12MP13C 17.5 CF/CM/CU24B 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.55 3.74 2.54
TH4B1821S LPLC080B12MP13C 17.5 CF/CM/CU24C 625 18.0 14.1 15.50 13.00 18.0 11.6 9.00 7.50 3.74 2.54
TH4B2421S TM8V060A12MP12C 14.5 CF/CM/CU24A 625 23.8 16.8 15.00 12.75 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TM8V060A12MP12C 14.5 CF/CM/CU24B 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.48 2.38
TH4B2421S TM8V060A12MP12C 14.5 CF/CM/CU30A 625 24.0 16.5 15.75 13.00 24.0 15.1 9.25 7.85 3.76 2.64
TH4B2421S TM8V060A12MP12C 14.5 CF/CM/CU30B 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.78 2.66
TH4B2421S TM8V080B12MP12C 17.5 CF/CM/CU24B 625 23.8 16.8 15.00 12.50 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TM8V080B12MP12C 17.5 CF/CM/CU24C 675 24.0 17.5 15.25 12.75 24.0 14.9 8.50 7.50 3.56 2.40
TH4B2421S TM8V080B12MP12C 17.5 CF/CM/CU30B 625 24.0 16.4 15.75 13.00 24.0 15.1 9.00 7.65 3.76 2.64
TH4B2421S TM8V080B12MP12C 17.5 CF/CM/CU30C 625 24.0 16.5 15.75 13.00 24.0 15.1 9.25 7.85 3.76 2.64
TH4B2421S TM8V080C16MP12C 21.0 CF/CM/CU24C 875 24.0 19.5 15.50 13.00 24.0 14.8 8.75 7.70 3.80 2.46
TH4B2421S TM8V080C16MP12C 21.0 CF/CM/CU30C 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TM8V080C16MP12C 21.0 CF/CM/CU30D 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TM8V100C16MP12C 21.0 CF/CM/CU24C 875 24.0 19.5 15.50 13.00 24.0 14.8 8.75 7.70 3.80 2.46
TH4B2421S TM8V100C16MP12C 21.0 CF/CM/CU30C 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TM8V100C16MP12C 21.0 CF/CM/CU30D 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TM8X060A12MP11 14.5 CF/CM/CU24A 625 23.8 16.8 15.00 12.75 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TM8X060A12MP11 14.5 CF/CM/CU24B 650 24.0 17.3 15.25 12.75 24.0 14.9 8.50 7.50 3.52 2.40
TH4B2421S TM8X060A12MP11 14.5 CF/CM/CU30A 625 24.0 16.4 15.75 13.00 24.0 15.1 9.00 7.65 3.74 2.64
TH4B2421S TM8X060A12MP11 14.5 CF/CM/CU30B 650 24.0 16.7 15.75 13.00 24.0 15.1 9.25 7.85 3.80 2.66
TH4B2421S TM8X080B12MP11 17.5 CF/CM/CU24B 675 24.0 17.5 15.50 12.75 24.0 14.9 8.50 7.50 3.58 2.40
TH4B2421S TM8X080B12MP11 17.5 CF/CM/CU24C 675 24.0 17.4 15.50 13.00 24.0 14.9 8.50 7.55 3.58 2.40
TH4B2421S TM8X080B12MP11 17.5 CF/CM/CU30B 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.85 3.84 2.68
TH4B2421S TM8X080B12MP11 17.5 CF/CM/CU30C 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.80 3.84 2.68
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
Johnson Controls Unitary Products 13
TH4B2421S TM8X080C16MP11 21.0 CF/CM/CU24C 700 24.0 17.7 15.50 13.00 24.0 14.8 8.50 7.55 3.62 2.42
TH4B2421S TM8X080C16MP11 21.0 CF/CM/CU30C 700 24.0 17.2 15.75 13.00 24.0 15.0 9.50 8.00 3.92 2.70
TH4B2421S TM8X080C16MP11 21.0 CF/CM/CU30D 725 24.0 17.4 15.75 13.00 24.0 14.9 9.50 8.00 3.96 2.72
TH4B2421S TM8X100C16MP11 21.0 CF/CM/CU24C 700 24.0 17.7 15.50 13.00 24.0 14.8 8.50 7.55 3.62 2.42
TH4B2421S TM8X100C16MP11 21.0 CF/CM/CU30C 700 24.0 17.2 15.75 13.00 24.0 15.0 9.50 8.00 3.92 2.70
TH4B2421S TM8X100C16MP11 21.0 CF/CM/CU30D 725 24.0 17.4 15.75 13.00 24.0 14.9 9.50 8.00 3.96 2.72
TH4B2421S TM8Y060A12MP11 14.5 CF/CM/CU24A 625 23.8 16.8 15.00 12.75 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TM8Y060A12MP11 14.5 CF/CM/CU24B 650 24.0 17.3 15.25 12.75 24.0 14.9 8.50 7.50 3.52 2.40
TH4B2421S TM8Y060A12MP11 14.5 CF/CM/CU30A 625 24.0 16.4 15.75 13.00 24.0 15.1 9.00 7.65 3.74 2.64
TH4B2421S TM8Y060A12MP11 14.5 CF/CM/CU30B 650 24.0 16.7 15.75 13.00 24.0 15.1 9.25 7.85 3.80 2.66
TH4B2421S TM8Y080B12MP11 17.5 CF/CM/CU24B 675 24.0 17.5 15.50 12.75 24.0 14.9 8.50 7.50 3.58 2.40
TH4B2421S TM8Y080B12MP11 17.5 CF/CM/CU24C 675 24.0 17.4 15.50 13.00 24.0 14.9 8.50 7.55 3.58 2.40
TH4B2421S TM8Y080B12MP11 17.5 CF/CM/CU30B 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.85 3.84 2.68
TH4B2421S TM8Y080B12MP11 17.5 CF/CM/CU30C 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.80 3.84 2.68
TH4B2421S TM8Y080C16MP11 21.0 CF/CM/CU24C 700 24.0 17.7 15.50 13.00 24.0 14.8 8.50 7.55 3.62 2.42
TH4B2421S TM8Y080C16MP11 21.0 CF/CM/CU30C 700 24.0 17.2 15.75 13.00 24.0 15.0 9.50 8.00 3.92 2.70
TH4B2421S TM8Y080C16MP11 21.0 CF/CM/CU30D 725 24.0 17.4 15.75 13.00 24.0 14.9 9.50 8.00 3.96 2.72
TH4B2421S TM8Y100C16MP11 21.0 CF/CM/CU24C 700 24.0 17.7 15.50 13.00 24.0 14.8 8.50 7.55 3.62 2.42
TH4B2421S TM8Y100C16MP11 21.0 CF/CM/CU30C 700 24.0 17.2 15.75 13.00 24.0 15.0 9.50 8.00 3.92 2.70
TH4B2421S TM8Y100C16MP11 21.0 CF/CM/CU30D 725 24.0 17.4 15.75 13.00 24.0 14.9 9.50 8.00 3.96 2.72
TH4B2421S TM9E040A10MP11 14.5 CF/CM/CU24A 675 23.8 17.3 14.50 12.25 24.0 15.2 8.20 7.40 3.48 2.34
TH4B2421S TM9E040A10MP11 14.5 CF/CM/CU24B 700 24.0 17.7 14.50 12.25 24.0 15.1 8.50 7.45 3.52 2.36
TH4B2421S TM9E040A10MP11 14.5 CF/CM/CU30A 675 24.0 16.8 15.50 13.00 24.0 15.3 9.00 8.05 3.72 2.60
TH4B2421S TM9E040A10MP11 14.5 CF/CM/CU30B 700 24.0 17.2 15.75 13.00 24.0 15.3 9.25 7.85 3.78 2.60
TH4B2421S TM9E080B12MP11 17.5 CF/CM/CU24B 700 24.0 17.8 15.25 12.75 24.0 14.9 8.50 7.55 3.60 2.42
TH4B2421S TM9E080B12MP11 17.5 CF/CM/CU24C 700 24.0 17.8 15.50 13.00 24.0 14.9 8.50 7.55 3.60 2.42
TH4B2421S TM9E080B12MP11 17.5 CF/CM/CU30B 700 24.0 17.2 15.75 13.00 24.0 15.1 9.25 7.80 3.90 2.66
TH4B2421S TM9E080B12MP11 17.5 CF/CM/CU30C 700 24.0 17.2 15.75 13.00 24.0 15.1 9.25 7.75 3.90 2.68
TH4B2421S TM9E100C16MP11 21.0 CF/CM/CU24C 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.50 2.38
TH4B2421S TM9E100C16MP11 21.0 CF/CM/CU30C 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.78 2.66
TH4B2421S TM9E100C16MP11 21.0 CF/CM/CU30D 650 24.0 16.7 15.75 13.00 24.0 15.0 9.25 7.85 3.82 2.66
TH4B2421S TM9V060B12MP12C 17.5 CF/CM/CU24B 600 23.6 16.5 15.00 12.50 24.0 15.0 8.20 7.40 3.42 2.36
TH4B2421S TM9V060B12MP12C 17.5 CF/CM/CU24C 650 24.0 17.2 15.25 12.75 24.0 14.9 8.50 7.50 3.50 2.40
TH4B2421S TM9V060B12MP12C 17.5 CF/CM/CU30B 600 24.0 16.2 15.75 13.00 24.0 15.1 9.00 7.65 3.72 2.62
TH4B2421S TM9V060B12MP12C 17.5 CF/CM/CU30C 650 24.0 16.7 15.75 13.00 24.0 15.1 9.25 7.85 3.80 2.64
TH4B2421S TM9V080B12MP12C 17.5 CF/CM/CU24B 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.48 2.38
TH4B2421S TM9V080B12MP12C 17.5 CF/CM/CU24C 675 24.0 17.5 15.50 12.75 24.0 14.9 8.50 7.55 3.58 2.40
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
14 Johnson Controls Unitary Products
TH4B2421S TM9V080B12MP12C 17.5 CF/CM/CU30B 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.76 2.66
TH4B2421S TM9V080B12MP12C 17.5 CF/CM/CU30C 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.80 3.84 2.68
TH4B2421S TM9V080C16MP12C 21.0 CF/CM/CU30C 950 24.0 19.5 15.75 13.00 24.0 15.1 9.50 7.90 4.08 2.72
TH4B2421S TM9V080C16MP12C 21.0 CF/CM/CU30D 950 24.0 19.5 15.75 13.00 24.0 15.1 9.50 7.90 4.10 2.72
TH4B2421S TM9V100C16MP12C 21.0 CF/CM/CU24C 900 24.0 18.7 15.00 12.75 23.4 14.3 8.75 7.80 3.76 2.54
TH4B2421S TM9V100C16MP12C 21.0 CF/CM/CU30C 900 24.0 19.0 15.75 13.00 24.0 15.0 9.50 7.90 4.10 2.74
TH4B2421S TM9V100C16MP12C 21.0 CF/CM/CU30D 900 24.0 19.0 15.75 13.00 24.0 15.0 9.50 7.90 4.10 2.74
TH4B2421S TM9Y040A10MP11 14.5 CF/CM/CU24A 675 23.8 17.3 14.50 12.25 24.0 15.2 8.20 7.40 3.48 2.34
TH4B2421S TM9Y040A10MP11 14.5 CF/CM/CU24B 700 24.0 17.7 14.50 12.25 24.0 15.1 8.50 7.45 3.52 2.36
TH4B2421S TM9Y040A10MP11 14.5 CF/CM/CU30A 675 24.0 16.8 15.50 13.00 24.0 15.3 9.00 8.05 3.72 2.60
TH4B2421S TM9Y040A10MP11 14.5 CF/CM/CU30B 700 24.0 17.2 15.75 13.00 24.0 15.3 9.25 7.85 3.78 2.60
TH4B2421S TM9Y080B12MP11 17.5 CF/CM/CU24B 700 24.0 17.8 15.25 12.75 24.0 14.9 8.50 7.55 3.60 2.42
TH4B2421S TM9Y080B12MP11 17.5 CF/CM/CU24C 700 24.0 17.8 15.50 13.00 24.0 14.9 8.50 7.55 3.60 2.42
TH4B2421S TM9Y080B12MP11 17.5 CF/CM/CU30B 700 24.0 17.2 15.75 13.00 24.0 15.1 9.25 7.80 3.90 2.66
TH4B2421S TM9Y080B12MP11 17.5 CF/CM/CU30C 700 24.0 17.2 15.75 13.00 24.0 15.1 9.25 7.75 3.90 2.68
TH4B2421S TM9Y100C16MP11 21.0 CF/CM/CU24C 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.50 2.38
TH4B2421S TM9Y100C16MP11 21.0 CF/CM/CU30C 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.78 2.66
TH4B2421S TM9Y100C16MP11 21.0 CF/CM/CU30D 650 24.0 16.7 15.75 13.00 24.0 15.0 9.25 7.85 3.82 2.66
TH4B2421S TMLV060A12MP12C 14.5 CF/CM/CU24A 625 23.8 16.8 15.00 12.75 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TMLV060A12MP12C 14.5 CF/CM/CU24B 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.48 2.38
TH4B2421S TMLV060A12MP12C 14.5 CF/CM/CU30A 625 24.0 16.5 15.75 13.00 24.0 15.1 9.25 7.85 3.76 2.64
TH4B2421S TMLV060A12MP12C 14.5 CF/CM/CU30B 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.78 2.66
TH4B2421S TMLV080B12MP12C 17.5 CF/CM/CU24B 625 23.8 16.8 15.00 12.50 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TMLV080B12MP12C 17.5 CF/CM/CU24C 675 24.0 17.5 15.25 12.75 24.0 14.9 8.50 7.50 3.56 2.40
TH4B2421S TMLV080B12MP12C 17.5 CF/CM/CU30B 625 24.0 16.4 15.75 13.00 24.0 15.1 9.00 7.65 3.76 2.64
TH4B2421S TMLV080B12MP12C 17.5 CF/CM/CU30C 625 24.0 16.5 15.75 13.00 24.0 15.1 9.25 7.85 3.76 2.64
TH4B2421S TMLV080C16MP12C 21.0 CF/CM/CU24C 875 24.0 19.5 15.50 13.00 24.0 14.8 8.75 7.70 3.80 2.46
TH4B2421S TMLV080C16MP12C 21.0 CF/CM/CU30C 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TMLV080C16MP12C 21.0 CF/CM/CU30D 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TMLV100C16MP12C 21.0 CF/CM/CU24C 875 24.0 19.5 15.50 13.00 24.0 14.8 8.75 7.70 3.80 2.46
TH4B2421S TMLV100C16MP12C 21.0 CF/CM/CU30C 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TMLV100C16MP12C 21.0 CF/CM/CU30D 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TMLX060A12MP11 14.5 CF/CM/CU24A 625 23.8 16.8 15.00 12.75 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TMLX060A12MP11 14.5 CF/CM/CU24B 650 24.0 17.3 15.25 12.75 24.0 14.9 8.50 7.50 3.52 2.40
TH4B2421S TMLX060A12MP11 14.5 CF/CM/CU30A 625 24.0 16.4 15.75 13.00 24.0 15.1 9.00 7.65 3.74 2.64
TH4B2421S TMLX060A12MP11 14.5 CF/CM/CU30B 650 24.0 16.7 15.75 13.00 24.0 15.1 9.25 7.85 3.80 2.66
TH4B2421S TMLX080B12MP11 17.5 CF/CM/CU24B 675 24.0 17.5 15.50 12.75 24.0 14.9 8.50 7.50 3.58 2.40
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
Johnson Controls Unitary Products 15
TH4B2421S TMLX080B12MP11 17.5 CF/CM/CU24C 675 24.0 17.4 15.50 13.00 24.0 14.9 8.50 7.55 3.58 2.40
TH4B2421S TMLX080B12MP11 17.5 CF/CM/CU30B 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.85 3.84 2.68
TH4B2421S TMLX080B12MP11 17.5 CF/CM/CU30C 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.80 3.84 2.68
TH4B2421S TMLX080C16MP11 21.0 CF/CM/CU24C 700 24.0 17.7 15.50 13.00 24.0 14.8 8.50 7.55 3.62 2.42
TH4B2421S TMLX080C16MP11 21.0 CF/CM/CU30C 700 24.0 17.2 15.75 13.00 24.0 15.0 9.50 8.00 3.92 2.70
TH4B2421S TMLX080C16MP11 21.0 CF/CM/CU30D 725 24.0 17.4 15.75 13.00 24.0 14.9 9.50 8.00 3.96 2.72
TH4B2421S TMLX100C16MP11 21.0 CF/CM/CU24C 700 24.0 17.7 15.50 13.00 24.0 14.8 8.50 7.55 3.62 2.42
TH4B2421S TMLX100C16MP11 21.0 CF/CM/CU30C 700 24.0 17.2 15.75 13.00 24.0 15.0 9.50 8.00 3.92 2.70
TH4B2421S TMLX100C16MP11 21.0 CF/CM/CU30D 725 24.0 17.4 15.75 13.00 24.0 14.9 9.50 8.00 3.96 2.72
TH4B2421S TP9C060B12MP13C 17.5 CF/CM/CU24B 600 23.6 16.5 15.00 12.50 24.0 15.0 8.20 7.40 3.42 2.36
TH4B2421S TP9C060B12MP13C 17.5 CF/CM/CU24C 650 24.0 17.2 15.25 12.75 24.0 14.9 8.50 7.50 3.50 2.40
TH4B2421S TP9C060B12MP13C 17.5 CF/CM/CU30B 600 24.0 16.2 15.75 13.00 24.0 15.1 9.00 7.65 3.72 2.62
TH4B2421S TP9C060B12MP13C 17.5 CF/CM/CU30C 650 24.0 16.7 15.75 13.00 24.0 15.1 9.25 7.85 3.80 2.64
TH4B2421S TP9C080B12MP13C 17.5 CF/CM/CU24B 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.48 2.38
TH4B2421S TP9C080B12MP13C 17.5 CF/CM/CU24C 675 24.0 17.5 15.50 12.75 24.0 14.9 8.50 7.55 3.58 2.40
TH4B2421S TP9C080B12MP13C 17.5 CF/CM/CU30B 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.76 2.66
TH4B2421S TP9C080B12MP13C 17.5 CF/CM/CU30C 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.80 3.84 2.68
TH4B2421S TP9C080C16MP13C 21.0 CF/CM/CU30C 950 24.0 19.5 15.75 13.00 24.0 15.1 9.50 7.90 4.08 2.72
TH4B2421S TP9C080C16MP13C 21.0 CF/CM/CU30D 950 24.0 19.5 15.75 13.00 24.0 15.1 9.50 7.90 4.10 2.72
TH4B2421S TP9C100C16MP13C 21.0 CF/CM/CU24C 900 24.0 18.7 15.00 12.75 23.4 14.3 8.75 7.80 3.76 2.54
TH4B2421S TP9C100C16MP13C 21.0 CF/CM/CU30C 900 24.0 19.0 15.75 13.00 24.0 15.0 9.50 7.90 4.10 2.74
TH4B2421S TP9C100C16MP13C 21.0 CF/CM/CU30D 900 24.0 19.0 15.75 13.00 24.0 15.0 9.50 7.90 4.10 2.74
TH4B2421S TPLC060A12MP13C 14.5 CF/CM/CU24A 625 23.8 16.8 15.00 12.75 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TPLC060A12MP13C 14.5 CF/CM/CU24B 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.48 2.38
TH4B2421S TPLC060A12MP13C 14.5 CF/CM/CU30A 625 24.0 16.5 15.75 13.00 24.0 15.1 9.25 7.85 3.76 2.64
TH4B2421S TPLC060A12MP13C 14.5 CF/CM/CU30B 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.78 2.66
TH4B2421S TPLC080B12MP13C 17.5 CF/CM/CU24B 625 23.8 16.8 15.00 12.50 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S TPLC080B12MP13C 17.5 CF/CM/CU24C 675 24.0 17.5 15.25 12.75 24.0 14.9 8.50 7.50 3.56 2.40
TH4B2421S TPLC080B12MP13C 17.5 CF/CM/CU30B 625 24.0 16.4 15.75 13.00 24.0 15.1 9.00 7.65 3.76 2.64
TH4B2421S TPLC080B12MP13C 17.5 CF/CM/CU30C 625 24.0 16.5 15.75 13.00 24.0 15.1 9.25 7.85 3.76 2.64
TH4B2421S TPLC080C16MP13C 21.0 CF/CM/CU24C 875 24.0 19.5 15.50 13.00 24.0 14.8 8.75 7.70 3.80 2.46
TH4B2421S TPLC080C16MP13C 21.0 CF/CM/CU30C 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TPLC080C16MP13C 21.0 CF/CM/CU30D 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TPLC100C16MP13C 21.0 CF/CM/CU24C 875 24.0 19.5 15.50 13.00 24.0 14.8 8.75 7.70 3.80 2.46
TH4B2421S TPLC100C16MP13C 21.0 CF/CM/CU30C 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S TPLC100C16MP13C 21.0 CF/CM/CU30D 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S LP9C060B12MP13C 17.5 CF/CM/CU24B 600 23.6 16.5 15.00 12.50 24.0 15.0 8.20 7.40 3.42 2.36
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
16 Johnson Controls Unitary Products
TH4B2421S LP9C060B12MP13C 17.5 CF/CM/CU24C 650 24.0 17.2 15.25 12.75 24.0 14.9 8.50 7.50 3.50 2.40
TH4B2421S LP9C060B12MP13C 17.5 CF/CM/CU30B 600 24.0 16.2 15.75 13.00 24.0 15.1 9.00 7.65 3.72 2.62
TH4B2421S LP9C060B12MP13C 17.5 CF/CM/CU30C 650 24.0 16.7 15.75 13.00 24.0 15.1 9.25 7.85 3.80 2.64
TH4B2421S LP9C080B12MP13C 17.5 CF/CM/CU24B 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.48 2.38
TH4B2421S LP9C080B12MP13C 17.5 CF/CM/CU24C 675 24.0 17.5 15.50 12.75 24.0 14.9 8.50 7.55 3.58 2.40
TH4B2421S LP9C080B12MP13C 17.5 CF/CM/CU30B 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.76 2.66
TH4B2421S LP9C080B12MP13C 17.5 CF/CM/CU30C 675 24.0 16.9 15.75 13.00 24.0 15.0 9.25 7.80 3.84 2.68
TH4B2421S LP9C080C16MP13C 21.0 CF/CM/CU30C 950 24.0 19.5 15.75 13.00 24.0 15.1 9.50 7.90 4.08 2.72
TH4B2421S LP9C080C16MP13C 21.0 CF/CM/CU30D 950 24.0 19.5 15.75 13.00 24.0 15.1 9.50 7.90 4.10 2.72
TH4B2421S LP9C100C16MP13C 21.0 CF/CM/CU24C 900 24.0 18.7 15.00 12.75 23.4 14.3 8.75 7.80 3.76 2.54
TH4B2421S LP9C100C16MP13C 21.0 CF/CM/CU30C 900 24.0 19.0 15.75 13.00 24.0 15.0 9.50 7.90 4.10 2.74
TH4B2421S LP9C100C16MP13C 21.0 CF/CM/CU30D 900 24.0 19.0 15.75 13.00 24.0 15.0 9.50 7.90 4.10 2.74
TH4B2421S LPLC060A12MP13C 14.5 CF/CM/CU24A 625 23.8 16.8 15.00 12.75 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S LPLC060A12MP13C 14.5 CF/CM/CU24B 625 23.8 16.8 15.25 12.75 24.0 14.9 8.20 7.45 3.48 2.38
TH4B2421S LPLC060A12MP13C 14.5 CF/CM/CU30A 625 24.0 16.5 15.75 13.00 24.0 15.1 9.25 7.85 3.76 2.64
TH4B2421S LPLC060A12MP13C 14.5 CF/CM/CU30B 625 24.0 16.5 15.75 13.00 24.0 15.0 9.25 7.90 3.78 2.66
TH4B2421S LPLC080B12MP13C 17.5 CF/CM/CU24B 625 23.8 16.8 15.00 12.50 24.0 15.0 8.20 7.45 3.48 2.36
TH4B2421S LPLC080B12MP13C 17.5 CF/CM/CU24C 675 24.0 17.5 15.25 12.75 24.0 14.9 8.50 7.50 3.56 2.40
TH4B2421S LPLC080B12MP13C 17.5 CF/CM/CU30B 625 24.0 16.4 15.75 13.00 24.0 15.1 9.00 7.65 3.76 2.64
TH4B2421S LPLC080B12MP13C 17.5 CF/CM/CU30C 625 24.0 16.5 15.75 13.00 24.0 15.1 9.25 7.85 3.76 2.64
TH4B2421S LPLC080C16MP13C 21.0 CF/CM/CU24C 875 24.0 19.5 15.50 13.00 24.0 14.8 8.75 7.70 3.80 2.46
TH4B2421S LPLC080C16MP13C 21.0 CF/CM/CU30C 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S LPLC080C16MP13C 21.0 CF/CM/CU30D 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S LPLC100C16MP13C 21.0 CF/CM/CU24C 875 24.0 19.5 15.50 13.00 24.0 14.8 8.75 7.70 3.80 2.46
TH4B2421S LPLC100C16MP13C 21.0 CF/CM/CU30C 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B2421S LPLC100C16MP13C 21.0 CF/CM/CU30D 875 24.0 18.7 15.75 13.00 24.0 15.0 9.50 7.90 4.08 2.74
TH4B3021S TM8V060A12MP12C 14.5 CF/CM/CU30A 800 28.6 20.8 15.00 12.50 30.0 19.7 9.50 8.50 3.76 2.66
TH4B3021S TM8V060A12MP12C 14.5 CF/CM36A 800 29.2 21.2 15.50 13.00 30.0 20.2 9.50 7.75 4.18 2.88
TH4B3021S TM8V080B12MP12C 17.5 CF/CM/CU30B 825 28.8 21.2 15.00 12.50 30.0 19.7 9.50 8.55 3.78 2.68
TH4B3021S TM8V080B12MP12C 17.5 CF/CM/CU36B 825 29.4 21.6 15.50 13.00 30.0 20.2 9.50 7.70 4.20 2.86
TH4B3021S TM8V080C16MP12C 21.0 CF/CM/CU30C 875 29.2 22.2 15.50 13.00 30.0 19.4 9.50 8.00 3.92 2.74
TH4B3021S TM8V080C16MP12C 21.0 CF/CM/CU30D 875 29.2 22.2 15.75 13.00 30.0 19.4 9.50 7.95 3.92 2.74
TH4B3021S TM8V080C16MP12C 21.0 CF/CM/CU36C 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TM8V080C16MP12C 21.0 CF/CM/CU36D 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TM8V100C16MP12C 21.0 CF/CM/CU30C 875 29.2 22.2 15.50 13.00 30.0 19.4 9.50 8.00 3.92 2.74
TH4B3021S TM8V100C16MP12C 21.0 CF/CM/CU30D 875 29.2 22.2 15.75 13.00 30.0 19.4 9.50 7.95 3.92 2.74
TH4B3021S TM8V100C16MP12C 21.0 CF/CM/CU36C 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
Johnson Controls Unitary Products 17
TH4B3021S TM8V100C16MP12C 21.0 CF/CM/CU36D 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TM8X060A12MP11 14.5 CF/CM/CU30A 875 28.8 21.8 14.75 12.50 30.0 19.7 9.50 8.05 3.80 2.68
TH4B3021S TM8X060A12MP11 14.5 CF/CM36A 875 29.6 22.2 15.25 13.00 30.0 20.2 9.50 7.70 4.22 2.86
TH4B3021S TM8X080B12MP11 17.5 CF/CM/CU30B 825 28.8 21.4 15.50 12.75 30.0 19.5 9.50 8.05 3.82 2.70
TH4B3021S TM8X080B12MP11 17.5 CF/CM/CU36B 825 29.6 21.8 15.75 13.00 30.0 20.0 9.50 7.65 4.26 2.90
TH4B3021S TM8X080C16MP11 21.0 CF/CM/CU30C 950 29.4 23.0 15.75 13.00 30.0 19.4 9.50 7.95 3.98 2.76
TH4B3021S TM8X080C16MP11 21.0 CF/CM/CU30D 975 29.6 23.4 15.75 13.00 29.8 19.4 9.50 7.90 4.00 2.76
TH4B3021S TM8X080C16MP11 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.42 2.96
TH4B3021S TM8X080C16MP11 21.0 CF/CM/CU36D 975 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.44 2.96
TH4B3021S TM8X100C16MP11 21.0 CF/CM/CU30C 950 29.4 23.0 15.75 13.00 30.0 19.4 9.50 7.95 3.98 2.76
TH4B3021S TM8X100C16MP11 21.0 CF/CM/CU30D 975 29.6 23.4 15.75 13.00 29.8 19.4 9.50 7.90 4.00 2.76
TH4B3021S TM8X100C16MP11 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.42 2.96
TH4B3021S TM8X100C16MP11 21.0 CF/CM/CU36D 975 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.44 2.96
TH4B3021S TM8X100C20MP11 21.0 CF/CM/CU30C 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TM8X100C20MP11 21.0 CF/CM/CU30D 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TM8X100C20MP11 21.0 CF/CM/CU36C 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TM8X100C20MP11 21.0 CF/CM/CU36D 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TM8X120C20MP11 21.0 CF/CM/CU30C 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TM8X120C20MP11 21.0 CF/CM/CU30D 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TM8X120C20MP11 21.0 CF/CM/CU36C 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TM8X120C20MP11 21.0 CF/CM/CU36D 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TM8Y060A12MP11 14.5 CF/CM/CU30A 875 28.8 21.8 14.75 12.50 30.0 19.7 9.50 8.05 3.80 2.68
TH4B3021S TM8Y060A12MP11 14.5 CF/CM36A 875 29.6 22.2 15.25 13.00 30.0 20.2 9.50 7.70 4.22 2.86
TH4B3021S TM8Y080B12MP11 17.5 CF/CM/CU30B 825 28.8 21.4 15.50 12.75 30.0 19.5 9.50 8.05 3.82 2.70
TH4B3021S TM8Y080B12MP11 17.5 CF/CM/CU36B 825 29.6 21.8 15.75 13.00 30.0 20.0 9.50 7.65 4.26 2.90
TH4B3021S TM8Y080C16MP11 21.0 CF/CM/CU30C 950 29.4 23.0 15.75 13.00 30.0 19.4 9.50 7.95 3.98 2.76
TH4B3021S TM8Y080C16MP11 21.0 CF/CM/CU30D 975 29.6 23.4 15.75 13.00 29.8 19.4 9.50 7.90 4.00 2.76
TH4B3021S TM8Y080C16MP11 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.42 2.96
TH4B3021S TM8Y080C16MP11 21.0 CF/CM/CU36D 975 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.44 2.96
TH4B3021S TM8Y100C16MP11 21.0 CF/CM/CU30C 950 29.4 23.0 15.75 13.00 30.0 19.4 9.50 7.95 3.98 2.76
TH4B3021S TM8Y100C16MP11 21.0 CF/CM/CU30D 975 29.6 23.4 15.75 13.00 29.8 19.4 9.50 7.90 4.00 2.76
TH4B3021S TM8Y100C16MP11 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.42 2.96
TH4B3021S TM8Y100C16MP11 21.0 CF/CM/CU36D 975 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.44 2.96
TH4B3021S TM8Y100C20MP11 21.0 CF/CM/CU30C 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TM8Y100C20MP11 21.0 CF/CM/CU30D 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TM8Y100C20MP11 21.0 CF/CM/CU36C 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TM8Y100C20MP11 21.0 CF/CM/CU36D 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
18 Johnson Controls Unitary Products
TH4B3021S TM8Y120C20MP11 21.0 CF/CM/CU30C 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TM8Y120C20MP11 21.0 CF/CM/CU30D 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TM8Y120C20MP11 21.0 CF/CM/CU36C 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TM8Y120C20MP11 21.0 CF/CM/CU36D 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TM9E080B12MP11 17.5 CF/CM/CU30B 875 29.0 22.0 15.25 12.75 30.0 19.6 9.50 8.00 3.86 2.70
TH4B3021S TM9E080B12MP11 17.5 CF/CM/CU36B 875 29.8 22.4 15.50 13.00 30.0 20.0 9.50 7.65 4.28 2.90
TH4B3021S TM9E100C16MP11 21.0 CF/CM/CU30C 975 29.4 23.4 15.50 13.00 30.0 19.5 9.50 7.95 3.96 2.74
TH4B3021S TM9E100C16MP11 21.0 CF/CM/CU30D 1000 29.6 23.8 15.50 13.00 30.0 19.4 9.50 7.90 3.96 2.78
TH4B3021S TM9E100C16MP11 21.0 CF/CM/CU36C 975 30.0 23.8 15.75 13.00 30.0 20.0 9.50 7.60 4.40 2.94
TH4B3021S TM9E100C16MP11 21.0 CF/CM/CU36D 1000 30.0 23.8 15.75 13.00 30.0 20.0 9.50 7.55 4.44 2.96
TH4B3021S TM9E120D20MP11 24.5 CF/CM/CU30D 950 29.6 23.2 15.75 13.00 29.8 19.4 9.50 7.90 4.00 2.76
TH4B3021S TM9E120D20MP11 24.5 CF/CM/CU36D 950 30.0 23.4 15.75 13.00 30.0 19.9 9.50 7.55 4.44 2.98
TH4B3021S TM9V060B12MP12C 17.5 CF/CM/CU30B 875 29.0 22.0 15.00 12.50 30.0 19.6 9.50 8.05 3.84 2.70
TH4B3021S TM9V060B12MP12C 17.5 CF/CM/CU36B 875 29.6 22.2 15.25 13.00 30.0 20.2 9.50 7.65 4.24 2.88
TH4B3021S TM9V080B12MP12C 17.5 CF/CM/CU30B 800 28.6 21.0 15.25 12.75 30.0 19.6 9.50 8.05 3.80 2.68
TH4B3021S TM9V080B12MP12C 17.5 CF/CM/CU36B 800 29.2 21.4 15.75 13.00 30.0 20.0 9.50 7.75 4.22 2.88
TH4B3021S TM9V080B12MP12C 17.5 CF/CM/CU36B 850 29.4 22.0 15.50 13.00 30.0 20.0 9.50 7.65 4.28 2.90
TH4B3021S TM9V080C16MP12C 21.0 CF/CM/CU30C 950 29.4 23.0 15.50 12.75 30.0 19.5 9.50 7.95 3.94 2.74
TH4B3021S TM9V080C16MP12C 21.0 CF/CM/CU30D 950 29.4 23.0 15.50 13.00 30.0 19.5 9.50 7.95 3.96 2.74
TH4B3021S TM9V080C16MP12C 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.38 2.94
TH4B3021S TM9V080C16MP12C 21.0 CF/CM/CU36D 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.55 4.40 2.94
TH4B3021S TM9V100C16MP12C 21.0 CF/CM/CU30C 900 29.2 22.4 15.75 13.00 30.0 19.5 9.50 7.95 3.92 2.74
TH4B3021S TM9V100C16MP12C 21.0 CF/CM/CU30D 900 29.4 22.6 15.75 13.00 29.8 19.4 9.50 7.95 3.94 2.74
TH4B3021S TM9V100C16MP12C 21.0 CF/CM/CU36C 900 30.0 22.8 15.75 13.00 30.0 19.9 9.50 7.55 4.38 2.94
TH4B3021S TM9V100C16MP12C 21.0 CF/CM/CU36D 900 30.0 22.8 15.75 13.00 30.0 19.9 9.50 7.60 4.38 2.94
TH4B3021S TM9V100C20MP12C 21.0 CF/CM/CU30D 1100 29.8 25.0 15.50 12.75 30.0 19.4 9.50 7.90 4.06 2.80
TH4B3021S TM9V100C20MP12C 21.0 CF/CM/CU36C 1100 30.0 25.0 15.50 13.00 30.0 20.0 9.50 7.55 4.44 2.94
TH4B3021S TM9V100C20MP12C 21.0 CF/CM/CU36D 1100 30.0 25.0 15.75 13.00 30.0 20.0 9.50 7.55 4.46 2.96
TH4B3021S TM9V120D20MP12C 24.5 CF/CM/CU30D 1050 29.8 24.6 15.75 13.00 29.8 19.2 9.50 7.90 4.06 2.84
TH4B3021S TM9V120D20MP12C 24.5 CF/CM/CU36D 1050 30.0 24.6 15.75 13.00 30.0 19.9 9.50 7.45 4.52 3.00
TH4B3021S TM9Y080B12MP11 17.5 CF/CM/CU30B 875 29.0 22.0 15.25 12.75 30.0 19.6 9.50 8.00 3.86 2.70
TH4B3021S TM9Y080B12MP11 17.5 CF/CM/CU36B 875 29.8 22.4 15.50 13.00 30.0 20.0 9.50 7.65 4.28 2.90
TH4B3021S TM9Y100C16MP11 21.0 CF/CM/CU30C 975 29.4 23.4 15.50 13.00 30.0 19.5 9.50 7.95 3.96 2.74
TH4B3021S TM9Y100C16MP11 21.0 CF/CM/CU30D 1000 29.6 23.8 15.50 13.00 30.0 19.4 9.50 7.90 3.96 2.78
TH4B3021S TM9Y100C16MP11 21.0 CF/CM/CU36C 975 30.0 23.8 15.75 13.00 30.0 20.0 9.50 7.60 4.40 2.94
TH4B3021S TM9Y100C16MP11 21.0 CF/CM/CU36D 1000 30.0 23.8 15.75 13.00 30.0 20.0 9.50 7.55 4.44 2.96
TH4B3021S TM9Y120D20MP11 24.5 CF/CM/CU30D 950 29.6 23.2 15.75 13.00 29.8 19.4 9.50 7.90 4.00 2.76
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
Johnson Controls Unitary Products 19
TH4B3021S TM9Y120D20MP11 24.5 CF/CM/CU36D 950 30.0 23.4 15.75 13.00 30.0 19.9 9.50 7.55 4.44 2.98
TH4B3021S TMLV060A12MP12C 14.5 CF/CM/CU30A 800 28.6 20.8 15.00 12.50 30.0 19.7 9.50 8.50 3.76 2.66
TH4B3021S TMLV060A12MP12C 14.5 CF/CM36A 800 29.2 21.2 15.50 13.00 30.0 20.2 9.50 7.75 4.18 2.88
TH4B3021S TMLV080B12MP12C 17.5 CF/CM/CU30B 825 28.8 21.2 15.00 12.50 30.0 19.7 9.50 8.55 3.78 2.68
TH4B3021S TMLV080B12MP12C 17.5 CF/CM/CU36B 825 29.4 21.6 15.50 13.00 30.0 20.2 9.50 7.70 4.20 2.86
TH4B3021S TMLV080C16MP12C 21.0 CF/CM/CU30C 875 29.2 22.2 15.50 13.00 30.0 19.4 9.50 8.00 3.92 2.74
TH4B3021S TMLV080C16MP12C 21.0 CF/CM/CU30D 875 29.2 22.2 15.75 13.00 30.0 19.4 9.50 7.95 3.92 2.74
TH4B3021S TMLV080C16MP12C 21.0 CF/CM/CU36C 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TMLV080C16MP12C 21.0 CF/CM/CU36D 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TMLV100C16MP12C 21.0 CF/CM/CU30C 875 29.2 22.2 15.50 13.00 30.0 19.4 9.50 8.00 3.92 2.74
TH4B3021S TMLV100C16MP12C 21.0 CF/CM/CU30D 875 29.2 22.2 15.75 13.00 30.0 19.4 9.50 7.95 3.92 2.74
TH4B3021S TMLV100C16MP12C 21.0 CF/CM/CU36C 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TMLV100C16MP12C 21.0 CF/CM/CU36D 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TMLX060A12MP11 14.5 CF/CM/CU30A 875 28.8 21.8 14.75 12.50 30.0 19.7 9.50 8.05 3.80 2.68
TH4B3021S TMLX060A12MP11 14.5 CF/CM36A 875 29.6 22.2 15.25 13.00 30.0 20.2 9.50 7.70 4.22 2.86
TH4B3021S TMLX080B12MP11 17.5 CF/CM/CU30B 825 28.8 21.4 15.50 12.75 30.0 19.5 9.50 8.05 3.82 2.70
TH4B3021S TMLX080B12MP11 17.5 CF/CM/CU36B 825 29.6 21.8 15.75 13.00 30.0 20.0 9.50 7.65 4.26 2.90
TH4B3021S TMLX080C16MP11 21.0 CF/CM/CU30C 950 29.4 23.0 15.75 13.00 30.0 19.4 9.50 7.95 3.98 2.76
TH4B3021S TMLX080C16MP11 21.0 CF/CM/CU30D 975 29.6 23.4 15.75 13.00 29.8 19.4 9.50 7.90 4.00 2.76
TH4B3021S TMLX080C16MP11 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.42 2.96
TH4B3021S TMLX080C16MP11 21.0 CF/CM/CU36D 975 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.44 2.96
TH4B3021S TMLX100C16MP11 21.0 CF/CM/CU30C 950 29.4 23.0 15.75 13.00 30.0 19.4 9.50 7.95 3.98 2.76
TH4B3021S TMLX100C16MP11 21.0 CF/CM/CU30D 975 29.6 23.4 15.75 13.00 29.8 19.4 9.50 7.90 4.00 2.76
TH4B3021S TMLX100C16MP11 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.42 2.96
TH4B3021S TMLX100C16MP11 21.0 CF/CM/CU36D 975 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.44 2.96
TH4B3021S TMLX100C20MP11 21.0 CF/CM/CU30C 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TMLX100C20MP11 21.0 CF/CM/CU30D 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TMLX100C20MP11 21.0 CF/CM/CU36C 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TMLX100C20MP11 21.0 CF/CM/CU36D 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TMLX120C20MP11 21.0 CF/CM/CU30C 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TMLX120C20MP11 21.0 CF/CM/CU30D 1000 29.6 23.8 15.75 13.00 30.0 19.3 9.50 7.90 4.00 2.80
TH4B3021S TMLX120C20MP11 21.0 CF/CM/CU36C 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TMLX120C20MP11 21.0 CF/CM/CU36D 1000 30.0 23.8 15.75 13.00 30.0 19.9 9.50 7.55 4.48 2.98
TH4B3021S TP9C060B12MP13C 17.5 CF/CM/CU30B 875 29.0 22.0 15.00 12.50 30.0 19.6 9.50 8.05 3.84 2.70
TH4B3021S TP9C060B12MP13C 17.5 CF/CM/CU36B 875 29.6 22.2 15.25 13.00 30.0 20.2 9.50 7.65 4.24 2.88
TH4B3021S TP9C080B12MP13C 17.5 CF/CM/CU30B 800 28.6 21.0 15.25 12.75 30.0 19.6 9.50 8.05 3.80 2.68
TH4B3021S TP9C080B12MP13C 17.5 CF/CM/CU36B 800 29.2 21.4 15.75 13.00 30.0 20.0 9.50 7.75 4.22 2.88
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD

5523952-LTG-D-1218
20 Johnson Controls Unitary Products
TH4B3021S TP9C080B12MP13C 17.5 CF/CM/CU36B 850 29.4 22.0 15.50 13.00 30.0 20.0 9.50 7.65 4.28 2.90
TH4B3021S TP9C080C16MP13C 21.0 CF/CM/CU30C 950 29.4 23.0 15.50 12.75 30.0 19.5 9.50 7.95 3.94 2.74
TH4B3021S TP9C080C16MP13C 21.0 CF/CM/CU30D 950 29.4 23.0 15.50 13.00 30.0 19.5 9.50 7.95 3.96 2.74
TH4B3021S TP9C080C16MP13C 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.38 2.94
TH4B3021S TP9C080C16MP13C 21.0 CF/CM/CU36D 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.55 4.40 2.94
TH4B3021S TP9C100C16MP13C 21.0 CF/CM/CU30C 900 29.2 22.4 15.75 13.00 30.0 19.5 9.50 7.95 3.92 2.74
TH4B3021S TP9C100C16MP13C 21.0 CF/CM/CU30D 900 29.4 22.6 15.75 13.00 29.8 19.4 9.50 7.95 3.94 2.74
TH4B3021S TP9C100C16MP13C 21.0 CF/CM/CU36C 900 30.0 22.8 15.75 13.00 30.0 19.9 9.50 7.55 4.38 2.94
TH4B3021S TP9C100C16MP13C 21.0 CF/CM/CU36D 900 30.0 22.8 15.75 13.00 30.0 19.9 9.50 7.60 4.38 2.94
TH4B3021S TP9C100C20MP13C 21.0 CF/CM/CU30D 1100 29.8 25.0 15.50 12.75 30.0 19.4 9.50 7.90 4.06 2.80
TH4B3021S TP9C100C20MP13C 21.0 CF/CM/CU36C 1100 30.0 25.0 15.50 13.00 30.0 20.0 9.50 7.55 4.44 2.94
TH4B3021S TP9C100C20MP13C 21.0 CF/CM/CU36D 1100 30.0 25.0 15.75 13.00 30.0 20.0 9.50 7.55 4.46 2.96
TH4B3021S TP9C120D20MP13C 24.5 CF/CM/CU30D 1050 29.8 24.6 15.75 13.00 29.8 19.2 9.50 7.90 4.06 2.84
TH4B3021S TP9C120D20MP13C 24.5 CF/CM/CU36D 1050 30.0 24.6 15.75 13.00 30.0 19.9 9.50 7.45 4.52 3.00
TH4B3021S TPLC060A12MP13C 14.5 CF/CM/CU30A 800 28.6 20.8 15.00 12.50 30.0 19.7 9.50 8.50 3.76 2.66
TH4B3021S TPLC060A12MP13C 14.5 CF/CM36A 800 29.2 21.2 15.50 13.00 30.0 20.2 9.50 7.75 4.18 2.88
TH4B3021S TPLC080B12MP13C 17.5 CF/CM/CU30B 825 28.8 21.2 15.00 12.50 30.0 19.7 9.50 8.55 3.78 2.68
TH4B3021S TPLC080B12MP13C 17.5 CF/CM/CU36B 825 29.4 21.6 15.50 13.00 30.0 20.2 9.50 7.70 4.20 2.86
TH4B3021S TPLC080C16MP13C 21.0 CF/CM/CU30C 875 29.2 22.2 15.50 13.00 30.0 19.4 9.50 8.00 3.92 2.74
TH4B3021S TPLC080C16MP13C 21.0 CF/CM/CU30D 875 29.2 22.2 15.75 13.00 30.0 19.4 9.50 7.95 3.92 2.74
TH4B3021S TPLC080C16MP13C 21.0 CF/CM/CU36C 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TPLC080C16MP13C 21.0 CF/CM/CU36D 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TPLC100C16MP13C 21.0 CF/CM/CU30C 875 29.2 22.2 15.50 13.00 30.0 19.4 9.50 8.00 3.92 2.74
TH4B3021S TPLC100C16MP13C 21.0 CF/CM/CU30D 875 29.2 22.2 15.75 13.00 30.0 19.4 9.50 7.95 3.92 2.74
TH4B3021S TPLC100C16MP13C 21.0 CF/CM/CU36C 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S TPLC100C16MP13C 21.0 CF/CM/CU36D 875 29.8 22.4 15.75 13.00 30.0 19.9 9.50 7.60 4.34 2.94
TH4B3021S LP9C060B12MP13C 17.5 CF/CM/CU30B 875 29.0 22.0 15.00 12.50 30.0 19.6 9.50 8.05 3.84 2.70
TH4B3021S LP9C060B12MP13C 17.5 CF/CM/CU36B 875 29.6 22.2 15.25 13.00 30.0 20.2 9.50 7.65 4.24 2.88
TH4B3021S LP9C080B12MP13C 17.5 CF/CM/CU30B 800 28.6 21.0 15.25 12.75 30.0 19.6 9.50 8.05 3.80 2.68
TH4B3021S LP9C080B12MP13C 17.5 CF/CM/CU36B 800 29.2 21.4 15.75 13.00 30.0 20.0 9.50 7.75 4.22 2.88
TH4B3021S LP9C080B12MP13C 17.5 CF/CM/CU36B 850 29.4 22.0 15.50 13.00 30.0 20.0 9.50 7.65 4.28 2.90
TH4B3021S LP9C080C16MP13C 21.0 CF/CM/CU30C 950 29.4 23.0 15.50 12.75 30.0 19.5 9.50 7.95 3.94 2.74
TH4B3021S LP9C080C16MP13C 21.0 CF/CM/CU30D 950 29.4 23.0 15.50 13.00 30.0 19.5 9.50 7.95 3.96 2.74
TH4B3021S LP9C080C16MP13C 21.0 CF/CM/CU36C 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.60 4.38 2.94
TH4B3021S LP9C080C16MP13C 21.0 CF/CM/CU36D 950 30.0 23.4 15.75 13.00 30.0 20.0 9.50 7.55 4.40 2.94
TH4B3021S LP9C100C16MP13C 21.0 CF/CM/CU30C 900 29.2 22.4 15.75 13.00 30.0 19.5 9.50 7.95 3.92 2.74
TH4B3021S LP9C100C16MP13C 21.0 CF/CM/CU30D 900 29.4 22.6 15.75 13.00 29.8 19.4 9.50 7.95 3.94 2.74
SYSTEM CAPACITY - With High Efficiency Motor Furnaces1
UNIT
MODEL
FURNACE COIL
MODEL2
COOLING HEATING
MODEL WIDTH RATED
CFM NET MBH SEER EER NET MBH HSPF Region IV HSPF Region V COP
TOTAL SENS. 47°F OD 17°F OD 47°F OD 17°F OD
